Smeg MC30RA User Manual

Contents

1. PRECAUTIONS FOR USE.................................................................................................................. 28

2. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL CARE ............................................... 29

3. SAFETY INSTRUCTIONS................................................................................................................... 30

4. INTENDED USE OF THE APPLIANCE .............................................................................................. 32

4.1 Examples of outdoor use .............................................................................................................. 32

5. BEFORE INSTALLATION ................................................................................................................... 33

6. INSTALLATION ................................................................................................................................... 34

6.1 Installation on a support................................................................................................................ 34

6.2 Fitted installation (module only) .................................................................................................... 35

6.3 Fitted installation (with barbecue) ................................................................................................. 36

6.4 Fixed installation ........................................................................................................................... 37

6.5 Connection of the appliance to the gas cylinder (liquid gas connection) ...................................... 39

6.6 Check for any gas leaks................................................................................................................ 40

7. ADAPTATION TO DIFFERENT TYPES OF GAS ............................................................................... 41

7.1 Replacing nozzles......................................................................................................................... 41

8. CONNECTING THE APPLIANCE TO THE MAINS SUPPLY

(NATURAL GAS CONNECTION) ........................................................................................................42

8.1 Burner, nozzle and gas consumption characteristics.................................................................... 43

9. FINAL OPERATIONS FOR GAS APPLIANCES ................................................................................. 44

9.1 Adjusting the minimum for town and natural gas.......................................................................... 44

9.2 Adjusting the minimum for liquid gas ............................................................................................ 44

9.3 Lubrication of gas taps.................................................................................................................. 44

10. KNOW YOUR APPLIANCE............................................................................................................... 45

11. THE CONTROL PANEL ................................................................................................................... 46

12. USING THE APPLIANCE................................................................................................................. 47

12.1 Insertion and replacement of the battery .................................................................................... 47

12.2 Positioning the grid ..................................................................................................................... 47

13. USING THE HOB ............................................................................................................................. 48

13.1 Gas hob ...................................................................................................................................... 48

13.2 Practical tips for using the burners.............................................................................................. 48

13.3 Pan diameters............................................................................................................................. 49

14. CLEANING AND MAINTENANCE .................................................................................................... 50

14.1 Cleaning stainless steel .............................................................................................................. 50

14.2 Cleaning the gas components .................................................................................................... 50

INSTRUCTIONS FOR THE USER: these instructions contain user recommendations, description of the commands and the correct procedures for cleaning and maintenance of the appliance.

INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who must install the appliance, set it functioning and carry out an inspection test.

Precautions for use

1. PRECAUTIONS FOR USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE APPLIANCE. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE PRODUCT. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE AND IN OPEN ENVIRONMENTS. IT CONFORMS TO THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD; ALL OTHER USES ARE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.

DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.

DO NOT DISCARD PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.

DO NOT OBSTRUCT THE OPENINGS, THE VENTILATION AND HEAT DISPERSAL SLITS LOCATED ON THE SIDES AND IN THE BOTTOM PART OF THE PRODUCT.

THE I.D. PLATE WITH TECHNICAL DATA, SERIAL NUMBER AND BRAND NAME IS POSITIONED VISIBLY ON THE BACK OF THE APPLIANCE. THE PLATE MUST NOT BE REMOVED.

NEVER LEAVE THE APPLIANCE UNATTENDED DURING USE.

DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS ON THE EXTERNAL SURFACES: THEY WILL DAMAGE THE SURFACES. USE NORMAL NON-ABRASIVE PRODUCTS AND A WOODEN OR PLASTIC TOOL IF NECESSARY. RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR DEERSKIN.

TO NOT USE WATER JET CLEANERS TO CLEAN THE PRODUCT, SINCE THE POWER OF THE WATER JET MAY CAUSE SERIOUS DAMAGE TO THE SAFETY AND APPEARANCE OF THE PRODUCT.

IF THE KNOB BECOMES DIFFICULT TO TURN, YOU ARE ADVISED TO GET THE TAPS INSPECTED BY AN AUTHORISED SERVICE CENTRE.

IF THE APPLIANCE IS NOT USED FOR A PERIOD OF TIME, CLOSE THE GAS SUPPLY TAP. IF THE APPLIANCE BREAKS DOWN OR DOES NOT WORK CORRECTLY, PLEASE CONTACT CUSTOMER SERVICE.

ALL FAULT REPAIR OPERATIONS MUST BE CARRIED OUT BY AN AUTHORISED SERVICE CENTRE.

The manufacturer declines all responsibility for damage to persons or things caused by the nonobservance of the above prescriptions or deriving from tampering with any part of the appliance or by the use of non-original spares.

Instructions for disposal

2. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL CARE

Our product's packing is made of non-polluting materials, therefore compatible with the environment and recyclable. Please help by disposing of the packing correctly. Find the addresses of collection, recycling and disposal centres from your retailer or from the competent local organisations. Do not throw the packing or any part of it away. They can constitute a suffocation hazard for children, especially the plastic bags.

Your old appliance also needs to be disposed of correctly. Important: hand over your appliance to the local agency authorised for the collection of household appliances no longer in use. Correct disposal means intelligent recycling of valuable materials.

Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to the reduction of the use of hazardous substances in electrical and electronic appliances, as well as to the disposal of refuse. The crossed out bin symbol on the appliance indicates that the product, at the end of its useful life, must be collected separately from other refuse. Therefore, the user must consign the product that has reached the end of its working life to the appropriate differentiated collection centres for electrical and electronic refuse, or deliver it back to the retailer when purchasing an equivalent product, on a one for one basis. Adequate differentiated collection for the subsequent forwarding of the decommissioned product to recycling, treatment and ecologically compatible disposal contributes to avoiding possible negative effects on the environment and on health and promotes the recycling of the materials of which the appliance consists. The illicit disposal of the product by the user results in the application of administrative sanctions.

Safety instructions

3. SAFETY INSTRUCTIONS

REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS. IN YOUR INTERESTS AND FOR YOUR SAFETY IT HAS BEEN ESTABLISHED BY LAW THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS TO BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. OUR REGULAR INSTALLERS GUARANTEE A SATISFACTORY JOB. GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY SUITABLY SKILLED PEOPLE.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, THE PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE APPLIANCE FOLLOWING THE INSTRUCTIONS PROVIDED LATER IN THIS MANUAL. SHOULD THE APPLIANCE NOT FUNCTION CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE. NEVER ATTEMPT TO REPAIR THE APPLIANCE.

THIS PRODUCT IS FACTORY SET FOR THE USE OF LPG GAS SOLD IN APPROPRIATE CYLINDERS AT AUTHORISED CENTRES. SHOULD IT BE NECESSARY TO USE A DIFFERENT TYPE OF GAS, YOU MUST CONTACT THE NEAREST AUTHORISED SERVICE CENTRE.

A GAS CYLINDER, EVEN IF IT APPEARS TO BE EMPTY, MUST ALWAYS BE HANDLED WITH CARE AND IN COMPLIANCE WITH THE SAFETY RULES PROVIDED WITH THE INSTRUCTION. NEVER USE GAS CYLINDERS WITH DENTS OR RUSTED ZONES.

NEVER USE A FLAME TO CHECK THAT GAS IS FLOWING CORRECTLY OUT OF THE BURNERS, OR TO SEARCH FOR ANY GAS LEAKS IN THE APPLIANCE.

DO NOT KEEP A SPARE CYLINDER IN THE VICINITY OF THE APPLIANCE.

NEVER DISCONNECT THE CYLINDER FROM THE PRODUCT WHILE THE PRODUCT IS FUNCTIONING AND IN ANY CASE ALWAYS KEEP AT A DISTANCE FROM THE PRODUCT FOR ANY OPERATION INVOLVING THE CYLINDER.

NEVER PLACE PANS OR CONTAINERS WITH BOTTOMS WHICH ARE NOT PERFECTLY FLAT AND SMOOTH ON THE HOB GRIDS.

THE APPLIANCE BECOMES VERY HOT DURING USE. OVEN GLOVES SHOULD BE WORN IN ORDER TO AVOID BURNS.

NEVER USE PANS OR GRIDDLE PLATES WHICH PROJECT BEYOND THE OUTSIDE EDGE OF THE HOB.

NEVER REST INFLAMMABLE OBJECTS ON THE PRODUCT: IF IT SHOULD ACCIDENTALLY BE SWITCHED ON, THIS MIGHT CAUSE A FIRE.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NEVER TO TOUCH THE HEATING ELEMENTS INSIDE THE APPLIANCE.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO GO NEAR IT OR PLAY WITH IT. WHEN THE PRODUCT IS FUNCTIONING IT MAY BECOME VERY HOT: KEEP CHILDREN AWAY.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE (OFF) POSITION WHEN YOU FINISH USING THE APPLIANCE.

Safety instructions

FOR CONNECTION TO THE GAS CYLINDER, USE ONLY THE APPROPRIATE CONNECTORS AND REGULATORS AVAILABLE ON REQUEST. THESE PRODUCTS ARE ALSO AVAILABLE FROM AUTHORISED SERVICE CENTRES. THE USE OF OTHER PRODUCTS COULD SERIOUSLY COMPROMISE THE SAFETY OF THE APPLIANCE.

NEVER USE THIS APPLIANCE IN A CLOSED SPACE, CAR, VAN, CAMPER OR CARAVAN.

Instructions for the User

4. INTENDED USE OF THE APPLIANCE

The appliance was designed specifically for domestic outdoor use, and is therefore suitable for cooking and heating food. The appliance was not designed and manufactured for professional use. Smeg declines all responsibility for damage arising from incorrect use of the appliance.

THIS APPLIANCE MAY ONLY BE USED OUTDOORS IN THE PRESENCE OF NATURAL VENTILATION, OUTSIDE ANY STAGNANT AREAS, WHERE GAS LEAKS AND COMBUSTION PRODUCTS CAN BE RAPIDLY DISPERSED BY THE WIND AND BY THE NATURAL CONVECTION OF THE AIR.

4.1 Examples of outdoor use

Any delimited area in which the appliance is positioned must comply with the following requirements:

• An area delimited by walls on all four sides, but with at least one permanent opening on the ground and no roof covering.

• Inside a delimited area that includes a roof covering but which has no more than two walls.

• With a partial closure that includes a roof covering but no more than two walls with the following restrictions:

At least 25% of the total surface area of the wall must be completely open. At least 30% of the remaining surface area is open and not delimited.

• In the case of terraces, at least 20% of the total surface areas of the walls, back and front, must be open.

Instructions for the User

5. BEFORE INSTALLATION

Do not discard packing in the home environment. Separate the various waste materials and take them to the nearest special garbage collection centre.

In order to remove all manufacturing residues, it is recommended to clean the appliance. For further information on cleaning see point 14. CLEANING AND MAINTENANCE.

Choose carefully the location where the product will be installed: 1 it must not be too dusty: over time, the dust could block the burners making the use of the product

hazardous;

2 it must not be too exposed to the wind: during use, an excessively strong wind may compromise the

correct operation of the product;

Instructions for the installer

6. INSTALLATION

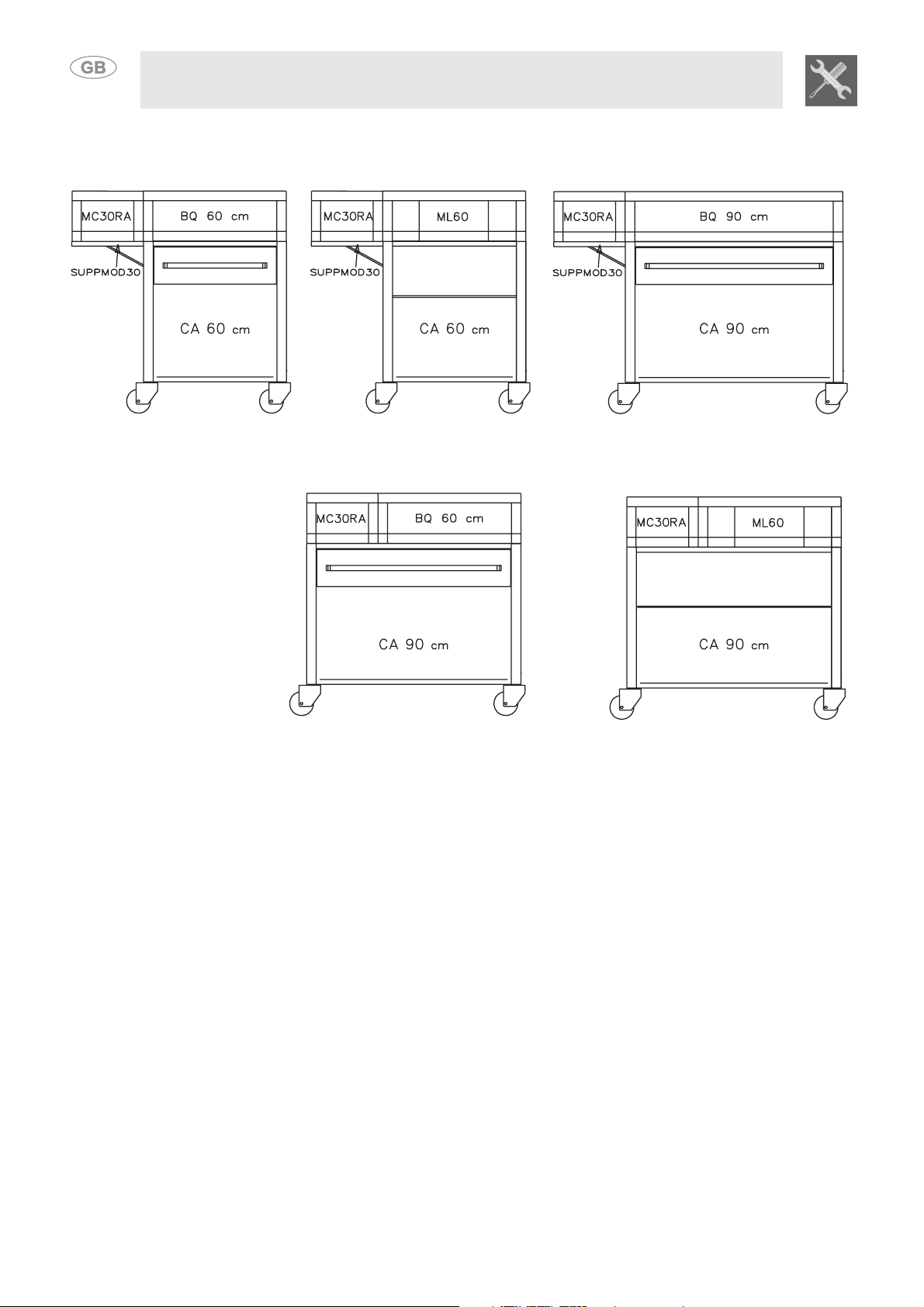

The installation of this product can be free-standing, supported on a table/shelf or built in to a masonry/ wooden structure. In all cases the following instructions must be followed.

6.1 Installation on a support

The product is supplied with 4 four feet that are already screwed in to the sides of the appliance. Position the product on a flat surface and make sure that it is level by screwing the feet in or out.

Never use the product without the appropriate supplied feet screwed correctly as this could compromise the safety of the user and the aesthetic appearance of the product.
