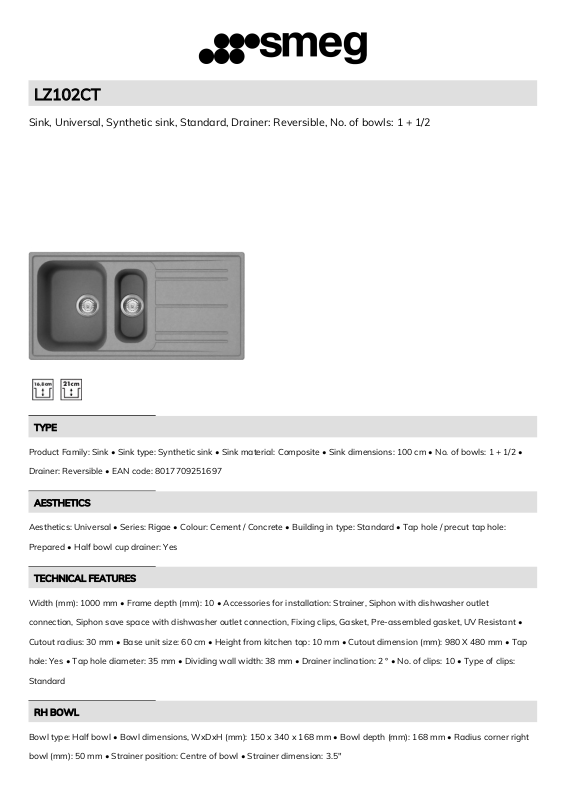

Smeg LZ102CT Technical sheet

LZ102CT

Sink, Universal, Synthetic sink, Standard, Drainer: Reversible, No. of bowls: 1 + 1/2

TYPE

Product Family: Sink • Sink type: Synthetic sink • Sink material: Composite • Sink dimensions: 100 cm • No. of bowls: 1 + 1/2 •

Drainer: Reversible • EAN code: 8017709251697

AESTHETICS

Aesthetics: Universal • Series: Rigae • Colour: Cement / Concrete • Building in type: Standard • Tap hole / precut tap hole:

Prepared • Half bowl cup drainer: Yes

TECHNICAL FEATURES

Width (mm): 1000 mm • Frame depth (mm): 10 • Accessories for installation: Strainer, Siphon with dishwasher outlet

connection, Siphon save space with dishwasher outlet connection, Fixing clips, Gasket, Pre-assembled gasket, UV Resistant •

Cutout radius: 30 mm • Base unit size: 60 cm • Height from kitchen top: 10 mm • Cutout dimension (mm): 980 X 480 mm • Tap

hole: Yes • Tap hole diameter: 35 mm • Dividing wall width: 38 mm • Drainer inclination: 2 ° • No. of clips: 10 • Type of clips:

Standard

RH BOWL

Bowl type: Half bowl • Bowl dimensions, WxDxH (mm): 150 x 340 x 168 mm • Bowl depth (mm): 168 mm • Radius corner right

bowl (mm): 50 mm • Strainer position: Centre of bowl • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 420 x 320 x 210 mm • LH Bowl depth (mm): 210 mm • Radius

corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl: Side bowl • Strainer dimension LH

bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 210x1000x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD050UK: Waste disposal, SinksKITFD075UK: Waste disposal, SinksKITFD100UK: Waste disposal, Sinks
