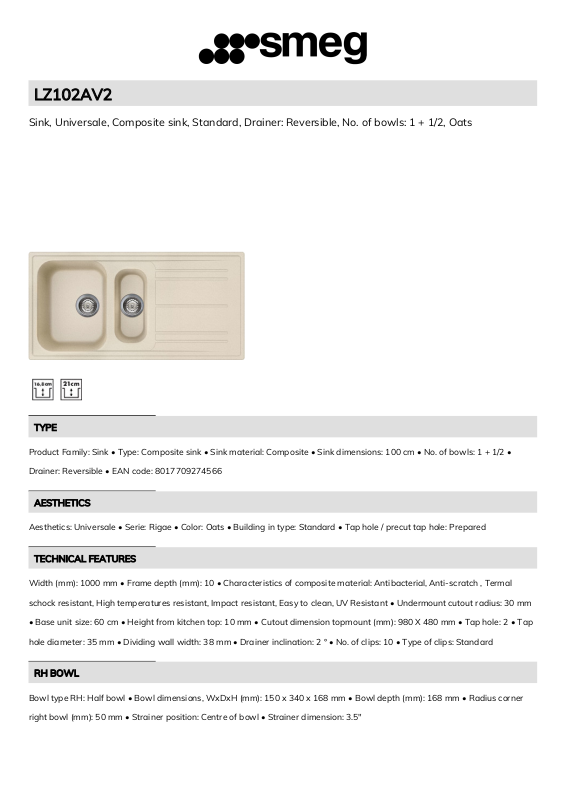

Smeg LZ102AV2 Technical sheet

LZ102AV2

Sink, Universale, Composite sink, Standard, Drainer: Reversible, No. of bowls: 1 + 1/2, Oats

TYPE

Product Family: Sink • Type: Composite sink • Sink material: Composite • Sink dimensions: 100 cm • No. of bowls: 1 + 1/2 •

Drainer: Reversible • EAN code: 8017709274566

AESTHETICS

Aesthetics: Universale • Serie: Rigae • Color: Oats • Building in type: Standard • Tap hole / precut tap hole: Prepared

TECHNICAL FEATURES

Width (mm): 1000 mm • Frame depth (mm): 10 • Characteristics of composite material: Antibacterial, Anti-scratch , Termal

schock resistant, High temperatures resistant, Impact resistant, Easy to clean, UV Resistant • Undermount cutout radius: 30 mm

• Base unit size: 60 cm • Height from kitchen top: 10 mm • Cutout dimension topmount (mm): 980 X 480 mm • Tap hole: 2 • Tap

hole diameter: 35 mm • Dividing wall width: 38 mm • Drainer inclination: 2 ° • No. of clips: 10 • Type of clips: Standard

RH BOWL

Bowl type RH: Half bowl • Bowl dimensions, WxDxH (mm): 150 x 340 x 168 mm • Bowl depth (mm): 168 mm • Radius corner

right bowl (mm): 50 mm • Strainer position: Centre of bowl • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 420 x 320 x 210 mm • LH Bowl depth (mm): 210 mm • Radius

corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl: Side bowl • Strainer dimension LH

bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 210x1000x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,

SinksKITDSQ: Soap Dispenser, SinksMATROL: Drainer, Sinks
