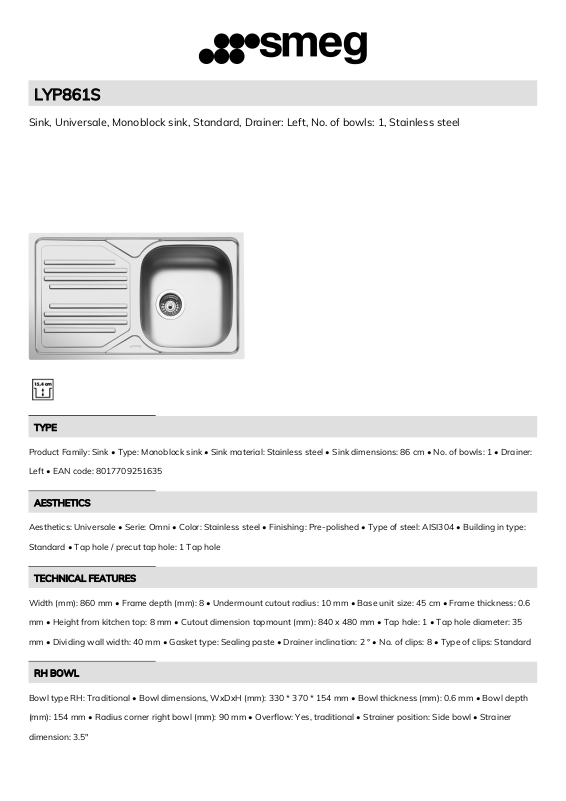

Smeg LYP861S Technical sheet

LYP861S

Sink, Universale, Monoblock sink, Standard, Drainer: Left, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Monoblock sink • Sink material: Stainless steel • Sink dimensions: 86 cm • No. of bowls: 1 • Drainer:

Left • EAN code: 8017709251635

AESTHETICS

Aesthetics: Universale • Serie: Omni • Color: Stainless steel • Finishing: Pre-polished • Type of steel: AISI304 • Building in type:

Standard • Tap hole / precut tap hole: 1 Tap hole

TECHNICAL FEATURES

Width (mm): 860 mm • Frame depth (mm): 8 • Undermount cutout radius: 10 mm • Base unit size: 45 cm • Frame thickness: 0.6

mm • Height from kitchen top: 8 mm • Cutout dimension topmount (mm): 840 x 480 mm • Tap hole: 1 • Tap hole diameter: 35

mm • Dividing wall width: 40 mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No. of clips: 8 • Type of clips: Standard

RH BOWL

Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 330 * 370 * 154 mm • Bowl thickness (mm): 0.6 mm • Bowl depth

(mm): 154 mm • Radius corner right bowl (mm): 90 mm • Overflow: Yes, traditional • Strainer position: Side bowl • Strainer

dimension: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 154x860x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3712:

Siphon, SinksRND1V: Rondò waste kit, SinksMATROL: Drainer, SinksSTABMIX: Stabiliser, Sinks
