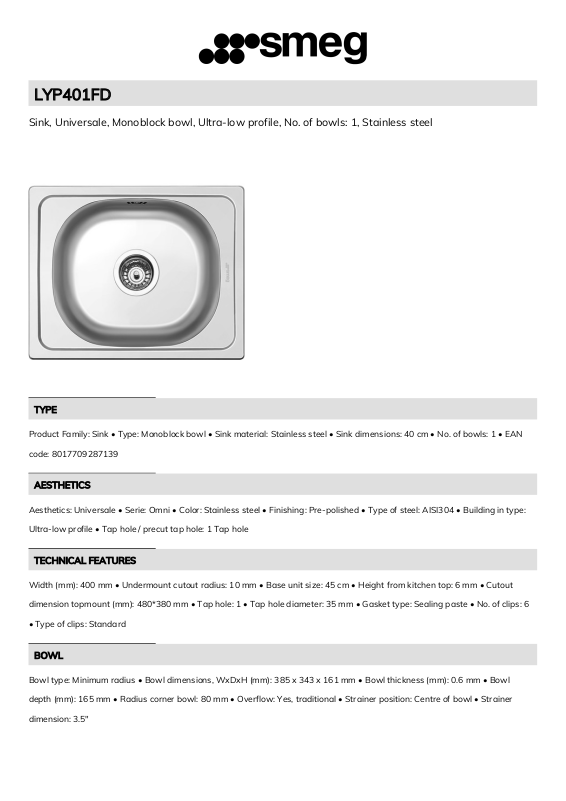

Smeg LYP401FD Technical sheet

LYP401FD

Sink, Universale, Monoblock bowl, Ultra-low profile, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Monoblock bowl • Sink material: Stainless steel • Sink dimensions: 40 cm • No. of bowls: 1 • EAN

code: 8017709287139

AESTHETICS

Aesthetics: Universale • Serie: Omni • Color: Stainless steel • Finishing: Pre-polished • Type of steel: AISI304 • Building in type:

Ultra-low profile • Tap hole / precut tap hole: 1 Tap hole

TECHNICAL FEATURES

Width (mm): 400 mm • Undermount cutout radius: 10 mm • Base unit size: 45 cm • Height from kitchen top: 6 mm • Cutout

dimension topmount (mm): 480*380 mm • Tap hole: 1 • Tap hole diameter: 35 mm • Gasket type: Sealing paste • No. of clips: 6

• Type of clips: Standard

BOWL

Bowl type: Minimum radius • Bowl dimensions, WxDxH (mm): 385 x 343 x 161 mm • Bowl thickness (mm): 0.6 mm • Bowl

depth (mm): 165 mm • Radius corner bowl: 80 mm • Overflow: Yes, traditional • Strainer position: Centre of bowl • Strainer

dimension: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 161x400x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, Sinks3712: Siphon,

SinksSTABMIX: Stabiliser, Sinks
