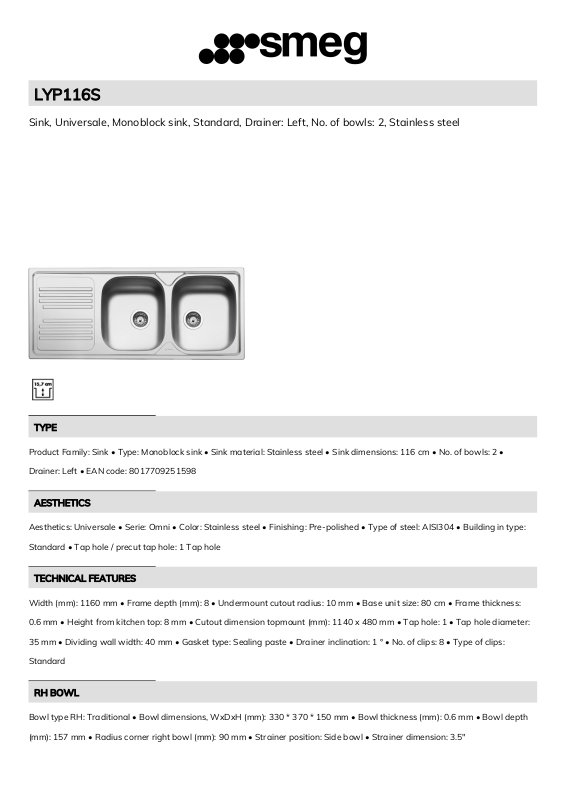

Smeg LYP116S Technical sheet

LYP116S

Sink, Universale, Monoblock sink, Standard, Drainer: Left, No. of bowls: 2, Stainless steel

TYPE

Product Family: Sink • Type: Monoblock sink • Sink material: Stainless steel • Sink dimensions: 116 cm • No. of bowls: 2 •

Drainer: Left • EAN code: 8017709251598

AESTHETICS

Aesthetics: Universale • Serie: Omni • Color: Stainless steel • Finishing: Pre-polished • Type of steel: AISI304 • Building in type:

Standard • Tap hole / precut tap hole: 1 Tap hole

TECHNICAL FEATURES

Width (mm): 1160 mm • Frame depth (mm): 8 • Undermount cutout radius: 10 mm • Base unit size: 80 cm • Frame thickness:

0.6 mm • Height from kitchen top: 8 mm • Cutout dimension topmount (mm): 1140 x 480 mm • Tap hole: 1 • Tap hole diameter:

35 mm • Dividing wall width: 40 mm • Gasket type: Sealing paste • Drainer inclination: 1 ° • No. of clips: 8 • Type of clips:

Standard

RH BOWL

Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 330 * 370 * 150 mm • Bowl thickness (mm): 0.6 mm • Bowl depth

(mm): 157 mm • Radius corner right bowl (mm): 90 mm • Strainer position: Side bowl • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 330 x 370 x 150 mm • Bowl thickness LH (mm): 0.6 mm • LH

Bowl depth (mm): 157 mm • Radius corner left bowl: 90 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:

Side bowl • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 150x1160x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3713:

Siphon, SinksRND2V: Rondò waste kit, SinksMATROL: Drainer, SinksSTABMIX: Stabiliser, Sinks
