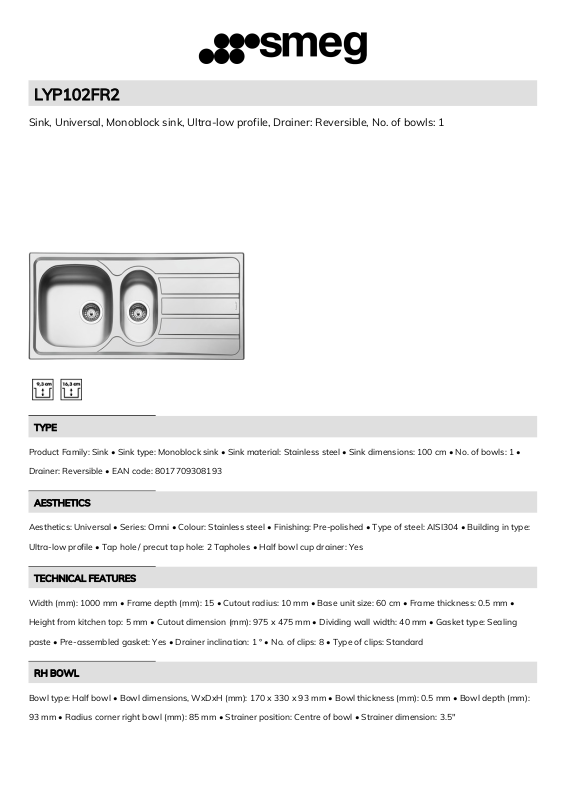

Smeg LYP102FR2 Technical sheet
LYP102FR2
Sink, Universal, Monoblock sink, Ultra-low profile, Drainer: Reversible, No. of bowls: 1
TYPE
Product Family: Sink • Sink type: Monoblock sink • Sink material: Stainless steel • Sink dimensions: 100 cm • No. of bowls: 1 •
Drainer: Reversible • EAN code: 8017709308193
AESTHETICS
Aesthetics: Universal • Series: Omni • Colour: Stainless steel • Finishing: Pre-polished • Type of steel: AISI304 • Building in type:
Ultra-low profile • Tap hole / precut tap hole: 2 Tapholes • Half bowl cup drainer: Yes
TECHNICAL FEATURES
Width (mm): 1000 mm • Frame depth (mm): 15 • Cutout radius: 10 mm • Base unit size: 60 cm • Frame thickness: 0.5 mm •
Height from kitchen top: 5 mm • Cutout dimension (mm): 975 x 475 mm • Dividing wall width: 40 mm • Gasket type: Sealing
paste • Pre-assembled gasket: Yes • Drainer inclination: 1 ° • No. of clips: 8 • Type of clips: Standard
RH BOWL
Bowl type: Half bowl • Bowl dimensions, WxDxH (mm): 170 x 330 x 93 mm • Bowl thickness (mm): 0.5 mm • Bowl depth (mm):
93 mm • Radius corner right bowl (mm): 85 mm • Strainer position: Centre of bowl • Strainer dimension: 3.5"
LH BOWL
Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 342 x 380 x 163 mm • Bowl thickness LH (mm): 0.5 mm • LH
Bowl depth (mm): 163 mm • Radius corner left bowl: 74 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:
Side bowl • Strainer dimension LH bowl: 3.5"
LOGISTIC INFORMATION
Dimensions of the product (mm): 163x1000x500 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Siphon save space with dishwasher outlet connection, Fixing clips, Pre-assembled gasket,
Tap reinforcement, Blanking cap
