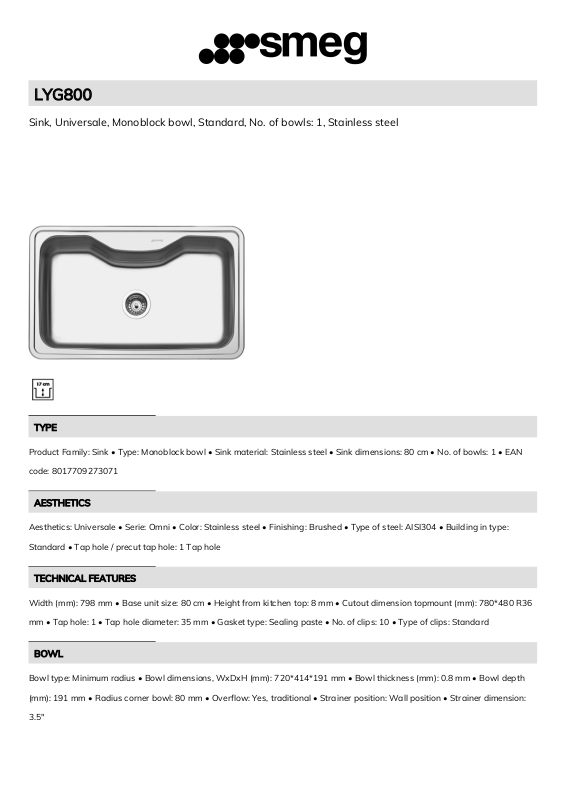

Smeg LYG800 Technical sheet

LYG800

Sink, Universale, Monoblock bowl, Standard, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Monoblock bowl • Sink material: Stainless steel • Sink dimensions: 80 cm • No. of bowls: 1 • EAN

code: 8017709273071

AESTHETICS

Aesthetics: Universale • Serie: Omni • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:

Standard • Tap hole / precut tap hole: 1 Tap hole

TECHNICAL FEATURES

Width (mm): 798 mm • Base unit size: 80 cm • Height from kitchen top: 8 mm • Cutout dimension topmount (mm): 780*480 R36

mm • Tap hole: 1 • Tap hole diameter: 35 mm • Gasket type: Sealing paste • No. of clips: 10 • Type of clips: Standard

BOWL

Bowl type: Minimum radius • Bowl dimensions, WxDxH (mm): 720*414*191 mm • Bowl thickness (mm): 0.8 mm • Bowl depth

(mm): 191 mm • Radius corner bowl: 80 mm • Overflow: Yes, traditional • Strainer position: Wall position • Strainer dimension:

3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 191x798x498 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3712:

Siphon, SinksRND1V: Rondò waste kit, SinksSTABMIX: Stabiliser, Sinks
