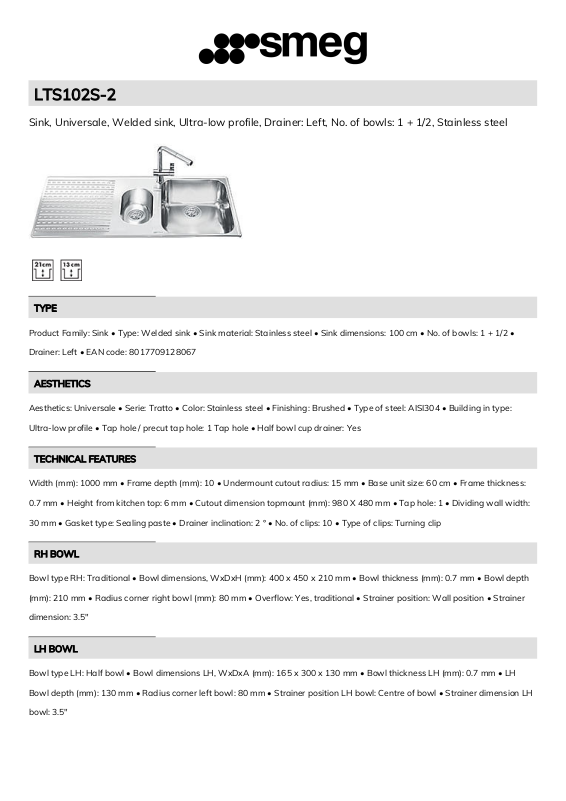

Smeg LTS102S-2 Technical sheet
LTS102S-2
Sink, Universale, Welded sink, Ultra-low profile, Drainer: Left, No. of bowls: 1 + 1/2, Stainless steel
TYPE
Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 100 cm • No. of bowls: 1 + 1/2 •
Drainer: Left • EAN code: 8017709128067
AESTHETICS
Aesthetics: Universale • Serie: Tratto • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:
Ultra-low profile • Tap hole / precut tap hole: 1 Tap hole • Half bowl cup drainer: Yes
TECHNICAL FEATURES
Width (mm): 1000 mm • Frame depth (mm): 10 • Undermount cutout radius: 15 mm • Base unit size: 60 cm • Frame thickness:
0.7 mm • Height from kitchen top: 6 mm • Cutout dimension topmount (mm): 980 X 480 mm • Tap hole: 1 • Dividing wall width:
30 mm • Gasket type: Sealing paste • Drainer inclination: 2 ° • No. of clips: 10 • Type of clips: Turning clip
RH BOWL
Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 400 x 450 x 210 mm • Bowl thickness (mm): 0.7 mm • Bowl depth
(mm): 210 mm • Radius corner right bowl (mm): 80 mm • Overflow: Yes, traditional • Strainer position: Wall position • Strainer
dimension: 3.5"
LH BOWL
Bowl type LH: Half bowl • Bowl dimensions LH, WxDxA (mm): 165 x 300 x 130 mm • Bowl thickness LH (mm): 0.7 mm • LH
Bowl depth (mm): 130 mm • Radius corner left bowl: 80 mm • Strainer position LH bowl: Centre of bowl • Strainer dimension LH
bowl: 3.5"
LOGISTIC INFORMATION
Dimensions of the product (mm): 220x1000x505 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket
OPTIONAL
KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCB45-1: Chopping board,
SinksSTABMIX: Stabiliser, Sinks
