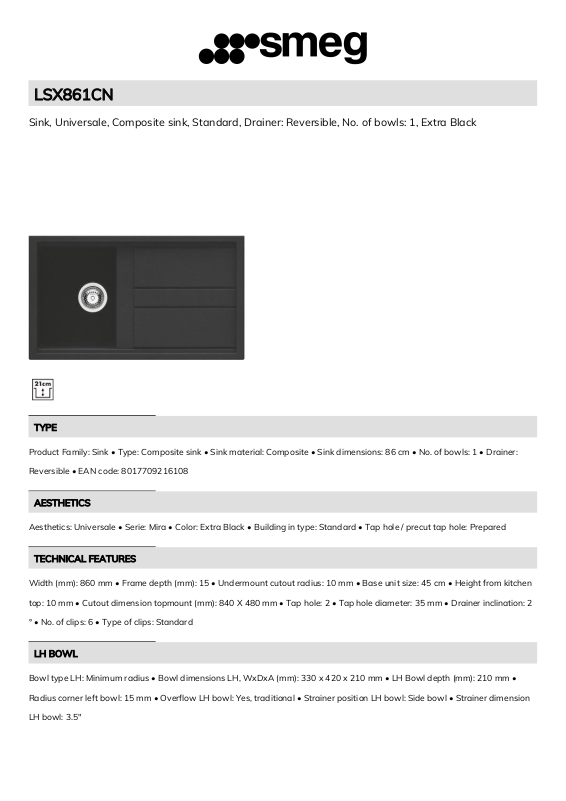

Smeg LSX861CN Technical sheet

LSX861CN

Sink, Universale, Composite sink, Standard, Drainer: Reversible, No. of bowls: 1, Extra Black

TYPE

Product Family: Sink • Type: Composite sink • Sink material: Composite • Sink dimensions: 86 cm • No. of bowls: 1 • Drainer:

Reversible • EAN code: 8017709216108

AESTHETICS

Aesthetics: Universale • Serie: Mira • Color: Extra Black • Building in type: Standard • Tap hole / precut tap hole: Prepared

TECHNICAL FEATURES

Width (mm): 860 mm • Frame depth (mm): 15 • Undermount cutout radius: 10 mm • Base unit size: 45 cm • Height from kitchen

top: 10 mm • Cutout dimension topmount (mm): 840 X 480 mm • Tap hole: 2 • Tap hole diameter: 35 mm • Drainer inclination: 2

° • No. of clips: 6 • Type of clips: Standard

LH BOWL

Bowl type LH: Minimum radius • Bowl dimensions LH, WxDxA (mm): 330 x 420 x 210 mm • LH Bowl depth (mm): 210 mm •

Radius corner left bowl: 15 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl: Side bowl • Strainer dimension

LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 217x860x510 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,

SinksKITDSQ: Soap Dispenser, SinksKITDS: Soap Dispenser, SinksDBSINT34: Basket, Sinks
