Smeg LSA4511BIN User manual [GB]
Contents
1. Description of the controls _______________________________ 2
2. Operating instructions __________________________________ 10
3. Cleaning and maintenance ______________________________ 21

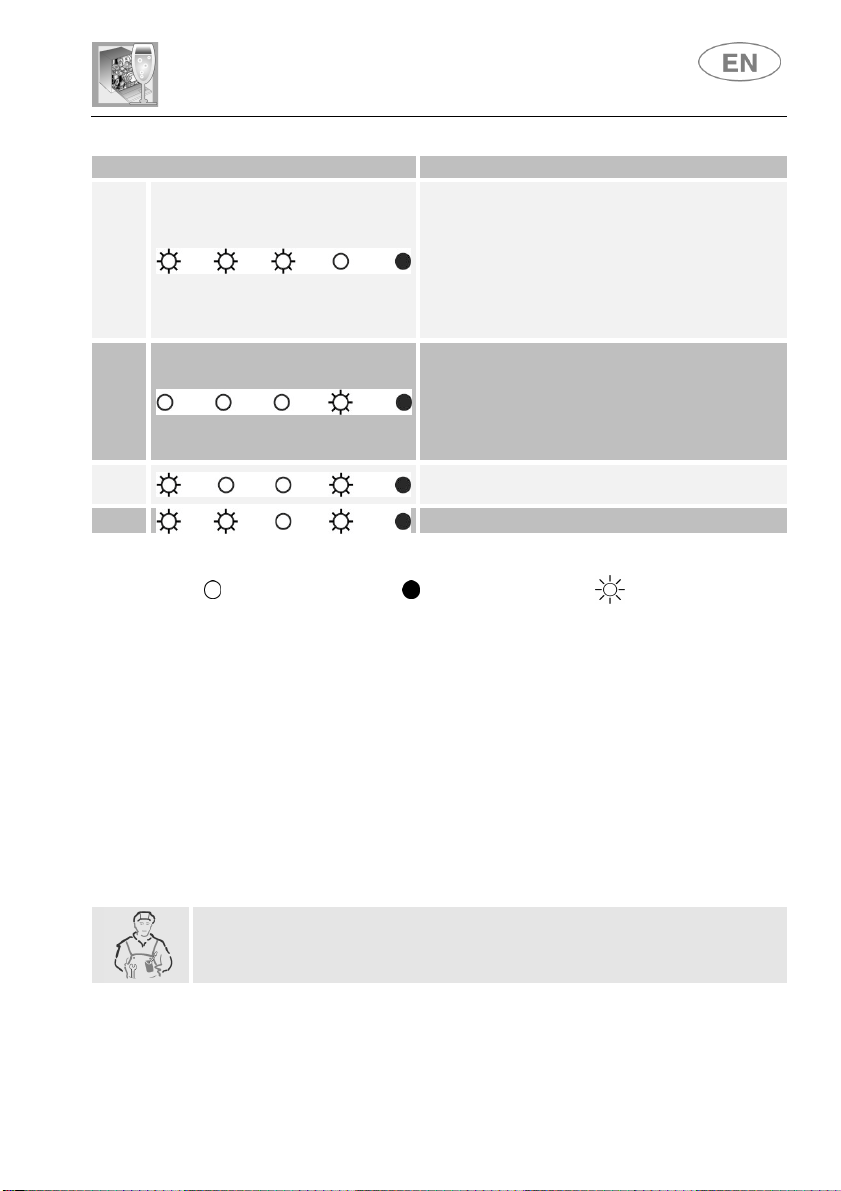

4. Troubleshooting ______________________________________ 26
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use of
your dishwasher.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
1
1. Description of the controls
1.1 Front panel
User instructions
All the dishwasher control are grouped on the front panel. Programming
and option selection are only possible with the door closed.
The panel shown is only a guideline example: the form of the lights and
buttons may vary depending on the model.
1 ON/OFF BUTTON
2 SELECTION PROGRAMS BUTTONS (P1...P5)
3 START/PAUSE BUTTON
4 POWER ON LIGHT
5 PROGRAMS LIGHTS
6 PHASES/PROGRAM LIGHTS
7 NO SALT LIGHT (on some models only)
8 NO RINSE AID LIGHT (on some models only)
9 RECESSED DOOR HANDLE
2
User instructions
ULTRA CLEAN
lights flash
to warn that the ant
i-bacteria effect is not guaranteed.
PROGRAMS TABLE
PROGRAMME
NUMBER
& SYMBOL
1 SOAK
2 RAPID
3 ECO (*)
EN 50242
4 HALF LOAD
5 ULTRA
CLEAN
LOAD CROCKERY AND
CUTLERY
Pans and dishes awaiting
completion of the load
Dishes with light dirt,
washed immediately after
Dishes with normal dirt,
Half load of dishes with
dishes, even with dried-on
use
even with dried-on
residues
normal dirt, washed
immediately after use.
Very dirty pans and
residues.
PROGRAM
PROGRESS
Cold prewash
Wash at 38°C
Rinse at 50°C
Cold prewash
Wash at 45°C
Rinse at 65°C
Dry
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
DURATION
MINUTES
(1)
WATER
LITRES
9 5 0,02
27
**
90
115
The
program terminate with an extra anti-bacteria rinse that ensures
a further reduction in the bacteria level. If the temperature falls during this stage of the
program (e.g. because the door is opened or due to a power blackout), the program
CONSUMPTION
POWER
KWh (1)
6,5 0,70
** **
11 1,20
15 1,60
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
3
NOTES AND REFERENCES
Only
* Standard programme under
EN 50242
.
room temperatures and the type and quantity of dishes loaded.
(2) 1 or 2 cold rinses depending on the model
.
run the soak program with half loads.
Options cannot be used with the soak program.
User instructions
** See information sheet provided
(1) Program consumption and duration figures have been measured in accordance
with the EN 50242 standard. Values may vary depending on intake water and
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
- Annual energy consumption is based on 280 standard wash cycles with cold
water and consumption of low-energy operating modes. Actual consumption
depends on the way in which the appliance is used.
- Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
- Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).
Notice for testing institutes
Testing institutes are provided with guidelines for
comparative tests (e.g. according to EN60436).
If the form for the testing institutes is missing from
the documentation, please request the guidelines
by contacting us at the following e-mail address:
dishwasher@test-domestic-appliances.com
When making a request, please specify the model
(MOD) and the serial number (S/N) indicated on the
plate on the side of the door.
4
User instructions
LIGHTING
lights
(6)
will come on.
PROGRAMMING
PROGRAMS
lights
(5) and
PHASES/PROGRAM
lights
(6) will remain off.
1.2 Washing programs
Before starting a washing program make sure that:
The water supply tap is open.

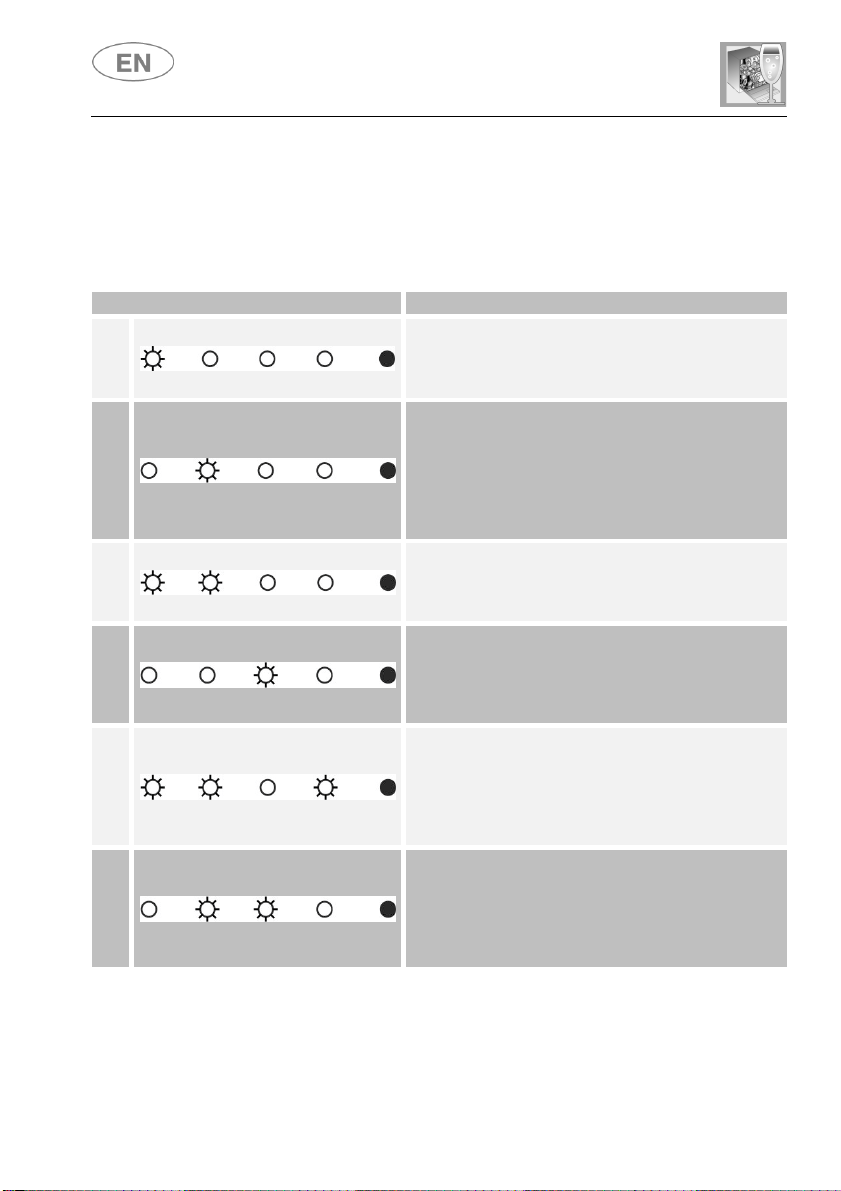

The softener container contains regenerating salt.
The correct amount of detergent has been added to the
dispenser.
The baskets have been correctly loaded.
The spray arms are able to rotate freely and without
obstruction.
The dishwasher door is securely closed.
Warning:
during the initial phase of the washing program, the operation of sprayers
is not perceived because they start rotating about 5 minutes after the start.
This is the normal operation of the washing cycle.
When the ON/OFF button (1) is pressed, the dishwasher switches on and
the light (4) comes on. About 2 seconds later, the PHASES/PROGRAM
In this model of dishwasher, all programming procedures can only be
carried out with the door closed. As long as the door is open, the
5
SELECTION PROGRAM
To run the last four programs in the table, first select the “main” program
(P2, P3, P4, P5)
and then the soak program
P1
.
START PROGRAM
current cycle status.
User instructions
The program selection is possible
through the relative buttons (2).
When the button relating to the program required is pressed, the relative
light will come on to confirm the operation.
To start the dishwasher, press the START/PAUSE button (3) for a few
seconds, until the light of the first phase of the selected program starts to
flash (confirmation beep).
This phase, that updates itself during the cycle, is “indicative” since it is
influenced by the washing conditions such as dishwasher type and
quantity, entry temperature etc. For this reason it is normal to see the
updating during a program (increment and decrease of minutes) specially
in the passage from one phase to the other (for example, from washing to
rinse).
As the program runs, the PHASES/PROGRAM lights (6) will indicate the
The light of the phase in progress will flash,
while the lights of the previous and
subsequent phases remain on.
A: Prewash
B: Wash
C: Rinse
D: Dry
N.B. during execution of programs which
do not include a prewash, the first
PHASES/PROGRAM light (6) will remain
off.
6
User instructions
END PROGRAM
SELECTION PROGRAMS
(2)
effect.
INTERRUPTION OF A PROGRAM
come on (confirmation buzzer).
TO CHANGE A PROGRAM
program.
ANNULLING A PROGRAM
“
I
”).
tank and switch to the end of the cycle.
When the program finishes, a buzzer sounds
briefly and all the PHASES/PROGRAM lights
(6) flash.
Press any of the
flashins, and the dishwasher is now ready to perform a new cycle; opening
and shutting the door or switching the appliance off and on has the same
buttons
, stops the light
In order to interrupt a running program it is necessary:
press the START/PAUSE button (3), the light of the current phase
goes out;
keep the button pressed until the PHASES/PROGRAM lights (6)
To change the running program it is necessary:
to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);
select the new program;
to press again the START/PAUSE button (3) to make start the new
To annul the program in progress, it must first be interrupted (see
NTERRUPTION OF A PROGRAM
Press the START/PAUSE button and hold it down until the first three
program lights come on. The dishwasher will pump out the water in the
7
User instructions
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “START PROGRAM”. The program will resume from the point in
which it was interrupted.
In case that the tub temperature is higher than 50°C the program will
start about 30 seconds later.
TO SAVE ON ENERGY!…AND PROTECT THE ENVIRONMENT
Always use the dishwasher with a full load.
Do not wash the dishes in running water.
Use the washing program that is most appropriate for each type
of load.
Do not carry out any preliminary rinsing.
If available, connect the dishwasher to a hot water supply up to
60°C.

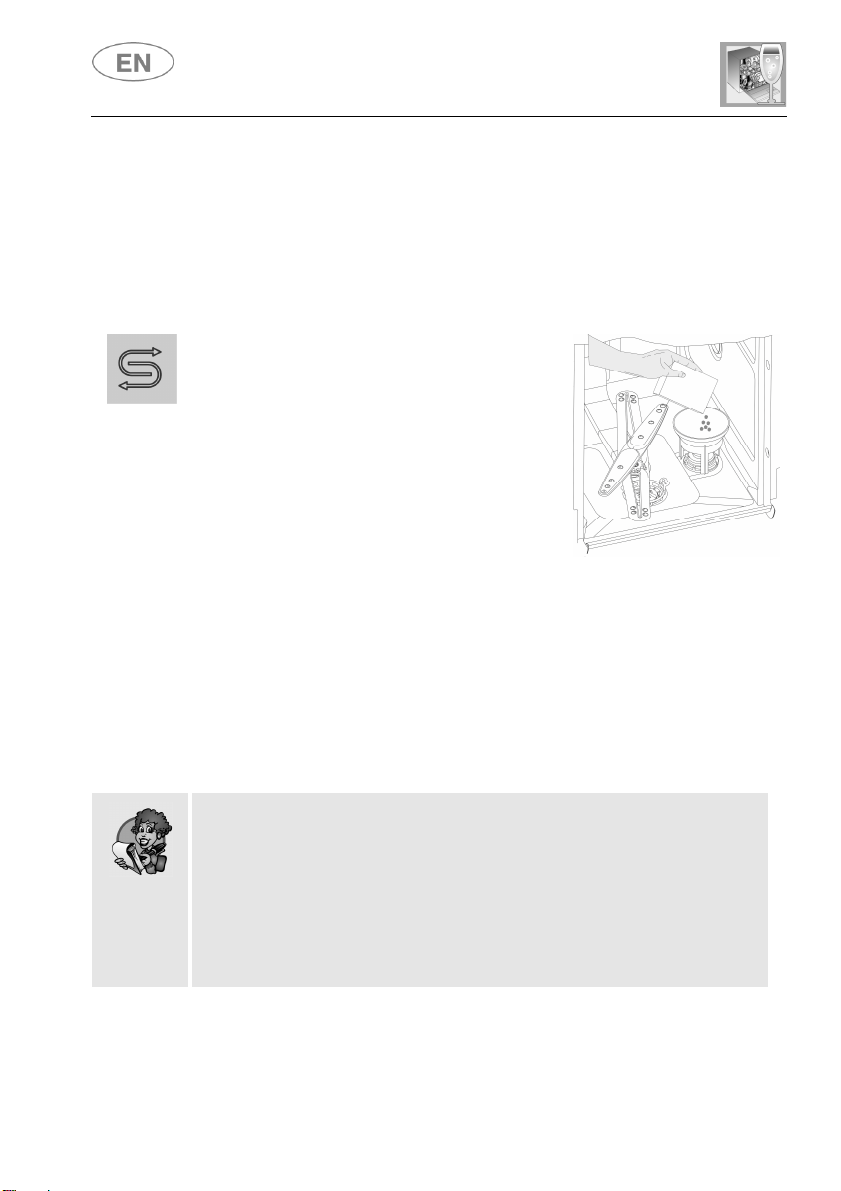

TO REDUCE DETERGENT CONSUMPTION AND PROTECT THE
ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent save on
electricity as well, observe the following recommendations:
Sort your dishes, washing delicate items separately from those
more resistant to strong detergents and high temperatures.
Do not pour detergent directly onto dishes.
8
User instructions

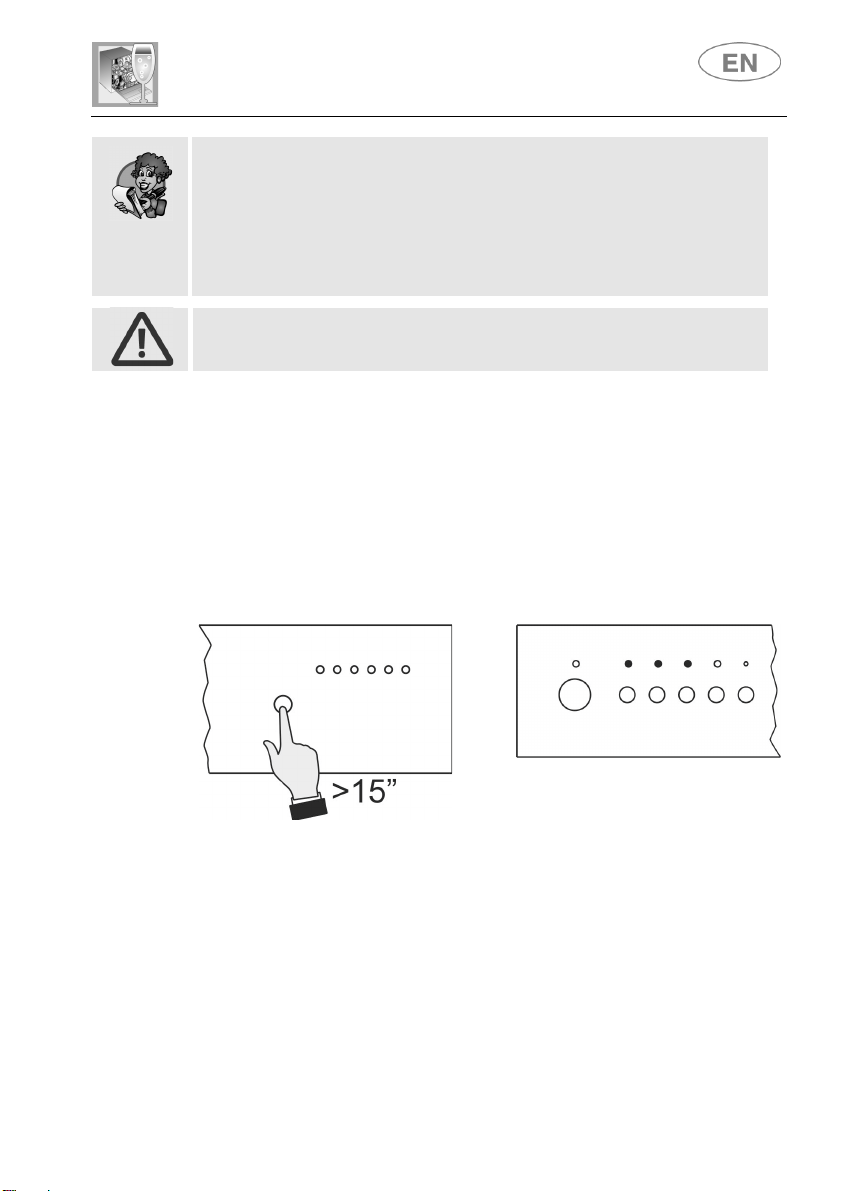

ENERGY MANAGEMENT
on model) functions more slowly (
switch
-
on once
every
5 seconds
).
REMOVING THE DISHES
are advised always to
empty the bottom basket first
.
After 5 minutes of inactivity (wash cycle completed, stopped or set but
not started), the dishwasher switches to standby mode to reduce energy
consumption.
In this mode, the dishwasher indicator panel (lights or display depending
At the end of the wash program, wait at least 20 minutes before removing
the dishes, to allow them to cool. To ensure that any drops of water left in
the top basket do not drip onto the dishes still in the bottom basket, you
9
