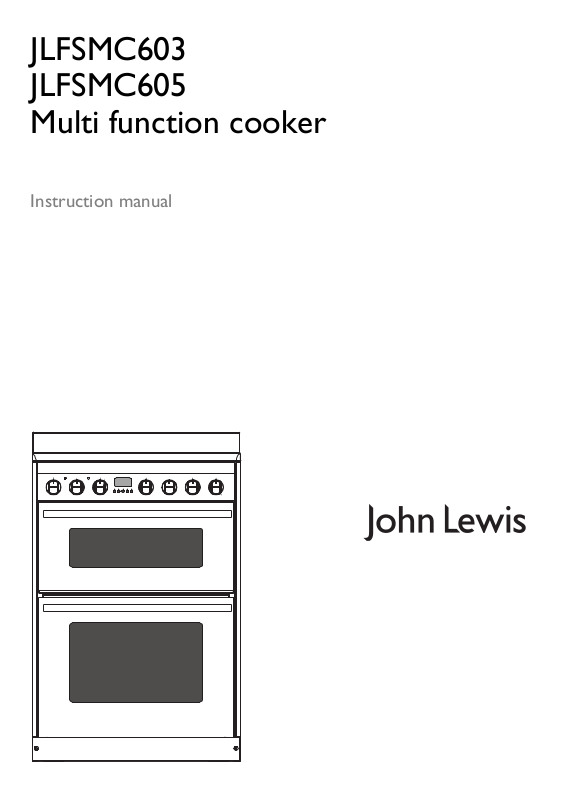

Smeg JLFSMC603, JLFSMC605 Instruction manual

JLFSMC603
JLFSMC605
Multi function cooker

Instruction manual

Important safety information

Thank you for purchasing this appliance.
This manual is an integral part of the
appliance and therefore must be kept in its
entirety and in an accessible place for the
whole working life of the cooker.
Please read the instructions and warnings
carefully before use to ensure safe and
satisfactory operation of this product.
Installation must be carried out by qualified
personnel in accordance with the
regulations in force. This appliance is
intended for domestic uses and conforms to
current regulations in force.
Retain this information for future reference.

The appliance has been built to carry out the
following functions: cooking and heating-up
of food. All other uses are considered
improper. The manufacturer declines all
responsibility for improper use.

All control knobs must be turned to the ‘Off’
position when the cooker is not in us e. If the
cooker is not to be used for a period of time,
such as holidays, the electricity and gas
supplies should be switched off or
disconnected

Never use this appliance for heating room.

Do not obstruct ventilation openings and
heat dispersal slits.

Never lift or drag cooker by the oven
handles as damage may occur.

Before the appliance is put into operation, all
the labels and protective films applied inside
or outside must be removed.

The cooker is not suitable for use by
children. Keep children away from the
cooker when in use.

Never put inflammable objects in the oven:
they could be accindetaly lighted and cause
fires.

Do not use inflammable liquid (alcohol,
petrol etc) near the cooker when it is in use.

In case of a crack being detected in the
glazed ceramic hob, immediately disconnect
from mains and contact the nearest servicing
centre.

Do not use the cooker if the electricity
supply cable is damaged. The cable must be
replaced by qualified personnel.

During use the appliance becomes very hot.
Take care not to touch the heating elements
inside the ovens.

As with all electrical appliances, you should
not:

• Touch the cooker with wet or damp
hands.

• Use the cooker in bare feet.

• Operate the cooker on an extension lead.

• Exposure the cooker to the elements
(rain, sun etc).

If a fault occurs, switch off electricity to the
cooker, turn off the gas supply and contact
the John Lewis branch from which you
purchased your appliance. Always insist on
genuine spare parts.

2

Contents

For the user

Important safety information 2

Guide to using the instruction manual 3

Environmental information 4

Description of the appliance 5

The control panel 6

Using your appliance 7

Before the first use 7
Use of the Ovens 7
Oven functions 8
Using the grill 9
Automatic programmer 10
Use of the hob 12

Cleaning your appliance 14

Cleaning stainless steel 14
Ordinary daily cleaning 14
Food stains or residues 14
Cleaning the oven 14
Cleaning the door glazing 14
Cleaning the hob components 14

Extraordinary maintenance 17

Replacement of light bulb 17
Removing the door 17
Oven door seal 18

For the installer

Installation of the appliance 20

Distances 20
Electrical connection 20
Gas connection 21
Adaptation to different types of gas 22
Levelling the appliance 24
Rear top skirtboard 24
Wall fixing 24

Installation checklist 25

Guide to using the
instruction manual

Safety instructions

Hints and tips

Environmental information

Something not working 19

3

Environmental information

Our product's packing is made of
non-polluting materials, which are
therefore compatible with the
environment and recyclable.
Please help by disposing of the
packaging correctly. You can
obtain the addresses of collection,
recycling and disposal centres
from your retailer or from the
competent local organisations.

Warning! Do not discard the
packaging or any part of it, or
leave it unattended. It can
constitute a suffocation hazard
for children, especially the plastic
bags.

Your old appliance also needs to be disposed
of correctly.
Important: hand over your appliance to the
local agency authorised for the collection of
electrical appliances no longer in use.
Correct disposal enables intelligent recovery
of valuable materials.
Before disposing of your appliance it is
important to remove doors and leave
shelves in the same position as for use, to
ensure that children cannot accidentally
become trapped inside during play. It is also
necessary to cut the connecting cable to the
power grid, removing it along with the plug.

Pursuant to Directives 2002/95/
EC, 2002/96/EC and 2003/108/EC
relating to the reduction of the
use of hazardous substances in
electrical and electronic
appliances, as well as to the
disposal of refuse, the crossed out
bin symbol on the appliance
indicates that at the end of the
useful life of the product, it must
be collected separately from
other refuse. Therefore, at the
end of the product's working life,
the user must deliver it to the
appropriate differentiated
collection centres for electrical
and electronic waste, or deliver it
back to the retailer when
purchasing an equivalent product,
on a one-for-one basis. Adequate
differentiated collection for the
subsequent forwarding of the
decommissioned product to
recycling, processing and
ecologically compatible disposal
contributes to avoiding possible
negative effects on the
environment and on health, and
promotes recycling of the
appliance's constituent materials.
Illicit disposal of the product by
the user will lead to the
application of administrative
sanctions.

4

Description of the appliance

1 Front control panel

2 Oven light (auxiliary oven)

3 Oven guide for shelf and pan (auxiliary

oven)

4 Oven door (auxiliary oven)

5Oven light

6Oven fan

7 Oven guide for shelf and pan

8 Oven door

5

The control panel

1 Oven thermostat knob

2Oven function knob

3 Auxiliary oven function/thermostat knob

4 Automatic programmer

5 Front left cooking zone knob

6 Rear left cooking zone knob

7 Rear right cooking zone knob

8 Front right cooking zone knob

6

Using your appliance

Before the first use

• Remove all packaging and accessories
from inside the ovens.

• The inside of the appliance should be
cleaned to remove all manufacturing
residues.

• Using the oven for the first time, heat
them to the maximum temperature for as
long as it takes to burn off any production
oil residues which could give a nasty
flavour to the food.

Use of the Ovens

Warning! To prevent problems

caused by steam in the oven, open
the door in two stages: half open
(5 cm approx.) for 4-5 seconds
and then fully open.

Keep your face and head away
from the door when opening.

Do not leave the grill pan or
other dishes on the oven base as
damage to the oven may occur.

Before using the oven make sure

that the symbol ; appears on

the display.

The appliance is equipped with a
cooling system which
automatically comes on upon a
few minutes after the oven has
been turned on.
Fans cause a steady outflow of air
from above the door which may
continue for a brief period of time
even after the oven has been
turned off.

To use the main oven:

Caution! During cooking, do not

cover the bottom of the oven
with aluminium or tin foil and do
not place pans or oven trays on it
as this may damage the enamel
coating. If you wish to use
greaseproof paper, place it so that
it will not interfere with the hot
air circulation inside the oven.

Caution! Never cook on the
oven base. Always place dishes
and trays onto an oven shelf.

1 Turn the function selecor knob clockwise

to the desired function.

2 Turn the temperature selector knob

clockwise to the desired temperature.

The orange light comes on to indicate that
the oven is warming up. When it goes out

7

it means that the required temperature
has been reached.

Oven functions

Intermittent going on and off of the light
means that the oven temperature is being
constantly maintained at the programmed
level.

3 To turn the oven off, turn the function

slector and temperature knobs,
anticlockwise back to “0”.

To use the auxiliary oven:

1 Turn the function selector knob clockwise

to the desired function.

2 The temperature can be selected only for

the static function.

The orange light comes on to indicate that
the oven is warming up. When it goes out
it means that the required temperature
has been reached.

Intermittent going on and off of the light
means that the oven temperature is being
constantly maintained at the programmed
level.

3 To turn the oven off, turn the function

slector and temperature knobs,
anticlockwise back to “0”.

When using any of the functions
in the main or auxiliary oven
(except grilling) it is always
recommended that you pre-heat
the oven.

Static (main - auxiliary)

As the heat comes from above and below at
the same time, this system is particularly
suitable for certain types of food.
Traditional cooking, also known as static or
thermal radiation cooking, is suitable for
cooking just one dish at a time. Perfect for all
types of roasts, bread and cakes and in any
case particularly suitable for fatty meats such
as goose and duck.

Grill (main - auxiliary)

The heat coming from the grill element gives
perfect grilling results, especially for thin and
medium thickness meat and, in combination
with the rotisserie (when present), it allows
the food to be browned evenly at the end of
cooking.
Perfect for sausages, ribs and bacon.
This function enables large quantities of
food, particularly meat, to be grilled evenly.

Small grill (auxiliary)

Using only the heat released from the
central element, this function enables small
portions of meat and fish to be grilled for
making kebabs, toasted sandwiches and all
types of grilled vegetable side dishes.

8

Fan-assisted grill (main)

Using the grill

The air produced by the fan softens the
strong heatwave generated by the grill, giving
perfect grilling even with very thick foods.
Perfect for large cuts of meat (e.g. shin of
pork).

Fan-assisted bottom
(main)

The combination of the fan with just the
lower heating element allows cooking to be
completed more rapidly. This system is
recommended for sterilising or for finishing
off the cooking of foods which are already
well-cooked on the surface, but not inside,
which therefore need a little more heat.
Perfect for any type of food.

Bottom (auxiliary)

The heat coming solely from the bottom
makes it possible to complete the cooking of
foods that require a greater basic
temperature, without affecting their
browning. Perfect for cakes, pies, tarts and
pizzas.

Warning! Keep the oven door
closed during grilling.

Warning! During and after use
of the grill the accessible parts can
be very hot; it is therefore
necessary to keep children away
from the appliance.

Caution! The duration of
cooking should not last more than
30 minutes.

Once the grill is lit leave the oven to heat up
for five minutes before placing the food
inside.
Food should be flavoured and basted with oil
or melted butter before cooking. An oven
dish should be used to contain the sauces.
The food should be placed on the oven shelf
which is positioned on one of the guides
supplied with the different ovens, following
the instructions below:

Food Grille on the shelf

Circular (main)

The combination of the fan and the circular
element (incorporated in the rear of the
oven) enables different foods to be cooked
on several levels, as long as they need the
same temperature and cooking time. Hot air
circulation ensures instant and uniform
distribution of heat. It will be possible, for
instance, to cook fish, vegetables and biscuits
simultaneously (on different levels) without
mixing smells and flavours.

Flat or thin meat 3

Rolled roast joints 2 - 3

Poultry 3

9
