Smeg FSP9610X User Manual

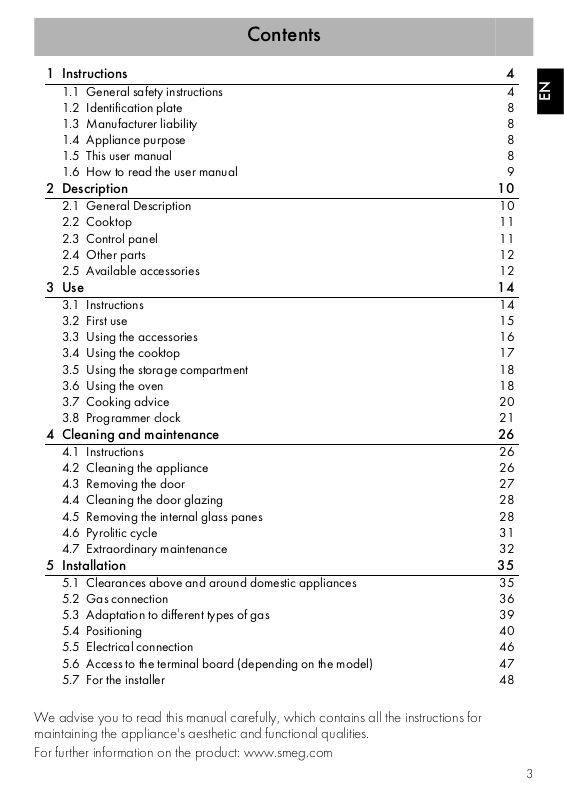

Contents
1 Instructions 4
1.1 General safety instructions 4
1.2 Identification plate 8
1.3 Manufacturer liability 8
1.4 Appliance purpose 8
1.5 This user manual 8
1.6 How to read the user manual 9
2 Description 10
2.1 General Description 10
2.2 Cooktop 11
2.3 Control panel 11
2.4 Other parts 12
2.5 Available accessories 12
3 Use 14
3.1 Instructions 14
3.2 First use 15
3.3 Using the accessories 16
3.4 Using the cooktop 17
3.5 Using the storage compartment 18
3.6 Using the oven 18
3.7 Cooking advice 20
3.8 Programmer clock 21
4 Cleaning and maintenance 26
4.1 Instructions 26
4.2 Cleaning the appliance 26
4.3 Removing the door 27
4.4 Cleaning the door glazing 28

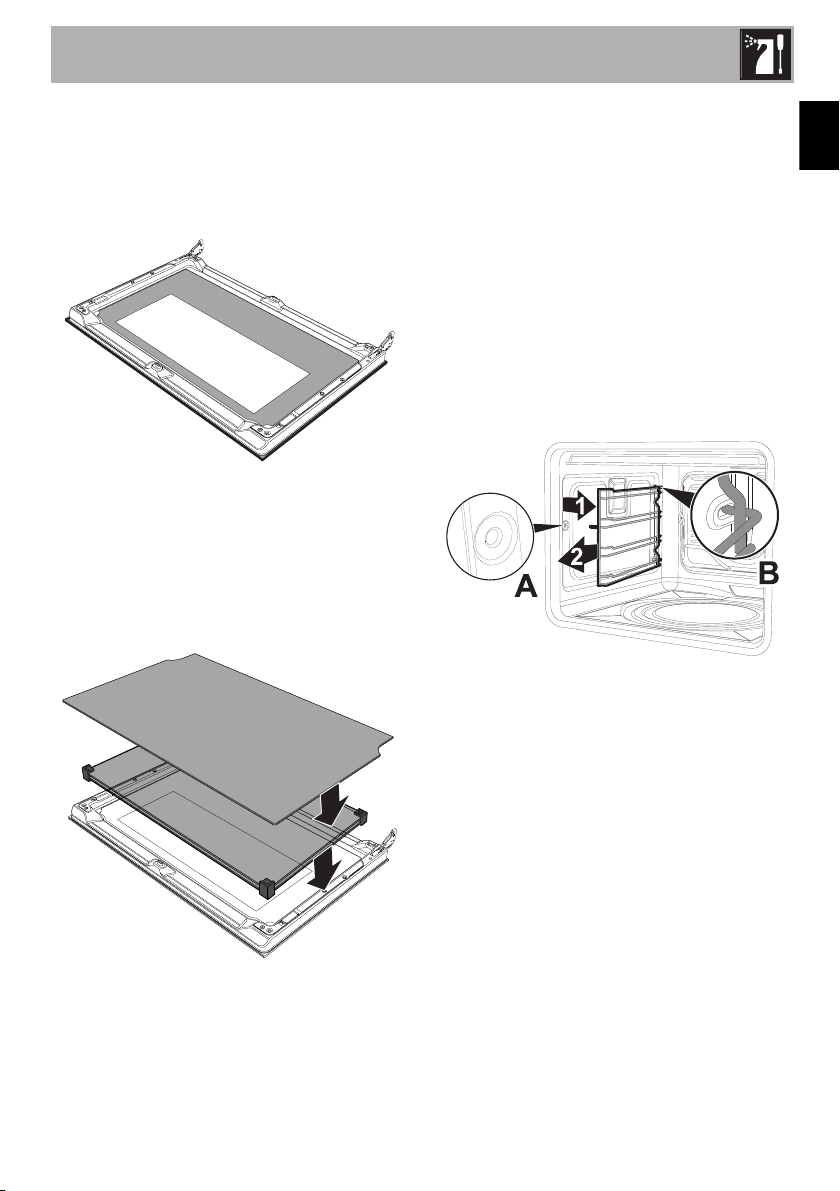

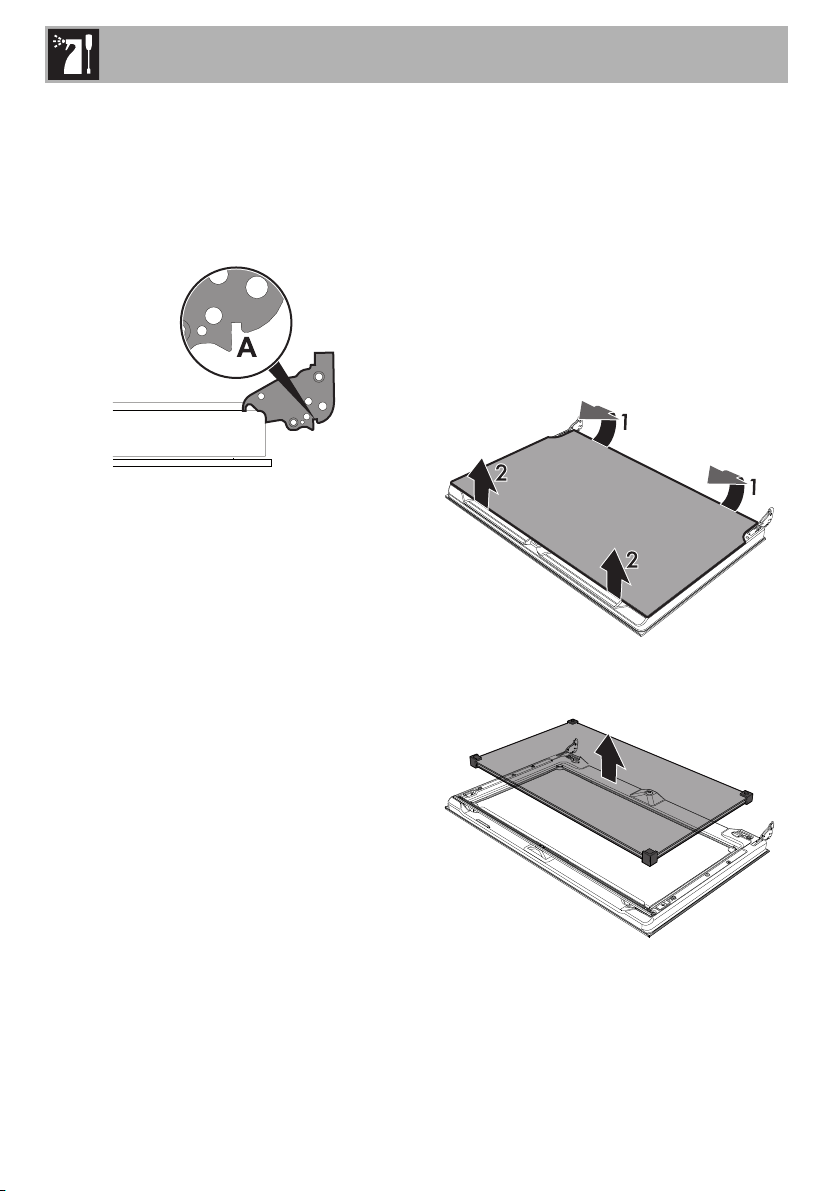

4.5 Removing the internal glass panes 28
4.6 Pyrolitic cycle 31

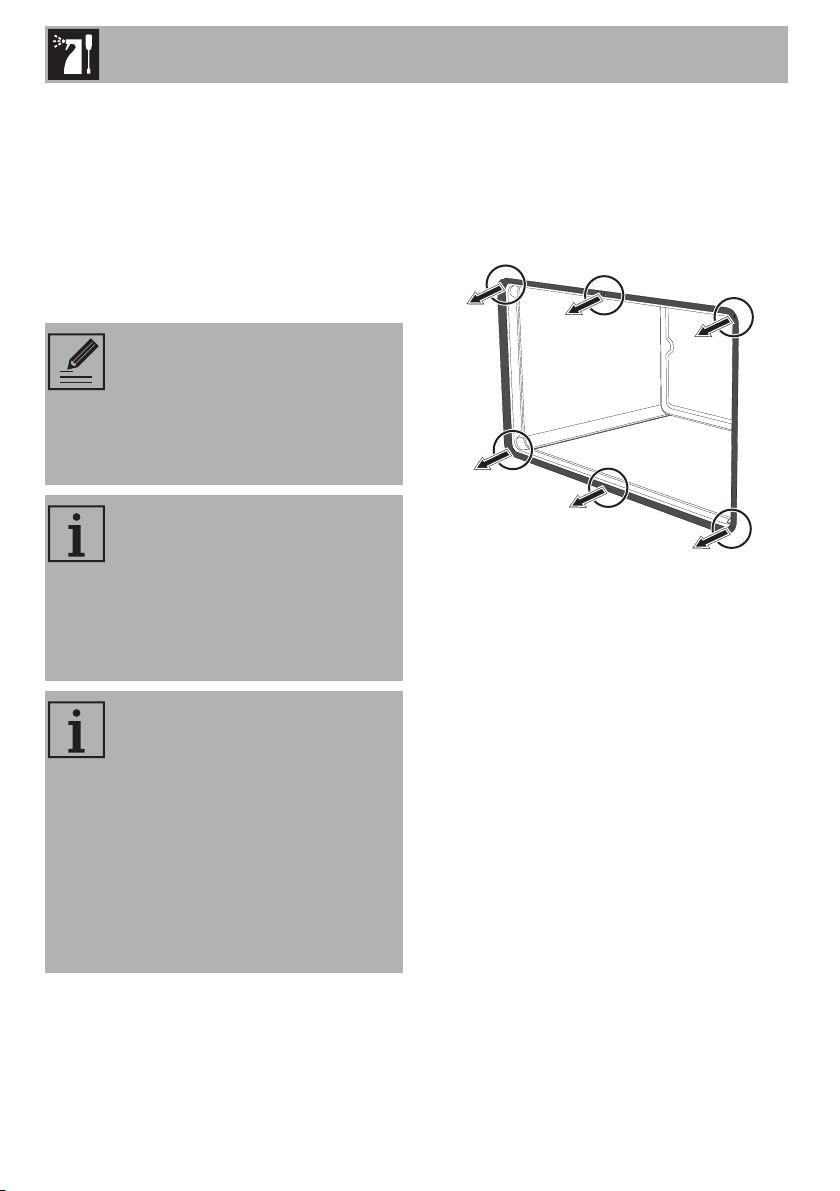

4.7 Extraordinary maintenance 32
5 Installation 35

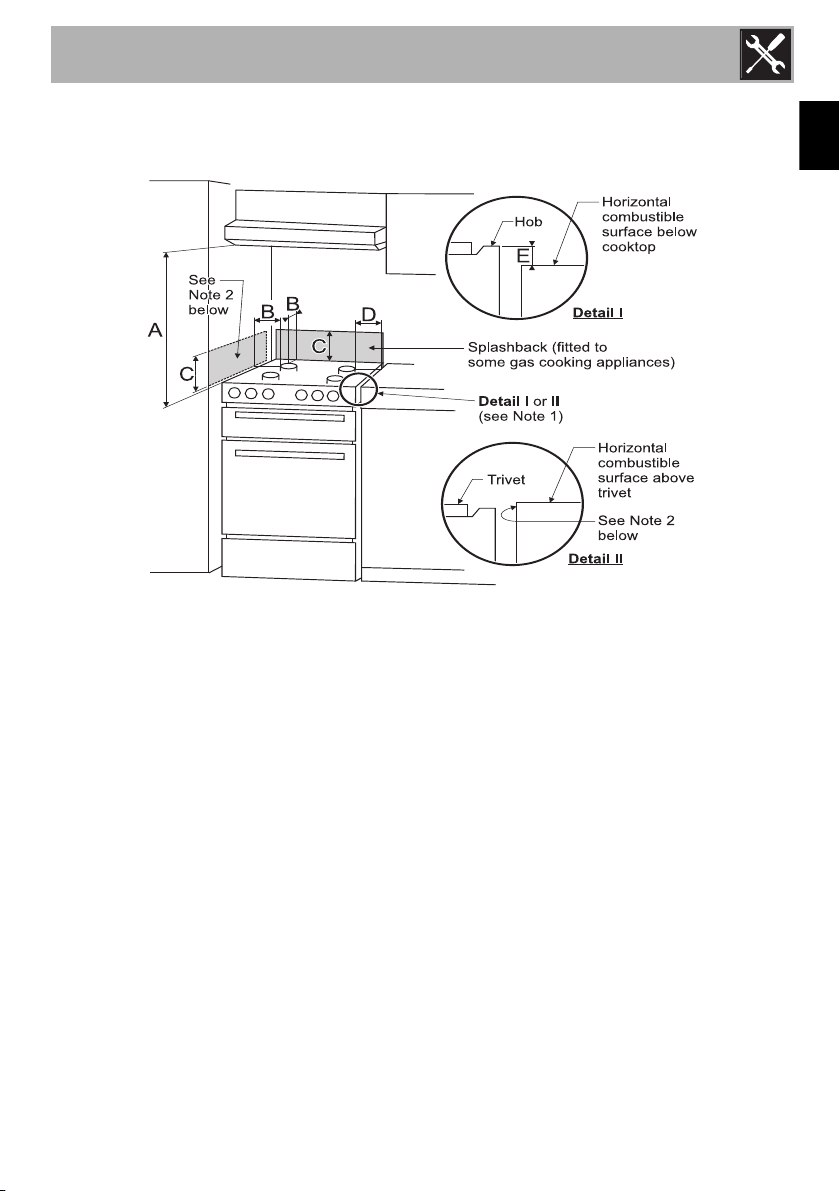

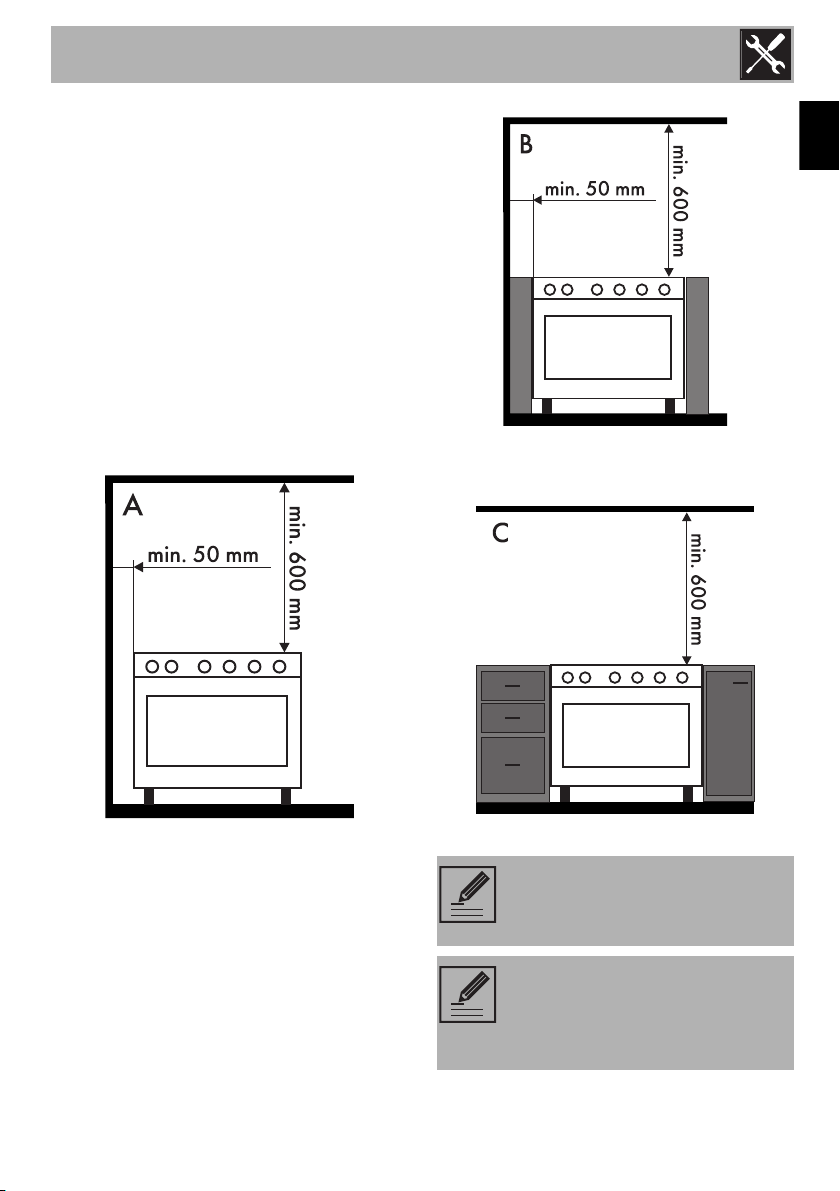

5.1 Clearances above and around domestic appliances 35

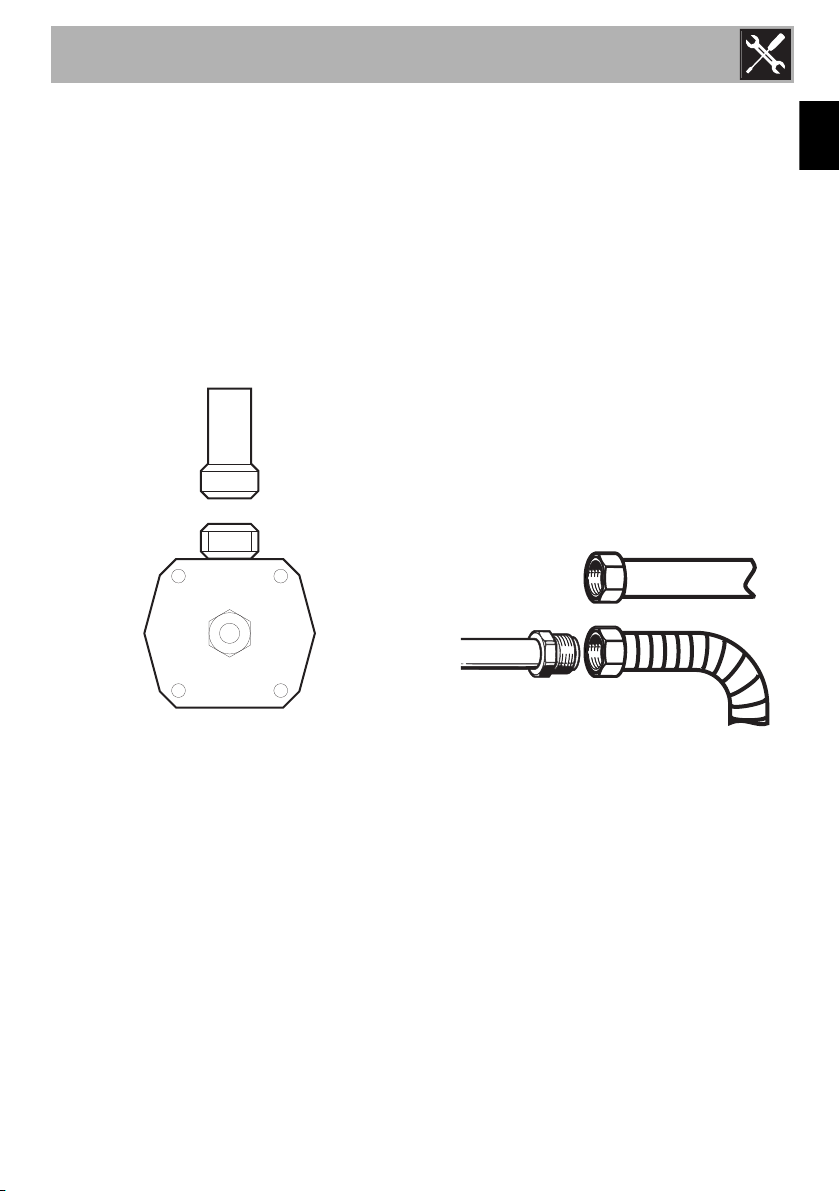

5.2 Gas connection 36

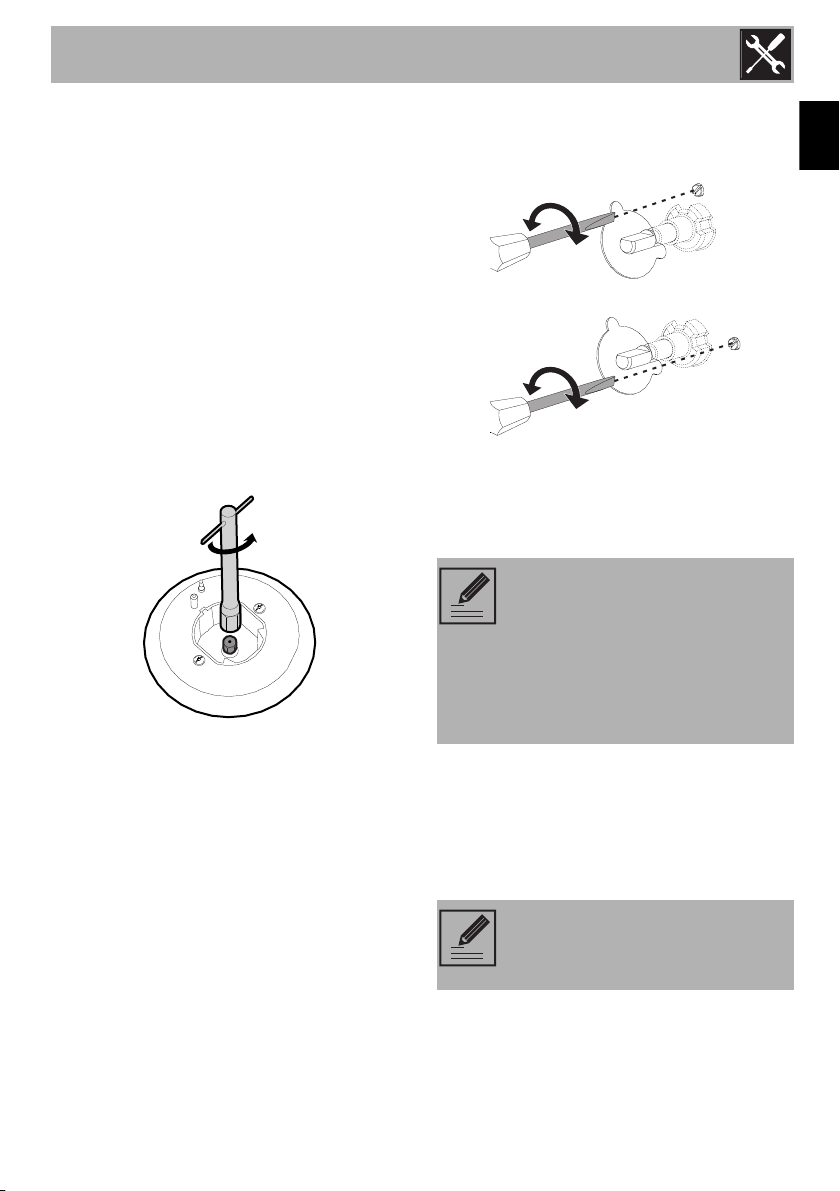

5.3 Adaptation to different types of gas 39

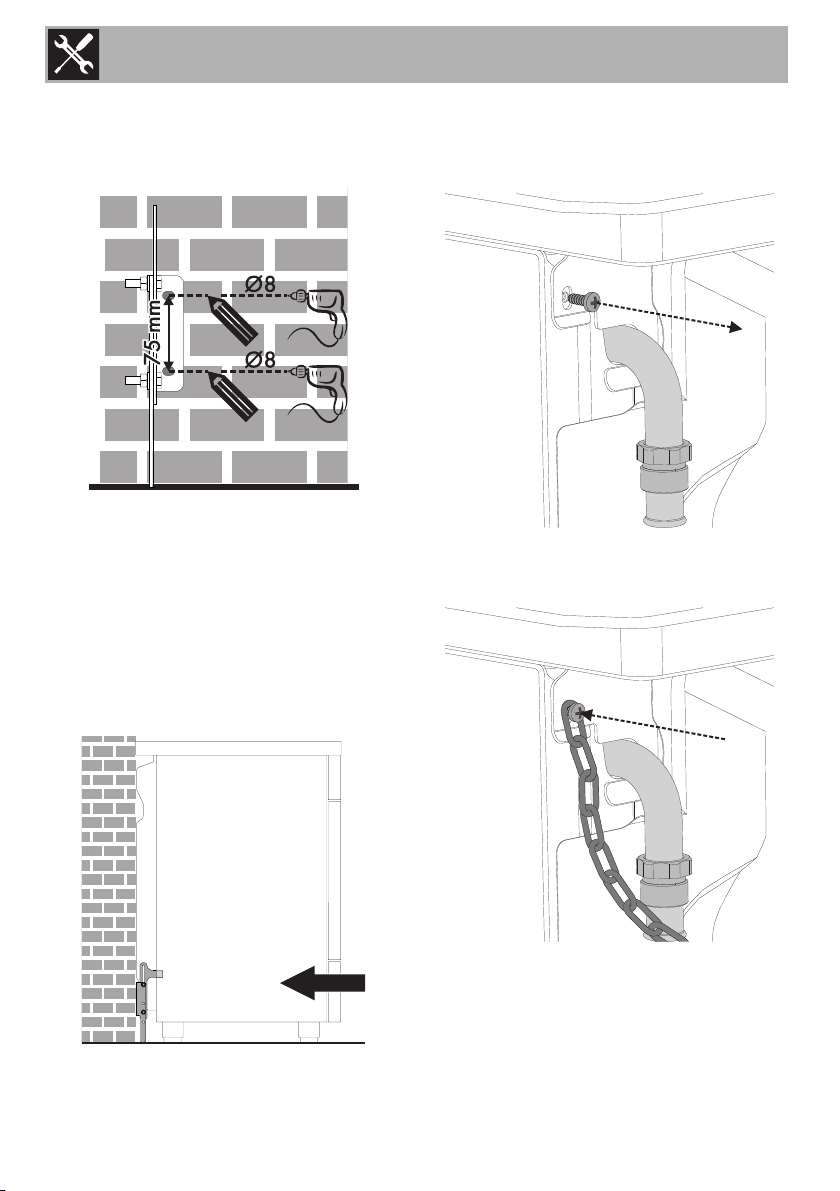

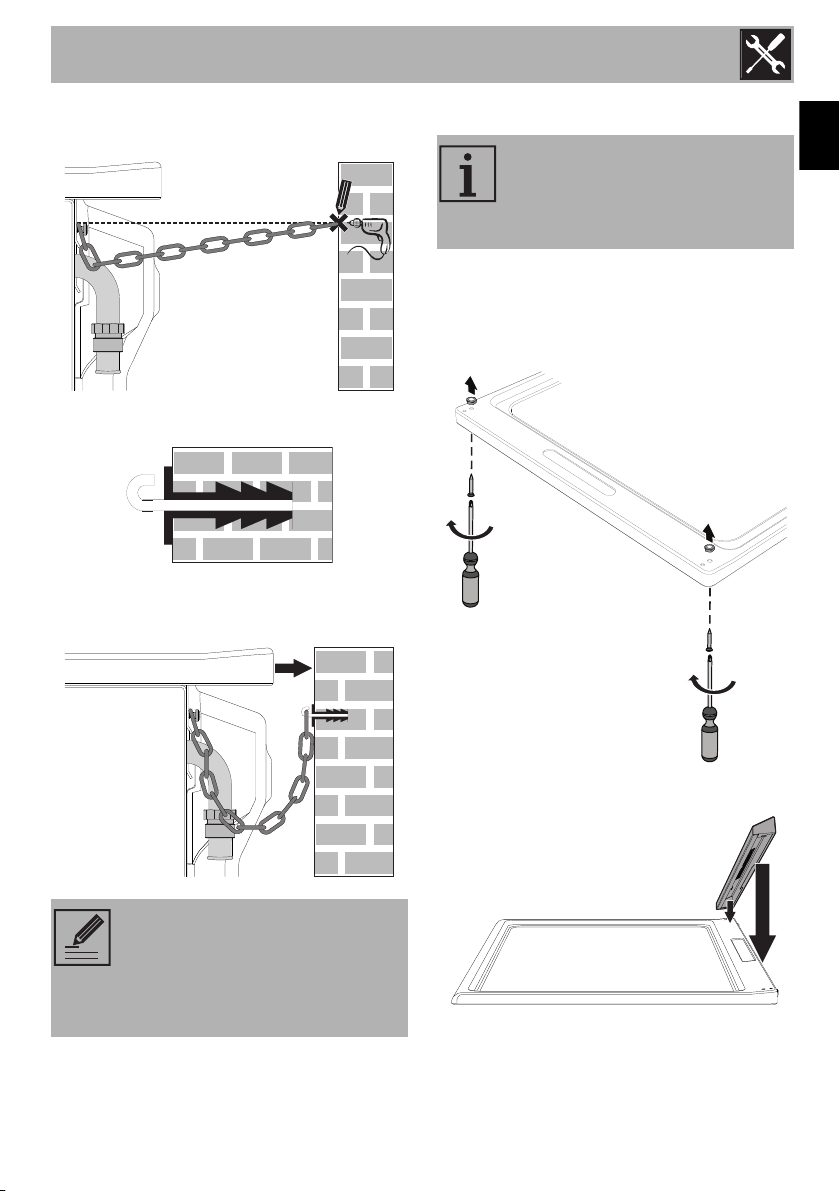

5.4 Positioning 40
5.5 Electrical connection 46

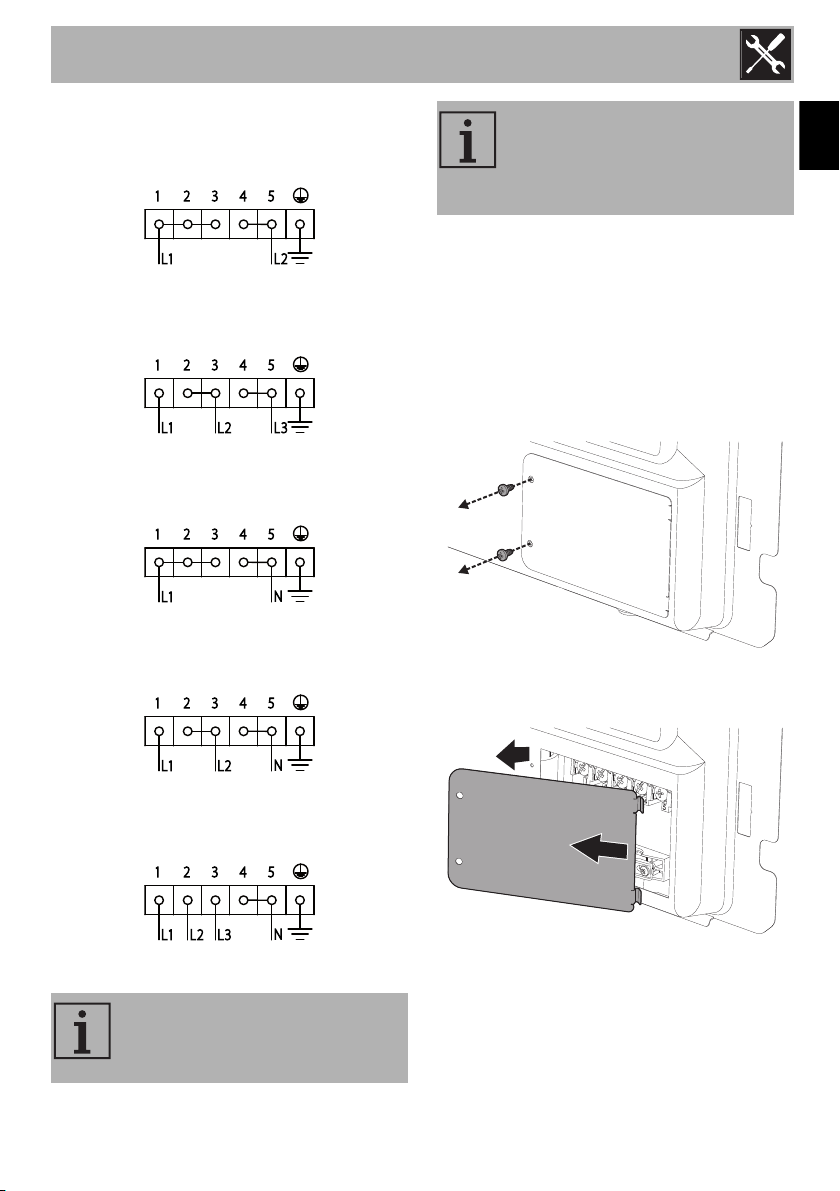

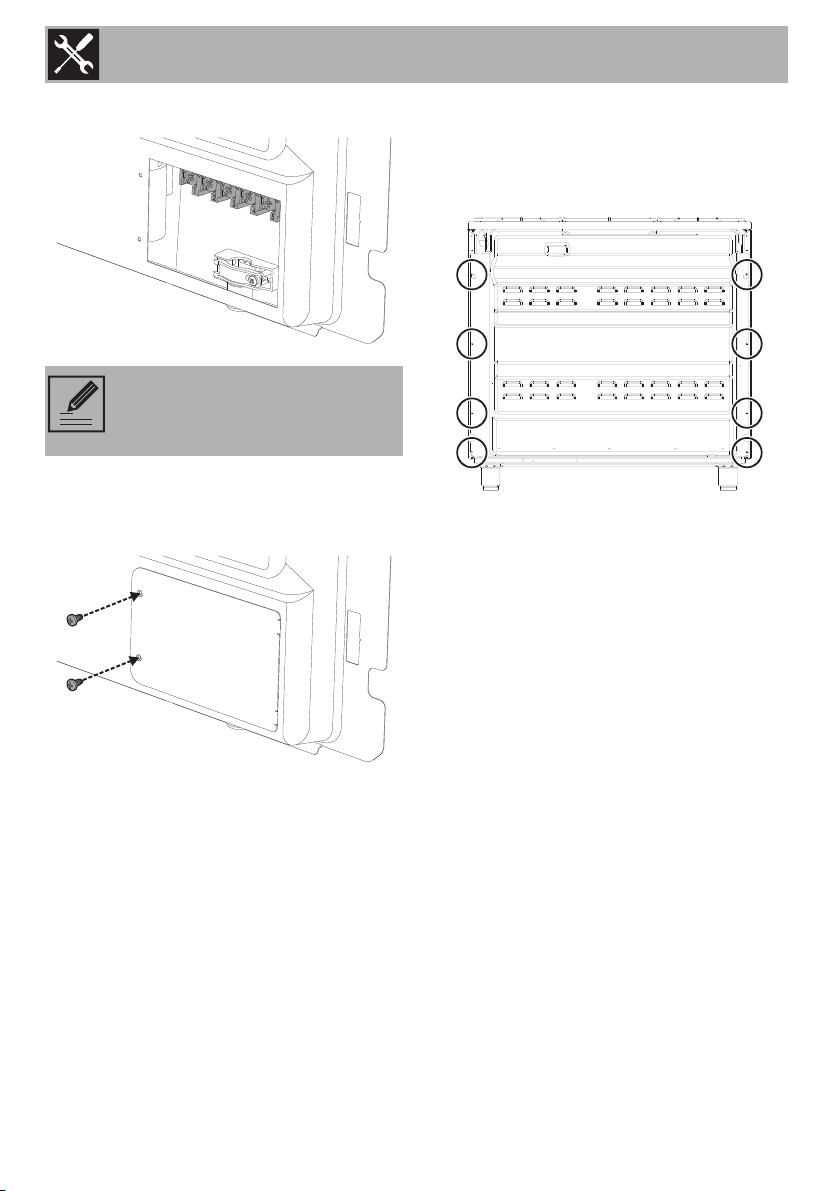

5.6 Access to the terminal board (depending on the model) 47
5.7 For the installer 48
EN
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
3
Instructions
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.
• Protect your hands by wearing
oven gloves when handling food
inside the oven cavity.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge,
unless they have been given
supervised or instructions by a
responsible person for their safety.
• Young children should be
supervised to ensure that they do
not play with the appliance.
• Keep children under eight years of
age at a safe distance if they are
not constantly supervised.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• Make sure that the flame-spreader
crowns are correctly positioned in
their housings with their respective
burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid on
the pan and turn off the relevant
cooking zone.
• CAUTION - The cooking process
has to be supervised. A short term
cooking process has to be
supervised continuously.
• WARNING - Accessible parts will
become hot when in use. To avoid
burns young children should be
kept away.
4
Instructions
• When in use, do not place metal
objects, such as dishes or cutlery,
on the surface of the cooktop as
they may overheat.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door 5 cm
for a few seconds, let the steam
come out, then open it fully.
• Do not open the storage
compartment (if present) when the
oven is on and still hot.
• The items inside the storage
compartment could be very hot
after the oven has been used.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS IN THE
STORAGE COMPARTMENT (IF
PRESENT) OR NEAR THE
APPLIANCE.
• Switch the appliance off
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal protective
equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
EN
• WARNING - Ensure the
appliance is switched off before
replacing the lamp to avoid the
possibility of electric shock.
• NEVER USE AEROSOL CANS
NEAR THE APPLIANCE WHILE IT
IS IN OPERATION.
5
Instructions
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays must be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• During the automatic cleaning
cycle, the outer door window
could become hotter than normal.
• Excess spillage must be removed
before cleaning cycle begins.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful
• Danger of fire - Do not store items
on the cooking surface.
• DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
• Do not spray any spray products
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
panel.
• The cooking vessels or griddle
plates should be placed inside the
perimeter of the cooktop.
• All cookware must have smooth,
flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the
cooktop.
• Take care not to spill acidic
substances such as lemon juice or
vinegar onto the cooktop.
• Do not put empty pans or frying
pans on switched on cooking
zones.
6
Instructions
• Do not use steam jets to clean the
appliance.
• Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean the oven glass door since
they can scratch the surface, which
may result in shattering of the
glass.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromiumplating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash the removable
components such as the cooktop
pan stands, flame-spreader
crowns and burner caps in a
dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a stand.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• If this appliance is installed on a
base, measures must be taken to
prevent the appliance from
slipping from the base.
• To prevent overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• The gas connection should be
carried out by authorised persons.
• Installation with flexible hose must
be carried out so that the length of
the piping does not exceed 2 metres
when fully extended as regards
flexible steel hoses and 1.5 metres
in case of rubber hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
EN
7
Instructions
• After carrying out any operation,
check that the tightening torque of
gas connections is between 10 Nm
and 15 Nm.
• At the end of the installation, check
for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• If the electrical supply is restricted,
means of all-pole disconnection
must be accessible and
incorporating in the fixed wiring in
accordance with the wiring rules.
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Identification plate
• The identification plate bears the
technical data, serial number and
brand name of the appliance. Do
not remove the identification plate
for any reason.
8
Instructions
1.3 Manufacturer liability
• The manufacturer declines all
liability for damage to persons or
property caused by:
• use of the appliance other than
the one envisaged;
• non-observance of the user
manual provisions;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.4 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.5 This user manual
1.6 How to read the user manual
This user manual uses the following reading
conventions:
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
EN
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and in an
accessible place for the whole
working life of the appliance.
Read this user manual carefully
before using the appliance.
Safety instructions
Information
Advice
1. Sequence of instructions for use.
• Standalone instruction.
9
2 Description
2.1 General Description
Description
1 Backguard
2 Cooktop
3 Control panel
4 Oven light
5 Seal
10
6 Door
7 Fan
8 Storage compartment
Rack/tray support frame shelf
2.2 Cooktop
Description
EN
AUX = Auxiliary burner
SR = Semi-rapid burner
2.3 Control panel
1 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.

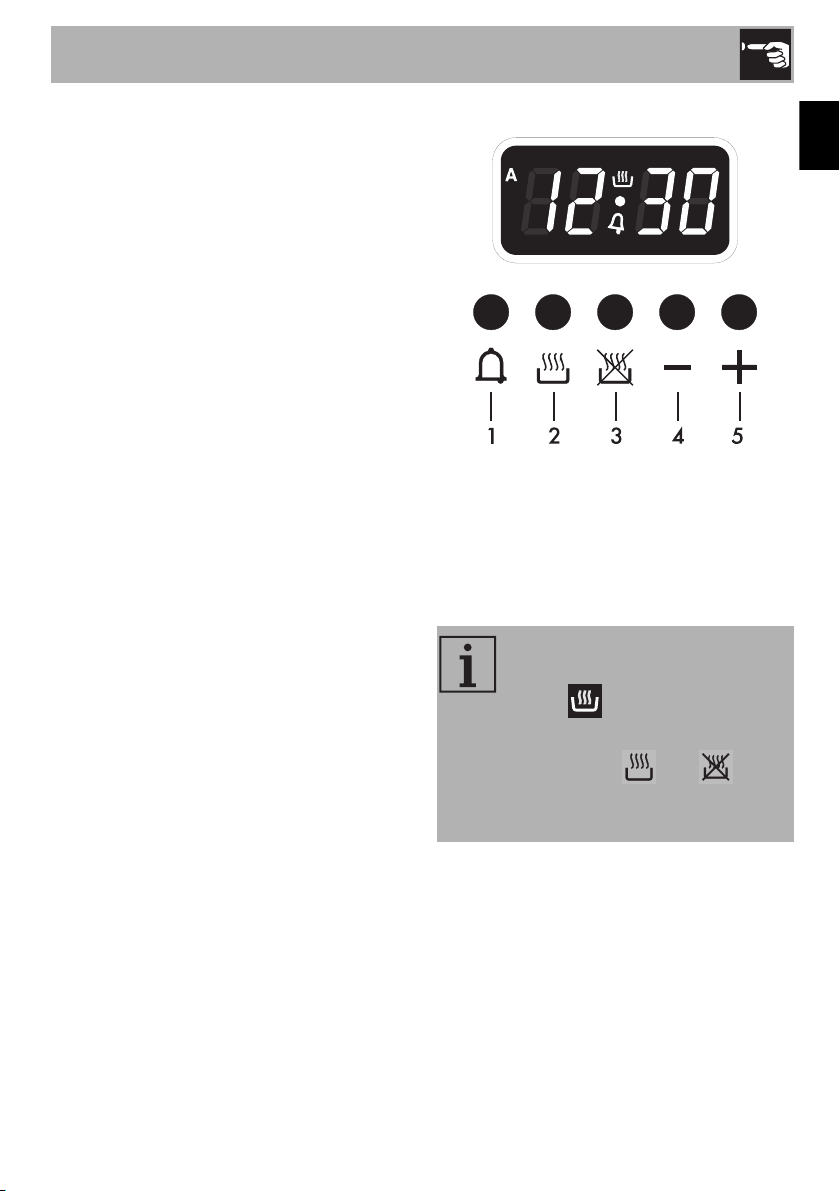

2 Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
R = Rapid burner
UR = Ultra rapid burner
3 Door lock indicator light
It comes on when the automatic (pyrolytic
function) cleaning cycle is activated.
4 Function knob
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
11
Description
5 Cooktop burner knobs
Useful for lighting and adjusting the cooktop
burners.
Press and turn the knobs anti-clockwise to
the value to light the relative burners.
Turn the knobs to the zone between the
maximum and minimum setting to
adjust the flame.
Return the knobs to the position to turn
off the burners.
2.4 Other parts
Shelves
The appliance features shelves for
positioning trays and racks at different
heights. The insertion heights are indicated
from the bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The appliance interior lighting comes on:
• When the door is opened
• When any function is selected
.
2.5 Available accessories
Some models are not provided
with all accessories.
Ring reducer
Useful when using small cookware.
WOK ring
Useful when using a wok.
12
Do not obstruct ventilation
openings and heat dispersal slots.
Description
Rack
Useful for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Tray
EN
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack above.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.
13
Use
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children younger than 8
years old to come near the appliance
when in operation.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• Oils and fat could catch fire if
overheated. Be very careful.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• The cooking vessels or griddle plates
should be placed inside the perimeter of
the cooktop.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the cooktop.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot after
using the oven.
14
Use
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven or the storage
compartment.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Escaping gas may cause an explosion.
If you smell gas or notice any faults in the
gas installation:
• Immediately shut off the gas supply or
close the gas cylinder valve.
• Immediately extinguish all naked flames
and cigarettes.
• Do not use any light or appliance
switches and do not pull any plugs out of
sockets. Do not use any telephones or
mobile phones within the building.
• Open windows and ventilate the room.
• Call the aftersales service or the gas
supplier.
Abnormal operation
Any of the following are considered to be
abnormal operation and may require
service:
• Yellow tipping of the hotplate burner
flame.
• Sooting up of cooking utensils.
• Burners not igniting properly.
• Burners failing to remain alight.
• Burners extinguishing whilst in operation.
• Gas valves with are difficult to turn.
In case the appliance fails to operate
correctly, contact the Authorised Assistance
Centre in your area.
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove all the accessories from the
appliance and clean them (see 4
Cleaning and maintenance). Heat the
empty oven at the maximum temperature
to burn off any residues left by the
manufacturing process.
EN
15
Use
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Ring reducers
The ring reducers have to be placed on the
cooktop grids. Make sure they are placed
properly.
16
Use
3.4 Using the cooktop
All the appliance's control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anticlockwise to the maximum flame symbol,
until the burner lights. If the burner does not
light in the first 15 seconds, turn the knob to
and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: in this
case, the thermocouple has not heated up
sufficiently. Wait a few moments and repeat
the operation. Keep the knob pressed in
longer.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least 60
seconds before lighting it again.

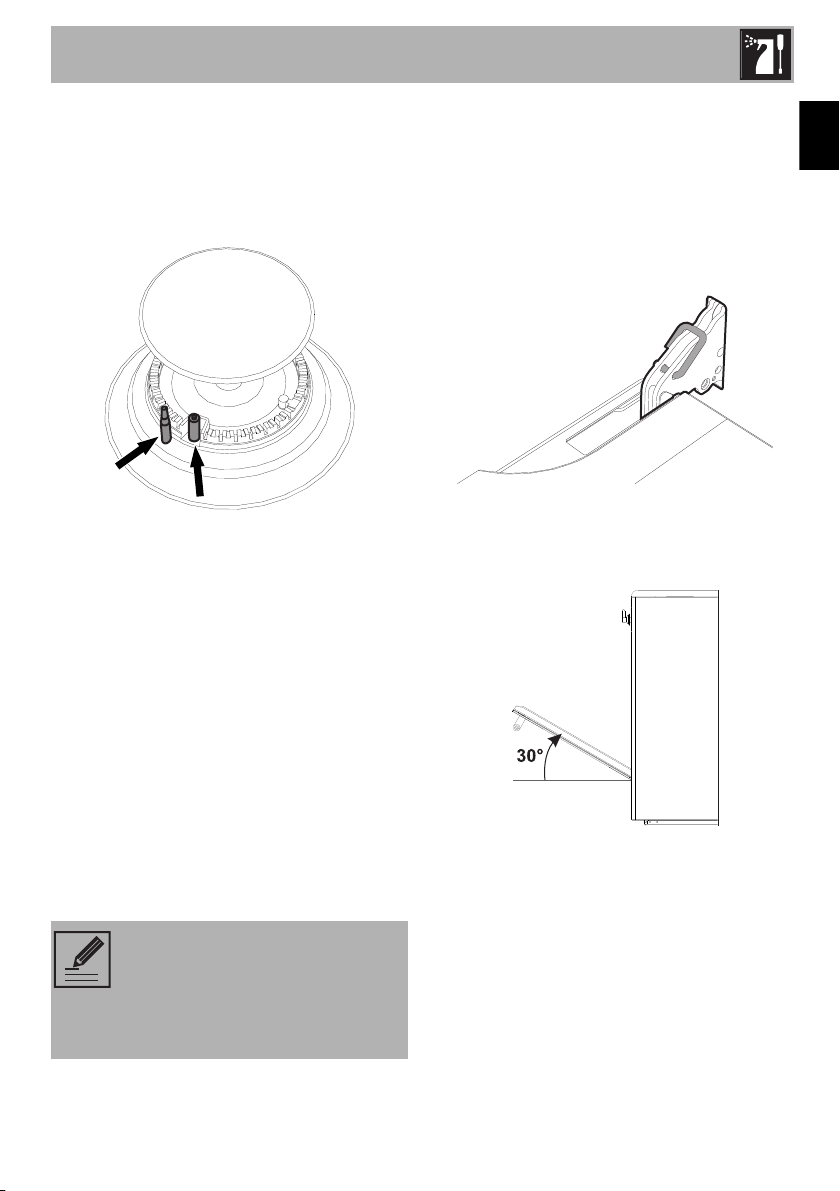

Correct positioning of the flamespreader crowns and burner caps
Before lighting the cooktop burners, make
sure that the flame-spreader crowns are
correctly positioned in their housings with
their respective burner caps. Make sure that
the holes in the flame-spreader crowns 1
are aligned with the thermocouples 2 and
igniters 3.
Practical tips for using the cooktop
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that flames
do not reach up the sides of the pan. Once
the contents come to the boil, turn down the
flame far enough to ensure that the liquid
does not boil over.
EN
Cookware diameters:
• Auxiliary: 12 - 14 cm.
• Semi-rapid: 16 - 24 cm.
• Rapid: 18 - 26 cm.
• Ultra-rapid: 18 - 28 cm.
17
Loading...
