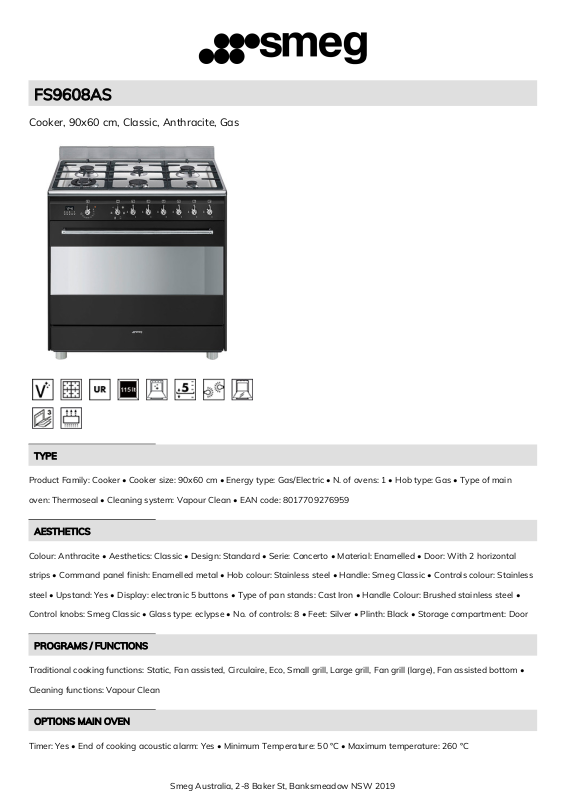

Smeg FS9608AS Technical sheet

FS9608AS

Cooker, 90x60 cm, Classic, Anthracite, Gas

TYPE

Product Family: Cooker • Cooker size: 90x60 cm • Energy type: Gas/Electric • N. of ovens: 1 • Hob type: Gas • Type of main

oven: Thermoseal • Cleaning system: Vapour Clean • EAN code: 8017709276959

AESTHETICS

Colour: Anthracite • Aesthetics: Classic • Design: Standard • Serie: Concerto • Material: Enamelled • Door: With 2 horizontal

strips • Command panel finish: Enamelled metal • Hob colour: Stainless steel • Handle: Smeg Classic • Controls colour: Stainless

steel • Upstand: Yes • Display: electronic 5 buttons • Type of pan stands: Cast Iron • Handle Colour: Brushed stainless steel •

Control knobs: Smeg Classic • Glass type: eclypse • No. of controls: 8 • Feet: Silver • Plinth: Black • Storage compartment: Door

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Fan assisted, Circulaire, Eco, Small grill, Large grill, Fan grill (large), Fan assisted bottom •

Cleaning functions: Vapour Clean

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

HOB TECHNICAL FEATURES

Total no. of cook zones: 6 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Front centre • 4th zone

position: Rear centre • 5th zone position: Rear right • 6th zone position: Front right • 1st zone type: Gas - UR • 2nd zone type:

Gas - Semi Rapid • 3rd zone type: Gas - Rapid • 4th zone type: Gas - AUX • 5th zone type: Gas - Semi Rapid • 6th zone type:

Gas - AUX • 1st zone power: 3.50 kW • 2nd zone power: 1.80 kW • 3rd zone power: 2.90 kW • 4th zone power: 1.00 kW • 5th

zone power: 1.80 kW • 6th zone power: 1.00 kW • Type of gas burners: Standard • Burner caps: Matt black enamelled •

Automatic electronic ignition: Yes • Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 115 l • Cavity material: Ever Clean enamel • No. of shelves: 5 • Type of shelves: Metal racks • No. of

lights: 2 • Light type: Halogen • Light Power: 40 W • Fan number: 2 • Cooking time setting: Stop • Door opening: Flap down •

Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Total no. of door glasses: 3 • No.of

thermo-reflective door glasses: 2 • Safety Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Grill elememt:

1700 W • Large grill - Power: 2900 W • Lower heating element power: 1700 W • Upper heating element - Power: 1200 W •

Circular heating element - Power: 1550 W • Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

ELECTRICAL CONNECTION

Electrical connection rating: 3200 W • Voltage: 220-240 V • Frequency: 50/60 Hz

GAS CONNECTION

Gas connection rating (W): 13277.8 W • Gas Type: G20 Natural gas

LOGISTIC INFORMATION

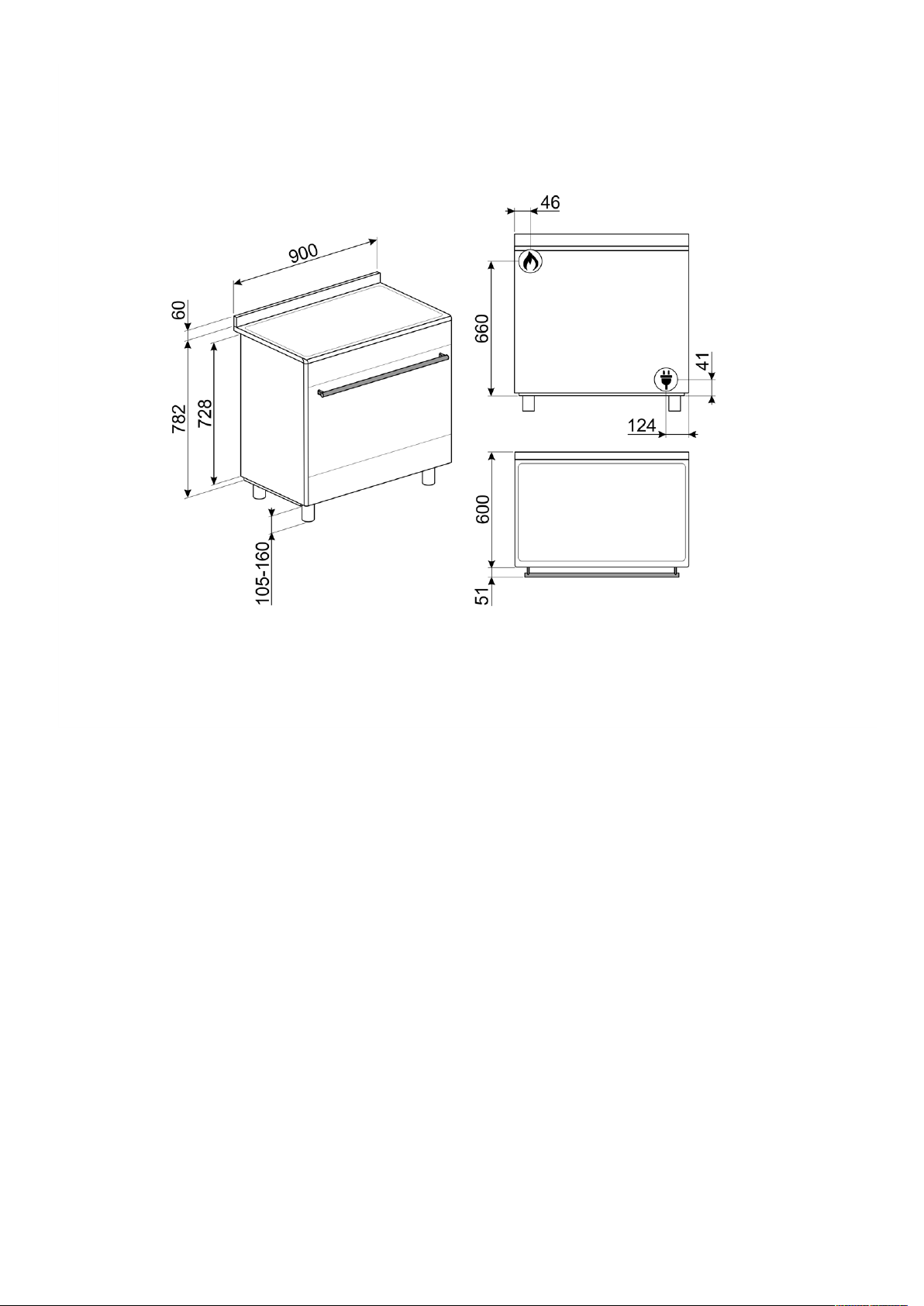

Width (mm): 900 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 74.200 kg

ACCESSORIES INCLUDED FOR MAIN OVEN & HOB

Grill mesh: 1Oven grid with back stop: 1Moka stand: 1Wok stand: 120mm deep tray: 140mm deep tray: 1
