Smeg FS61XPZ5 User Manual

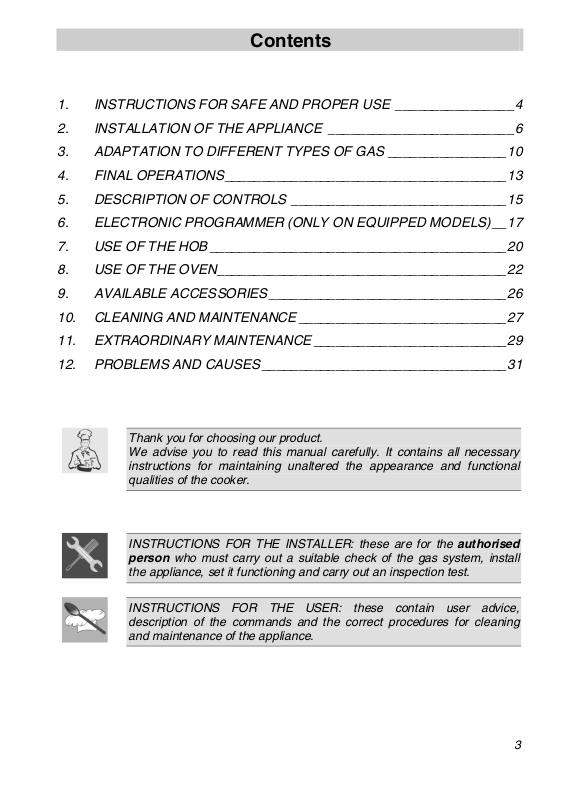

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE ________________4

2. INSTALLATION OF THE APPLIANCE _________________________6

3. ADAPTATION TO DIFFERENT TYPES OF GAS ________________10

4. FINAL OPERATIONS______________________________________13

5. DESCRIPTION OF CONTROLS _____________________________15

6. ELECTRONIC PROGRAMMER (ONLY ON EQUIPPED MODELS)__17

7. USE OF THE HOB ________________________________________20

8. USE OF THE OVEN_______________________________________22

9. AVAILABLE ACCESSORIES________________________________26

10. CLEANING AND MAINTENANCE ____________________________27

11. EXTRAORDINARY MAINTENANCE __________________________29

12. PROBLEMS AND CAUSES _________________________________31

Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary
instructions for maintaining unaltered the appearance and functional
qualities of the cooker.

INSTRUCTIONS FOR THE INSTALLER: these are for the authorised
person who must carry out a suitable check of the gas system, install
the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.

3

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE
PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE
READING THIS MANUAL AND ALL THE INSTRUCTIONS THERE IN BEFORE
USING THE COOKER.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY
OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD.
ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE
THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST
SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION
TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.
SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE
SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION
(OFF) WHEN YOU FINISH USING THE HOB.

NEVER PUT INFLAMMABLE OBJECTS INTO AN OVEN: IF THEY CATCH FIRE
THEY COULD CAUSE A FIRE IN THE HO ME.

4

Introduction

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS PO SITIONED VISIBLY IN THE STORAGE COMPARTMENT.

THE PLATE MUST NOT BE REMOVED.

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS

ON THE HOB GRIDS.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE
OUTER PERIMETER OF THE HOB.

IF THE APPLIANCE IS TO BE POSITIONED ON A PLATFORM IT MUST BE
INSTALLED IN SUCH A WAY AS TO PREVENT IT FROM SLIPPING OFF THE
FORMER.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN OR INFIRM PERSONS TO GO NEAR OR PLAY WITH IT.
DURING USE THE APPLIANCE BECOMES HOT. CARE SHOULD BE TAKEN
TO AVOID TOUCHING THE HEATING ELEMENTS INSIDE THE OVEN. KEEP
CHILDREN AWAY FROM THE OVEN.

REPLACED APPLIANCES MUST BE TAKEN TO A SPEC IAL GARBAGE
COLLECTION CENTRE.

THIS APPLIANCE IS DESIGNED FOR COOKING FOOD AND IT SHALL NOT
BE USED AS A SPACE HEATER.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT
IS IN OPERATION.

The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.

5

Instructions for the installer

2. INSTALLATION OF THE APPLIANCE

It is the law that all gas appliances are installed by authorised persons.
Clearance around the cooker must comply with the requirements of
AGA601.

2.1 Electrical connection

Make sure that the power line voltage matches the specifications
indicated on the rating plate located inside the storage compartment.
This rating plate must never be removed.

On the power line, install a two-pole cut-off device with contact cut-off
distance greater than or equal to 3 mm, located in an easily accessible
position near the unit.

The wire section on the cable must not be less
than 1.5 mm2 (3 x 1.5 cable), keeping in mind
that the end to be connected to the cooker
must have the ground wire (yellow-green)
longer by at least 20 mm. Use only the special
cables available at our Service Centres.

The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance.

Overall dimensions: location of gas and electrical connection points (all
measures in mm).

A 60

B 410

C 100

D 150

6

Instructions for the installer

2.2 Gas connection

This appliance is suitable for installation with Natural
Gas or LPG (propane). Refer to page 12 for the relevant
burner pressure and appropriate injector sizes. When
the appliance is to be connected to Natural Gas then the
pressure regulator supplied must be fitted to the gas
inlet. A test point (for checking the gas pressure) is
supplied either with the regulator or as a separate fitting
in the case of LPG (propane) appliances.
Connection of the appliance to the gas supply must be in
accordance with the requirements of AG601. A ½” BSP
connector at the inlet is recommended and the gas
supply line to the appliance must be of adequate length
to allow sufficient withdrawal of appliance for service or
disconnection and be annealed copper pipe.

The cooker must be installed with provision to allow the gas to be turned
off and disconnected for servicing and removal of the appliance as
required from the gas supply.
Before the cooker is operated make certain all relevant parts are placed
in the correct position.
When the installation is completed the installation connections of cooker
will require to be leak tested, the burner operating pressure and flame
checked and adjusted.
Warranty service calls do not cover these adjustments!
To check the operating pressure of the appliance it is recommended at
least 2 large size burners are used. Ensure appliance is secured to wall
when installation is completed.
N.G. The regulator supplied must be fitted to the ½ BSP thread at the
rear of the appliance. An approved manual shut-off valve must be
installed. The N.G. regulator must be checked and adjusted to 1.0kPa
after installation.

L.P.G. Can be connected to the inlet fitting directly. The
pressure must be checked to ensure it is operating at

2.75kPa. A separate test point fitting must be installed
between the piping & the appliance for the pressure to
be checked to ensure it is operating at 2.75kPa.

7

Instructions for the installer

2.3 Room ventilation

Caution – This cooker may only be installed and operated in rooms

permanently ventilated in accordance with current regulations. For
proper operation of a gas appliance it is essential for the air necessary
for combustion of the gas to be able to flow naturally into the room. Air
must flow directly into the room through openings in its outside walls.
This (these) opening (s) must have a free passage cross-section of at
least 100 cm2, or 200 cm2 for appliances not equipped with gas safety
device. These openings must be constructed so that they cannot be
obstructed indoors or outdoors, and should preferably be close to the
floor on the side opposite to the combustion gas discharge point. If it is
not possible to make the openings in the room where the cooker is
installed, the necessary air may be taken from an adjoining room,
proveded it is not a bedroom or a room with fire risk.

2.4 Clearance above and around domestic cookers

Extract from AGA601

8

Instructions for the installer

REQUIREMENTS

1 Overhead clearances – (Measurement A)

Range hoods

the manufacturer’s instructions. However, in no case shall the
clearance between the highest part of the

appliance

exhaust fan, 750 mm.

Any other downward facing
above the highest part of the
and depth of the cooking surface area in accordance with Clause

5.12.1.2. However, in no case shall this clearance to any surface be
less than 450 mm.

2 Side clearances – (Measurements B & C)

Where B, measured from the periphery of the nearest
vertical
be protected in accordance with Clause 5.12.1.2 to a height C of not
less than 150 mm above the
depth) of the cooking surface area. Where the cooking
fitted with a ‘splashback’, protection of the rear wall is not required.

3 Additional requirements for Freestanding and Elevated Cooking

Appliaces – (Measurements D & E)
Where D, the distance from the periphery of the nearest
horizontal
10 mm or more, or the horizontal surface shall be above the
See insets above.

NOTES

1 Requirement 3 does not apply to a freestanding or elevated

2 The ‘cooking surface area’ is defined as that part of the

3 For definition of hob, see Clause 1.4.64.
4 For definition of trivet, see Clause 1.4.109.
5 Consideration is to be given to window treatments when

and exhaust fans shall be installed in accordance with

hob

of the cooking

and a

range hood

combustible surface

combustible surface

be less than 600 mm or, for an overhead

combustible surface

hob

shall be protected for the full width

, is less than 200 mm, the surface shall

hob

for the full dimension (width or

is less than 200 mm, then E shall be

less than 600 mm

burner

to any

appliance

burner

is

to a

trivet

cooking appliance which is designed to prevent flames or the
cooking vessels from extending beyond the periphery of the
appliance.

appliance where cooking normally takes place and does not
include those parts of the appliance containing control knobs.

located near cooking appliances. See Clause 5.3.4.

.

9

Instructions for the installer

3. ADAPTATION TO DIFFERENT TYPES OF GAS

Before performing any cleaning or maintenance work, disconnect the
appliance from the mains.

The hob of the cooker is adjusted for use with either natural gas at a
pressure of 1.0kPa. If used with other types of gas, you have to replace
the nozzles, then adjust the minimum flame on the gas taps. For nozzle
replacement and burner adjustment operate as described in the following
paragraph.

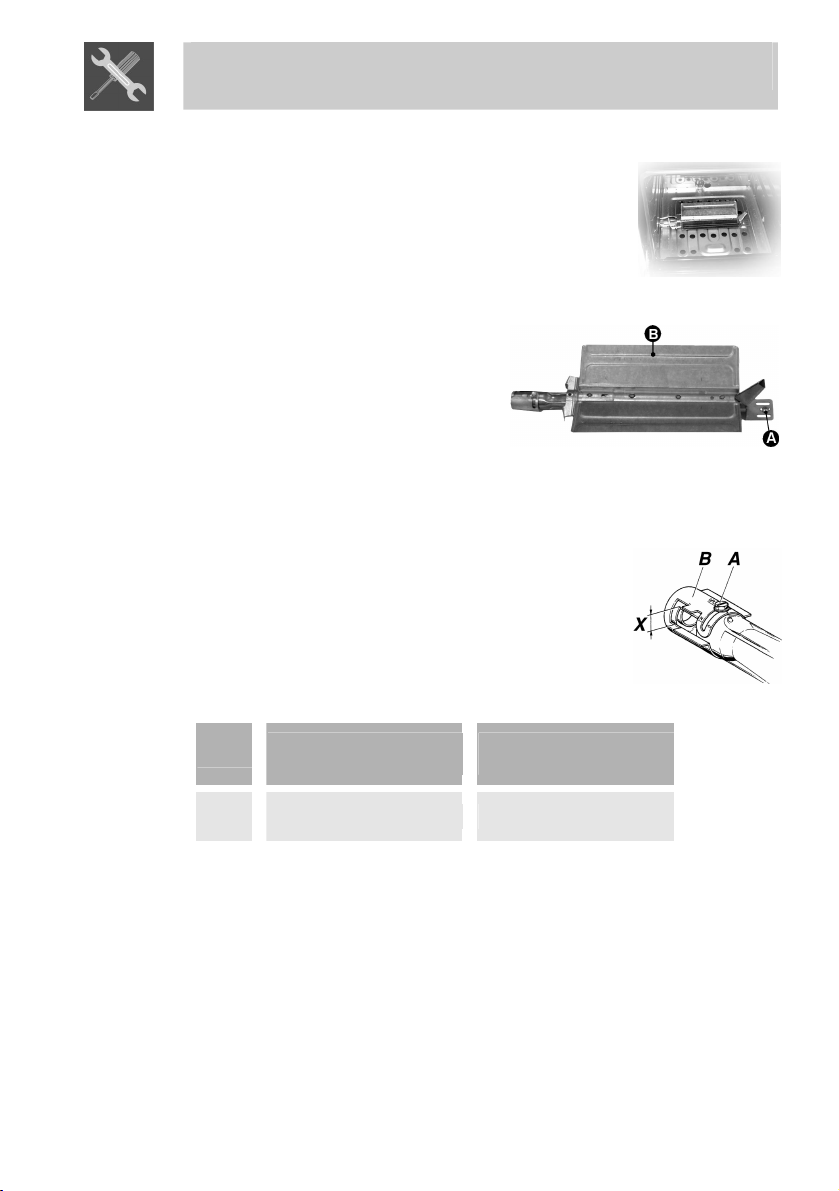

3.1 Replacement of nozzles on the hob

This operation requires no primary air regulation.

1. Extract the grids and remove all the caps and flame-spreader
crowns;

2. unscrew the burner nozzles with a 7 mm socket wrench;

3. replace the nozzles according to the type of gas to be used and the
description in paragraph "3.2 Burner and nozzle characteristics
table".

4. Replace the burners in the correct position.

10

Instructions for the installer

3.2 Burner and nozzle characteristics table

Burner

Auxiliary 3.9 1.5 54

Semi rapid 6.3 1.5 68

WOK 12.8 5.4 100

Gas Grill 10.8 // 94

Gas Oven 11.5 // 94

Nominal gas

consumption

(MJ/h)

LPG (PROPANE) – 2.75 KPa

Burner

Auxiliary 3.9 1.5 90

Semi rapid 7.5 1.5 120

WOK 15 5.4 175

Gas Grill 10.4 // 155

Gas Oven 11.5 // 155

Nominal gas

consumption

(MJ/h)

Turn-down gas

consumption

(MJ/h)

NG – 1.0 KPa

Turn-down gas

consumption

(MJ/h)

Injector

(mm)

Injector

(mm)

11

Instructions for the installer

3.3 Adjustment of the oven burner (only for gas oven models)

To adjust the oven burners follow the procedure
described below from inside the oven:

• Open the oven door;

• Remove the oven dish and shelf.

• Lift up the oven floor and remove.

3.3.1 Replacement of the oven and grill burner nozzle

Loosen the fixing screws A on the
oven burner.
Push the burner B towards the right to
get to the nozzle.
Use a 13 socket wrench to change the
nozzle, fitting the one for the type of
gas to be used (see point “3.2 Table of
burner and nozzle characteristics”).

3.3.2 Regulation of the primary air on the oven and grill burner

Loosen the register screws “A” on the air regulation
coupling.
Turn the register coupling “B” to the position
corresponding to the type of gas to be used
according to the table below.
Tighten the register screws and mount the seals.
Once the operation is completed reassemble the
burner correctly.

X =

NG

1.0 KPa

5 mm 15 mm

LPG (PROPANE)

2.75 KPa

12

Instructions for the installer

4. FINAL OPERATIONS

After replacing the nozzles, reposition the flame-spreader crowns, the
burner caps and the grids.

4.1 Adjustment of the hob burner minimum level for natural gas

Light the burner and take it to the minimum .
Remove the gas tap knob and turn the
adjustment screw inside of the tap shaft
(depending on the model) until there is a regular
minimum flame. Replace the knob and check
burner flame stability: (rapidly turning the knob
from maximum to minimum position, the flame
should not go out). Repeat the operation on all
the gas taps.

4.2 Adjustment of the hob burner minimum level for LPG
(propane)

To regulate the minimum for LPG (propane), completely tighten
(clockwise) the screw inside or next to the gas tap pin (depending on the
model).

4.3 Arrangement of the burners on the hob

Burners

1 Auxiliary

2 Semi rapid

4 Wok

13

Instructions for the installer

4.4 Mounting the rear top skirtboard (where applicable)

• Loosen nuts B.

• Position the skirt above the top, taking care to align pins C with holes D.

• Secure the skirt to the top by tightening screws a.

14

4.5 Wall fixing

• Stretch out the chain attached to the cooker horizontally so that the
other end touches the wall.

• Mark the wall in the position where the hole is to be drilled.

• Drill the hole, insert the finned dowels and attach the chain.

• Move the cooker up against the wall.

Instructions for the user

5. DESCRIPTION OF CONTROLS

5.1 Front control panel

All the cooker controls and commands are on the front panel.

If the cooker is equipped with an electronic programmer, before using the
oven make sure that the symbol ; appears on the display. See

paragraph “6.1 Clock adjustment”.

DESCRIPTION OF SYMBOLS

FRONT RIGHT BURNER

BACK RIGHT BURNER

BACK LEFT BURNER

FRONT LEFT BURNER

ELECTRIC OVEN
THERMOSTAT

ELECTRIC OVEN
FUNCTION KNOB

HOB BURNER COMMAND KNOB

The flame is lit by pressing the knob and turning it
anticlockwise to minimum flame . To adjust the

flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob is

returned to the position .

ELECTRIC OVEN THERMOSTAT KNOB

(CERTAIN MODELS ONLY)

Selection of cooking temperature is carried out by
turning the knob clockwise to the required
temperature, between 50° and 260°C.
If the appliance has an electric oven, the warning
light will come on when the oven is heating up. When
it goes out it means that the required temperature
has been reached. Regular flashing means that oven
temperature is being constantly maintained at the
programmed level.

15

Instructions for the user

ELECTRIC OVEN CONTROL KNOB

(CERTAIN MODELS ONLY)

Each of the functions listed below can be used
(except the oven light and the small grill) only
together with the correct temperature thermostat
regulation as described on page 15 of this manual.

UPPER AND LOWER
HEATING ELEMENT

LOWER HEATING
ELEMENT

UPPER AND LOWER
HEATING ELEMENT
PIZZA FUNCTION

GRILL ELEMENT

GRILL ELEMENT +
VENTILATION

UPPER AND LOWER
HEATING ELEMENT +
VENTILATED HEATING
ELEMENT

VENTILATED HEATING
ELEMENT + VENTILATION

VENTILATED HEATING
ELEMENT + VENTILATION

16

d

y

Instructions for the user

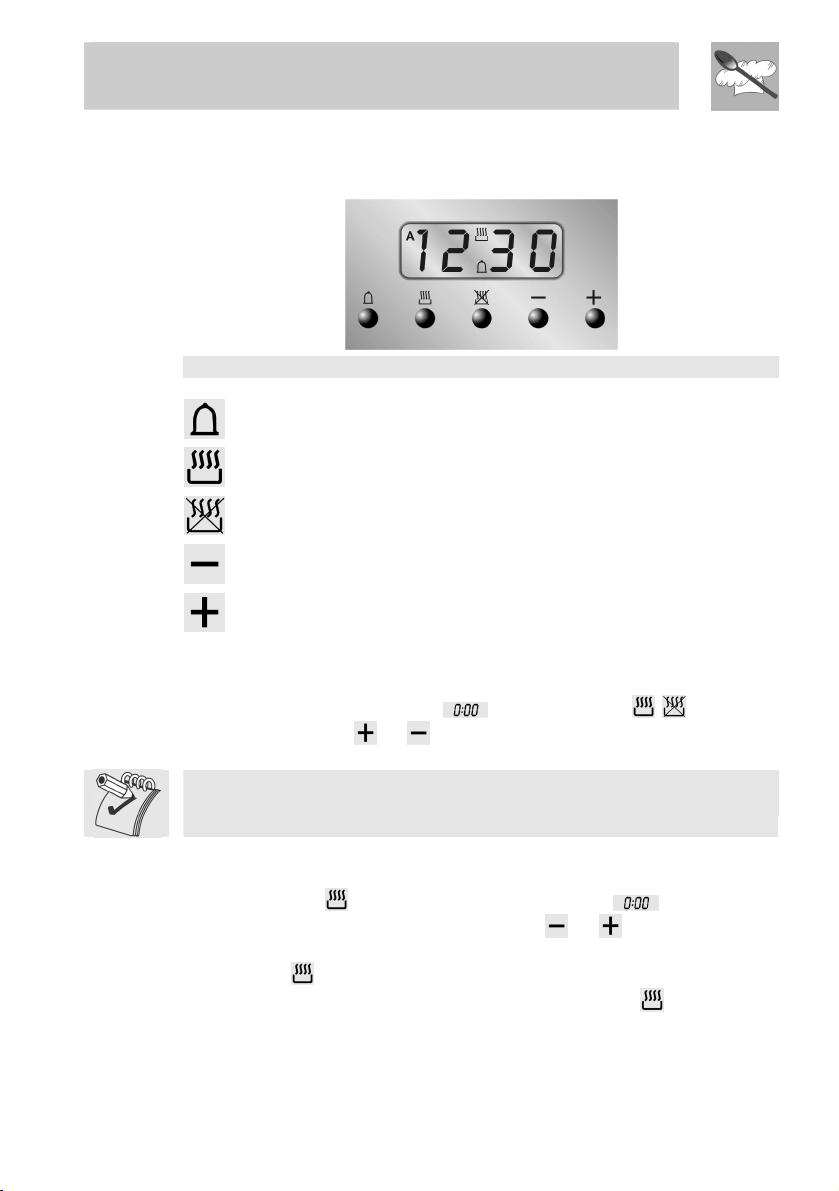

6. ELECTRONIC PROGRAMMER (ONLY ON
EQUIPPED MODELS)

LIST OF FUNCTIONS

MINUTE-COUNTER KEY

COOKING TIME KEY

END-OF-COOKING KEY

DECREASE TIME KEY

INCREASE TIME KEY

6.1 Clock adjustment

When using the oven for the first time, or after a power failure, the display
flashes regularly and indicates
same time the keys

minute either up or down.

Before setting the programmer activate the desired function an

temperature.

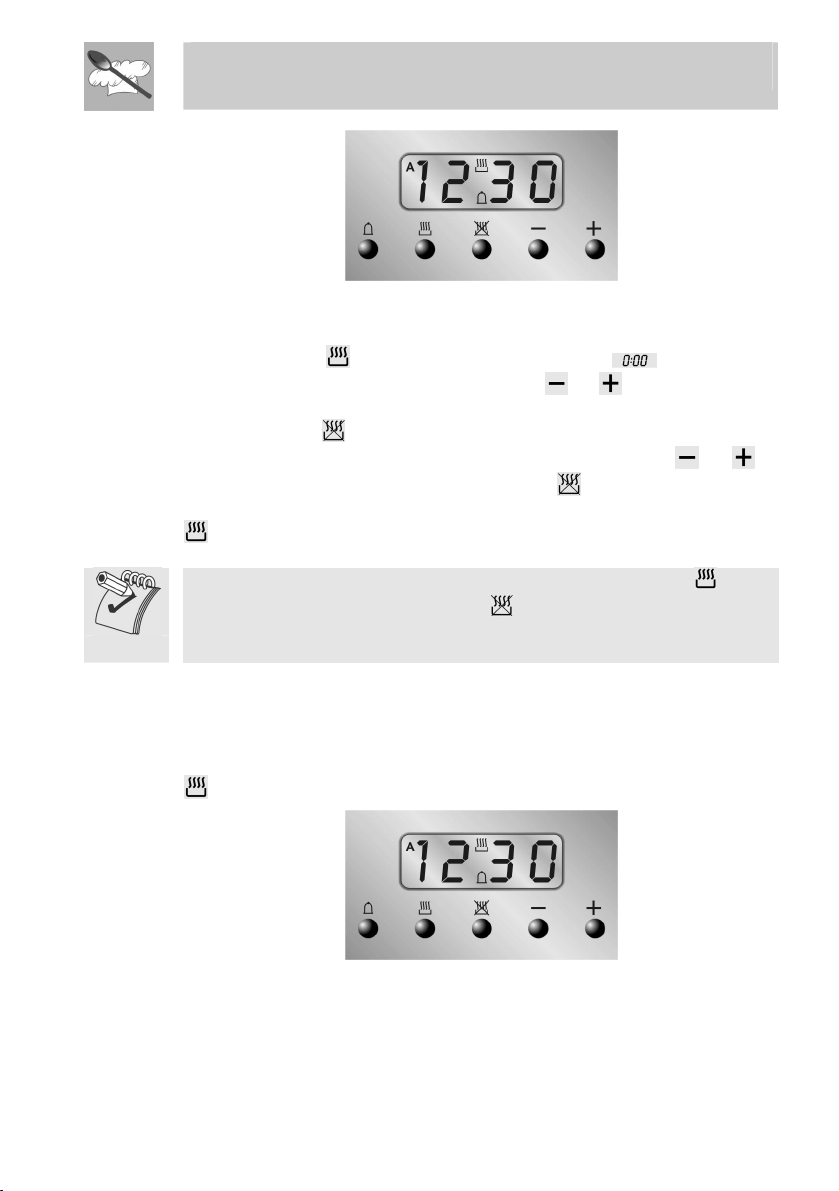

6.2 Semiautomatic cooking

Use this setting for automatic oven switch-off at the end of cooking time.
By pressing key
pressed and at the same time, press keys

time.
Release key
will now show the right time together with symbols A and .

. Press the keys and at the

or : each single press changes the time by 1

, the display lights up, showing ; keep the key

or to set the cooking

to start the programmed cooking time count. The displa

17

r

Instructions for the user

6.3 Automatic cooking

Use this setting to automatically start and stop the oven.
By pressing key
pressed and at the same time, press keys

time.
By pressing key
keep the key pressed and at the same time, press keys
regulate the end of cooking time. Release key

count and the display will show the right time together with symbols A and

.

After set-up, to see the cooking time remaining, press the key ; to see
the end of cooking time press the key . Set-up with incoherent values is

logically prevented (e.g. the contrast between a cooking time and a longe
period will not be accepted by the programmer).

6.4 End of cooking

When cooking is over, the oven will automatically switch off and, at the
same time, an intermittent alarm will sound. After switching off the alarm,
the display will once again show the right time together with the symbol

, indicating that the oven has returned to manual operation mode.

, the display lights up showing ; keep the key

or to set the cooking

the sum of the right time + cooking time will appear;

to start the programmed

or to

18

Instructions for the user

y

e

6.5 Minute Counter

The programmer can also be used as a simple minute counter. B
pressing key , the display shows ; keep the key pressed and at
the same time press keys

counting will begin and the display will show the current time and the
symbol

After set-up, to see the remaining time, press the key .
Use as a minute counter does not interrupt functioning of the oven at th
end of the programmed time.

6.6 Adjusting alarm volume

The acoustic alarm has three different settings. These can be operated,
while the alarm is sounding, by pressing key

6.7 Switching off the alarm

The alarm switches off automatically after seven minutes. They can be
manually de-activated by pressing the keys

switch off the appliance, rotate all the knobs to position 0.

6.8 Cancellation of set data

Once the programme has been set, keep the key of the function to be
cancelled pressed, while at the same time

variation keys
cooking time by the programmer.

6.9 Changing the set data

The cooking data entered can be changed at any time by keeping the
function key pressed and at the same time adjusting the keys

or . On releasing the key , programmed

.

.

and together. To

is reached by means of

or . Time cancellation will be considered as end-of-

or .

19

e

d

a

n

Instructions for the user

7. USE OF THE HOB

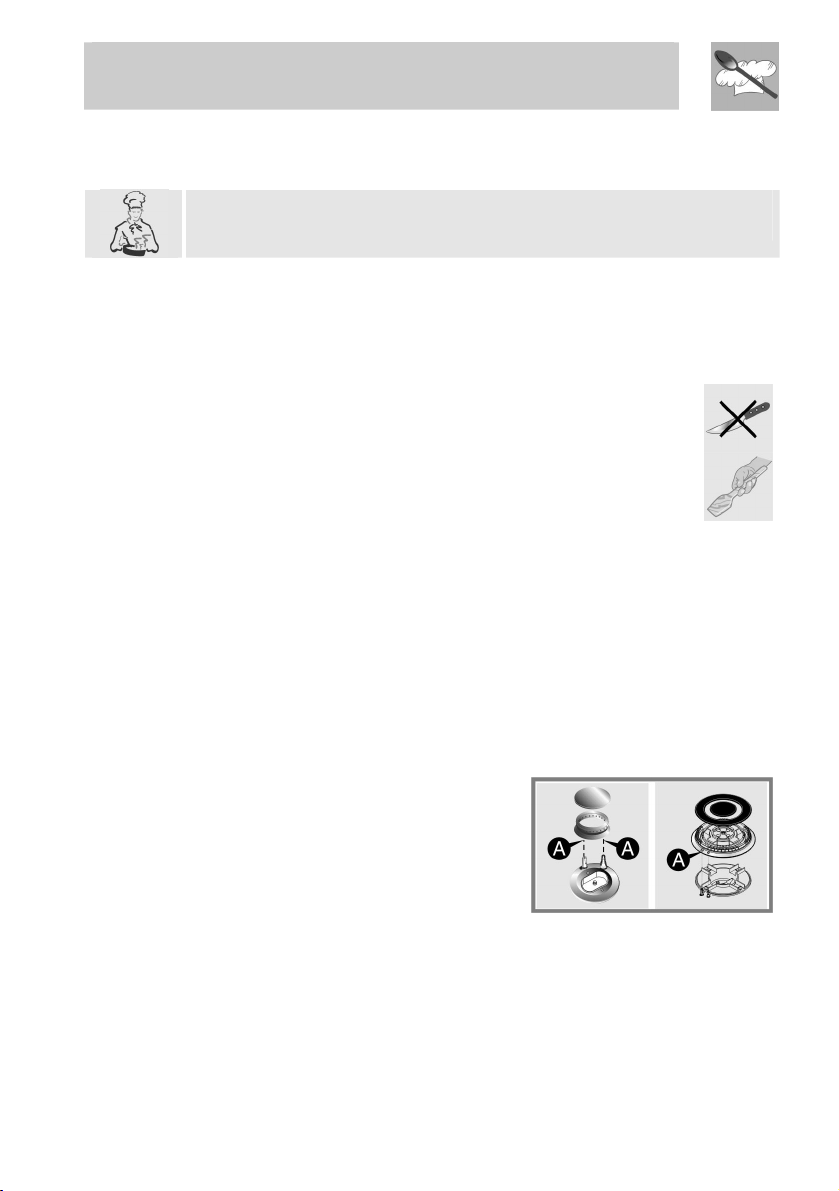

7.1 Lighting of the hob burners

Before lighting the hob burners check that the flame caps are in th

correct position and that their burner caps are in place, making sure that
the holes A in the flame caps correspond to the spark plugs an
thermocouples.
Before lighting the burners lift the glass cover; before lowering the
cover, turn off all the burners and wait for them to cool down.

The optional grid B is for use with “woks” (Chinese pans).
To prevent deterioration of the hob we have equipped the cooker with
raised pan stand C to be placed underneath pans more than 26 cm i
diameter.
The supplied reduction rest C is also used for small pans.

20

The drawing next to each knob shows the
corresponding burner. The appliance has an
electronic lighting device. Simply press and turn the
knob anticlockwise to the minimum flame symbol

, until the ring is lit. Hold the knob down for a few
seconds to allow the thermocouples to heat up.
The burner may go out when the knob is released:
this is because the thermocouple has not been
sufficiently heated. Repeat the operation holding
down the knob for a little longer. This operation is
not necessary for burners without thermocouples.

For models with thermocouples, if the burner should accidentally go out,
a safety device will be activated which stops the gas flow even if the tap
is open.

Instructions for the user

7.2 Practical advice for using the hob burners

For better use of the burners and lower gas consumption, use covered
containers that are proportional in size to the burner to prevent the flame
from licking the sides (see paragraph “7.3 Diameter of containers”).
When water reaches the boiling point, lower the flame so that it doesn’t
overflow. To avoid burns or damage to the hob, all recipients or griddle
plates must be placed within the perimeter of the hob. All containers
have to have a flat and smooth bottom. When using fats or oils, be
extremely careful that they don’t overheat and catch fire.
If the flame accidentally goes out, turn off the control knob and wait at
least 1 minute before trying to re-light the burner.

7.3 Diameter of containers

BURNERS

1 Auxiliary
2 Semi rapid
4 WOK

Ø min. and max.

(in cm)

12-14
16-24
18-26

21

n

w

e

f

n

e

o

g

Instructions for the user

8. USE OF THE OVEN

For those models with electronic programmer, before using the ove
make sure that the display shows the symbol .

8.1 Warnings and general advice

Using the oven and the grill for the first time, heat them to the maximum
temperature (260°C for electric oven) for as long as it takes to burn off
any production oil residues which could give a nasty flavour to the food.
After a power cut, the oven display will flash intermittently and sho

. To adjust refer to paragraph "6 ELECTRONIC PROGRAMMER

(ONLY ON EQUIPPED MODELS)”.

The oven accessories which may come into contact with food are mad
from materials which conform to the standing directives.

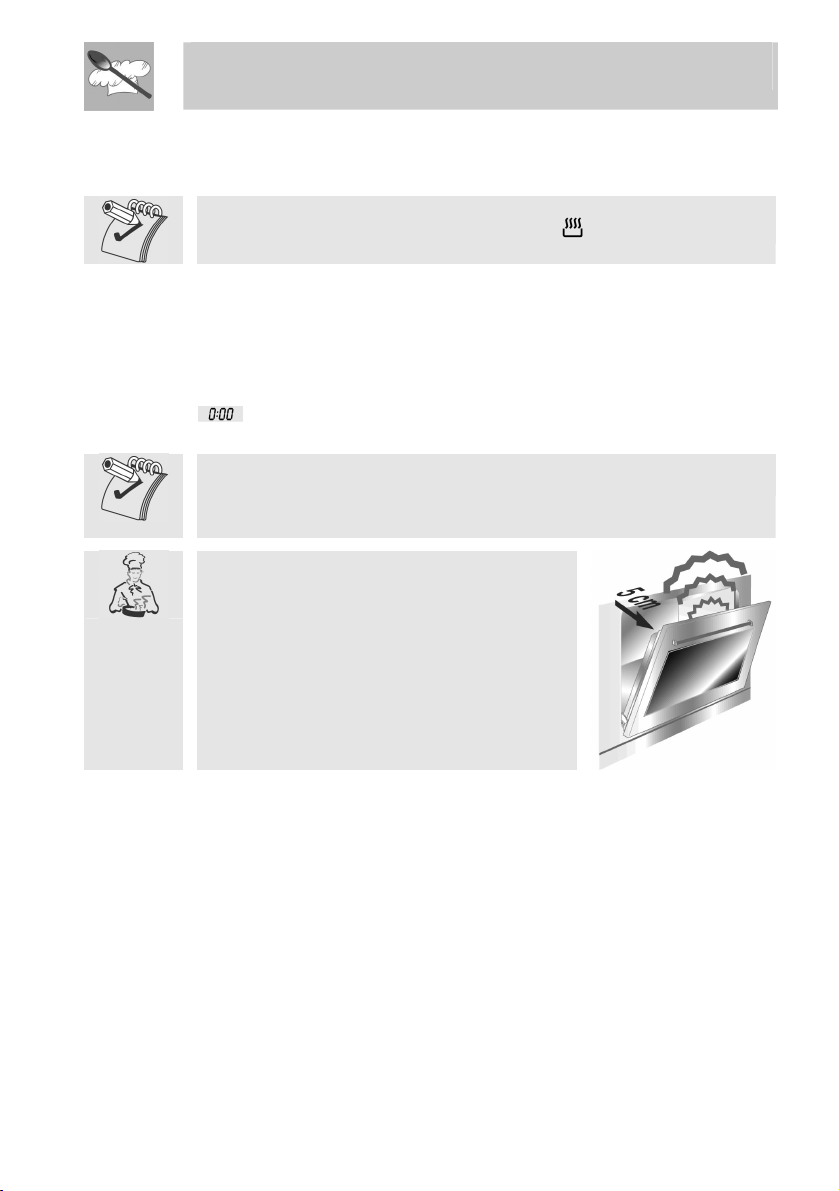

To prevent any steam in the oven creating
problems, open the door in two stages: hal
open (5 cm approx.) for 4-5 seconds and the
fully open. To access food, always leave th
door open as short a time as possible t
prevent the temperature in the oven from fallin
and ruining the food.

8.2 Cooling system

The oven is equipped with a cooling system which automatically comes
on upon a few minutes after the oven has been turned on.
Fans cause a steady outflow of air from above the door which may
continue for a brief period of time even after the oven has been turned

22

off.

r

Instructions for the user

For short cooking procedures, such as the final crisping of meat which is

8.3 Use of the electric grill

8.3.1 Using the grill in cookers with electric oven

already cooked, select the static grill function

and turn the thermostat
knob to the maximum temperature. The fan grill function (certain models
only) allows actual cooking procedures to be carried out, thanks to the
fan function which ensures that the heat penetrates into the food. Fo

this cooking mode, select the fan grill function and turn the
thermostat knob to the ideal cooking temperature (never set at more
than 200° C).

How to use the grill

Once the electric grill is lit, the red warning light will come on. Leave the

oven to heat up for five minutes before placing the food inside.
Food should be flavoured and basted with oil or melted butter before
cooking. An oven dish should be used to contain the sauces.
The food should be placed on the oven shelf which is positioned on one
of the guides supplied with the different ovens, following the instructions
below:

FOOD

Flat or thin meat 1

Rolled roast joints 2 – 3

Poultry 2 – 3

GRILLE ON THE

SHELF

23

r

r

Instructions for the user

This appliance Is equipped with a function specially developed fo

8.4 Using the pIzza function

cooking pizza. This function is identified by the symbol on the oven
functions knob.

To cook a pizza, proceed as described below.
With the oven cold, remove the round cover from the bottom of the
oven (fig. 1) and fit the pizza plate in its place (Fig. 2).

1)
Set the oven functions knob on the
on the

symbol.
Preheat the oven with these settings for 15 minutes, then place the pizza
on the special plate.
It does not normally take more than 3-4 minutes to cook a pizza to
perfection, although this time may vary depending on the dough used o
individual taste.

8.4.1 Precautions for using the pizza plate

• Always remove the round cover and fit the pizza plate with the

oven off and cold.

• Never use the pizza plate except as described above (for example,
never use it on gas or ceramic hobs, or on ovens not designed to
take this accessory).

• During use, the appliance becomes very hot; protective gloves
should be worn for all operations.

• If you like oil on your pizza, it is best to add it after removal from
the oven since oil stains on the pizza plate are unsightly and may
reduce its efficiency.

2)
symbol and the thermostat knob

24

Instructions for the user

n

g

e

h

t

e

g

e

d

WARNINGS

•

Cooking procedures in this mode must never last more tha
60 minutes.

•

In models with electric oven, the door must be close durin
grilling.

•

During and after use the accessible parts of the oven may b
very hot, and children must always be kept at a distance.

•

During cooking, do not cover the bottom of the oven wit
aluminium or tin foil and do not place pans or oven trays on i
as this may damage the enamel coating. If you wish to us

reaseproof paper, place it so that it will not interfere with th

hot air circulation inside the oven.

•

When using the oven, remove all unused baking sheets an
shelves from the interior.

If your cooker is equipped with knob
guard, when cooking using the grill
or grill + rotisserie it must be fitted as
shown here, fitting the slots "A" onto
the pins "B" in the top of the oven.

8.5 Storage compartment

A storage compartment, accessible by pulling
on the top edge of the door, is located
beneath the oven.
Never store inflammable materials such as
rags, paper or the like. The compartment is
intended only for holding the metal
accessories of the range.

25

Instructions for the user

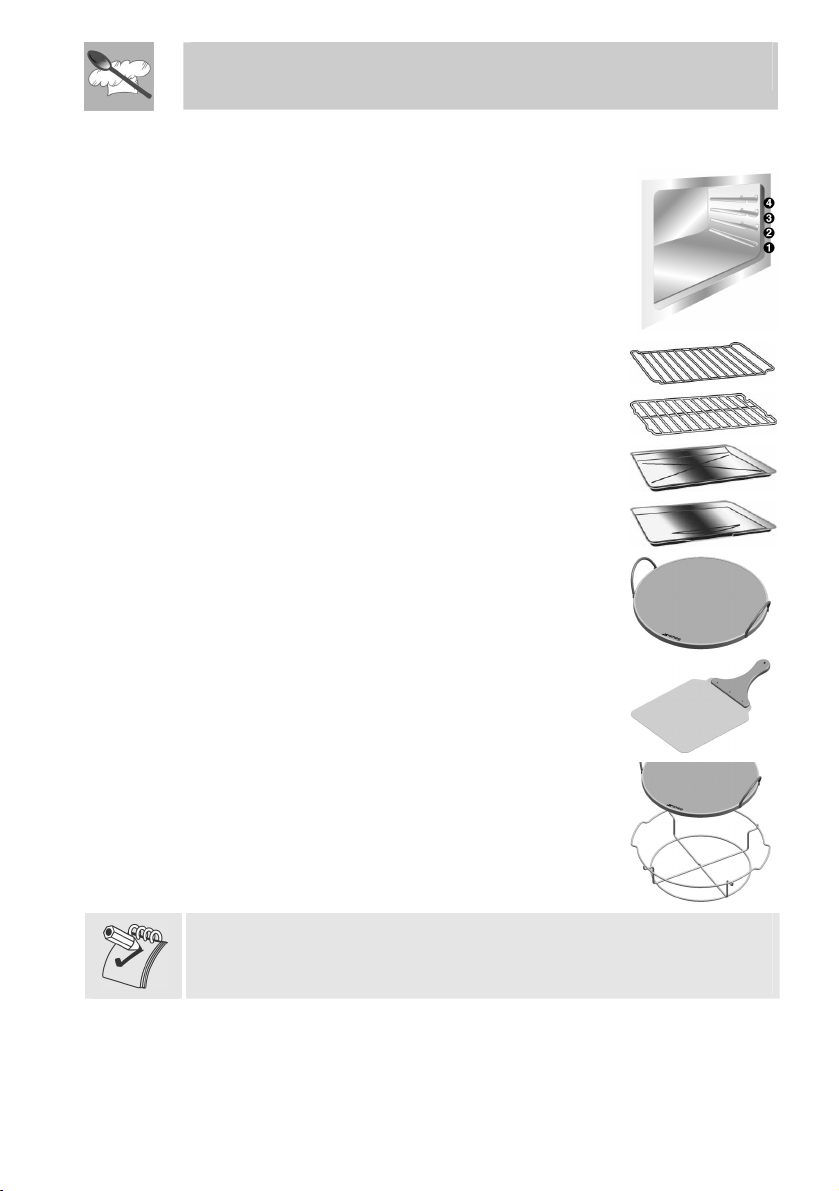

9. AVAILABLE ACCESSORIES

The oven has 4 support for positioning plates and
racks at various heights.

Oven grill: for cooking food on plates, small cakes,
roasts or food requiring light grilling.

Plate grill: for placing above plate for cooking foods
that might drip.

Oven plate: useful for catching fat from foods on the
grill above.

Pastry plate: for baking cakes, pizza and oven
desserts.

Pizza plate: specially designed for cooking pizza.
For use as described in point “8.4 Using the "pizza"
function"

Pizza shovel: a convenient way of putting the pizza
on the special plate in the oven.

Pizza plate stand: so that the hot pizza plate does
not have to be placed directly on a table or other
delicate surfaces.

Accessories on Request

You can order the lower base and self-cleaning oven panels through
Authorised Assistance Centres.

26

Instructions for the user

10. CLEANING AND MAINTENANCE

10.1 Cleaning stainless steel and enamelled versions

To maintain stainless steel in good condition it must be cleaned regularly
after each use, once it has cooled down.

10.1.1 Ordinary Daily Cleaning

To clean and preserve the stainless steel surfaces, always use only
specific products that do not contain abrasives or chlorine-based acids.
How to use: pour the product on a damp cloth and wipe the surface,
rinse thoroughly and dry with a soft cloth or deerskin.

10.1.2 Food stains or residues

Do not use metallic sponges or sharp scrapers: they will
damage the surface.
Use normal non-abrasive products for steel, and a wooden
or plastic tool if necessary.
Rinse thoroughly and dry with a soft cloth or deerskin.
Do not allow residues of sugary foods (such as jam) to set
inside the oven. If left to set for too long, they might damage
the enamel lining of the oven.

10.2 Cleaning of the hob components

10.2.1 Grids

Remove the grids and clean them in warm water with a non-abrasive
detergent, taking care to remove any incrustations. Replace them on the
hob.
Continuous contact of the grids with the flame can cause the paint near
the hot areas to be altered. This is completely natural and does not
compromise the functionality of the component.

10.2.2 Burner caps and flame cap crowns

The caps and flame-spreader crowns
are extractable to facilitate cleaning.
Wash them in hot water with non­abrasive detergent, taking care to
remove any incrustations, and wait until
they are perfectly dry.

WARNING: do not wash these
components in the dishwasher.

Replace the flame-spreader crowns, checking that they are positioned in
their housing with their respective caps, taking care that flame-spreader
holes A correspond to the spark plugs and the thermocouples.

27

Instructions for the user

10.2.3 The spark plugs and thermocouples

To function properly the spark plugs and
thermocouples must always be clean (on the models
which are equipped with them). Check them regularly
and clean with a damp cloth if necessary. Any dry
residues can be removed with a toothpick or a needle.

10.2.4 The burners

The burners can be left to soak in hot water and detergent.

10.3 Cleaning of oven

For best oven upkeep clean regularly after having allowed to cool. Take
out all removable parts.

28

• Clean the oven grill with hot water and non-abrasive detergent.
Rinse and dry.

• Clean the internal walls of the oven with a soft ammoniac-soaked
cloth. Rinse and dry. If there are still stains or drops, place a damp
ammoniac-soaked cloth on the bottom of the oven, close the door
and after a few hours wash the oven with hot water and liquid
detergent. Rinse and dry.

10.4 Door glass

The door glass should always be kept clean. Use absorbent kitchen
paper to clean. In case of tough spots, clean with a damp sponge using
regular detergent.

Instructions for the user

11. EXTRAORDINARY MAINTENANCE

Ovens periodically require small maintenance interventions or
replacement of parts subject to wear and tear such as gaskets, electric
bulbs etc. Specific instructions for each intervention of this type appear
below.

Before performing any operations requiring access to powered
parts, switch off the power supply to the machine.

11.1 Lubrication of gas taps

With time it may happen that the gas taps get blocked and hard to turn.
Clean them inside and re-grease them. This operation must be done

by an authorised person.

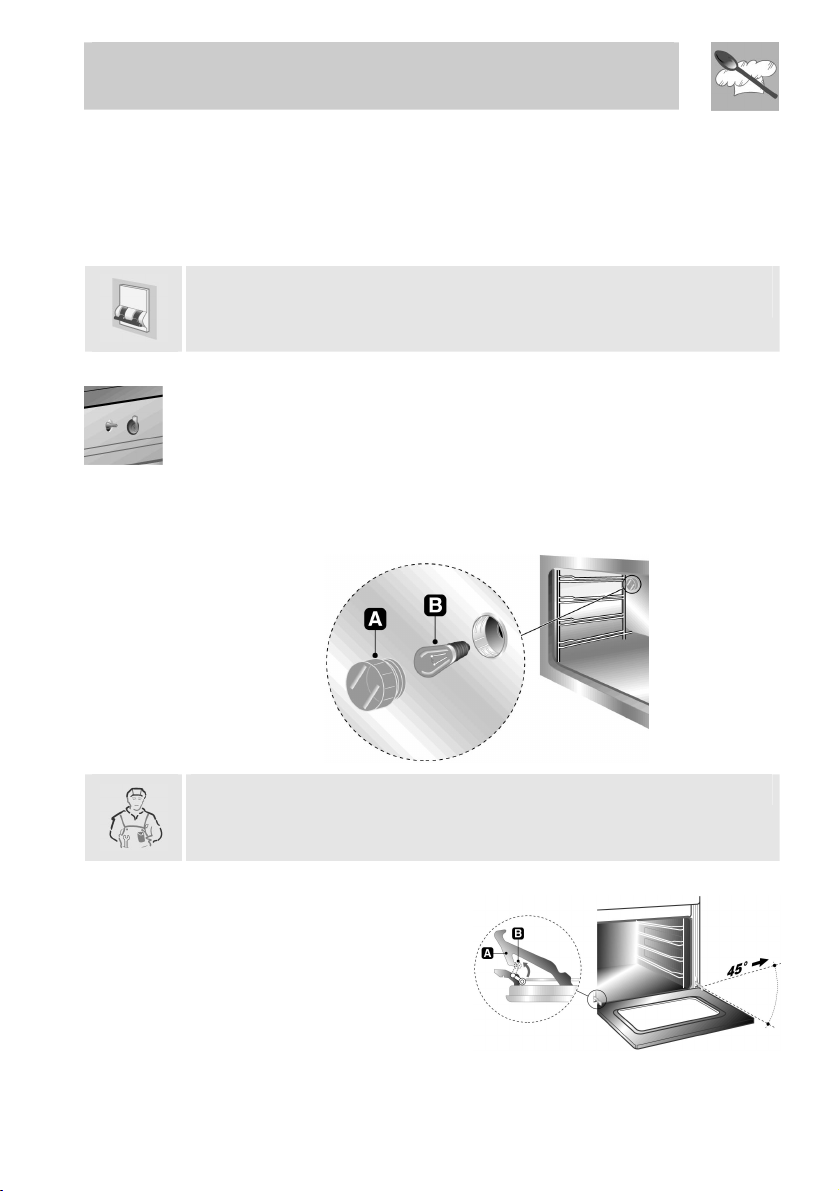

11.2 Replacement of light bulbs

Remove cover A by twisting anticlockwise, replace bulb B with another
similar bulb. Refit the cover A.

Only use oven bulbs (T 300°C).

11.3 Dismantling of the doors

Hold the door on both sides with
both hands near hinges A and
raise levers B. Lift up the door
forming an angle of about 45°
and remove. To refit, slide the
hinges A in the grooves, drop
the door and release levers B.

29

Instructions for the user

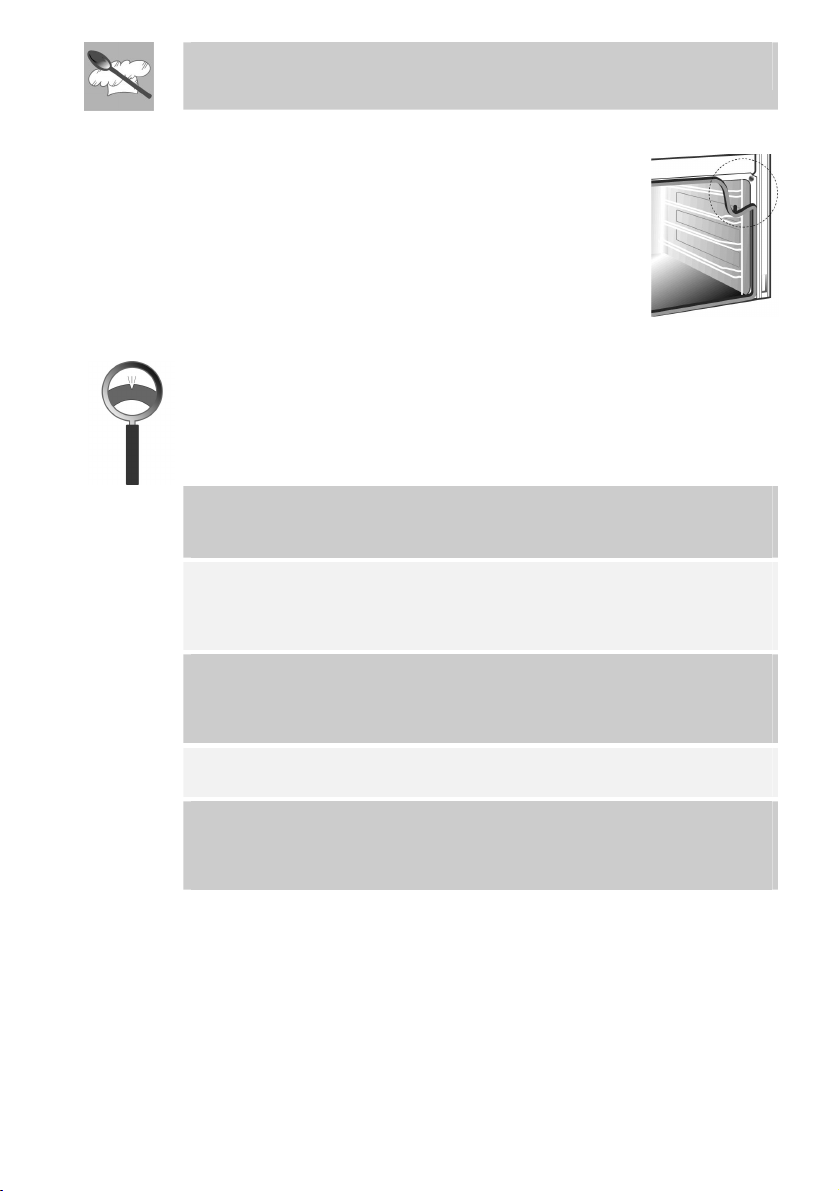

11.4 Oven door gaskets

The door gaskets can be dismantled for thorough
cleaning of the ovens. Before removing the gaskets the
oven doors must be removed as previously described.
With the doors removed, raise the tabs at the corners
as shown in the figure.

11.5 Preventive maintenance

This appliance does not need any special maintenance. However, a few
simple operations have to be carried out periodically to prevent
malfunctioning:

Burners: the burners must be cleaned after every use to ensure correct
combustion; make sure that all the openings and flame ports are clean and
free of obstacles, and that the burners rest firmly on their supports.

Gas connection: the gas connection must be c hecked periodically (at least
every 2 years). Each time the cooker is moved the connection may be
stressed: test it for leakages using special sprays or a solution of soap and
water.

Flexible pipes: if a flexibl e pipe is used, it must be inspected periodic ally
(once a year) for leakages: if the surface of the pipe appears rigid and
cracked, disconnect immediately the cooker from the gas supply and
replace the pipe with a new one.

Valves: if the gas valves get stuck or hard to turn, they need to be cleaned
and re-greased; this operation must be carried out by an authoris ed person.

Oven gasket: with time the oven gasket may harden and crack on the
surface, resulting in leakage of heat from the oven and higher temperatures
on the control panel and knobs. Check it periodically (once a year) and
replace it if necessary.

30

Instructions for the user

12. PROBLEMS AND CAUSES

Each of the following cases is caused by an abnormal operation of the
appliance and should be dealt with by a authorised person: please
contact your local dealer or Service Center in case you detect any of
these malfunctioning.

PROBLEM

The flame is very long with
bright yellow tips.
Black deposits on the
bottom of the pans.

The flame is very short and
noisy. The flame moves
away from the burner ports.

The flame extinguishes
when the burner knob is set
to the low flame position.

The valve knob is hard to
rotate.

The cooker suddenly stops
working during operation of
the oven.
The electronic programmer
is not operating.

CAUSE

Defect of comburent air
or incorrect injectors.

Excess of comburent
air.

Incorrect adjustment of
the minimum heat input
or excess of comburent
air.

Gas valve worn out or
needs lubrification.

Overheating of the
appliance.

WHAT TO DO

Call Service Center.

Call Service Center.

Call Service Center.

Call Service Center.

Let the appliance cool
down: the safety thermal
cut-out will self-reset
when the temperature
has decreased to a
correct value. Should the
problem arise again, call
the Service Center.

31

Cod. 914772552/A
