Smeg FA550X2, FA550XBI2 User Manual
21

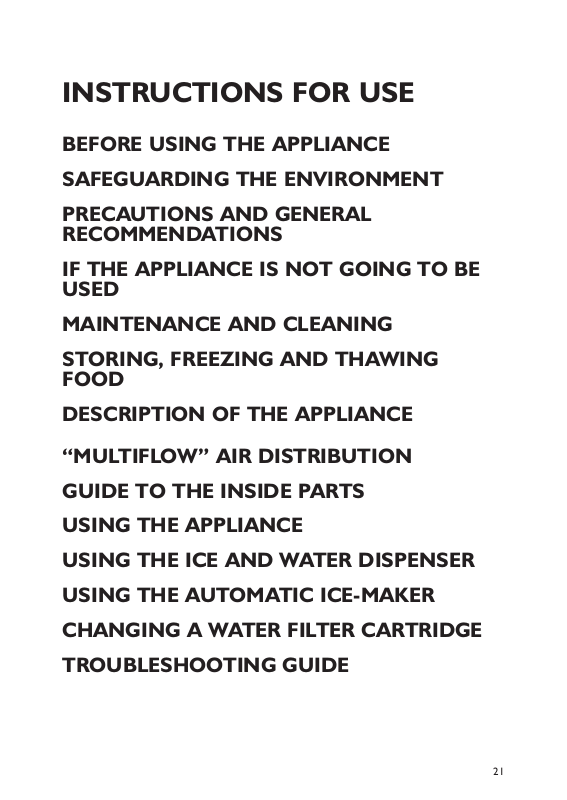

INSTRUCTIONS FOR USE
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
IF THE APPLIANCE IS NOT GOING TO BE
USED
MAINTENANCE AND CLEANING
STORING, FREEZING AND THAWING
FOOD
DESCRIPTION OF THE APPLIANCE
“MULTIFLOW” AIR DISTRIBUTION
GUIDE TO THE INSIDE PARTS
USING THE APPLIANCE
USING THE ICE AND WATER DISPENSER
USING THE AUTOMATIC ICE-MAKER
CHANGING A WATER FILTER CARTRIDGE
TROUBLESHOOTING GUIDE
22
Your new appliance is designed exclusively for
domestic use.
After unpacking the appliance, make sure it is not
damaged and that the door closes properly. Any
damage must be reported to the dealer within 24
hours of delivery of the appliance.
Wait at least two hours before switching the
appliance on, to ensure that the refrigerant circuit
is fully efficient.
Installation and the electrical connection must be
carried out by a qualified technician, according to
the manufacturer’s instructions and local safety
regulations.
Clean the inside of the appliance before using it.
BEFORE USING THE APPLIANCE
1. Packing
The packing material is 100% recyclable and bears
the recycling symbol. For disposal, comply with the
local regulations. Keep the packing materials
(plastic bags, polystyrene parts, etc.) out of the
reach of children, as they are a potential source of
danger.
2. Scrapping/Disposal
The appliance is manufactured using recyclable
material.
This appliance is marked in compliance with
European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By
ensuring the correct disposal of this appliance, you
can help prevent potentially negative consequences
for the environment and the health of persons.
The symbol on the appliance, or on the
accompanying documents, indicates that this
appliance should not be treated as domestic waste
but must be taken to a special collection centre for
the recycling of electrical and electronic
equipment.
When scrapping the appliance, make it unusable by
cutting off the power cable and removing the
doors and shelves so that children cannot easily
climb inside and become trapped.
Scrap the appliance in compliance with local
regulations on waste disposal, taking it to a special
collection centre; do not leave the appliance
unattended even for a few days, since it is a
potential source of danger for children.
For further information on the treatment, recovery
and recycling of this product, contact your
competent local office, the household waste
collection service or the shop where you
purchased the appliance.
Information:
This appliance does not contain CFCs. The
refrigerant circuit contains R134a (HFC) or R600a
(HC) (see the rating plate inside the appliance).
Appliances with Isobutane (R600a): isobutane is a
natural gas without environmental impact, but is
flammable. Therefore, make sure the refrigerant
circuit pipes are not damaged.
Declaration of conformity
• This appliance has been designed for preserving
food and is manufactured in compliance with
Regulation (CE) No. 1935/2004.
• This appliance has been designed, manufactured
and marketed in compliance with:
- safety objectives of the “Low Voltage”
Directive 2006/95/CE (which replaces
73/23/CEE and subsequent amendments);
- the protection requirements of Directive
“EMC” 89/336/EEC amended by Directive
93/68/EEC.
Electrical safety of the appliance can only be
guaranteed if it is correctly connected to an
approved earthing system.
SAFEGUARDING THE ENVIRONMENT
23
INSTALLATION
• The appliance must be handled and installed by
two or more persons.
• Be careful not to damage the floors (e.g.
parquet) when moving the appliance.
• During installation, make sure the appliance
does not damage the power cable.
• Make sure the appliance is not near a heat
source.
• To guarantee adequate ventilation, leave a space
on both sides and above the appliance and
follow the installation instructions.
• Keep the appliance ventilation openings free.
• Do not damage the appliance refrigerant circuit
pipes.
• Install and level the appliance on a floor strong
enough to take its weight and in a place suitable
for its size and use.
• Install the appliance in a dry and well-ventilated
place. The appliance is arranged for operation in
places where the temperature comes within the
following ranges, according to the climatic class
given on the rating plate. The appliance may not
work properly if it is left for a long time at a
temperature outside the specified range.
• Make sure the voltage specified on the rating
plate corresponds to that of your home.
• Do not use single/multi adapters or extension
cords.
• For the water connection, use the pipe supplied
with the new appliance; do not reuse that of the
previous appliance.
• Power cable modification or replacement must
only be carried out by qualified personnel.
• It must be possible to disconnect the appliance
from the power supply by unplugging it or by
means of a mains two-pole switch installed
upstream of the socket.
SAFETY
• Do not store or use petrol, flammable liquids or
gas in the vicinity of this or other electrical
appliances. The fumes can cause fires or
explosions.
• Do not use mechanical, electric or chemical
means other than those recommended by the
Manufacturer to speed up the defrost process.
• Do not use or place electrical devices inside the
appliance compartments if they are not of the
type expressly authorised by the Manufacturer.
• This appliance is not designed for use by young
children or the infirm without supervision.
• To avoid the risk of children becoming trapped
and suffocating, do not allow them to play or
hide inside the appliance.
• Do not swallow the contents (non-toxic) of the
ice packs (in some models).
• Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer since they
may cause cold burns.
USE
• Before carrying out any maintenance or cleaning
operation, unplug the appliance or disconnect it
from the power supply.
• All appliances equipped with an automatic icemaker and water dispenser must be connected
to a water supply that only delivers drinking
water (with mains water pressure of between
0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic
ice-makers and/or water dispensers not directly
connected to the water supply must be filled
with drinking water only.
• Use the refrigerator compartment only for
storing fresh food and the freezer compartment
only for storing frozen food, freezing fresh food
and making ice cubes.
• Do not store glass containers with liquids in the
freezer since they may burst.
The Manufacturer declines any liability if the
above advice and precautions are not
respected.
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
Climatic Class Amb. T. (°C) Amb. T. (°F)
SN
From 10 to 32 From 50 to 90
N
From 16 to 32 From 61 to 90
ST
From 16 to 38 From 61 to 100
T
From 16 to 43 From 61 to 110
24
In case of power failures of up to 24 hours
Keep the doors of the appliance closed. In this way the stored food will stay cold as long as possible. For
further information see chapter “Using the appliance”, section “Black-out alarm”.
If the appliance is not going to be used
- Disconnect the appliance from the power supply.
- Remove all the food if you are going away for more than three weeks.
- If the appliance has an automatic ice-maker:
1. Shut off the water supply to the automatic ice-maker.
2. Empty the ice bucket.
- Leave the doors open enough for air to circulate inside the compartments. This will prevent the
formation of mould and bad odours.
IF THE APPLIANCE IS NOT GOING
TO BE USED
Before any cleaning or maintenance operation, always disconnect
the appliance from the power supply.
• Periodically clean the appliance with a cloth and a solution of
lukewarm water and neutral detergent specific for refrigerator
interiors.
• Never use detergents or abrasives. Never clean the refrigerator
parts with flammable liquids. The fumes can cause fires or
explosions.
• Clean the outside of the appliance and the door seals with a
damp cloth and dry with a soft cloth.
• Do not use steam cleaners.
• Clean the condenser using a vacuum cleaner, remove the front
kickplate (see installation handbook).
• The buttons and control panel display (located on the freezer
door on some models) must be cleaned with a dry cloth; do not
use alcohol or alcohol-derived substances.
• The refrigerant system pipes are located near the defrost pan
and can become very hot. Periodically clean them with a vacuum
cleaner.
Replacing light bulbs
Attention
• Always disconnect the refrigerator from the power supply
before replacing any light bulbs.
• Before replacing the light bulb, remove the light guard that may
be present. This will have to be put back after replacing the light
bulb.
• The refrigerator accepts light bulbs with a bayonet type mount.
These do not need unscrewing/screwing when replacing.
• The ice/water dispenser light bulb has a standard screw type
mount and therefore needs to be screwed in place.
Replace the lamp with one of the same type, available from the
After-sales Service or from authorised dealers.
MAINTENANCE AND CLEANING
25
INTRODUCTION
Wrap food so that no water, moisture or condensate can enter; this will prevent odours or aromas going
from one part to another in the refrigerator, ensuring better preservation of frozen foods. Use plastic
containers with hermetic lids, aluminium trays, aluminium foil, plastic film and waterproof plastic wraps.
NOTE: Never place hot food in the freezer. Allow hot foods to cool to room temperature for 30
minutes, then wrap and freeze. Cooling hot foods before freezing saves energy and prolongs the life of the
appliance.
SEALING
When sealing food in bags, remove the air (liquids need space to expand). Fasten the top of the bag with a
string. Put the label inside transparent bags; use self-adhesive labels for applying on the outside of opaque
bags.
DEFROSTING
Useful suggestions.
- RAW VEGETABLES: place directly in boiling water without thawing and cook normally.
- MEAT (large cuts): thaw in the refrigerator compartment without removing the wrapping. Before
cooking, leave at room temperature for a couple of hours.
- MEAT (small cuts): thaw at room temperature or cook directly.
- FISH: thaw in the refrigerator compartment without unwrapping or cook directly before completely
thawed. In case of a power failure, the freezer compartment will maintain an adequate storage
temperature for about 12 hours; during this period, it is advisable to keep the compartment door
closed. Do not refreeze partially thawed food.
- ALREADY COOKED FOOD: heat in the oven without removing it from the aluminium containers.
- FRUIT: thaw in the refrigerator compartment.
FOOD STORAGE CHART
Storage times vary according to the quality of the food, the type of packaging or wrap used (moisture and
steam proof), and the storage temperature (which must be - 18°C).
STORING, FREEZING AND THAWING
FOOD
Food category Months
FRUIT
Concentrated fruit juice 12
Fruit (in general) 8-12
Citrus fruit and fresh fruit juices 4-6
VEGETABLES
Commercially frozen 8
Home frozen 8-12
STEWS
Meat, poultry and fish 2-3
FISH
Cod, sole 6
Salmon 2-3
Mackerel, perch 2-3
Already seasoned fish 3
Clams, oysters 3-4
Boiled fish, crabs 3-4
Raw crayfish 12
Food category Months
MEAT
Sausages 4 weeks or less
Hamburgers 1
Beef, veal, lamb 2-3
ROASTS
Beef 6-12
Lamb and veal 6-12
Pork 4-6
Fresh sausages 1-2
STEAKS AND CHOPS
Beef 8-12
Lamb, veal, pork 2-4
POULTRY
Chicken or turkey (whole or parts) 12
Duck and goose 6
Cooked poultry (in sauce) 6
Steak (without sauce) 1
26
REFRIGERATOR COMPARTMENT
A. Inside light
B. Inside light
C. Adjustable shelf
D. Shelf - drawer lid
E. Crisper
F. Crisper adjustment
G. Meat / vegetable drawer
H. Meat / vegetable drawer adjustment
I. Dairy products compartment
J. Door trays
K. 2-litre door tray with bottle holder
L. 0.75 litre door tray
M. Water filter
N. “Multiflow” (depending on model)
FREEZER COMPARTMENT
O. Automatic ice-maker
P. Glass shelves / Racks (depending on the
model)
Q. Drawer / Bottom basket (depending on the
model)
R. Drawer / Top basket (depending on the
model)
S. Ice cube drawer
T. Freezer door trays
U. Inside light
DESCRIPTION OF THE APPLIANCE
Loading...
