Smeg CPF9GPBLA Technical sheet

CPF9GPBLA

Cooker, 90x60 cm, Portofino, Black, Gas

TYPE

Product Family: Cooker • Cooker size: 90x60 cm • Energy type: Gas/Electric • N. of ovens: 1 • Hob type: Gas • Type of main

oven: Thermoseal • Cleaning system: Pyrolitic • EAN code: 8017709249991

AESTHETICS

Colour: Black • Aesthetics: Portofino • Design: Flush fit • Material: Enamelled • Door: With frame • Command panel finish:

Enamelled metal • Hob colour: Stainless steel • Handle: Smeg Portofino • Controls colour: Stainless steel • Upstand: Yes •

Display: LCD • Type of pan stands: Cast Iron • Handle Colour: coloured • Control knobs: Smeg Portofino • Glass type: Grey • No.

of controls: 8 • Feet: Black • Plinth: Black • Storage compartment: Push pull

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Fan assisted, Circulaire, Turbo, Eco, Large grill, Fan grill (large), Base, Fan assisted bottom,

Rotisserie • Cleaning functions: Pyrolytic, Pyrolytic eco • Automatic programs: 20 • Other functions: Defrost by time, Defrost by

weight, Proving, Sabbath

Smeg Australia, 2-8 Baker St, Banksmeadow NSW 2019

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

Total no. of cook zones: 6 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Front centre • 4th zone

position: Rear centre • 5th zone position: Front right • 6th zone position: Rear right • 1st zone type: Gas - 2UR (dual) • 2nd zone

type: Gas - AUX • 3rd zone type: Gas - AUX • 4th zone type: Gas - Semi Rapid • 5th zone type: Gas - Semi Rapid • 6th zone

type: Gas - Rapid • 1st zone power: 4.20 kW • 2nd zone power: 1.00 kW • 3rd zone power: 1.00 kW • 4th zone power: 1.80 kW

• 5th zone power: 1.80 kW • 6th zone power: 3.00 kW • Type of gas burners: Standard • Burner caps: Matt black enamelled •

Automatic electronic ignition: Yes • Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 115 l • Cavity material: Ever Clean enamel • No. of shelves: 5 • Type of shelves: Metal racks • No. of

lights: 4 • Light type: Halogen • Light Power: 40 W • Fan number: 3 • Cooking time setting: Start and Stop • Door opening: Flap

down • Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes •

Total no. of door glasses: 4 • No.of thermo-reflective door glasses: 3 • Door Lock During Pyrolisis: Yes • Safety Thermostat: Yes •

Cooling system: Tangential • Heating suspended when door is opened: Yes • Grill type: Electric • Grill elememt: 1700 W • Large

grill - Power: 2900 W • Lower heating element power: 1700 W • Upper heating element - Power: 1200 W • Circular heating

element - Power: 1850 W • Soft Close system: Yes • Temperature control: Electronic

ELECTRICAL CONNECTION

Electrical connection rating: 4000 W • Voltage: 220-240 V • Voltage 2 (V): 380-415 V • Frequency: 50/60 Hz

GAS CONNECTION

Gas connection rating (W): 13888.9 W • Gas Type: G20 Natural gas

LOGISTIC INFORMATION

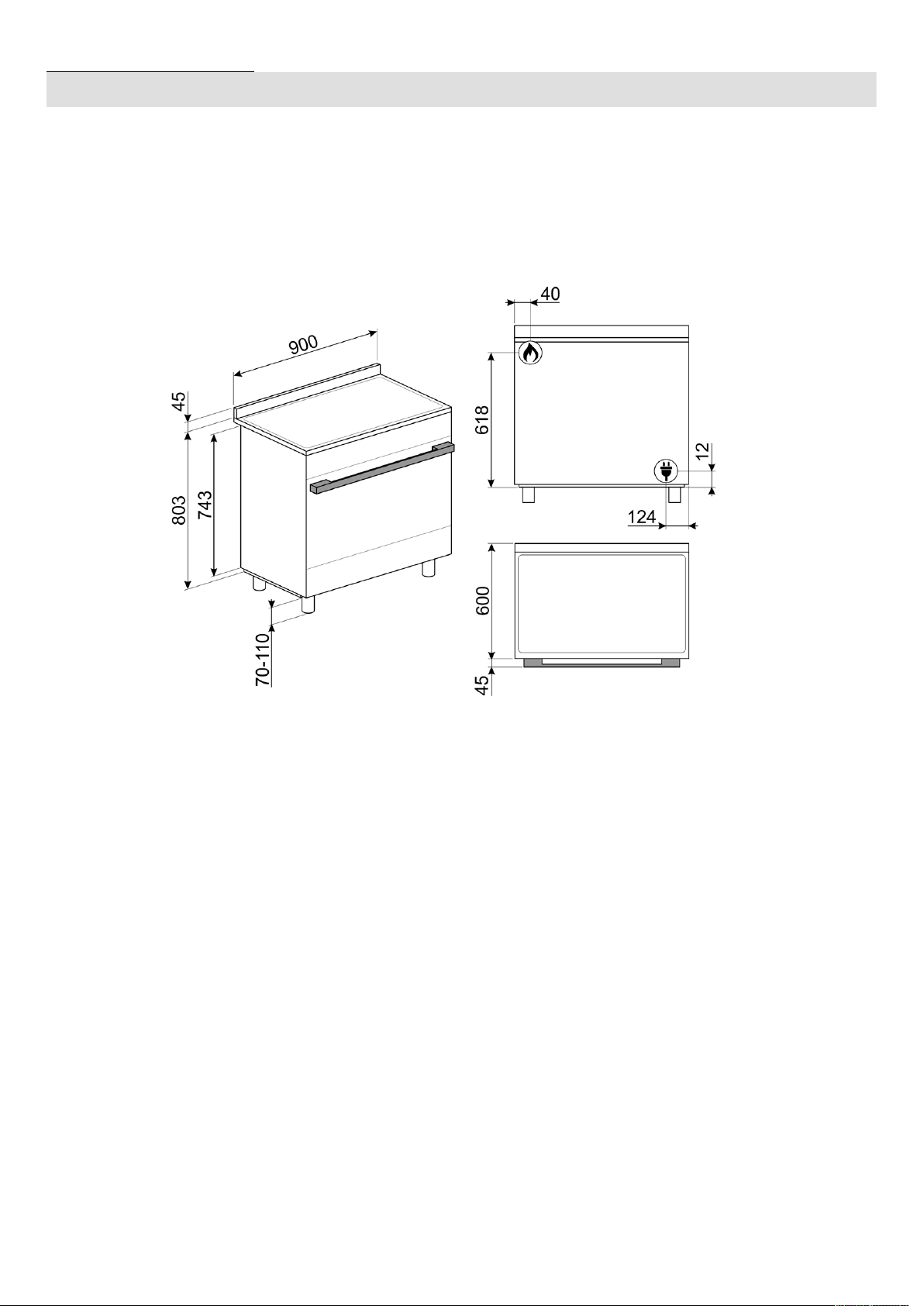

Width (mm): 900 mm • Product Height (mm): 900 mm • Depth (mm): 600 mm • Net weight (kg): 94.400 kg

ACCESSORIES INCLUDED

Other gas nozzles included: G30 LPG liquid gas

ACCESSORIES INCLUDED FOR MAIN OVEN & HOB

Grill mesh: 1Cast iron wok support: 1Telescopic Guide rails, partial Extraction: 1TOP Oven grid with back stop: 2Rotisserie:

140mm deep tray: 2
