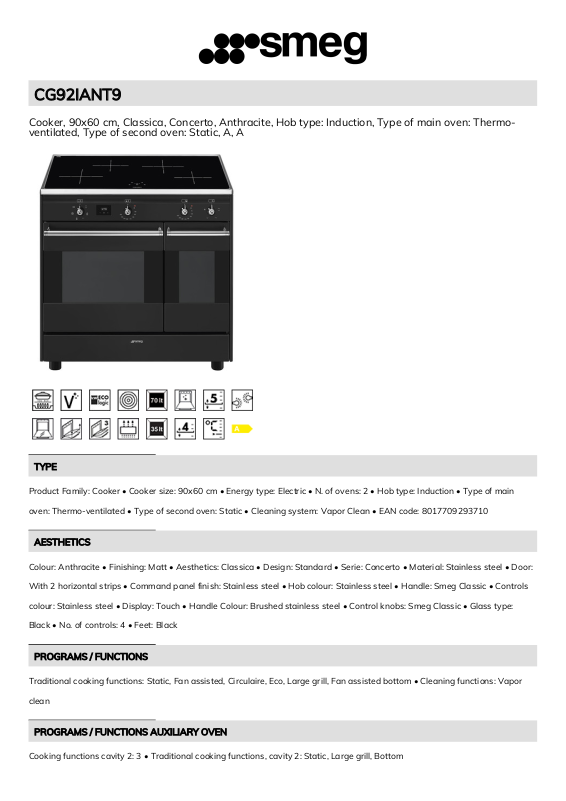

Smeg CG92IANT9 Technical sheet

CG92IANT9

Cooker, 90x60 cm, Classica, Concerto, Anthracite, Hob type: Induction, Type of main oven: Thermo­ventilated, Type of second oven: Static, A, A

TYPE

Product Family: Cooker • Cooker size: 90x60 cm • Energy type: Electric • N. of ovens: 2 • Hob type: Induction • Type of main

oven: Thermo-ventilated • Type of second oven: Static • Cleaning system: Vapor Clean • EAN code: 8017709293710

AESTHETICS

Colour: Anthracite • Finishing: Matt • Aesthetics: Classica • Design: Standard • Serie: Concerto • Material: Stainless steel • Door:

With 2 horizontal strips • Command panel finish: Stainless steel • Hob colour: Stainless steel • Handle: Smeg Classic • Controls

colour: Stainless steel • Display: Touch • Handle Colour: Brushed stainless steel • Control knobs: Smeg Classic • Glass type:

Black • No. of controls: 4 • Feet: Black

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Fan assisted, Circulaire, Eco, Large grill, Fan assisted bottom • Cleaning functions: Vapor

clean

PROGRAMS / FUNCTIONS AUXILIARY OVEN

Cooking functions cavity 2: 3 • Traditional cooking functions, cavity 2: Static, Large grill, Bottom

HOB OPTIONS

Limited Power Consumption Mode: Yes • Limited Power Consumption Mode in W: 3000, 4500, 7400 W

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 260 °C

OPTIONS AUXILIARY OVEN

Minimum Temperature: 50 °C • Maximum temperature: 245 °C

HOB TECHNICAL FEATURES

Total no. of cook zones: 4 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Rear right • 4th zone

position: Front right • 1st zone type: Induction - single • 2nd zone type: Induction - single • 3rd zone type: Induction - giant • 4th

zone type: Induction - single • 1st zone dimensions: Ø 21.0 cm • 2nd zone dimensions: Ø 18.0 cm • 3rd zone dimensions: Ø 21.0

cm • 4th zone dimensions: Ø 18.0 cm • 1st zone power: 2.30 kW • 2nd zone power: 1.30 kW • 3rd zone power: 2.30 kW • 4th

zone power: 1.30 kW • 1st zone booster power: 3.00 kW • 2nd zone booster power: 1.40 kW • 3rd zone booster power: 3.00

kW • 4th zone booster power: 1.40 kW

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 70 l • Cavity material: Ever Clean enamel • No. of shelves: 5 • Type of shelves: Metal racks • No. of

lights: 1 • Light type: Halogen • Light Power: 40 W • Fan number: 1 • Cooking time setting: Start and Stop • Door opening: Flap

down • Light when oven door is open: Yes • Removable door: Yes • Full glass inner door: Yes • Removable inner door: Yes •

Total no. of door glasses: 3 • No.of thermo-reflective door glasses: 1 • Safety Thermostat: Yes • Cooling system: Tangential •

Grill type: Electric • Grill elememt: 1700 W • Lower heating element power: 1200 W • Upper heating element - Power: 1000 W •

Circular heating element - Power: 2000 W • Temperature control: Electro-mechanical

SECOND OVEN TECHNICAL FEATURES

Net volume of the second cavity: 35 l • Cavity material: Ever Clean enamel • No. of shelves: 4 • Type of shelves: Metal racks •

No. of lights: 1 • Light type: Incandescent • Light Power: 25 W • Door opening: Flap down • Removable door: Yes • Full glass

inner door: Yes • Removable inner door: Yes • No. total door glasses: 3 • No. thermo-reflective door glasses: 1 • Safety

Thermostat: Yes • Cooling system: Tangential • Grill type: Electric • Grill element - power: 1300 W • Large grill - Power: 1900 W

• Lower heating element - power: 700 W • Upper heating element - Power: 600 W • Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

Energy efficiency class: A • Energy consumption in forced air convection: 2.88 MJ • Energy consumption per cycle in fan-forced

convection: 0.80 KWh • Energy consumption in conventional mode: 3.56 MJ • Energy consumption per cycle in conventional

mode: 0.99 KWh • Energy consumption zone 2: 185 Wh/Kg • Energy consumption zone 3: 192 Wh/Kg • Energy consumption

zone 4: 185 Wh/Kg
