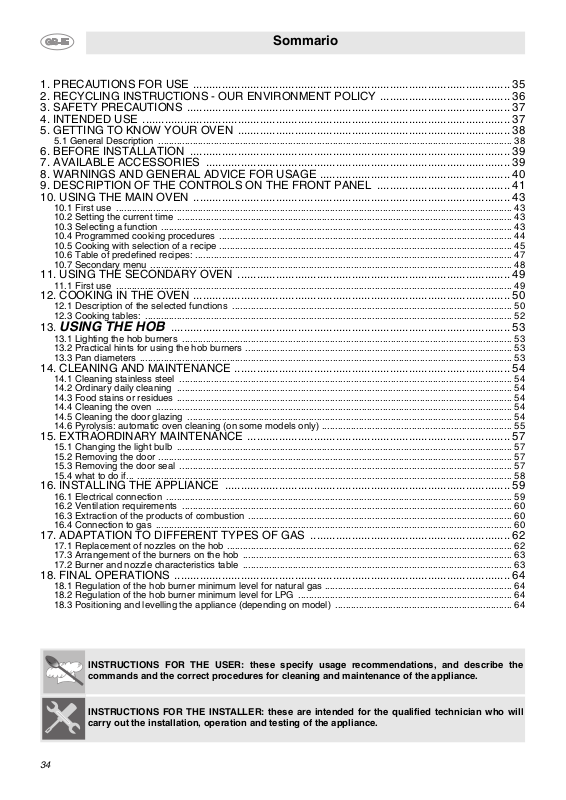

Sommario

1. PRECAUTIONS FOR USE .................................................................................................... 35

2. RECYCLING INSTRUCTIONS - OUR ENVIRONMENT POLICY ......................................... 36

3. SAFETY PRECAUTIONS ...................................................................................................... 37

4. INTENDED USE .................................................................................................................... 37

5. GETTING TO KNOW YOUR OVEN ...................................................................................... 38

5.1 General Description ...................................................................................................................................... 38

6. BEFORE INSTALLATION ..................................................................................................... 39

7. AVAILABLE ACCESSORIES ................................................................................................ 39

8. WARNINGS AND GENERAL ADVICE FOR USAGE ............................................................ 40

9. DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL .......................................... 41

10. USING THE MAIN OVEN .................................................................................................... 43

10.1 First use ...................................................................................................................................................... 43

10.2 Setting the current time ............................................................................................................................... 43

10.3 Selecting a function ..................................................................................................................................... 43

10.4 Programmed cooking procedures ............................................................................................................... 44

10.5 Cooking with selection of a recipe ............................................................................................................... 45

10.6 Table of predefined recipes: ........................................................................................................................ 47

10.7 Secondary menu ......................................................................................................................................... 48

11. USING THE SECONDARY OVEN ...................................................................................... 49

11.1 First use ...................................................................................................................................................... 49

12. COOKING IN THE OVEN .................................................................................................... 50

12.1 Description of the selected functions .......................................................................................................... 50

12.3 Cooking tables: ........................................................................................................................................... 52

13. USING THE HOB ........................................................................................................... 53

13.1 Lighting the hob burners ............................................................................................................................. 53

13.2 Practical hints for using the hob burners ..................................................................................................... 53

13.3 Pan diameters ............................................................................................................................................. 53

14. CLEANING AND MAINTENANCE ....................................................................................... 54

14.1 Cleaning stainless steel .............................................................................................................................. 54

14.2 Ordinary daily cleaning ............................................................................................................................... 54

14.3 Food stains or residues ............................................................................................................................... 54

14.4 Cleaning the oven ....................................................................................................................................... 54

14.5 Cleaning the door glazing ........................................................................................................................... 54

14.6 Pyrolysis: automatic oven cleaning (on some models only) ........................................................................ 55

15. EXTRAORDINARY MAINTENANCE ................................................................................... 57

15.1 Changing the light bulb ............................................................................................................................... 57

15.2 Removing the door ...................................................................................................................................... 57

15.3 Removing the door seal .............................................................................................................................. 57

15.4 what to do if... .............................................................................................................................................. 58

16. INSTALLING THE APPLIANCE .......................................................................................... 59

16.1 Electrical connection ................................................................................................................................... 59

16.2 Ventilation requirements ............................................................................................................................. 60

16.3 Extraction of the products of combustion .................................................................................................... 60

16.4 Connection to gas ....................................................................................................................................... 60

17. ADAPTATION TO DIFFERENT TYPES OF GAS ............................................................... 62

17.1 Replacement of nozzles on the hob ............................................................................................................ 62

17.3 Arrangement of the burners on the hob ...................................................................................................... 63

17.2 Burner and nozzle characteristics table ...................................................................................................... 63

18. FINAL OPERATIONS .......................................................................................................... 64

18.1 Regulation of the hob burner minimum level for natural gas ....................................................................... 64

18.2 Regulation of the hob burner minimum level for LPG ................................................................................. 64

18.3 Positioning and levelling the appliance (depending on model) ................................................................... 64

34

INSTRUCTIONS FOR THE USER: these specify usage recommendations, and describe the
commands and the correct procedures for cleaning and maintenance of the appliance.

INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who will
carry out the installation, operation and testing of the appliance.

Instructions for use

1. PRECAUTIONS FOR USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. TAKE GOOD CARE OF IT AND KEEP IT
ON HAND THROUGHOUT THE COOKING APPLIANCE'S LIFE CYCLE. WE URGE YOU TO READ
THIS MANUAL AND ALL THE INFORMATION IT CONTAINS CAREFULLY BEFORE USING THE
APPLIANCE. ALSO KEEP ALL THE NOZZLES PROVIDED IN A SAFE PLACE. INSTALLATION MUST
BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE
RELEVANT REGULATIONS. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND REHEATING OF FOOD; ALL OTHER USES ARE CONSIDERED
IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.

NEVER USE THIS APPLIANCE FOR HEATING ROOMS.

NEVER LEAVE DISCARDED PACKAGING UNATTENDED IN THE HOME. SEPARATE WASTE
PACKAGING MATERIALS BY TYPE AND CONSIGN THEM TO THE NEAREST SORTED DISPOSAL
CENTRE.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/CE ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN AND RECYCLING
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.

NEVER OBSTRUCT THE OPENINGS AND SLITS PROVIDED FOR VENTILATION AND HEAT
DISPERSAL.

THE NAMEPLATE WITH THE TECHNICAL DATA, SERIAL NUMBER AND MARK IS IN A VISIBLE
POSITION INSIDE THE STORAGE COMPARTMENT.

THE PLATE MUST NOT BE REMOVED.

REMOVE ALL REMOVABLE LABELS AND PROTECTIVE FILMS FROM THE INSIDE AND OUTSIDE
OF THE APPLIANCE.

DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS: THEY WILL DAMAGE
THE SURFACE.
USE ORDINARY, NON-ABRASIVE PRODUCTS FOR STEEL, WITH THE AID OF
WOODEN OR PLASTIC MATERIALS IF NECESSARY.
RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR DEERSKIN.
DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET INSIDE THE
OVEN. IF LEFT TO SET FOR TOO LONG, THEY MIGHT DAMAGE THE ENAMEL LINING
OF THE OVEN.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR INJURY OR DAMAGE CAUSED BY
FAILURE TO COMPLY WITH THE ABOVE REGULATIONS OR DERIVING FROM TAMPERING WITH
EVEN JUST ONE PART OF THE APPLIANCE AND THE USE OF NON-ORIGINAL SPARE PARTS.

35

Recycling instructions

2. RECYCLING INSTRUCTIONS - OUR ENVIRONMENT POLICY

Our household appliances are only packaged using non-pollutant, environment-friendly, recyclable
materials. Please help by disposing of the packing correctly. Find the addresses of collection, recycling
and disposal centres from your retailer or from the competent local organisations.
Never leave all or part of the packaging lying around. They can constitute a suffocation hazard for
children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: deliver the appliance to your local organisation authorised to collect scrapped appliances.
Correct disposal means intelligent recycling of valuable materials. Refrigeration appliances contain
gases which may damage the environment; it is therefore important to ensure that the refrigeration
circuit pipelines are not damaged until the competent service has accepted delivery of the appliance.
Before disposing of your appliance it is important to remove doors and leave shelves in position as for
use, to ensure that children cannot accidentally become trapped inside during play. Also, cut the power
supply lead and remove it and the plug.

NEVER LEAVE PACKAGING RESIDUES UNATTENDED IN THE HOME. SEPARATE THE VARIOUS
WASTE PACKAGING MATERIALS BY TYPE AND CONSIGN THEM TO THE NEAREST SEPARATED
DISPOSAL CENTRE.

NOTICE TO USERS:

PURSUANT TO DIRECTIVES 2002/95/EC, 2002/96/EC, 2003/108/EC, RELATING TO THE
REDUCTION OF THE USE OF HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC
EQUIPMENT, AND WASTE DISPOSAL, THE BARRED RUBBISH BIN SYMBOL ON THE APPLIANCE
INDICATES THAT IT CANNOT BE DISPOSED OF AS HOUSEHOLD WASTE AT ITS END-OF-LIFE.
THE USER MUST THEREFORE HAND THE PRODUCT OVER, AT ITS END-OF-LIFE, TO THE
APPLICABLE COLLECTION CENTRES FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC
WASTE, OR RETURN IT TO THE DEALER ON PURCHASE OF ANOTHER EQUIVALENT
APPLIANCE, ON A ONE-FOR-ONE BASIS. CONSIGNING THE END-OF-LIFE APPLIANCE TO THE
APPROPRIATE COLLECTION POINT FOR RECYCLING AND ECO-COMPATIBLE TREATMENT AND
DISPOSAL PREVENTS POTENTIAL NEGATIVE EFFECTS ON THE ENVIRONMENT AND HUMAN
HEALTH, AND HELPS ENSURE THAT THE PRODUCT’S COMPONENT MATERIALS WILL BE
RECYCLED. UNLAWFUL DISPOSAL OF THE PRODUCT BY THE USER MAY LEAD TO
PROSECUTION.

36

Safety instructions

3. SAFETY PRECAUTIONS

ELECTRICAL CONNECTION: REFER TO THE INSTALLATION INSTRUCTIONS WITH REGARD TO GAS,
ELECTRICITY SUPPLY AND VENTILATION REQUIREMENTS.
IN YOUR INTEREST AND TO ENSURE YOUR SAFETY, BY LAW ALL GAS-FIRED HOUSEHOLD
APPLIANCES MUST ONLY BE INSTALLED AND SERVICED BY QUALIFIED STAFF, IN ACCORDANCE
WITH THE RELEVANT REGULATIONS.
INSTALLATION TECHNICIANS ARE COMMITTED TO WORKING TO THE HIGHEST STANDARDS.
GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY SUITABLY SKILLED PEOPLE.

THE PLUG TO BE CONNECTED TO THE POWER SUPPLY LEAD AND THE RELATIVE SOCKET MUST BE
OF THE SAME TYPE AND COMPLY WITH THE RELEVANT REGULATIONS.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE IS BUILT IN.

NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY LEAD.
THIS APPLIANCE MUST NEVER BE INSTALLED ON A STAND.

IT IS OBLIGATORY FOR ALL ELECTRICAL SYSTEMS TO BE GROUNDED ACCORDING TO THE
METHODS REQUIRED BY SAFETY RULES.

IMMEDIATELY AFTER INSTALLATION, CARRY OUT A QUICK TEST ON THE APPLIANCE FOLLOWING
THE INSTRUCTIONS PROVIDED LATER IN THIS MANUAL. SHOULD THE APPLIANCE NOT FUNCTION,
DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
NEVER PLACE PANS WITH BOTTOMS WHICH ARE NOT PERFECTLY FLAT AND SMOOTH ON THE HOB

GRIDS.

NEVER USE PANS OR GRIDDLE PLATES WHICH PROJECT BEYOND THE OUTSIDE EDGE OF THE
HOB.

NEVER PLACE FLAMMABLE OBJECTS IN THE OVEN: IF IT SHOULD ACCIDENTALLY BE SWITCHED
ON, THIS MIGHT CAUSE A FIRE.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NEVER TO TOUCH THE HEATING
ELEMENTS INSIDE THE OVEN.

THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING CHILDREN) OF
REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN EXPERIENCE IN THE USE OF
ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR INSTRUCTED BY ADULTS OR
PEOPLE RESPONSIBLE FOR THEIR SAFETY.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0 (OFF) POSITION WHEN YOU FINISH
USING THE OVEN.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND PROTECTIVE FILMS
APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

4. INTENDED USE

THE APPLIANCE IS BUILT TO PERFORM THE FOLLOWING FUNCTION: COOKING AND
REHEATING OF FOOD; ALL OTHER USES ARE CONSIDERED IMPROPER.

The manufacturer declines all responsibility for injury or damage caused by failure to comply with the
above regulations or deriving from tampering with even just one part of the appliance and the use of
non-original spare parts.

37

Instructions for the user

5. GETTING TO KNOW YOUR OVEN

HOB

CONTROL PANEL

MAIN OVEN

AUXILIARY OVEN

DISHWARMING COMPARTMENT

5.1 General Description

5.1.1 Oven racks

The oven features 4 runners for positioning trays and grills at different heights. The
insertions heights are numbered from the bottom upwards (see figure).
(When using recipes, use the recommended runners, described in the table “10.6
Table of predefined recipes:”).

5.1.2 Cooling system

The appliance is equipped with a cooling system which comes into operation as soon as a cooking
function starts. The fan causes a steady outflow of air from the back area of the hob that may continue
for a brief period of time even after the oven has been turned off.

5.1.3 Inside light

The oven light comes on when the door is opened or any function or recipe is selected, except for

(where present). In addition to pressing the button, the light can be turned off or on at any moment

except for when the automatic cleaning function is on (when present).
The auxilliary oven light turns on by selecting any function or the appropriate light function indicated with
the symbol .

5.1.4 Dishwarming compartment (when present)

The storage compartment is in the bottom of the cooker, underneath
the oven. To open it, pull on the top of the door.
Never use it to store flammable materials such as rags, paper, etc.; it
is intended for storing the appliance's metal accessories only.

Never open the storage compartment when the oven is on and still hot. The temperatures inside
it may be very high.

38

Instructions for the user

6. BEFORE INSTALLATION

The inside of the appliance should be cleaned to remove all manufacturing residues. For further
information about cleaning, see “14. CLEANING AND MAINTENANCE”.

Before using the oven and the grill for the first time, pre-heat it to maximum temperature long enough to
burn off any manufacturing oily residues which could give the food a bad taste.

7. AVAILABLE ACCESSORIES

Oven rack: for cooking food in flat pans, small cakes or roasts or
foods requiring light grilling.

Tray rack: for placing on top of a pan for cooking foods which may
drip.

Oven tray: useful for collecting fat from foods placed on the rack
above.

Baking tray: useful for cooking cakes, pizza and baked desserts.

Chromium-plated gripper: useful for removing hot shelves and

trays.

Rotisserie rod (on some models only): useful for cooking chicken
and all foods which require uniform cooking over their entire
surface.
(see page 40 for instructions for use)

Rotisserie frame (on some models only): supports the rotisserie
rod (see page 40 for instructions for use).

Main oven roof liner (on some models only): remove it to make
cleaning inside the oven easier.

The oven accessories intended to come into contact with food are made of materials that comply with
the provisions of Directive 89/109/EEC, dated 21/12/88 and of Decree Law 108, dated 25/01/92.

Not all accessories are provided on some models.

Accessories available on request:

Original supplied and optional accessories may be ordered from any Authorised Service Centre.

39

Instructions for the user

8. WARNINGS AND GENERAL ADVICE FOR USAGE

The appliance becomes very hot during use. oven gloves should always be worn.

All cooking operations must be carried out with the door closed.

During cooking, do not cover the bottom of the oven with aluminium foil, and do not place pans
or trays on it; this may damage the enamel coating. If you wish to use greaseproof paper, place it
so that it will not interfere with the hot air circulation inside the oven.

To prevent any steam in the oven from creating problems, open the door in two
stages: half open (5 cm approx.) for 4-5 seconds and then fully open. To access
food, always leave the door open as short a time as possible to prevent the
temperature in the oven from falling and ruining the food. When the door is opened
the oven's internal fan cuts out automatically; it starts up again when the door is
closed.

• Grilling processes must never last more than 60 minutes.

• To prevent hazardous overheating, the appliance's glass lid (when present) must always be raised
when using the oven or grill.

• Accessible parts may be very hot during and after use of the grill; keep children well away from the
appliance.

• During rotisserie cooking operations, one of the pans supplied with the cooking appliance should be
placed on the bottom of the oven, on the bottom runners, to collect any grease and fat produced.

• When using the oven, remove all unused pans and shelves from its interior.

USING THE ROTISSERIE ROD (when present)
Prepare the rotisserie rod with the food, tightening the screws A of the prongs. Fit the frame B into the
guides second from the bottom. Remove the knob D and position the rotisserie rod so that the pulley E is
still in the guides on the frame B. Push the frame B fully in until the tip of the rotisserie rod enters the
hole C on the rear wall of the oven. Place a basin F on the bottom shelf and pour a little water into it to
prevent smoke from forming.

40

Instructions for the user

9. DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL

All the control and monitoring devices are clearly in view on the front panel. The symbols used are
described in the table below.

This display shows the following information:

Indicates the current time or the cooking time.

Shows the preset temperature for the function
required, or the temperature set by the user.

Recipes that can be
selected.

The following symbols turn on to indicate:

Clock

: adjusting the cooking time

Child lock-out function: child lock-out function mode ON (see

10.7 Secondary menu).

Bell

: minute minder activated.

Cooking duration: setting the cooking time.

Door interlock indicator light: comes on when the cleaning cycle

is used to indicate the door has been locked (pyrolytic models

only).

Delayed start: sets a delayed start for the cooking time.

41

PT1

PT2

Instructions for the user

MAIN OVEN TEMPERATURE SELECTION KNOB (PT1)

This knob is used for selecting the desired temperature for the main
oven. Turning it clockwise, the display shows the temperature just set,
the temperature can be set between 50°C and 260°C according to the
chosen function. In the case of using the “pizza” recipe, the maximum
temperature allowed is 280°C.

MAIN OVEN FUNCTIONS SELECTION KNOB (PT2)

This knob is used to select the desired cooking function. By turning it
clockwise or counterclockwise you can choose between the functions
shown.
For increased details on the cooking mode of each function, see
paragraph “12. COOKING IN THE OVEN”.

AUXILIARY OVEN FUNCTIONS / TEMPERATURE SELECTION KNOB

Use this knob to select the cooking function and the temperature (only
in static function) for the auxiliary oven. Turning the knob to the
position turns on the light inside the auxiliary oven. To set the knob on

“O” turn it all the way counterclockwise.

HOB BURNER CONTROL KNOB

To light the flame, press the knob and turn it counterclockwise to the
minimum flame symbol .

To adjust the flame, turn the knob to the zone between the maximum
( ) and the minimum ( ) settings.
To turn off the burner, turn the knob to the position.

42

Instructions for the user

10.USING THE MAIN OVEN

10.1 First use

At first use, or after a power failure, the oven's display will show a flashing symbol. To be able to
start any cooking function with the main oven, the current time must be set.

10.2 Setting the current time

To adjust the current time with the flashing display:

• Press the buttons or to decrease or increase the time shown. If the button is held down in

one direction the time changes faster.

• When any button is released, after a few seconds the display will stop flashing and only the colon

seperating the hour and minutes will flash to indicate its correct operation (The symbol will be
shown on the display).

It might become necessary to change the current time, for example for daylight savings time.
hold down the button for a few seconds until the symbol stops flashing.
Repeat the operations described in point “10.2 Setting the current time”.

10.2.1Using the minute minder

The minute minder can be used during cooking or when the oven is turned off. The setting procedure is
the same for both cases.

Press the button briefly, the symbol will flash and the display will show the symbol (or the
time remaining from a previously programmed count).

Press the buttons

the button down to go faster). After a few seconds the count will begin and the remaining time and the

non-flashing symbol will appear on the display.

or to increase or decrease the minute minder time from 00:01 to 03:59 (hold

To reset the minute minder, press the and buttons at the same time for approximately one
second.

Warning: The minute minder does not stop the cooking but rather informs the user when the set time has
run out. To turn off the oven, turn the PT2 knob to the O position.

Modifying the programmed data:

Once the count has begun, the previously set data can be modified. Repeat the operations described in
point “10.2.1 Using the minute minder”.

10.3 Selecting a function

A cooking function can be selected by simply turning PT2 to the right or left to the desired function. After
having selected the cooking function, use the PT1 knob to select the desired temperature.
Cooking is preceded by a preheating stage, which allows the oven to heat to the cooking temperature

more quickly. The symbol flashes on the display to indicate that this stage is in progress. When the

preheating stage is over, the symbol will remain on and a buzzer will sound to indicate that the food
can be placed inside the oven.

43

Instructions for the user

10.4 Programmed cooking procedures

10.4.1Semiautomatic cooking

Semiautomatic cooking is the function which allows a cooking operation to be started and then ended
after a specific length of time set by the user.

Select a function and the temperature (see paragraph 10.3).

Press the key on the display; the symbol will flash and the symbol will appear; if you do

not set a time within a few seconds, the oven will return to manual mode; otherwise, you can set a

cooking time (max 23.59) using the

Once the desired cooking time value is reached, the symbol stays lit.

At the end of the cooking time, the message STOP will appear on the display, cooking will be interrupted

and a buzzer will sound that can be deactivated by pressing the key.

If you wish to continue cooking beyond the set time, press the button again. The oven will restart

normal operation with the previously-selected cooking settings. To turn off the oven, turn the PT2 knob to
the “O” position.

During semi-automatic cooking, the temperature values and the desired function can be modified
without changing the previously set time.

or keys.

Modifying the data set:

Once semiautomatic cooking has started, its duration can be changed.

When the symbol is steady and cooking is in progress, press the key.

The symbol starts flashing and it is possible to change the cooking time using the or keys.

A few seconds after the last change, the symbol will stop flashing, and semiautomatic cooking will

restart from the new value.

10.4.2Automatic cooking

Automatic cooking is the function which allows a cooking operation to be started at a set time and then
ended after a specific length of time set by the user.

Select a function and the temperature (see paragraph 10.3).

Press the key on the display; the symbol will flash and the symbol will appear; if you do

not set a time within few a seconds, the oven will return to manual mode; otherwise, you can set a

cooking time (max 23.59) using the or keys.

Press the key again; the symbol will start to flash; if you do not set a time within a few seconds,
the oven will return to semiautomatic mode; otherwise, you can set a cooking time (max 23.59) using the

or keys.

A few seconds after the last change, the display will show the current time and the oven will be in
standby waiting for the set start time.

At the end, the word STOP will appear on DSP1, cooking will stop and a buzzer will sound; press to

deactivate it.

44

If you wish to continue cooking beyond the set time, press the button again. The oven will restart
normal operation with the previously-selected cooking settings.

Instructions for the user

Modifying the programmed data:

Once automatic cooking has started, its duration can be changed.

When the and symbols are steady and cooking is in progress or the oven is in standby status

waiting for cooking to start, press . The symbol begins to flash and by pressing the or

button the cooking duration can be changed. Press the button again. The symbol will begin to

flash, use the or buttons to modify the the end of cooking time.

A few seconds after the last change, the symbol will stop flashing, and automatic cooking will restart
with the new programmed data.

Once cooking has been programmed but before it starts, the symbol of the chosen function or recipe will
remain on, as will the , symbols.

10.5 Cooking with selection of a recipe

The oven has 8 preset recipes (see “10.6 Table of predefined recipes:”) and 2 memories. A recipe is a
combination of function, temperatures and cooking times presettings.

Only when PT1 is positioned on “O” it is possible to select a recipe simply by turning PT2 onto .

Press the or keys; the selected recipe will change its colour to red on the display; a few seconds

later cooking will start with the preset parameters.
When the preset temperature is reached, a series of beeps will be emitted indicating that the oven is
ready for use. The cooking time as specified in the table “10.6 Table of predefined recipes:” starts from
this moment.

Modifying the data set (during cooking)

During cooking it is possible to manually change the temperature that was preset for the recipe by

turning PT1 to the desired cooking temperature. To modify the cooking time press the key; the

symbol flashes on the display. You can increase or decrease the cooking end time using the or
keys.

These changes are not saved permanently.

10.5.1 Automatic cooking with selection of a recipe

Only when the PT1 knob is positioned on “O” it is possible to select a recipe, simply by turning PT2 onto

.

Press the or keys; the selected recipe will change its colour to red on the display. Within a few

seconds press the key on the display; the symbol will flash. Press the key again; the

symbol will start to flash; if you do not set a time within a few seconds, the oven returns to recipe mode

and starts cooking; otherwise, you can set a cooking time (max 23.59) using the or keys.

A few seconds after the last change, the display will show the current time and the oven will be in
standby waiting for the set start time.

At the end, the word STOP will appear on DSP1, cooking will stop and a buzzer will sound; press to

deactivate it.

Once cooking has been programmed, before it starts, the function or recipe symbol will remain on, as
will the symbols , .

45

Instructions for the user

10.5.2 Making permanent changes to a recipe

The oven has 8 preset recipes (see “10.6 Table of predefined recipes:”), and 2 to set according to your

own named cooking preferences
preset.

To modify or set a recipe permanently:

1 With the PT1 and PT2 knobs positioned on “O” press the key for 3 seconds.

2 Select the recipe you want to change using the or keys; the current settings for that recipe

are shown on the display.

3 Press the key; the display shows the preset function. (see “10.6.1 Association display icon -

function”) To change it, turn PT2 to the desired function.

4 When you press the key the cooking time flashes on the display; use the or keys to

change the value.

5 When you press the key the preset temperature will flash on the display; turn PT1 to change the

value.

6 Press the key to exit from recipe programming.

. In addition, you can modify the other recipes that are already

46

Instructions for the user

10.6 Table of predefined recipes:

Class Type Qty. Temp.

(°C)

0.7 Kg 200 30

Cooking
duration

(min.)

Funct. Runner

recommend

ed

Beef Roast-beef

Pork Roast

Chicken Roast chicken

Lamb Roast leg of lamb

Fish Bass baked in foil

Vegetables Stuffed peppers

1 Kg 200 40

1.5 Kg 200 65

0.5 Kg 180 50

1 Kg 190 75

1.5 Kg 180 110

0.5 Kg 190 40

1 Kg 190 60

2 Kg 180 90

1.0 Kg 190 65

1.5 Kg 190 90

0.7 Kg 200 35 *

1.0 Kg 200 45

1 Kg 170 45 *

1.5 Kg 160 50

2 Kg 160 60

*

*

*

*

Pizza Stuffed Pizza 1 pizza 280 8 *

Cakes Apple pie 8 people 170 60 *

The cooking times specified in the table refer to the food indicated in the recipe and may vary depending
on the weight.

The table gives the factory-set data. To reset a recipe with the original settings after it has been modified,
just enter the data given in the table.
(*original settings).

If the energy saving mode is activated (see secondary menu) the cooking times can vary from those
indicated.

10.6.1Association display icon - function

F0:01 F0:02 F0:03 F0:04 F0:05 F0:06 F0:07 F0:08

ECO Static Rotisserie

grill

Fan.-ass.

static

Fan.-ass.

grill

fan-assisted

bottom

Circular Tur bo

47

Instructions for the user

10.7 Secondary menu

This appliance also has a concealed “secondary menu” allowing the user to:
Activate or deactivate the child safety device

Activate or deactivate the Showroom mode (which disables all the heating elements so that only the
control panel works).
Select or deselect the power limiter mode.

With the PT2 knob positioned on “O”, press the and buttons for at least 3 seconds to view the
secondary menu.

With the and buttons, it is possible to change the status of the setting (ON / OFF) (HI / LO).

Press to move on to setting the next function.

Child lock-out mode: by activating this mode, after two minutes
of operation without any intervention from the user, the controls

will automatically be locked, indicated by the symbol turning
on. To disconnect the temporary lock during cooking, hold down

the button for at least 3 seconds. Two minutes after the last
setting the lock will become active again.

When turning the PT2 knob, the word “BLOC” is shown
permanently. The word only disappears when the knob is

turned back to the original start condition.
If the PT1 knob is turned, the cooking temperature will not
change and the word “BLOC” will be shown.

Showroom mode: (only for showrooms) by activating this mode,
the oven deactivates all the heating elements, while keeping the
control panel active. To use the oven normally, set this mode to
OFF. During cooking, the word SHO will be displayed (once per
minute) to indicate that the showroom mode has been activated.

48

Power limiter mode: by selecting LO while cooking with the
main oven a limited amount of power will be used, according to
the model. To reset the product's normal consumption, select HI.

To save the settings, you need to exit from the secondary menu in the “power limiter mode” screen by

pressing the key, or else wait for a few seconds.

If you do not do this the changes you made will not be saved.

Instructions for the user

11.USING THE SECONDARY OVEN

11.1 First use

The use of the secondary oven is independent of the settings made to the main oven or to the electronic
programmer. Therefore, at any time the desired function can be selected simply by turning the
corresponding knob.

The cooking temperature is selected by turning the knob clockwise to the
required setting, between 50° and 245°C.
The light comes on to indicate that the oven is heating up.
This light goes out when the set temperature is reached. It flashes at regular
intervals to indicate that the temperature inside the oven is being kept
constant at the programmed level.
When it is not possible to select the temperature, cooking is done at the
maximum temperature.

49

Instructions for the user

12.COOKING IN THE OVEN

12.1 Description of the selected functions

ECO:

Using the grill and the bottom heating element is particularly suitable for cooking small
quantities of food, as it provides low energy consumption.

STATIC:
As the heat comes from above and below at the same time, this system is particularly
suitable for certain types of food. Traditional cooking, also known as static or thermal
radiation cooking, is suitable for cooking just one dish at a time. Perfect for all types of
roasts, bread, and cakes and in any case particularly suitable for fatty meats such as goose
and duck.

GRILL:

The heat coming from the grill element gives perfect grilling results above all for thin and
medium thickness meat and in combination with the rotisserie (when present) gives the
food an even browning at the end of the cooking. Perfect for sausages, ribs and bacon. This
function allows you to grill large quantities of food, particularly meat, evenly.

ROTISSERIE GRILL:

(pyrolytic mod. only)

The rotisserie functions in combination with the grill element to give perfect browning to
food.

FAN-ASSISTED STATIC:

The operation of the fan, combined with traditional cooking, ensures uniform cooking even
with complex recipes. Perfect for biscuits and cakes, even when simultaneously cooked on
several levels.

FAN-ASSISTED GRILL:

The air produced by the fan softens the strong heatwave generated by the grill, giving
perfect grilling even to very thick foods. Perfect for large cuts of meat (e.g. shank of pork).

FAN-ASSISTED BOTTOM:

The combination of the fan with only the bottom heating element allows cooking to be
completed more rapidly. This system is recommended for sterilising or for finishing off the
cooking of foods already well-cooked on the surface, but not inside, which therefore need a
little more heat. Perfect for any type of food.

CIRCULAR:

The combination of the fan and the circular element (incorporated in the rear of the oven)
allows you to cook different foods on several levels, as long as they need the same
temperatures and cooking time. Air circulation ensures instant and uniform distribution of
heat. It will be possible, for instance, to cook fish, vegetables and biscuits simultaneously
without mixing smells and flavours.

50

TURBO:
The combination of fan-assisted cooking and traditional cooking allows you to cook different
foods on several levels extremely quickly and efficiently.
Perfect for large volumes that call for intense cooking.

Instructions for the user

12.2 COOKING HINTS AND TIPS

HINTS ON USING THE ACCESSORIES:

• Use only original SMEG trays.

• When the tray is in the oven, the handle must be facing the oven door.

• Push the trays all the way inside the oven.

• Use only original SMEG racks.

• When the rack is in the oven, the contoured part must be facing downwards.

• Push the racks right inside the oven.

• Use only original SMEG racks.

• Push the racks right inside the oven.

• For best cooking results, we recommend placing kitchenware in the centre of the rack.

GENERAL HINTS:

• We recommend preheating the oven before putting food in. Do not place foods

inside the oven until the symbol on the display stops flashing and the beep has
sounded to confirm that the programmed temperature has been reached.

• For cooking on several levels, we recommend using a fan-assisted function to achieve
uniform cooking at all heights.

• In general, it is not possible to shorten the cooking times by increasing the temperature
(the food could be well-cooked on the outside and undercooked on the inside).

• While cooking desserts and vegetables, dripping from the bottom of the door may
occur. This is a natural physical phenomenon which mainly occurs when the food is
placed in the oven before preheating. To avoid this, carefully open the door a couple of
times during the cooking.

COOKING HINTS FOR MEAT:

• Cooking times, especially for meat, vary according to the thickness and quality of the
food and the consumer's taste.

• To save energy when roasting, we recommend putting the food in the cold oven.

• We recommend using a meat thermometer for meat when roasting it. Alternatively,
simply press on the roast with a spoon: if it is hard it is ready, if not, it needs another few
minutes cooking.

COOKING HINTS FOR DESSERTS AND BISCUITS:

• Use dark metal moulds for desserts: they help to absorb the heat better.

• The temperature and the cooking duration depend on the quality and consistency of the
dough.

• The tables indicate the temperature ranges. Initially, try with the lowest value (the lower
temperature gives a more even browning); if the dessert does not come out well,
increase the temperature on the following occasions.

• Check whether the dessert is cooked all the way through: About 10 minutes before the
end of cooking, stick a toothpick into the highest point in the dessert. If the dough does
not stick to the toothpick, the dessert is cooked.

• If the dessert goes flat when it comes out of the oven, on the next occasion reduce the
set temperature by about 10 °C selecting a longer cooking time if necessary.

51

Instructions for the user

12.3 Cooking tables:

FUNCTION LEVEL FROM

BELOW

FIRST COURSES

LASAGNE Static 1 220 - 230 50 - 60

OVEN-BAKED PASTA Static 1 220 - 230 40

MEAT

ROAST VEAL Fan.-ass. static 2 180 - 190 70 - 80

LOIN OF PORK Fan.-ass. static 2 180 - 190 70 - 80

SHOULDER OF PORK Tu rb o 2 180 - 190 90 - 100

ROAST RABBIT Circular 2 180 - 190 70 - 80

TURKEY BREAST Fan.-ass. static 2 180 - 190 110 - 120

ROAST NECK OF PORK Tu r b o 2 180 - 190 190 - 210

ROAST CHICKEN Tu rb o 2 180 - 190 60 - 70

GRILLED MEATS

PORK CHOPS Fan.-ass. grill 4 260 7 - 9 5 - 7

TEMP. °C TIME

IN MINUTES

FIRST SECOND

FILLET OF PORK Grill 3 260 9 - 11 5 - 9

FILLET OF BEEF Grill 3 260 9 - 11 9 - 11

LIVER Fan.-ass. grill 4 260 2 - 3 2 - 3

SAUSAGES Fan.-ass. grill 3 260 7 - 9 5 - 6

MEAT-BALLS Grill 3 260 7 - 9 5 - 6

ROTISSERIE MEATS

CHICKEN Rotisserie grill On a spit 250 - 260 60 - 70

FISH

SALMON TROUT Bottom v.-a.circ. 2 150 - 160 35 - 40

PIZZA Fan.-ass. static 1 250 - 280 6 - 10

BREAD Circular 2 190 - 200 25 - 30

MUFFINS Tu r bo 2 180 - 190 15 - 20

DESSERTS

DOUGHNUT Fan.-ass. static 2 160 55 - 60

FRUIT TART Fan.-ass. static 2 160 30 - 35

SHORT PASTRY Bottom v.-a.circ. 2 160 - 170 20 - 25

52

JAM TARTS Tu r bo 2 160 20 - 25

PARADISE CAKE Fan.-ass. static 2 160 55 - 60

ECLAIR Tur b o 2 150 - 160 40 - 50

LIGHT SPONGE CAKE Circular 2 150 - 160 45 - 50

CROISSANTS Circular 2 160 25 - 30

Instructions for the user

13.USING THE HOB

13.1 Lighting the hob burners

Before lighting the hob burners, check that the flame-spreader crowns are correctly in place with their
respective burner caps, making sure that the holes A in the flame-spreaders are aligned with the plugs
and thermocouples. Before lighting the burners lift the glass lid; before closing it again, turn off all the
burners and wait for them to cool.

The optional rack B is for use with woks. To prevent damage to the hob, the cooker comes complete with
a raised rack C for use underneath pans more than 26 cm in diameter. The pan stand C supplied is for
use with very small pans.

The burner each knob controls is shown next to the knob. The appliance is
equipped with an electronic ignition device. Simply press the knob and turn it

counterclockwise to the minimum flame symbol , until the burner lights. Keep
the knob pressed down for a few seconds to allow the thermocouple to heat up.
The burner may go out when the knob is released: in this case, the
thermocouple has not heated up sufficiently.
Repeat the operation, keeping the knob pressed down for longer. This is not
necessary on burners not equipped with thermocouple.

On models with thermocouple, if the burners should go out accidentally a safety device will be tripped,
cutting off the gas supply even if the gas tap is open.

13.2 Practical hints for using the hob burners

For better burner efficiency and to minimise gas consumption, use pans with lids and of suitable size for
the burner, so that flames do not reach up the sides of the pan (see point “13.3 Pan diameters”). Once
the contents come to the boil, turn down the flame far enough to prevent the liquid from boiling over. To
prevent burns or damage to the hob during cooking, all pans or griddles must be placed inside the
perimeter of the hob. All pans must have smooth, flat bottoms. Take the greatest care when using fats or
oils since they may catch fire if overheated. If the flame accidentally goes out, turn off the control knob
and wait at least 1 minute before trying to re-light the burner.

13.3 Pan diameters

BURNERS

1. Auxiliary

2. Semi-rapid

3. Rapid

4. Triple crown

min. and max. Ø (in cm)

12 - 14
16 - 24
18 - 26
18 - 26

53

Instructions for the user

14.CLEANING AND MAINTENANCE

Before performing any operations requiring access to powered parts, switch off the power
supply to the appliance.

Never use a jet of steam for cleaning the appliance.

14.1 Cleaning stainless steel

To keep stainless steel in good condition, it must be cleaned regularly when you are done using the
cooker, after it has cooled.

14.2 Ordinary daily cleaning

To clean and preserve the stainless steel surfaces, always use only specific products that do not contain
abrasives or chlorine-based acids.
How to use: pour the product on a damp cloth and wipe the surface, rinse thoroughly and dry with a soft
cloth or deerskin.

14.3 Food stains or residues

Do not use metallic sponges or sharp scrapers: they will damage the surface.
Use ordinary non-abrasive products for steel, with the aid of wooden or plastic materials if
necessary. Rinse thoroughly and dry with a soft cloth or deerskin. Do not allow residues of
sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage
the enamel lining of the oven.

14.4 Cleaning the oven

For best oven upkeep clean regularly after having allowed to cool. Take out all removable parts.

• Clean the oven grill and side guides with hot
water and non-abrasive detergent. Rinse and
dry.

• For easier cleaning, the door can be removed
(see point “15.2 Removing the door”).

The oven should be operated at the maximum heat setting for 15/20 minutes after use of specific
products, to burn off the residues left inside the oven.

14.5 Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent paper towels, remove
stubborn dirt with a damp sponge and ordinary detergent.

When cleaning, dry the appliance thoroughly to prevent water or detergent drips from interfering with its
operation or creating unsightly marks.

54

Do not use abrasive or corrosive cleaners for cleaning the door glazing. (e.g., powder products, oven­cleaner sprays, stain removers and metal scouring pads). Do not use rough or abrasive materials or
sharp metal scrapers to clean the oven's glass doors since they may scratch the surface and cause the
glass to shatter.

Instructions for the user

14.6 Pyrolysis: automatic oven cleaning (on some models only)

Pyrolysis is an automatic high-temperature cleaning procedure which causes dirt to dissolve. Thanks to
this process, it is possible to clean the inside of the oven with great ease.

During the first automatic cleaning cycle unpleasant smells may occur due to the normal evaporation of
oily manufacturing substances. this is an absolutely normal phenomenon which disappears after the first
cleaning cycle.

Before starting the automatic cleaning cycle, make sure that the oven does not contain any foods or
large spills from previous cooking operations inside.

During the pyrolysis cycle a door interlock device makes it impossible to open the door.

DURING THE AUTOMATIC CLEANING CYCLE, BURNERS OR ELECTRICAL BURNERS OF THE
HOB MUST REMAIN OFF.

14.6.1Before starting the automatic cleaning cycle

Pyrolysis may be carried out at any time of the day or night (if you wish to benefit from the lower cost of
electricity overnight).
Before proceeding, check the following:

• only the baking tray, the oven tray, the pizza pan or the cover may be left inside the oven since
they will withstand the high temperatures of the pyrolysis process; all the other accessories must be
removed from inside the oven.

• make sure that the oven door is firmly closed.

When setting the cleaning cycle duration, refer to the chart below:

CLEANING
DURATION

During the automatic cleaning cycle the fans make more noise because they are running at higher speed.
This is an absolutely normal function, intended to provide more effective heat dispersal. at the end of the
pyrolysis process, the fans continue to run automatically for long enough to prevent overheating of the
sides of the cabinet and the front of the oven.

LIGHT DIRT MEDIUM DIRT HEAVY DIRT

90 MIN. 135 MIN. 180 MIN.

55

Instructions for the user

14.6.2Setting the cleaning cycle

Use PT2 to select the pyrolysis function ( ).

To start the cleaning (Pyrolysis) cycle, press the button to set its

duration. Press the or button to increase or decrease the
duration of the cycle from a minimum of 1h30m to a maximum of 3h

00m.
The word “Pyro” will appear on the display to indicate that the oven is
being cleaned and at the same time the remaining time will be shown
to finish the cleaning cycle.

One minute after the cleaning (Pyrolysis) cycle starts, an interlock device will be tripped, which prevents
opening of the door. The symbol lights up on the display to indicate that this interlock device has
been activated.

At the end of the cleaning cycle (indicated by a buzzer and by STOP on the display) the interlock device
will remain active until the temperature inside the oven has reached a safe temperature. When the oven
has cooled down, collect the residues from automatic cleaning with a damp micro-fibre cloth.

To select a cleaning cycle with delayed start, after setting the duration press again. The

symbol and the current time will appear on the display. By pressing the or buttons you can
select the time when you wish cooking to start.

A few seconds after the required duration is set, the and symbols stay on, and the oven will start
to wait for the starting time set for the cleaning cycle.

56

Instructions for the user

15.EXTRAORDINARY MAINTENANCE

The oven may require extraordinary maintenance or replacement of parts subject to wear such as seals,
bulbs, and so on. The following instructions describe how to carry out these minor maintenance
operations.

Before performing any operations requiring access to powered parts, switch off the power
supply to the appliance.

15.1 Changing the light bulb

Remove the protective cover A by unscrewing it counterclockwise; replace the bulb B with another of the
same type (25 W). Re-fit the bulb protector A.

Use only oven bulbs (T 500°C for pyrolytic models).
Use only oven bulbs (T 300°C for multifunction models).

15.2 Removing the door

Open the door completely and, using a small­ended screwdriver rotate the hinges A
completely.
Grasp the door on the sides with both hands
near the hinges, close it forming an angle of
around 45° and remove it.
To reinsert it, groove B must be inserted with
the oven's frame, putting hinge A in the position
illustrated in the figure and pushing it all the way
in with one push using a screwdriver or
equivalent tool until you feel it click.

15.3 Removing the door seal

To permit thorough cleaning of the oven, the seal may be removed.
Before removing the seal, take off the door as described above. Once the
door has been taken off, lift the tabs under the seal as shown in the figure.

57

Instructions for the user

15.4 what to do if...

The oven display is completely off: • Check the main power supply.

• Check whether an omnipolar switch upstream
from the oven feed line is in the “ON” position.

The oven does not heat up: • Check whether the “showroom” mode has been

set, for further details see point “10.7 Secondary
menu”.

The controls do not respond: • Check whether the “child lock-out function”

mode has been set, for further details see point
“10.7 Secondary menu”.

The cooking times are longer than those
indicated in the table.

After the automatic “pyrolysis” cleaning cycle
(only on some models) it is not possible to
select a function:

The display shows ERR 4
(on pyrolytic models only):

If the door is opened during a fan-assisted
function, the fan stops:

If the problem has not been resolved or there are other types of faults, contact your local technical
assistance centre.

• Check whether the “power limiter” mode has
been set, for further details see point “10.7
Secondary menu”.

• Verify whether the interlock device has been
switched off. If it has not, the oven has a
protection device that does not allow functions
to be selected while the interlock device is
active.

• The interlock device has not properly hooked to
the door. This might be because the door was
accidentally opened during its activation. Switch
off the oven and switch it on again waiting a few
minutes before selecting a new cleaning cycle.

• This is not a fault. It is a normal operation of the
appliance, useful when cooking foods in order to
avoid excessive heat escaping. When the door
is closed, the oven will return to normal
operation.

58

Instructions for the installer

16.INSTALLING THE APPLIANCE

The appliance must be installed by a qualified technician and according to the standards in force.
This appliance may be installed next to a wall which is higher than the appliance, with a minimum
distance of 5 cm from the side of the appliance, as shown in drawings A and B showing the correct
installation conditions. Any wall cupboards or shelves must be at a distance of at least 75 cm above the
work surface.

A) B)

Built-in appliance Free-standing appliance

16.1 Electrical connection

Make sure the voltage and the cross-section of the power cord match the specifications indicated on the
rating plated positioned in the storage compartment. Do not remove this plate for any reason.

If the appliance is connected to the supply by means of a fixed connection, install a multipolar cut-out
device on the line, with contact opening distance equal to or greater than 3 mm located near the
appliance and in an easily reachable position.

Connection to the supply may be fixed or with plug and socket. In the latter case the plug and socket
must be suitable for the cable employed and conform with the regulations in force. Regardless of the
type of connection, the appliance absolutely must be earthed. Before connection make sure that the
supply line is suitably earthed. Avoid the use of reducers, adapters or shunts which may cause
overheating.

59

Instructions for the installer

For operation on 380-415V 3N~: use an H05V2V2-F type five-core

cable (5 x 1.5 mm

For operation on 380-415V 2N~: use an H05V2V2-F type four-core
cable (4 x 1.5 mm

For operation on 220-240V~: use an H05V2V2-F type three-core

cable (3 x 2.5 mm

The earth wire (yellow-green) must be at least 20 mm longer than
the other wires at the end for connection to the appliance.

2

).

2

).

2

).

WARNING: The values indicated above refer to the cross-section of the internal conductor.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR THINGS
CAUSED BY NON-OBSERVANCE OF THE ABOVE PRESCRIPTIONS.

16.2 Ventilation requirements

The room containing the appliance should have an air supply in accordance with the standards in force.
The room where the appliance is installed must have enough air flow as required for the regular
combustion of gas and by the necessary air exchange of the same room. The air vent, protected by
grills, must be suitably dimensioned in compliance with the current regulations and positioned so that no
part of it is obstructed.

16.3 Extraction of the products of combustion

Extraction of the products of combustion must be ensured by means of hoods connected to a natural
draught chimney whose efficiency is assured or via forced extraction. An efficient extraction system
requires precision planning by a specialist qualified in this area and must comply with the positions and
distances indicated by the regulations. When the job is complete, the installer must issue a certificate of
conformity.

16.4 Connection to gas

Installation of the UNI-CIG 7140 compliant rubber hose must be carried out so that
the hose length is no greater than 1.5 metres. Make sure that the hose does not
come into contact with moving parts or is squashed. The inside diameter of the hose must be 8 mm for
LPG.
LIQUID and 13 mm for METHANE GAS and TOWN GAS.
Verify that all the follow conditions are met:

• the hose is fixed to the hose connection with safety clamps;

• no part of the hose is in contact with the hot walls (max. 50 °C);

• the hose is not under traction or tension and has no tight curves or twists;

• the hose is not in contact with sharp objects or sharp corners;

• if the hose is not perfectly airtight and leaks gas, do not try and repair it: replace it with a new hose;

• verify that the hose is not beyond its life cycle (serigraphed on the hose itself).

60

Instructions for the installer

CONNECTION USING RUBBER HOSES COMPLYING WITH THE CURRENT REGULATIONS IS
ONLY PERMITTED IF THE HOSE CAN BE INSPECTED ALONG ITS ENTIRE LENGTH.

16.4.1 Connection of natural and town gas

Make the connection to the gas mains using a rubber hose whose
specifications comply with the current regulations (verify that the reference
standard is stamped on the hose).
Screw the hose connector A to the gas connector B of the appliance, placing
with the seal Cbetween them. Push the rubber hose D onto the hose
connector A and secure it with the clamp E that is compliant with the current
standard.

16.4.2Connection to LPG

Both the pressure regulator and the connection to the cylinder must be standards-compliant. make sure
that the feed pressure complies with the values indicated in the table at point “17.2 Burner and nozzle
characteristics table”.

Screw the small hose connector F onto the large hose connector A; connect
the block this makes to the gas connector B (or use the hose connector G
which must be connected directly to the gas connector B) and place the seal

Cbetween them. Push the end of the rubber hose H onto the hose connector
A+F (or G) and at the outlet connector of the pressure reducer onto the

cylinder. Fix the end of the hose H to the hose connector A+F (or G) with the
standards-compliant clamp I

The hose connector A-F-G illustrated are not supplied with the appliance. Only use standards-compliant
hose connectors.

16.4.3Connection with flexible steel hose (for all types of gas)

This type of connection can be made on both built-in and free-standing
appliances. Only use standards-compliant steel hoses whose length is not
greater than 2 metres.
Screw the end of the flexible hose L to the ½” OD threaded gas connector
(ISO 228-1) B placing the seal C between them.
At the end of the installation, check for any leaks with a soapy solution, never
with a flame.

61

Instructions for the installer

17.ADAPTATION TO DIFFERENT TYPES OF GAS

Before performing any operations requiring access to powered parts, switch off the power
supply to the appliance.

The cooker hob is preset for natural gas G20 (2H) at a pressure of 20 mbar. In the case of operation
with other types of gas the burner nozzles must be changed and the minimum flame adjusted on the gas
taps. To change the nozzles, proceed as described below.

17.1 Replacement of nozzles on the hob

This operation does not require the primary air to be adjusted.
1 Extract the grids and remove all the caps and flame-spreader crowns;
2 Unscrew the burner nozzles with a 7 mm socket wrench;
3 Replace the nozzles according to the type of gas to be used and the description in paragraph "17.2

Burner and nozzle characteristics table";

4 Replace the burners in the correct position.

62

Instructions for the installer

17.2 Burner and nozzle characteristics table

Rated heating

Burner

Auxiliary 1.05 50 30 400 76 75
Semi rapid 1.8 65 33 500 130 128
Rapid 3.0 85 45 800 218 214
Triple crown 4.0 100 65 1600 291 286

capacity (kW)

Nozzle

diameter 1/

100 mm

LPG – G30/G31 28/37 mbar

By-pass

1/100

mm

Reduced

flowrate

(W)

Flowrate

g/h G30

Flowrate

g/h G31

Burner

Auxiliary 1.0 72 (X) 400
Semi rapid 1.8 97 (Z) 500
Rapid 3.0 115 (Y) 800
Triple crown 4.0 135 (K) 1600

Rated heating

capacity (kW)

NATURAL GAS – G20/G25 20/25 mbar

Nozzle diameter

1/100 mm

Reduced flowrate

(W)

17.3 Arrangement of the burners on the hob

BURNERS

1. Auxiliary

2. Semi rapid

3. Rapid

4. Triple crown

min. and max. Ø (in cm)

12 - 14
16 - 24
18 - 26
18 - 26

63

Instructions for the installer

18.FINAL OPERATIONS

After replacing the nozzles, reposition the flame-spreader crowns, the burner caps and the grids.

Following adjustment to a gas other than the preset one, replace the gas adjustment label fixed to the
appliance with the one corresponding to the new gas. This label is in the packet together with the
nozzles.

18.1 Regulation of the hob burner minimum level for natural gas

Light the burner and turn it to the minimum position . Extract the gas tap knob
and turn the adjustment screw at the side of the tap rod until the correct minimum
flame is achieved. Refit the knob and verify the burner flame is stable (turning the
knob rapidly from the maximum to the minimum position the flame must not go
out). Repeat the operation on all the gas taps.

For models with valves, keep the knob at minimum level for about 1 minute to keep the flame lit and to
activate the safety device.

18.2 Regulation of the hob burner minimum level for LPG

In order to adjust the minimum with LPG, the screw at the side of the tap rod must be turned clockwise
all the way. The bypass diameters for each individual burner are shown in paragraph "17.2 Burner and
nozzle characteristics table". Once the regulation has been completed, restore the seal on the by­passes using paint or similar materials.

18.3 Positioning and levelling the appliance (depending on model)

After making the electrical and gas connections, level the appliance on the floor by means of its four
adjustable feet. For good cooking results, the appliance must be properly levelled. Depending on the
model you have purchased, the foot height adjustment range may vary from 70 to 95 mm and from 110
to 160 mm. These heights refer to the distance between the highest point of the foot (fixed part) and the
lowest point (movable part which rests on the floor).

64
