Smeg ALFA41UK User Manual

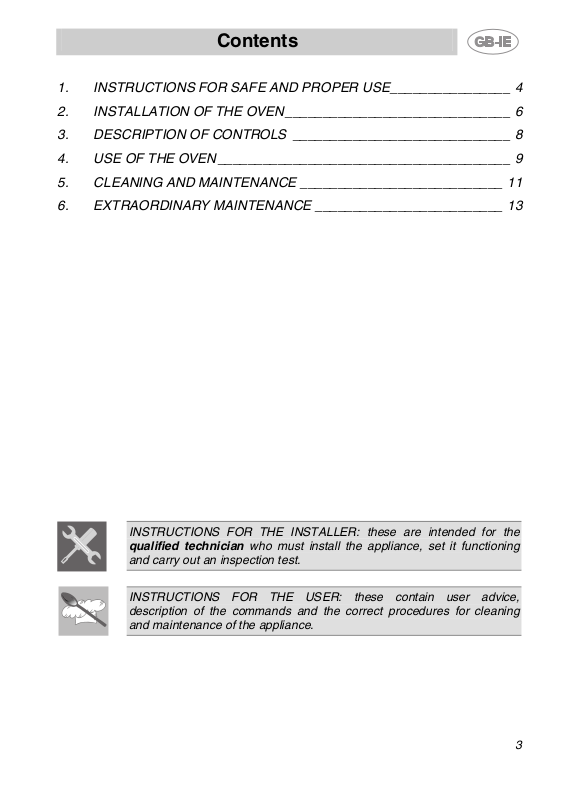

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4

2. INSTALLATION OF THE OVEN______________________________ 6

3. DESCRIPTION OF CONTROLS _____________________________ 8

4. USE OF THE OVEN_______________________________________ 9

5. CLEANING AND MAINTENANCE ___________________________ 11

6. EXTRAORDINARY MAINTENANCE _________________________ 13

INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified technician who must install the appliance, set it functioning
and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,
description of the commands and the correct procedures for cleaning
and maintenance of the appliance.

3

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND
THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN
ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
OVEN. WE ADVISE READING THIS MANUAL AND ALL THE
INSTRUCTIONS THEREIN BEFORE USING THE OVEN.
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED
ENGINEERS IN ACCORDANCE WITH THE REGULATIONS IN
FORCE. THIS OVEN IS INTENDED FOR COMMERCIAL USES AND
CONFORMS TO CURRENT REGULATIONS IN FORCE. THE
APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER
USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
IMPROPER USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT.
SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM
TO THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE
GROUNDED ACCORDING TO THE METHODS REQUIRED BY
SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE
THAT BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A
POWER CABLE COMPLYING WITH APPLICABLE REGULATIONS.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT
DISPERSAL SLITS.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF
INSPECTION TEST OF THE OVEN, FOLLOWING THE
INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE SUPPLY AND CALL THE
NEAREST TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0 (OFF)
POSITION WHEN YOU FINISH USING THE OVEN.

4

Introduction

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD
BE ACCIDENTALLY LIGHTED AND CAUSE FIRES.

THE APPLIANCE BECOMES VERY HOT DURING USE. SUITABLE
HEAT-PROOF GLOVES SHOULD BE WORN FOR ALL OPERATIONS.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER
AND BRAND NAME IS LOCATED IN AN EXPOSED POSITION AT THE
REAR OF THE OVEN.

THE PLATE MUST NOT BE REMOVED.
THE APPLIANCE IS INTENDED FOR COMMERCIAL USE BY

APPROPRIATELY TRAINED PERSONNEL. CHILDREN SHOULD

TO PLAY WITH IT.

ALWAYS BE KEPT OUT OF ITS REACH AND NEVER BE ALLOWED

THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE
(INCLUDING CHILDREN) OF REDUCED PHYSICAL AND MENTAL

ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR

ABILITY, OR LACKING IN EXPERIENCE IN THE USE OF

INSTRUCTED BY ADULTS OR PEOPLE RESPONSIBLE FOR THEIR
SAFETY.

BEFORE USE, THE OVEN DISHES MUST BE WASHED WITH A
SUITABLE DISHWASHING DETERGENT (DO NOT USE ABRASIVE
PRODUCTS).

THE OVEN DIMENSIONS ARE DESIGNED FOR A MAXIMUM LOAD
OF 3.5 KG.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN
DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY
OF RETURN AND RECYCLING ON WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE
LABELS AND PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE
MUST BE REMOVED.

The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the appliance or by the use of non-original
spares.

5

Instructions for the installer

2. INSTALLATION OF THE OVEN

The oven must be set up on a perfectly flat surface and left standing
free. Make sure to allow enough room at the back for easy access to the
terminal strip for connection of the power cable to mains.
Installation must be carried out by a qualified technician in compliance
with applicable regulations in force.

2.1 Electrical connection

Make sure that the power line voltage matches the specifications
indicated on the rating plate located to the rear of the oven. This rating
plate must never be removed.
The oven is fitted with H07RN-F three-core cable for operation at 230V~
and power supply plug.

The standard cable is of the three-core 3 x 1.5 mm2 H07RN-F type.
The power lead must be changed by the manufacturer or by an
authorised service centre to prevent any risks.

Make sure that plug and wall socket are of the same type and are in
conformity with regulations in force. Also check that the power supply
line is provided with adequate earthing. Avoid using adapters or
shunters.

In case of permanent connection, ensure that power cable is equipped
with an easily accessible omnipolar switch fitted in proximity to the
apparatus and with a gap between contacts equal to or greater than

3 mm.

2.1.1 Safety thermostat

The oven is fitted with a safety device which trips in case of serious
malfunction. To reset, contact the nearest servicing centre.

The manufacturer declines all responsibility for damage to persons
or things caused by non-observance of the above prescriptions or by
interference with any part of the oven.

6
