Smeg ALFA1035H, ALFA1035H-2 User Manual

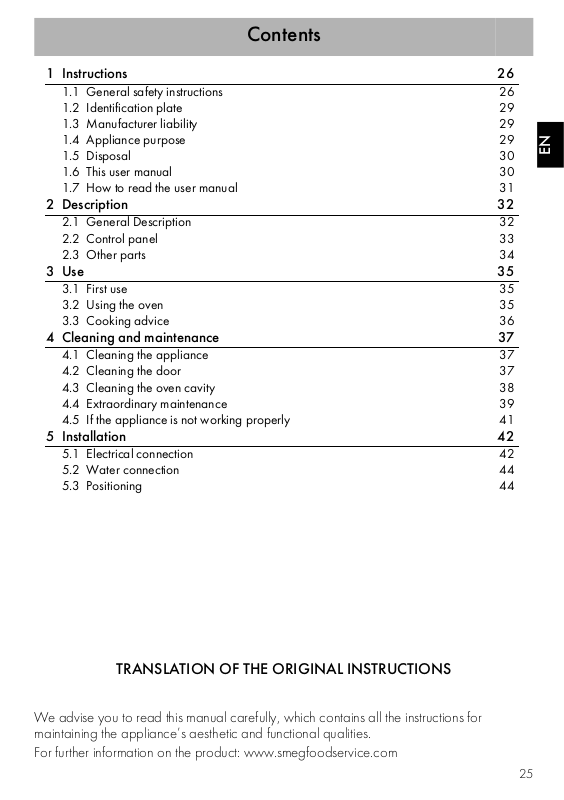

Contents

1 Instructions 26

1.1 General safety instructions 26

1.2 Identification plate 29

1.3 Manufacturer liability 29

1.4 Appliance purpose 29

1.5 Disposal 30

1.6 This user manual 30

1.7 How to read the user manual 31

2 Description 32

2.1 General Description 32

2.2 Control panel 33

2.3 Other parts 34

3 Use 35

3.1 First use 35

3.2 Using the oven 35

3.3 Cooking advice 36

4 Cleaning and maintenance 37

4.1 Cleaning the appliance 37

4.2 Cleaning the door 37

4.3 Cleaning the oven cavity 38

4.4 Extraordinary maintenance 39

4.5 If the appliance is not working properly 41

5 Installation 42

5.1 Electrical connection 42

5.2 Water connection 44

5.3 Positioning 44

EN

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.

For further information on the product: www.smegfoodservice.com

25

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its
accessible parts become very hot.

• Never touch the heating elements
during use.

• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.

• Children must never play with the
appliance.

• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.

• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.

• Keep the oven door closed
during cooking.

• Protect your hands by wearing
oven gloves when moving food
inside the oven.

• Do not touch the heating elements
inside the oven.

• Do not pour water directly onto
very hot trays.

• Do not allow children to
approach the appliance when it is
in operation.

• If you need to move food or at the
end of cooking, open the door 5 cm
for a few seconds, let the steam
come out, then open it fully.

• Cleaning and maintenance must
not be carried out by
unsupervised children.

• Do not spray any spray products
near the appliance.

• Do not use or leave flammable
materials near the appliance.

• Do not use plastic cookware or
containers when cooking food.

• Do not put sealed tins or
containers in the oven.

26

Instructions

• Do not leave the appliance
unattended during cooking
operations where fats or oils
could be released.

• Remove all trays and racks which
are not required during cooking.

• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.

• Switch off the appliance
immediately after use.

• Do not modify this appliance.

• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.

• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.

• If the power supply cable is
damaged, it must be replaced by
the manufacturer, by Technical
Support or other qualified
personnel in order to ensure a
hazard is not created.

• Do not place containers with
liquids or food products which
can melt during cooking on the
upper shelves which are not
visible.

• The floor next to the appliance
could be very slippery. Be very
careful.

• The terminal indicated by the
symbol connects components that

are normally earthed. Connect
the appliances appropriately
using this terminal in order to
make sure that they are
equipotential.

• Have the electrical connection
performed by authorised
technical personnel.

• The appliance must be connected
to ground in compliance with
electrical system safety standards.

• Disconnect the mains power
supply.

• Do not pull the cable to remove
the plug.

• Use H07RN-F cables
withstanding a temperature of at
least 75 °C.

• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.

EN

27

Instructions

Risk of damaging the appliance

• Racks and trays have to be
inserted into the side guides until
they come to a complete stop.
The mechanical safety locks that
prevent the rack from being taken
out accidentally must face
downwards and towards the
back of the appliance.

• Use wooden or plastic utensils.

• Do not seat on the appliance.

• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.

• Do not use steam jets to clean the
appliance.

• Do not obstruct ventilation
openings and heat dispersal slots.

• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released.

• Never leave objects on the
cooking surface.

• Do not use the appliance to heat
rooms for any reason.

• Remove any food residues or
large spills from previous cooking
operations from the inside of the
oven.

• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.

• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.

• Do not place pans or trays
directly on the bottom of the oven
cavity.

• Do not pour water directly onto
very hot trays.

• Do not use steam jets to clean the
appliance.

• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).

• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.

• Do not use rough or abrasive
materials or sharp metal scrapers.

• Shut off the power supply during
cleaning and maintenance
procedures.

28

Instructions

For this appliance

• Do not rest any weight or sit on
the open door of the appliance.

• Take care that no objects are
stuck in the doors.

• Have the condition of the
components checked regularly by
Technical Support.

• The A-weighted sound pressure
level is below 70 dB (A).

1.2 Identification plate

• The identification plate bears the
technical data, serial number and
brand name of the appliance. Do
not remove the identification plate
for any reason.

1.3 Manufacturer liability

The manufacturer declines all liability
for damage to persons or property
caused by:

• Use of the appliance other than

that specified;

1.4 Appliance purpose

This appliance is intended for
cooking food in the professional
catering environment. Every other
use is considered improper.

This appliance must not be used by
people (including children) of
reduced physical or mental capacity,
or lacking in experience in the use of
electrical appliances, unless they are
supervised or instructed by adults
who are responsible for their safety.

EN

• Failure to comply with the

instructions in the user manual;

• Tampering with any part of the

appliance;

• Use of non-original spare parts.

29

Instructions

1.5 Disposal

This appliance must be
disposed of separately from

other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.

To dispose of the appliance:

• Cut the power supply cable and

remove it along with the plug.

Power voltage

Danger of electrocution

• Disconnect the mains power

supply.

• Unplug the appliance.

• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to the
retailer when purchasing an
equivalent product, on a one for
one basis.

Our appliances are packaged in
non-polluting and recyclable
materials.

• Deliver the packing materials to

the appropriate recycling centre.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or
any part of it unattended.

• Do not let children play with the
plastic bags.

1.6 This user manual

30

This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.

Read this user manual carefully
before using the appliance.

Instructions

1.7 How to read the user manual

This user manual uses the following reading
conventions:

Instructions

General information on this user
manual, on safety and final
disposal.

Description

Description of the appliance and its
accessories.

Use

Information on the use of the
appliance and its accessories,
cooking advice.

Cleaning and maintenance

Information for proper cleaning and
maintenance of the appliance.

Installation

Information for the qualified
technician: Installation, operation
and inspection.

Safety instructions

EN

Information

Advice

1. Sequence of instructions for use.

• Standalone instruction.

31
