SMC Networks -GT1255FTX-SC, SMC1255FTX-SC EU User Manual

EZ Card 10/100 Mbps
Combo Adapter

10/100 Mbps Combo Adapter
(RJ-45 + Fiber SC)

 Compatible with 10BASE-T, 100BASE-TX, and

100BASE-FX standards

 High performance for instant access to network

resources

 Auto-Negotiation for automatic selection of the highest

speed and operating mode

 Remote LAN wakeup support
 On-board socket for optional Boot ROM
 Supports 100BASE-TX/FX with Category 5 UTP, STP

and fiber cables

User Guide

SMC1255FTX-SC

SMC1255FTX-SC EU

38 Tesla
Irvine, CA 92618
Phone: [phone]

EZ Card 10/100 Mbps
Combo Adapter User Guide

From SMC’s EZ line of low-cost workgroup LAN solutions

August 2002

Copyright

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.
However, no responsibility is assumed by SMC for its use, nor for any infringements of patents
or other rights of third parties which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to
change specifications at any time without notice.

Copyright © 2002 by

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

All rights reserved.

Trademarks:

SMC is a registered trademark; and EZ Card is a trademark of SMC Networks, Inc. Other
product and company names are trademarks or registered trademarks of their respective
holders.

i

LIMITED WARRANTY

Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products
to be free from defects in workmanship and materials, under normal use and
service, for the applicable warranty term. All SMC products carry a standard 90-day
limited warranty from the date of purchase from SMC or its Authorized Reseller.
SMC may, at its own discretion, repair or replace any product not operating as
warranted with a similar or functionally equivalent product, during the applicable
warranty term. SMC will endeavor to repair or replace any product returned under
warranty within 30 days of receipt of the product.

The standard limited warranty can be upgraded to a Limited Lifetime* warranty by
registering new products within 30 days of purchase from SMC or its Authorized
Reseller. Registration can be accomplished via the enclosed product registration
card or online via the SMC web site. Failure to register will not affect the standard
limited warranty. The Limited Lifetime warranty covers a product during the Life of
that Product, which is defined as the period of time during which the product is an
“Active” SMC product. A product is considered to be “Active” while it is listed on
the current SMC price list. As new technologies emerge, older technologies become
obsolete and SMC will, at its discretion, replace an older product in its product line
with one that incorporates these newer technologies. At that point, the obsolete
product is discontinued and is no longer an “Active” SMC product. A list of
discontinued products with their respective dates of discontinuance can be found
at: http://www.smc.com/index.cfm?action=customer_service_warranty.

All products that are replaced become the property of SMC. Replacement products
may be either new or reconditioned. Any replaced or repaired product carries
either a 30-day limited warranty or the remainder of the initial warranty, whichever
is longer. SMC is not responsible for any custom software or firmware,
configuration information, or memory data of Customer contained in, stored on, or
integrated with any products returned to SMC pursuant to any warranty. Products
returned to SMC should have any customer-installed accessory or add-on
components, such as expansion modules, removed prior to returning the product
for replacement. SMC is not responsible for these items if they are returned with the
product.

Customers must contact SMC for a Return Material Authorization number prior to
returning any product to SMC. Proof of purchase may be required. Any product
returned to SMC without a valid Return Material Authorization (RMA) number
clearly marked on the outside of the package will be returned to customer at
customer’s expense. For warranty claims within North America, please call our
toll-free customer support number at [phone]. Customers are responsible for
all shipping charges from their facility to SMC. SMC is responsible for return
shipping charges from SMC to customer.

L

IMITED WARRANTY

ii

WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR
REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU
OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER
IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER
PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH
THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC
SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT
EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE,
NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS
TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED
USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR
TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,
OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS
PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR
THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY
SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

* SMC will provide warranty service for one year following discontinuance from the
active SMC price list. Under the limited lifetime warranty, internal and external
power supplies, fans, and cables are covered by a standard one-year warranty from
date of purchase.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

iii

C

OMPLIANCES

FCC - Class B

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

• Reorient the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

EC Conformance Declaration - Class B

SMC contact for these products in Europe is:

SMC Networks Europe,

Edificio Conata II,

Calle Fructuós Gelabert 6-8, 2

o

, 4a,

08970 - Sant Joan Despí,

Barcelona, Spain.

This information technology equipment complies with the requirements of the Low
Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE
Mark accordingly. It conforms to the following specifications:

EMC: EN55022 (1988)/CISPR-22 (1995) Class B

IEC 1000-4-2 (1995) 4 kV CD, 8 kV AD
IEC 1000-4-3 (1995) 3 V/m
IEC 1000-4-4 (1995) 1.0 kV - (power line)

0.5 kV - (signal line)
IEC 1000-4-6 (1995) 3 Vrms
IEC 1000-4-11 (1995) Voltage drop

iv

Industry Canada - Class B

This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled
“Digital Apparatus”, ICES-003 of Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux
appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur:
“Appareils Numériques”, NMB-003 édictée par l’Industrie.

v

T

ABLE OF

C

ONTENTS

About the EZ Card 10/100 Mbps Combo

Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Installing the Card . . . . . . . . . . . . . . . . . . . . . . . . . .3

Equipment Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PCI Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing and Configuring Network Drivers . . . .7

Windows 95/98/Me/2000 Installation . . . . . . . . . . . . . . . . . . . . 7

Optional Procedures to Modify Card Settings and Add

Network Protocols . . . . . . . . . . . . . . . . . . . . . . . 13

Windows NT 4.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . 13

First-Time Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Secondary Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Windows XP Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Testing the Network Card . . . . . . . . . . . . . . . . . . .24

Windows 95/98/Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Windows NT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .27

PCI Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Solutions for Common Problems . . . . . . . . . . . . . . . . . . . . . . 28

Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 28

Network Card Installation Problems . . . . . . . . . . . . . . . 28

Network Connection Problems . . . . . . . . . . . . . . . . . . . 29

T

ABLE OF CONTENTS

vi

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cable Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Twisted-Pair Cable and Pin Assignments . . . . . . . . . . . . . . . . . 30

10BASE-T/100BASE-TX Pin Assignments . . . . . . . . . . . . . 31

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Software Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

1

A

BOUT THE

EZ C

ARD

10/

100 M

BPS

C

OMBO

A

DAPTER

The EZ Card 10/100 Mbps Combo Adapter is based on advanced
silicon to maximize throughput and increase the efficiency of your
network. It features a dual-speed, bus-master design, and supports
auto-negotiation and all common networking environments.

The RJ-45 connector supports auto-negotiation, so the port can
configure itself automatically to run at the highest possible
data-transfer rate—10 or 100 Mbps and half or full
duplex—providing the link partner also supports auto-negotiation.

The Wake-On-LAN (WOL) cable allows a WOL-enabled PC to be
managed remotely. Software can be loaded and updated,
configurations changed, data backed up, inventory checked,
viruses removed, device conflicts eliminated and system crashes
repaired from a remote central location. This decreases user
downtime and increases overall productivity.

LED Indicators

The EZ Card network adapter includes at-a-glance LED indicators
to monitor the port connection. Depending on the model, the
LEDs are positioned on the bracket below the port, or are built

A

BOUT THE

EZ C

ARD

10/100 M

BPS COMBO ADAPTER

2

into the RJ-45 port. All the LED indicators are as described in the
following figure and table.

LED Condition Status

LNK Green Indicates a valid 10BASE-T,

100BASE-TX, or 100BASE-FX link.

Off Power is off or connection is invalid.

ACT
(T/R)

Flashing
Amber

Indicates that the network card is
transmitting or receiveing data.

100 Green Indicates a 100 Mbps connection to

the network card.

Off Indicates a 10 Mbps connection to

the network card.

FDX Amber Indicates the network card is

operating in full-duplex mode.

Flashing
Amber

Packet collision is occurring in
half-duplex mode.

Off Indicates the network card is

operating in half-duplex mode.

3

I

NSTALLING THE

C

ARD

Equipment Checklist

After unpacking the EZ Card, check the contents of the box to be
sure you have received the following components:

• EZ Card 10/100 Mbps Combo Adapter

• Wake-On-LAN Cable

• One Driver and Documentation CD

• SMC Warranty Registration Card

• User Guide

Immediately inform your dealer in the event of any incorrect,
missing, or damaged parts. If possible, please retain the carton and
original packing materials in case there is a need to return the
product.

Please fill out and return the Warranty Registration Card to SMC or
register on SMC’s Web site. The EZ Card is covered by a limited
lifetime warranty.

I

NSTALLING THE CARD

4

Hardware Installation

1. Switch off all computer system components, unplug the

computer, and remove the computer cover.

2. Work in a static-free area and touch the computer chassis often

to equalize static charges.

3. Install the network card into an available bus-mastering PCI

slot.

4. Make sure the network card is completely seated so that no

“gold fingers” are exposed.

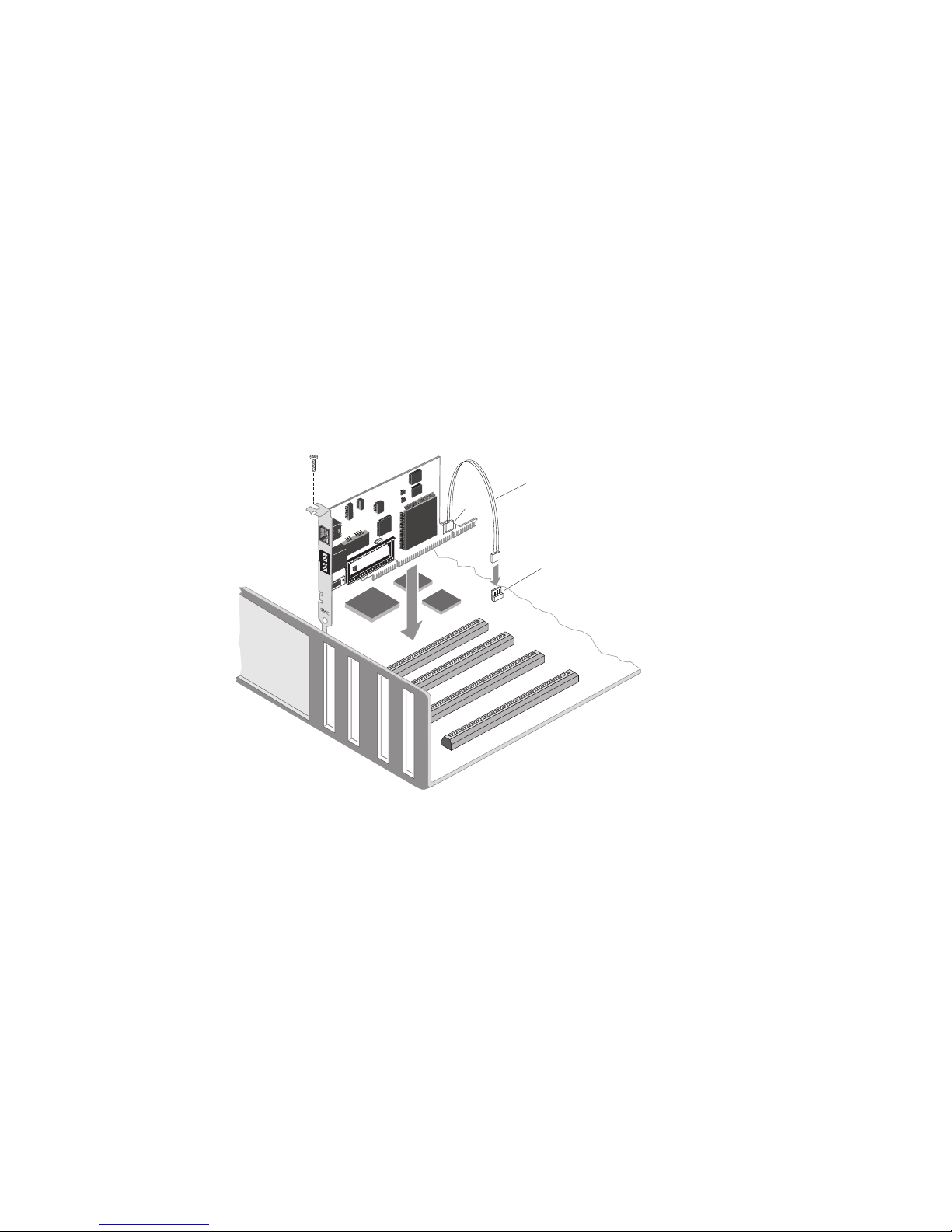

Figure 1. Inserting the Network Card

5. Connect the SMC1255FTX-SC directly to your switch, hub or

cable/dsl modem using UTP cable (Category 3, 4 or 5 for
10BASE-T; Category 5 for 100BASE-TX). The maximum
allowable length of UTP cable connections is 100 meters
(328ft). When inserting an RJ-45 plug, be sure the tab on the
plug clicks into position to ensure that it is properly seated.
The SMC1255FTX-SC comes with an SC connector that
supports 100Base-FX fiber connections using 62.5/125 or 50/

H

ARDWARE INSTALLATION

5

125 micron multimode fiber optic cabling. Because SC
connections are keyed, they can only be attached in one
orientation. Connect one end of the fiber cable to the card’s SC
connector and the other end of the cable to the fiber connector
on the other device. Make certain that the device you are
connecting to is specified for 100 Mbps operation.

Figure 2. Connecting the SC connector

6. Replace the computer’s cover and power it on. The

SMC1255FTX-SC should be automatically configured by the
host computer’s BIOS. However, if you have an older
computer, you may have to manually configure the computer’s
BIOS settings.

The RJ-45 connector supports auto-negotiation, so the port can
configure itself automatically to run at the highest possible data
transfer rate (10 or 100 Mbps and half or full duplex) providing
the link partner also supports Auto-Negotiation. The SC fiber
connector enables the SMC1255FTX-SC model to support 100
Mbps transmissions at full and half duplex over 62.5/50/125
micron multimode fiber cable. A fiber cable link operating in
full-duplex mode can extend to remote sites up to 2 km (1.24
miles) away.

I

NSTALLING THE CARD

6

7. This model supports a Wake-On-LAN connector. The

Wake-On-LAN (WOL) cable allows a WOL-enabled PC to be
managed remotely. Software can be loaded and updated,
configurations changed, data backed up, inventory checked,
viruses removed, and device conflicts eliminated. This
decreases user downtime and increases overall productivity.
For using the WOL function, connect one end of the 3-pin
WOL cable to connector J1 on the card, and the other end to
the “5V Standby” connector on the computer’s motherboard, as
shown in the following figure. (Refer to your computer’s
installation manual to locate the 5V Standby connector.)

Figure 3. Attaching the Wake-On-LAN Cable

PCI Configuration

In most cases, your network card is automatically configured when
you power-up your computer. In certain computers, however, you
must modify your BIOS by entering your CMOS SETUP utility. For
more information, refer to “PCI Compatibility” on page 27.

Wake-On-LAN Cable

“ 5V Standby” Connector

J1

7

I

NSTALLING AND

C

ONFIGURING

N

ETWORK

D

RIVERS

Windows 95/98/Me/2000 Installation

You may find that the instructions here do not exactly match your
version of Windows. This is because these steps and screenshots
were created from Windows 98. Windows 95, Windows
Millennium Edition, and Windows 2000 are very similar, but not
identical, to Windows 98.

Notes: 1. For Windows NT and Window XP installations, please

skip to page 13 for instructions.

2. Installation processes such as these usually require the

use of your original, licensed copy of Windows. Please
have your Windows CD on hand BEFORE proceeding
with the installation.

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

8

1. After you have inserted the SMC1255FTX-SC in your machine,

the Windows operating system will automatically recognize the
adapter and prompt you for the appropriate drivers. Click the
“Next” button to begin the installation.

W

INDOWS

95/98/ME/2000 I

NSTALLATION

9

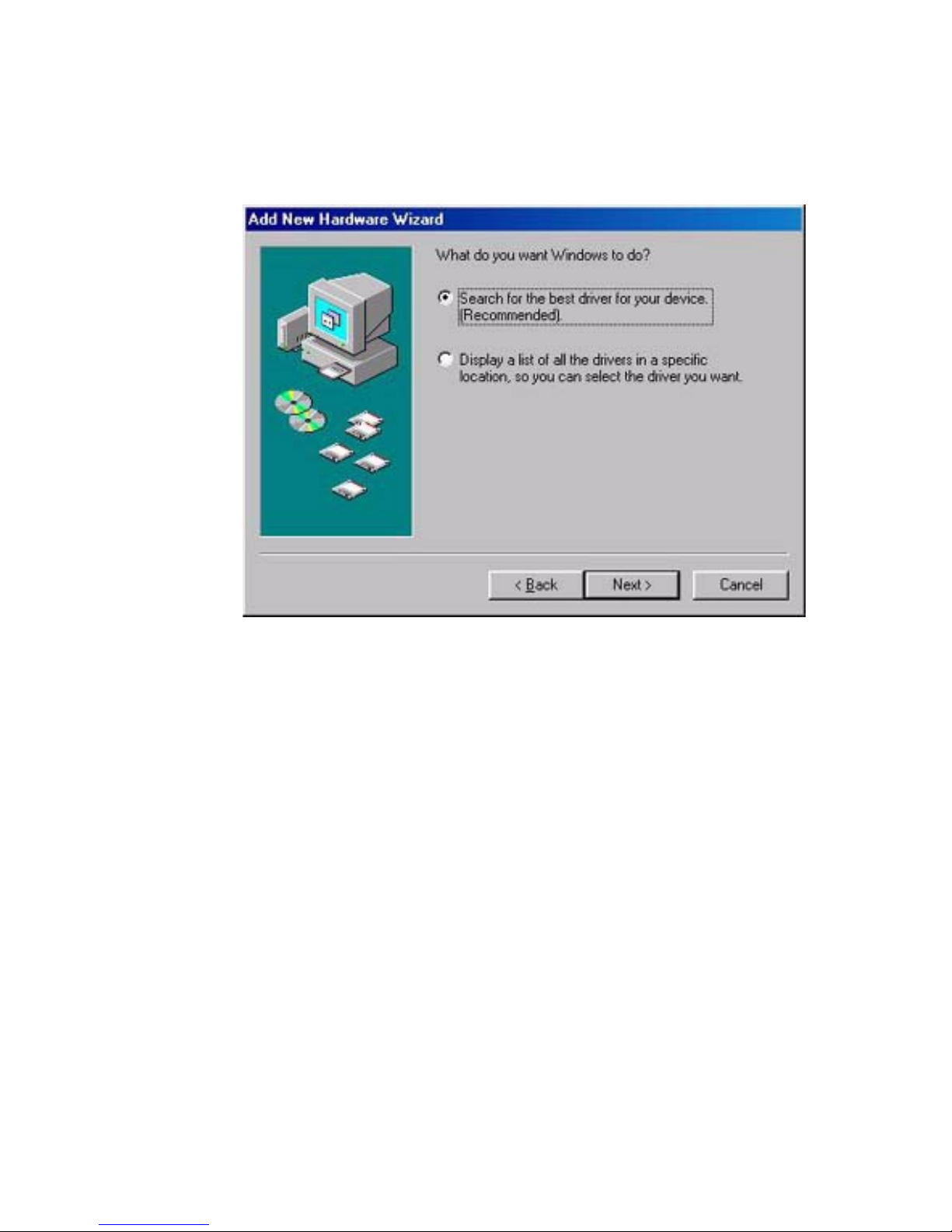

2. Insert the Driver CD and select the “Search for the best driver

for your device” option and click “Next”.

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

10

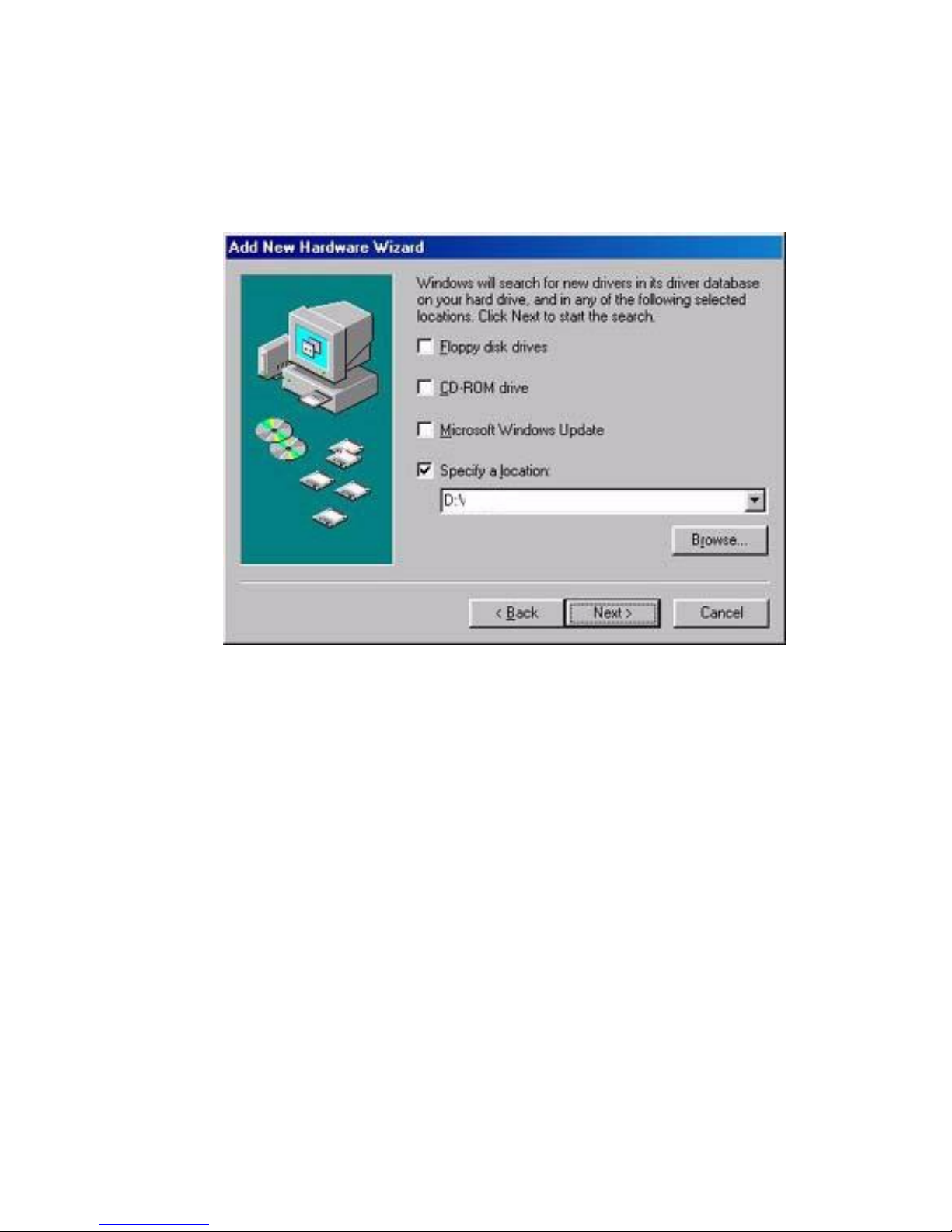

3. Clear all checkboxes except for “Specify a location:” Then

press the “Browse” button and look for the drivers on your
CD-ROM. (“[CD drive]:\. In most cases, this is D:\.)

4. The system should find the drivers. Now click the “Next”

button to continue the installation.

Note: If the system could not find the drivers, click the “Back”

button, and select the “Display a list of all the drivers...”
option. Select “Network Adapters” from the list of devices,
press “Have Disk” and once again browse to the location
of the drivers.

W

INDOWS

95/98/ME/2000 I

NSTALLATION

11

5. Once the system has copied the SMC drivers from the CD, it

may then request files from your original Windows disk. Please
insert the Windows CD at this time.

6. The system will copy the files. Do NOT press “Cancel.”

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

12

7. Once all the necessary files are copied from the Windows disk,

the driver install process will be complete. Click “Finish” to exit
the wizard.

8. You will then be prompted to reboot the machine. Please press

“Yes. ” Upon reboot, the SMC1255FTX-SC will be initialized and
ready for use.

W

INDOWS

NT 4.0 I

NSTALLATION

13

Optional Procedures to Modify Card Settings and Add
Network Protocols

• Double-click on the “My Computer,” “Control Panel,” and
“Network” icons. The “Network” dialog box appears. If the

correct network protocols are not installed in the “Primary
Network Logon” list box, select the primary network to which
you will be attaching. Click on “Add.” The “Select Network
Component Type” dialog box appears. Follow the on-screen
directions to select network protocols.

• For peer-to-peer networks, you may wish to enable “File and
Print Sharing” in the “Network” dialog box.

• To modify other network card properties, select the
appropriate tab or click on the “Properties” button from the
“Network” dialog box and modify properties as desired.

Windows NT 4.0 Installation

First-Time Installation

If you have already installed a network card, configured
Windows NT Networking, or configured a network driver, refer to
the procedure titled “Secondary Installation.”

1. Windows NT is not a Plug-and-Play operating system. You will

need to manually install the adapter.

2. Shut down your PC, install the SMC network card, and attach

the network cable. Restart Windows NT.

3. Double-click on the “My Computer,” “Control Panel,” and

“Network” icons. The “Network Configuration” window

appears, prompting you to install Windows NT Networking.

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

14

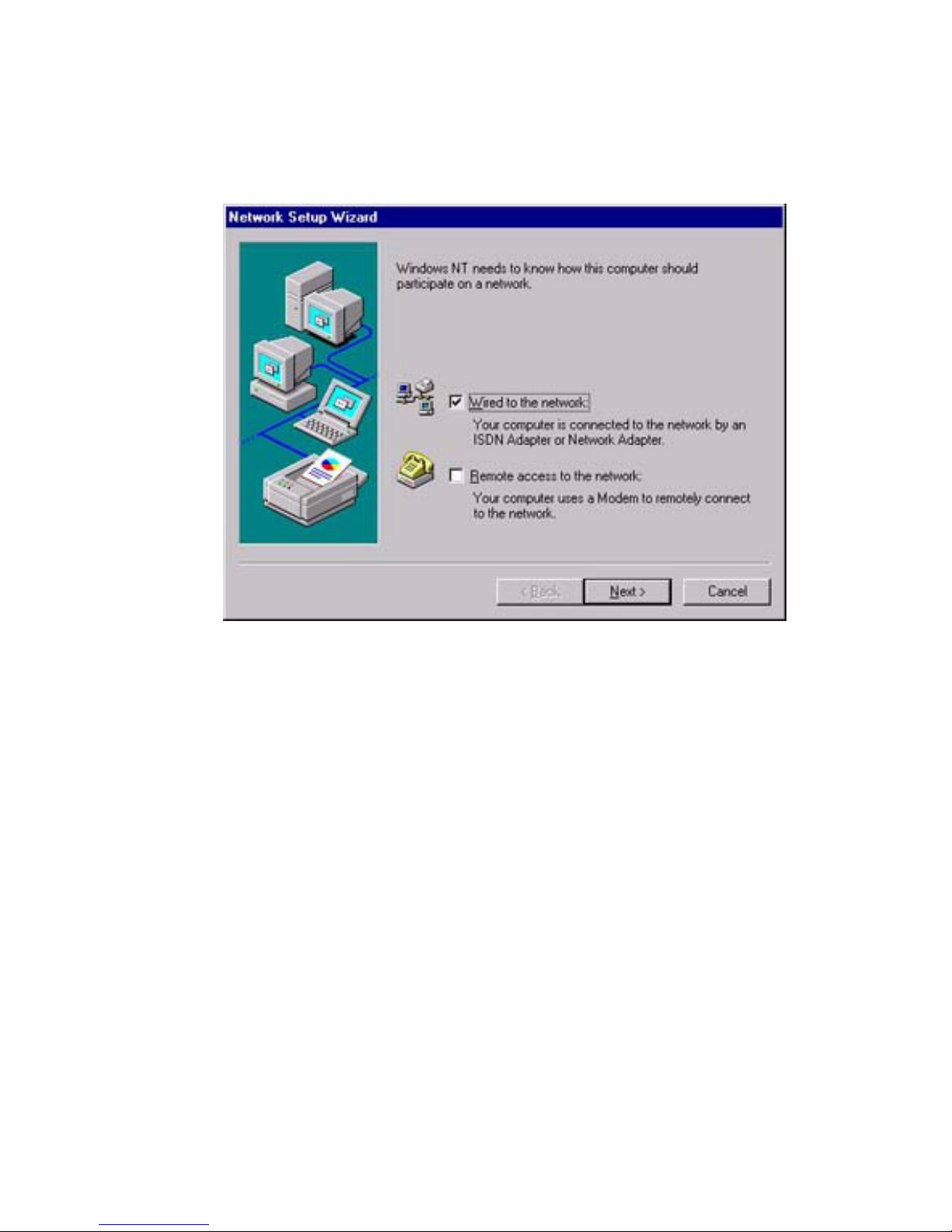

Select the “Wired to the network” option and click the “Next”
button to continue.

4. When prompted to “Search for a Network Adapter,” click on

“Select from List.”

W

INDOWS

NT 4.0 I

NSTALLATION

15

5. When prompted to “Select a Network Adapter,” click on “Have

Disk.” Insert the installation CD and enter “D:\winnt.” (“[CD
drive]:\. In most cases, this is D:\.)

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

16

6. Select the SMC1255FTX-SC adapter, and click on “Next.”

7. Select network protocols when prompted and click “Next.”

W

INDOWS

NT 4.0 I

NSTALLATION

17

Note: To complete a TCP/IP installation, you will need to know

your IP Address and Subnet Mask. For further information,
contact your network administrator or Internet service
provider.

8. Click on “Next” and then “Next” again when prompted to

“Install Network Components.” When prompted for Windows

NT files, type the path to your Windows NT files on CD-ROM
(e.g., D:\i386), or change the path to those files on your hard
drive, and click on “OK.”

9. You are presented with the “Network Card Setup” window

where you can specify the network card data rate.
“AUTONEGOTIATE” is the recommended setting for the
network card. Select “Continue” after verifying the network
card settings.

10. Click on “Next” and then “Next” again when prompted to “Start

the Network.”

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

18

11. Enter the “Workgroup” or “Domain” names (optional) when

prompted and click on “Next.”

12. Select “Finish” when prompted, and click on “Yes” when

prompted to reboot.

For Further Customization

You can modify card settings via the “Network” applet. Install
additional protocols and network components by selecting the
appropriate folder (e.g., Customizing Protocols, Services,
Identification, or Bindings).

Secondary Installation

Follow this procedure if you have already installed another
network card, configured Windows NT Networking, or loaded
another driver.

1. Install the SMC network card (if not already installed), attach

the network cable, and boot Windows NT.

2. Double-click on the “My Computer,” “Control Panel,” and

“Network” icons. From the “Network” window, select the

Adapter tab.

3. Do not select any of the network cards listed. Select “Add.”

4. You are presented with the “Select Network Adapter” window.

Click on “Have Disk.”

5. You are presented with the “Insert Disk” window. Specify the

path to the NT directory of the installation CD (e.g., D:\winnt)
and click on “OK.”

6. Select the SMC1255FTX-SC adapter, and click on “Next.”

7. You are presented with the “Network Card Setup” window

where you can specify the network card data rate.

W

INDOWS

NT 4.0 I

NSTALLATION

19

“AUTONEGOTIATE” is the recommended setting for the
network card. Select “OK” after verifying the network card
settings.

8. You are presented with the “Network” window where the SMC

network card is now listed as an installed adapter. At this point
you can select “Close” to exit the Network applet and follow
the prompts to restart Windows NT.

9. Select “Yes” when prompted to reboot for the changes to take

effect.

For Further Customization

You can modify card settings via the “Network” applet. Install
additional protocols and network components by selecting the
appropriate folder (e.g., Customizing Protocols, Services,
Identification, or Bindings).

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

20

Windows XP Installation

1. After you have inserted the SMC1255FTX-SC in your machine

and turned it back on, the OS will automatically recognize the
adapter and prompt you for the appropriate drivers. Click the
“Next” button to begin the installation.

W

INDOWS

XP I

NSTALLATION

21

2. Insert the Driver CD and check the “Include this location in the

search” option. Make sure the “Search removable media”
option is not checked. Click “Browse” and find the location of
the drivers. This should be “[CD drive]:\.” (In most cases, this is
D:\.) Then click “Next >.”

I

NSTALLING AND CONFIGURING NETWORK DRIVERS

22

3. Click “Continue Anyway” to continue the installation. Please

do NOT click “STOP Installation” as this will cancel the driver
wizard and the card will not be installed properly.

W

INDOWS

XP I

NSTALLATION

23

4. This process will be completed once the drivers are copied to

the hard drive and installed. Please click “Finish” to exit the
wizard.

After clicking “Finish,” you will see the following message in your
system tray:

Latest Drivers

Driver updates can be downloaded from SMC’s web site (see the
back cover of this guide).

24

T

ESTING THE

N

ETWORK

C

ARD

This section will help you verify that the adapter is installed
properly.

Windows 95/98/Me

1. Right-click the My Computer icon on your desktop and click

“Properties.”

2. Then go to the “Device Manager” tab and open the “Network

adapters” section. You should see your SMC1255FTX-SC in this
menu. Highlight it and click “Properties.”

3. The Device Status shows that the “This device is working

properly.” If there are any error messages displayed here, you
will need to click the SMC adapter and click “Remove.” Then
reboot the machine and go through the installation process
again.

Windows NT

1. Double-click on the “My Computer,” “Control Panel,” and

“Network” icons. From the “Network” window, select the
Adapter tab.

2. Click on the “Properties” button to verify that the

SMC1255FTX-SC adapter is listed in the “Adapters” section.

3. Click “Start,” click “Run” and type “eventvwr.” This will bring

up the entire System Log in the Event Viewer. Make sure that
there are no error messages regarding the initialization of the
SMC adapter.

W

INDOWS

2000

25

4. Open your NT diagnostics utility and make sure that the SMC

adapter is listed under the “Resources” tab. This will verify that
the adapter was successfully initialized using the IRQ specified
in this section.

Windows 2000

1. Right-click the My Computer icon on your desktop and click

“Properties.”

2. Then go to the Hardware tab and click “Device Manager.”

Open the “Network adapters” section. You should see your
SMC1255FTX-SC in this menu. Right-click your adapter and
click “Properties.”

3. The Device Status shows that the “This device is working

properly.” If there are any error messages displayed here, you
will need to right-click the SMC adapter and click “Uninstall.”
Then reboot the machine and go through the installation
process again.

T

ESTING THE NETWORK CARD

26

Windows XP

1. Click “Start” and click “Control Panel.” Then click the

“Performance and Maintenance” icon and select “System.”

2. Then go to the Hardware tab and click “Device Manager.”

Open the “Network adapters” section. You should see your
SMC1255FTX-SC in this menu. Right-click the adapter and click
“Properties.”

3. The Device Status shows that “This device is working

properly.” If there are any error messages displayed here, you
will need to right-click the SMC adapter and click “Uninstall.”
Then reboot the machine and go through the installation
process again.

27

T

ROUBLESHOOTING

PCI Compatibility

Early PCI BIOS versions do not properly support the PCI
specification and may “hang” when a network card driver tries to
load. If this occurs, make sure your BIOS correctly supports the
PCI Local Bus Specification (v2.0 or later) and upgrade your
computer BIOS to the latest version.

Some PCI computers are not self-configuring and require you to
perform some or all of the following functions by changing
motherboard jumpers and/or configuring the BIOS setup program:

• Verify that the PCI slot is an enabled busmaster slot and not a
slave PCI slot. The EZ Card must be installed in a PCI busmaster
slot. In some computers the PCI slot must be configured to
enable bus mastering. Refer to your PC’s manual and check the
PCI BIOS setup program to be sure the PCI slot is an enabled
busmaster slot.

• In some computers, you may be required to disable Plug ‘n Play
(PnP) in the BIOS setup program if resources are not properly
assigned between the network card and other installed cards.

• Some computers may require you to reserve interrupts and
memory addresses for installed ISA cards to prevent PCI cards
from using the same settings. Refer to your PC’s manual and
check the PCI BIOS setup program configuration options for
ISA cards.

T

ROUBLESHOOTING

28

Solutions for Common Problems

Basic Troubleshooting

Network problems are often caused by cabling errors, conflicts
with other devices installed in the same computer, or software that
has been configured incorrectly. If you encounter a problem, use
the checklists and guidelines in this section to try and identify the
problem before contacting SMC Technical Support.

Network Card Installation Problems

If your computer cannot find the EZ Card or the network driver
does not install correctly, check the following items.

• Make sure the card is securely seated in the PCI slot. Check for
any hardware problems, such as physical damage to the card’s
edge connector.

• Try the card in another PCI busmaster slot. If all fails, test with
another EZ Card that is known to operate correctly.

• Check for resource conflict in the PCI configuration. Refer to
the section “PCI Compatibility” in this chapter.

• If there are other network cards in the computer, they may be
causing conflict. Remove all other cards from the computer and
test the EZ Card separately.

• Check for a defective computer or PCI bus by trying the
network card in another computer that is known to operate
correctly.

• Make sure your computer is using the latest BIOS available.

S

OLUTIONS FOR COMMON PROBLEMS

29

Network Connection Problems

There may be a network connection problem if the Link LED on
the card’s bracket does not light, or if you cannot access any
network resources from the computer. Check the following items.

• Make sure the cable is within IEEE 802.3 Ethernet, or
IEEE802.3u Fast Ethernet standards for the type of network you
are using. Also, make sure cable lengths are within the
requirements specified in “Cables” on page 30.

• Inspect all network cables and connections. Make sure the
network cable is securely attached to the card’s connector.

• Make sure the correct network card driver is installed for your
operating system. If necessary, try reinstalling the driver.

• Make sure the computer and other network devices are
receiving power. If you suspect a power outlet to be faulty,
plug another device into it to verify that it is working.

• If the the network card’s speed or duplex mode has been
configured manually, check that it matches that of the attached
network device port. Note that it is recommended to set the
card to auto-negotiation when installing the network driver.

• The port on the network device that the card is attached to may
be defective. Try using another port on the device.

• If you cannot access a Windows service on the network, check
that you have enabled and configured the service correctly. If
you cannot connect to a particular server, be sure that you have
access rights and a valid ID and password.

• If you cannot access the Internet, be sure you have configured
your system for TCP/IP.

30

C

ABLES

Cable Specifications

Twisted-Pair Cable and Pin Assignments

Caution: DO-NOT plug a phone jack connector into any RJ-45

port. Use only twisted-pair cables with RJ-45 connectors
that conform with FCC standards.

For 10BASE-T/100BASE-TX connections, a twisted-pair cable must
have two pairs of wires. Each wire pair is identified by two
different colors. For example, one wire might be red and the other,
red with white stripes. Also, an RJ-45 connector must be attached
to both ends of the cable.

Caution: Each wire pair must be attached to the RJ-45 connectors

in a specific orientation.

Cable Types and Specifications

Cable Type Max. Length Connector

10BASE-T Cat. 3, 4, 5 100-ohm

UTP

100 m (328 ft.) RJ-45

100BASE-TX Cat. 5 100-ohm UTP 100 m (328 ft.) RJ-45

100BASE-FX 50/125 or 62.5/125

micron core
multimode fiber

Half duplex 412 m (1,351.4 ft.) SC

Full duplex 2 km (1.24 miles) SC

T

WISTED-PAIR CABLE AND PIN ASSIGNMENTS

31

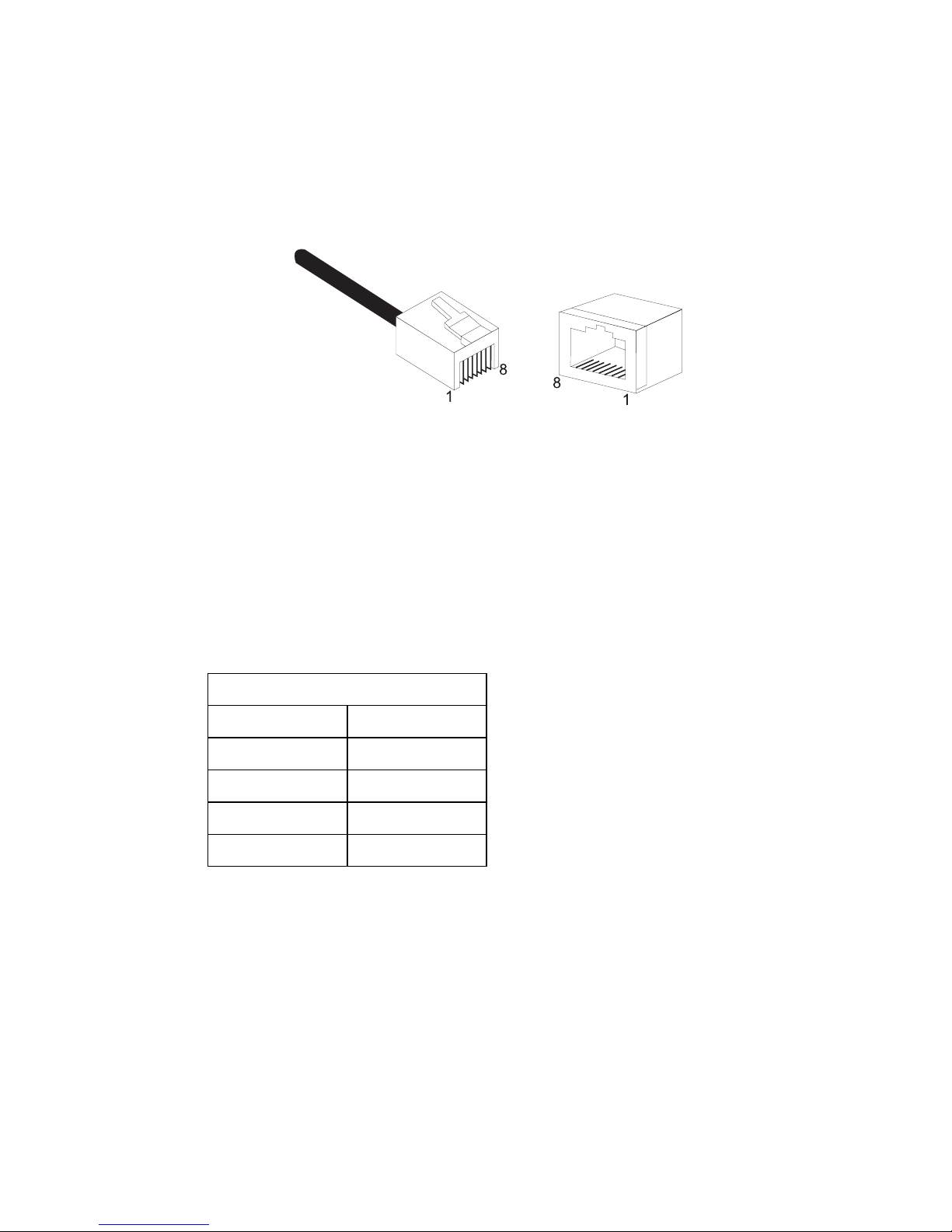

The following figure illustrates how the pins on the RJ-45
connector are numbered. Be sure to hold the connectors in the
same orientation when attaching the wires to the pins.

Figure 4. RJ-45 Connector Pin Numbers

10BASE-T/100BASE-TX Pin Assignments

With 10BASE-T/100BASE-TX cable, pins 1 and 2 are used for
transmitting data, and pins 3 and 6 for receiving data. The “+” and
“-” signs in the tables below are used to represent the polarity of
the wires that make up each wire pair.

RJ-45 Pin Assignments

Pin Number Assignment

1 Tx+

2 Tx-

3 Rx+

6 Rx-

C

ABLES

32

Straight-Through Wiring

If the twisted-pair cable is to join two ports and only one of the
ports has an internal crossover, the two pairs of wires must be

straight-through.

Crossover Wiring

If the twisted-pair cable is to join two ports and either both ports
are labeled with an “x” (MDI-X) or neither port is labeled with an

“x” (MDI), a crossover must be implemented in the wiring.

Straight-Through RJ-45 Pin Assignments

End 1 End 2

1(Tx+) 1(Tx+)

2(Tx-) 2(Tx-)

3(Rx+) 3(Rx+)

6(Rx-) 6(Rx-)

Crossover RJ-45 Pin Assignments

End 1 End 2

1(Tx+) 3(Rx+)

2(Tx-) 6(Rx-)

3(Rx+) 1(Tx+)

6(Rx-) 2(Tx-)

33

S

PECIFICATIONS

General Specifications

Bus Interface 32-bit PCI Bus Master
PCI Interrupt Channel INTA
Network Card Type 10BASE-T/100BASE-TX, 100BASE-FX
Connectors RJ-45 for 10BASE-T/100BASE-TX

SC connector for 100BASE-FX
3-pin Wake-On-LAN cable connector

Network Interface Cable 10BASE-T: UTP cable; Categories 3,

4,or 5
100BASE-TX: UTP cable; Category 5
100BASE-FX: 50/125 or 62.5/125

micron multimode fiber cable
Size (without bracket) 9.1 x 12.0 cm (3.605 x 4.750 in.)
Weight 70 gm (2.52 oz.)
Operating Voltage RJ-45: +5 VDC @ 450 mA (typical)

Fiber: +5 VDC @ 400 mA (typical)

+12 VDC @ 1.2 mA
Temperature Operating: 0 to 50 °C (32 to 122 °F)

Storage: -40 to 70 °C (-40 to 158 °F)
Humidity Operating: 10% to 90%

Storage: 5% to 95%
Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

PCI v2.1 and v2.2
Compliances CE Mark

FCC Class B
Warranty Limited lifetime

S

PECIFICATIONS

34

Software Drivers

ODI Drivers NetWare Server 4.11, 5.0 and 5.1
NDIS Drivers Windows 95 OSR2.1 or above version

Windows 98
Windows Me
Windows NT 4.0
Windows 2000
Windows XP

Unix Drivers Linux 2.2x, 2.4 or later

38 Tesla
Irvine, CA 92618
Phone: [phone]

FOR TECHNICAL SUPPORT, CALL:

From U.S.A. and Canada (24 hours a day, 7 days a week)

(800) SMC-4-YOU; [phone]; Fax: [phone]

From Europe (8:00 AM - 5:30 PM UK Time)

44 (0) 118 974 8700; Fax: [phone]

INTERNET

E-mail addresses:

[e-mail]
[e-mail]

Driver updates:

http://www.smc.com/index.cfm?action=tech_support_drivers_downloads

World Wide Web:

http://www.smc.com/
http://www.smc-europe.com/

FOR LITERATURE OR ADVERTISING RESPONSE, CALL:

U.S.A. and Canada: (800) SMC-4-YOU; Fax [phone]
Spain: 34-93-477-4935; Fax [phone]
UK: 44 (0) 118 974 8700; Fax [phone]
France: 33 (0) 41 38 32 32; Fax [phone]
Italy: 39 02 739 12 33; Fax [phone]
Benelux: 31 33 455 72 88; Fax [phone]
Central Europe: 49 (0) 89 92861-0; Fax [phone]
Switzerland: 41 (0) 1 9409971; Fax [phone]
Nordic: 46 (0) 868 70700; Fax [phone]
Northern Europe: 44 (0) 118 974 8700; Fax [phone]
Eastern Europe: 34 -93-477-4920; Fax [phone]
Sub Saharian Africa: 27-11 314 1133; Fax [phone]
North Africa: 34 93 477 4920; Fax [phone]
Russia: 7 (095) 290 29 96; Fax [phone]
PRC: 86-10-6235-4958; Fax [phone]
Taiwan: 886-2-2659-9669; Fax [phone]
Asia Pacific: (65) 238 6556; Fax [phone]
Korea: 82-2-553-0860; Fax [phone]
Japan: 81-45-224-2332; Fax [phone]
Australia: 61-2-9416-0437; Fax [phone]
India: 91-22-8204437; Fax [phone]

If you are looking for further contact information, please visit www.smc.com or
www.smc-europe.com.

Model Number: SMC1255FTX-SC

SMC1255FTX-SC EU
E082002-R01
