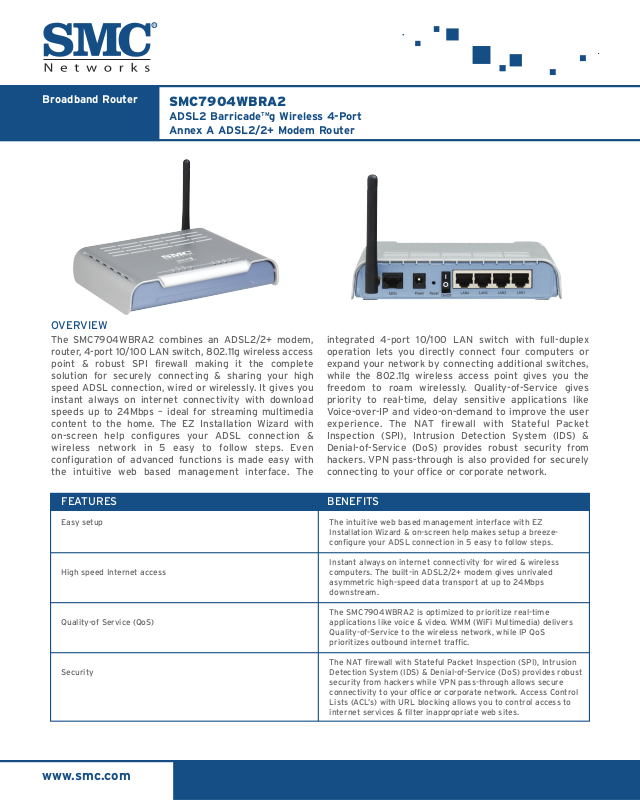

Smc 7904WBRA2 DATASHEET
Broadband Router
SMC7904WBRA2
ADSL2 BarricadeTMg Wireless 4-Port
Annex A ADSL2/2+ Modem Router
www.smc.com
The SMC7904WBRA2 combines an ADSL2/2+ modem,
router, 4-port 10/100 LAN switch, 802.11g wireless access
point & robust SPI firewall making it the complete
solution for securely connecting & sharing your high
speed ADSL connection, wired or wirelessly. It gives you
instant always on internet connectivity with download
speeds up to 24Mbps – ideal for streaming multimedia
content to the home. The EZ Installation Wizard with
on-screen help configures your ADSL connection &
wireless network in 5 easy to follow steps. Even
configuration of advanced functions is made easy with
the intuitive web based management interface. The
integrated 4-port 10/100 LAN switch with full-duplex
operation lets you directly connect four computers or
expand your network by connecting additional switches,
while the 802.11g wireless access point gives you the
freedom to roam wirelessly. Quality-of-Service gives
priority to real-time, delay sensitive applications like
Voice-over-IP and video-on-demand to improve the user
experience. The NAT firewall with Stateful Packet
Inspection (SPI), Intrusion Detection System (IDS) &
Denial-of-Service (DoS) provides robust security from
hackers. VPN pass-through is also provided for securely
connecting to your office or corporate network.
FEATURES
Easy setup
High speed Internet access
Quality-of Service (QoS)
Security
The intuitive web based management interface with EZ
Installation Wizard & on-screen help makes setup a breezeconfigure your ADSL connection in 5 easy to follow steps.
Instant always on internet connectivity for wired & wireless
computers. The built-in ADSL2/2+ modem gives unrivaled
asymmetric high-speed data transport at up to 24Mbps
downstream.
The SMC7904WBRA2 is optimized to prioritize real-time
applications like voice & video. WMM (WiFi Multimedia) delivers
Quality-of-Service to the wireless network, while IP QoS
prioritizes outbound internet traffic.
The NAT firewall with Stateful Packet Inspection (SPI), Intrusion
Detection System (IDS) & Denial-of-Service (DoS) provides robust
security from hackers while VPN pass-through allows secure
connectivity to your office or corporate network. Access Control
Lists (ACL’s) with URL blocking allows you to control access to
internet services & filter inappropriate web sites.
BENEFITS
OVERVIEW
TECHNICAL SPECIFICATIONS SMC7904WBRA2
PHYSICAL INTERFACES
• WAN: ADSL2/2+ RJ-11 port
• LAN: Four 10/100Mbps auto MDI/MDIX
RJ-45 ports
• Wireless: 54Mbps 802.11g Wireless
Access Point
• External 2dBi detachable antenna
(Reverse SMA connector)
• Internal 2dBi antenna
• Power Input: DC12V 1A
• Wall-mountable (screws not included)
• On/Off power switch
• Reset button
ADSL FEATURES
• T1.413, G.DMT, G.LITE, ADSL2, ADSL2+
• Dying GASP support
• Annex A, L, M
• TR-067 interoperability tested
ATM FEATURES
• Class-of-Service: UBR, CBR, VBR,
VBR-rt, VBR-nrt
• Up to 8 PVC’s
• RFC1483 Encapsulation (IP, Bridging &
encapsulated routing)
• PPP over ATM (RFC2364)
• PPP over Ethernet
• Classical IP (RFC1577)
• VC-Mux & LLC encapsulation
• OAM F4/F5 support
MANAGEMENT FEATURES
• Web based management interface
• TELNET
• TFTP
• SNMP v1/2c
• Automatic time maintenance (SNTP)
• Event logging
• Diagnostic tools
• TR-069 WAN management protocol*
SECURITY FEATURES
• Password protected management
interface
• NAT firewall
• Stateful Packet Inspection (SPI),
Intrusion detection logging
& email notifications, Denial-of-Service
(DoS) protection
• Access Control Lists, URL Blocking,
Rule scheduling
• VPN pass-through (IPSec-ESP Tunnel
mode, L2TP, PPTP)
• 64/128 bit WEP encryption
• WPA/WPA2 Pre-Shared Key (PSK) &
Enterprise mode (IEEE802.1x)
• WLAN MAC address filtering
• Disable SSID broadcasting
LAN FEATURES
• IEEE 802.1d (self learning transparent
bridging)
• DHCP Server
• DNS Proxy / Relay
• Static Routing, RIP v1/2
• Port based VLAN
FUNCTIONS
• UPnP, Port forwarding, Virtual DMZ
host, WMM (WiFi Multimedia), Wireless
Distribution System (WDS), IP Layer
QoS with Diffserv (RFC2474), DDNS
WIRELESS RF MODULE FREQUENCY
BAND
• 802.11b/g Radio: 2.4 GHz
• USA – FCC: 2412~2462MHz (Ch1~Ch11)
• Canada – IC: 2412~2462MHz (Ch1~Ch11)
• Europe – ETSI : 2412~2472MHz
(Ch1~Ch13)
MAX RF OUTPUT POWER
• 802.11b: 18 dBm
• 802.11g: 16 dBm
MODULATION TYPE
• OFDM, CCK
CERTIFICATIONS
• CE, R&TTE, CB, CSA/NRTL, FCC part 15
class B & FCC part 68 & FCC part 68
• EN300328 (2003-04)
• EN301489-1 (2001-09), EN301489-17
(2002-08)
• EN60950:2000/IEC60950
TEMPERATURE
• Temperature: IEC 68-2-14
• 0 to 40 degrees C (Standard Operating)
• -20 to 70 degrees C (Non-Operating)
HUMIDITY
• 10% to 95% (Non-condensing)
DIMENSIONS
• 158.95mm (W) x 147.12mm (D) x
33.2mm (H)
WEIGHT
• 1.224kg
POWER INPUT
• 12V/1A
SYSTEM REQUIREMENTS
• ADSL Internet Service
• 2.4GHz Wireless adapter or Ethernet
adapter installed on each PC
• Windows 98SE/ME/2000/XP, Mac OS,
Linux or Unix
• Internet Explorer 5.5 or above, Netscape
4.7 or above, Mozilla 1.7 or above &
Firefox 1.0 or above
PACKAGE CONTENTS
• SMC7904WBRA2 ADSL2 Barricade™g
• Power Adapter
• Ethernet cable (RJ-45)
• Phone cable (RJ-11)
• ADSL Splitter**
• Quick Install Guide
• Warranty registration card
• Installation CD containing manual
ACCESSORIES
• SMCHMANT-4 – 2.4GHz 4dBi Omni
directional home antenna
*Optional software module available for
Service Providers
** Most countries
