Smc 7404BRA User Guide

Download

Wireless ADSL Barricade

Wireless Broadband Router with built-in ADSL Modem

◆ Compatible with all leading DSLAMs

◆ Firewall (hacker attack logging, DoS, and client filtering)

◆ Supports DMT line modulation

◆ Four auto-negotiating 10/100 Mbps Ethernet ports

◆ Built-in print server

◆ PPTP, L2TP, and IPSec pass through

◆ Multiple user Internet access with a single-user account

◆ Supports PPPoE and PPPoA

◆ Plug & Play installation

◆ Web-based management

User Guide

SMC7404WBRB

Wireless Broadband Router with built-in ADSL Modem

From SMC’s line of award-winning connectivity solutions

38 Tesla Irvine, CA 92618 Phone: (949) 679-8000

March 2003

150000025600E

Information furnished is believed to be accurate and reliable. However, no responsibility is assumed by our company for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of our company. We reserve the right to change specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.

IMITED

Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. SMC will endeavor to repair or replace any product returned under warranty within 30 days of receipt of the product.

The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering new products within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC Web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active” SMC product. A product is considered to be “Active” while it is listed on the current SMC price list. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an “Active” SMC product. A list of discontinued products with their respective dates of discontinuance can be found at: http://www.smc.com/index.cfm?action=customer_service_warranty.

All products that are replaced become the property of SMC. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed accessory or add-on components, such as expansion modules, removed prior to returning the product for replacement. SMC is not responsible for these items if they are returned with the product.

Customers must contact SMC for a Return Material Authorization number prior to returning any product to SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at customer’s expense. For warranty claims within North America, please call our toll-free customer support number at (800) 762-4968. Customers are responsible for all shipping charges from their facility to SMC. SMC is responsible for return shipping charges from SMC to customer.

ARRANTY

IMITED WARRANTY

WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

* SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

OMPLIANCES

FCC - Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user°¶s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION STATEMENT:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (8 in.) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Industry Canada - Class B

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie.

iii

OMPLIANCES

Australia AS/NZS 3548 (1995) - Class B

SMC contact for products in Australia is:

SMC-Australia L9, 123 Epping Rd., North Ryde, NSW Australia Phone: 61-2-88757887 Fax: 61-2-88757777

EC Conformance Declaration - Class B

This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the compliance with these Directives, the following standards were applied:

RFI Emission:

Immunity:

LVD:

• Limit class B according to EN 55022:1998

• Limit class B for harmonic current emission according to EN 61000-3-2/ 1995

• Limitation of voltage fluctuation and flicker in low-voltage supply system according to EN 61000-3-3/1995

• Product family standard according to EN 55024:1998

• Electrostatic Discharge according to EN 61000-4-2:1995 (Contact Discharge: ±4 kV, Air Discharge: ±8 kV)

• Radio-frequency electromagnetic field according to EN 61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m)

• Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV)

• Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV)

• Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996 (0.15~80 MHz with 1 kHz AM 80% Modulation: 3 V/m)

• Power frequency magnetic field immunity test according to EN 61000-4-8:1993 (1 A/m at frequency 50 Hz)

• Voltage dips, short interruptions and voltage variations immunity test according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30% Reduction @500 ms, >95% Reduction @5000 ms)

• EN 60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997)

OMPLIANCES

Safety Compliance

Wichtige Sicherheitshinweise (Germany)

1. Bitte lesen Sie diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschlu ßsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen.

7. Die Belüftungsöffnungen dienen der Luftzirkulation, die das Gerät vor Überhitzung schützt. Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollte auch nichts auf der Leitung abgestellt werden.

10. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu beachten.

11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag auslösen.

13. Öffnen sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.

14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer qualifizierten Servicestelle zu überprüfen:

a. Netzkabel oder Netzstecker sind beschädigt. b. Flüssigkeit ist in das Gerät eingedrungen. c. Das Gerät war Feuchtigkeit ausgesetzt. d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit

Hilfe dieser Anleitung keine Verbesserung erzielen. e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt. f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

15. Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden. Für einen Nennstrom bis 6 A und einem Gerätegewicht größer 3 kg ist eine Leitung nicht leichter als H05VV-F, 3G, 0.75 mm

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70 dB(A) oder weniger.

einzusetzen.

OMPLIANCES

ABLE OF

ONTENTS

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

About the Barricade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

ISP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Connect the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Connect the ADSL Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Phone Line Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Connect the Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

3 Configuring Client PC . . . . . . . . . . . . . . . . . . . . . 3-1

TCP/IP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Windows 95/98/Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Disable HTTP Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Obtain IP Settings from Your ADSL Router . . . . . . . . . . . . . . . 3-7

Windows NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Disable HTTP Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Obtain IP Settings from Your Barricade . . . . . . . . . . . . . . . . . . 3-11

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Disable HTTP Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Obtain IP Settings from Your Barricade . . . . . . . . . . . . . . . . . . 3-15

Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Disable HTTP Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Obtain IP Settings from Your Barricade . . . . . . . . . . . . . . . . . . 3-19

Configuring Your Macintosh Computer . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Disable HTTP Proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23

Obtain IP Settings from Your Barricade . . . . . . . . . . . . . . . . . . 3-25

vii

ABLE OF CONTENTS

4 Configuring the Barricade . . . . . . . . . . . . . . . . . . 4-1

Navigating the Web Browser Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Making Configuration Changes . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Internet Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Disable Internet Sharing - Parameter Setting . . . . . . . . . . . . . . . 4-5

Disable Internet Sharing - Finish . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

PPPoE - Parameter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

PPPoE - Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

PPPoA - Parameter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

PPPoA - Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Multiple Protocol over ATM Mode - Parameter Setting . . . . . 4-12

Multiple Protocol over ATM Mode - Finish . . . . . . . . . . . . . . . 4-13

Advanced Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Password Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

WAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

ATM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

ISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Channel and SSID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Mac Address Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30

Address Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30

Virtual Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33

Static Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33

RIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

Routing Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36

viii

ABLE OF CONTENTS

Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38

URL Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40

Schedule Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41

Intrusion Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42

DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46

SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47

Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47

Trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48

ADSL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50

DDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54

Configuration Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54

Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57

Finding the MAC address of a Network Card . . . . . . . . . . . . . . . . . . . 4-58

Windows 95/98/ME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58

Windows NT4/2000/XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58

Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58

5 Configuring Printer Services . . . . . . . . . . . . . . . 5-1

Printer Server Setup in Windows 95/98/Me . . . . . . . . . . . . . . . . . . . . . 5-1

Printer Server Setup in Windows NT . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Printer Server Setup in Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Printer Server Setup in Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Printer Server Setup in Unix Systems . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18

ABLE OF CONTENTS

A Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

B Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1

Ethernet Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Wiring Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

RJ-45 Port Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

ADSL Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Wiring Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Glossary

HAPTER

NTRODUCTION

Congratulations on your purchase of the Barricade Broadband Router with built-in ADSL Modem (SMC7404WBRB). We are proud to provide you with a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. For those who want to surf the Internet in the most secure way, this Router provides a convenient and powerful solution.

About the Barricade

The Barricade provides Internet access to multiple users by sharing a single-user account. Support is provided for both wired and wireless devices. New technology provides wireless security via Wired Equivalent Privacy (WEP) encryption and MAC address filtering. It is simple to configure and can be up and running in minutes.

Features and Benefits

• Internet connection to a DSL modem via an RJ-45 10/100 Mbps WAN port

• Local network connection via four 10/100 Mbps Ethernet ports

• On-board IEEE 802.11b 11 Mbps wireless network adapter

• DHCP for dynamic IP configuration, and DNS for domain name mapping

1-1

NTRODUCTION

• Firewall with Stateful Packet Inspection, client privileges, intrusion detection, and NAT

• NAT also enables multi-user Internet access via a single user account, and virtual server functionality (providing protected access to Internet services such as Web, FTP, e-mail, and Telnet)

• VPN pass-through (IPSec-ESP Tunnel mode, L2TP, PPTP)

• User-definable application sensing tunnel supports applications requiring multiple connections

• Easy setup through a Web browser on any operating system that supports TCP/IP

• Compatible with all popular Internet applications

Applications

Many advanced networking features are provided by the Barricade:

• Wireless and Wired LAN

The Barricade provides connectivity to 10/100 Mbps devices, and wireless IEEE 802.11b compatible devices, making it easy to create a network in small offices or homes.

• Internet Access

This device supports Internet access through a DSL connection. Since many DSL providers use PPPoE or PPPoA to establish communications with end users, the Barricade includes built-in clients for these protocols, eliminating the need to install these services on your computer.

1-2

PPLICATIONS

• Shared IP Address

The Barricade provides Internet access for up to 253 users via a single shared IP address. Using only one ISP account, multiple users on your network can browse the Web at the same time.

• Virtual Server

If you have a fixed IP address, you can set the Barricade to act as a virtual host for network address translation. Remote users access various services at your site using a constant IP address. Then, depending on the requested service (or port number), the Barricade can route the request to the appropriate server (at another internal IP address). This secures your network from direct attack by hackers, and provides more flexible management by allowing you to change internal IP addresses without affecting outside access to your network.

• DMZ Host Support

Allows a networked computer to be fully exposed to the Internet. This function is used when NAT and firewall security prevent an Internet application from functioning correctly.

• Security

The Barricade supports security features that deny Internet access to specified users, or filter all requests for specific services that the administrator does not want to serve. The Barricade’s firewall also blocks common hacker attacks, including IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding. WEP (Wired Equivalent Privacy), SSID, and MAC filtering provide security over the wireless network.

1-3

NTRODUCTION

• Virtual Private Network (VPN)

The Barricade supports three of the most commonly used VPN protocols — PPTP, L2TP, and IPSec. These protocols allow remote users to establish a secure connection to their corporate network. If your service provider supports VPNs, then these protocols can be used to create an authenticated and encrypted tunnel for passing secure data over the Internet (i.e., a traditionally shared data network). The VPN protocols supported by the Barricade are briefly described below.

• Point-to-Point Tunneling Protocol — Provides a secure tunnel

for remote client access to a PPTP security gateway. PPTP includes provisions for call origination and flow control required by ISPs.

• L2TP merges the best features of PPTP and L2F — Like PPTP,

L2TP requires that the ISP’s routers support the protocol.

• IP Security — Provides IP network-layer encryption. IPSec can

support large encryption networks (such as the Internet) by using digital certificates for device authentication.

1-4

HAPTER

NSTALLATION

Before installing the Barricade Broadband Router with built-in ADSL Modem, verify that you have all the items listed under Package Contents list. If any of the items are missing or damaged, contact your local distributor. Also be sure that you have all the necessary cabling before installing the Barricade. After installing the Barricade, refer to “Configuring the Barricade” on page 4-1.

Package Contents

After unpacking the Barricade, check the contents of the box to be sure you have received the following components:

• Barricade ADSL Router (SMC7404WBRB)

• Power adapter

• One CAT-5 Ethernet cable

• Documentation CD

•This User Guide

Immediately inform your dealer in the event of any incorrect, missing, or damaged parts. If possible, please retain the carton and original packing materials in case there is a need to return the product.

2-1

NSTALLATION

System Requirements

You must meet the following minimum requirements:

• Internet access from your Internet Service Provider (ISP) using a DSL modem.

• A PC using a fixed IP address or dynamic IP address assigned via DHCP, as well as a gateway server address and DNS server address from your service provider.

• A computer equipped with a 10 Mbps, 100 Mbps, or 10/100 Mbps Fast Ethernet card, a USB-to-Ethernet converter or an IEEE 802.11b wireless network adapter.

• TCP/IP network protocols installed on each PC that will access the Internet.

• A Java-enabled Web browser, such as Microsoft Internet Explorer 4.0 or above or Netscape Communicator 4.0 or above installed on one PC at your site for configuring the Barricade.

2-2

ARDWARE DESCRIPTION

Hardware Description

The Barricade contains an integrated DSL modem and connects to the Internet or to a remote site using its RJ-45 WAN port. It can be connected directly to your PC or to a local area network using any of the four Fast Ethernet LAN ports.

Access speed to the Internet depends on your service type. Full-rate ADSL provides up to 8 Mbps downstream and 640 kbps upstream. G.lite (or splitterless) ADSL provides up to 1.5 Mbps downstream and 512 kbps upstream. However, you should note that the actual rate provided by specific service providers may vary dramatically from these upper limits.

Data passing between devices connected to your local area network can run at up to 100 Mbps over the Fast Ethernet ports and 11 Mbps over the built-in wireless network adapter.

The Barricade includes an LED display on the front panel for system power and port indications that simplifies installation and network

troubleshooting. It also provides the following ports on the rear panel:

Item Description

LAN Ports Fast Ethernet ports (RJ-45). Connect devices on your local area

Parallel Printer Port

Reset Button Use this button to reset the power and restore the default

Power Inlet Connect the included power adapter to this inlet.

ADSL Port WAN port (RJ-45). Connect your DSL line to this port.

network to these ports (i.e., a PC, hub, or switch).

One parallel printer port that can be connected to a printer. This printer can then be shared by all LAN users.

factory settings. To reset without losing configuration settings, see “Reset” on page 4-56.

Warning: Using the wrong type of power adapter may cause damage.

Figure 2-1. Real Panel

2-3

NSTALLATION

LED Indicators

Check the power and port LED indicators on the front panel

LED Status Description

Power On The Barricade is receiving power. Normal operation.

Off Power off or failure.

Ethernet (4 LEDs)

ADSL Syn

ADSL Data

WLAN Flashing Send/Receive data.

On Ethernet Link.

Flashing Send/Receive data.

Off No Link.

On ADSL connection is functioning correctly.

Flashing Startup.

Off ADSL connection is not established.

Flashing Send/Receive data.

Off No data being transferred.

Figure 2-2. Front Panel

2-4

ISP Settings

Please collect the following information from your ISP before setting up the Barricade:

• ISP dial-up phone number

• IP address for your ISP’s Gateway Server and Domain Name Server

• An ISP account which includes ISP dial-up user name and password

• ISP authentication type or script (if not PAP/CHAP)

• IP address and Subnet mask (for fixed IP users only)

Connect the System

The Barricade can be positioned at any convenient location in your office or home. No special wiring or cooling requirements are needed. You should, however, comply with the following guidelines:

ISP S

ETTINGS

• Keep the Barricade away from any heating devices.

• Do not place the Barricade in a dusty or wet environment.

You should also remember to turn off the power, remove the power cord from the outlet, and keep your hands dry when you install the Barricade.

Connect the ADSL Line

Run standard Ethernet cable from the wall jack providing ADSL service to the ADSL port on your Barricade. When inserting an ADSL RJ-45 plug, be sure the tab on the plug clicks into position to ensure that it is properly seated. If you are using splitterless ADSL service, be sure you add low-pass filters between the ADSL wall jack and your telephones. (These filters pass voice signals through but filter data signals out.)

2-5

NSTALLATION

Phone Line Configuration

Installing a Full-Rate Connection

If you are using a full-rate (G.dmt) connection, your service provider will attach the outside ADSL line to a data/voice splitter. In this case you can connect your phones and computer directly to the splitter as shown below:

Plain Old Telephone System (POTS)

Residential Connection Point [Network Interface Device (NID)]

Voice

Data

Splitter

ADSL Router

Ethernet

hub or switch

Figure 2-3. Installing with a Splitter

2-6

ONNECT THE SYSTEM

Installing a Splitterless Connection

If you are using a splitterless (G.lite) connection, then your service provider will attach the outside ADSL line directly to your phone system. In this case you can connect your phones and computer directly to the incoming ADSL line, but you will have to add low-pass filters to your phones as shown below:

Plain Old Telephone System (POTS)

Voice

Residential Connection Point [Network Interface Device (NID)]

Voice

& Data

Voice

& Data

Data

Filter

ADSL Router

Ethernet

hub or switch

Figure 2-4. Installing without a Splitter

2-7

NSTALLATION

Attach to Your Network Using Ethernet Cabling

The four LAN ports on the Barricade auto-negotiate the connection speed to 10 Mbps Ethernet or 100 Mbps Fast Ethernet, as well as the transmission mode to half duplex or full duplex.

Use twisted-pair cabling to connect any of the four LAN ports on the Barricade to an Ethernet adapter on your PC. Otherwise, cascade any of the LAN ports on the Barricade to an Ethernet hub or switch, and then connect your PC or other network equipment to the hub or switch. When inserting an RJ-45 connector, be sure the tab on the connector clicks into position to ensure that it is properly seated.

Warning: Do not plug a phone jack connector into an RJ-45 port. This

may damage the Barricade.

Notes: 1. Use 100-ohm shielded or unshielded twisted-pair cable with

RJ-45 connectors for all Ethernet ports. Use Category 3, 4, or 5 for connections that operate at 10 Mbps, and Category 5 for connections that operate at 100 Mbps.

2. Make sure each twisted-pair cable length does not exceed 100 meters (328 feet).

Connect the Power Adapter

Plug the power adapter into the power socket on the rear of the Barricade, and the other end into a power outlet.

Check the power indicator on the front panel is lit. If the power i not lit, refer to

In case of a power input failure, the Barricade will automatically restart and begin to operate once the input power is restored.

If the Barricade is properly configured, it will take about 30 seconds to establish a connection with the ADSL service provider after powering up. During this time the Sync indicator will flash. After the ADSL connection has been established, the ADSL Sync LED will stay on.

“Troubleshooting” on page A-1.

2-8

ndicator is

HAPTER

ONFIGURING

After completing hardware setup by connecting all your network devices, you need to configure your computer to connect to the Barricade. First determine how your ISP issues your IP address. Many ISPs issue these numbers automatically using Dynamic Host Configuration Protocol (DHCP). Other ISPs provide a static IP address and associated numbers, which you must enter manually. How your ISP assigns your IP address determines how you need to configure your computer. See this section for Windows 95/98/Me configuration. See “Windows NT 4.0” on page 3-8, “Windows 2000” on page 3-13, “Windows XP” on page 3-17, or “Configuring Your Macintosh Computer” on page 3-21 depending on your operating system.

LIENT

TCP/IP Configuration

To access the Internet through the Barricade, you must configure the network settings of the computers on your LAN to use the same IP subnet as the Barricade. The default network settings for the Barricade are:

IP Address: 192.168.2.1

Subnet Mask: 255.255.255.0

Note: These settings can be changed to fit your network requirements,

but you must first configure at least one computer to access the Barricade’s Web configuration interface in order to make the required changes. (See “Configuring the Barricade” on page 4-1 for instruction on configuring the Barricade.)

3-1

ONFIGURING CLIENT

Windows 95/98/Me

You may find that the instructions in this section do not exactly match your version of Windows. This is because these steps and screenshots were created from Windows 98. Windows 95 and Windows Millennium Edition are similar, but not identical, to Windows 98.

1. On the Windows desktop, click Start/Settings/Control Panel.

2. In Control Panel, double-click the Network icon.

3-2

3. In the Network window, under the Configuration tab, double-click the TCP/IP item listed for your network card.

4. In the TCP/IP window, select the IP Address tab. If “Obtain an IP address automatically” is already selected, your computer is already configured for DHCP. Click Cancel to close each window, and skip to “Disable HTTP Proxy” on page 3-5. If not, locate your IP address and subnet mask. Record the numbers in the space provided on the following page.

INDOWS

95/98/M

5. Click the Gateway tab and record the numbers listed under the Installed gateways field.

3-3

ONFIGURING CLIENT

6. Click the DNS Configuration tab. Locate the DNS servers listed under the DNS Server Search Order field. Record any listed addresses.

7. After writing down your settings, check to make sure you have recorded them correctly. Click OK to close the window.

8. Windows may need your Windows 95/98/Me CD to copy some files. After it finishes copying, it will prompt you to restart your system. Click Yes and your computer will shut down and restart.

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Primary DNS Server ____.____.____.____

Secondary DNS Server ____.____.____.____

Default Gateway ____.____.____.____

Host Name ____.____.____.____

3-4

INDOWS

Disable HTTP Proxy

You need to verify that the “HTTP Proxy” feature of your Web browser is disabled. This is so that your browser can view the Barricade’s HTML configuration pages. The following steps are for Internet Explorer and Netscape. Determine which browser you use and follow the appropriate steps.

Internet Explorer

1. Open Internet Explorer.

2. Click the Stop button, then click Tools/Internet

Options.

3. In the Internet Options window, click the Connections tab. Next, click the LAN Settings... button.

95/98/M

4. Clear all the checkboxes.

5. Click OK, and then click OK again to close the Internet Options window.

3-5

ONFIGURING CLIENT

Netscape

1. Open Netscape.

2. Click the Stop button, and then click Edit/Preferences...

3. In the Preferences window, under the Category field double-click Advanced, then click Proxies. Select “Direct connection to the Internet.” Click OK.

4. Repeat these steps for each Windows 95/98/Me computer connected to your Barricade.

3-6

Obtain IP Settings from Your ADSL Router

Now that you have configured your computer to connect to your Barricade, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your Barricade, you can also verify that you have configured your computer correctly.

1. On the Windows desktop, click Start/Run...

2. Type “WINIPCFG” and click OK. It may take a second or two for the IP Configuration window to appear.

3. In the IP Configuration window, select your network card from the drop-down menu. Click Release and then click Renew. Verify that your IP address is now

192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that your Barricade is functioning. Click OK to close the IP Configuration window.

INDOWS

95/98/M

3-7

ONFIGURING CLIENT

Windows NT 4.0

After completing the hardware setup by connecting your network devices, you need to configure your computer to connect to the Barricade. First determine how your ISP issues your IP address. Many ISPs issue these numbers automatically using Dynamic Host Configuration Protocol (DHCP). Other ISPs provide a static IP address and associated numbers, which you must enter manually. How your ISP assigns your IP address determines how you need to configure your computer.

Follow these instructions:

1. On the Windows desktop, click Start/Settings/Control Panel.

2. Double-click the Network icon.

3-8

3. In the Network window, Select the Protocols tab. Double-click TCP/IP Protocol.

4. When the Microsoft TCP/IP Properties window open, select the IPAddress tab.

5. In the Adapter drop-down list, be sure your Ethernet adapter is selected.

6. If “Obtain an IP address automatically” is already selected, your computer is already configured for DHCP. Click Cancel to close each window, and skip to “Disable HTTP Proxy” on page 3-10.

INDOWS

NT 4.0

7. In the TCP/IP Properties window, under the IP Address tab, locate your IP Address, Subnet Mask, and Default Gateway. Record these values in the spaces provided on the following page.

3-9

ONFIGURING CLIENT

8. Click the DNS tab to see the primary and secondary DNS servers. Record these values in the spaces provided below.

9. After writing down your IP settings, click the IP address tab. Select the Obtain IP address automatically radio button and click OK. Click OK again to close the Network window.

10. Windows may copy some files, and will then prompt you to restart your system. Click Yes and your computer will shut down and restart.

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Default Gateway ____.____.____.____

Primary DNS Server ____.____.____.____

Secondary DNS Server ____.____.____.____

Host Name ____.____.____.____

Disable HTTP Proxy

You need to verify that the “HTTP Proxy” feature of your Web browser is disabled. This is so that your browser can view the Barricade’s HTML configuration pages. Determine which browser you use and refer to “Internet Explorer” on page 3-5 or “Netscape” on page 3-6.

3-10

INDOWS

Obtain IP Settings from Your Barricade

Now that you have configured your computer to connect to your Barricade, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your Barricade, you will verify that you have configured your computer correctly.

NT 4.0

1. On the Windows desktop, click Start/Programs/ Command Prompt.

2. In the Command Prompt window, type “IPCONFIG /RELEASE” and press the ENTER key.

3-11

ONFIGURING CLIENT

3. Type “IPCONFIG /RENEW” and press the ENTER key. Verify that your IP Address is now 192.168.2.xxx, your Subnet Mask is

255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that your Barricade is functioning.

4. Type “EXIT” and press the ENTER key to close the Command Prompt window.

Your computer is now configured to connect to the Barricade.

3-12

Windows 2000

1. On the Windows desktop, click Start/Settings/ Network and Dial-Up Connections.

2. Click the icon that corresponds to the connection to your Barricade.

3. The connection status screen will open. Click Properties.

INDOWS

2000

4. Double-click Internet Protocol (TCP/IP).

3-13

ONFIGURING CLIENT

5. If there is IP Address information on the Internet Protocol (TCP/IP) Properties window, it should be recorded. Use the spaces below to record the current settings.

6. If “Obtain an IP address automatically” and “Obtain DNS server address automatically” are already selected, your computer is already configured for DHCP. Click Cancel to close each window, and skip to “Disable HTTP Proxy” on page 3-14.

7. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically.” Click OK or Close to close each window.

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Default Gateway ____.____.____.____

Preferred DNS Server ____.____.____.____

Alternate DNS Server ____.____.____.____

Disable HTTP Proxy

3-14

Obtain IP Settings from Your Barricade

Now that you have configured your computer to connect to your Barricade, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your Barricade, you can verify that you have configured your computer correctly.

1. On the Windows desktop, click Start/Programs/ Accessories/Command Prompt.

2. In the Command Prompt window, type “IPCONFIG/RELEASE” and press the ENTER key.

INDOWS

2000

3-15

ONFIGURING CLIENT

3. Type “IPCONFIG /RENEW” and press the ENTER key. Verify that your IP Address is now 192.168.2.xxx, your Subnet Mask is

255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that your ADSL Router is functioning.

4. Type “EXIT” and press the ENTER key to close the Command Prompt window.

Your computer is now configured to connect to the Barricade.

3-16

Windows XP

1. On the Windows desktop, click Start/Control Panel.

2. In the Control Panel window, click Network and Internet Connections.

3. The Network Connections window will open. Double-click the connection for this device.

INDOWS

4. On the connection status screen, click Properties.

3-17

ONFIGURING CLIENT

5. Double-click Internet Protocol (TCP/IP).

6. If there is IP Address information on the Internet Protocol (TCP/IP) Properties window, it should be recorded. Use the spaces below to record the current settings.

7. If “Obtain an IP address automatically” and “Obtain DNS server address automatically” are already selected, your computer is already configured for DHCP. Click Cancel to close each window, and skip to “Disable HTTP Proxy” on page 3-19.”

8. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically.” Click OK or Close to close each window.

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Default Gateway ____.____.____.____

Preferred DNS Server ____.____.____.____

Alternate DNS Server ____.____.____.____

3-18

Disable HTTP Proxy

Obtain IP Settings from Your Barricade

Now that you have configured your computer to connect to your Barricade, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your Barricade, you can verify that you have configured your computer correctly.

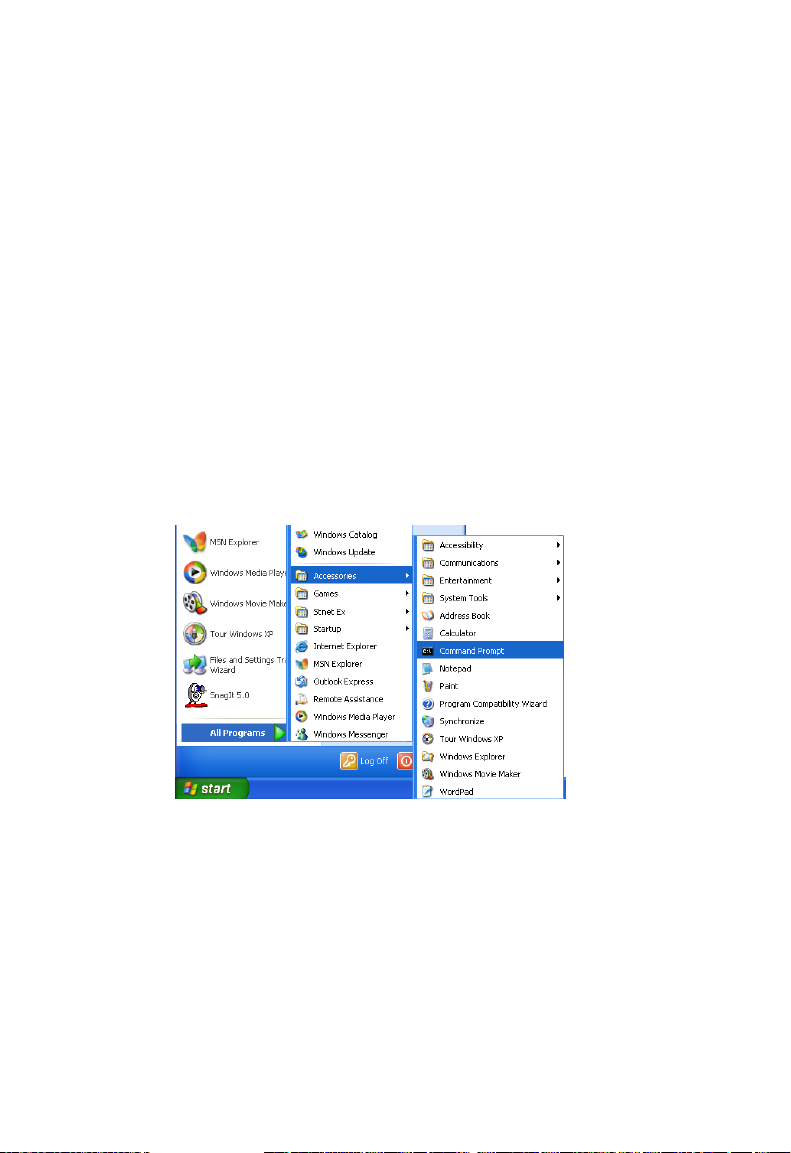

1. On the Windows desktop, click Start/Programs/Accessories/ Command Prompt.

INDOWS

3-19

ONFIGURING CLIENT

2. In the Command Prompt window, type “IPCONFIG/RELEASE” and press the ENTER key.

3. Type “IPCONFIG /RENEW” and press the ENTER key. Verify that your IP Address is now 192.168.2.xxx, your Subnet Mask is

255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that your ADSL Router is functioning.

Type “EXIT” and press the ENTER key to close the Command Prompt window.

Your computer is now configured to connect to the Barricade.

3-20

ONFIGURING YOUR MACINTOSH COMPUTER

Configuring Your Macintosh Computer

You may find that the instructions here do not exactly match your operating system. This is because these steps and screenshots were created using Mac OS 8.5. Mac OS 7.x and above are similar, but may not be identical to Mac OS 8.5.

Follow these instructions:

1. Pull down the Apple Menu . Click Control Panels/TCP/IP.

3-21

ONFIGURING CLIENT

2. In the TCP/IP window, make sure “Ethernet” is selected in the Connect via: field.

3. If “Using DHCP Server” is already selected in the Configure field, your computer is already configured for DHCP. Close the TCP/IP window, and skip to “Disable HTTP Proxy” on page 3-23.

4. If there is IP Address information on the TCP/IP screen, it should be recorded. Use the spaces below to record the current settings.

5. After writing down your IP settings, select “Using DHCP Server” in the Configure field and close the window.

6. Another box will appear asking whether you want to save your settings. Click Save.

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet mask ____.____.____.____

Router address ____.____.____.____

Name server address ____.____.____.____

3-22

ONFIGURING YOUR MACINTOSH COMPUTER

Disable HTTP Proxy

Internet Explorer

1. Open Internet Explorer and click the Stop button. Click Edit/Preferences.

2. In the Internet Explorer Preferences window, under Network, select Proxies.

3. Uncheck all checkboxes and click OK.

3-23

ONFIGURING CLIENT

Netscape

1. Open Netscape and click the Stop button. Click Edit/Preferences.

2. In the Preferences window, in the left-hand column labeled Category, select Advanced. Under the Advanced category, select Proxies.

3. Select “Direct Connection to the Internet” and click OK.

3-24

ONFIGURING YOUR MACINTOSH COMPUTER

Obtain IP Settings from Your Barricade

Now that you have configured your computer to connect to your Barricade, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your Barricade, you can verify that you have configured your computer correctly.

1. Pull down the Apple Menu . Click Control Panels/TCP/IP.

3-25

ONFIGURING CLIENT

2. Your new settings are shown in the TCP/IP window. Verify that your IP Address is now 192.168.2.xxx, your Subnet Mask is

255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that your Barricade is functioning.

3. Close the TCP/IP window.

Now your computer is configured to connect to the Barricade.

3-26

HAPTER

ONFIGURING THE

ARRICADE

After you have configured TCP/IP on a client computer, use a Web browser to configure the Barricade. The Barricade can be configured by any Java-supported browser including Internet Explorer 4.0 or above, or Netscape Navigator 4.0 or above. Using the Web management interface, you may configure the Barricade and view statistics to monitor network activity.

To access the Barricade’s management interface, enter the IP address of the Barricade in your Web browser: http://192.168.2.1 (The Barricade automatically switches to Port 88 for management access.) Then click LOGIN. (By default, there is no password.)

4-1

ONFIGURING THE BARRICADE

Navigating the Web Browser Interface

The Barricade’s management interface consists of a Setup Wizard and an Advanced Setup section.

Setup Wizard: Use the Setup Wizard if you want to quickly set up the Barricade. Go to “Setup Wizard” on page 4-3.

Advanced Setup: Advanced Setup supports more advanced functions like hacker attack detection, IP and MAC address filtering, virtual server setup, virtual DMZ host, as well as other functions. Go to “Advanced Setup” on page 4-15.

Making Configuration Changes

Configurable parameters have a dialog box or a drop-down list. Once a configuration change has been made on a page, click the APPLY or

NEXT button at the bottom of the page to enable the new setting.

Note: To ensure proper screen refresh after a command entry, be sure

that Internet Explorer 5.0 is configured as follows: Under the menu Tools/Internet Options/General/Temporary Internet Files/Settings, the setting for “Check for newer versions of stored pages” should be “Every visit to the page.”

4-2

Setup Wizard

Time Zone

Click on the Setup Wizard picture. The first item in the Setup Wizard is Time Zone.

For accurate timing of log entries and system events, you need to set the time zone. Select your time zone from the drop-down list, and click NEXT.

ETUP WIZARD

If your area requires it, check to enable the clock for daylight saving changes, and enter the Daylight Saving Time start and end dates for your location.

4-3

ONFIGURING THE BARRICADE

Internet Sharing

Select the operation mode protocol. For Disable Internet Sharing see the following page, and click NEXT.

To select one of the other modes, go to “PPPoE - Parameter Setting” on page 4-7, “PPPoA - Parameter Setting” on page 4-9, or “Multiple Protocol over ATM Mode - Parameter Setting” on page 4-12.

4-4

Disable Internet Sharing - Parameter Setting

Enter VPI/VCI value in the provided spaces, then click NEXT.

Parameter Description

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit

Identifier (VCI).

Data flows are broken up into fixed length cells, each of which contains a Virtual Path Identifier (VPI) that identifies the path between two nodes, and a Virtual Circuit Identifier (VCI) that identifies the data channel within that virtual path. Each virtual circuit maintains a constant flow of cells between the two end points. When there is no data to transmit, empty cells are sent. And when data needs to be transmitted, it is immediately inserted into the cell flows.

ETUP WIZARD

4-5

ONFIGURING THE BARRICADE

Disable Internet Sharing - Finish

The Finish page allows you to view the connection status, as well as other information. Click APPLY.

Parameter Description

Protocol Indicates the protocol used.

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit

AAL5 Encapsulation Shows the packet encapsulation type. Go to

Identifier (VCI). Go to “VPI/VCI” on page 4-5 for detailed description.

“Encapsulation” on page 4-22 for detailed description.

Your Barricade is now set up. If you cannot make a connection to the Internet, go to “Troubleshooting” on page A-1.

4-6

PPPoE - Parameter Setting

Enter the PPPoE (Point-to-Point Protocol over Ethernet) information in the provided spaces, and click NEXT.

ETUP WIZARD

Parameter Description

Username Enter the Internet Service Provider (ISP) assigned

user name.

Password Enter your password.

Retype Password Confirm the password.

DNS Enter a Domain Name Server IP address.

VPI/VCI Enter Virtual Path Identifier (VPI) and Virtual

Circuit Identifier (VCI) value. Go to “VPI/VCI” on page 4-5 for detailed description.

4-7

ONFIGURING THE BARRICADE

PPPoE - Finish

The Finish page allows you to view the connection status, as well as other information. Click APPLY.

Parameter Description

ADSL Operation Mode (WAN)

Protocol Indicates the protocol used

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit

Identifier (VCI). Go to “VPI/VCI” on page 4-5 for detailed description.

AAL5 Encapsulation Shows the packet encapsulation type. Go to

ISP Parameters

Username The ISP assigned user name.

Password The password (hidden).

“Encapsulation” on page 4-22 for detailed description.

Your Barricade is now set up. If you cannot make a connection to the Internet, go to “Troubleshooting” on page A-1.

4-8

PPPoA - Parameter Setting

Enter the PPPoA (Point-to-Point Protocol over ATM, Asynchronous Transfer Mode) information in the provided spaces, and click NEXT.

ETUP WIZARD

Parameter Description

Username Enter the Internet Service Provider (ISP) assigned

user name.

Password Enter your password.

Retype Password Confirm the password.

DNS Enter a Domain Name Server IP address.

VPI/VCI Enter Virtual Path Identifier (VPI) and Virtual

Circuit Identifier (VCI) value. Go to “VPI/VCI” on page 4-5 for detailed description.

4-9

ONFIGURING THE BARRICADE

PPPoA - Finish

The Finish page allows you to view the connection status, as well as other information. Click APPLY.

Parameter Description

ADSL Operation Mode (WAN)

Protocol Indicates the protocol used

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit

AAL5 Encapsulation Shows the packet encapsulation type. Go to

ISP Parameters

Username The ISP assigned user name.

Password The password (hidden).

4-10

Identifier (VCI). Go to “VPI/VCI” on page 4-5 for detailed description.

“Encapsulation” on page 4-22 for detailed description.

ETUP WIZARD

Parameter Description

DHCP Parameters

Default Gateway The default gateway IP address. If the Barricade

cannot find the destination address within its local network, it will forward the packets to the Default Gateway (usually supplied by your ISP).

Subnet Mask The network subnet mask.

Name Server 1 Primary server IP address.

Name Server 2 Alternate server IP address.

Name Server 3 Alternate server IP address.

Start IP Address Start IP address of DHCP assigned IP addresses.

Number of IP Number of IPs available for assignment by the DHCP

server.

Your Barricade is now set up. If you cannot make a connection to the Internet, go to “Troubleshooting” on page A-1.

4-11

ONFIGURING THE BARRICADE

Multiple Protocol over ATM Mode - Parameter Setting

Enter ATM (Asynchronous Transfer Mode) information in the provided spaces, and click NEXT.

Parameter Description

DNS Enter a Domain Name Server IP address.

WAN IP Enter an IP address for the Barricade WAN interface.

Subnet Mask Enter a subnet mask.

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI).

Default Gateway Enter a default gateway IP address. If the Barricade cannot find

Go to “VPI/VCI” on page 4-5 for detailed description.

the destination address within its local network, it will forward the packets to the Default Gateway (usually supplied by your ISP).

4-12

Multiple Protocol over ATM Mode - Finish

The Finish page allows you to view the connection status, as well as other information. Click APPLY.

ETUP WIZARD

Parameter Description

ADSL Operation Mode (WAN)

Protocol Indicates the protocol used.

VPI/VCI Virtual Path Identifier (VPI) and Virtual

Circuit Identifier (VCI). Go to “VPI/VCI” on page 4-5 for detailed description.

AAL5 Encapsulation Shows the packet encapsulation type. Go to

“Encapsulation” on page 4-22 for detailed description.

Network Layer Parameters (WAN)

IP Address Shows the WAN IP address.

Subnet Mask Shows the WAN subnet mask.

Default Gateway Shows the WAN default gateway.

4-13

ONFIGURING THE BARRICADE

Parameter Description

DHCP Parameters

Default Gateway The default gateway IP address. If the

Barricade cannot find the destination address within its local network, it will forward the packets to the Default Gateway (usually supplied by your ISP).

Subnet Mask The network subnet mask.

Name Server 1 Primary name server IP address.

Name Server 2 Alternate name server IP address.

Name Server 3 Alternate name server IP address.

Start IP Address Start IP address of DHCP assigned IP

Number of IP Number of IPs available for assignment by the

addresses.

DHCP server.

Your Barricade is now set up. If you cannot make a connection to the Internet, go to “Troubleshooting” on page A-1.

4-14

DVANCED SETUP

Advanced Setup

Click on the Advanced Setup picture. The left-hand side displays the main menu and the right-hand side shows descriptive information. The main menu links are used to navigate to other menus that display configuration parameters and statistics.

The Barricade’s advanced management interface contains ten main menu items – System, WAN, LAN, Wireless, NAT, Routing, Firewall, SNMP, ADSL, DDNS, Tools, and Status.

Use the Web management interface to define system parameters, manage and control the Barricade and its ports, or monitor network conditions.

The following table briefly describes the Advanced Setup menu items:

Menu Description

System Sets the local time zone, the password for administrator access, and

WAN Specifies the Internet connection settings.

LAN Sets the TCP/IP configuration for the Barricade LAN interface and

the IP address of a PC that will be allowed to manage the Barricade remotely.

DHCP clients.

4-15

ONFIGURING THE BARRICADE

Menu Description

Wireless Configures the radio frequency, SSID, and encryption for wireless

NAT Shares a single ISP account with multiple users, sets up virtual servers.

Routing Sets routing parameters and displays the current routing table.

Firewall Configures a variety of security and specialized functions including:

SNMP Community string and trap server setting.

ADSL Sets the ADSL operation type and shows the ADSL status.

DDNS Dynamic DNS provides users on the Internet with a method to tie

Tools Contains options to backup & restore the current configuration,

Status Provides WAN connection type and status, firmware and hardware

communications.

Access Control, URL blocking, Internet access control scheduling, Intruder detection, and DMZ.

their domain name(s) to computers or servers.

restore all configuration settings to the factory defaults, update system firmware, or reset the system.

version numbers, system IP settings, as well as DHCP, NAT, firewall information.

Displays the number of attached clients, the firmware versions, the physical MAC address for each media interface, and the hardware version and serial number.

Shows the security and DHCP client log.

4-16

DVANCED SETUP

System Settings

Time Zone

Select your local time zone from the drop-down list. This information is used for log entries and client filtering.

If your area requires it, check to enable the clock for daylight saving changes, and enter the Daylight Saving Time start and end dates for your location.

4-17

ONFIGURING THE BARRICADE

Password Settings

Use this page to restrict access based on a password. By default, there is no password. For security you should assign one before exposing the Barricade to the Internet.

Passwords can contain from 3 ~ 12 alphanumeric characters and are not case sensitive.

Note: If your password is lost, or you cannot gain access to the user

interface, press the reset button (colored blue) on the rear panel (holding it down for at least five seconds) to restore the factory defaults. (The default is no password.)

Enter a maximum Idle Time Out (in minutes) to define a maximum period of time for which the login session is maintained during inactivity. If the connection is inactive for longer than the maximum idle time, it will perform system logout, and you have to login to the Web management system again. (Default: 10 minutes.)

4-18

DVANCED SETUP

Remote Management

By default, management access is only available to users on your local network. However, you can also manage the Barricade from a remote host by entering the IP address of a remote computer on this screen. Check the Enabled checkbox to enable this function. Enter the Host Address and click APPLY.

Note: If you check Enable and specify an IP address of 0.0.0.0, any host

can manage the Barricade.

4-19

ONFIGURING THE BARRICADE

DNS

Domain Name Servers (DNS) are used to map a domain name (e.g., www.smc.com) to the equivalent numerical IP address (e.g., 64.147.25.20). Your ISP should provide the IP address of one or more Domain Name Servers. Enter those addresses on this page, and click APPLY.

4-20

DVANCED SETUP

WAN

Specify the WAN connection type provided by your Internet Service Provider (ISP).

PPPoE

Enter the PPPoE (Point-to-Point over Ethernet) interface parameters on this page. Click APPLY.

Parameter Description

Enable/Disable Enables/disables the PPPoE Interface.

IP Address If your IP address is assigned by the ISP each time you

connect, leave this field all zeros. Otherwise, enter your ISP supplied static IP address here.

Subnet Mask If your subnet mask is assigned by the ISP each time you

VPI/VCI Virtual Path Identifier (VPI) and Virtual Circuit Identifier

connect, leave this field all zeros. Otherwise, enter your subnet mask here.

(VCI). Go to “VPI/VCI” on page 4-5 for detailed description.

4-21

ONFIGURING THE BARRICADE

Parameter Description

Encapsulation Specifies how to handle multiple protocols at the ATM

Idle Time (Minute) Enter the maximum idle time for the Internet connection.

ISP Name Choose the ISP to whom this connection will apply.

transport layer.

• VC-MUX: Point-to-Point Protocol over ATM Virtual Circuit Multiplexer (null encapsulation) allows only one protocol running per virtual circuit with less overhead.

• LLC: Point-to-Point Protocol over ATM Logical Link Control (LLC) allows multiple protocols running over one virtual circuit (uses slightly more overhead).

After this time has been exceeded the connection will be terminated.

4-22

DVANCED SETUP

ATM

Enter ATM (Asynchronous Transfer Mode) interface information on this page. Click APPLY.

Parameter Description

Protocol • Disable: Disables the connection.

• 1483 Bridging: Bridging is a standardized layer 2 technology. It is typically used in corporate networks to extend the physical reach of a single LAN segment and increase the number of stations on a LAN without compromising performance. Bridged data is encapsulated using the RFC1483 protocol to enable data transport.

• PPPoA: Point-to-Point Protocol over ATM is a method of encapsulating data for transmission to a far point.

• 1483 Routing: 1483 Routing allows a simple, low-cost connection to the Internet via a standard 10BASE-T port. The router looks up the network address for each packet seen on the LAN port. If the address is listed in the routing table as local, it is filtered. If the address is listed under the ADSL port, it is forwarded. Or if the address is not found, then it is automatically forwarded to the default router (i.e., the ADSL router at the head end).

IP Address IP address of the ATM interface.

4-23

ONFIGURING THE BARRICADE

Parameter Description

Subnet Mask Subnet mask of the ATM interface.

VPI/VCI Virtual Path Indicator/Virtual Channel Indicator: Each

connection must have a unique pair of VPI/VCI settings. Go to “VPI/VCI” on page 4-5 for detailed description.

Encapsulation Specifies how to handle multiple protocols at the ATM transport

layer. Go to “Encapsulation” on page 4-22 for detailed description.

ISP

Enter the Internet Service Provider (ISP) name, user name, and password for each ISP connection you have.

4-24

LAN

Use the LAN menu to configure the LAN IP address and to enable the DHCP server for dynamic client address allocation.

Parameter Description

LAN IP

IP Address The IP address of the Barricade.

IP Subnet Mask The subnet mask of the network.

DHCP Server To dynamically assign an IP address to client PCs, enable the

DHCP (Dynamic Host Configuration Protocol) Server.

Lease Time Set the DHCP lease time. For home networks this may be set

to Forever, which means there is no time limit on the IP address lease.

DVANCED SETUP

4-25

ONFIGURING THE BARRICADE

Parameter Description

IP Address Pool

Start IP Address Specify the start IP address of the DHCP pool. Do not include

the gateway address of the Barricade in the client address pool. If you change the pool range, make sure the first three octets match the gateway’s IP address, i.e., 192.168.2.xxx.

End IP Address Specify the end IP address of the DHCP pool.

Domain Name If your network uses a domain name, enter it here. Otherwise,

leave this field blank.

Note: Remember to configure your client PCs for dynamic address

allocation. (See “TCP/IP Configuration” on page 3-1 for details.)

Wireless

The Barricade also operates as a wireless-to-wired bridge, allowing wireless computers to access resources available on the wired LAN, and to access the Internet. To configure the Barricade as a wireless access point for wireless clients (either stationary or roaming), all you need to do is enable the wireless function, define the radio channel, the domain identifier, and the encryption options. Check Enable and click APPLY.

4-26

DVANCED SETUP

Channel and SSID

You must specify a common radio channel and SSID (Service Set ID) to be used by the Barricade Wireless Router and all of your wireless clients. Be sure you configure all of your clients to the same values.

Parameter Description

ESSID Extended Service Set ID. The ESSID must be the same on the

Transmission Rate The default is Fully Automatic. The transmission rate is

Basic Rate The highest rate specified will be the rate that the Barricade

Channel The radio channel must be the same on the Barricade and all

Barricade and all of its wireless clients.

automatically adjusted based on the receiving data error rate. Usually the connection quality will vary depending on the distance between the wireless router and wireless adapter. You can also select a lower transmission data rate to maximize the radio communication range.

will use when transmitting broadcast/multicast and management frames. Available options are: All (1, 2, 5.5, and 11Mbps), and 1, 2Mbps (default is 1, 2Mbps).

of your wireless clients.

The Barricade will automatically assign itself a radio channel, or you may select one manually.

4-27

ONFIGURING THE BARRICADE

Encryption

If you are transmitting sensitive data across wireless channels, you should enable encryption. You must use the same set of encryption keys for the Barricade and all of the wireless clients. Choose between standard 64-bit WEP (Wired Equivalent Privacy) or the more robust 128-bit encryption.

You may automatically generate encryption keys or manually enter the keys. For automatic 64-bit security, enter a passphrase and click Generate, four keys will be generated. Choose a key from the drop-down list or accept the default key. Automatic 128-bit security generates a single key.

Note: The passphrase can consist of up to 32 alphanumeric characters.

To manually configure the keys, enter five hexadecimal pairs of digits for each 64-bit key, or enter 13 pairs for the single 128-bit key. (A hexadecimal digit is a number or letter in the range 0-9 or A-F.)

Note that WEP protects data transmitted between wireless nodes, but does not protect any transmissions over your wired network or over the Internet.

4-28

DVANCED SETUP

Mac Address Filtering

Client computers can be filtered using the unique MAC address of their IEEE 802.11 network card. To secure an access point using MAC address filtering, you must enter a list of allowed/denied client MAC addresses into the filtering table. (See “Finding the MAC address of a Network Card” on page 4-58.)

Parameter Description

Filtering

Disable Disables MAC address filtering.

Enable Enables MAC address filtering.

Setting

Permissions Allows only devices with their MAC address in the list to

connect to the Barricade.

Prohibition Denies access to the Barricade from devices with their MAC

address in the list.

4-29

ONFIGURING THE BARRICADE

NAT

Some applications require multiple connections, such as Internet gaming, video-conferencing, and Internet telephony. These applications may not work when Network Address Translation (NAT) is enabled. If you need to run applications that require multiple connections, use these pages to specify the additional public ports to be opened for each application.

Address Mapping

Allows one or more public IP addresses to be shared by multiple internal users. This also hides the internal network for increased privacy and security. Enter the Public IP address you wish to share into the Global IP field. Enter a range of internal IPs that will share the global IP into the from field.

4-30

DVANCED SETUP

Virtual Server

If you configure the Barricade as a virtual server, remote users accessing services such as Web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the Barricade redirects the external service request to the appropriate server (located at another internal IP address).

For example, if you set Type/Public Port to TCP/80 (HTTP or Web) and the Private IP/Port to 192.168.2.2/80, then all HTTP requests from outside users will be transferred to 192.168.2.2 on port 80. Therefore, by just entering the IP Address provided by the ISP, Internet users can access the service they need at the local address to which you redirect them.

4-31

ONFIGURING THE BARRICADE

The more common TCP service ports include:

HTTP: 80, FTP: 21, Telnet: 23, and POP3: 110. A list of ports is maintained at the following link::

http://www.iana.org/assignments/port-numbers.

Note: The WAN interface should have a fixed IP address to best utilize

this function. If your ISP only provides dynamic IP addresses, a search for “free dynamic IP” on any major search engine will turn up tools that will allow you to use the same domain name even though your IP address changes each time you log into the ISP.

4-32

DVANCED SETUP

Routing

These pages define routing related parameters, including static routes and RIP (Routing Information Protocol) parameters.

Static Route

Click Add to add a new static route to the list, or check the box of an already entered route and click Modify. Click Delete to remove an entry from the list.

Parameter Description

Index Check the box of the route you wish to delete or modify.

Network Address Enter the IP address of the remote computer for which to

Subnet Mask Enter the subnet mask of the remote network for which to

Gateway Enter the WAN IP address of the gateway to the remote

set a static route.

network.

4-33

ONFIGURING THE BARRICADE

RIP

Routing Information Protocol (RIP) sends routing-update messages at regular

intervals and when the network topology changes. When a router receives a routing update that includes changes to an entry, it updates its routing table to reflect the new route. RIP routers maintain only the best route to a destination. After updating its routing table, the router immediately begins transmitting routing updates to inform other network routers of the change.

Parameter Description

Interface The WAN interface to be configured.

Operation Mode Disable: RIP disabled on this interface.

Enable: RIP enabled on this interface.

Silent: Listens for route broadcasts and updates its route table. It does not participate in sending route broadcasts.

Version Sets the RIP (Routing Information Protocol)

Poison Reverse A way in which a router tells its neighbor routers

version to use on this interface.

that one of the routers is no longer connected.

4-34

DVANCED SETUP

Parameter Description

Authentication Required • None: No authentication.

• Password: A password authentication key is included in the packet. If this does not match what is expected, the packet will be discarded. This method provides very little security as it is possible to learn the authentication key by watching RIP packets.

• MD5: An algorithm that is used to verify data integrity through the creation of a 128-bit message digest from data input (which may be a message of any length) that is claimed to be as unique to that specific data as a fingerprint is to a specific individual.

Authentication Code Password or MD5 Authentication key.

4-35

ONFIGURING THE BARRICADE

Routing Table

Parameter Description

Flags Indicates the route status:

C = Direct connection on the same subnet.

S = Static route.

R = RIP (Routing Information Protocol) assigned route.

I = ICMP (Internet Control Message Protocol) Redirect route.

Network Address

Netmask The subnetwork associated with the destination.

Gateway The IP address of the router at the next hop to which frames are

Interface The local interface through which the next hop of this route is reached.

Metric When a router receives a routing update that contains a new or

Destination IP address.

This is a template that identifies the address bits in the destination address used for routing to specific subnets. Each bit that corresponds to a “1” is part of the subnet mask number; each bit that corresponds to “0” is part of the host number.

forwarded.

changed destination network entry, the router adds 1 to the metric value indicated in the update and enters the network in the routing table.

Note: Most modern routers support RIP-2 so there is usually no need for

a static route table.

4-36

DVANCED SETUP

Firewall

The Barricade Router’s firewall inspects packets at the application layer, maintains TCP and UDP session information including time-outs and number of active sessions, and provides the ability to detect and prevent certain types of network attacks.

Network attacks that deny access to a network device are called Denial-ofService (DoS) attacks. DoS attacks are aimed at devices and networks with a connection to the Internet. Their goal is not to steal information, but to disable a device or network so users no longer have access to network resources.

The Barricade protects against the following DoS attacks: IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding. (See “Intrusion Detection” on page 4-42 for details.)

The firewall does not significantly affect system performance, so we advise leaving it enabled to protect your network. Select Enable and click the APPLY button to open the Firewall submenus.

4-37

ONFIGURING THE BARRICADE

Access Control

Access Control allows users to define the outgoing traffic permitted or not-permitted through the WAN interface. The default is to permit all outgoing traffic.

The Barricade can also limit the access of hosts within the local area network (LAN). The MAC Filtering Table allows the Barricade to enter up to 32 MAC addresses that are not allowed access to the WAN port.

The following items are on the Access Control screen:

Parameter Description

Normal Filtering Table Displays the IP address (or an IP address range) filtering

table.

MAC Filtering Table Displays the MAC (Media Access Control) address

filtering table.

4-38

DVANCED SETUP

1. Click Add PC on the Access Control screen.

2. Define the appropriate settings for client PC services (as shown on the following screen).

3. Click OK and then click APPLY to save your settings.

4-39

ONFIGURING THE BARRICADE

URL Blocking

The Barricade allows the user to block access to Web sites from a particular PC by entering either a full URL address or just a keyword. This feature can be used to protect children from accessing violent or pornographic Web sites.

4-40

DVANCED SETUP

Schedule Rule

You may filter Internet access for local clients based on rules. Each access control rule may be activated at a scheduled time. Define the schedule on the Schedule Rule page, and apply the rule on the Access Control page.

Follow steps to add schedule rule:

1. Click Add Schedule Rule.

2. Define the appropriate settings for a schedule rule (as shown on the right-side screen).

3. Click OK and then click APPLY to save your settings.

4-41

ONFIGURING THE BARRICADE

Intrusion Detection

4-42

DVANCED SETUP

• Intrusion Detection Feature

SPI and Anti-DoS firewall protection (Default: Enabled) — The Intrusion Detection Feature of the Barricade Router limits access for incoming traffic at the WAN port. When the SPI feature is turned on, all incoming packets will be blocked except for those types marked with a check in the Stateful Packet Inspection section.

RIP Defect (Default: Enabled) — If an RIP request packet is not replied to by the router, it will stay in the input queue and not be released. Accumulated packets could cause the input queue to fill, causing severe problems for all protocols. Enabling this feature prevents the packets accumulating.

Discard Ping from WAN (Default: Disabled) — Prevent a PING on the Gateway’s WAN port from being routed to the network.

• Stateful Packet Inspection

This is called a “stateful” packet inspection because it examines the contents of the packet to determine the state of the communications; i.e., it ensures that the stated destination computer has previously requested the current communication. This is a way of ensuring that all communications are initiated by the recipient computer and are taking place only with sources that are known and trusted from previous interactions. In addition to being more rigorous in their inspection of packets, stateful inspection firewalls also close off ports until connection to the specific port is requested.

When particular types of traffic are checked, only the particular type of traffic initiated from the internal LAN will be allowed. For example, if the user only checks “FTP Service” in the Stateful Packet Inspection section, all incoming traffic will be blocked except for FTP connections initiated from the local LAN.

4-43

ONFIGURING THE BARRICADE

Stateful Packet Inspection allows you to select different application types that are using dynamic port numbers. If you wish to use the Stateful Packet Inspection (SPI) to block packets, click on the Yes radio button in the “Enable SPI and Anti-DoS firewall protection” field and then check the inspection type that you need, such as Packet Fragmentation, TCP Connection, UDP Session, FTP Service, H.323 Service, and TFTP Service.

• When hackers attempt to enter your network, we can alert you by e-mail

Enter your E-mail address. Specify your SMTP and POP3 servers, user name, and password.

• Connection Policy

Enter the appropriate values for TCP/UDP sessions as described in the following table.

Parameter Defaults Description

Fragmentation half-open wait

TCP SYN wait 30 sec Defines how long the software will wait for a

TCP FIN wait 5 sec Specifies how long a TCP session will be

TCP connection idle timeout

UDP session idle timeout

H.323 data channel idle timeout

10 sec Configures the number of seconds that a packet

3600 seconds (1 hour)

30 sec The length of time for which a UDP session will

180 sec The length of time for which an H.323 session

state structure remains active. When the timeout value expires, the router drops the unassembled packet, freeing that structure for use by another packet.

TCP session to synchronize before dropping the session.

maintained after the firewall detects a FIN packet.

The length of time for which a TCP session will be managed if there is no activity.

be managed if there is no activity.

will be managed if there is no activity.

4-44

DVANCED SETUP

• DoS Criteria and Port Scan Criteria

Set up DoS and port scan criteria in the spaces provided (as shown below).

Parameter Defaults Description

Total incomplete TCP/UDP sessions HIGH

Total incomplete TCP/UDP sessions LOW

Incomplete TCP/UDP sessions (per min) HIGH

Incomplete TCP/UDP sessions (per min) LOW

Maximum incomplete TCP/UDP sessions number from same host

Incomplete TCP/UDP sessions detect sensitive time period

Maximum half-open fragmentation packet number from same host

Half-open fragmentation detect sensitive time period

Flooding cracker block time

300 sessions

250 sessions

200 sessions

10 Maximum number of incomplete TCP/UDP

300 msec

30 Maximum number of half-open fragmentation

10000 msec

300

second

Defines the rate of new unestablished sessions that will cause the software to start deleting half-open sessions.

Defines the rate of new unestablished sessions that will cause the software to stop deleting halfopen sessions.

Maximum number of allowed incomplete TCP/UDP sessions per minute.

Minimum number of allowed incomplete TCP/UDP sessions per minute.

sessions from the same host.

Length of time before an incomplete TCP/UDP session is detected as incomplete.

packets from the same host.

Length of time before a half-open fragmentation session is detected as half-open.

Length of time from detecting a flood attack to blocking the attack.

Note: The firewall does not significantly affect system performance, so

we advise enabling the prevention features to protect your network.

4-45

ONFIGURING THE BARRICADE

DMZ

If you have a client PC that cannot run an Internet application properly from behind the firewall, you can open the client up to unrestricted twoway Internet access. Enter the IP address of a DMZ (Demilitarized Zone) host on this screen. Adding a client to the DMZ may expose your local network to a variety of security risks, so only use this option as a last resort.

4-46

DVANCED SETUP

SNMP

Use the SNMP configuration screen to display and modify parameters for the Simple Network Management Protocol (SNMP).

Community

A computer attached to the network, called a Network Management Station (NMS), can be used to access this information. Access rights to the agent are controlled by community strings. To communicate with the Barricade, the NMS must first submit a valid community string for authentication.

Parameter Description

Community A community name authorized for management access.

Access Management access is restricted to Read Only (Read) or

Read/Write (Write).

Valid Enables/disables the entry.

Note: Up to 5 community names may be entered.

4-47

ONFIGURING THE BARRICADE

Trap

Specify the IP address to notify an NMS that a significant event has occurred at an agent. When a trap condition occurs, the SNMP agent sends an SNMP trap message to any NMSs specified as the trap receivers.

Parameter Description

IP Address Traps are sent to this address when errors or specific events occur on

Community A community string (password) specified for trap management.

Version Sets the trap status to disabled, or enabled with V1 or V2c.

the network.

Enter a word, something other than public or private, to prevent unauthorized individuals from reading information on your system.

The v2c protocol was proposed in late 1995 and includes enhancements to v1 that are universally accepted. These include a get-bulk command to reduce network management traffic when retrieving a sequence of MIB variables, and a more elaborate set of error codes for improved reporting to a Network Management Station.
