Smc 7401BRA User Manual

Download

ADSL Barricade™ 2-Port ADSL Router with Built-in Annex A ADSL Modem User Guide

February 2004

ABLE OF

ONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Using this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Notational conventions . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Typographical conventions . . . . . . . . . . . . . . . . . . . . . . . .3

Special messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting to Know the ADSL Barricade . . . . . . . . . . 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Step 1. Connect the ADSL cable . . . . . . . . . . . . . . . . . . .8

Step 2. Connect the Ethernet cable . . . . . . . . . . . . . . . . .9

Step 3. Attach the power connector . . . . . . . . . . . . . . . . .9

Step 4. Power up your systems . . . . . . . . . . . . . . . . . . . .9

Configuring Your Computers . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Windows® XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Windows Me . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Windows 95, 98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Windows NT 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Assigning static Internet Information to your PCs . . . . . .16

Configuring the ADSL Barricade . . . . . . . . . . . . . . . . . . . . . . .17

Logging into the ADSL Barricade -

Quick Configuration Page . . . . . . . . . . . . . . . . . . . . . . . .17

Default Router Settings . . . . . . . . . . . . . . . . . . . . . . . . . .20

Table of Contents

Getting Started with the Configuration Manager 23

Accessing the Configuration Manager . . . . . . . . . . . . . . . . . . . 23

Functional Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Commonly used buttons . . . . . . . . . . . . . . . . . . . . . . . . 25

The Home Page and System View Table . . . . . . . . . . . . . . . . 26

Modifying Basic System Information . . . . . . . . . . . . . . . . . . . . 29

Committing Changes and Rebooting . . . . . . . . . . . . . . . . . . . . 31

Committing your changes . . . . . . . . . . . . . . . . . . . . . . . 31

Rebooting the device using Configuration Manager . . . 32

Configuring the LAN Ports . . . . . . . . . . . . . . . . . .33

Connecting via Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Configuring the LAN Port IP Address . . . . . . . . . . . . . . . . . . . 33

Viewing System IP Addresses

and IP Performance Statistics . . . . . . . . . . . . . . .39

Viewing the ADSL Barricade's IP Addresses . . . . . . . . . . . . . . 39

Viewing IP Performance Statistics . . . . . . . . . . . . . . . . . . . . . . 41

Configuring Dynamic

Host Configuration Protocol . . . . . . . . . . . . . . . .43

Overview of DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

What is DHCP? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Why use DHCP? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

ADSL Barricade DHCP modes . . . . . . . . . . . . . . . . . . . 44

Configuring DHCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Guidelines for creating DHCP server address pools . . . 45

Adding DHCP Server Address Pools . . . . . . . . . . . . . . . 47

Viewing, modifying, and deleting address pools . . . . . . 50

Excluding IP addresses from a pool . . . . . . . . . . . . . . . . 51

Viewing current DHCP address assignments . . . . . . . . 51

Configuring DHCP Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Setting the DHCP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table of Contents

Configuring Network Address Translation . . . . . 55

Overview of NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Viewing NAT Global Settings

and Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Viewing NAT Rules and Rule Statistics . . . . . . . . . . . . . . . . . .60

Viewing Current NAT Translations . . . . . . . . . . . . . . . . . . . . . . 61

Adding NAT Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

The NAPT rule: Translating between private

and public IP addresses . . . . . . . . . . . . . . . . . . . . . . . . .64

The RDR rule: Allowing external access

to a LAN computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

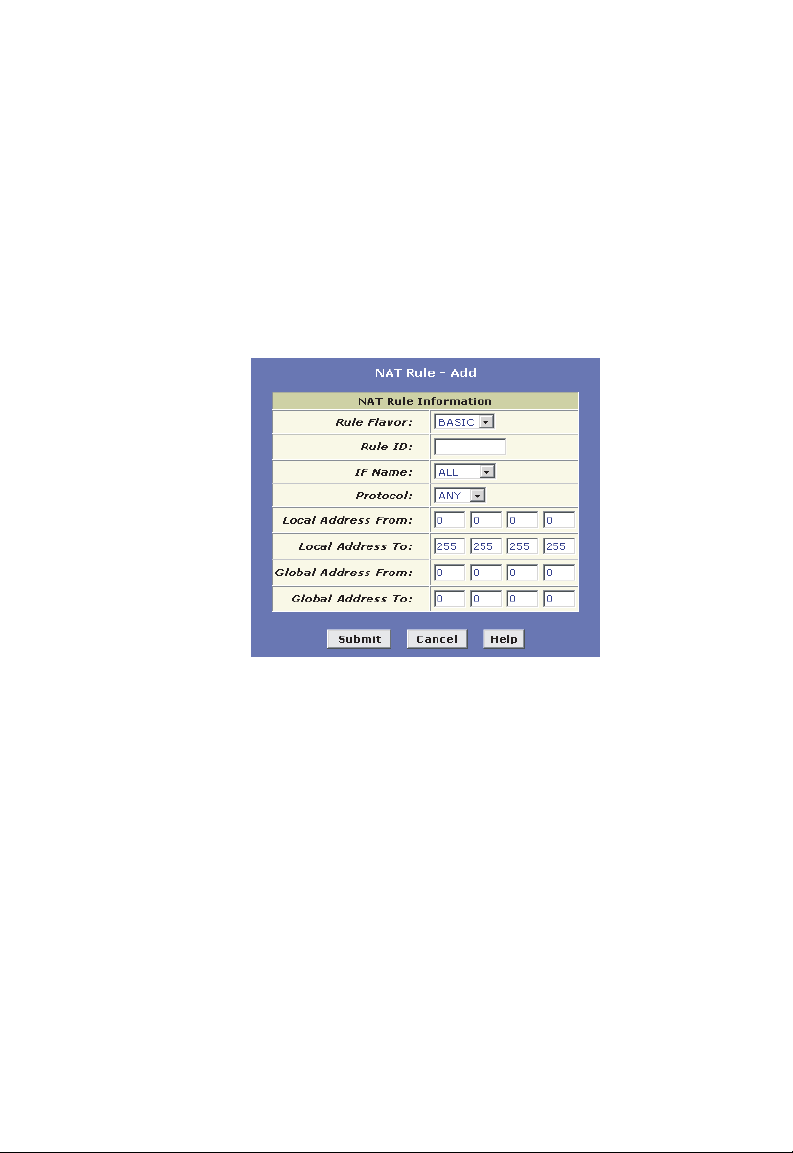

The Basic rule: Performing 1:1 translations . . . . . . . . . .71

The Filter rule: Configuring a BASIC rule

with additional criteria . . . . . . . . . . . . . . . . . . . . . . . . . . .73

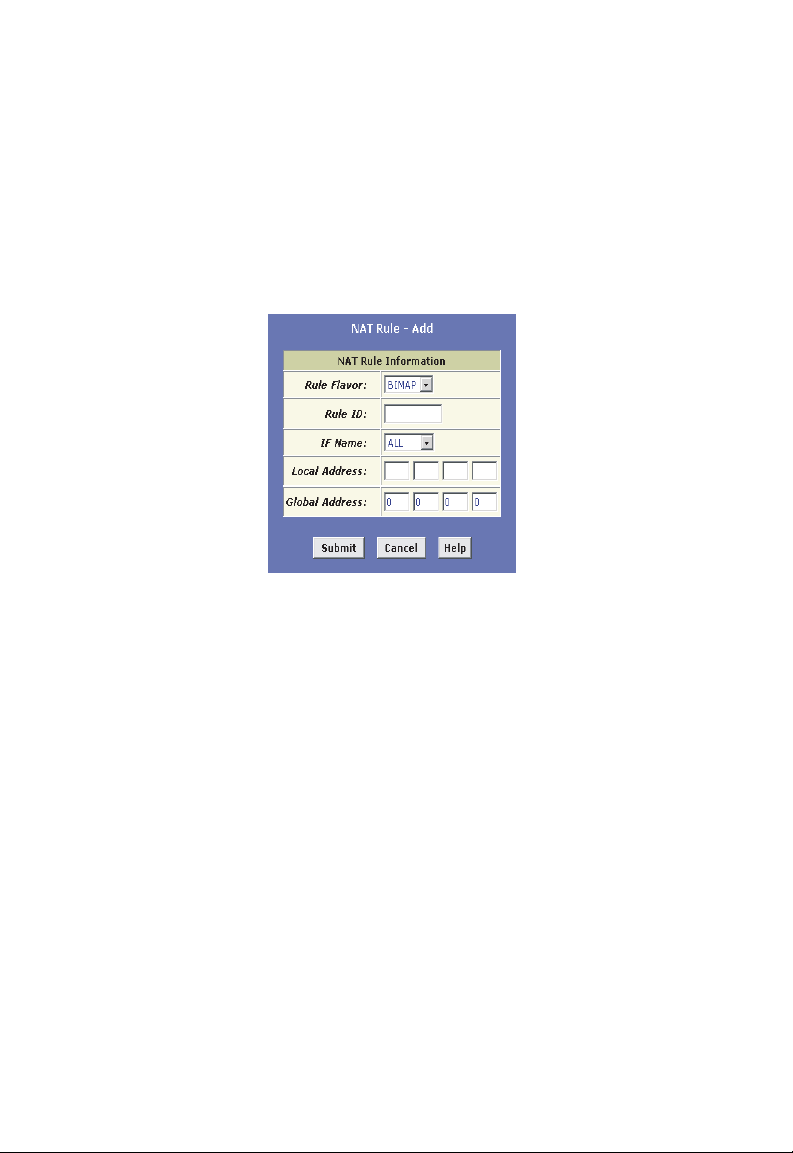

The Bimap rule: Performing two-way translations . . . . .75

The Pass rule: Allowing specific addresses to pass through

untranslated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Configuring DNS Server Addresses . . . . . . . . . . 79

About DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Assigning DNS Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Configuring DNS Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Configuring IP Routes . . . . . . . . . . . . . . . . . . . . . 83

Overview of IP Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

IP routing versus telephone switching . . . . . . . . . . . . . .83

Hops and gateways . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Using IP routes to define default gateways . . . . . . . . . .85

Do I need to define IP routes? . . . . . . . . . . . . . . . . . . . .85

Viewing the IP Routing Table . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Adding IP Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Configuring the Routing Information Protocol . 91

RIP Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

When should you configure RIP? . . . . . . . . . . . . . . . . . .92

Configuring the ADSL Barricade's Interfaces with RIP . . . . . . .92

Viewing RIP Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

iii

Table of Contents

Configuring the ATM Virtual Circuit . . . . . . . . . .97

Viewing Your ATM VC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Adding ATM VCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Modifying ATM VCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Configuring PPP Interfaces . . . . . . . . . . . . . . . .103

Viewing Your Current PPP Configuration . . . . . . . . . . . . . . . 104

Viewing PPP Interface Details . . . . . . . . . . . . . . . . . . . . . . . . 107

Adding a PPP Interface Definition . . . . . . . . . . . . . . . . . . . . . 109

Modifying and Deleting PPP Interfaces . . . . . . . . . . . . . . . . . 111

Configuring EOA Interfaces . . . . . . . . . . . . . . . .113

Overview of EOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Viewing Your EOA Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Adding EOA Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Configuring IPoA Interfaces . . . . . . . . . . . . . . . .119

Viewing Your IPoA Interface Setup . . . . . . . . . . . . . . . . . . . . 119

Adding IPoA Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Configuring Bridging . . . . . . . . . . . . . . . . . . . . .123

Overview of Bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

When to Use the Bridging Feature . . . . . . . . . . . . . . . . . . . . 125

Defining Bridge Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Deleting a Bridge Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Configuring Firewall Settings . . . . . . . . . . . . . . .129

Configuring Global Firewall Settings . . . . . . . . . . . . . . . . . . . 129

Managing the Black List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Configuring IP Filters and Blocked Protocols .133

Configuring IP Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Viewing Your IP Filter Configuration . . . . . . . . . . . . . . 134

Configuring IP Filter Global Settings . . . . . . . . . . . . . . 135

Creating IP Filter Rules . . . . . . . . . . . . . . . . . . . . . . . . 137

IP filter rule examples . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Table of Contents

Viewing IP Filter Statistics . . . . . . . . . . . . . . . . . . . . . .145

Managing Current IP Filter Sessions . . . . . . . . . . . . . .146

Blocked Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148

Viewing DSL Line Information . . . . . . . . . . . . . . 151

Administrative Tasks . . . . . . . . . . . . . . . . . . . . . 155

Configuring User Names and Passwords . . . . . . . . . . . . . . . .155

Creating and Deleting Logins . . . . . . . . . . . . . . . . . . . .156

Changing Login Passwords . . . . . . . . . . . . . . . . . . . . .158

Viewing System Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

Viewing the Alarm Table . . . . . . . . . . . . . . . . . . . . . . . .159

Upgrading the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Using Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163

Modifying Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164

Overview of IP port numbers . . . . . . . . . . . . . . . . . . . .164

Modifying the ADSL Barricade’s port numbers . . . . . . .165

Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

IP Addresses, Network Masks and Subnets . . . . . . . . . . . . .167

IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167

Structure of an IP address . . . . . . . . . . . . . . . . . . . . . .167

Network classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Subnet masks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170

Appendix B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Binary Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Bits and bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 175

Technical Specifications . . . . . . . . . . . . . . . . . . 181

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Legal Information and Contacts . . . . . . . . . . . . . vii

NTRODUCTION

Congratulations on becoming the owner of the ADSL Barricade, a 2-port ADSL Router with built-in Annex A ADSL Modem. Your LAN (Local Area Network) will now be able to access the Internet using your high-speed ADSL connection. This User Guide will show you how to set up the ADSL Barricade, and how to customize its configuration to get the most out of your

new product.

Features

•

External ADSL modem for high-speed Internet access.

•

10/100Base-T Ethernet router to provide Internet connectivity to all computers on your LAN.

•

Optional USB port for connecting a USB-enabled PC.

•

Network address translation (NAT), Firewall, and IP filtering functions to provide security for your LAN.

•

Network configuration through DHCP Server and DHCP Relay.

•

Services including IP route and DNS configuration, RIP, and IP and DSL performance monitoring.

•

Configuration program you access via an HTML browser.

Introduction

System Requirements

In order to use the ADSL Barricade, you must have the following:

•

ADSL service up and running on your telephone line, with at least one public Internet address for your LAN.

•

One or more computers each containing an Ethernet 10/100 Base-T network interface card (NIC) and/or a single

computer with a USB port.

•

An Ethernet hub/switch, if you are connecting the device to more than one computer on an Ethernet network.

•

For system configuration using the supplied web-based program: a web browser such as Internet Explorer V5.0

or later, or Netscape V6.1 or later.

Using this Document

Notational conventions

•

Acronyms are defined the first time they appear in the text and in the Terminology.

•

For brevity, the ADSL Barricade is referred to as the device.

•

The terms LAN and network are used interchangeably to refer to a group of Ethernet-connected computers at one site.

Using this Document

Typographical conventions

•

Italics are used to identify terms that are defined in the Terminology.

•

Square brackets are used for items you select from menus and drop-down lists.

Special messages

This document uses the following statement to call your attention to specific instructions or explanations.

Note:

Provides clarifying or non-essential information on the

current topic.

Definition:

to many readers. These terms are also included in the Terminology.

Warning:

messages relating to personal safety or system integrity.

Explains terms or acronyms that may be unfamiliar

Provides messages of high importance, including

ETTING TO

NOW

THE

ADSL B

ARRICADE

Package Contents

•

One ADSL Barricade.

•

One Power adapter.

•

One RJ-45 Ethernet cable (straight-through type).

•

One RJ-11 Standard phone/DSL line cable.

•

One USB Cable (Optional).

•

Installation utility and Documentation CD.

•

Quick Installation Guide.

Hardware Description

Front Panel

The front panel contains lights called LEDs that indicate the status of the unit.

LED COLOR FUNCTION

PW (Power) LK (Link)

Green On: Unit is powered on.

Off: Unit is powered off.

Green Flashing when ADSL data activity occurs.

May be steady when data traffic is heavy.

Table 1. Front Panel and LEDs

Getting to Know the ADSL Barricade

Rear Panel

The rear panel contains the ports for the unit's data and power connections.

LABEL FUNCTION

DSL Connects the device to a telephone jack for DSL communication. Ethernet Connects the device to your PC's Ethernet port, or to the uplink port

USB (optional) For connection to the USB port on your PC. Reset Resets the device to the factory default configuration. Power For connection to the supplied power adapter.

on your LAN's hub, using the cable provided.

Yellow LED:

Green LED:

On: 10M LAN link established and active.

Off: No 10M LAN link.

100M LAN link established and active.

On: Off:

No 100M LAN link.

Table 2. Rear Panel Connections

UICK

This Quick Start provides basic instructions for connecting the ADSL Barricade to a computer or LAN and to the Internet.

•

Connecting the Hardware describes how to set up the hardware.

•

Configuring Your Computers describes how to configure Internet properties on your computer(s).

•

Configuring the ADSL Barricade shows you how to configure basic settings on the ADSL Barricade to get your LAN

connected to the Internet.

After having set up and configured the device, please follow the instructions on page 21 to check whether it is working properly.

This Quick Start assumes that you have already established an ADSL service with your Internet service provider (ISP). These instructions provide a basic configuration that should be compatible with your home or small office network setup. Refer to the subsequent chapters for additional configuration instructions.

TART

Connecting the Hardware

You connect the device to the wall phone jack, the power outlet, and your computer or network.

Warning:

Before you begin, turn the power off for all devices. These include your computer(s), your LAN hub/ switch (if applicable), and the ADSL Barricade.

Quick Start

Stand-alone computer

(See section on installing USB driver before connecting cable)

ADSL Barricade

Wall Jack

To a hub: use crossover cable to uplink port or straight cable to standard port

Hub/switch (for local area network)

Networked Computers

AC adapter

To a PC: use a cross-over cable

Stand-alone computer

Figure 1. Overview of Hardware Connections

Step 1. Connect the ADSL cable

Connect one end of the provided phone cable (RJ-11) to the port labeled DSL on the Rear Panel of the device. Connect the other end to your wall phone jack.

You can attach a telephone line to the device. This is helpful when the ADSL line uses the only convenient wall phone jack. If desired, connect the telephone cable to the port labeled Phone.

Warning:

Although you use the same type of cable, the ADSL and Phone ports are not interchangeable. Do not route the ADSL connection through the Phone port.

Note:

ADSL splitters/microfilters are included with some models.

Configuring Your Computers

Step 2. Connect the Ethernet cable

If you are connecting a LAN to the ADSL Barricade, attach one end of a provided Ethernet cable to a regular hub port and the other to the Ethernet port on the ADSL Barricade. If you are using the ADSL Barricade with a single computer and no hub, you must use an Ethernet cable to attach the PC directly to the device. The cable is wired differently than the cable you would use to connect to a hub.

Step 3. Attach the power connector

Connect the AC power adapter to the Power connector on the back of the device and plug in the adapter to a wall outlet or power strip.

Step 4. Power up your systems

Turn on and boot up your computer(s) and any LAN device such as hubs or switches.

Configuring Your Computers

This section provides instructions for configuring settings on your computers to work with the ADSL Barricade

Before you begin

By default, the ADSL Barricade automatically assigns all required Internet settings to your PCs. You need only to configure the PCs to accept the information when it is assigned.

the Internet

Quick Start

Note:

If you have connected your PC of LAN via Ethernet to the Barricade system installed on your PC.

In some cases, you may want to assign Internet information manually to some or all of your computers rather than allow the ADSL Barricade to do so. See Assigning static Internet Information to your PCs on page 16 for instructions.

, follow the instructions that correspond to the operating

Windows® XP

In the Windows task bar, click the [Start] button, and then click [Control Panel].

Double-click the [Network Connections] icon.

In the [LAN or High-Speed Internet] window, right-click on the icon corresponding to your network interface card (NIC) and select [Properties]. (Often, this icon is labeled [Local Area Connection].) The [Local Area Connection] dialog box displays a list of currently installed network items.

Ensure that the check box to the left of the item labeled [Internet Protocol (TCP/IP)] is checked, and click [Properties].

ADSL

In the [Internet Protocol (TCP/IP) Properties] dialog box, click the radio button labeled [Obtain an IP address automatically]. Also click the radio button labeled [Obtain DNS server address automatically].

Click [OK] twice to confirm your changes, and close the Control Panel.

Configuring Your Computers

Windows 2000

First, check for the IP protocol and, if necessary, install it.

In the Windows task bar, click the [Start] button, point to [Settings], and then click [Control Panel].

Double-click the [Network and Dial-up Connections] icon.

In the [Network and Dial-up Connections] window, right-click the [Local Area Connection] icon, and then select [Properties]. The [Local Area Connection Properties] dialog box displays a list of currently installed network components. If the list includes [Internet Protocol (TCP/IP)], then the protocol has already been enabled. Skip to Step 10.

If [Internet Protocol (TCP/IP)] does not appear as an installed component, click [Install...].

In the [Select Network Component Type] dialog box, select [Protocol], and then click [Add…].

Select [Internet Protocol (TCP/IP)] in the [Network Protocols] list, and then click [OK]. You may be prompted to install files from your Windows 2000 installation CD or other media. Follow the instructions to install the files.

If prompted, click [OK] to restart your computer with the new settings. Next, configure the PCs to accept IP information assigned by the ADSL Barricade.

In the [Control Panel], double-click the [Network and Dial-up Connections] icon.

In the [Network and Dial-up Connections] window, right-click the [Local Area Connection] icon, and then select [Properties].

Quick Start

10.

In the [Local Area Connection Properties] dialog box, select [Internet Protocol (TCP/IP)], and then click [Properties].

11.

12.

Click [OK] twice to confirm and save your changes, and then close the Control Panel.

Windows Me

In the Windows task bar, click the [Start] button, point to [Settings], and then click [Control Panel].

Double-click the [Network and Dial-up Connections] icon.

In the [Network and Dial-up Connections] window, right-click the [Network] icon, and then select [Properties]. The [Network Properties] dialog box displays a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip to Step 11.

If [Internet Protocol (TCP/IP)] does not appear as an installed component, click [Add…].

In the [Select Network Component Type] dialog box, select [Protocol], and then click [Add…].

Select [Microsoft] in the [Manufacturers] box.

Select [Internet Protocol (TCP/IP)] in the [Network Protocols] list, and then click [OK]. You may be prompted to install files from your Windows Me installation CD or other media. Follow the instructions to install the files.

Configuring Your Computers

If prompted, click [OK] to restart your computer with the new settings. Next, configure the PCs to accept IP information assigned by the ADSL Barricade.

In the Control Panel, double-click the [Network and Dial-up Connections] icon.

10.

In the [Network and Dial-up Connections] window, right-click the [Network] icon, and then select [Properties].

11.

In the [Network Properties] dialog box, select [TCP/IP], and then click [Properties].

12.

In the [TCP/IP Settings] dialog box, click the radio button labeled [Server assigned IP address]. Also click the radio button labeled [Server assigned name server address].

13.

Click [OK] twice to confirm and save your changes, and then close the Control Panel.

Windows 95, 98

First, check for the IP protocol and, if necessary, install it.

In the Windows task bar, click the [Start] button, point to [Settings], and then click [Control Panel].

Double-click the [Network] icon. displays a list of currently installed If the list includes [TCP/IP], then the protocol has already been enabled. Skip to Step 9.

If [TCP/IP] does not appear as an installed component, click [Add…]. The [Select Network Component Type] dialog box appears.

The [Network] dialog box

network components.

Quick Start

Select [Protocol], and then click [Add...]. The [Select Network Protocol] dialog box appears.

Click on [Microsoft] in the [Manufacturers] list box, and then click [TCP/IP] in the [Network Protocols] list box.

Click [OK] to return to the [Network] dialog box, and then click [OK] again. You may be prompted to install files from your Windows 95/98 installation CD. Follow the instructions to install the files.

Click [OK] to restart the PC and complete the TCP/IP installation. Next, configure the PCs to accept IP information assigned by the ADSL Barricade.

Open the [Control Panel] window, and then click the [Network] icon.

Select the network component labeled [TCP/IP], and then click [Properties]. If you have multiple TCP/IP listings, select the listing associated with your network card or adapter.

10.

In the [TCP/IP Properties] dialog box, click the [IP Address] tab.

11.

Click the radio button labeled [Obtain an IP address automatically].

12.

Click the [DNS Configuration] tab, and then click the radio button labeled [Obtain an IP address automatically].

13.

Click [OK] twice to confirm and save your changes. You will be prompted to restart Windows.

14.

Click [Yes].

Configuring Your Computers

Windows NT 4.0

First, check for the IP protocol and, if necessary, install it.

In the Windows NT task bar, click the [Start] button, point to [Settings], then click [Control Panel].

In the [Control Panel] window, double-click the [Network] icon.

In the [Network] dialog box, click the [Protocols] tab. The [Protocols] tab displays a list of currently installed network protocols. If the list includes [TCP/IP], then the protocol has already been enabled. Skip to Step 9.

If [TCP/IP] does not display as an installed component, click [Add...].

In the [Select Network Protocol] dialog box, select [TCP/IP], and then click [OK]. your Windows NT 4.0 the instructions to install a window appears to inform you that a TCP/IP service called DHCP can be set up to dynamically assign IP information.

You may be prompted to install files from

installation CD or other media. Follow

the files. After all files are installed,

Click [Yes] to continue, and then click [OK] if prompted to restart your computer. Next, configure the PCs to accept IP information assigned by the ADSL Barricade.

Open the [Control Panel] window, and then double-click the [Network] icon.

In the [Network] dialog box, click the [Protocols] tab.

In the [Protocols] tab, select [TCP/IP], then click [Properties].

10.

In the [Microsoft TCP/IP Properties] dialog box, click the radio

button labeled [Obtain an IP address from a DHCP server].

11.

Click [OK] twice to confirm and save your changes, and then

close the [Control Panel].

Quick Start

Assigning static Internet Information to your PCs

In some cases, you may want to assign Internet information to some or all of your PCs directly (often called statically), rather than allowing the ADSL Barricade to assign it. This option may be desirable (but not required) if:

•

You have obtained one or more public IP addresses that you want to associate with specific computers (for example,

if you are using a computer as a public web server).

•

You maintain different subnets on your LAN (subnets are described in IP Addresses, Network Masks, and Subnets).

Before you begin, be sure to have the following information on hand (or contact your ISP if you do not know it):

•

The IP address and subnet mask you will assign to each PC which will be assigned static IP information.

•

The IP address of the default gateway for your LAN. In most

on the ADSL Barricade this IP address: [ or another number Configuring the LAN Ports on page 33 for more information.

cases, this is the address assigned to the LAN port

. By default, the LAN port is assigned

192.168.1.1.] (You can change this number, can be assigned by your ISP.) See

•

The IP address of your ISP's Domain Name System (DNS) server.

On each PC you will assign static information, follow the instructions on pages 9 through 15 specific to the IP protocol. Once it is installed, continue to follow the instructions for displaying each of the Internet Protocol enabling dynamic assignment of the IP addresses for the computer, the DNS server, and the default gateway, click the radio buttons that enable you to enter the information manually.

(TCP/IP) properties. Instead of

Configuring the ADSL Barricade

Note:

Your PCs must have IP addresses that place them in the same subnet as the ADSL Barricade's LAN port. If you manually assign IP information to all your LAN PCs, you can follow the instructions in Configuring the LAN Ports to change the LAN port IP address accordingly.

Configuring the ADSL Barricade

This section provides you instructions on how to log into the program of the ADSL Barricade and how to configure basic settings for your Internet connection. Your ISP should provide you with the necessary information to complete this step.

Logging into the ADSL Barricade Quick Configuration Page

The ADSL Barricade provides a preinstalled software program called Configuration Manager which enables you to configure the operation of the device via your Web browser. The settings that you most likely need to change before using the device are grouped onto one single [Quick Configuration] page.

Follow these instructions to configure the device settings.

At any PC connected to the ADSL Barricade via Ethernet or USB, open in the address/location box: 192.168.1.1/setup. Username/ Password: smc/smcadmin.

When you press [Enter], the page shown in Figure 2 should appear (see section Troubleshooting on page 175, if you receive an error message or if the page does not appear).

your Web browser, and type the following URL

Quick Start

Figure 2. Quick Configuration Page in Configuration Manager

The fields are described in the following table. Work with your ISP to determine which settings you need to change.

Field Description

General Settings

ATM Interface: This setting allows you to select the ATM interface you want to

Operation Mode: This setting enables or disables the ADSL Barricade.

Encapsulation: This setting determines the type of data link your ISP uses

use (usually [atm-0]). Your system may be configured with more than one ATM interface if you are using different types of services with your ISP.

When set to [Disabled], the device cannot be used to provide Internet

connectivity for your network. Set it to [Enabled ], if

necessary.

to communicate with your ADSL Barricade. Contact them to determine the appropriate setting.

Configuring the ADSL Barricade

VPI: VCI:

Bridge: You may select [Enabled] or [Disabled] to set the bridging

IGMP: You may select [Enabled] or [Disabled] to set the Internet Group

IP Address: Subnet Mask:

Use DHCP: To [Enable] or [Disable] DHCP server function. Default Route: When [Enabled] is selected, the IP address specified above will

Gateway IP Address:

These values are provided by your ISP and determine the unique path that your connection uses to communicate with your ISP.

between the ADSL Barricade and your ISP. Your ISP may also refer to this as RFC 1483 or Ethernet over ATM.

Management Protocol, which some ISPs use to perform remote configuration of your device.

If your ISP has assigned a public IP address to your LAN, enter the address and the associated subnet mask in the provided boxes. (Note: In some configurations, the public IP address should be entered on your PC rather than on the ADSL Barricade; please check with your ISP.)

be used as the default route for your LAN. Whenever one of your LAN computers attempts to access the Internet, the data will be sent via the WAN interface.

Specify the IP address that identifies the ISP server through which your Internet connection will be routed.

DNS

Primary DNS Server: Secondary DNS Server:

Enter the Primary and Secondary DNS server addresses provided by your ISP.

PPP

Username: Password:

Use DNS:

Enter the Username and the Password you use to log in to your ISP.

(Note: This is not the same as the user name and password

you have used to log in to Configuration Manager.) Enter the Username and the Password you use to log in to your

ISP.

(Note: This is not the same as the user name and password

you have used to log in to Configuration Manager.)

When you have finished customizing these settings, click [Submit]. The settings are now effective. However, if you reboot or if the lost. In Step 4, you

power is disconnected, your settings will be

save the changes to the permanent

memory.

Quick Start

Click the [Admin] tab that appears in the upper right corner of the page,

Click [Commit]. A page will appear briefly to confirm your changes, and then you will be returned to the [Commit & Reboot] page.

You can click [Delete] to remove all existing [Quick Configuration] settings and return to the default values.

You have now finished customizing the basic settings. Read the following change additional settings.

and then click [Commit & Reboot] in the task bar.

section in order to determine whether you need to

Default Router Settings

In addition to handling the DSL connection to your ISP, the ADSL Barricade can provide a variety of services to your network. The device is preconfigured with default settings for use with a typical home or small office network.

The table of Figure 5 lists some of the most important default settings; these subsequent sections. If you are familiar with network configuration, review the settings needs of your network. Follow necessary. If you are unfamiliar with these settings, try to use the device without modification, or contact your ISP for assistance.

and other features are fully described in the

in Figure 5 and check whether they meet the

the instructions and change them if

Before modifying any settings, review the Getting Started section with the Configuration Manager. We strongly recommend that you contact your ISP prior to changing the default configuration.

Configuring the ADSL Barricade

Option Default Setting Explanation/Instructions

DHCP DHCP server enabled

NAT (Network Address

Translation)

USB Port IP Address

(optional)

LAN Port IP Address Assigned static

with the following pool of addresses: 192.168.1.3 through 192.168.1.34

NAT rule enabled Your computers’ private IP

Assigned static IP address:

192.168.1.2

Subnet mask:

255.255.255.0

IP address:

192.168.1.1 Subnet mask:

255.255.255.0

The ADSL Barricade maintains a pool of private IP addresses for dynamic assignment to your LAN computers. To use this service, you must have set up your computers to accept IP information dynamically, as described in the Quick Start. See Configuring Dynamic Host Configuration Protocol on page 43 for an explanation of the DHCP service.

addresses (see DHCP above) will be translated to your public IP address whenever they access the Internet. See Configuring the LAN Ports on page 33 for a description of the NAT service.

This is the IP address assigned to the USB port on the device (if used). Typically, you will not need to change this address. See USB Functionality for instructions.

This is the IP address of the LAN port on the device. The LAN port connects the device to your Ethernet network. Typically, you will not need to change this address. See Configuring the LAN Ports on page 33 for instructions.

Table 3. Default Settings Summary

ETTING

TARTED WITH THE

ONFIGURATION

The ADSL Barricade includes a preinstalled program called Configuration Manager, which provides an interface to the software installed on the device. It enables you to configure the device settings to meet the needs of your network. You access it through your web browser from any PC connected to the ADSL Barricade via the LAN ports. This section describes how to use the Configuration Manager.

ANAGER

Accessing the Configuration Manager

The Configuration Manager program is preinstalled in the Barricade memory. To access the program, you need the following:

•

A PC or laptop connected to the LAN port on the device as described in the Quick Start section.

•

A web browser installed on the PC. The program is designed to work best with Microsoft Internet Explorer Netscape Navigator

version 6.1, or later versions.

version 5.0,

ADSL

You can access the program from any computer connected to the ADSL Barricade via the LAN or USB ports.

From a LAN computer, open your web browser, type the following URL in the web address (or location) box, and press [Enter: http://192.168.1.1]. Or, from the USB computer, type http://192.168.1.2. These are the predefined IP addresses for the LAN and USB ports on the as shown in Figure 3.

ADSL Barricade. A login screen appears,

Getting Started with the Configuration Manager

Figure 3. Login Screen

Enter your [User Name] and [Password], and then click [OK]. The first time you log into the program, use these default values:

Default User Name : smc

Default Password : smcadmin

Note:

The [System View] page on the [Home] tab appears each time you log into the program (shown in Figure 4).

You can change the password at any time (See Configuring User Names and Passwords on page 155 for instructions).

Functional Layout

Configuration Manager tasks are grouped into categories, can be accessed by clicking the tabs at the top of each Each tab displays the available tasks in a horizontal menu at the top of the page. You can click on these menu items and display the specific configuration options.

A separate page appears for each task in the task bar. The left-most task appears by default when you click on a new tab. The same task may appear in more than one tab, when appropriate. For example, the [Lan Config] task appears in both the [LAN] tab and the [Routing] tab.

Commonly used buttons

The following buttons are used throughout the application.

which

page.

Button Function

Submit This button stores in the temporary system memory any changes

Refresh This button displays the current page with updated statistics or

Clear On pages that display accumulated statistics, this button resets

Help This button launches the online help for the current topic in

you have made on the current page. See Committing your changes on page 31 for instructions on how to store changes permanently.

settings.

the statistics to their initial values.

a separate browser window. Help is available from any main topic page.

Getting Started with the Configuration Manager

The Home Page and System View Table

The [Home] page appears when you first access the program. This

page is one of the two options available in the [Home] tab ; (the other is the [Quick Configuration] page, as described in Quick Start, Logging into the ADSL Barricade).

Figure 4. System View Table

The [System View] table provides a snapshot of your system configuration. Note that some of the settings are links to the software pages that enable you to configure those settings. The following table describes each section of the [System View] table.

The Home Page and System View Table

Table

Description

Heading

Device This table displays basic information about the ADSL Barricade

DSL This table displays the operational status, version, and

WAN Interfaces

LAN Interface

hardware and reboot), and the

performance statistics for the DSL line. You can check DSL in the table or display the [WAN] tab to view additional DSL settings, which are described in Configuring EOA Interfaces.

This table displays the software name(s) and various settings for the device interface(s) that communicates with your ISP via DSL. Even if you only have one physical DSL port, multiple software-defined interfaces can be configured to use it. See the ATM VC, PPP, EOA, and IPoA chapters for more information about the WAN interfaces defined on your system. For each interface, a [Lower Interface] name, such as [aal5-0], should appear. You can click on the [Lower Interface] name to view or change the ATM VC settings that this interface uses.

This table displays the software names and various settings for the device interfaces that communicate directly with your network. These typically include an [Ethernet Interface] named [eth-0], and may include a [USB Interface] named [usb-0]. For information on how to modify properties of these interfaces, see Configuring the LAN Ports on page 33 and USB Functionality.

software versions, the system uptime (since the last

preconfigured operating mode.

Getting Started with the Configuration Manager

Services Summary

This table displays the status of various services that the ADSL Barricade performs to help you manage your network. A green check mark that it is inactive.

[NAT] : to translate private IP addresses to your public IP address (Configuring Network Address Translation).

[IP Filter] : to set up the filtering rules that accept or deny incoming or outgoing data (Configuring IP Filters and Blocking Protocols).

[RIP] : to enable router-to-router communication (Configuring the Routing Information Protocol).

[DHCP Relay] : to enable dynamic assignment of IP information from your ISP to your computers (Configuring Dynamic Host Configuration Protocol).

[DHCP Client] : to enable dynamic assignment of IP information from your ISP or another computer on your network to the device’s LAN port (Configuring the LAN Ports).

[DHCP Server]: to enable dynamic assignment of IP information from the device’s built-in DHCP server to your LAN computers (Configuring Dynamic Host Configuration).

[IGMP] : to enable message forwarding from external sources such as your ISP, based on Internet Group Management Protocol (not configurable).

indicates that the service is active and a red X indicates

Modifying Basic System Information

You can modify the basic system information, which includes the system date and time, the names assigned to the ADSL Barricade and the network domain in which it exists.

Note:

Follow these instructions to change the basic system information.

Changing the ADSL Barricade date and time does not affect the date and time on your PCs.

At the bottom of the [Home] page, click [Modify]. The [System – Modify] page appears in a separate browser window.

Figure 5. System - Modify Page

Getting Started with the Configuration Manager

Modify the fields on this page as required. The following table describes each field:

Option Description

Date: Time:

Time Zone:

DST: (Daylight Savings Time)

Name:

Domain Name:

These fields initially appear dimmed. To modify the date and time, click the respective check boxes and select the appropriate values from the drop-down lists. The time appears in military format.

You can select your time zone from the drop-down list, and then click the appropriate radio button to indicate whether Daylight Savings Time is currently in effect. After you initially set the time, turning DST On or Off will adjust the current displayed time by one hour in the appropriate direction. You must remember to change the DST option each spring and fall as it will not change automatically.

You can use this field to specify an easy-to-remember name for the ADSL Barricade. The next time you want to access the Configuration Manager, you can type this name in the location box in your Web browser, instead of typing the digital IP address. For example, if you have entered myrouter in this field (and have left the Domain Name field blank), then you can type the following in your Web browser to access the Configuration Manager: http:// myrouter.

Note: This will only work if you are using the ADSL Barricade’s DNS relay feature. This feature is automatically enabled when the DNS

server address configured on your PCs is also the address assigned DNS Server Addresses on page 79 for more information.

You can use this field to specify an Internet domain name for the ADSL Barricade. The next time you access Configuration Manager, you can type the domain name and the device name (see the Name field above) in your Web browser. For example, if you have entered myrouter in the [Name] field and mydomain.com in the [Domain Name] field, then you can type the following in your Web browser to access the Configuration Manager: http://myrouter.mydomain.com

to the LAN port on the ADSL Barricade. See Configuring

When you have finished modifying the settings , click [Submit]. Then click [Close] to return to the [System View] page.

To save your changes to the permanent memory, click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit].

Committing Changes and Rebooting

Committing your changes

Whenever you use Configuration Manager to change system settings, the changes are initially placed in a temporary storage called random access memory or RAM. Your changes become effective when you submit them, but will be lost if the device is reset or turned off.

You can commit changes to save them permanently to a flash memory.

Note:

Follow these steps to commit changes.

Submitting changes activates them immediately, but saves them only until the device is reset or powered down. Committing changes saves them permanently.

Click the [Admin] tab, and then click [Commit & Reboot] in the task bar. The [Commit & Reboot] page appears.

Figure 6. Commit & Reboot Page

Click [Commit]. Disregard the selection in the [Reboot Mode:] drop-down list; it does not affect the commit process. These changes are saved to a permanent storage. The previous settings recalled below rebooting

are copied to a backup storage so that they can be

if your new settings do not work properly (see the

instructions).

Getting Started with the Configuration Manager

Rebooting the device using Configuration Manager

To reboot the device, display the [Commit & Reboot] page, select the appropriate [Reboot Mode:] from the drop-down list, and then click [Reboot].

You have three options when rebooting.

Option Description

Reboot from Last Configuration

Reboot from Backup Configuration

Reboot from Default Configuration

This option is to reboot the device using the current

settings in the permanent memory, including any changes

you have just committed.

This option

in the backup memory.

effective before you committed new settings in the current

session.

This option is to reboot the device to the default settings

provided by your ISP or the manufacturer. Choosing this

option erases any custom settings.

is to reboot

the device using settings stored These are the settings that were

Warning:

Do not reboot the device using the [Reset] button on

the Rear Panel of the ADSL Barricade to activate

new

changes. This button resets the device settings

the factory default values. Any custom settings will

be lost.

ONFIGURING THE

LAN P

This section describes how to configure IP properties for the interfaces on the ADSL Barricade that communicate with your LAN computers.

ORTS

Connecting via Ethernet

If you are using the ADSL Barricade with multiple PCs on your

you must connect the LAN via an Ethernet hub to the

LAN, device's LAN

If you are using a single PC with the ADSL Barricade, connect the PC directly to the LAN port using an Ethernet cable.

You must assign a unique IP address to each device port that you use.

port, called [eth-0].

you can

Configuring the LAN Port IP Address

The LAN IP address identifies the LAN port ([eth-0]) as a node on your network; that is, its IP address must be in the same subnet as the PCs on your LAN.

Definition:

You can change the default to reflect the set of IP addresses that you want to use with your network.

A network node can be thought of as any interface where a device connects to the network, such as the ADSL Barricade's LAN port and the network interface cards on your PCs. See IP Addresses, Network Masks and Subnets on page 167 for an explanation of subnets.

Configuring the LAN Ports

If your network uses a DHCP server (other than the ADSL Barricade) to accept and use a LAN IP address assigned by that server. Similarly, if your ISP can configure the ISP's server. as a DHCP client of your DHCP (or ISP's) server.

to assign IP addresses, you can configure the device

performs DHCP serving for your network, you

the device to accept an IP address assigned from

In this mode, the ADSL Barricade is considered

Note:

Follow the following steps to change the default LAN IP address or to configure the LAN port as a DHCP client:

The ADSL Barricade itself can function as a DHCP server for your LAN computers, as described in Configuring Dynamic Host Configuration Protocol, but not for its own LAN port.

Log into Configuration Manager and then click the [LAN] tab. The [LAN Configuration] page appears.

Figure 7. LAN Configuration Page

Configuring the LAN Port IP Address

The LAN Configuration table displays the following settings:

Setting Description

System Mode: This setting is preconfigured for your device, such as [Routing

mode], [Bridging mode], or both modes simultaneously. This setting is not user-configurable.

Get LAN Address:

LAN IP Address: LAN Network Mask:

Speed Ethernet speed Duplex Duplex method IGMP To Enable or Disable IGMP

This setting provides options for how the device’s LAN port is assigned an IP address:

[Manual] indicates that you will be assigning a static IP address, which you can enter in the fields below.

[External DHCP Server] indicates that your ISP will be assigning an IP address from their own DHCP server to the port, dynamically each time you log on.

[Internal DHCP Server] indicates that you have a DHCP server device on your network that will assign an address to the port. If you choose either the internal or external server option, the LAN port is called a DHCP client of the server.

Note: The public IP address assigned to you by your ISP is not your LAN IP address. The public IP address identifies the WAN (ADSL) port on your ADSL Barricade to the Internet.

The IP address and Network Mask for the port. See

IP Addresses, Network Masks and Subnets on page 167

for an overview of IP addresses and masks.

Enter an IP address and mask in the fields provided and choose [Disabled] in the [Use DHCP] field, or enable either a remote or local DHCP server. Keep these points in mind:

•

Manually specifying an address: If you are using routing services on your LAN such as

DHCP and NAT, you will want to assign a fixed LAN IP address and mask. This ensures that your LAN computers have a fixed address that they use to communicate with the device.

Configuring the LAN Ports

The IP address you assign must be in the same subnet as your LAN computers that connect to this port (that is, the network ID portion of their IP addresses and their subnet masks must be the same). See IP Addresses, Network Masks and Subnets on page 167 for an explanation of IP addresses and network masks.

If you change the LAN IP address, you may need to update the DHCP configuration so that the addresses that the DHCP server dynamically assigns to your computers are on the same subnet as the new LAN IP address. See Configuring Dynamic Host Configuration Protocol on page 43 for instructions on changing the pool of dynamically assigned addresses.

•

Enabling DHCP: If you choose to have the LAN port be a DHCP client

of an internal or external server, the [LAN Network Mask] field will be dimmed and made unavailable for entry. The [LAN IP Address] field will remain editable, however. The address that you specify here will be used as a request to the DHCP server. This is referred to as a Configured IP Address in the program. If the configured IP address is not available from the DHCP server, then the system will accept another assigned address. Even after another number is assigned, the same configured IP address will continue to display in this field.

Click [Submit].

•

If you changed the LAN IP address while working from a PC that is connected to the device via Ethernet, then your

connection will be terminated.

Configuring the LAN Port IP Address

•

If you enabled the DHCP service, the ADSL Barricade will initiate a request for an IP address from your LAN's DHCP

server. If a different IP address is assigned than the one that was previously configured, your current connection will be terminated.

Reconfigure your PCs, if necessary, so that their IP addresses place them in the same subnet as the new IP address of the LAN port. See Quick Start, Configuring Your Computers on page 9 for instructions.

Log into [Configuration Manager] by typing the new IP address in your Web browser's address/location box.

If the new settings work properly, click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit] to save your changes to the permanent memory.

IEWING

YSTEM

IP A

ERFORMANCE

The interface on the ADSL Barricade that communicates with other network and Internet devices are identified by unique Internet Manager and to view other system and network performance data. See IP Addresses, Network Masks and Subnets on page 167 for a description

Viewing the ADSL Barricade's IP Addresses

To view the ADSL Barricade's IP addresses, click the [Routing] tab, and then click [IP Address] in the task bar. The [IP Address Table] page appears:

protocol (IP) addresses. You can use the Configuration

to view the list of IP addresses that your device uses,

DDRESSES AND

TATISTICS

of IP addresses and masks.

Figure 8. IP Address Table Page

The table lists the [IP address], the network masks ([Netmask]), and the interface names ([IF Name]) for each of its IP-enabled interfaces.

Viewing System IP Addresses and IP Performance Statistics

The listed IP addresses may include:

•

The IP address of the device's LAN (Ethernet) port, called [eth-0]. See Configuring the LAN Ports on page 33 for

instructions on configuring this address.

•

The IP address of the WAN (ADSL line) interface, which your ISP and other external devices use to identify your network.

It may be identified in the [Configuration Manager] by the names [ppp-0], [eoa-0], or [ipoa-0], depending on the protocol your device uses to communicate with your ISP. Your ISP may assign the same address each time, or it may change each time you reconnect.

•

The loopback IP address, named [lo-0], of [127.0.0.1]. This special address enables the device to keep any data

addressed directly to it, rather than route the data through the WAN or LAN ports.

If your device has additional IP-enabled interfaces, the IP addresses of these will also display.

Viewing IP Performance Statistics

You can view statistics on the processing of Internet protocol packets (a packet is a collection of data that has been bundled for transmission). You will not typically need to view thi s data, but you may find it helpful when working with your ISP to diagnose network and Internet data transmission problems.

To view global IP statistics, click [Global Stats] on the [IP Address Table] page. Below shows the [IP Global Statistics] page:

Figure 9. IP Global Statistics Page

To display updated statistics showing any new data since you opened the page, click [Refresh].

ONFIGURING

YNAMIC

OST

You can configure your network and ADSL Barricade to use the Dynamic Host Configuration Protocol (DHCP). This section provides an overview of DHCP and instructions for implementing it on your network.

ONFIGURATION

ROTOCOL

Overview of DHCP

What is DHCP?

DHCP is a protocol that enables network administrators to centrally manage the assignment and distribution of IP information to computers on a network.

When you enable DHCP on a network, you allow a device – such as the ADSL Barricade or a router located with your ISP – to assign temporary IP addresses to your computers whenever they connect to your network. The assigning device is called a DHCP server, and the receiving device is a DHCP client.

Note:

If you used the Quick Start instructions, you configured each LAN PC with an IP address, or you specified that it will receive IP information dynamically (automatically). If you chose to have the information assigned dynamically, then you configured your PCs as DHCP clients that will accept IP addresses assigned from a DCHP server such as the ADSL Barricade.

Configuring Dynamic Host Configuration Protocol

The DHCP server draws from a defined pool of IP addresses and leases them for a specified amount of time to your computers when they request an Internet session. It monitors, collects, and redistributes the addresses as needed.

On a DHCP-enabled network, the IP information is assigned dynamically rather than statically. A DHCP client can be assigned a different address from the pool each time it reconnects to the network.

Why use DHCP?

DHCP allows you to manage and distribute IP addresses throughout your network from a central computer. Without DHCP, you would have to configure each computer separately with IP addresses and related information. DHCP is commonly used with large networks and those that are frequently expanded or otherwise updated.

ADSL Barricade DHCP modes

The device can be configured as a DHCP server, relay agent or client.

•

If you configure the device as a DHCP server, it will maintain the pool of addresses and distribute them to your LAN

computers. If the pool of addresses includes private IP addresses, you must also configure the Network Address Translation service, so that the private addresses can be translated to your public IP address on the Internet.

•

If your ISP performs the DCHP server function for your network, then you can configure the device as a DHCP relay agent. When

the ADSL Barricade receives a request for Internet access from a computer on your network, it contacts your ISP for the necessary IP information, and then relays the assigned information back to the computer.

Configuring DHCP Server

•

If you have another PC or device on your network that is already performing the DHCP server function, then you can

configure the device's LAN port to be a DHCP client of that server (as are your PCs). This configuration is described in Configuring the LAN Ports.

Note:

You can input settings for both DHCP server and DHCP relay mode, and then activate either mode at any time. Deactivated settings are retained for your future use.

Configuring DHCP Server

Note:

To set up DHCP server, you first define the ranges of IP addresses that you want to be distributed to your PCs, called DHCP server address pools.

Guidelines for creating DHCP server address pools

IP address pools can contain multiple public addresses that you have purchased from your ISP, but are typically private addresses that you create. LAN administrators often create private IP addresses for use only on their networks. See Overview of NAT on page 55 for an explanation of private IP addresses.

Before you begin, be sure to configure your PCs to accept DHCP information assigned by a DHCP server. For detailed instructions, see Quick Start, Configuring Your Computers on page 9.

Configuring Dynamic Host Configuration Protocol

You can create up to two pools. The pools can maintain a combined total of 254 IP addresses. For example, you can configure only one pool with addresses in the range 192.168.1.2 through 192.168.1.255, or two pools with the following address ranges:

Pool 0: 192.168.1.2 through 192.168.1.128 Pool 1: 192.168.1.129 through 192.168.1.255

The same pool can be used for distributing IP addresses to your LAN PCs (connected via the Ethernet port), as long as these ports are in the same subnet. You may want to create a second pool if any of these circumstances apply:

•

If a USB port is provided in the device, its Ethernet (eth-0) and USB (usb-0) ports are in different subnets (note that different

subnets are not required). See IP Addresses, Network Masks and Subnets on page 167 for an explanation of subnets.

•

Your LAN configuration includes two subnets.

•

You have only one subnet, but the addresses you want to distribute are not in a continuous range. (Alternatively, you

can exclude particular addresses from distribution from a single pool; see page 50.)

The DHCP server will distribute addresses to the computers connected in the same subnet as the pool addresses. For example, assume that the Ethernet and USB interfaces are assigned IP addresses that place them in two different subnets, as shown:

Ethernet interface (eth-0): IP address 192.168.1.1

USB interface (usb-0): IP address 192.168.2.1

to a given device interface only when that interface is

mask 255.255.255.0

Configuring DHCP Server

With this configuration, you could create the following two pools:

Pool 0: 192.168.1.2 through 192.168.1.11 Pool 1: 192.168.2.2 through 192.168.2.2

The DHCP server would automatically distribute the Pool 0 addresses only to computers connected to the interface in the same subnet as these addresses-the LAN interface, eth-0. Likewise, the address in Pool 1 would be distributed to the USB-connected computer.

Adding DHCP Server Address Pools

Follow these instructions to create an IP address pool:

Log into Configuration Manager, click the [LAN] tab, and then click [DHCP Server] in the task bar.

The [Dynamic Host Configuration Protocol (DHCP) Server Configuration] page appears:

Figure 10. DHCP Server Configuration Page

Depending on your preconfigured settings, the table may display one or more address pools, each in a row, or may be empty.

Configuring Dynamic Host Configuration Protocol

Click [Add]. The [DHCP Server Pool – Add] page appears, as shown in Figure 11:

Figure 11. DHCP Server Pool – Add Page

Enter values for the [Start IP Address:], [End IP Address:], and [Netmask:] fields, which are required, and any others as needed:

Field Description

Start IP Address: End IP Address:

Mac Address: A MAC address is a manufacturer-assigned hardware ID that

This field specifies the lowest and highest addresses in the pool, up to a maximum range of 254 addresses. For example, if the LAN port is assigned IP address 192.168.1.1, then you could create a pool with address range 192.168.1.2 –

192.168.1.254 for distribution to your LAN computers.

is unique for each device on a network. Use this field only if you want to assign a specific IP address to the computer that uses this MAC address. If you type a MAC address here, you must have specified the same IP address in both the [Start IP Address:] and [End IP Address:] fields.

Configuring DHCP Server

Netmask: This field specifies which portion of each IP address in this

range refers to the network and which portion refers to the host (computer). For a description of network masks and LAN network masks, see IP Addresses, Network Masks and Subnets on page 167. You can use the network mask to distinguish which pool of addresses should be distributed to a particular subnet (as explained on page 45).

Domain Name: This is auser-friendly name that refers to the subnet that

Gateway Address:

DNS Address: SDNS Address:

SMTP Address: POP3 Address: NNTP Address: WWW Address: IRC Address: WINS Address: SWINS Address:

(optional)

includes the addresses in this pool. This is used for reference only.

This is the address of the default gateway for computers that receive IP addresses from this pool. If no value is specified, then the appropriate LAN (eth-0) or USB (usb-0) port address on the device will be distributed to each PC as its gateway address, depending on how each is connected. See Hops and gateways on page 84 for an explanation of gateway addresses.

These fields indicate the IP address of the Domain Name System server and Secondary Domain Name System server to be used by computers that receive IP addresses from this pool. These DNS servers translate common Internet names that you type into your web browser into their equivalent numeric IP addresses. Typically, these servers are located with your ISP.

These fields indicate the IP addresses of devices that perform various services for computers that receive IP addresses from this pool (such as the SMTP, or Simple Mail Transfer Protocol, server which handles e-mail traffic). Contact your ISP for these addresses.

Configuring Dynamic Host Configuration Protocol

When you are done defining the pool, click [Submit]. A [Confirmation] page displays briefly to indicate that the pool has been added successfully . After a f e w seconds, the [DHCP Server Pool – Add] page appears with the newly added pool.

Follow the instructions in Setting the [DHCP Mode] to enable the DHCP Server.

Viewing, modifying, and deleting address pools

To view, modify, or delete an existing address pool, display the DHCP Server Configuration page, and click the icons in the corresponding row in the address pool table.

•

To delete an IP address pool, click , then [Submit] and [Commit] your changes.

•

To view details on an IP address pool, click . A page appears with the same information that you entered when

you added the pool.

•

To modify the pool, click . The [DHCP Server Pool – Modify] page appears, as shown in Figure 12:

Figure 12. DHCP Server Pool - Modify Page

Configuring DHCP Server

You can change the [Domain Name] associated with an IP address pool or enable/disable the pool. By default, a pool is enabled when you create it.

When you are done making modifications, click [Submit]. Use the [Commit] function to save your changes to the permanent memory (see page 31).

Excluding IP addresses from a pool

If you have IP addresses that are designated for fixed use with specific devices, or if for some other reason you do not want to make them available to your network, you can exclude them from the pool. Display the [DHCP Server Pool – Modify] page, as shown in Figure 15. Type each address to be excluded in the [Excluded IP] field, and click [Add]. When you are done specifying excluded addresses, click [Submit], and then use the [Commit] function to save your changes to the permanent memory (see page 31).

Viewing current DHCP address assignments

When the ADSL Barricade functions as a DHCP server for your LAN, it keeps a record of any addresses currently leased to your computers. To view a table of all current IP address assignments, display the [DHCP Server Address Table] page, and then click [Address Table].

Figure 13. DHCP Server Address Table Page

Configuring Dynamic Host Configuration Protocol

The DHCP Server Address Table lists any IP addresses that are currently leased to LAN devices. For each leased address, the table lists the following information:

Field Description

IP Address This field indicates the address that has been leased from the pool. Netmask This is the network mask associated with the leased address.

This identifies the network ID and host ID portions of the address (see IP Addresses, Network Masks and Subnets on page 167 for an explanation of these terms).

Mac Address

Pool Start This is the lower boundary of the address pool (shown here to

Address Type

Time Remaining

This field indicates the unique hardware ID of the computer to which the IP address has been assigned.

identify the pool from which the leased address was assigned). The adress type can be [Static] or [Dynamic].

[Static] indicates that the IP number has been assigned permanently to the specific hardware device.

[Dynamic] indicates that the number has been leased emporarily for a specified length of time.

This field indicates the amount of time left for the device to use the assigned address. The default lease time is 30 days (31536000 seconds).

Configuring DHCP Relay

Some ISPs perform the DHCP server function for their customers' home/small office networks. In this case, you can configure the device as a DHCP relay agent. When a computer on your network requests Internet access, the ADSL Barricade contacts your ISP to obtain an IP address (and other information), and then forwards that information to the computer. Follow the following instructions to configure DHCP relay.

Configuring DHCP Relay

First, you must configure your PCs to accept DHCP information assigned by a DHCP server:

Open the Windows [Control Panel] and display the computer's [Networking properties]. Configure the TCP/IP properties to [Obtain an IP address automatically] (the actual text may vary depending on your operating system). For detailed instructions, see Quick Start, Configuring Your Computers on page 9. Next, specify the IP address of the DHCP server and select the interfaces on your network that will be using the relay service.

Log into the Configuration Manager, click the [LAN] tab. Then click [DHCP Relay] in the task bar. The [Dynamic Host Configuration Protocol (DHCP) Relay Configuration] page appears:

Figure 14. DHCP Relay Configuration Page

In the [DHCP Server Address] fields, type the IP address of your ISP's DHCP server. If you do not have this number, it is not essential to enter it here. Requests for IP information from your LAN will be passed to the default gateway, which should route the request appropriately.

Select your WAN interface from the drop-down list and click [Add]. Your WAN interface may be named [ppp-0], [eoa-0], or [ipoa-0]. Contact your ISP if you are unsure which type of WAN interface you use.

Configuring Dynamic Host Configuration Protocol

Note:

Click [Submit]. A page appears to confirm your changes, and then the program returns to the [Dynamic Host Configuration Protocol (DHCP) Relay Configuration] page.

Follow the instructions in Setting the DHCP Mode to set the DHCP mode to DHCP Relay.

You can also delete an interface from the table by clicking in the right column.

Setting the DHCP Mode

You must enable the appropriate DHCP mode to activate your DHCP relay or DHCP server settings.

Follow these instructions to set the DHCP mode:

Click the [LAN] tab, and then click [DHCP Mode] in the task bar. The [Dynamic Host Configuration Protocol (DHCP) Configuration] page appears.

Figure 15. DHCP Configuration Page

From the [DHCP Mode:] drop-down list, choose [DHCP Server], [DHCP Relay], or [None]. If you choose [None], your LAN computers must be configured with static IP addresses.

Click [Submit].

Click the [Admin] tab, and then click [Commit & Reboot] in the task bar.

Click [Commit] to save your changes to the permanent memory.

ONFIGURING

ETWORK

DDRESS

This section provides an overview of Network Address Translation (NAT) and instructions for modifying the default configuration on your device.

RANSLATION

Overview of NAT

Network Address Translation is a method for disguising the private IP addresses you use on your LAN as the public IP address you use on the Internet. You can define NAT rules that specify exactly how and when to translate between public and private IP addresses.

Definition:

A private IP address is created by a network administrator for use only on a LAN, whereas a public IP address is purchased from the Internet Corporation for Assigned Names and Numbers (ICANN) for use on the Internet. Typically, your ISP provides a public IP address for your entire LAN, and you define the private addresses for computers on your LAN.

In a typical NAT setup, your ISP provides you with a single public IP address to use for your entire network. Then, you assign each computer on your LAN a unique private IP address. (Or, you define a pool of private IP addresses for dynamic assignment to your computers, as described in Configuring Dynamic Host Configuration Protocol.) On the ADSL Barricade, you set up a NAT rule to specify the Internet, (that is, it sends and receives IP data packets) its private IP address - which is referenced in each packet - will be replaced by the LAN's public IP address.

that whenever one of your computers communicates with

Configuring Network Address Translation

Definition:

When this type of NAT rule is applied, because the source IP address is swapped out, it appears to other Internet computers as if the data packets are actually originating from the computer assigned your public IP address (in this case, the ADSL Barricade).

The NAT rule could further be defined to disguise the source port in the data packet (i.e., change it to another number), so that outside computers will not be able to determine the actual port from which the packet originated. Data packets that arrive in response contain the public IP address as the destination IP address and the disguised source port number. The ADSL Barricade changes the IP address and source port number back to the original values (having kept track of the changes it made earlier), and then routes the packet to the originating computer.

An IP data packet contains bits of data bundled together in a specific format for efficient transmission over the Internet. Such packets are the building blocks of all Internet communication. Each packet contains header information that identifies the IP address of the computer that initiates the communication (the source IP address), the port number that the router associates with that computer (the source port number), the IP address of the targeted Internet computer (the destination IP address), and other information.

NAT rules such as these provide several benefits:

•

They eliminate the need for purchasing multiple public IP addresses for computers on your LAN. You can make up your

own private IP addresses at no cost, and then have them translated to the public IP address when your computers access the Internet.

Viewing NAT Global Settings and Statistics

•

They provide a measure of security for you LAN by enabling you to assign private IP addresses and then have these and

the source port numbers swapped out before your computers access the Internet.

The type of NAT function described above is called [Network Address Port Translation (NAPT)]. You can use other types, called flavors, of NAT for other purposes; for example, providing outside access to your LAN or translating multiple private addresses to multiple public addresses.

Viewing NAT Global Settings and Statistics

To view your NAT settings, log into the Configuration Manager, click the [Services] tab. The [NAT Configuration] page appears by default.

Figure 16. NAT Configuration Page

Configuring Network Address Translation

The [NAT Configuration] page contains the following elements:

•

The [NAT Options] drop-down list will provide access to the [NAT Configuration] page and [NAT Global Information] table

(shown by default and in Figure 16), the [Network Address Translation (NAT) Rule and the [NAT Translations]

•

The [Enable] and [Disable] radio buttons will allow you to turn on or off the NAT feature.

•

The [NAT Global Information] table will display the following settings that apply to all NAT rule translations:

Field Description

TCP Idle Timeout (sec):

TCP Close Wait (sec):

TCP Def Timeout (sec):

UDP Timeout (sec):

ICMP Timeout (sec):

When two computers communicate via the Internet, a TCP-based communication session is created between them to control the exchange of data packets. The TCP session can be viewed as being in one of three states, depending on the types of packets being transferred.

- The establishing state, where the connection is being set up.

- The active state, where the connection is being used to transfer data.

- The closing state, in which the connection is being shut down.

When a NAT rule is effective on a TCP session in the active state, the session will timeout if no packets are received for the time specified in [TCP Idle Timeout].

When in the closing state, the session will timeout if no packets are received for the time specified in [TCP Close Wait].

When in the establishing state, the session will timeout if no packets are received for the time specified in [TCP Def Timeout].

Same as TCP Idle Timeout, but for UDP-based communication sessions.

Same as TCP Idle Timeout, but for ICMP-based communication sessions.

Configuration] page (see Figure 18)

page (see Figure 20).

Viewing NAT Global Settings and Statistics

GRE Timeout (sec):

ESP Timeout (sec)

Default Nat Age (sec):

NAPT Port Start: NAPT Port End:

Same as TCP Idle Timeout, but for GRE-based communication sessions.

Same as TCP Idle Timeout, but for ESP-based communication sessions.

For all other NAT translation sessions, the number of seconds after which a translation session will no longer be valid if no packets are received.

When an NAPT rule is defined, the source ports will be translated to sequential numbers in this range.

If you change any values, click [Submit], and click the [Admin] tab and [Commit] your changes to permanent system memory (see page 31). You can click [Global Stats] to view accumulated data on how many NAT rules have been invoked and how much data has been translated.

Figure 17. NAT Rule Global Statistics Page

The table provides basic information for each NAT rule you have set up. You can click [Clear] to restart the accumulation of the statistics at their initial values.

Configuring Network Address Translation

Viewing NAT Rules and Rule Statistics

To view the NAT rules currently defined on your system, select [NAT Rule Entry] in the [NAT Options] drop-down list. The [Network Address Translation (NAT) Rule Configuration] page appears, as shown in Figure 18:

Figure 18. NAT Rule Configuration Page

The [Network Address Translation (NAT) Rule Configuration] table displays a row containing basic information for each rule. For a description of these fields, refer to the instructions for adding rules (pages 66 through 79).

From the [Network Address Translation (NAT) Rule Configuration] page, you can click [Add] to add a new rule, or use the icons in

the right column to delete ( ) or view details on ( ) a rule. To view

data on how often a specific NAT rule has been used, click

[Stats]

in the [Action] column. A page appears similar to the one

shown in Figure 19.

Viewing Current NAT Translations

Figure 19. NAT Rule Statistics Page

The statistics show how many times this rule has been invoked and how many currently active sessions are using this rule. You can click [Clear] to reset the statistics to zeros and [Refresh] to display newly accumulated data.

Viewing Current NAT Translations

To view a list of [NAT Translations] that have recently been performed and which remain effective (for any of the defined rules), select [NAT Translations] from the [NAT Options] dropdown list.

Figure 20. NAT Translations Page

Configuring Network Address Translation

For each current NAT Translations session, the table contains the following fields:

Field Description

Trans Index This is the sequential number assigned to the IP session used

Rule ID This field indicates the ID of the invoked NAT rule. Interface This field indicates the device interface on which the NAT rule

Protocol This field indicates the IP protocol used by the data packets that

Alg Type This is the Application Level Gateway (ALG), if any, that was

NAT Direction This field indicates the direction ([Inside] or [Outside]) of the

Entry Age This field indicates the elapsed time, in seconds, of the NAT

by this NAT translation session.

was invoked (from the rule definition).

are undergoing translations (from the rule definition) Example: [TCP], [UDP], [ICMP].

used to enable this NAT translation (ALGs are special settings that certain applications require in order to work while NAT is enabled).

translation. A NAT direction is assigned to each port; the Ethernet and USB ports are defined as [Inside] ports, and the WAN ports are defined as [Outside] ports. The NAT direction is determined by the interface on which the rule is invoked.

translation session.

You can click in the [Action] column to view additional details about a NAT translation session.

Viewing Current NAT Translations

Figure 21. NAT TRANSLATION – Details Page

In addition to the information displayed in the [NAT TRANSLATION - Details] table, this table displays the following for the selected current translation sessions:

Field Description

Translated In Address:

In Address: This field indicates the private IP address that was translated. Out Address: This field indicates the IP address of the outside destination

In Packets: Out Packets: In Ports: This is the actual port number corresponding to the LAN

Out Ports: This is the port number associated with the destination address. Translated In

Ports:

This field indicates the public IP address to which the private IP address was translated.

(web, ftp site, etc.) These fields indicate the number of incoming and outgoing IP

packets that have been translated in this translation session.

computer.

This is the port number to which the LAN computer’s actual port number was translated.

Configuring Network Address Translation

Adding NAT Rules

This section explains how to create rules for each NAT flavor.

Note:

You cannot edit existing NAT rules. To change a rule setup, delete it and add a new rule with the modified settings.

The NAPT rule: Translating between private and public IP addresses

Follow these instructions to create a rule for translating the private IP addresses on your LAN to your public IP addresses. This type of rule uses the NAT flavor NAPT, which was used in your default configuration. The NAPT flavor translates private source IP addresses to a single public IP address. The NAPT rule also translates the source port numbers to port numbers that are defined on the [NAT Global Configuration] page.

Click the [NAT] tab, then select [NAT Rule Entry] from the [NAT Options] drop-down list. The [NAT Rule Entry] page displays a row for each currently configured NAT rule.

Click [Add] to display the [NAT Rule – Add] page.

From the [Rule Flavor:] drop-down list, select [NAPT]. The page reappears with only those fields that are appropriate for the NAPT rule flavor, as shown in Figure 22.

Adding NAT Rules

Figure 22. NAT Rule - Add Page (NAPT Flavor)

Enter a [Rule ID]. The Rule ID determines the order in which rules are invoked (the lowest numbered rule is invoked first, and so on). If you define two or more rules that act on the same set of IP addresses, be sure to assign the Rule ID so that the higher priority rules are invoked first. It is recommended that you specify Rule IDs as multiples of 5 or 10 so that, in the future, you can insert a rule between two existing rules.

Once a data packet matches a rule, the data is acted upon according to that rule and is not subjected to higher-numbered rules.

From the [IF Name:] drop-down list, select the interf ace on the device to which this rule applies. Typically, NA T rules are used for communication between your LAN and the Internet. Because the device uses the WAN interface (which may be named [ppp-0], [eoa-0], or [ipoa-0]) to connect your LAN to your ISP, it is the usual IF Name selection.

Configuring Network Address Translation

In the [Local Address From:] field and [Local Address To:] fields, type the starting and ending IP addresses, respectively , of the range of private addresses you use on your network that you want to have translated.

You can specify that data from all LAN addresses should be translated by typing [0] (zero) in each [F rom] field and [255] in each [To] field. Or, type the same address in both fields if the rule only applies to one LAN computer.

In the [Global Address] field, type the public IP address assigned to you by your ISP.

Click [Submit].

When a page appears to confirm your change, click [Close] to return to the [NAT Configuration] page. The new rule should display in the [NAT Rule Configuration] table.

10.

Ensure that the [Enable] radio button is selected, and then click [Submit]. A page appears to confirm your changes.

11.

Click the [Admin] tab, and then click [Commit and Reboot] in the task bar.

12.

Click [Commit] to save your changes to the permanent memory.

Adding NAT Rules

The RDR rule: Allowing external access to a LAN computer

You can create an RDR rule to make a computer on your LAN, such as a Web or FTP server, available to Internet users without requiring you to obtain a public IP address for that computer. The computer's private IP address is translated to your public IP address in all incoming and outgoing data packets.

Note:

The following example illustrates using the RDR rule to provide external access to your web server:

Your ADSL Barricade receives a packet containing a request for access to your Web server. The packet header contains the public a destination port number 80. Because you have set up an RDR rule for incoming packets with destination port 80, the device recognizes the data as a request for Web server access. The device address of your Web server and forwards the data packet to it.

Your Web server sends data packets in response. Before the ADSL Barricade forwards them on to the Internet, it changes the source IP address in the data packets from the Web server's private address to your LAN's public address.

Without an RDR rule (or Bimap rule described on page 75) the ADSL Barricade blocks attempts by external computers to access your LAN computers.

address for your LAN as the destination IP address, and

changes the packet's destination address to the private IP

Configuring Network Address Translation

To an external Internet user then, it appears as if your Web server uses your public IP address.

Figure 23. NAT Rule - Add Page (RDR Flavor)

Follow the following instructions to add an RDR rule (see steps 1-4 under The NAPT Rule for specific instructions corresponding to steps 1 and 2 below):

Display the [NAT Rule – Add] Page, select [RDR] as the [Rule Flavor], if necessary, and enter a [Rule ID].

Select the interface on which this rule will be effective.

Select a [Protocol] to which this rule applies, or choose [ANY]. This selection specifies which type of Internet communication will be subject to this translation rule. You can select [ANY] if the rule applies to all data. Or, select [TCP], [UDP], [ICMP], or a number from [1-255] that represents the Internet Assigned Numbers Authority (IANA)-specified protocol number.

Adding NAT Rules

In the [Local Address From:] and [Local Address To:] fields, type the same private IP address, or the lowest and highest addresses in a range:

•

If you type the same IP address in both fields, incoming traffic that matches the criteria you specify in steps 5 and

6 will be redirected to that IP address.

•

If you type a range of addresses, incoming traffic will be redirected to any available computer in that range. This

option would typically be used for load balancing, whereby traffic is distributed among several redundant servers to help ensure efficient network performance.

These addresses should correspond to private addresses already in use on your network (either assigned statically to your PCs or assigned dynamically using DHCP, as discussed in the Quick Start, Configuring Your Computers).

In the [Global Address From:] and [Global Address To:] fields, type the public IP address assigned to you by your ISP.

If you have multiple WAN (PPP) interfaces, this rule will not be enforced for data that arrives on other PPP interfaces. This rule will not be enforced for data that arrives on WAN interfaces not specified here.

If you have multiple WAN interfaces and want the rule to be enforced on more than one of them (or all), type the starting and ending IP addresses of the range.

In the [Destination Port From:] and [Destination Port To:] fields, type the port ID numbers of the computer you are making publicly available.

Configuring Network Address Translation

You can specify a range using the [From/To] fields if you want the rule to apply to a range of port types, or enter the same port number in both fields.

A port ID identifies the specific function of the computer connected to it, and therefore can limit the types of data that pass to and from the computer.

For example, Web (HTTP) servers are usually identified by port number 80; packets containing traffic destined for a Web server will contain this port ID. The Internet Assigned Numbers Authority (IANA) assigns port numbers for common types of servers and functions.

If the LAN computer that you are making publicly available is configured to use a non-standard port number for the type of traffic it receives, type the non-standard port number in the [Local Port:] field.

This option translates the standard port number in packets destined for your LAN computer to the non-standard number you specify. For example, if your Web server uses (nonstandard) port 2000, but you expect incoming data packets to refer to (standard) port 80, you should enter 2000 here (and select HTTP or type 80 in the Destination Port fields). The headers of incoming packets destined for port 80 will be modified to refer to port 2000. The packet will then be routed appropriately to the web server.

Follow steps 8-12 under The NAPT Rule on page 64 to submit your changes.

Adding NAT Rules

The Basic rule: Performing 1:1 translations

The Basic flavor translates the private (LAN-side) IP address to a public (WAN-side) address, like NAPT rules. However, unlike NAPT rules, Basic rules do not translate the port numbers in the packet header; they are passed through untranslated. Therefore, the Basic rule does not provide the same level of security as the NAPT rule.
