TigerStack III 10/100

Stackable 24-Port Fast Ethernet PoE Switch

Installation Guide

◆ 24 auto-MDI/MDI-X 10BASE-T/100BASE-TX ports

◆ 10BASE-T/100BASE-TX ports support PoE capabilities

◆ 2 Gigabit RJ-45 ports shared with 2 SFP transceiver slots

◆ 8.8 Gbps of aggregate bandwidth

◆ Stacks up to 8 units

◆ Non-blocking switching architecture

◆ Spanning Tree Protocol and Rapid STP

◆ Up to six LACP or static 4-port trunks

◆ RADIUS and TACACS+ authentication

◆ Rate limiting for bandwidth management

◆ CoS support for four-level priority

◆ Full support for VLANs with GVRP

◆ IP Multicasting with IGMP Snooping

◆ Manageable via console, Web, SNMP/RMON

Installation Guide

SMC6824MPE

TigerStack III 10/100 Installation Guide

From SMC’s Tiger line of feature-rich workgroup LAN solutions

38 Tesla Irvine, CA 92618 Phone: (949) 679-8000

October 2004

Pub. # 150200048700A

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EZ Switch, TigerStack and TigerSwitch are trademarks of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.

IMITED

Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. SMC will endeavor to repair or replace any product returned under warranty within 30 days of receipt of the product.

The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering new products within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active” SMC product. A product is considered to be “Active” while it is listed on the current SMC price list. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an “Active” SMC product. A list of discontinued products with their respective dates of discontinuance can be found at: http://www.smc.com/index.cfm?action=customer_ser vice_warranty.

All products that are replaced become the property of SMC. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed accessory or add-on components, such as expansion modules, removed prior to returning the product for replacement. SMC is not responsible for these items if they are returned with the product.

Customers must contact SMC for a Return Material Authorization number prior to returning any product to SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at customer’s expense. For warranty claims within North America, please call our toll-free customer support number at (800) 762-4968. Customers are responsible for all shipping charges from their facility to SMC. SMC is responsible for return shipping charges from SMC to customer.

ARRANTY

IMITED WARRANTY

WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

* SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

OMPLIANCES

FCC - Class A

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures may be required to correct the interference. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

You may use unshielded twisted-pair (UTP) cable for RJ-45 connections—Category 3 or greater for 10 Mbps connections, Category 5 for 100 Mbps connections and Category 5, 5e or 6 for 1000 Mbps connections. Use 50/125 or 62.5/125 micron multimode fiber optic cable, or 9/125 micron single-mode cable, for SFP transceiver connections.

War ning s: 1. Wear an anti-static wrist strap or take other suitable measures to prevent elec-

trostatic discharge when handling this equipment.

2. When connecting this switch to a power outlet, connect the field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.

Industry Canada - Class A

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,” NMB-003 édictée par le ministère des Communications.

Japan VCCI Class A

iii

OMPLIANCES

CE Mark Declaration of Conformance for EMI and Safety (EEC)

SMC contact for these products in Europe is:

SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain.

This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the compliance with these Directives, the following standards were applied:

RFI Emission:

Immunity:

LVD:

• Limit class A according to EN 55022:1998

• Limit class A for harmonic current emission according to EN 61000-3-2/ 1995

• Limitation of voltage fluctuation and flicker in low-voltage supply system according to EN 61000-3-3/1995

• Product family standard according to EN 55024:1998

• Electrostatic Discharge according to EN 61000-4-2:1995 (Contact Discharge: ±4 kV, Air Discharge: ±8 kV)

• Radio-frequency electromagnetic field according to EN 61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m)

• Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV)

• Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV)

• Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996 (0.15 - 80 MHz with 1 kHz AM 80% Modulation: 3 V/m)

• Power frequency magnetic field immunity test according to EN 61000-4-8:1993 (1 A/m at frequency 50 Hz)

• Voltage dips, short interruptions and voltage variations immunity test according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30% Reduction @500 ms, >95% Reduction @5000 ms)

• EN 60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997)

, 4a,

War ning : Do not plug a phone jack connector in the RJ-45 port. This may damage this device. Les raccordeurs ne sont pas utilisé pour le systéme téléphonique!

Taiwan BSMI Class A

Australia AS/NZS 3548 (1995) - Class A

SMC contact for products in Australia is:

SMC Communications Pty. Ltd. Suite 18, 12 Tryon Road, Lindfield NSW2070, Phone: 61-2-94160437 Fax: 61-2-94160474

Safety Compliance

Warning: Fiber Optic Port Safety

CLASS I

LASER DEVICE

When using a fiber optic port, never look at the transmit laser while it is powered on. Also, never look directly at the fiber TX port and fiber cable ends when they are powered on.

OMPLIANCES

Avertissment: Ports pour fibres optiques - sécurité sur le plan optique

DISPOSITIF LASER

DE CLASSE I

Ne regardez jamais le laser tant qu’il est sous tension. Ne regardez jamais directement le port TX (Transmission) à fibres optiques et les embouts de câbles à fibres optiques tant qu’ils sont sous tension.

Warnhinweis: Faseroptikanschlüsse - Optische Sicherheit

LASERGER DER KLASSE I

Niemals ein Übertragungslaser betrachten, während dieses

ÄT

eingeschaltet ist. Niemals direkt auf den Faser-TX-Anschluß und auf die Faserkabelenden schauen, während diese eingeschaltet sind.

OMPLIANCES

Power Cord Safety

Please read the following safety information carefully before installing the switch:

WA RN IN G

• The unit must be connected to an earthed (grounded) outlet to comply with international safety standards.

• Do not connect the unit to an A.C. outlet (power supply) without an earth (ground) connection.

• The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating with an EN 60320/IEC 320 appliance inlet.

• The socket outlet must be near to the unit and easily accessible. You can only remove power from the unit by disconnecting the power cord from the outlet.

• This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC 60950. The conditions are only maintained if the equipment to which it is connected also operates under SELV conditions.

France and Peru only

This unit cannot be powered from IT† supplies. If your supplies are of IT type, this unit must be powered by 230 V (2P+T) via an isolation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth (ground).

†

Impédance à la terre

Important!

label on the cable) against the following:

Power Cord Set

U.S.A. and Canada The cord set must be UL-approved and CSA certified.

Denmark The supply plug must comply with Section 107-2-D1, Standard

Switzerland The supply plug must comply with SEV/ASE 1011.

U.K. The supply plug must comply with BS1363 (3-pin 13 A) and be fitted

Installation and removal of the unit must be carried out by qualified personnel only.

Before making connections, make sure you have the correct cord set. Check it (read the

The minimum specifications for the flexible cord are:

- No. 18 AWG - not longer than 2 meters, or 16 AWG.

- Type SV or SJ

- 3-conductor

The cord set must have a rated current capacity of at least 10 A

The attachment plug must be an earth-grounding type with NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

DK2-1a or DK2-5a.

with a 5 A fuse which complies with BS1362.

The mains cord must be <HAR> or <BASEC> marked and be of type HO3VVF3GO.75 (minimum).

OMPLIANCES

Power Cord Set

Europe The supply plug must comply with CEE7/7 (“SCHUKO”).

The mains cord must be <HAR> or <BASEC> marked and be of type HO3VVF3GO.75 (minimum).

IEC-320 receptacle.

Veuillez lire à fond l'information de la sécurité suivante avant d'installer le Switch:

AVERTISSEMENT:

qualifié.

• Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de connexion de mise à la terre (mise à la masse).

• Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de respecter les normes internationales de sécurité.

• Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale) doit respecter configuration qui permet un branchement sur une entrée d’appareil EN 60320/IEC

• La prise secteur doit se trouver à proximité de l’appareil et son accès doit être facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette prise.

• L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à la norme IEC 60950. Ces conditions ne sont maintenues que si l’équipement auquel il est raccordé fonctionne dans les mêmes conditions.

France et Pérou uniquement:

Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec un point secondaire de connexion portant l’appellation Neutre et avec raccordement direct à la terre (masse).

L’installation et la dépose de ce groupe doivent être confiés à un personnel

une

320.

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Etats-Unis et Canada:

Le cordon doit avoir reçu l’homologation des UL et un certificat de la CSA.

Les spécifications minimales pour un cable flexible sont AWG No. 18, ouAWG No. 16 pour un cable de longueur inférieure

- type SV ou SJ

- 3 conducteurs

Le cordon doit être en mesure d’acheminer un courant nominal d’au moins 10 A.

La prise femelle de branchement doit être du type à mise à la terre (mise à la masse) et respecter la configuration NEMA 5-15P (15 A, 125 V) ou NEMA 6-15P (15 A, 250 V).

2 métres.

vii

OMPLIANCES

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1 de la

Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE 1011.

Europe La prise secteur doit être conforme aux normes CEE 7/7

norme DK2 1a ou DK2 5a.

(“SCHUKO”) LE cordon secteur doit porter la mention <HAR> ou <BASEC> et

doit être de type HO3VVF3GO.75 (minimum).

Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsanweisungen durchlesen:

WARNUNG:

• Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden.

• Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt.

• Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.

• Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.

• Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen (Sicherheitskleinstspannung) gemäß IEC 60950. Diese Bedingungen sind nur gegeben, wenn auch die an das Gerät angeschlossenen Geräte unter SELV-Bedingungen betrieben werden.

Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal erfolgen.

viii

Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden:

Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen

Europe Das Netzkabel muß vom Typ HO3VVF3GO.75

einhalten.

(Mindestanforderung) sein und die Aufschrift <HAR> oder <BASEC> tragen.

Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”).

OMPLIANCES

Warnings and Cautionary Messages

Warning: This product does not contain any serviceable user parts.

Warning: When connecting this device to a power outlet, connect the field ground lead

Warning: This switch uses lasers to transmit signals over fiber optic cable. The lasers are

Caution: Wear an anti-static wrist strap or take other suitable measures to prevent

Caution: Do not plug a phone jack connector in the RJ-45 port. This may damage this

Caution: Use only twisted-pair cables with RJ-45 connectors that conform to FCC

on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.

compliant with the requirements of a Class 1 Laser Product and are inherently eye safe in normal operation. However, you should never look directly at a transmit port when it is powered on.

electrostatic discharge when handling this equipment.

device. Les raccordeurs ne sont pas utilisé pour le système téléphonique!

standards.

Environmental Statement

The manufacturer of this product endeavours to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means:

• Adherence to national legislation and regulations on environmental production standards.

• Conservation of operational resources.

• Waste reduction and safe disposal of all harmful un-recyclable by-products.

• Recycling of all reusable waste content.

• Design of products to maximize recyclables at the end of the product’s life span.

• Continual monitoring of safety standards.

End of Product Life Span

This product is manufactured in such a way as to allow for the recovery and disposal of all included electrical components once the product has reached the end of its life.

Manufacturing Materials

There are no hazardous nor ozone-depleting materials in this product.

Documentation

All printed documentation for this product uses biodegradable paper that originates from sustained and managed forests. The inks used in the printing process are non-toxic.

Purpose

This guide details the hardware features of the switch, including its physical and performance-related characteristics, and how to install the switch.

OMPLIANCES

Related Publications

The following publication gives specific information on how to operate and use the management functions of the switch: The

Also, as part of the switch’s firmware, there is an online web-based help that describes all management related features.

SMC6824MPE Management Guide

ABLE OF

ONTENTS

1 About the TigerStack III 10/100 . . . . . . . . . . . . . . . . . 1-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Switch Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Power over Ethernet Capability . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Network Management Options . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Description of Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

10/100BASE-T Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1000BASE-T/SFP Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Port and System Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Stack Master Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Mode PoE/Link Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Optional Stacking Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Power Supply Receptacle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

2 Network Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Introduction to Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Collapsed Backbone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Network Aggregation Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Remote Connections with Fiber Cable . . . . . . . . . . . . . . . . . . . . 2-4

Making VLAN Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

3 Installing the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Selecting a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Ethernet Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Equipment Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Optional Rack-Mounting Equipment . . . . . . . . . . . . . . . . . . . . . 3-3

ABLE OF CONTENTS

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Desktop or Shelf Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Installing an SFP Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Stacking Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Installing a Stacking Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Connecting Switches in a Stack . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Connecting to a Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Connecting to the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Wiring Map for Serial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

4 Making Network Connections . . . . . . . . . . . . . . . . . . . 4-1

Connecting Network Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Twisted-Pair Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Power over Ethernet Connections . . . . . . . . . . . . . . . . . . . . . . . 4-1

Cabling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Connecting to PCs, Servers, Hubs and Switches . . . . . . . . . . . . 4-3

Network Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Fiber Optic Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Connectivity Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

1000BASE-T Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . 4-6

1000 Mbps Gigabit Ethernet Collision Domain . . . . . . . . . . . . . 4-7

100 Mbps Fast Ethernet Collision Domain . . . . . . . . . . . . . . . . 4-8

10 Mbps Ethernet Collision Domain . . . . . . . . . . . . . . . . . . . . . 4-8

Cable Labeling and Connection Records . . . . . . . . . . . . . . . . . . . . . . . . 4-9

A Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Diagnosing Switch Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Power and Cooling Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

In-Band Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Stack Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3

xii

ABLE OF CONTENTS

B Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1

Twisted-Pair Cable and Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . B-1

10/100BASE-TX Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . B-2

Straight-Through Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Crossover Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

1000BASE-T Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Fiber Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Base Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

Management Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

D Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Glossary

Index

xiii

ABLES

Table 1-1 Port Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Table 1-2 System Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Table 3-1 Serial Cable Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Table 4-1 Maximum 1000BASE-T Gigabit Ethernet Cable Length . . 4-7 Table 4-2 Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths 4-7 Table 4-3 Maximum 1000BASE-LX Gigabit Ethernet Cable Length 4-7 Table 4-4 Maximum 1000BASE-ZX Fiber Optic Cable Distance . . . 4-7

Table 4-5 Maximum Fast Ethernet Cable Lengths . . . . . . . . . . . . . . . 4-8

Table 4-6 Maximum Ethernet Cable Length . . . . . . . . . . . . . . . . . . . . 4-8

Table A-1 Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Table B-1 10/100BASE-TX MDI and MDI-X Port Pinouts . . . . . . . B-2

Table B-2 1000BASE-T MDI and MDI-X Port Pinouts . . . . . . . . . . . B-5

Table D-1 TigerStack III 10/100 Products and Accessories . . . . . . . .D-1

xiv

IGURES

Figure 1-1 SMC6824MPE Front and Rear Panels . . . . . . . . . . . . . . . . 1-2

Figure 1-2 Port and System Status LEDs . . . . . . . . . . . . . . . . . . . . . . . 1-5

Figure 1-3 System LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Figure 1-4 Stack Master Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Figure 1-5 Mode Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Figure 1-6 Optional Stacking Transceiver . . . . . . . . . . . . . . . . . . . . . . . 1-9

Figure 1-7 Power Supply Receptacle . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

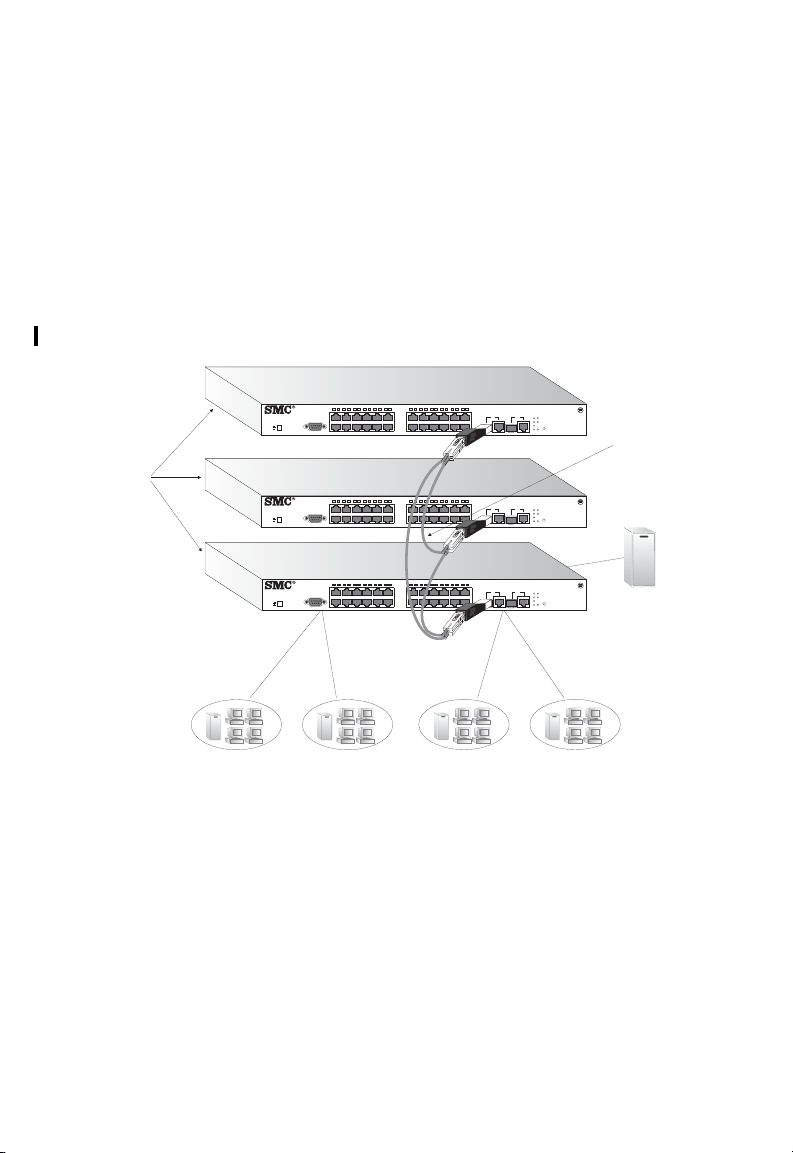

Figure 2-1 Collapsed Backbone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Figure 2-2 Network Aggregation Plan . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Figure 2-3 Remote Connections with Fiber Cable . . . . . . . . . . . . . . . . 2-4

Figure 2-4 Making VLAN Connections . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

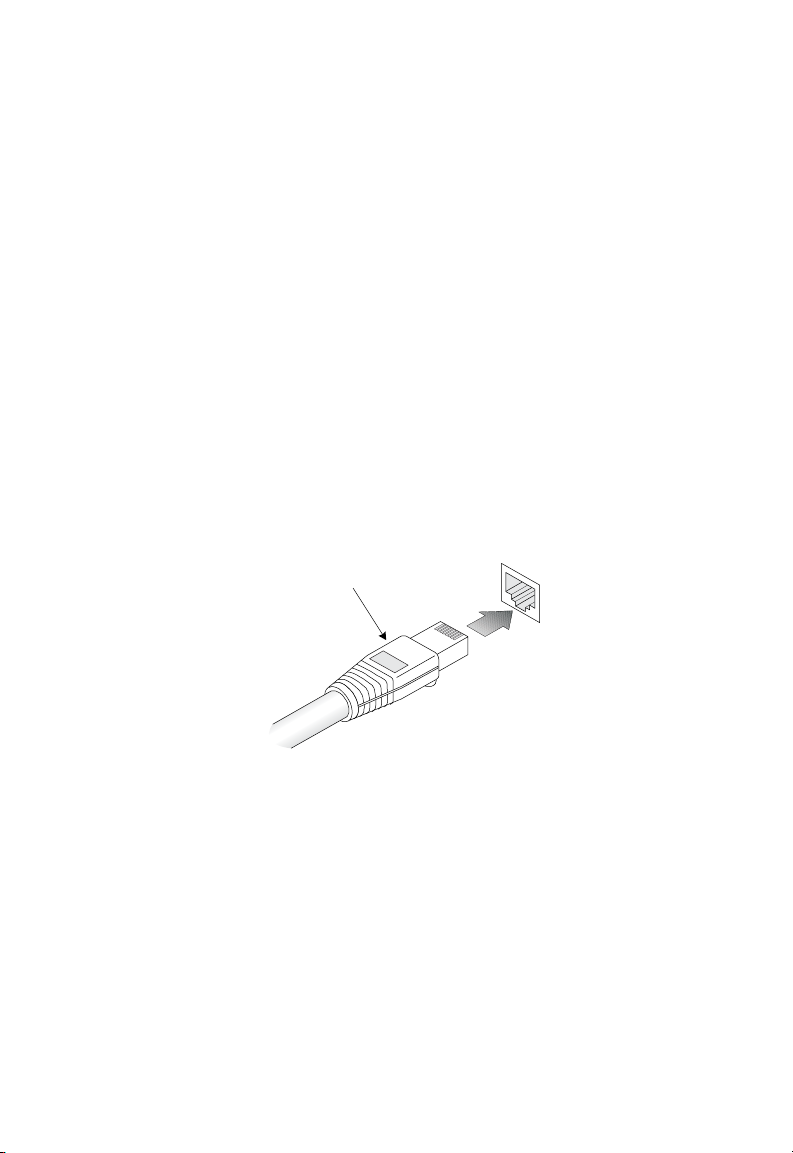

Figure 3-1 RJ-45 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Figure 3-2 Attaching the Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Figure 3-3 Installing the Switch in a Rack . . . . . . . . . . . . . . . . . . . . . . . 3-5

Figure 3-4 Attaching the Adhesive Feet . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Figure 3-5 Installing an SFP Transceiver . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Figure 3-6 Installing a Stacking Transceiver . . . . . . . . . . . . . . . . . . . . . 3-8

Figure 3-7 Connecting Switches in a Stack . . . . . . . . . . . . . . . . . . . . . . 3-9

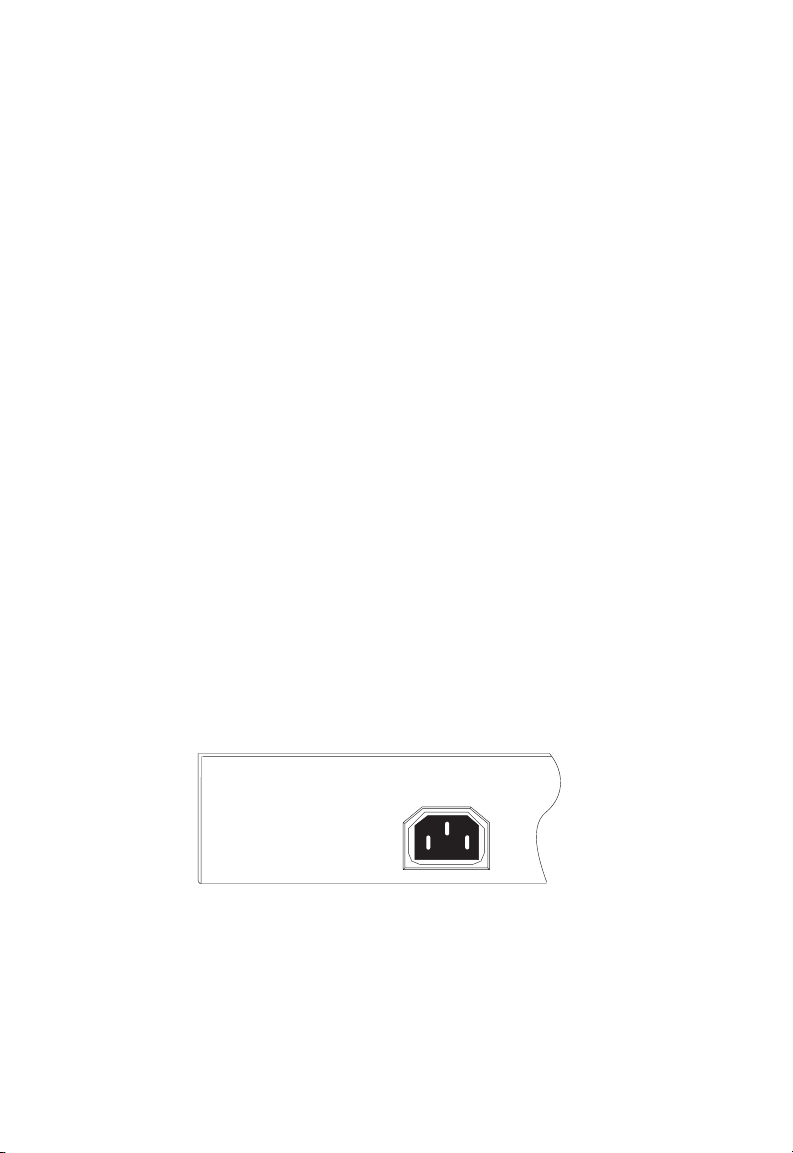

Figure 3-8 Power Receptacles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Figure 3-9 Serial Port (DB-9 DTE) Pin-Out . . . . . . . . . . . . . . . . . . . . 3-11

Figure 4-1 Making Twisted-Pair Connections . . . . . . . . . . . . . . . . . . . . 4-3

Figure 4-2 Network Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . 4-4

Figure B-1 RJ-45 Connector Pin Numbers . . . . . . . . . . . . . . . . . . . . . . B-1

Figure B-2 Straight-through Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Figure B-3 Crossover Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

IGURES

xvi

HAPTER

BOUT THE

IGERSTACK

Overview

The SMC6824MPE Power over Ethernet switch contains 24 10BASE-T/ 100BASE-TX RJ-45 ports and and two combination ports—10/100/ 1000BASE-T ports that operate in combination with Small Form Factor Pluggable (SFP) transceiver slots. An optional SFP stacking transceiver is available for connecting up to eight units to a 1 Gbps stack backplane.

All the 10BASE-T/100BASE-TX ports on the switch support IEEE 802.3af standard (802.3af) Power over Ethernet capabilities. Each port can detect connected 802.3af-compliant network devices, such as IP phones or wireless access points, and automatically supply the required DC power.

As well as its Power over Ethernet capabilities, the switch provides comprehensive network management features, such as Spanning Tree Protocol, multicast switching, virtual LANs, and Layer 2/3/4 CoS services that provide reliability and consistent performance for your network traffic.

III 10/100

1-1

BOUT THE TIGERSTACK

III 10/100

Combination RJ-45/SFP Ports

18 19

21 222324

Status Indicators (25, 26) Mode PoE/Link Button

Combination Port

Link/Act

PoE

TigerStackIII 10/100 6824MPE

Slave

Master

Stack Master Button

Power Socket

1234567

Console

Console Port

100-240V~ 50-60Hz 7.5A

Port Status Indicators (1-24)

131415 16

11 12

121314

Figure 1-1 SMC6824MPE Front and Rear Panels

Switch Architecture

The SMC6824MPE switch employs a wire-speed, non-blocking switching fabric. This permits simultaneous wire-speed transport of multiple packets at low latency on all ports. The SMC6824MPE switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection.

The switch uses store-and-forward switching to ensure maximum data integrity. With store-and-forward switching, the entire packet must be received into a buffer and checked for validity before being forwarded. This prevents errors from being propagated throughout the network.

System Indicators

PWR

Diag

Stacking

Mode

PoE/Link

The switch includes two Gigabit combination ports with RJ-45 connectors and associated SFP slots. The optional SFP stacking transceiver enables up to eight units to be connected together through a 1 Gbps stack backplane. The switch stack can be managed from a connection to any port on the stack using a single IP address.

1-2

Power over Ethernet Capability

The SMC6824MPE switch’s 24 front panel 10/100 Mbps ports support the IEEE 802.3af Power over Ethernet (PoE) standard that enables DC power to be supplied to attached devices using wires in the connecting Ethernet cable. Any 802.3af-compliant device attached to a port can directly draw power from the switch over the Ethernet cable without requiring its own separate power source. This capability gives network administrators centralized power control for devices such as IP phones and wireless access points, which translates into greater network availability.

For each attached 802.3af-compliant device, the SMC6824MPE switch automatically senses the load and dynamically supplies the required power. The switch delivers power to a device using the two wire pairs in UTP or STP cable that are not used for 10BASE-T/100BASE-TX connections. Each port can provide up to 15.4 W of power at the standard -48 VDC voltage. Independent overload and short-circuit protection for each port allows the switch to automatically shut down a port’s power when limits are exceeded.

Network devices such as IP phones, wireless access points, and network cameras, typically consume less than 10 W of power, so they are ideal for Power over Ethernet applications.

VERVIEW

Network Management Options

With a comprehensive arrangement of LEDs, the SMC6824MPE switch provides “at a glance” monitoring of network and port status. The switch can be managed over the network with a web browser or Telnet application, or via a direct connection to the console port. The switch includes a built-in network management agent that allows it to be managed in-band using SNMP or RMON (Groups 1, 2, 3, 9) protocols. It also has an RS-232 serial port (DB-9 connector) on the front panel for out-of-band management. A PC may be connected to this port out-of-band via a options.)

null-modem serial cable. (See Appendix B for wiring

for configuration and monitoring

1-3

BOUT THE TIGERSTACK

For a detailed description of the advanced features, refer to the Management Guide.

III 10/100

Description of Hardware

10/100BASE-T Ports

The SMC6824MPE switch base unit contains 24 10BASE-T/100BASE-TX RJ-45 ports. All ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. (See “10/100BASE-TX Pin Assignments” on page B-2.)

Each of these ports support auto-negotiation, so the optimum transmission mode (half or full duplex), and data rate (10 or 100 Mbps) can be selected automatically. If a device connected to one of these ports does not support auto-negotiation, the communication mode of that port can be configured manually.

Each port also supports IEEE 802.3x auto-negotiation of flow control, so the switch can automatically prevent port buffers from becoming saturated.

1000BASE-T/SFP Ports

These are combination Gigabit RJ-45 ports with shared Small Form Factor Pluggable (SFP) transceiver slots. If an SFP transceiver (purchased separately) is installed in a slot and has a valid link on the port, the associated RJ-45 port is disabled.

The 1000BASE-T RJ-45 ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. (See “1000BASE-T Pin Assignments” on page B-4.)

Note: Neither the 1000BASE-T RJ-45 ports nor the SFP slots support PoE

capability.

1-4

1234

ESCRIPTION OF HARDWARE

Port and System Status LEDs

The SMC6824MPE switch base unit also includes a display panel for key system and port indications that simplify installation and network troubleshooting. The LEDs, which are located on the front panel for easy viewing, are shown below and described in the following tables. The port status LEDs have two display modes; Link and PoE. The Link mode displays the link status and network activity on each port. The PoE mode displays the PoE power status on each port. Use the Mode Link/PoE button (see “Mode PoE/Link Button” on page 1-8) on the front panel to toggle between the two display modes. The current mode is indicated by the Link/Act and PoE system LEDs.

Port Status LEDs

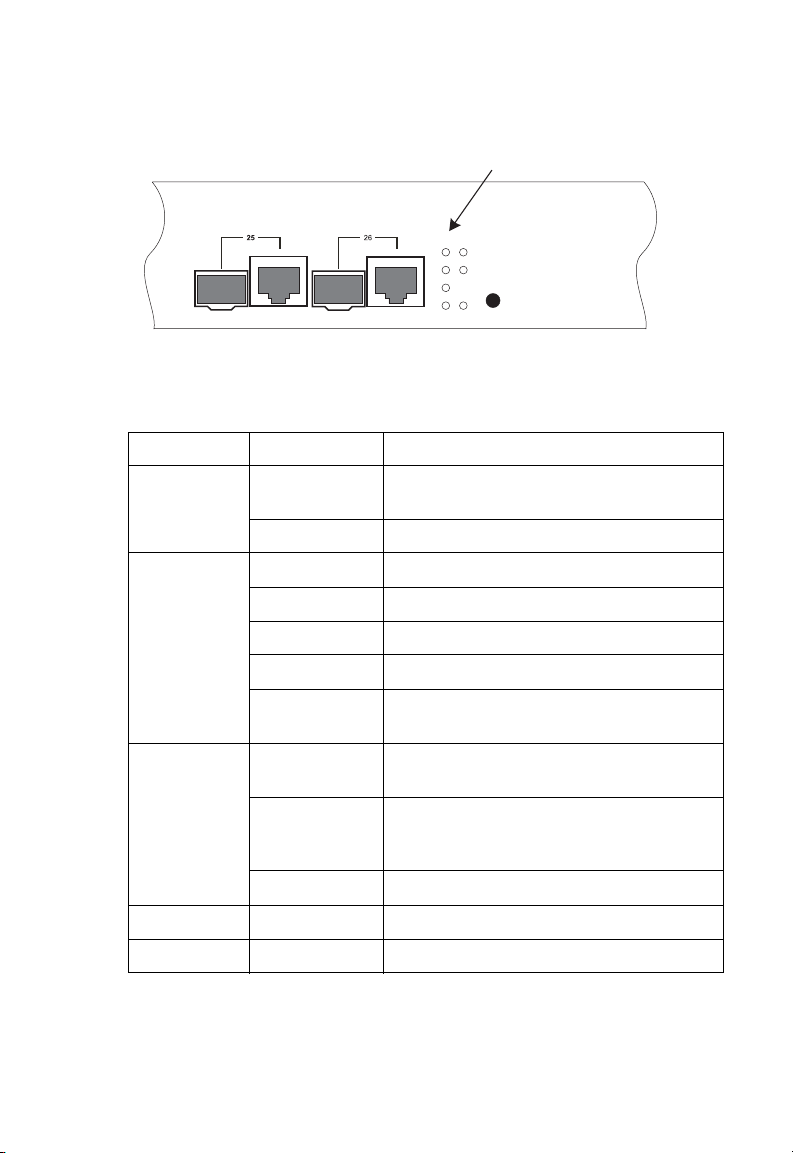

Figure 1-2 Port and System Status LEDs

Table 1-1 Port Status LEDs

LED Condition Status

1~24

(Link/Activity Mode)

On/Flashing Amber

On/Flashing Green

Port has established a valid 10 Mbps network connection. Flashing indicates activity.

Port has established a valid 100 Mbps network connection. Flashing indicates activity.

Alternate Green/Amber

Port has been disabled by the administrator.

Off There is no valid link on the port.

1-5

BOUT THE TIGERSTACK

LED Condition Status

1~24

(PoE Mode)

III 10/100

Table 1-1 Port Status LEDs

On Green Powered device is connected, but not

drawing power.

Flashing Green Powered device is receiving power.

Combination Ports

25-26

(Link/Activity)

Flashing Amber Port has detected a power overload or

On Amber The power budget for the switch has

Alternate Green/Amber

Off No powered device is connected to the

On/Flashing Amber

On/Flashing Green

Off There is no valid link on the port.

short circuit and shut down the port’s power.

been exceeded and the port’s power shut down.

Port power has been turned off by the administrator.

port.

Port has established a valid 10/100 Mbps network connection. Flashing indicates activity.

Port has established a valid 1000 Mbps network connection. Flashing indicates activity.

1-6

ESCRIPTION OF HARDWARE

System Status LEDs

Link/Act

PWR

PoE

Diag

Stacking

Mode

PoE/Link

Figure 1-3 System LEDs

Table 1-2 System Status LEDs

LED Condition Status

PWR On Green Unit’s internal power supply is operating

normally.

Off Unit has no power connected.

Diag On Green System diagnostic test successfully completed.

Flashing Green System diagnostic test is in progress.

On Amber System diagnostic test has detected a fault.

Flashing Amber Cannot receive packet from stacking port.

Alternate

Fan has failed or the unit has over-heated.

Green/Amber

Stacking On Green This switch is acting as the master unit in the

stack.

Flashing Green Initial state of stacking configuration to

determine whether the switch will act as a master or slave unit.

On Amber This switch is acting as a slave unit in the stack.

Link/Act On Green LED display mode is Link/Act.

PoE On Green LED display mode is PoE.

1-7

BOUT THE TIGERSTACK

III 10/100

Stack Master Button

The unit also includes a Stack Master button, as shown in the following diagram.

Console

Slave

Master

Stack Master Button

Figure 1-4 Stack Master Button

The Stack Master button enables one switch in the stack to be selected as the master.

Mode PoE/Link Button

The Mode PoE/Link button is located on the front panel.

Mode Select Button

Link/Act

PWR

PoE

Diag

Stacking

Mode

PoE/Link

Figure 1-5 Mode Selection

The Mode PoE/Link button is used to toggle between the two port status LED display modes (see “Port and System Status LEDs” on page 1-5). Pressing this button changes from one display mode to the other. The default display mode is Link/Act mode.

1-8

ESCRIPTION OF HARDWARE

Optional Stacking Transceiver

Figure 1-6 Optional Stacking Transceiver

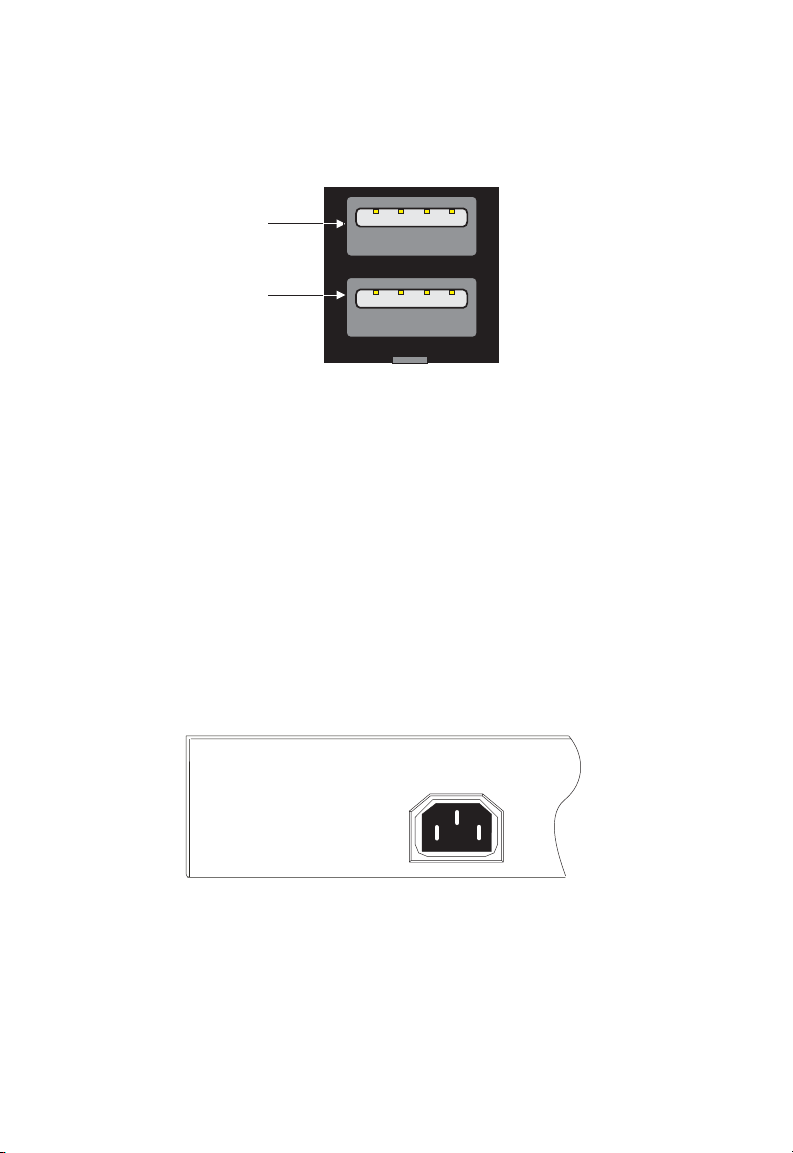

The stacking transceiver provides two 1 Gbps ports via USB Type-A connectors. The upper port is a transmit port and the lower one is a receive port. The transceiver allows up to eight switches to be linked together using stacking cables (one stacking cable is included with each optional stacking transceiver). The push button on the switch’s front panel enables one switch in the stack to be selected as the master. (See “Stack Master Button” on page 1-8.)

Power Supply Receptacle

The standard power receptacle is for the AC power cord. It is located on the rear panel of the switch.

100-240V~ 50-60Hz 7.5A

Figure 1-7 Power Supply Receptacle

1-9

BOUT THE TIGERSTACK

III 10/100

Features and Benefits

Connectivity

• 24 dual-speed ports for easy Fast Ethernet integration and for protection

of your investment in legacy LAN equipment.

• All 10/100 RJ-45 ports support IEEE 802.3af standard Power over

Ethernet

• Two Gigabit combination ports—use either 10/100/1000BASE-T

RJ-45 or Small Form Factor Pluggable (SFP) transceiver slot

• Auto-negotiation enables each RJ-45 port to automatically select the

optimum communication mode (half or full duplex) if this feature is supported for the attached device

• RJ-45 10/100BASE-TX ports support auto MDI/MDI-X.

• Unshielded (UTP) cable supported on all RJ-45 ports: Category 3 or

better for 10 Mbps connections, Category 5 or better for 100 Mbps connections, and Category 5, 5e or 6 for 1000 Mbps connections

• IEEE 802.3u, IEEE 802.3z, and IEEE 802.3ab compliant

Performance

• Transparent bridging

• Aggregate duplex bandwidth of up to 8.8 Gbps

• Switching table with a total of 8K MAC address entries

• Provides Store-and-Forward switching

• Wire-speed filtering and forwarding

• Supports flow control, using back pressure for half duplex and IEEE

802.3x for full duplex

1-10

• Supports auto MDI/MDIX on all 10/100BASE-TX ports

• Provides Head-of-Line blocking

• Broadcast storm control

• Desktop or rack-mountable

• Stacking capability for up to eight units

Management

• “At-a-glance” LEDs for easy troubleshooting

• Network management agent:

- Manages switch in-band or out-of-band

- Supports Telnet, SNMP/RMON and web-based interface

EATURES AND BENEFITS

1-11

BOUT THE TIGERSTACK

III 10/100

1-12

HAPTER

ETWORK

LANNING

Introduction to Switching

A network switch allows simultaneous transmission of multiple packets via non-crossbar switching. This means that it can partition a network more efficiently than bridges or routers. The switch has, therefore, been recognized as one of the most important building blocks for today’s networking technology.

When performance bottlenecks are caused by congestion at the network access point (such as the network card for a high-volume file server), the device experiencing congestion (server, power user, or hub) can be attached directly to a switched port. And, by using full-duplex mode, the bandwidth of the dedicated segment can be doubled to maximize throughput.

When networks are based on repeater (hub) technology, the maximum distance between end stations is limited. For Ethernet, there may be up to four hubs between any pair of stations and for Fast Ethernet, the maximum is two. This is known as the hop count. However, a switch turns the hop count back to zero. So subdividing the network into smaller and more manageable segments, and linking them to the larger network by means of a switch, removes this limitation.

A switch can be easily configured in any network to significantly boost bandwidth while using conventional cabling and network cards.

2-1

ETWORK PLANNING

Application Examples

The SMC6824MPE PoE switch is not only designed to segment your network, but also to provide a wide range of options in setting up network connections. Some typical applications are described below.

Collapsed Backbone

The SMC6824MPE switch is an excellent choice for mixed Ethernet and Fast Ethernet installations where significant growth is expected in the near future. You can easily build on this basic configuration, adding direct full-duplex connections to workstations or servers. When the time comes for further expansion, just connect to another hub or switch using one of the Gigabit Ethernet ports built into the front panel.

In the figure below, the switch is operating as a collapsed backbone for a small LAN. It is providing dedicated 100 Mbps full-duplex connections to workstations and 100 Mbps full-duplex connections to power users and servers. In addition, connected IP phones and wireless access points are receiving PoE power from the switch.

2-2

...

Servers

100 Mbps Full Duplex

TigerStackIII10/100 6824MPE

Network Segment

100 Mbps Full Duplex

Console

Slave

Master

Figure 2-1 Collapsed Backbone

1234567

18 19

131415 16

11 12

21 222324

121314

Link/Act

PWR

PoE

Diag

Stacking

Mode

PoE/Link

Power-over-Ethernet Devices

10/100 Mbps Full Duplex

...

Workstations

100 Mbps Full Duplex

Standard LAN

PoE

PPLICATION EXAMPLES

Network Aggregation Plan

With 24 parallel bridging ports (i.e., 24 distinct collision domains), the SMC6824MPE switch can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput.

In the figure below, the 10BASE-T/100BASE-TX ports on the switch are providing 100 Mbps connectivity for up to 24 segments. In addition, the SMC6824MPE switch is also connecting to a server at 1000 Mbps.

Switch Units

TigerStackIII 10/100 6824MPE

Slave

Master

TigerStackIII 10/100 6824MPE

Slave

Master

TigerStackIII 10/100 6824MPE

Slave

Master

1234567

Console

1234567

Console

1234567

Console

18 19

11 12

121314

131415 16

21 222324

18 19

131415 16

21 222324

2424

18 19

131415 16

21 222324

2424

Link/Act

PWR

PoE

Diag

Stacking

Mode

PoE/Link

Link/Act

PWR

PoE

Diag

Stacking

Mode PoE/Link

Link/Act

PWR

PoE

Diag

Stacking

Mode PoE/Link

10/100 Mbps Segments

...

Figure 2-2 Network Aggregation Plan

Stacking Cable

Server

2-3

ETWORK PLANNING

Remote Connections with Fiber Cable

Fiber optic technology allows for longer cabling than any other media type. Using a 1000BASE-SX multimode fiber (MMF) SFP transceiver, you can run a link up to 550 m. A 1000BASE-LX single-mode fiber (SMF) link can run up to 5 km. A 1000BASE-ZX single-mode fiber (SMF) link can run up to 100 km. This allows the switch to serve as a collapsed backbone, providing direct connectivity for a widespread LAN.

1000BASE-LX or 1000BASE-ZX SFP transceivers can be used to interconnect remote network segments, or can be used to provide a link to other buildings in a campus setting. 1000BASE-SX SFP transceivers can be used for Gigabit fiber connections between floors in the same building. The figure below illustrates this switch connecting multiple segments with fiber cable.

2-4

Server Farm

Remote Switch

1234567

TigerStackIII 10/100 6824MPE

Slave

Master

1000BASE-ZX SMF (100 kilometers)

Console

11 12

121314

131415 16

18 19

21 222324

1000BASE-LX SMF (5 kilometers)

Remote Switch

10/100 Mbps Segments

...

Figure 2-3 Remote Connections with Fiber Cable

Link/Act

PWR

PoE

Diag

Stacking

Mode PoE/Link

PPLICATION EXAMPLES

Making VLAN Connections

This switch supports VLANs which can be used to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group, and can eliminate broadcast storms in large networks. This provides a more secure and cleaner network environment.

VLANs can be based on untagged port groups, or traffic can be explicitly tagged to identify the VLAN group to which it belongs. Untagged VLANs can be used for small networks attached to a single switch. However, tagged VLANs should be used for larger networks, and all the VLANs assigned to the inter-switch links.

R&D

Testing

VLAN 2

VLAN 1

Tagged

Ports

VLAN 3

Finance

VLAN 4

TigerStackIII 10/100 6824MPE

Slave

Master

Untagged Ports

Console

Marketing

1234567

VLAN

unaware

switch

11 12

121314

Finance

VLAN 3

131415 16

18 19

21 222324

Tagged Port

Link/Act

PWR

PoE

Diag

Stacking

Mode

PoE/Link

VLAN aware

switch

R&D

Testing

VLAN 1

VLAN 2

Figure 2-4 Making VLAN Connections

Note: When connecting to a switch that does not support IEEE 802.1Q VLAN

tags, use untagged ports.

2-5

ETWORK PLANNING

Application Notes

1. Full-duplex operation only applies to point-to-point access (such as

when a switch is attached to a workstation, server or another switch). When the switch is connected to a hub, both devices must operate in half-duplex mode.

2. Avoid using flow control on a port connected to a hub unless it is

actually required to solve a problem. Otherwise back pressure jamming signals may degrade overall performance for the segment attached to the hub.

3. As a general rule, the length of fiber optic cable for a single switched link

should not exceed:

• 1000BASE-SX: 550 m (1805 ft) using multimode fiber.

• 1000BASE-LX: 5 km (3.2 miles) using single-mode fiber

• 1000BASE-ZX: 100 km (62.14 miles) using single-mode fiber

However, power budget constraints must also be considered when calculating the maximum cable length for your specific environment.

2-6

HAPTER

NSTALLING THE

WITCH

Selecting a Site

SMC6824MPE switch units can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location.

• The site should:

- be at the center of all the devices you want to link and near a power outlet.

- be able to maintain its temperature within 0 to 50 °C (32 to 122 °F) and its humidity within 5% to 95%, non-condensing

- provide adequate space (approximately two inches) on all sides for proper air flow

- be accessible for installing, cabling and maintaining the devices

- allow the status LEDs to be clearly visible

• Make sure twisted-pair cable is always routed away from power lines, fluorescent lighting fixtures and other sources of electrical interference, such as radios and transmitters.

• Make sure that the unit is connected to a separate grounded power outlet that provides 100 to 240 VAC, 50 to 60 Hz, is within 2.44 m (8 feet) of each device and is powered from an independent circuit breaker. As with any equipment, using a filter or surge suppressor is recommended.

3-1

NSTALLING THE SWITCH

Ethernet Cabling

To ensure proper operation when installing the SMC6824MPE switch into a network, make sure that the current cables are suitable for 10BASE-T or 100BASE-TX operation. Check the following criteria against the current installation of your network:

• Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP) cables with RJ-45 connectors; Category 3 or better for 10BASE-T and Category 5 or better for 100BASE-TX.

• Protection from radio frequency interference emissions

• Electrical surge suppression

• Separation of electrical wires (switch related or other) and electromagnetic fields from data based network wiring

• Safe connections with no damaged cables, connectors or shields

RJ-45 Connector

3-2

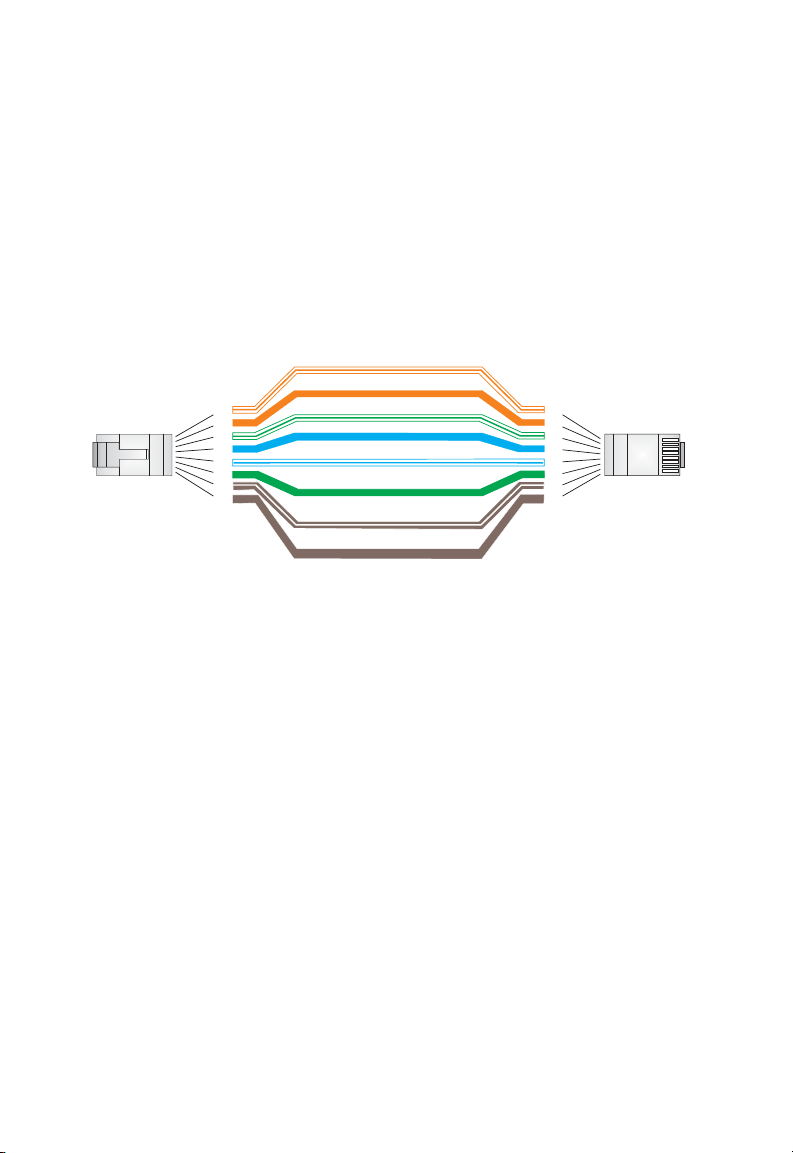

Figure 3-1 RJ-45 Connections

QUIPMENT CHECKLIST

Equipment Checklist

After unpacking this SMC6824MPE switch, check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment.

Package Contents

• SMC6824MPE PoE switch

• AC power cord

• Owner registration card

• Serial cable

• Rack mounting kit

• This Installation Guide

• Management Guide

• SMC Warranty Registration Card—be sure to complete and return to SMC

Optional Rack-Mounting Equipment

If you plan to rack-mount the SMC6824MPE switch, be sure to have the following equipment available:

• Four mounting screws for each device you plan to install in a rack—these are not included

• A screwdriver (Phillips or flathead, depending on the type of screws used)

3-3

NSTALLING THE SWITCH

Mounting

The SMC6824MPE switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow.

Rack Mounting

Before rack mounting the SMC6824MPE switch, pay particular attention to the following factors:

• Temperature: Since the temperature within a rack assembly may be higher than the ambient room temperature, check that the rack-environment temperature is within the specified operating temperature range. (See page C-2.)

• Mechanical Loading: Do not place any equipment on top of a rack-mounted unit.

• Circuit Overloading: Be sure that the supply circuit to the rack assembly is not overloaded.

• Grounding: Rack-mounted equipment should be properly grounded. Particular attention should be given to supply connections other than direct connections to the mains.

3-4

OUNTING

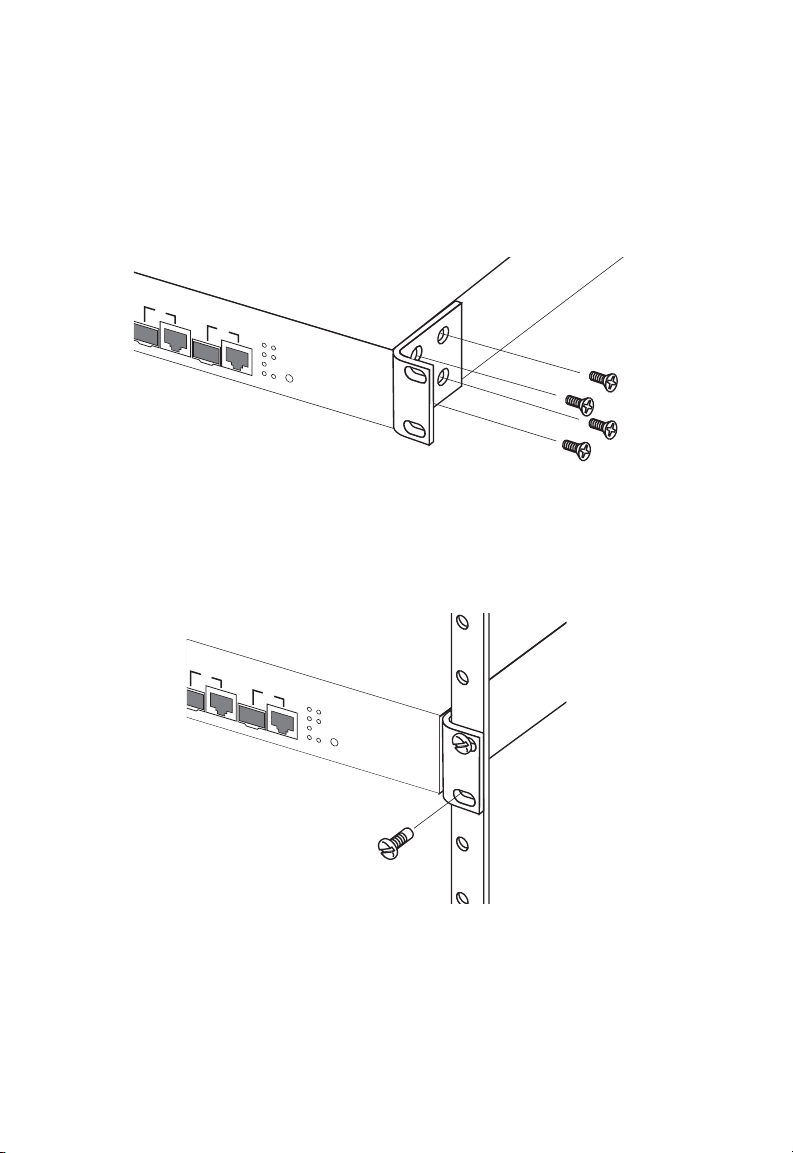

To rack-mount devices:

1. Attach the brackets to the device using the screws provided in the

Bracket Mounting Kit.

Link/Act

PoE

Diag

tacking

ode

/Link

Figure 3-2 Attaching the Brackets

2. Mount the device in the rack, using four rack-mounting screws (not

provided).

Link/Act

PoE

Diag

Stacking

Mode

PoE/Link

Figure 3-3 Installing the Switch in a Rack

3. If installing a single switch only, turn to “Connecting to a Power Source”

at the end of this chapter.

3-5

NSTALLING THE SWITCH

4. If installing multiple switches, mount them in the rack, one below the

other, in any order.

Desktop or Shelf Mounting

1. Attach the four adhesive feet to the bottom of the first switch.

n i

L /

E o P

d o

k c

Sta

6 2

5 2

D E

P R W

P t

in L

2. Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow.

21 22

18 19

15 16

11 12

nsole

Figure 3-4 Attaching the Adhesive Feet

e t s

v la

kIII 1

3. If installing a single switch only, go to “Connecting to a Power Source” at the end of this chapter.

4. If installing multiple switches, attach four adhesive feet to each one. Place each device squarely on top of the one below, in any order.

3-6

NSTALLING AN

SFP T

Installing an SFP Transceiver

15 16

21 22

Figure 3-5 Installing an SFP Transceiver

To install an SFP transceiver, perform the following steps:

1. Consider your network and cabling requirements to select an appropriate SFP transceiver type.

Link/Act

PoE

Diag

Stacking

ode

PoE/Link

RANSCEIVER

2. Insert the transceiver with the optical connector facing outward and the slot connector facing down. Note that SFP transceivers are keyed so they can only be installed in one orientation.

3. Slide the SFP transceiver into the slot until it clicks into place.

Note: SFP transceivers are hot-swappable. The switch does not need to be

powered off before installing or removing a transceiver. However, always first disconnect the network cable before removing a transceiver.

3-7

NSTALLING THE SWITCH

Stacking Switches

The switch supports stacking up to eight units through an optional SFP stacking transceiver. The stacking transceiver must be installed in the port 25 slot. Each stacking transceiver has two connectors, Tx and Rx, for attaching stacking cables. Figure 3-7 shows how stacking cables are connected between switches in a stack.

Note: The stacking transceiver must only be installed in the port 25 SFP

slot.

Installing a Stacking Transceiver

The stacking transceiver must be installed in the port 25 slot. It should be inserted before any of the systems in the stack are powered on.

15 16

21 22

k/A

t P

D ia

Stac

ing

Figure 3-6 Installing a Stacking Transceiver

Slide the SFP transceiver into the SFP transceiver slot until it clicks into place. To remove, pull on the tab at the bottom of the front of the transceiver.

3-8

TACKING SWITCHES

Connecting Switches in a Stack

1 4

4 1

1 3

1 5

1 6

1 7

2 1

2 3

2 4

2 3

1 4

3 1

1 3

1 4

3 1

1 3

1 4

2 6

2 4

1 4

1 5

1 6

1 7

2 1

2 3

2 4

2 3

2 4

1 4

1 5

1 6

1 7

2 1

2 3

2 4

2 3

2 4

i n

k /A

c t

t P

o E

D ia

6 Sta

Sta

k in

o d

d e

e P

P o

2 6

k /A

c t

t P

o E

D ia

6 Sta

Sta

k in

e P

P o

2 6

i n

k /A

c t

t P

o E

D i

i a

6 Sta

Sta

k in

e P

P o

Figure 3-7 Connecting Switches in a Stack

Note: The stacking transceiver must only be installed in the port 25 SFP

slot.

To connect up to eight switches in a stack, perform the following steps:

Stack Master

Slave

1. Install SFP stacking transceivers into the port 25 slot for each switch in the stack.

2. Plug one end of a stack cable into the Tx (top) port of the top unit

3. Plug the other end of the stack cable into the Rx (bottom) port of the next unit.

4. Repeat steps 1 and 2 for each unit in the stack. Form a simple chain starting at the Tx port on the top unit and ending at the Rx port on the bottom unit (stacking up to 8 units).

3-9

NSTALLING THE SWITCH

5. Complete the stack connections by plugging one end of a stack cable into the Tx port on the bottom unit and the other end into the Rx port on the top unit.

6. Select the Master unit in the stack by pressing the push button in on only one of the switches. Only one switch in the stack can operate as the Master, all other units operate in slave mode. If more than one switch in the stack is selected as Master, or if no switches are selected, the stack will not function.

Note: The stacking feature requires that all stacking transceiver ports be

connected and the switches powered on. If one stack link is not connected, or if a switch is powered off or fails, the stack will not function. To re-establish the stack all switches in the stack must be powered on (or the faulty switch replaced), and the Master unit rebooted. This will then reboot all the other switches in the stack.

Connecting to a Power Source

To connect a switch to a power source:

1. Insert the power cable plug directly into the AC receptacle located at the back of the switch.

100-240V~ 50-60Hz 7.5A

Figure 3-8 Power Receptacles

2. Plug the other end of the cable into a grounded, 3-pin socket, AC power source.

3-10

ONNECTING TO THE CONSOLE PORT

Note: For International use, you may need to change the AC line cord. You

must use a line cord set that has been approved for the receptacle type in your country.

3. Check the front-panel LEDs as the device is powered on to be sure the PWR LED is lit. If not, check that the power cable is correctly plugged in.

Connecting to the Console Port

The DB-9 serial port on the SMC6824MPE switch’s front panel is used to connect to the switch for out-of-band console configuration. If using a stack, the connection must be made to the serial port of the Master unit in the stack. The on-board menu-driven configuration program can be accessed from a terminal or a PC running a terminal emulation program. The pin assignments used to connect to the serial port are provided in the following table.

6 9

Figure 3-9 Serial Port (DB-9 DTE) Pin-Out

3-11

NSTALLING THE SWITCH

Wiring Map for Serial Cable

Table 3-1 Serial Cable Wiring

Switch’s 9-Pin Serial Port

2 RXD (receive data) <---------------------------- 3 TXD (transmit data)

3 TXD (transmit data) ----------------------------> 2 RXD (receive data)

5 SGND (signal ground) ------------------------------ 5 SGND (signal ground)

No other pins are used.

Null Modem PC’s 9-Pin

DTE Port

The serial port’s configuration requirements are as follows:

• Default Baud rate—9,600 bps

• Character Size—8 Characters

• Parity—None

• Stop bit—One

•Data bits—8

3-12

HAPTER

AKING

ETWORK

ONNECTIONS

Connecting Network Devices

The SMC6824MPE PoE switch is designed to be connected to 10 or 100 Mbps network cards in PCs and servers, as well as to other switches and hubs. It may also be connected to remote devices using the optional SFP transceivers.

If 802.3af-compliant PoE devices are connected the switch’s 10/100 Mbps ports, it automatically supplies the required power.

Twisted-Pair Devices

Each device requires a twisted-pair (UTP or STP) cable with RJ-45 connectors at both ends. Use Category 5, 5e or 6 cable for 1000BASE-T connections, Category 5 or better for 100BASE-TX connections, and Category 3 or better for 10BASE-T connections.

Power over Ethernet Connections

The SMC6824MPE PoE switch automatically detects an 802.3af-compliant device by its authenticated PoE signature and senses its required load before turning on DC power to the port. This detection mechanism prevents damage to other network equipment that is not 802.3af compliant.

4-1

AKING NETWORK CONNECTIONS

Note: Power over Ethernet connections work with all existing Category 3,

4, 5, 5e or 6 network cabling, including patch cables and patch-panels, outlets, and other connecting hardware, without requiring modification.

The SMC6824MPE switch delivers power to a device using the two unused wire pairs in UTP or STP cable (RJ-45 pins 4, 5, 7, and 8). The switch can provide up to 15.4 W of power continuously on each 10/100 Mbps port. However, taking into account some power loss over the cable run, the amount of power that can be delivered to a terminal device is 12.95 W. If a device draws more than 15.4 W, from a port, an overload condition occurs and the port turns off the power.

The switch controls the power and data on a port independently. Power can be requested from a device that already has a data link to the switch. Also, the switch can supply power to a device even if the port’s data connection has been disabled. The power on a port is continuously monitored by the switch and it will be turned off as soon as a device connection is removed.

Cabling Guidelines

The RJ-45 ports on the SMC6824MPE switch support automatic MDI/ MDI-X pinout configuration, so you can use standard straight-through twisted-pair cables to connect to any other network device (PCs, servers, switches, routers, or hubs).

See Appendix B for further information on cabling.

Caution: Do not plug a phone jack connector into an RJ-45 port. This will

damage the switch. Use only twisted-pair cables with RJ-45 connectors that conform to FCC standards.

4-2

WISTED-PAIR DEVICES

Connecting to PCs, Servers, Hubs and Switches

1. Attach one end of a twisted-pair cable segment to the device’s RJ-45 connector.

Figure 4-1 Making Twisted-Pair Connections

2. If the device is a network card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. (See the section “Network Wiring Connections.”) Otherwise, attach the other end to an available port on the SMC6824MPE switch.

3. Make sure each twisted pair cable does not exceed 100 meters (328 ft) in length.

Note: Avoid using flow control on a port connected to a hub unless it is

actually required to solve a problem. Otherwise back pressure jamming signals may degrade overall performance for the segment attached to the hub.

3. As each connection is made, the Link LED (on the switch) corresponding to each port will light to indicate that the connection is valid.

4-3

AKING NETWORK CONNECTIONS

Network Wiring Connections

Today, the punch-down block is an integral part of many of the newer equipment racks. It is actually part of the patch panel. Instructions for making connections in the wiring closet with this type of equipment follows.

1. Attach one end of a patch cable to an available port on the SMC6824MPE switch, and the other end to the patch panel.

2. If not already in place, attach one end of a cable segment to the back of the patch panel where the punch-down block is located, and the other end to a modular wall outlet.

3. Label the cables to simplify future troubleshooting.

Equipment Rack (side view)

TigerStackIII10/100 6824MPE

Slave

Master

Console

1234567

1211

Switch

1112

1213142324

18 19

13141516

21222324

Link/Act

PWR

PoE

Diag

26 Stacking

Mode

PoE/Link

Patch Panel

Figure 4-2 Network Wiring Connections

Punch-Down Block

Wall

4-4

WISTED-PAIR DEVICES

Fiber Optic Devices

An optional slide-in 1000BASE-SX, 1000BASE-LX, or 1000BASE-ZX SFP transceiver may be used for backbone or remote connections, or for connecting to a high-speed server.

Each single-mode fiber optic port requires 9/125 micron single-mode fiber optic cabling with an LC connector at both ends. Each multimode fiber optic port requires 50/125 or 62.5/125 micron multimode fiber optic cabling with an LC connector at both ends.

Warning: This switch uses lasers to transmit signals over fiber optic cable.

The lasers are compliant with the requirements of a Class 1 Laser Product and are inherently eye safe in normal operation. However, you should never look directly at a transmit port when it is powered on.

1. Remove and keep any protective port covers. When not connected to a fiber cable, the cover should be replaced to protect the optics.

2. Check that the fiber terminators are clean. You can clean the cable plugs by wiping them gently with a clean tissue or cotton ball moistened with a little ethanol. Dirty fiber terminators on fiber optic cables will impair the quality of the light transmitted through the cable and lead to degraded performance on the port.

4-5

AKING NETWORK CONNECTIONS

3. Connect one end of the cable to the LC port on the switch and the other end to the port on the other device. Since LC connectors are keyed, the cable can be attached in only one orientation.

15 1

18 19

21 22

LC fiber connector

Sta

Connectivity Rules

When adding hubs (repeaters) to your network, please follow the connectivity rules listed in the manuals for these products. However, note that because switches break up the path for connected devices into separate collision domains, you should not include the SMC6824MPE switch or connected cabling in your calculations for cascade length involving other devices.

1000BASE-T Cable Requirements

All Category 5 UTP cables that are used for 100BASE-TX connections should also work for 1000BASE-T, providing that all four wire pairs are connected. However, it is recommended that for all critical connections, or any new cable installations, Category 5e (enhanced Category 5) or Category 6 cable should be used. The Category 5e and 6 specifications include test parameters that are only recommendations for Category 5. Therefore, the first step in preparing existing Category 5 cabling for running 1000BASE-T is a simple test of the cable installation to be sure that it complies with the IEEE 802.3ab standards.

4-6

1000 Mbps Gigabit Ethernet Collision Domain

Table 4-1 Maximum 1000BASE-T Gigabit Ethernet Cable Length

Cable Type Maximum Cable

Category 5, 5e, or 6 100-ohm UTP or STP

Table 4-2 Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths

Fiber Size Fiber

62.5/125 micron multimode fiber

50/125 micron multimode fiber

Bandwidth

160 MHz/km 2-220 m (7-722 ft) LC

200 MHz/km 2-275 m (7-902 ft) LC

400 MHz/km 2-500 m (7-1641 ft) LC

500 MHz/km 2-550 m (7-1805 ft) LC

Table 4-3 Maximum 1000BASE-LX Gigabit Ethernet Cable Length

Fiber Size Fiber

9/125 micron single-mode fiber

Bandwidth

N/A 2 m - 5 km

Length

100 m (328 ft) RJ-45

Maximum Cable Length

(7 ft - 3.2 miles)

ONNECTIVITY RULES

Connector

Table 4-4 Maximum 1000BASE-ZX Fiber Optic Cable Distance

Fiber Size Fiber

9/125 micron single-mode fiber

* For link spans exceeding 70 km, you may need to use premium single mode fiber or

dispersion shifted single mode fiber

Bandwidth

N/A 70* - 100 km

Maximum Cable Length

(43.5 - 62.1 miles)

Connector

4-7

AKING NETWORK CONNECTIONS

100 Mbps Fast Ethernet Collision Domain

Table 4-5 Maximum Fast Ethernet Cable Lengths

Type Cable Type Max. Cable Length Connector

100BASE-TX Category 5 or better 100-ohm

UTP or STP

100 m (328 ft) RJ-45

10 Mbps Ethernet Collision Domain

Table 4-6 Maximum Ethernet Cable Length

Cable Type Maximum

Twisted Pair, Category 3 or better 100-ohm UTP

Length

100 m (328 ft) RJ-45

Connector

4-8

ABLE LABELING AND CONNECTION RECORDS

Cable Labeling and Connection Records

When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. Doing so will enable you to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption.

To best manage the physical implementations of your network, follow these guidelines:

• Clearly label the opposing ends of each cable.

• Using your building’s floor plans, draw a map of the location of all network-connected equipment. For each piece of equipment, identify the devices to which it is connected.

• Note the length of each cable and the maximum cable length supported by the switch ports.

• For ease of understanding, use a location-based key when assigning prefixes to your cable labeling.

• Use sequential numbers for cables that originate from the same equipment.

• Differentiate between racks by naming accordingly.

• Label each separate piece of equipment.

• Display a copy of your equipment map, including keys to all abbreviations at each equipment rack.

4-9

AKING NETWORK CONNECTIONS

4-10

ROUBLESHOOTING

Diagnosing Switch Indicators

Table A-1 Troubleshooting Chart

Symptom Action

PPENDIX

PWR LED is Off

Diag LED is Amber

Diag LED is Flashing Amber

Stack LED is Flashing Green or Amber

• Internal power supply may be disconnected. Check connections between the switch, the power cord and the wall outlet.

• The system has detected a fault. Power cycle the switch to try and clear the condition.

• If the condition does not clear, contact your dealer for assistance.

• Check that all stacking cables are properly connected.

• The stack has not completed its initial configuration. Wait a few minutes for the process to complete.

• If flashing continues, check that the Master Select button is pressed in on only one switch.

• Check that all stacking cables are properly connected.

A-1

ROUBLESHOOTING

Table A-1 Troubleshooting Chart

Symptom Action

Link/Act LED is Off

• Verify that the switch and attached device are powered on.

• Be sure the cable is plugged into both the switch and corresponding device.

• If the switch is installed in a rack, check the connections to the punch-down block and patch panel.

• Verify that the proper cable type is used and its length does not exceed specified limits.

• Check the adapter on the attached device and cable connections for possible defects. Replace the defective adapter or cable if necessary.

Power and Cooling Problems

If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply. However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet, and verify that the fans on the unit are unobstructed and running prior to shutdown. If you still cannot isolate the problem, the internal power supply may be defective.

Installation

Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly.

A-2

IN-B

In-Band Access

You can access the management agent in the SMC6824MPE switch from anywhere within the attached network using Telnet, a web browser, or other network management software tools. However, you must first configure the switch with a valid IP address, subnet mask, and default gateway. If you have trouble establishing a link to the management agent, check to see if you have a valid network connection. Then verify that you entered the correct IP address. Also, be sure the port through which you are connecting to the switch has not been disabled. If it has not been disabled, then check the network cabling that runs between your remote location and the switch.

Note: The management agent accepts up to four simultaneous Telnet

sessions. If the maximum number of sessions already exists, an additional Telnet connection will not be able to log into the system.

Stack Troubleshooting

If a stack fails to initialize or function, first check the following items:

AND ACCESS

• Check that all stacking cables are properly connected.

• Check if any stacking cables appear damaged.

• Check that only one Master Select button is pressed in.

• Check that all switches in the stack are powered on.

After checking all items, reboot all the switches in the stack. If the problem is still not resolved, contact your dealer for assistance.

A-3

ROUBLESHOOTING

A-4

PPENDIX

ABLES

Twisted-Pair Cable and Pin Assignments

Caution: DO NOT plug a normal phone jack connector into any RJ-45

port. Use only twisted-pair cables with RJ-45 connectors that conform with FCC standards.

For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the twisted-pair cable must have four pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes. Also, an RJ-45 connector must be attached to both ends of the cable.

Caution: Each wire pair must be attached to the RJ-45 connectors in a

specific orientation. (See “Cabling Guidelines” on page 4-2 for an explanation.)

Figure B-1 illustrates how the pins on the RJ-45 connector are numbered. Be sure to hold the connectors in the same orientation when attaching the wires to the pins.

Figure B-1 RJ-45 Connector Pin Numbers

B-1

ABLES

10/100BASE-TX Pin Assignments

Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps connections, or 100-ohm Category 5 or better cable for 100 Mbps connections. Also be sure not exceed 100 meters (328 feet).

Data is delivered on the standard two wire pairs (pins 1, 2, 3, and 6), and PoE power is supplied using the two previously spare pairs (pins 4, 5, 7, and 8). Since the RJ-45 ports on the switch base unit support automatic MDI/ MDI-X operation, you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3, and 6 at the other end of the cable. When using any RJ-45 port on this switch, you can use either straight-through or crossover cable.

Table B-1 10/100BASE-TX MDI and MDI-X Port Pinouts

Pin MDI Signal Name MDI-X Signal Name

1 Receive Data plus (RD+) Transmit Data plus (TD+)

that the length of any twisted-pair connection does

2 Receive Data minus (RD-) Transmit Data minus (TD-)

Transmit Data plus (TD+) Receive Data plus (RD+)

GND (Positive V

Transmit Data minus (TD-) Receive Data minus (RD-)

-48V feeding power (Negative V

) GND (Positive V

port

) GND (Positive V

port

) -48V feeding power (Negative V

port

) -48V feeding power (Negative V

port

Note: The “+” and “-” signs represent the polarity of the wires that make up each

wire pair.

B-2

port

)

port

)

port

WISTED-PAIR CABLE AND PIN ASSIGNMENTS

Straight-Through Wiring

If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires must be straight-through. (When auto-negotiation is enabled for any RJ-45 port on this switch, you can use either straight-through or crossover cable to connect to any device type.)

EIA/TIA 568B RJ-45 Wiring Standard

10/100BASE-TX Straight-through Cable

White/Orange Stripe

Orange

End A

1 2 3 4 5 6 7 8

White/Green Stripe

Blue

White/Blue Stripe

Green

White/Brown Stripe

Brown Stripe

1 2 3 4 5 6 7 8

Figure B-2 Straight-through Wiring

Crossover Wiring

If the twisted-pair cable is to join two ports and either both ports are labeled with an “X” (MDI-X) or neither port is labeled with an “X” (MDI), a crossover must be implemented in the wiring. (When auto-negotiation is enabled for any RJ-45 port on this switch, you can use either straight-through or crossover cable to connect to any device type.)

End B

B-3

ABLES

EIA/TIA 568B RJ-45 Wiring Standard

10/100BASE-TX Crossover Cable

White/Orange Stripe

Orange

End A

1 2 3 4 5 6 7 8

White/Green Stripe

Blue

White/Blue Stripe

Green

White/Brown Stripe

Brown Stripe

1 2 3 4 5 6 7 8

Figure B-3 Crossover Wiring

1000BASE-T Pin Assignments

All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs.

The table below shows the 1000BASE-T MDI and MDI-X port pinouts. These ports require that all four pairs of wires be connected. Note that for 1000BASE-T operation, all four pairs of wires are used for both transmit and receive.

End B

Use 100-ohm Category 5, 5e or 6 unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for 1000BASE-T connections. Also be sure length of any twisted-pair connection does not exceed 100 meters (328 feet)

B-4

that the

WISTED-PAIR CABLE AND PIN ASSIGNMENTS

Table B-2 1000BASE-T MDI and MDI-X Port Pinouts

Pin MDI Signal Name MDI-X Signal Name

1 Bi-directional Data One Plus

(BI_D1+)

2 Bi-directional Data One Minus

(BI_D1-)

3 Bi-directional Data Two Plus

(BI_D2+)

4 Bi-directional Data Three Plus

(BI_D3+)

5 Bi-directional Data Three Minus

(BI_D3-)

6 Bi-directional Data Two Minus

(BI_D2-)

7 Bi-directional Data One Plus

(BI_D4+)

8 Bi-directional Data Four Minus

(BI_D4-)

Bi-directional Data Two Plus (BI_D2+)

Bi-directional Data Two Minus (BI_D2-)

Bi-directional Data One Plus (BI_D1+)

Bi-directional Data Four Plus (BI_D4+)

Bi-directional Data Four Minus (BI_D4-)

Bi-directional Data One Minus (BI_D1-)

Bi-directional Data One Plus (BI_D3+)

Bi-directional Data Three Minus (BI_D3-)

Cable Testing for Existing Category 5 Cable

Installed Category 5 cabling must pass tests for Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT). This cable testing information is specified in the ANSI/TIA/EIA-TSB-67 standard. Cables must also pass test parameters for Return Loss and Equal-Level Far-End Crosstalk (ELFEXT). These tests are specified in the ANSI/TIA/ EIA-TSB-95 Bulletin, “The Additional Transmission Performance Guidelines for 100 Ohm 4-Pair Category 5 Cabling.”

Note that when testing your cable installation, be sure to include all patch cables between switches and end devices.

B-5

ABLES

Adjusting Existing Category 5 Cabling to Run 1000BASE-T

If your existing Category 5 installation does not meet one of the test parameters for 1000BASE-T, there are basically three measures that can be applied to try to correct the problem:

1. Replace any Category 5 patch cables with high-performance Category 5e or Category 6 cables.

2. Reduce the number of connectors used in the link.

3. Reconnect some of the connectors in the link.

Fiber Standards

The current TIA (Telecommunications Industry Association) 568-A specification on optical fiber cabling consists of one recognized cable type for horizontal subsystems and two cable types for backbone subsystems.

Horizontal 62.5/125 micron multimode (two fibers per outlet). Backbone 62.5/125 micron multimode or single-mode.

TIA 568-B will allow the use of 50/125 micron multimode optical fiber in both the horizontal and backbone in addition to the types listed above. All optical fiber components and installation practices must meet applicable building and safety codes.

B-6

Physical Characteristics

Base Units

Ports

24 10/100BASE-TX, with auto-negotiation 2 1000BASE-T/SFP combination ports

Network Interface

Ports 1-24: RJ-45 connector, auto MDI/X

10BASE-T: RJ-45 (100-ohm, UTP cable; Categories 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better)

Ports 25, 26: RJ-45 connector, auto MDI/X

1000BASE-T: RJ-45 (100-ohm, UTP cable; Category 5, 5e, or 6)

Buffer Architecture

8 Mbytes

PPENDIX

PECIFICATIONS

Aggregate Bandwidth

8.8 Gbps

Switching Database

8K MAC address entries

Power over Ethernet

Maximum output power per port: 15.4 W Output voltage: 44 - 57 VDC Maximum output current per port: 350 mA

Power Supply

Internal, auto-ranging transformer: 100 to 240 VAC, 47 to 63 Hz

C-1

PECIFICATIONS

Power Consumption

48 Watts (Switching system) 370 Watts (Power over Ethernet)

Maximum Current

6.8 A @ 110 VAC

3.2 A @ 240 VAC

LEDs

System: PWR, Diag, Stacking Ports:

Link/Act, PoE

Weight

5.76 kg (12.70 lbs)

Size

44.0 x 41.0 x 4.3 cm (17.32 x 16.14 x 1.69 in.)

Tempe rat ur e

Operating: 0° C to 50 °C (32 °F to 122 °F) Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Humidity

Operating: 5% to 95% (non-condensing)

Switch Features

Forwarding Mode

Store-and-forward

Throughput

Wire speed

Flow Control

Full Duplex: IEEE 802.3x Half Duplex: Back pressure

C-2

ANAGEMENT FEATURES

Management Features

In-Band Management

Telnet, SSH, SSL/HTPS, or SNMP manager

Out-of-Band Management

RS-232 DB-9 console port

Software Loading

TFTP in-band, or XModem out-of-band

Standards

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3af Power over Ethernet IEEE 802.1p priority tags IEEE 802.3ac VLAN tagging IEEE 802.1D Bridging IEE 802.1Q VLAN Bridge Management IEEE 802.3x full-duplex flow control ISO/IEC 8802-3 Carrier sense multiple access with collision detection

(CSMA/CD)

Compliances

Emissions

Industry Canada Class A EN55022 (CISPR 22) Class A EN 61000-3-2/3 FCC Class A VCCI Class A C-Tick - AS/NZS 3548 (1995) Class A

C-3

PECIFICATIONS

Immunity

EN 61000-4-2/3/4/5/6/8/11

Safety

CSA/CUS (CSA 22.2.950 & UL 1950) EN60950 (TÜV/GS) IEC 60950 (CB)

C-4

PPENDIX

RDERING INFORMATION

Table D-1 TigerStack III 10/100 Products and Accessories

Product Number Description

SMC6824MPE 24 10BASE-T/100BASE-TX ports switch with

SMCBGSLCX1 1-port 1000BASE-SX Small Form Pluggable (SFP)

SMCBGLLCX1 1-port 1000BASE-LX Small Form Pluggable (SFP)

SMCBGZLCX1 1-port 1000BASE-ZX Small Form Pluggable

two Gigabit combination ports with RJ-45 connectors and associated SFP transceiver slots

mini-GBIC transceiver

(SFP) mini-GBIC transceiver

D-1

RDERING INFORMATION

D-2

LOSSARY

10BASE-T

IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable.

100BASE-TX

IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 UTP cable.

1000BASE-LX

IEEE 802.3z specification for Gigabit Ethernet over two strands of 9/125 micron core single-mode fiber cable.

1000BASE-SX

IEEE 802.3z specification for Gigabit Ethernet over two strands of 50/125 or 62.5/125 micron core multimode fiber cable.

1000BASE-T

IEEE 802.3ab specification for Gigabit Ethernet over 100-ohm Category 5, 5e or 6 twisted-pair cable (using all four wire pairs).

1000BASE-ZX

Long-range Gigabit Ethernet over two strands of 9/125 micron core single-mode fiber cable.

Auto-Negotiation

Signalling method allowing each node to select its optimum operational mode (e.g., speed and duplex mode) based on the capabilities of the node to which it is connected.

Glossary-1

LOSSARY

Bandwidth

The difference between the highest and lowest frequencies available for network signals. Also synonymous with wire speed, the actual speed of the data transmission along the cable.

Collision

A condition in which packets transmitted over the cable interfere other. Their interference makes both signals unintelligible.

Collision Domain

Single CSMA/CD LAN segment.

CSMA/CD

CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the communication method employed by Ethernet, Fast Ethernet, and Gigabit Ethernet.

End Station

A workstation, server, or other device that does not forward traffic.

with each

Ethernet

A network communication system developed and standardized by DEC, Intel, and Xerox, using baseband transmission, CSMA/CD access, logical bus topology, and coaxial cable. The successor IEEE 802.3 standard provides for integration into the OSI model and extends the physical layer and media with repeaters and implementations that operate on fiber, thin coax and twisted-pair cable.

Fast Ethernet

A 100 Mbps network communication system based on Ethernet and the CSMA/CD access method.

Glossary-2

Gigabit Ethernet

A 1000 Mbps network communication system based on Ethernet and the CSMA/CD access method.

Full Duplex

Transmission method that allows two network devices to transmit and receive concurrently, effectively doubling the bandwidth of that link.

IEEE

Institute of Electrical and Electronic Engineers.

IEEE 802.3

Defines carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer specifications.

IEEE 802.3ab

Defines CSMA/CD access method and physical layer specifications for 1000BASE-T Gigabit Ethernet.

IEEE 802.3u

Defines CSMA/CD access method and physical layer specifications for 100BASE-TX Fast Ethernet.

LOSSARY

IEEE 802.3x

Defines Ethernet frame start/stop requests and timers used for flow control on full-duplex links.

IEEE 802.3z

Defines CSMA/CD access method and physical layer specifications for 1000BASE Gigabit Ethernet.

LAN Segment

Separate LAN or collision domain.

Glossary-3

LOSSARY

LED

Light emitting diode used for monitoring a device or network condition.

Local Area Network (LAN)

A group of interconnected computer and support devices.

Modal Bandwidth

Bandwidth for multimode fiber is referred to as modal bandwidth because it varies with the modal field (or core diameter) of the fiber. Modal bandwidth is specified in units of MHz per km, which indicates the amount of bandwidth supported by the fiber for a one km distance.

Media Access Control (MAC)

A portion of the networking protocol that governs access to the transmission medium, facilitating the exchange of data between network nodes.

MIB

An acronym for Management Information Base. It is a set of database objects that contains information about the device.

Network Diameter

Wire distance between two end stations in the same collision domain.

RJ-45 Connector

A connector for twisted-pair wiring.

STP

Shielded twisted-pair cable.

Switched Ports

Ports that are on separate collision domains or LAN segments.

Glossary-4

TIA

Telecommunications Industry Association

Transmission Control Protocol/Internet Protocol (TCP/IP)

Protocol suite that includes TCP as the primary transport protocol, and IP as the network layer protocol.

UTP

Unshielded twisted-pair cable.

Virtual LAN (VLAN)

A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network. A VLAN serves as a logical workgroup with no physical barriers, allowing users to share information and resources as though located on the same LAN.

LOSSARY

Glossary-5

LOSSARY

Glossary-6

NDEX

Numerics

10 Mbps connectivity rules 4-8 100 Mbps connectivity rules 4-8 1000 Mbps connectivity rules 4-7 100BASE cable lengths 4-8 100BASE-TX ports 1-4 10BASE-T ports 1-4

accessories, ordering D-1 adhesive feet, attaching 3-6 air flow requirements 3-1 applications

central wiring closet 2-3 collapsed backbone 2-2 layer 3 routing 2-5 remote connections with fiber 2-4 VLAN connections 2-5

brackets, attaching 3-5 buffer size C-1 buffers, saturation of 1-4

cable

Ethernet cable compatibility 3-2 fiber standards B-6 labeling and connection records 4-9

lengths 4-8 cleaning fiber terminators 4-5 compliances

EMC C-3

safety C-4

connectivity rules

10 Mbps 4-8 100 Mbps 4-8 1000 Mbps 4-7

console port 1-3

pin assignments 3-11 contents of package 3-3 cooling problems A-2 cord sets, international 3-11

desktop mounting 3-6 device connections 4-1

electrical interference, avoiding 3-1 equipment checklist 3-3 Ethernet connectivity rules 4-8

Fast Ethernet connectivity rules 4-8 features C-3

management 1-11

switch 1-8 fiber cables 4-5 flow control, IEEE 802.3x 1-4 front panel of switch 1-2 full duplex connectivity 2-1

Gigabit Ethernet cable lengths 4-7 grounding for racks 3-4

Index-1

NDEX

hot-swap, SFP 3-7

IEEE 802.3x flow control 1-4 indicators, LED 1-5 installation

connecting devices to the switch 4-3 desktop or shelf mounting 3-6 installing optional transceivers 3-7 network wiring connections 4-4 port connections 4-1 power requirements 3-1 problems A-2 rack mounting 3-4 SFP transceivers 3-7 site requirements 3-1

laser safety 4-5 LED indicators

Diag 1-7 Power 1-7 problems A-1 Stack 1-7

location requirements 3-1

management

agent 1-3 features 1-11, C-3 out-of-band 1-3 SNMP 1-3 web-based 1-3

mounting the switch

in a rack 3-4

on a desktop or shelf 3-6 multimode fiber optic cables 4-5

network connections 4-1

optional transceivers

installation 3-7 ordering information D-1 out-of-band management 1-3

package contents 3-3 pin assignments B-1

console port 3-11

DB-9 3-11 port saturation 1-4 ports, connecting to 4-1 power, connecting to 3-10 problems, troubleshooting A-1

rack mounting 3-4 rear panel of switch 1-2 RJ-45 port 1-4

connections 4-1

pinouts B-5 RMON 1-3 RS-232 port 1-3 rubber foot pads, attaching 3-6

Index-2

NDEX

screws for rack mounting 3-3 serial

cable 1-3

port 1-3 single-mode fiber optic cables 4-5 site selelction 3-1 SNMP agent 1-3 specifications

compliances C-3

environmental C-2

physical C-1

power C-2 standards

compliance C-3

IEEE C-3 status LEDs 1-5 surge suppressor, using 3-1 switch architecture 1-2 switching

introduction to 2-1

method 1-2

Telnet A-3 temperature within a rack 3-4 troubleshooting

in-band access A-3 power and cooling problems A-2 switch indicators A-1

twisted-pair connections 4-1

VLAN tagging 2-5

web-based management 1-3

Index-3

FOR TECHNICAL SUPPORT, CALL:

From U.S.A. and Canada (24 hours a day, 7 days a week)

(800) SMC-4-YOU; (949) 679-8000; Fax: (949) 679-1481

From Europe (8:00 AM - 5:30 PM UK Time)

44 (0) 118 974 8700; Fax: 44 (0) 118 974 8701

INTERNET

E-mail addresses:

techsupport@smc.com european.techsupport@smc-europe.com support@smc-asia.com

Driver updates:

http://www.smc.com/index.cfm?action=tech_support_drivers_downloads

Wor l d Wide We b :

http://www.smc.com http://www.smc-europe.com http://www.smc-asia.com

FOR LITERATURE OR ADVERTISING RESPONSE, CALL:

U.S.A. and Canada: (800) SMC-4-YOU; Fax (949) 679-1481 Spain: 34-93-477-4935; Fax 34-93-477-3774 UK: 44 (0) 1932 866553; Fax 44 (0) 118 974 8701 France: 33 (0) 41 38 32 32; Fax 33 (0) 41 38 01 58 Italy: 39 (0) 335 5708602; Fax 39 02 739 14 17 Benelux: 31 33 455 72 88; Fax 31 33 455 73 30 Central Europe: 49 (0) 89 92861-0; Fax 49 (0) 89 92861-230 Nordic: 46 (0) 868 70700; Fax 46 (0) 887 62 62 Eastern Europe: 34 -93-477-4920; Fax 34 93 477 3774 Sub Saharian Africa: 27 0126610232; Fax 27-11 314 9133 North West Africa: 216 71236616; Fax 216 71751415 CIS: 7 (095) 789 35 73; Fax 7 (095) 789 35 73 PRC (Beijing): 86-10-8251-1550; Fax 86-10-8251-1551 PRC (Shanghai): 86-21-6485-9922; Fax 86-21-6495-7924 Taiwan: 886-2-8797-8006; Fax 886-2-8797-6288 Asia Pacific: (65) 6 238 6556; Fax (65) 6 238 6466 Korea: 82-2-553-0860; Fax 82-2-553-7202 Japan: 81-3-5645-5715; Fax 81-3-5645-5716 Australia: 61-2-8875-7887; Fax 61-2-8875-7777 India: 91 22 5696 2790; Fax 91 22 5696 2794 Middle East: 97 14 299 4466 Fax 97 14 299 4664 Thailand: 66 2 651 8733 Fax 66 2 651 8737

If you are looking for further contact information, please visit www.smc.com, www.smc-europe.com, or www.smc-asia.com.

38 Tesla Irvine, CA 92618

Phone: (949)679-8000

Pub. Number: 150200048700A E102004-R01

Model Number: SMC6824MPE

Smc 6824MPE Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Switch Architecture

Power over Ethernet Capability

Network Management Options

Description of Hardware

10/100BASE-T Ports

1000BASE-T/SFP Ports

Port and System Status LEDs

Stack Master Button

Mode PoE/Link Button

Optional Stacking Transceiver

Power Supply Receptacle

Features and Benefits

Connectivity

Performance

Management

Introduction to Switching

Application Examples

Collapsed Backbone

Network Aggregation Plan

Remote Connections with Fiber Cable

Making VLAN Connections

Application Notes

Selecting a Site

Ethernet Cabling

Equipment Checklist

Package Contents

Optional Rack-Mounting Equipment

Mounting

Rack Mounting

Desktop or Shelf Mounting

Installing an SFP Transceiver

Stacking Switches

Installing a Stacking Transceiver

Connecting Switches in a Stack

Connecting to a Power Source

Connecting to the Console Port

Wiring Map for Serial Cable

Connecting Network Devices

Twisted-Pair Devices

Power over Ethernet Connections

Cabling Guidelines

Connecting to PCs, Servers, Hubs and Switches

Network Wiring Connections

Fiber Optic Devices

Connectivity Rules

1000BASE-T Cable Requirements

100 Mbps Fast Ethernet Collision Domain

10 Mbps Ethernet Collision Domain

Cable Labeling and Connection Records

Diagnosing Switch Indicators

Power and Cooling Problems

Installation

In-Band Access

Stack Troubleshooting

Twisted-Pair Cable and Pin Assignments

10/100BASE-TX Pin Assignments

Straight-Through Wiring

Crossover Wiring

1000BASE-T Pin Assignments

Cable Testing for Existing Category 5 Cable

Adjusting Existing Category 5 Cabling to Run 1000BASE-T

Fiber Standards

Physical Characteristics

Base Units

Switch Features

Management Features

Standards

Compliances
