Smc 6708L2 Installation Guide

TigerSwitch 10/100

8-Port Fast Ethernet Switch

◆ 8 10BASE-T/100BASE-TX ports

◆ 1.8 Gbps aggregate bandwidth

◆ Spanning Tree Protocol

◆ Port mirroring for non-intrusive analysis

◆ QoS support with two priority queues

◆ Full support for VLANs with GVRP

◆ IP multicasting with IGMP snooping

◆ Security filtering based on MAC addresses

◆ Manageable via console, Web, SNMP/RMON

Installation Guide

SMC6708L2

TigerSwitch 10/100
Installation Guide

From SMC’s Tiger line of feature-rich workgroup LAN solutions

38 Tesla
Irvine, CA 92618
Phone: [phone]

April 2004

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no
responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third
parties which may result from its use. No license is granted by implication or otherwise under any patent or
patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

Copyright © 2004 by

38 Tesla

Irvine, CA 92618

All rights reserved.

Trademarks:

SMC is a registered trademark; and TigerStack and TigerSwitch are trademarks of SMC Networks, Inc.
Other product and company names are trademarks or registered trademarks of their respective holders.

L

IMITED

Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be
free from defects in workmanship and materials, under normal use and service, for the
applicable warranty term. All SMC products carry a standard 90-day limited warranty from
the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion,
repair or replace any product not operating as warranted with a similar or functionally
equivalent product, during the applicable warranty term. SMC will endeavor to repair or
replace any product returned under warranty within 30 days of receipt of the product.

The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering
new products within 30 days of purchase from SMC or its Authorized Reseller. Registration
can be accomplished via the enclosed product registration card or online via the SMC web
site. Failure to register will not affect the standard limited warranty. The Limited Lifetime
warranty covers a product during the Life of that Product, which is defined as the period of
time during which the product is an “Active” SMC product. A product is considered to be
“Active” while it is listed on the current SMC price list. As new technologies emerge, older
technologies become obsolete and SMC will, at its discretion, replace an older product in its
product line with one that incorporates these newer technologies. At that point, the obsolete
product is discontinued and is no longer an “Active” SMC product. A list of discontinued
products with their respective dates of discontinuance can be found at:
http://www.smc.com/index.cfm?action=customer_service_warranty.

All products that are replaced become the property of SMC. Replacement products may be
either new or reconditioned. Any replaced or repaired product carries either a 30-day limited
warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible
for any custom software or firmware, configuration information, or memory data of
Customer contained in, stored on, or integrated with any products returned to SMC pursuant
to any warranty. Products returned to SMC should have any customer-installed accessory or
add-on components, such as expansion modules, removed prior to returning the product for
replacement. SMC is not responsible for these items if they are returned with the product.

Customers must contact SMC for a Return Material Authorization number prior to returning
any product to SMC. Proof of purchase may be required. Any product returned to SMC
without a valid Return Material Authorization (RMA) number clearly marked on the outside
of the package will be returned to customer at customer’s expense. For warranty claims within
North America, please call our toll-free customer support number at [phone].
Customers are responsible for all shipping charges from their facility to SMC. SMC is
responsible for return shipping charges from SMC to customer.

W

ARRANTY

i

L

IMITED WARRANTY

WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR
REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN
LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER
LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE
UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE
ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY
CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER
INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR
ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT
OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE
DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR
INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED
RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES
OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS
WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

* SMC will provide warranty service for one year following discontinuance from the active
SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans,
and cables are covered by a standard one-year warranty from date of purchase.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

ii

C

OMPLIANCES

FCC - Class A

This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class A
computing device pursuant to Subpart B of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause interference,
in which case the user, at his own expense, will be required to take whatever measures may be
required to correct the interference. You are cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void your authority to
operate the equipment.

You may use unshielded twisted-pair (UTP) cable for RJ-45 connections—Category 3 or
greater for 10 Mbps connections, Category 5 for 100 Mbps connections and Category 5, 5e,
or 6 for 1000 Mbps connections.

War ni ngs : 1. Wear an anti-static wrist strap or take other suitable measures to prevent

electrostatic discharge when handling this equipment.

2. When connecting this switch to a power outlet, connect the field ground
lead on the tri-pole power plug to a valid earth ground line to prevent
electrical hazards.

Industry Canada - Class A

This digital apparatus does not exceed the Class A limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled “Digital
Apparatus,” ICES-003 of the Department of Communications.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils
numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils
Numériques,” NMB-003 édictée par le ministère des Communications.

iii

C

OMPLIANCES

EC Conformance Declaration - Class A

SMC contact for these products in Europe is:

SMC Networks Europe,
Edificio Conata II,
Calle Fructuós Gelabert 6-8, 2
08970 - Sant Joan Despí, Barcelona, Spain.

This information technology equipment complies with the requirements of the Council
Directive 89/336/EEC on the Approximation of the laws of the Member States relating to
Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain
voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the
compliance with these Directives, the following standards were applied:

o

, 4a,

RFI Emission:

Immunity:

LVD:

War ni ng: Do not plug a phone jack connector in the RJ-45 port. This may damage this
device. Les raccordeurs ne sont pas utilisé pour le systéme téléphonique!

• Limit class A according to EN 55022:1998

• Limit class A for harmonic current emission according to
EN 61000-3-2/1995

• Limitation of voltage fluctuation and flicker in low-voltage supply
system according to EN 61000-3-3/1995

• Product family standard according to EN 55024:1998

• Electrostatic Discharge according to EN 61000-4-2:1995
(Contact Discharge: ±4 kV, Air Discharge: ±8 kV)

• Radio-frequency electromagnetic field according to EN 61000-4-3:1996
(80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m)

• Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/
DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV)

• Surge immunity test according to EN 61000-4-5:1995
(AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV)

• Immunity to conducted disturbances, Induced by radio-frequency
fields: EN 61000-4-6:1996 (0.15 - 80 MHz with
1 kHz AM 80% Modulation: 3 V/m)

• Power frequency magnetic field immunity test according to
EN 61000-4-8:1993 (1 A/m at frequency 50 Hz)

• Voltage dips, short interruptions and voltage variations immunity test
according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30%
Reduction @500 ms, >95% Reduction @5000 ms)

• EN 60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997)

iv

C

OMPLIANCES

Safety Compliance

Underwriters Laboratories Compliance Statement

Important! Before making connections, make sure you have the correct cord set. Check it

(read the label on the cable) against the following:

Operating Voltage Cord Set Specifications

120 Volts UL Listed/CSA Certified Cord Set

Minimum 18 AWG
Type SVT or SJT three conductor cord
Maximum length of 15 feet
Parallel blade, grounding type attachment plug rated

15 A, 125 V

240 Volts (Europe only) Cord Set with H05VV-F cord having three

conductors with minimum diameter of 0.75 mm
IEC-320 receptacle
Male plug rated 10 A, 250 V

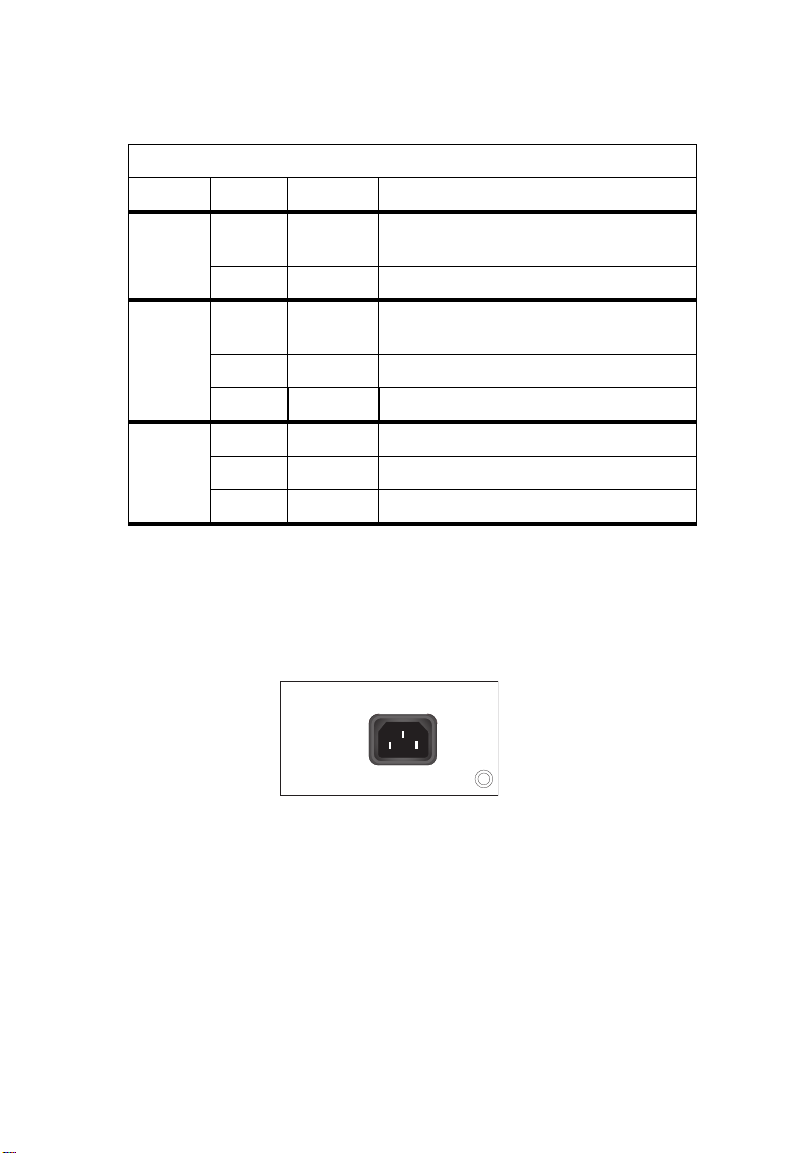

The unit automatically matches the connected input voltage. Therefore, no additional
adjustments are necessary when connecting it to any input voltage within the range marked
on the rear panel.

2

v

C

OMPLIANCES

Wichtige Sicherheitshinweise (Germany)

1. Bitte lesen Sie diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine
Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur
Reinigung.

4. Die Netzanschlu ßsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen
könnte Beschädigungen hervorrufen.

7. Die Belüftungsöffnungen dienen der Luftzirkulation, die das Gerät vor Überhitzung
schützt. Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollte auch
nichts auf der Leitung abgestellt werden.

10. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu beachten.

11. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz
trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das
Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag auslösen.

13. Öffnen sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit
nur von authorisiertem Servicepersonal geöffnet werden.

14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von
einer qualifizierten Servicestelle zu überprüfen:

a. Netzkabel oder Netzstecker sind beschädigt.
b. Flüssigkeit ist in das Gerät eingedrungen.
c. Das Gerät war Feuchtigkeit ausgesetzt.
d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit

Hilfe dieser Anleitung keine Verbesserung erzielen.
e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

15. Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden. Für einen
Nennstrom bis 6 A und einem Gerätegewicht größer 3 kg ist eine Leitung nicht leichter
als H05VV-F, 3G, 0.75 mm

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70 dB(A) oder
weniger.

2

einzusetzen.

vi

T

ABLE OF

C

ONTENTS

1 About the TigerSwitch 10/100 . . . . . . . . . . . . . . 1-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Switch Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Switching Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Management Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Description of Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

10BASE-T/100BASE-TX Ports . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Power Supply Receptacle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2 Network Planning . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Introduction to Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Collapsed Backbone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Making VLAN Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Connectivity Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

100 Mbps Fast Ethernet Collision Domain . . . . . . . . . . . . . . . . . 2-4

10 Mbps Ethernet Collision Domain . . . . . . . . . . . . . . . . . . . . . 2-4

Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

3 Installing the Switch . . . . . . . . . . . . . . . . . . . . . . 3-1

Selecting a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Equipment Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Desktop or Shelf Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Connecting to a Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

4 Making Network Connections . . . . . . . . . . . . . . 4-1

Connecting Network Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Twisted-Pair Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

ix

T

ABLE OF CONTENTS

Cabling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Connecting to PCs, Servers, Hubs and Switches . . . . . . . . . . . . 4-2

A Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

Diagnosing Switch Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Power and Cooling Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

In-Band Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

B Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Twisted-Pair Cable and Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . B-1

100BASE-TX/10BASE-T Pin Assignments . . . . . . . . . . . . . . . . B-3

Console Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

DB-9 Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Console Port to 9-Pin DTE Port on PC . . . . . . . . . . . . . . . . . . . B-4

Console Port to 25-Pin DTE Port on PC . . . . . . . . . . . . . . . . . . B-5

C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

x

Glossary

Index

C

HAPTER

A

BOUT THE

T

IGERSWITCH

10/100

Overview

SMC’s TigerSwitch™ 10/100, SMC6708L2, is an intelligent standalone
Fast Ethernet switch with 8 10BASE-T/100BASE-TX Mbps ports.
There is also an SNMP-based management agent embedded on the main
board. This agent supports both in-band and out-of-band access for
managing the switch.

1

This switch can easily
Protocol
by segregating them into separate broadcast domains with IEEE 802.1Q
compliant VLANs, empowers multimedia applications with QoS services.

and Virtual LANs. It brings order to poorly performing networks

LED Indicators

TigerSwitc
6708L2

Console port

Console

9600, 8N1

tame your network with full support for Spanning Tree

10/100Mbps RJ-45 Ports

h 10/100

Figure 1-1. Front and Rear Panels

2X

1X

4X

3X

Power Plug

5X 7X

AC100V

0.8A,50-60Hz

-240V

6X

8X

1-1

A

BOUT THE TIGERSWITCH

10/100

Switch Architecture

The TigerSwitch 10/100 employs a wire-speed, non-blocking switching
fabric. This permits simultaneous wire-speed transport of multiple packets
at low latency on all ports. This switch also features full-duplex capability
on all ports, which effectively doubles the bandwidth of each connection.

Switching Method

This switch uses store-and-forward switching to ensure maximum data
integrity. In store-and-forward switching mode, the entire packet must be
received into a buffer and checked for validity before being forwarded.
This prevents errors from being propagated throughout the network.

Management Options

This switch contains a comprehensive array of LEDs for “at-a- glance”
monitoring of network and port status. It also includes a built-in network
management agent that allows the switch to be managed in-band using
SNMP or RMON (Groups 1, 2, 3 and 9) protocols, with a Web browser, or
remotely via Telnet. The switch provides an RS-232 serial port (DB-9
connector) on the rear panel for out-of-band management. A PC may be
connected to this port
null-modem cable.

for configuration and monitoring out-of band via a

This switch provides a wide range of advanced features. Port-based and
tagged VLANs, plus support for automatic GVRP VLAN registration that
provides traffic security and efficient use of network bandwidth. QoS
priority queueing ensures the minimum delay for moving real-time
multimedia data across the network. Flow control eliminates the loss of
packets due to bottlenecks caused by port saturation. Broadcast storm
control prevents broadcast traffic storms from engulfing the network. For
a detailed description, refer to the Management Guide.

1-2

D

ESCRIPTION OF HARDWARE

Description of Hardware

10BASE-T/100BASE-TX Ports

There are eight fixed 10BASE-T/100BASE-TX RJ-45 ports on the switch.
Because these ports support automatic MDI/MDI-X operation, you can
use straight-through cables for all network connections to PCs or servers,
or to other switches or hubs.

Each of these ports support auto-negotiation, so the optimum
transmission mode (half or full duplex) and data rate (10/100 Mbps)
can be selected automatically. Each port also supports IEEE 802.3x
auto-negotiation of flow control, so the switch can automatically
prevent port buffers from becoming saturated.

Note: If a device connected to one of these ports does not support

auto-negotiation, the communication mode of that port can be
configured manually.

LED Indicators

The LEDs, which are located on the front panel for easy viewing, are
shown below and described in the following table

TigerSwitch 10/100
6708L2

System Status LEDs

LED Status Color Description

Power On Green Power On

10/100

1-3

A

BOUT THE TIGERSWITCH

10/100

System Status LEDs

LED Status Color Description

10/100 On Green This port is operating at the speed of

100Mbps

Off In 10Mbps mode or no device attached

Link/
Act

On Green This port is successfully connecting with

the device

Blinks Green The port is receiving or transmitting data

Off No device attached

FDX/
COL

On Orange This port is operating in Full-duplex mode

Blinks Orange Collision of packets occurs in the port

Off Half-duplex mode or no device attached

Power Supply Receptacle

There is a power receptacle on the rear panel of the switch for the AC
power cord.

1-4

AC 100V

50-60Hz

-240V

Figure 1-2. Power Supply Receptacle

F

EATURES AND BENEFITS

Features and Benefits

Connectivity

◆ 8 dual-speed ports for easy Ethernet integration and for protection of

your investment in legacy LAN equipment

◆ Auto-negotiation enables each RJ-45 port to automatically select the

optimum communication mode (half or full duplex) if this feature is
supported by the attached device; otherwise the port can be configured
manually

◆ Independent RJ-45 10BASE-T/100BASE-TX ports with support for

auto MDI/MDI-X

◆ Unshielded (UTP) cable supported on all RJ-45 ports: Category 3, 4 or

5 for 10 Mbps connections, Category 5 for 100 Mbps connections

◆ Complies with IEEE 802.3 Ethernet, 802.3u Ethernet and 802.3x

Ethernet standards

Performance

◆ Transparent bridging

◆ Aggregate bandwidth of up to 1.8 Gbps

◆ Provides Store-and-Forward switching for intra-VLAN traffic

◆ Supports flow control, using back pressure for half duplex and

IEEE 802.3x for full duplex

◆ Broadcast Storm Control

◆ Desktop and rack mountable

◆ Limited lifetime warranty

1-5

A

BOUT THE TIGERSWITCH

10/100

Management

◆ “At-a-glance” LEDs for easy troubleshooting

◆ Network management agent:

• Manages switch in-band or out-of-band

• Supports Telnet, SNMP/RMON and Web-based interface

• Spanning Tree Protocol for redundant network connections

• VLAN Support with up to 128 groups, port-based or with 802.1Q
VLAN tagging, and GVRP for automatic VLAN learning

• Quality of Service (QoS) supports two levels of priority and
Weighted Fair Queueing

• Multicast Switching based on IGMP Snooping

• Port mirroring (for real-time debugging without affecting the
target port)

1-6

C

HAPTER

N

ETWORK

P

LANNING

Introduction to Switching

A network switch allows simultaneous transmission of multiple packets via
non-crossbar switching. This means that it can partition a network more
efficiently than bridges or routers. The switch has, therefore, been
recognized as one of the most important building blocks for today’s
networking technology.

When performance bottlenecks are caused by congestion at the network
access point (such as the network card for a high-volume file server), the
device experiencing congestion (server, power user or hub) can be attached
directly to a switched port. And, by using full-duplex mode, the bandwidth
of the dedicated segment can be doubled to maximize throughput.

When networks are based on repeater (hub) technology, the maximum
distance between end stations is limited. For Ethernet, there may be up to
four hubs between any pair of stations; for Fast Ethernet, the maximum is
two. This is known as the hop count. However, a switch turns the hop
count back to zero, so subdividing the network into smaller and more
manageable segments, and linking them to the larger network by means of
a switch, removes this limitation.

2

A switch can be easily configured in any Ethernet or Fast Ethernet
network to significantly boost bandwidth while using conventional cabling
and network cards.

2-1

N

ETWORK PLANNING

Application Examples

The TigerSwitch 10/100 is not only designed to segment your network,
but also to provide a wide range of options in setting up network
connections. Some typical applications are described below.

Collapsed Backbone

The TigerSwitch 10/100 is an excellent choice for mixed Ethernet and
Fast Ethernet installations where significant growth is expected in the
near future. You can easily build on this basic configuration, adding direct
full-duplex connections to workstations or servers. When the time comes
for further expansion, just cascade the TigerSwitch 10/100 to an
Ethernet or Fast Ethernet hub or switch.

In the figure below, the TigerSwitch 10/100 is operating as a collapsed
backbone for a small LAN. It is providing dedicated 20 Mbps full-duplex
connections to workstations and 200 Mbps full-duplex connections to
power users and servers.

2-2

...

Servers

200 Mbps
Full Duplex

TigerSwitch10/100
6708L2

1X

2X

6X

5X 7X

4X

3X

8X

...

Workstations

200 Mbps
Full Duplex

Figure 2-1. Collapsed Backbone

...

Workstations

20 Mbps
Full Duplex

A

PPLICATION EXAMPLES

Making VLAN Connections

VLANs can be based on port groups, or each data frame can be explicitly
tagged to identify the VLAN group it belongs to. When using port-based
VLANs, ports can either be assigned to one specific group or to all groups.
Port-based VLANs are suitable for small networks. A single switch can be
easily configured to support several VLAN groups for various
organizational entities (such as Finance and Marketing).

When you expand port-based VLANs across several switches, you need to
make a separate connection for each VLAN group. This approach is,
however, inconsistent with the Spanning Tree Protocol, which can easily
segregate ports that belong to the same VLAN. When VLANs cross
separate switches, it is therefore better to use VLAN tagging. This allows
you to assign multiple VLAN groups to the “trunk” ports (that is, tagged
ports) connecting different switches.

R&D

Testing

VLAN 2

agged

T

Ports

Finance

VLAN 3

VLAN 4

TigerSwitch10/100
6708L2

Untagged Ports

Marketing

VLAN

unaware

switch

6X

5X 7X

4X

1X

2X

3X

Tagged Port

Finance

VLAN 3

8X

VLAN
aware
switch

R&D

Testing

VLAN 1

VLAN 2

Figure 2-2. Making VLAN Connections

Note: When connecting to a switch that does not support IEEE 802.1Q

VLAN tags, use untagged ports.

2-3

N

ETWORK PLANNING

Connectivity Rules

When adding hubs (repeaters) to your network, please follow the standard
connectivity rules for Ethernet and Fast Ethernet. However, note that
because switches break up the path for connected devices into separate
collision domains, you should not include the switch or connected cabling
in your calculations for cascade length involving other devices.

100 Mbps Fast Ethernet Collision Domain

Maximum Fast Ethernet Cable Distance

Type Cable Type Max. Cable Length

100BASE-TX Category 5 100-ohm UTP or STP 100 m (328 ft)

10 Mbps Ethernet Collision Domain

Maximum Ethernet Cable Distance

Cable Type Maximum Length

Twisted Pair, Categories 3, 4, 5 100 m (328 ft)

2-4

A

PPLICATION NOTES

Application Notes

1. Full-duplex operation only applies to point-to-point access (such as
when a switch is attached to a workstation, server or another switch).
When the switch is connected to a hub, both devices must operate in
half-duplex mode.

2. When a switch is connected to a hub or any kind of shared media,

remember to turn off back pressure to prevent jamming packets from
being propagated throughout the hub.

3. For network applications that require routing between dissimilar

network types, you can attach the TigerSwitch 10/100 units directly to
a router.

2-5

N

ETWORK PLANNING

2-6

C

HAPTER

I

NSTALLING THE

S

Selecting a Site

TigerSwitch 10/100 units can be mounted on a flat surface. Be sure to
follow the guidelines below when choosing a location.

◆ The site should:

• be at the center of all the devices you want to link and near a
power outlet.

• be able to maintain its temperature within 0 to 50 °C (32 to
122 °F) and its humidity within 5% to 95%, non-condensing

• provide adequate space (approximately two inches) on all sides for
proper air flow

• be accessible for installing, cabling and maintaining the devices

• allow the status LEDs to be clearly visible

3

WITCH

◆ Make sure twisted-pair cable is always routed away from power lines,

fluorescent lighting fixtures and other sources of electrical
interference, such as radios and transmitters.

◆ Make sure that a separate grounded power outlet that provides 100 to

240 VAC, 50 to 60 Hz, is within 2.44 m (8 ft) of each device and is
powered from an independent circuit breaker. As with any equipment,
using a filter or surge suppressor is recommended.

3-1

I

NSTALLING THE SWITCH

Equipment Checklist

After unpacking the TigerSwitch 10/100, check the contents to be sure
you have received all the components. Then, before beginning the
installation, be sure you have all other necessary installation equipment.

Package Contents

◆ 1 SMC6708L2 TigerSwitch 10/100 unit

◆ Four adhesive foot pads

◆ 3 types of AC power cord. Please choose appropriate cable for your

region.

◆ RS-232 console cable

◆ This Installation Guide

◆ Management Guide

◆ One set of rack mount kit

◆ SMC Warranty Registration Card—be sure to complete and return to

SMC

Note: The package equipment contents include three types of power

cord. The power cords are for the EU, UK and US. Please ensure
that you choose the power cord that corresponds to your region.

3-2

Mounting

Desktop or Shelf Mounting

1. Attach the four adhesive feet to the bottom of the first switch.

8X

7X

6X

5X

4X

3X

2X

1X

10/100

h

itc

6708L2

erSw

ig

T

Figure 3-1. Attaching the Adhesive Feet

2. Set the device on a flat surface near an AC power source, making sure
there are at least two inches of space on all sides for proper air flow.

M

OUNTING

3. If installing a single switch only, turn to “Connecting to a Power
Source” at the end of this chapter.

4. If installing multiple switches, attach four adhesive feet to each one.
Place each device squarely on top of the one below, in any order.

Connecting to a Power Source

To connect a device to a power source:

1. Insert the appropriate regional power cable plug directly into the

3-3

I

NSTALLING THE SWITCH

receptacle located at the back of the device.

AC 100V

50-60Hz

-240V

Figure 3-2. Power Receptacle

2. Plug the other end of the cable into a grounded, 3-pin socket.

Note: For International use, you may need to change the AC line cord.

You must use a line cord set that has been approved for the
receptacle type in your country.

3. Check the front-panel LEDs as the device is powered on to be sure
the Power LED is lit. If not, check that the power cable is correctly
plugged in.

3-4

C

HAPTER

M

AKING

C

Connecting Network Devices

The TigerSwitch 10/100 is designed to interconnect multiple segments
(or collision domains). It may be connected to network cards in PCs and
servers, as well as to hubs, switches or routers.

Note: Before connecting cables, you may want to first configure the

Spanning Tree Protocol to avoid network loops. Refer to the
Management Guide for more information.

Twisted-Pair Devices

Each device requires an unshielded twisted-pair (UTP) cable with RJ-45
connectors at both ends. Use Category 5 for 100BASE-TX connections,
and Category 3, 4 or 5 for 10BASE-T connections.

N

ETWORK

ONNECTIONS

4

4-1

M

AKING NETWORK CONNECTIONS

Cabling Guidelines

The RJ-45 ports on the switch support automatic MDI/MDI-X operation,
so you can use standard straight-through twisted-pair cables to connect to
any other network device (PCs, servers, switches, routers, or hubs).

See Appendix B for further information on cabling.

Connecting to PCs, Servers, Hubs and Switches

1. Attach one end of a twisted-pair cable segment to the device’s RJ-45
connector.

Figure 4-1. Making Twisted-Pair Connections

2. If the device is a network card and the TigerSwitch 10/100 is in the
wiring closet, attach the other end of the cable segment to a modular
wall outlet that is connected to the wiring closet. Otherwise, attach the
other end to an available port on the switch.

Make sure each twisted pair cable does not exceed 100 meters (328 ft)
in length.

Note: When connected to a shared collision domain (such as a hub

with multiple workstations), switch ports must be set to
half-duplex mode and back pressure flow control disabled.

3. As each connection is made, the green Link LED (on the TigerSwitch
10/100) corresponding to each port will light to indicate that the
connection is valid.

4-2

A

PPENDIX

T

ROUBLESHOOTING

A

Diagnosing Switch Indicators

Troubleshooting Chart

Symptom Action

Power LED is Off • Internal or redundant power supply has failed or is

disconnected.

• Check connections between the switch, the power cord,
the wall outlet.

• Contact SMC Tech Support.

Link LED is Off • Verify that the switch and attached device are powered

on.

• Be sure the cable is plugged into both the switch and
corresponding device.

• Verify that the proper cable type is used and its length
does not exceed specified limits.

• Check the adapter on the attached device and cable
connections for possible defects. Replace the defective
adapter or cable if necessary.

A-1

T

ROUBLESHOOTING

Power and Cooling Problems

If the power indicator does not turn on when the power cord is plugged in,
you may have a problem with the power outlet, power cord, or internal
power supply. However, if the unit powers off after running for a while,
check for loose power connections, power losses or surges at the power
outlet, and verify that the fans on the unit are unobstructed and running
prior to shutdown. If you still cannot isolate the problem, contact SMC
Technical Support for assistance.

Installation

Verify that all system components have been properly installed. If one or
more components appear to be malfunctioning (such as the power cord or
network cabling), test them in an alternate environment where you are sure
that all the other components are functioning properly.

In-Band Access

You can access the management agent in the switch from anywhere within
the attached network using Telnet, a Web browser, or other network
management software. However, you must first configure the switch with a
valid IP address, subnet mask, and default gateway. If you have trouble
establishing a link to the management agent, check to see if you have a
valid network connection. Then verify that you entered the correct IP
address. Also, be sure the port through which you are connecting to the
switch has not been disabled. If it has not been disabled, then check the
network cabling that runs between your remote location and the switch.

Note:

The Telnet user interface supports one
disconnected immediately when there is already one session
running Telnet. The Telnet session requires the same log-in
procedure as the console interface session.

connection. A user will be

A-2

A

PPENDIX

C

ABLES

B

Specifications

Cable Types and Specifications

Cable Type Max. Length Connector

10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45

100BASE-TX Cat. 5 100-ohm UTP 100 m (328 ft) RJ-45

Twisted-Pair Cable and Pin Assignments

Caution: DO NOT plug a phone jack connector into any RJ-45 port.

Use only twisted-pair cables with RJ-45 connectors that
conform with FCC standards.

For 100BASE-TX/10BASE-T connections, a twisted-pair cable must have
two pairs of wires. Each wire pair is identified by two different colors. For
example, one wire might be red and the other, red with white stripes. Also,
an RJ-45 connector must be attached to both ends of the cable.

Caution: Each wire pair must be attached to the RJ-45 connectors in a

specific orientation. (See “Cabling Guidelines” on page 4-2 for
an explanation.)

Figure B-1 illustrates how the pins on the RJ-45 connector are numbered.
Be sure to hold the connectors in the same orientation when attaching the

B-1

C

ABLES

wires to the pins.

8

1

Figure B-1. RJ-45 Connector Pin Numbers

8

1

B-2

T

WISTED-PAIR CABLE AND PIN ASSIGNMENTS

100BASE-TX/10BASE-T Pin Assignments

With 100BASE-TX/10BASE-T cable, pins 1 and 2 are used for
transmitting data, and pins 3 and 6 for receiving data.

RJ-45 Pin Assignments

Pin Number

1Tx+

2Tx-

3Rx+

6Rx-

1: The “+” and “-” signs represent the polarity of the

wires that make up each wire pair.

Assignment

Because all ports on this switch support automatic MDI/MDI-X
operation, you can use straight-through cables for all network connections
to PCs or servers, or to other switches or hubs. In straight-through cable,
pins 1, 2, 3, and 6, at one end of the cable, are connected straight through
to pins 1, 2, 3 and 6 at the other end of the cable. The table below shows
the 10BASE-T/100BASE-TX MDI and MDI-X port pinouts.

1

Pin MDI-X Signal Name MDI Signal Name

1 Receive Data plus (RD+) Transmit Data plus (TD+)

2 Receive Data minus (RD-) Transmit Data minus (TD-)

3 Transmit Data plus (TD+) Receive Data plus (RD+)

6 Transmit Data minus (TD-) Receive Data minus (RD-)

No other pins are used.

B-3

C

ABLES

Console Port Pin Assignments

The DB-9 serial port on the switch’s front panel is used to connect to the
switch for out-of-band console configuration. The on-board menu-driven
configuration program can be accessed from a terminal or a PC running a
terminal emulation program. The pin assignments used to connect to the
serial port are provided in the following tables.

Figure B-2. DB-9 Console Port Pin Numbers

DB-9 Port Pin Assignments

EIA
Circuit

BB 104 RxD (Received Data) 2 2
BA 103 TxD (Transmitted Data) 3 3
AB 102 SGND (Signal Ground) 5 5
No other pins are used.

CCITT
Signal

Description Switch’s

DB9 DTE
Pin #

PC DB9
DTE
Pin #

Console Port to 9-Pin DTE Port on PC

Switch’s 9-Pin
Serial Port

2 RXD <---------RXD ------------ 3 TxD
3 TXD -----------TXD ----------> 2 RxD
5 SGND -----------SGND ---------- 5 SGND
No other pins are used.

CCITT Signal PC’s 9-Pin

B-4

DTE Port

C

ONSOLE PORT PIN ASSIGNMENTS

Console Port to 25-Pin DTE Port on PC

Switch’s 9-Pin

Serial Port

2 RXD <---------RXD ------------ 2 TXD
3 TXD -----------TXD ----------> 3 RXD
5 SGND -----------SGND ---------- 7 SGND
No other pins are used.

Null Modem PC’s 25-Pin

DTE Port

B-5

C

ABLES

B-6

A

S

PECIFICATIONS

Physical Characteristics

Ports

8 10BASE-T/100BASE-TX ports, with auto-negotiation
1 Console port

Network Interface

Ports 1-8: RJ-45 connector, auto MDI/MDI-X

10BASE-T: RJ-45 (100-ohm, UTP cable; Categories 3, 4, 5)
100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5)

Buffer Architecture

2 Mbits

Aggregate Bandwidth

1.8 Gbps

Switching Database

8K MAC address entries

PPENDIX

C

LEDs

System: Power
Port: 10/100, Link/Act, FDX/COL

Weight

1.18kg (2.6 lbs)

C-1

S

PECIFICATIONS

Size

25.0 x 38.0 x 13.2 cm (10.0 x 5.25 x 1.75 in.)

Temperature

Operating: 0 to 45
Storage: -40 to 70

Humidity

Operating: 10% to 90%

AC Input

100 to 240 V, 50 to 60 Hz

Power Supply

Internal, auto-ranging transformer: 100 to 240 VAC, 47 to 63 Hz

Power Consumption

19 Watts maximum

Heat Dissipation

208 BTU/hr maximum

Maximum Current

3 A @ 110 VAC
2 A @ 240 VAC

°C (32 to 113 °F)

°C (-40 to 158 °F)

Compliances

CE Mark

Emissions

FCC Class A
CISPR Class A

Immunity

EN 61000-4-2/3/4/5/6/8/11

Warranty

Limited lifetime

C-2

G

LOSSARY

10BASE-T

IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of
Category 3, 4, or 5 UTP cable.

100BASE-TX

IEEE 802.3u specification for 100 Mbps Fast Ethernet over two pairs of
Category 5 UTP cable.

Auto-Negotiation

Signalling method allowing each node to select its optimum operational
mode (e.g., 10 Mbps or 100 Mbps and half or full duplex) based on the
capabilities of the node to which it is connected.

Bandwidth

The difference between the highest and lowest frequencies available for
network signals. Also synonymous with wire speed, the actual speed of the
data transmission along the cable.

Collision

A condition in which packets transmitted over the cable interfere
other. Their interference makes both signals unintelligible.

with each

Collision Domain

Single CSMA/CD LAN segment.

CSMA/CD

CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the
communication method employed by Ethernet, Fast Ethernet, or Gigabit
Ethernet.

Glossary-1

G

LOSSARY

End Station

A workstation, server, or other device that does not forward traffic.

Ethernet

A network communication system developed and standardized by DEC,
Intel, and Xerox, using baseband transmission, CSMA/CD access, logical
bus topology, and coaxial cable. The successor IEEE 802.3 standard
provides for integration into the OSI model and extends the physical layer
and media with repeaters and implementations that operate on fiber, thin
coax and twisted-pair cable.

Fast Ethernet

A 100 Mbps network communication system based on Ethernet and the
CSMA/CD access method.

Full Duplex

Transmission method that allows two network devices to transmit and
receive concurrently, effectively doubling the bandwidth of that link.

IEEE

Institute of Electrical and Electronic Engineers.

IEEE 802.3

Defines carrier sense multiple access with collision detection (CSMA/CD)
access method and physical layer specifications.

IEEE 802.3ab

Defines CSMA/CD access method and physical layer specifications for
1000BASE-T Fast Ethernet.

IEEE 802.3u

Defines CSMA/CD access method and physical layer specifications for
100BASE-TX Fast Ethernet.

Glossary-2

IEEE 802.3x

Defines Ethernet frame start/stop requests and timers used for flow
control on full-duplex links.

IEEE 802.3z

Defines CSMA/CD access method and physical layer specifications for
1000BASE Gigabit Ethernet.

Local Area Network (LAN)

A group of interconnected computer and support devices.

LAN Segment

Separate LAN or collision domain.

LED

Light emitting diode used for monitoring a device or network condition.

Local Area Network

A group of interconnected computers and support devices.

G

LOSSARY

Media Access Control (MAC)

A portion of the networking protocol that governs access to the
transmission medium, facilitating the exchange of data between network
nodes.

MIB

An acronym for Management Information Base. It is a set of database
objects that contains information about the device.

Network Diameter

Wire distance between two end stations in the same collision domain.

Glossary-3

G

LOSSARY

RJ-45 Connector

A connector for twisted-pair wiring.

Straight-through Port

An RJ-45 port which does not cross the receive and transmit signals
internally (MDI) so it can be connected with straight-through twisted-pair
cable to any device having a crossover port (MDI-X). Also referred to as a
“Daisy-Chain” port.

Switched Ports

Ports that are on separate collision domains or LAN segments.

UTP

Unshielded twisted-pair cable.

Virtual LAN (VLAN)

A Virtual LAN is a collection of network nodes that share the same
collision domain regardless of their physical location or connection point
in the network. A VLAN serves as a logical workgroup with no physical
barriers, allowing users to share information and resources as though
located on the same LAN.

Glossary-4

I

NDEX

Numerics

10 Mbps connectivity rules 2-6
100BASE cable lengths 2-6
10BASE cable lengths 2-6

A

accessories, ordering D-1
adhesive feet, attaching 3-4
air flow requirements 3-1
applications 2-2

central wiring closet 2-3
collapsed backbone 2-2
examples 2-2
VLAN connections 2-4

B

broadcast storm control 1-2
buffer size C-1
buffers, saturation of 1-3

C

cable

lengths 2-6
specifications B-1

compliances, EMC C-2

connectivity rules

10 Mbps 2-6
100 Mbps 2-5

console port 1-2

pin assignments B-6
contents of package 3-2
cooling problems A-2
cord sets, international 3-7

D

desktop mounting 3-6
device connections 4-1

E

electrical interference, avoiding 3-1
equipment checklist 3-2
Ethernet connectivity rules 2-6

F

flow control, IEEE 802.3x 1-3
full duplex connectivity 2-1

G

Gigabit Ethernet cable lengths 2-5
grounding for racks 3-3
GVRP 1-2

I

IEEE 802.3 Ethernet 1-8
IEEE 802.3u Fast Ethernet 1-8
IEEE 802.3x flow control 1-3
IEEE 802.3z Gigabit Ethernet 1-8

Index-1

I

NDEX

installation

connecting devices to the switch 4-2
desktop or shelf mounting 3-6
port connections 4-1
power requirements 3-1
problems A-2
rack mounting 3-3
site requirements 3-1
wiring closet connections 4-3

, 4-4

L

laser safety 4-4
layer-3 routing 1-2
LED indicators

Power 1-5

problems A-1
limited warranty C-2
location requirements 3-1

M

management

features C-2

out-of-band 1-2

Web-based 1-2
mounting the switch

on a desktop or shelf 3-6

N

network 4-4

connections 4-1

examples 2-2
null-modem cable 1-2

, 4-4

O

out-of-band management 1-2

P

package contents 3-2
pin assignments B-2

100BASE-TX/10BASE-T B-3
25-pin DTE port B-7
console port B-6

DB-9 B-6
port saturation 1-2
port-based VLANs 2-4

ports, connecting to 4-1, 4-4

power, connecting to 3-7
problems, troubleshooting A-1

, 1-3

Q

QoS 1-2

R

RJ-45 port connections 4-1
RJ-45 ports, pinouts B-4
RMON 1-2
routing applications 2-7
RS-232 port 1-2
rubber foot pads, attaching 3-4

S

SC port connections 4-4
screws for rack mounting 3-2
SC-ST Converter 4-4
serial port 1-2
site selelction 3-1
Spanning Tree Protocol 2-4
specifications

compliances C-2

environmental C-2

physical C-1

power C-2

, 4-5

, 4-1

Index-2

I

NDEX

standards

compliance C-2

IEEE C-2
store-and-forward 1-2
surge suppressor, using 3-1
switching

introduction to 2-1

method 1-2

T

tags, VLAN 2-4
Telnet A-2
temperature within a rack 3-3
troubleshooting

in-band access A-2
power and cooling problems A-2
switch indicators A-1

twisted-pair connections 4-1

V

VLANs 1-2, 2-4

tagging 2-4

W

warranty C-2
Web-based management 1-2

Index-3

I

NDEX

Index-4
