Chapter 1 Introduction

The SMC2642W EZ Connect 11Mbps Wireless Compact Flash Card is a
standard CF interface adapter integrated with wireless LAN technology. It
provides you an easy and fast way to access your wireless and wired network.
The Wireless LAN Compact Flash Card, which utilizes the latest advancement of
PC industry – Compact Flash technology, allows you to install and use the card on
Pocket/Handheld PC or Laptop easier than ever before. With the ability to provide
an 11Mbps connection, the SMC Wireless CF Card gives you the equivalent of a
10Mbps Ethernet connection to access corporate network or the Internet in a
wireless environment. SMC2642W 11Mbps Wireless Compact Flash Card is
able to communicate with any 802.11 and 802.11b compliant products.

1-1 Features and Benefits

1. Supports 1, 2, 5.5 and 11 Mbps data rate.

2. Working range up to 700ft. in an open environment.

3. Supports point-to-point and point-to-multipoint access.

4. Seamless connectivity to wired Ethernet and PC network LAN’s augments

existing networks quickly and easily.

5. Direct Sequence Spread Spectrum (DSSS) technology provides robust,

interference -resistant and secure wireless connection.

6. Wireless connection without the cost of expensive cabling.

7. Supports Windows CE 3.0 or later Handheld/Pocket PC and Windows

98/Me/NT/2000/XP for your Laptop (with the use of SMCCF-CVT CF to
PCMCIA Converter).

8. Support high security WEP encryption (64-bit and 128-bit WEP)

9. Supports Plug and Play.

10. Easy installation.

-1-

1-2 Applications

11Mbps Wireless LAN products offer a fast, reliable, cost-effective solution for
wireless client access to the network in applications like the following:

1. Remote access to corporate network information

E-mail, file transfer and terminal emulation.

2. Difficult-to-wire environments

Historical or old buildings, asbestos installations, and open area where wiring
is difficult to deploy.

3. Frequently changing environments

Retailers, manufacturers and those who frequently rearrange the workplace
and change location.

4. Temporary LANs for special projects or peak time

Trade shows, exhibitions and construction sites where a temporary network
is practical.

5. Access to database for mobile workers

Doctors, nurses, retailers, accessing their database while being mobile in the
hospital, retail store or office campus.

6. SOHO (Small Office and Home Office) users

SOHO users need easy and quick installation of a small computer network.

7. High security connection

The secure wireless network can be installed quickly and provide flexibility.
(Please refer to page 12 for encryption configuration.)

-2-

1-3 Product Kit

SMC2642W 11Mbps Wireless Compact Flash Card comes with the following
items. Please go through each item below. If any listed item is not included or
found damaged , please contact your local dealer.

SMC2642W Wireless Compact Flash Card Includes:

l 1 SMC2642W 11Mbps Wireless Compact Flash Card
l 1 Driver/Utility CD ROM
l This User Guide

SMC2645W Wireless Compact Flash Card Kit Includes:

l 1 SMC2642W 11Mbps Wireless Compact Flash Card
l 1 SMCCF-CVT CF to PCMCIA Converter
l 1 Driver/Utility CD ROM
l This User Guide

1-4 System Requirements

SMC2642W 11Mbps Wireless Compact Flash Card supports all Windows CE
Handheld/Pocket PC devices with Compact Flash Type II host interface as well as
all Windows -based devices with PCMCIA Type II host interface (with the use of
SMCCF-CVT CF to PCMCIA Converter).

-3-

Chapter 2 Installing SMC2642W Wireless Compact Flash
Card

This chapter describes the installation of the SMC2642W 11Mbps Wireless
Compact Flash Card driver for the CE 3.0 Handheld/Pocket PC.

2-1 Install the Setup Utility

1. Establish a connection between host PC and PDA device by Microsoft Active Sync.

2. Execute SMC2642W.exe to install the driver and utility.

3. An Install Shield Wizard window appears. Click Next to proceed.

-4-

4. Follow on-screen instructions to install the Setup Utility. Click Finish to

complete the installation.

-5-

2-2 Install the SMC2642W Wireless Compact Flash Card

1. Connect the SMC2642W 11Mbps Wireless Compact Flash Card to your PDA.

The PDA will auto-detect the Wireless LAN Compact Flash Card and
automatically install the corresponding driver.

2. Assign an IP address to your Wireless LAN Compact Flash Card. You may

either set the Wireless LAN Compact Flash Card to obtain an IP address from
your DHCP server, or to be assigned with a fixed IP address.

3. Reset your PDA.

Upon completion of installation, the Wireless LAN Compact Flash Card will start
to look for an Access Point with Green LED blinking. The Green LED will stay
steady once the Wireless LAN Compact Flash Card successfully associates with
an Access Point. To configure the Wireless LAN Compact Flash Card, please
proceed to the next chapter “ Using SMC2642W Wireless Compact Flash Card”.

-6-

Chapter 3 Using SMC2642W Wireless Compact Flash
Card

This chapter gives you assistance with detailed description of setting the 11Mbps
Wireless LAN Compact Flash Card with the Wireless LAN Utility under
Pocket/Handheld PC.

3-1 Using the Wireless LAN Utility Under Pocket PC

The SMC2642W 11Mbps Wireless Compact Flash Card is a ready-to-use device.
Its default settings perform for a typical Infrastructure Wireless LAN . Simply
install the Wireless LAN Compact Flash Card onto your computer and it is ready
to use. In special situations, however, you may adjust configuration settings
depending on how you would like to manage your wireless network. The
Wireless LAN Utility provides you an easy interface to make configuration changes
and perform user-level diagnostics on your Wireless LAN Compact Flash Card.

1. Go to Start --> Settings. Go to the System tab, and click the “Wireless

LAN Setting ” icon.

2. A configuration window appears. The Wireless LAN Utility provides the 5

following items for you to configure and monitor the 11Mbps Wireless LAN
Compact Flash Card .

-7-

Status

3. The Status tab displays the current status of the Wireless LAN Compact Flash

Card.

Adapter - Displays name of the Wireless LAN Compact Flash Card.
Firmware - Displays the firmware version of your Wireless LAN Compact Flash

Card.

Domain - The regulated operating frequency per country.
Channel - Displays the current channel that the Wireless LAN Compact Flash

Card is using.
MAC Address - It is a hardware identification number that distinguishes the unit

from others.
Sync to AP - Displays the ESSID of the Access Point that the Wireless LAN

Compact Flash Card associates with.
BSSID - Shows MAC Address of the Access Point that the Wireless LAN

Compact Flash Card associates with.
Link Quality - Link quality monitors the quality of the data transmission between

the Wireless LAN Compact Flash Card and an Access Point.
Signal Level - This bar graph displays signal strength as reported by the radio,

averaged over all frames that are received from the Access Point.

-8-

Configuration

The Configuration tab contains several fields where the current parameters of the
Wireless LAN Compact Flash Card can be viewed and changed. You will see
current configuration information in terms of ESSID, Network Type, Power Saving
Mode and Tx Rate. Upon modification of parameters for the Wireless LAN
Compact Flash Card, click the Apply button to make the changes take effect.

ESSID

The ESSID is a unique ID given to the Access Point. Wireless clients associating
to Access Points must have the same ESSID. The default value Auto Detect
means when the Wireless LAN Compact Flash Card starts to work, it will associate
with any Access Point that gives the fastest response. You may also enter a
specific ESSID (Access Point) you desire to connect with. It is recommended
you specify an ESSID for your Wireless LAN Compact Flash Card. This will
prevent your computer from unintentionally connecting to a different wireless
network.

-9-

Network Type

To connect your wireless station to a local network infrastructure as described in

Appendix A “ Network Configuration” on page 18, set the station operation
mode to Infrastructure (with Access Point, default setting). In case you do
not wish to connect to a network infrastructure, but prefer to setup a small wireless
workgroup (without Access Point) also described on page 18, you can enable the

Ad-Hoc (only compatible with the same series wireless PC Card) or 802.11
Ad-Hoc tick box. When the Ad-Hoc mode is selected, be sure to set your

wireless stations with the same channel. To use the 802.11 Ad-Hoc mode, the
same channel and ESSID among wireless stations are required.

Power Saving Mode

The Power Saving Mode option is designed to conserve battery life of you
computer. Selecting the “Enable” button activates the Power Save mode and your
SMC2642W 11Mbps Wireless Compact Flash Card will go into sleep mode to
minimize power consumption.

NOTE: When power saving mode is enabled, the Access Points you use need to

support power saving as well so that the communication can be
established.

TX Rate

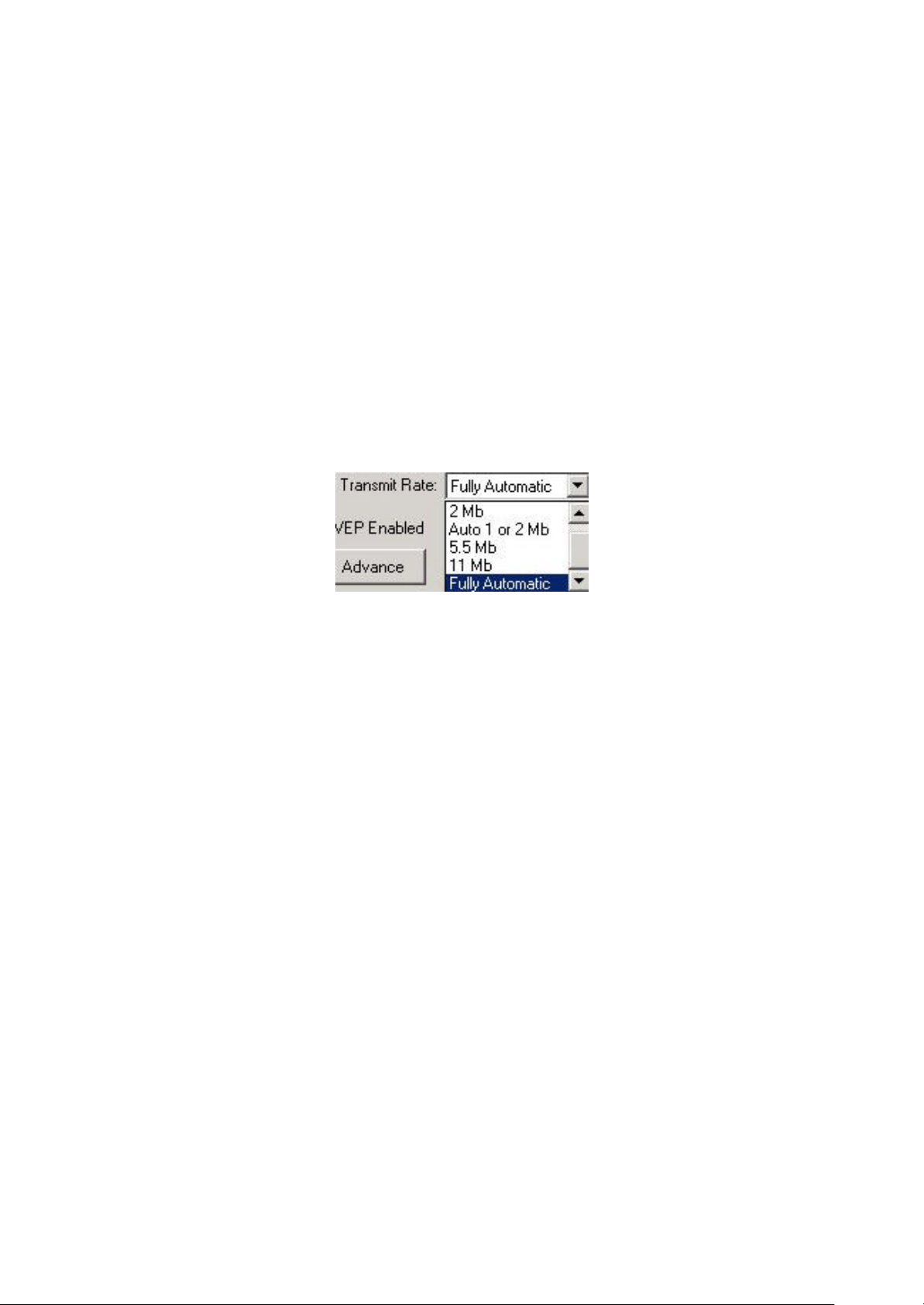

The 11Mbps Wireless Compact Flash Card provides various data rate options for
you to select. Data rates options include Fully Auto, Fixed 1Mb/s, Fixed
2Mb/s, Auto Select 1M or 2M, Fixed 5.5Mb/s, and Fixed 11Mb/s . In most
networking scenarios, you will see that the factory-set default “Fully Auto” will
prove the most efficient. This setting will allow your 11Mbps Wireless LAN
Compact Flash Card to operate at the maximum data rate. When the
communications quality drops below a certain level, the Wireless LAN Compact
Flash Card will automatically switch to a lower data rate. Transmission at lower
data speed is usually more reliable. However, when the communications quality
improves again, the Wireless LAN Compact Flash Card will gradually increase the
data rate again, until it has reached the highest available transmit rate.

-10-

Link

Similar to the TCP/IP Ping Command, this tool allows you to monitor
point-to-point data transmission quality between two stations. By entering the IP
address of another station and setting the timeout and packet size, you may check
whether or not communication has been established successfully.

-11-

Security

To prevent unauthorized wireless stations from accessing data transmitted over the
network, the SMC2642W 11Mbps Wireless Compact Flash Card offers highly
secure data encryption, known as WEP (Wired Equivalent Privacy). If you desire
to use WEP encryption to secure your data, please select the Enable check box
and set the following values.

There are two types of WEP Key Length described as follows:
64-Bit – Requires wireless stations to use data encryption with 64-Bit algorithm

when communicating with the Access Point.
128-Bit – Requires wireless stations to use data encryption with 128-Bit algorithm

when communicating with the Access Point
WEP Key Type offers two key value options: Character (Char.) and

Hexadecimal numbers (Hex.). Moreover, you may choose the Authentication
Type, either Open System or Shared Key for authentication among wireless
devices. You may identify up to 4 different encryption keys and select one of
them to encrypt your transmission data. The key value of your choice may either
be:

-12-

For 64-bit encryption:

n 5 characters in the range of “A-Z”, “a-z” and “0-9” (e.g. MyKey, shown as

above figure).

n 10 digit hexadecimal values in the range of “A-F”, “a-f” and “0-9” (e.g.

11AA22BB33).

For 128-bit encryption:

n 13 characters in the range of “A-Z”, “a-z” and “0-9”, preceded by the

characters values (e.g. MyKey12345678)

n 26 digit hexadecimal values in the range of “A-F”, “a-f” and “0-9”, preceded

by the characters values (e.g. 12345678901234567890123456, shown as
below)

-13-

About

The “About” tab shows driver and utility version of the SMC2642W Wireless
Compact Flash Card.

-14-

3-2 Using the Wireless LAN Utility Under Handheld PC

The usage of Wireless LAN Utility under Handheld PC is exactly the same with
that under Pocket PC. The only difference is the window size. The following is
brief description on the Wireless LAN Utility. For more details please refer to 3-1
Using the Wireless LAN Utility Under Pocket PC.

1. Go to Start --> Settings. Click the “Wireless LAN Settings” icon. A

configuration window shows up. When you minimize the window by clicking
the OK button on the upper right corner of the utility window, a system tray
icon will be loaded on the toolbar. Clicking on the icon will open the
configuration window again. The description of each item is as follows:

Status:

This item shows the current information on the SMC2642W 11Mbps Wireless
Compact Flash Card such as Adapter Name, Firmware, Domain, Channel, Tx Rate,
MAC Address, Sync to AP, BSSID, Link Quality and Signal Level.

-15-

Configuration:

This item allows you to modify the configuration parameters for the SMC2642W
11Mbps Wireless Compact Flash Card such as ESSID, Network Type, Channel,
Power Saving mode, and Tx Rate. After making changes on the configuration,
click on the Apply button to make the changes take affect.

Link:

Similar to Ping Command, this tool allows you to monitor point-to-point data
transmission quality between two nodes. By entering the IP address of another
node and setting the timeout and packet size you may know whether or not the
communication has been established successfully.

-16-

Security

The encryption function enables you to encrypt and decrypt your wireless data,
making your data more secure. To enable the WEP encryption, select the
“Enable” check box, select the Key Length, either 64-bit or 128-bit, and enter the
WEP Keys in the Key field. For 64-Bits encryption the key values are 5

characters in the range of “A-Z”, “a-z” and “0-9” (e.g. MyKey); or 10 digit
hexadecimal values in the range of “A-F”, “a-f” and “0-9” (e.g. 11AA22BB33).

For 128-Bi ts encryption the key values are 13 characters in the range of “A-Z”,
“a-z” and “0-9” (e.g. MyKey12345678); or 26 digit hexadecimal values in the
range of “A-F”, “a-f” and “0-9” (e.g. 11AA22BB33123456789ABCDEFF). After
entering the WEP keys, choose a WEP Key to use and then click Apply to make
the configuration take effect.

-17-

About

The About tab shows driver and utility version of the SMC2642W Wireless
Compact Flash Card.

Caveat

n Due to WinCE's nature of the first application at power-on resuming to that at

power-off, if you are stuck at the utility program, you may use the PDA's reset
button to terminate it. And then activate it again when needed.

n Sometimes, your wireless connection to AP may disconnect for any reason.

You can reset and force a connection request by going to utility program, then
select "Configuration", check parameters, then select "Apply" to force a
re-scan.

n If your device roams to a new AP which is in a different subnet, you may need

to remove and re-insert the Wireless LAN Compact Flash Card to force an
execution of "release and renew" of an re-assignment of IP address in a DHCP
Access Point environment.

-18-

Chapter 4 Installing the SMC2642W Wireless CF Card

Under Windows 98/ME/NT/2000/XP

This chapter describes the instructions that guide you through the proper
installation of your SMC2642W 11Mbps Wireless Compact Flash Card for the
Windows 98/ME/NT/2000/XP operating systems.

4-1 System Requirements

In order to use the SMC2642W 11Mbps Wireless CF Card, your computer must
be equipped with the following:

1. A PCMCIA Type II slot, and a PCMCIA card and socket services compliant

with revision 2.10 of the PCMCIA specification (or higher).

2. Windows 98/ME/NT/2000/XP (with a Windows installation CD-ROM,

diskettes for use during installation)

3. Minimum 500 Kbytes free disk space for installing driver and utility program.

4-2 Setting Up SMC2642W Wireless CF Card

for Windows 98/ME

1. If your PC has a compact flash type II slot, simply insert the SMC2642W

Wireless Compact Flash Card into the CF slot. If not, use the
SMCCF-CVT CF to PCMCIA Converter as stated in no. 2 below.

2. Firmly insert the SMC2642W 11Mbps Wireless Compact Flash Card into the

SMCCF-CVT CF to PCMCIA Converter, as shown below. Then insert the
11Mbps Wireless Compact Flash Card into the PCMCIA slot of your
computer.

SMCCF-CVT CF to PCMCIA Converter SMC2642W

NOTE 1: SMC2642W only supports 3.3v. Make sure your Laptop supports

3.3v.

-19-

NOTE 2: The PCMCIA slot allows “hot swap” of PCMCIA adapter. You

may therefore insert or remove your SMC2642W 11Mbps
Wireless CF Card from the slot whenever you like even when the
power of your computer is on (except for Windows NT since
Windows NT does not support plug and play). However, you
are advised to always disable the SMC2642W Wireless CF Card
prior to removing the card from the PC card slot. This will allow
the Windows operating systems to log off from the network
server.

3. Windows 98/ME will automatically detect the new hardware and prompt you to

install the driver needed.

-20-

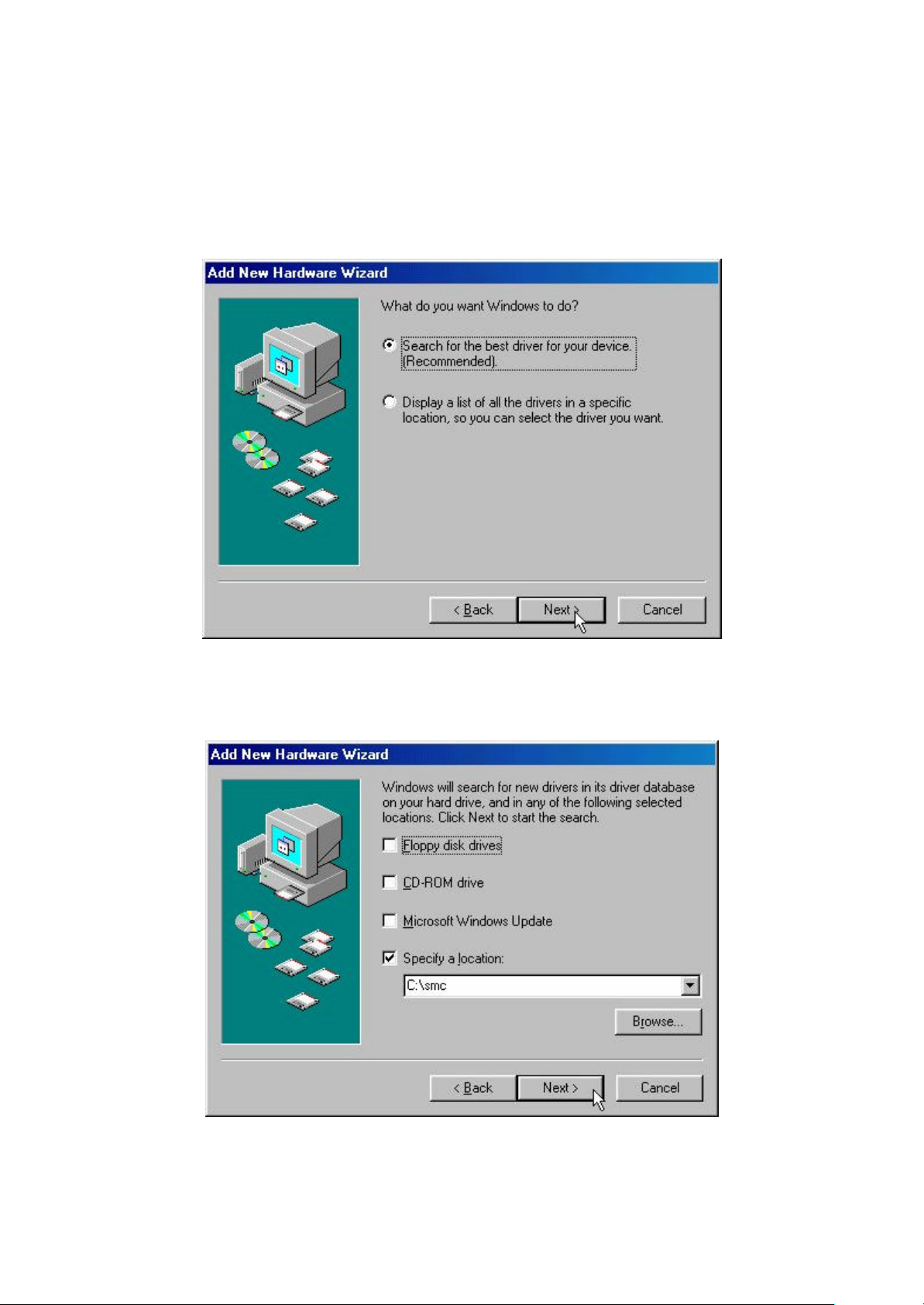

4. Select “Search for the best driver for your device” and click Next.

5. Select the location where the corresponding driver is placed, then click Next.

-21-

6. Windows will search for “SMC2642W 11Mbps Wireless Compact Flash
Card”. Click Next.

7. Windows 98 will prompt you for the Windows 98 Second Edition CD-ROM.

Enter the path corresponding to the appropriate drives and click OK.

-22-

8. Click Finish to complete the software installation.

9. Restart the computer.

-23-

10. Open Control Panel/System/Device Manager, and check Network Adapters

to see if any error icon appears. If there is no error icon, your SMC2642W
is working well.

-24-

4-3 Setting Up the SMC2642W 11Mbps Wireless CF Card

for Windows NT 4.0

1. From the desktop, select Control Panel, double-click Network, go to the

Adapters tab, and then click the Add button.

2. Windows NT will present a list of all of its supported adapters. Click Have

Disk to continue.

-25-

3. Windows NT will prompt for the drive/path containing the SMC2642W

11Mbps Wireless CF Card Windows NT drivers. Insert the Driver/Utility
CD-ROM into the corresponding drive, and then type the location where it is
placed.

4. Windows NT will attempt to locate an INF file in the specified path. If you

have entered the path name correctly, Windows NT should copy the
appropriate drivers to the Windows NT system.

-26-

5. Restart the system.

6. To ensure whether the SMC2642W 11Mbps Wireless CF Card works fine or

not, go to Control Panel, double-click on Devices, then verify whether the
11Mbps CF Card driver has started.

-27-

4-4 Setting Up the SMC2642W 11Mbps Wireless CF Card

for Windows 2000

1. If your PC has a compact flash slot type II, simply insert the Wireless Compact

Flash Card into the CF slot. If there is no error icon, use the SMCCF-CVT CF
to PCMCIA Converter as stated in No. 2 below.

2. Firmly insert the SMC2642W 11Mbps Wireless Compact Flash Card into the

SMCCF-CVT CF to PCMCIA Converter. Then insert the 11Mbps Wireless
Compact Flash Card into the PCMCIA slot.

3. Windows 2000 will automatically detect the new hardware and prompt you to

install the driver needed.

-28-

4. Select “Search for a suitable driver for my device [recommended]” and

click Next.

5. Select the location where the corresponding driver is placed, then click Next.

-29-

6. Windows 2000 will find “SMC2642W 11Mbps Wireless CF Card”.

Now click Next.

7. Click Finish to complete the software installation.

-30-

8. Open Control Panel/System/Device Manager, and check Network

Adapters to see if any error icon appears. If not, your SMC2642W 11Mbps

Wireless CF Card is working well.

-31-

4-5 Setting Up the SMC2642W 11Mbps Wireless CF Card

for Windows XP

1. If your PC has a compact flash slot type II, simply insert the Wireless Compact

Flash Card into the CF slot. If not, use the SMCCF-CVT CF to PCMCIA
Converter as stated in No. 2 below.

2. Firmly insert the SMC2642W 11Mbps Wireless Compact Flash Card into the

SMCCF-CVT CF to PCMCIA Converter. Then insert the 11Mbps Wireless
Compact Flash Card into the PCMCIA slot.

3. The Windows will auto-detect the Wireless CF Card and a “Found New

Hardware Wizard” window will show up. Select “Install from a list or
specific (Advanced)” to install the driver.

-32-

4. Insert the Driver/Utility CD-ROM into the appropriate drive. Specify the

location where the driver is placed. Click on Next to install the driver.

5. The windows will find “SMC2642W Wireless CF Card” and start copying

corresponding files into the system. Click Next to continue.

-33-

6. Click Finish to complete the software installation.

7. Right click “My Computer” from Start, select Properties, go to the Hardware

tab and click the Device Manager button to see if any error icon appears next to
the Network Adapters/SMC2642W 11Mbps Wireless Compact Flash
Card. If there is no error icon, your 11Mbps Wireless CF Card is working
well.

-34-

8. After installing the SMC2642W 11Mbps Wireless CF Card , Windows XP will

display a “Wireless Network Connection # ” message.

Click on the message and the “Automatic Wireless Network Configuration will
then appear and allows users to connect to a wireless infrastructure network
(Access Point), shown as the below figure.

-35-

You may click the Advanced button to make advanced configuration for the
SMC2642W, shown as below.

For more information on using the automatic wireless network configuration, please
refer to Windows XP Help file.

The SMC2642W WLAN Utility, which comes with the Wireless CF Card,
however, provides you with more tools to configure the CF Card and monitor the
wireless connection. For more information on installing and using the WLAN
utility, please refer to the following sections “Installation of the Wireless LAN
Utility” and “Usage of the WLAN Utility”.

Note: To use the WLAN utility under Windows XP, you need to

disable the Automatic Wireless Network Configuration first by clearing
the “Use Windows to configure my wireless network settings”
check box at Network Connections/Properties of Wireless
Connection/Wireless Networks (see the above picture).

-36-

Chapter 5 Using the SMC2642W Wireless CF Card

Under Windows 98/ME/NT/2000/XP

This chapter gives you detail installation procedures of the SMC2642W WLAN
Configuration Utility for setting up the 11Mbps Wireless CF Card under Windows
98/ME/NT/2000/XP.

5-1 Installation of Wireless LAN Utility

1. Insert the Driver/Utility CD-ROM into the corresponding drive and execute the

utility\setup.exe. Then follow the on-screen instructions which guide you

through the process of installation.

2. You may add a shortcut in the startup folder as desired.

Upon completion, go to Program Files and run the WLAN Utility and its icon will
appear in the System Tray in the bottom right corner of your taskbar. Clicking
on the icon will open the configuration window. When you minimize the window,
the system tray icon will be loaded in the System Tray again.

-37-

5-2 Using the SMC2642W WLAN Configuration Utility

The SMC2642W WLAN Configuration Utility enables you to make configuration
changes and perform user-level diagnostics on your SMC2642W 11Mbps Wireless
CF Card in the Windows XP/2000/NT/98/ME operating system environments.
The WLAN Utility consists of 5 items for you to monitor and configure the
11Mbps Wireless CF Card: Configuration, Loop Back, AP Browser, Site
Survey and About.

Configuration:

The Configuration item allows you to modify the configuration parameters for the
SMC2642W 11Mbps Wireless CF Card such as Profile, Network Type,

Ad-Hoc Channel, Transmit Rate, ESSID, WEP, RTS/CTS, Fragment
Threshold, and Power Save mode. Furthermore, you may monitor the current
status of the Wireless CF Card such as State, Current Channel, Current Tx
Rate, Throughput, Link Quality and Signal Strength.

-38-

Profile

The Profile field allows you to set values for all parameters by selecting a
previously defined profile. Click on the drop-down list of the Profile field to
display the available profiles for your Wireless CF Card. You will always have at
least one profile, named Default. You can modify this profile at any time. Or,
you can also create multiple profiles by typing a name in the Profile field. If one
of the profiles is no longer used, you may remove it by clicking the Delete button.
After changing parameters, click the Save button and Apply button to take effect.

Network Type

There are 3 network types for the 11Mbps Wirele ss CF Card to operate. If you
need to access company network or Internet via Access Point, select
“Infrastructure”. To set up a group of wireless stations for file and printer
sharing, select “AdHoc” or “802.11 AdHoc” (without Access Point). If Ad-Hoc
(without access point) is selected, you need to set wireless stations with the
same channel. If 802.11 AdHoc is selected , same channel and ESS ID
are required for each wireless stations.

Check here before entering the ESS ID

-39-

Transmit Rate

The SMC2642W 11Mbps Wireless CF Card provides various data rate options for
you to selec t. Data rates options include Fully Auto matic, 2 Mb, Auto 1 or 2
Mb, 5.5 Mb, and 11 Mb. In most networking scenarios, you will see that the
factory-set default “Fully Automatic” will prove to be the most efficient. This
setting will allow your 11Mbps Wireless CF Card to operate at the maximum data
rate. When the communications quality drops below a certain level, the CF Card
will automatically switch to a lower data rate. Transmission at lower data speeds
are usually more reliable. However, when the communications quality improves
again, the SMC2642W 11Mbps Wireless CF Card will gradually increase the data
rate again , until it reaches the highest available transmit rate.

-40-

WEP

To prevent unauthorized wireless stations from accessing data transmitted over the
network, the WLAN Utility offers highly secure data encryption known as WEP,
which makes your data transmission more secure. To activate the WEP
Encryption, check the WEP Enabled check box. An Encryption window will
then appear. The instructions are as follows:

Ø Pull down the Encryption (WEP) menu and select either 64bit or 128bit

encryption method.

Ø Specify the encryption keys. There are two methods to set the WEP keys, as

described below:

Create Encryption Keys by Using a Passphrase

Users can just input the Passphrase. Then users need to define the Default Key
and press OK and the 4 keys will be generated for 64-Bit WEP. For 128-Bit
WEP, there will only be 1 key generated after entering the Passphrase.

Create Encryption Keys Using a Passphrase (128bit)

-41-

Create Encryption Keys Manually

You can also create encryption keys manually by clicking the Create Keys
Manually check box. For 64bit encryption, you must enter exactly 10

hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (e.g. 11AA22BB33)
in each of the four key fields; for 128bit encryption, you need to enter exactly

26 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (e.g.
00112233445566778899AABBCC). Then click the Apply button to create
your encryption keys.

Create Encryption Keys Manually (64bit)

-42-

Loop Back:

The Loop Back tool helps you examine point-to-point data transmission
quality between your 11Mbps Wireless CF Card and any workstation on the
network. By entering the IP address of the remote station, set ping interval
and packet size, you may know whether communication has been made
successfully or not. Additionally, if you use the infrastructure wireless LAN
configuration, you may run the loopback test by clicking the Loop back button
to verify the communication quality between your wireless station and Access
Point.

-43-

AP Browser:

By clicking the Rescan button, the AP Browser can display all the Access
Points around the working environment. Besides showing the ESSID of each
Access Point, it also displays BSSID, Channel, Signal, Quality and Supported
Rates. To join any of the displayed Access Point, highlight the Access Point
you desire to connect and then click the Join BSS or Join ESS button to join
the group.

Site Survey:

When the Site Survey screen is displayed, the channel quality of all 14 radio
channels will be displayed. These channel quality measurements are shown on
each gauge for the 14 radio channels. The blue bar indicated the channel
quality is clear and good. The higher the blue bar is, the better quality you
have (i.e., less interference). The yellow bar indicates the channel quality is fair
and the red bar indicates the channel is busy or having severe interference.

-44-

About:

The About item shows the versions of the Wireless LAN Utility, driver, fir mware
of the SMC2642W 11Mbps Wireless CF Card. The MAC address and
frequency domain are also displayed.

-45-

Appendix A. Network Configuration

The 11Mbps Wireless LAN products support the same network configuration
options of the legacy Ethernet LANs as defined by IEEE 802 standard committee.

The 11Mbps Wireless LAN products can be configured as:

u Ad-Hoc for departmental or SOHO LANs
u Infrastructure for enterprise LANs
u LAN-Interconnection for point-to-point link as a campus backbone.

A-1 Network Topology

u Ad-Hoc

Fig An Example of Ad-Hoc Wireless LAN

An Ad-Hoc wireless LAN is a group of computers, each equipped with one
wireless adapter, connected as an independent wireless LAN. Computers in a
specific Ad -Hoc wireless LAN must be configured at the same radio channel.

Ad-Hoc wireless LAN is applicable at a departmental scale for a branch or SOHO
operation.

-46-

u Infrastructure

Fig An Example of Infrastructure Wireless LAN

The 11Mbps Wireless LAN devices provide access to a wired LAN for wireless

workstations. An integrated wireless and wired LAN is called an Infrastructure
configuration. A group of wireless LAN PC users and an Access Point construct
a Basic Service Set (BSS). Each wireless-equipped PC in this BSS can talk to
any computer in the wired LAN infrastructure via the Access Point.

Infrastructure configuration will extend the acces sibility of a wireless station to the
wired LAN. Multiple Access Points will allow roaming and it will increase the
transmission range. The Access Point is also able to forward data within its BSS.
The effective transmission range in an infrastructure LAN is doubled.

-47-

Fig The effective Transmission Range

-48-

Appendix B. Specifications

Product SMC2642W Wireless Compact Flash Card

Operating Channels

Operating Freq uency

Range

Antenna One Built -In antenna
Modulation CCK(11Mps,5.5Mbps),DQPSK(2Mbps),

Voltage 3.3 VDC ± 0.3V

11 for N. America, 14 Japan, 13 Europe (ETSI),

2 Spain, 4 France

2.412-2.462 GHz ( N. America)

2.412-2.484 GHz (Japan)

2.412-2.472 GHz (Europe ETSI)

2.457-2.462 GHz (Spain)

2.457-2.472 GHz (France)
Fixed at 11Mbps: 495 ft

5.5Mbps: 595 ft
2Mbps: 630 ft
1Mbps: 700 ft

DBPSK(1Mbps)

Host Interface Compact Flash V1.4 , CF+ I/O interface, type II
Power Consumption

Output Power 14 dBm
Sensitivity

Data Rate 1,2,5.5,11 Mbps
Support OS CE 3.0 and later, Windows 98/Me/NT/2000/XP

TX power consumption: <350mA
RX power consumption <250mA
Sleep Mode power consumption: 100mA

@PER < 0.08
11Mbps < -83 dBm

5.5Mbps < -86dBm
2Mbps < -89dBm

1Mbps < -91dBm

-49-

Automatic Voltage detection supports both 3.3V and

Product SMCCF-CVT CF to PCMCIA Converter

Main Function

Voltage

Host Interface Fully compatible with Type I/II Compact Flash Cards

Power Consumption
Supports Supports PCMCIA PC Card ATA/IDE mode

Converts Type I/II Compact Flash Card to standard
Type II PCMCIA Card.

5.0V Compact Flash Cards.

specification standards

DC 3.3V or DC 5V from PCMCIA socket directly

FOR TECHICAL SUPPORT, CALL.

From U.S.A. and Canada (24 hours a Day, 7 days a week)

(800) SMC -4-YOU; [phone]; (Fax) (949) 679 -1481

From Europe (8:00 AM – 5:30 PM UK Greenwich Mean Time)

44 (0) 118 9748700; (Fax) 44 (0) 118 9748701

INTERNET

E-mail addresses:

[e-mail]
[e-mail]

Driver updates:

http://www.smc.com/Index.cfm?action=tech_support_drivers_downloads

World Wide Web:

http://www.smc.com/
http://www.smc-europe.com/

FOR LITERATURE OR ADVERTISING RESPONSE, CALL:

U.S.A. and Canada: (800) SMC-4-YOU; Fax [phone]
Spain: 34-93-477-4920; Fax [phone]
UK: 44 (0) 118 9748700; Fax [phone]
France: 33 (0) 141383232; Fax [phone]
Italy: 39027391233; Fax [phone]
Benelux: 31334557288; Fax [phone]
Central Europe: 49 (0) 8992861-0; Fax [phone]
Switzerland: 41 (0) 19409971; Fax [phone]
Nordic: 46 (8) 564 33145; Fax [phone]
Northern Europe: 44 (0) 118 9748700; Fax [phone]
Eastern Europe: 34934774920; Fax [phone]
Sub Saharan Africa: 27113141133; Fax [phone]
North Africa: 34934774920; Fax [phone]
Russia: 7 (095) 2902996 Fax [phone]
PRC: 86-10-6235-4958; Fax [phone]
Taiwan: 886-2-2659-9669; Fax [phone]
Asia Pacific: (65) 238 6556; Fax [phone]
Korea: 82-2-553-0860; Fax [phone]
Japan: 81-45-224-2332; Fax [phone]
Australia: 61-2-9416-0437; Fax [phone]
India: 91-22-8204437; Fax [phone]

If you are looking for further contact information, please visit www.smc.com or
www.smc-europe.com

38 Tesla
Irvine, CA 92618
Phone: [phone]
