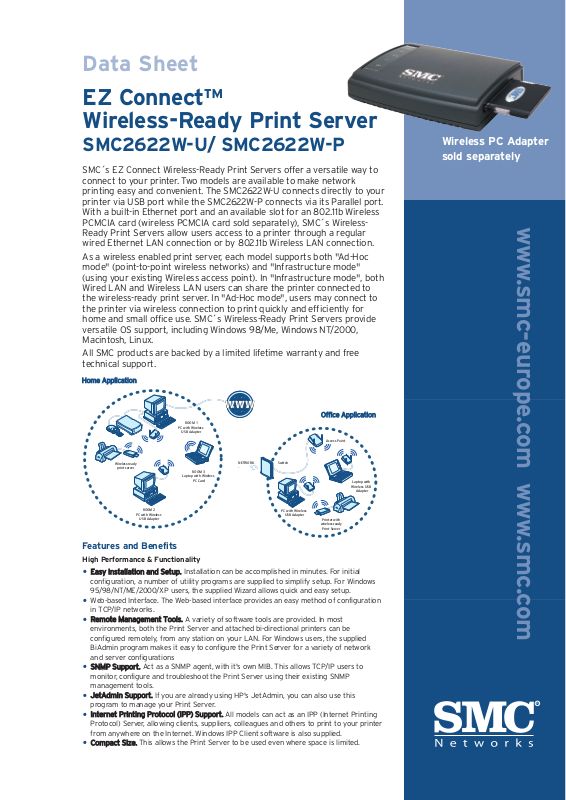

Data Sheet

EZ Connect™
Wireless-Ready Print Server

SMC2622W-U/ SMC2622W-P

www.smc-europe.com www.smc.com

SMC´s EZ Connect Wireless-Ready Print Servers offer a versatile way to
connect to your printer. Two models are available to make network
printing easy and convenient. The SMC2622W-U connects directly to your
printer via USB port while the SMC2622W-P connects via its Parallel port.
With a built-in Ethernet port and an available slot for an 802.11b Wireless
PCMCIA card (wireless PCMCIA card sold separately), SMC´s Wireless­Ready Print Servers allow users access to a printer through a regular
wired Ethernet LAN connection or by 802.11b Wireless LAN connection.

As a wireless enabled print server, each model supports both "Ad-Hoc
mode" (point-to-point wireless networks) and "Infrastructure mode"
(using your existing Wireless access point). In "Infrastructure mode", both
Wired LAN and Wireless LAN users can share the printer connected to
the wireless-ready print server. In "Ad-Hoc mode", users may connect to
the printer via wireless connection to print quickly and efficiently for
home and small office use. SMC´s Wireless-Ready Print Servers provide
versatile OS support, including Windows 98/Me, Windows NT/2000,
Macintosh, Linux.

All SMC products are backed by a limited lifetime warranty and free
technical support.

Features and Benefits

High Performance & Functionality

•

EEaassyy IInnssttaallllaattiioonn aanndd SSeettuupp..

Installation can be accomplished in minutes. For initial
configuration, a number of utility programs are supplied to simplify setup. For Windows
95/98/NT/ME/2000/XP users, the supplied Wizard allows quick and easy setup.

•

Web-based Interface. The Web-based interface provides an easy method of configuration
in TCP/IP networks.

•

RReemmoottee MMaannaaggeemmeenntt TToooollss..

A variety of software tools are provided. In most
environments, both the Print Server and attached bi-directional printers can be
configured remotely, from any station on your LAN. For Windows users, the supplied
BiAdmin program makes it easy to configure the Print Server for a variety of network
and server configurations

•

SSNNMMPP SSuuppppoorrtt..

Act as a SNMP agent, with it's own MIB. This allows TCP/IP users to
monitor, configure and troubleshoot the Print Server using their existing SNMP
management tools.

•

JJeettAAddmmiinn SSuuppppoorrtt..

If you are already using HP's JetAdmin, you can also use this

program to manage your Print Server.

•

IInntteerrnneett PPrriinnttiinngg PPrroottooccooll ((IIPPPP)) SSuuppppoorrtt..

All models can act as an IPP (Internet Printing
Protocol) Server, allowing clients, suppliers, colleagues and others to print to your printer
from anywhere on the Internet. Windows IPP Client software is also supplied.

•

CCoommppaacctt SSiizzee..

This allows the Print Server to be used even where space is limited.

HHoommee AApppplliiccaattiioonn

OOffffiiccee AApppplliiccaattiioonn

Wireless PC Adapter
sold separately

wwwwww

ROOM 1

PC with Wireless

USB Adapter

Access Point

Wireless-ready

print server

ROOM 2

PC with Wireless

USB Adapter

ROOM 3

Laptop with Wireless

PC Card

NETWORK

Switch

PC with Wireless

USB Adapter

Printer with

wireless-ready

Print Server

Laptop with

Wireless USB

Adapter

Specifications

SMC2622W-P Print Server

Power Consumption

•

3w max.

EExxtteerrnnaall PPoowweerr AAddaapptteerr

•

12V DC

LLEEDDss

•

4

PPaarraalllleell PPoorrtt

•

1 x DB-25 connector

EEtthheerrnneett CCoonnnneeccttoorr

•

10BASE-T/100BASE-TX port

•

IEEE 802.11b Wireless PC Card Slot for
following Wireless adapter cards:

-

SMC2632W V.2 (pre-configured),

-

SMC2632W (previous SMC version),

-

wireless adapter cards based on
Intersil PRISM 2.x or 3.0

FFCCCC // CCEE

•

Class B

SSMMCC22662222WW--UU PPrriinntt SSeerrvveerr

PPoowweerr CCoonnssuummppttiioonn

•

3w max.

EExxtteerrnnaall PPoowweerr AAddaapptteerr

•

12V DC

LLEEDDss

•

4

UUSSBB PPoorrtt ((UUSSBB 11..11 ccoommpplliiaanntt))

•

1

EEtthheerrnneett CCoonnnneeccttoorr

•

10BASE-TX/100BASE-TX port

•

IEEE 802.11b Wireless PC Card Slot for
following Wireless adapter cards:

-

SMC2632W V.2 (pre-configured),

-

SMC2632W (previous SMC version),

-

wireless adapter cards based on
Intersil PRISM 2.x or 3.0

FFCCCC // CCEE

•

Class B

SMC Networks Europe
Head Office

Edificio Conata II
Fructuós Gelabert 6-8 20, 4a
08970 - Sant Joan Despi
Barcelona
Spain
Telephone: [phone]
Facsimile: [phone]

SMC Networks Central Europe

Telephone: [phone]
Facsimile: [phone]

SMC Networks CIS

Telephone: [phone]

SMC Networks Denmark

Telephone: [phone]
Facsimile: [phone]

SMC Networks Eastern Europe

Telephone: [phone]
Facsimile: [phone]

SMC Networks Italia

Telephone : [phone]

SMC Networks Netherlands

Telephone: [phone]
Facsimile: [phone]

SMC Networks Nordic

Telephone: [phone]
Facsimile: [phone]

SMC Networks Northern Europe

Telephone: [phone]
Facsimile: [phone]

SMC Networks Sub-Saharan Africa

Telephone: [phone]
Facsimile: [phone]

SMC Networks South-East Europe

Telephone: [phone]
Facsimile: [phone]

SMC Networks Southern Europe

Telephone: [phone]
Facsimile: [phone]

SMC Networks Spain and Portugal

Telephone: [phone]
Facsimile: [phone]

SMC Switzerland

Telephone:[phone]
Facsimile:[phone]

SMC is a registered trademark; and EtherPower, EZStart, SimulTasking, TigerSwitch and SuperDisk are trademarks of SMC Networks, Inc.
Other product and company names are trademarks or registered trademarks of their respective holders. © Copyright 2002 SMC Networks, Inc.

EZ Connect™ Wireless­Ready Print Server

SMC2622W-U,
SMC2622W-P

www.smc-europe.com www.smc.com

Product Model No. Description

EZ Connect Wireless-Ready SMC2622W-P Wireless-Ready Print Server with Parallel Port
Print Server

SMC2622W-U Wireless-Ready Print Server with USB Port

Specifications for both
Print Servers

OOppeerraattiinngg TTeemmppeerraattuurree

•

0 ~ 40°C

SSttoorraaggee TTeemmppeerraattuurree

•

-10 ~ 70°C

SShhiippppiinngg TTeemmppeerraattuurree

•

-40 ~ 70°C

OOppeerraattiinngg HHuummiiddiittyy

•

10 ~ 80%

SSttoorraaggee HHuummiiddiittyy

•

5 ~ 90%

SShhiippppiinngg HHuummiiddiittyy

•

5 ~ 100%

DDiimmeennssiioonnss ((LL xx WW xx HH))

•

12.0 x 9.5 x 2.5 cm

WWaarrrraannttyy

•

Limited lifetime Warranty defined as
5 years after product registration

PCMCIA
Wireless

Card

PCMCIA
Wireless

Card

LAN

Port

Parallel

Port

Diagnostic

Button

Power

USB

LAN

Port

Port

Diagnostic

Button

Power
