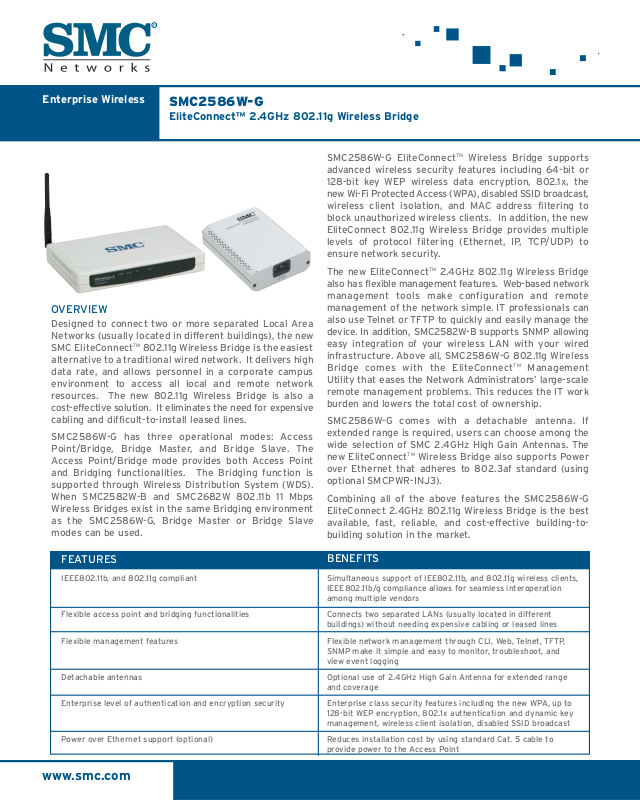

Enterprise Wireless
SMC2586W-G
EliteConnect™ 2.4GHz 802.11g Wireless Bridge
www.smc.com
Designed to connect two or more separated Local Area
Networks (usually located in different buildings), the new
SMC EliteConnectTM802.11g Wireless Bridge is the easiest
alternative to a traditional wired network. It delivers high
data rate, and allows personnel in a corporate campus
environment to access all local and remote network
resources. The new 802.11g Wireless Bridge is also a
cost-effective solution. It eliminates the need for expensive
cabling and difficult-to-install leased lines.
SMC2586W-G has three operational modes: Access
Point/Bridge, Bridge Master, and Bridge Slave. The
Access Point/Bridge mode provides both Access Point
and Bridging functionalities. The Bridging function is
supported through Wireless Distribution System (WDS).
When SMC2582W-B and SMC2682W 802.11b 11 Mbps
Wireless Bridges exist in the same Bridging environment
as the SMC2586W-G, Bridge Master or Bridge Slave
modes can be used.
SMC2586W-G EliteConnect
TM
Wireless Bridge supports
advanced wireless security features including 64-bit or
128-bit key WEP wireless data encryption, 802.1x, the
new Wi-Fi Protected Access (WPA), disabled SSID broadcast,
wireless client isolation, and MAC address filtering to
block unauthorized wireless clients. In addition, the new
EliteConnect 802.11g Wireless Bridge provides multiple
levels of protocol filtering (Ethernet, IP, TCP/UDP) to
ensure network security.
The new EliteConnectTM2.4GHz 802.11g Wireless Bridge
also has flexible management features. Web-based network
management tools make configuration and remote
management of the network simple. IT professionals can
also use Telnet or TFTP to quickly and easily manage the
device. In addition, SMC2582W-B supports SNMP allowing
easy integration of your wireless LAN with your wired
infrastructure. Above all, SMC2586W-G 802.11g Wireless
Bridge comes with the EliteConnect
TM
Management
Utility that eases the Network Administrators’ large-scale
remote management problems. This reduces the IT work
burden and lowers the total cost of ownership.
SMC2586W-G comes with a detachable antenna. If
extended range is required, users can choose among the
wide selection of SMC 2.4GHz High Gain Antennas. The
new EliteConnect
TM
Wireless Bridge also supports Power
over Ethernet that adheres to 802.3af standard (using
optional SMCPWR-INJ3).
Combining all of the above features the SMC2586W-G
EliteConnect 2.4GHz 802.11g Wireless Bridge is the best
available, fast, reliable, and cost-effective building-tobuilding solution in the market.
FEATURES
IEEE802.11b, and 802.11g compliant
Flexible access point and bridging functionalities
Flexible management features
Detachable antennas
Enterprise level of authentication and encryption security
Power over Ethernet support (optional)
Simultaneous support of IEE802.11b, and 802.11g wireless clients,
IEEE802.11b/g compliance allows for seamless interoperation
among multiple vendors
Connects two separated LANs (usually located in different
buildings) without needing expensive cabling or leased lines
Flexible network management through CLI, Web, Telnet, TFTP,
SNMP make it simple and easy to monitor, troubleshoot, and
view event logging
Optional use of 2.4GHz High Gain Antenna for extended range
and coverage
Enterprise class security features including the new WPA, up to
128-bit WEP encryption, 802.1x authentication and dynamic key
management, wireless client isolation, disabled SSID broadcast
Reduces installation cost by using standard Cat. 5 cable to
provide power to the Access Point
BENEFITS
OVERVIEW
TECHNICAL SPECIFICATIONS SMC2586W-G / SMCPWR-INJ3
STANDARDS
• IEEE802.11b/g, IEEE802.1x,
• IEEE802.3, IEEE802.3u, IEEE802.3af
INTERFACE
• 1x 10BASE-T/100BASE-TX (RJ-45) Port
• 1x RS-232c Serial Port
• IEEE802.11b/g Wireless LAN
MEDIA ACCESS PROTOCOL
• CSMA/CA
OPERATIONAL MODE
• Infrastructure Mode
• Access Point/WDS Bridge (used in pure
SMC2586W-G bridging environment)
• Bridge Master/Slave (used when
SMC2586W-G, SMC2582W-B, and
SMC2682W are in the bridging environment)
TRANSFER DATA RATES
• IEEE802.11b
• 11, 5.5, 2, 1 Mbps with auto-Fallback
• IEEE802.11g
• 54, 48, 36, 24. 18, 12, 9, 6 Mbps with
auto-Fallback
MODULATION TYPE
• IEEE802.11g: OFDM
Modulation Data Rate
BPSK 6, 9 Mbps
QPSK 12, 18 Mbps
16-QAM 24, 36 Mbps
64-QAM 48, 54 Mbps
• IEEE802.11b: DSSS
Modulation Data Rate
DBPSK 1 Mbps
DQPSK 2 Mbps
CCK 5.5, 11 Mbps
CHANNELS/FREQUENCY RANGE
• 2.4 GHz frequency band
• 11 channels, 2.400 ~ 2.4720 GHz
(US, Canada)
• 13 channels, 2.400 ~ 2.4835 GHz (ETSI)
• 14 channels, 2.400 ~ 2.4970 GHz (Japan)
TRANSMIT OUTPUT POWER (E.I.R.P.)
Transmit Power IEEE802.11g IEEE802.11b
Control
High 14-15 dBm 16-18 dBm
Medium High 11-12 dBm 13-15 dBm
Medium 4-6 dBm 10-12 dBm
Medium Low 1-2 dBm 7-9 dBm
Low -1-0 dBm 4-6 dBm
OPERATING RANGE
• 802.11b: up to 457m/ 1.500 ft
• 802.11g: up to 350 m/ 1.155 ft
• Ranges vary based upon numerous
environmental factors so individual
performance may be significantly different.
RECEIVE SENSITIVITY
• IEEE802.11a/g
Transfer Rate IEEE802.11g
6 Mbps -88 dBm
9 Mbps -87 dBm
12 Mbps -84 dBm
18 Mbps -82 dBm
24 Mbps -79 dBm
36 Mbps -76 dBm
48 Mbps -69 dBm
54 Mbps -68 dBm
• IEEE802.11b
Transfer Rate IEEE802.11b
1 Mbps -91 dBm
2 Mbps -88 dBm
5.5 Mbps -85 dBm
11 Mbps -83 dBm
ANTENNA TYPE
• One removable, replaceable 2 dBi Antenna
• R-SMA (male) connector for external
Antenna
SECURITY
• 64-/128-bit WEP encryption
• TKIP encryption
• Wi-Fi Protected Access (WPA)
• IEEE802.1x, EAP-MD5, EAP-TLS,
EAP-TTLS, PEAP, LEAP
• Disable SSID Broadcast
• MAC address filtering
• Wireless Client Isolation
CONFIGURATION AND MANAGEMENT
• Web-browser, Telnet, TFTP, SNMP
• Syslog, Event Logging
• DHCP Server
MAXIMUM CLIENTS
•64
LED
• Power, LAN, WLAN, Alive
POWER SUPPLY
• Input: 100-240V AC, 50-60 Hz
• Output: 12 VDC, 1A
TEMPERATURE
• Operating: 0°C ~ 55°C / 32°F ~ 131°F
• Storage: -20°C ~ 70°C / -4°F ~ 158°F
HUMIDITY (NON-CONDENSING)
• 5% ~ 95% in storage
DIMENSION (WITHOUT ANTENNAS)
• 140 x 216 x 32 mm / 5.5 x 8.5 x 1.25 in
WEIGHT
• 435 g/ 0.96 lbs
SAFETY
• UL1950-3
• CSA 950-95
• EN60950
COMPLIANCE
• Wi-Fi compliant
• FCC Part 15 Class B
• IC (Canada)
• ETSI, EN300328-1/ EN60950-1/
EN301489-17 (Europe)
WARRANTY
• Limited Lifetime
SMCPWR-INJ3 (optional)
INPUT POWER REQUIREMENTS
• AC Input Voltage: 90 - 264VAC, 47-63 Hz
• AC Input Current: 2A at 100VAC, 1A at
240VAC (-48VDC)
OUTPUT VOLTAGE
• Aggregate Power: 50W (48VDC)
PoE OUTPUT SPECIFICATION
• PIN Assignments and Polarity:
(+) 4/5, (-) 7/8
LEDs
• AC Power, Power Active, Over Current
Protection, Connectors Shielded RJ-45
TEMPERATURE
• Operating: 0°C ~ 40°C / 32°F ~ 104°F
• Storage: -25°C ~ 85°C / -13°F ~ 185°F
HUMIDITY (NON-CONDENSING)
• Max. 90% in storage
DIMENSION
• 101 x 140 x 38 mm/ 4 x 5.5 x 1.5 in
WEIGHT
• 626 g / 1.38 lbs
COMPLIANCE
• FCC Part 15 Class B
•CE
• UL1950
• CSA A22.2 No. 950
• EN60950
•CB
