Smc 2552W-G User Guide

Download

SMC2552W-G

EliteConnect™ 2.4GHz 802.11g Wireless Access Point User Guide

The easy way to make all your network connections

38 Tesla Irvine, CA 92618 Phone: (949) 679-8000

April 2004 Revision Number: R01, F2.0.22

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EliteConnect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.

LIMITED WARRANTY

Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. SMC will endeavor to repair or replace any product returned under warranty within 30 days of receipt of the product.

The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering new products within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC Web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active” SMC product. A product is considered to be “Active” while it is listed on the current SMC price list. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an “Active” SMC product. A list of discontinued products with their respective dates of discontinuance can be found at: http://www.smc.com/index.cfm?action=customer_service_warranty.

All products that are replaced become the property of SMC. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed accessory or add-on components, such as expansion modules, removed prior to returning the product for replacement. SMC is not responsible for these items if they are returned with the product.

Customers must contact SMC for a Return Material Authorization number prior to returning any product to SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at customer’s expense. For warranty claims within North America, please call our toll-free customer support number at (800) 762-4968.

LIMITED WARRANTY

Customers are responsible for all shipping charges from their facility to SMC. SMC is responsible for return shipping charges from SMC to customer.

WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

* SMC will provide warranty service for one year following discontinuance from

the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.

SMC Networks, Inc. 38 Tesla Irvine, CA 92618

COMPLIANCES

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE: FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Wireless 2.4 GHz Band Statements:

As the SMC2552W-G Access Point can operate in the 2412-2462 MHz frequency band it is limited by the FCC, Industry Canada and some other countries to indoor use only so as to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

iii

COMPLIANCES

The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Industry Canada - Class B

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie.

Australia/New Zealand AS/NZS 4771

ACN 066 352010

Contact SMC at: SMC Networks, Inc.

38 Tesla Irvine, CA 92618 Phone: (949) 679-8000

OMPLIANCES

EC Conformance Declaration

SMC contact for these products in Europe is:

SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain.

Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards:

• EN 60950 (IEC 60950) - Product Safety

• EN 300 328 - Technical requirements for 2.4 GHz radio equipment

• EN 301 489-1 / EN 301 489-17 - EMC requirements for radio equipment

, 4a,

0560

Countries of Operation & Conditions of Use in the European Community

This device is intended to be operated in all countries of the European Community. Requirements for indoor vs. outdoor operation, license requirements and allowed channels of operation apply in some countries as described below:

Note: The user must use the configuration utility provided with this product to

ensure the channels of operation are in conformance with the spectrum usage rules for European Community countries as described below.

• This device requires that the user or installer properly enter the current country of operation in the command line interface as described in the user guide, before operating this device.

• This device will automatically limit the allowable channels determined by the current country of operation. Incorrectly entering the country of operation may result in illegal operation and may cause harmful interference to other system. The user is obligated to ensure the device is operating according to the channel limitations, indoor/outdoor restrictions and license requirements for each European Community country as described in this document.

• This device may be operated indoors or outdoors in all countries of the European Community using the 2.4 GHz band: Channels 1 - 13, except where noted below.

- In Italy the end-user must apply for a license from the national spectrum

authority to operate this device outdoors.

- In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz

band: Channel 13.

- In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band:

Channels 1 - 7.

COMPLIANCES

Safety Compliance

Power Cord Safety

Please read the following safety information carefully before installing the switch: WARNING: Installation and removal of the unit must be carried out by qualified

personnel only.

• The unit must be connected to an earthed (grounded) outlet to comply with international safety standards.

• Do not connect the unit to an A.C. outlet (power supply) without an earth (ground) connection.

• The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating with an EN 60320/IEC 320 appliance inlet.

• The socket outlet must be near to the unit and easily accessible. You can only remove power from the unit by disconnecting the power cord from the outlet.

• This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC 60950. The conditions are only maintained if the equipment to which it is connected also operates under SELV conditions.

France and Peru only

This unit cannot be powered from IT unit must be powered by 230 V (2P+T) via an isolation transformer ratio 1:1, with the secondary connection point labelled Neutral, connected directly to earth (ground).

†

Impédance à la terre

Important! Before making connections, make sure you have the correct cord set. Check it (read the label on the cable) against the following:

†

supplies. If your supplies are of IT type, this

Power Cord Set

U.S.A. and Canada

Denmark The supply plug must comply with Section 107-2-D1,

The cord set must be UL-approved and CSA certified.

The minimum specifications for the flexible cord are:

- No. 18 AWG - not longer than 2 meters, or 16 AWG.

- Type SV or SJ

- 3-conductor

The cord set must have a rated current capacity of at least 10 A

The attachment plug must be an earth-grounding type with NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

Standard DK2-1a or DK2-5a.

OMPLIANCES

Power Cord Set

Switzerland The supply plug must comply with SEV/ASE 1011.

U.K. The supply plug must comply with BS1363 (3-pin 13 A) and

Europe The supply plug must comply with CEE7/7 (“SCHUKO”).

be fitted with a 5 A fuse which complies with BS1362.

The mains cord must be <HAR> or <BASEC> marked and be of type HO3VVF3GO.75 (minimum).

IEC-320 receptacle.

vii

COMPLIANCES

Veuillez lire à fond l'information de la sécurité suivante avant d'installer le Switch:

AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à un

personnel qualifié.

• Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de connexion de mise à la terre (mise à la masse).

• Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de respecter les normes internationales de sécurité.

• Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale) doit respecter une configuration qui permet un branchement sur une entrée d’appareil EN 60320/IEC 320.

• La prise secteur doit se trouver à proximité de l’appareil et son accès doit être

facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette prise.

• L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à la norme IEC 60950. Ces conditions ne sont maintenues que si l’équipement auquel il est raccordé fonctionne dans les mêmes conditions.

France et Pérou uniquement:

Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec un point secondaire de connexion portant l’appellation Neutre et avec raccordement direct à la terre (masse).

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Etats-Unis et Canada:

Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1 de la

Le cordon doit avoir reçu l’homologation des UL et un certificat de la CSA.

Les spe'cifications minimales pour un cable flexible sont AWG No. 18, ouAWG No. 16 pour un cable de longueur infe'rieure a` 2 me'tres.

- type SV ou SJ

- 3 conducteurs

Le cordon doit être en mesure d’acheminer un courant nominal d’au moins 10 A.

La prise femelle de branchement doit être du type à mise à la terre (mise à la masse) et respecter la configuration NEMA 5-15P (15 A, 125 V) ou NEMA 6-15P (15 A, 250 V).

norme DK2 1a ou DK2 5a.

viii

OMPLIANCES

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE 1011.

Europe La prise secteur doit être conforme aux normes CEE 7/7 (“SCHUKO”)

LE cordon secteur doit porter la mention <HAR> ou <BASEC> et doit être de type HO3VVF3GO.75 (minimum).

Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsanweisungen durchlesen (Germany):

WARNUNG: Die Installation und der Ausbau des Geräts darf nur durch

Fachpersonal erfolgen.

• Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden.

• Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt.

• Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.

• Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.

• Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen (Sicherheitskleinstspannung) gemäß IEC 60950. Diese Bedingungen sind nur

COMPLIANCES

gegeben, wenn auch die an das Gerät angeschlossenen Geräte unter

•

SELV-Bedingungen betrieben werden.

Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden:

U.S.A und Canada

Danemark Dieser Stromstecker muß die ebene 107-2-D1, der

Schweiz Dieser Stromstecker muß die SEV/ASE

Europe Das Netzkabel muß vom Typ HO3VVF3GO.75

Der Cord muß das UL gepruft und war das CSA beglaubigt.

Das Minimum spezifikation fur der Cord sind:

- Nu. 18 AWG - nicht mehr als 2 meter, oder 16 AWG.

- Der typ SV oder SJ

- 3-Leiter

Der Cord muß haben eine strombelastbarkeit aus wenigstens 10 A

Dieser Stromstecker muß hat einer erdschluss mit der typ NEMA 5-15P (15A, 125V) oder NEMA 6-15P (15A, 250V) konfiguration.

standard DK2-1a oder DK2-5a Bestimmungen einhalten.

1011Bestimmungen einhalten.

(Mindestanforderung) sein und die Aufschrift <HAR> oder <BASEC> tragen.

Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”).

•

ABLE OF

ONTENTS

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Package Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Component Description . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

System Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

2 Hardware Installation . . . . . . . . . . . . . . . . . . . . . 2-1

3 Network Configuration . . . . . . . . . . . . . . . . . . . . 3-1

Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Ad Hoc Wireless LAN (no AP or Bridge) . . . . . . . . . . . . . 3-2

Infrastructure Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . 3-3

Infrastructure Wireless LAN for Roaming Wireless PCs . 3-4

4 Initial Configuration . . . . . . . . . . . . . . . . . . . . . . 4-1

Initial Setup through the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Required Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Initial Configuration Steps . . . . . . . . . . . . . . . . . . . . . . . . 4-3

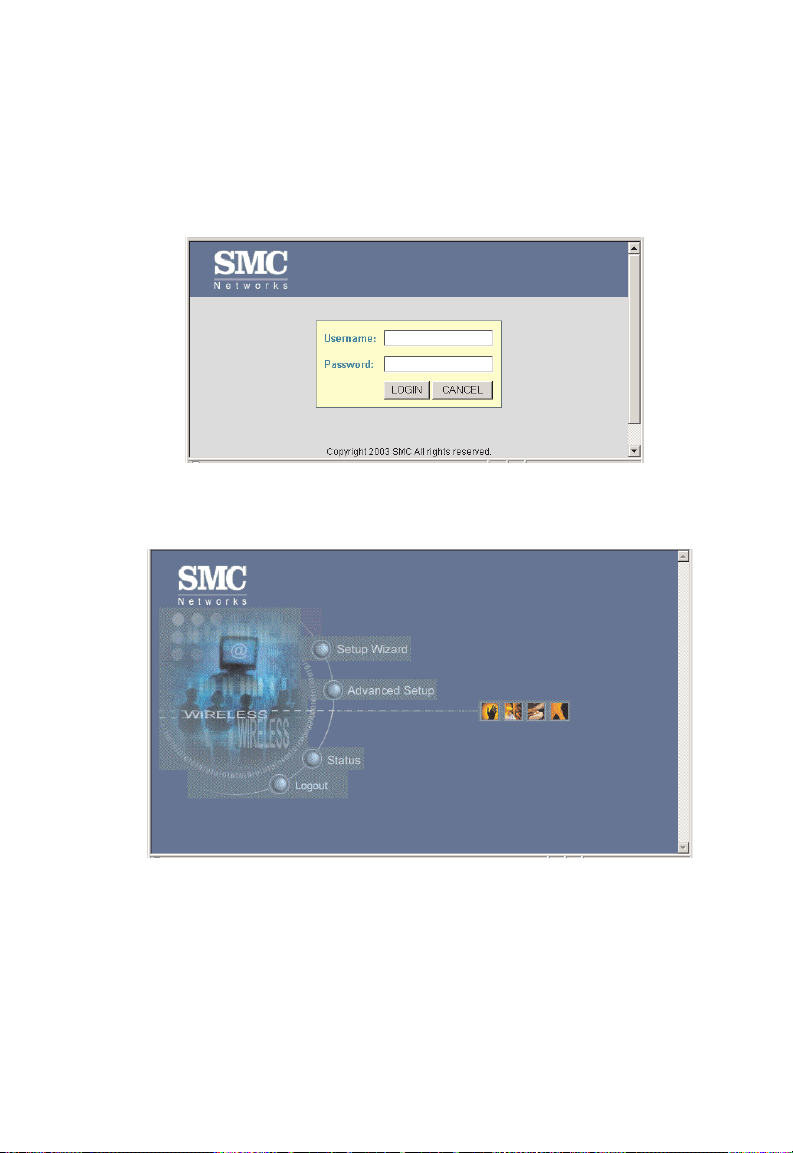

Using Web-based Management . . . . . . . . . . . . . . . . . . . . . . . 4-4

5 System Configuration . . . . . . . . . . . . . . . . . . . . . 5-1

Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

System Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

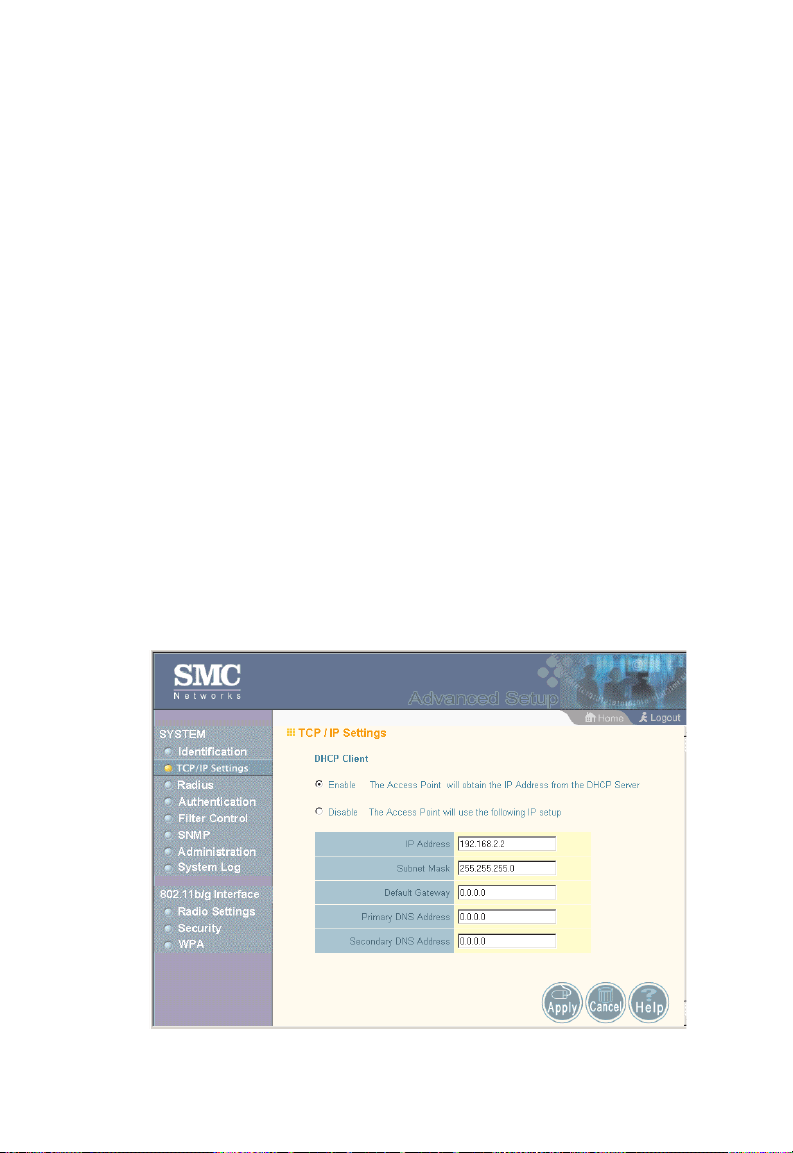

TCP / IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Filter Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25

Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-28

System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34

Radio Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40

Radio Settings (802.11g) . . . . . . . . . . . . . . . . . . . . . . . . 5-41

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-47

Status Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-61

Access Point Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-61

Station Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-64

ABLE OF CONTENTS

Event Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-66

6 Command Line Interface . . . . . . . . . . . . . . . . . . . 6-1

Using the Command Line Interface . . . . . . . . . . . . . . . . . . . . .6-1

Accessing the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

Console Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

Telnet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2

Entering Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3

Keywords and Arguments . . . . . . . . . . . . . . . . . . . . . . . . .6-3

Minimum Abbreviation . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4

Command Completion . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4

Getting Help on Commands . . . . . . . . . . . . . . . . . . . . . . .6-4

Partial Keyword Lookup . . . . . . . . . . . . . . . . . . . . . . . . . .6-5

Negating the Effect of Commands . . . . . . . . . . . . . . . . . .6-6

Using Command History . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

Understanding Command Modes . . . . . . . . . . . . . . . . . . .6-6

Exec Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Configuration Commands . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Command Line Processing . . . . . . . . . . . . . . . . . . . . . . . .6-8

Command Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

General Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11

configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11

end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-13

reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-14

show history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-14

show line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-15

System Management Commands . . . . . . . . . . . . . . . . . . . . .6-16

country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-18

prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-20

system name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-20

username . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21

password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-22

ip http port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-22

ip http server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23

logging on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-24

logging host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-24

xii

ABLE OF CONTENTS

logging console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25

logging level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26

logging facility-type . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27

show logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27

sntp-server ip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28

sntp-server enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29

sntp-server date-time . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-30

sntp-server daylight-saving . . . . . . . . . . . . . . . . . . . . . . 6-31

sntp-server timezone . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-32

show sntp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-32

show system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-33

show version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-34

SNMP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-35

snmp-server community . . . . . . . . . . . . . . . . . . . . . . . . . 6-35

snmp-server contact . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-36

snmp-server enable server . . . . . . . . . . . . . . . . . . . . . . 6-37

snmp-server host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-38

snmp-server location . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39

show snmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-40

Flash/File Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-40

bootfile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-41

copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-42

delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43

dir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44

RADIUS Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45

radius-server address . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46

radius-server port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46

radius-server key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-47

radius-server retransmit . . . . . . . . . . . . . . . . . . . . . . . . . 6-47

radius-server timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48

show radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49

802.1x Port Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50

802.1x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-51

802.1x broadcast-key-refresh-rate . . . . . . . . . . . . . . . . . 6-52

802.1x session-key-refresh-rate . . . . . . . . . . . . . . . . . . 6-53

802.1x session-timeout . . . . . . . . . . . . . . . . . . . . . . . . . 6-54

address filter default . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-54

address filter entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55

xiii

ABLE OF CONTENTS

address filter delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-56

mac-authentication server . . . . . . . . . . . . . . . . . . . . . . . .6-57

mac-authentication session-timeout . . . . . . . . . . . . . . . .6-58

show authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-59

Filtering Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-60

filter local-bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-60

filter ap-manage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-61

filter ethernet-type enable . . . . . . . . . . . . . . . . . . . . . . . .6-62

filter ethernet-type protocol . . . . . . . . . . . . . . . . . . . . . . .6-63

show filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-64

Interface Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-65

interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-68

dns server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-68

ip address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-69

ip dhcp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-71

shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-72

show interface ethernet . . . . . . . . . . . . . . . . . . . . . . . . . .6-72

radio-mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-73

select-antenna-mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-74

description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-75

ssid-broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-75

speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-76

channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-77

ssid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-78

beacon-interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-78

dtim-period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-79

fragmentation-length . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-80

rts-threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-81

authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-82

encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-83

key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-84

transmit-key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-85

transmit-power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-86

max-association . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-87

multicast-cipher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-88

wpa-clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-89

wpa-mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-91

wpa-preshared-key . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-92

xiv

ABLE OF CONTENTS

wpa-psk-type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93

shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-94

show interface wireless . . . . . . . . . . . . . . . . . . . . . . . . . 6-95

show station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-96

IAPP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-97

iapp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-97

VLAN Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-98

vlan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-99

native-vlanid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-100

A Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Maximum Distance Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

B Cables and Pinouts . . . . . . . . . . . . . . . . . . . . . . . B-1

Twisted-Pair Cable Assignments . . . . . . . . . . . . . . . . . . . . . . B-1

10/100BASE-TX Pin Assignments . . . . . . . . . . . . . . . . . . B-2

Straight-Through Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Crossover Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Console Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . B-4

Wiring Map for Serial Cable . . . . . . . . . . . . . . . . . . . . . . B-4

Serial Cable Signal Directions for DB-9 Ports . . . . . . . . . B-5

C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

Transmit Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Glossary

Index

ABLE OF CONTENTS

xvi

Chapter 1

Introduction

SMC’s EliteConnect 2.4GHz 802.11g Wireless Access Point (SMC2552W-G) is an IEEE 802.11b/g access point that provides transparent, wireless high-speed data communications between the wired LAN and fixed, portable or mobile devices equipped with a 802.11b, or 802.11g wireless adapter.

This solution offers fast, reliable wireless connectivity with considerable cost savings over wired LANs (which include long-term maintenance overhead for cabling). Using 802.11b and

802.11g technology, this access point can easily replace a

10 Mbps Ethernet connection or seamlessly integrate into a 10/100 Mbps Ethernet LAN.

In addition, the access point offers full network management capabilities through an easy to configure web interface, a command line interface for initial configuration and troubleshooting, and support for Simple Network Management tools, such as SMC’s EliteView.

Radio Characteristics – The IEEE 802.11g standard uses a radio modulation technique known as Orthogonal Frequency Division Multiplexing (OFDM), and a shared collision domain (CSMA/CA). It operates at 2.4 GHz for connections to 802.11g clients.

IEEE 802.11g includes backward compatibility with the IEEE

802.11b standard. IEEE 802.11b also operates at 2.4 GHz, but

uses Direct Sequence Spread Spectrum (DSSS) modulation technology to achieve a communication rate of up to 11 Mbps.

1-1

Introduction

Package Checklist

The EliteConnect 2.4GHz 802.11g Wireless Access Point package includes:

• One 2.4GHz 802.11g Wireless Access Point (SMC2552W-G)

• One Category 5 network cable

• One RS-232 console cable

• One AC power adapter and power cord

• One mounting bracket

• Four rubber feet

• Three wall-mount screws

• One Documentation CD

• This User Guide

Inform your dealer if there are any incorrect, missing or damaged parts. If possible, retain the carton, including the original packing materials. Use them again to repack the product in case there is a need to return it.

Please register this product and upgrade the product warranty at

www.smc.com

1-2

Hardware Description

Front Panel

Rear Panel

Antennas

Hardware Description

LED

Indicator

Security Slot

Console

Port

RJ-45 Port,

PoE Connector

Reset

Button

3.3V/4A

Power Socket

1-3

Introduction

Component Description

Antennas

The access point includes two antennas for wireless communications. The signal transmitted from both antennas is identical, but only the best signal received on one of the antennas is used. The antennas transmit the outgoing signal as a toroidal sphere, so the antennas should be adjusted to different angles to provide better coverage. For further information, see “Positioning the Antennas” on page 2-3.

LED Indicators

The access point includes three status LED indicators, as described in the following figure and table.

LED Status Description

PWR Off No power.

On Green Power on and ready for operation.

Power

LAN

Ethernet

Link/Activity

WLAN

802.11g

Wireless

Link/Activity

1-4

On Amber H/W error or system error.

Blinking Green (Slow)

Indicates one of the following:

• running the power-on self-test

• loading new software

LAN Off Indicates no valid Ethernet cable link on

the RJ-45 port, or that the port has been administratively disabled

On/Flashing Green

On/Flashing Amber

Indicates a valid 100 Mbps link on the RJ-45 port. Flashing indicates activity.

Indicates a valid 10 Mbps link on the RJ-45 port. Flashing indicates activity.

LED Status Description

Hardware Description

WLAN Off Indicates the 802.11b/g radio is

On Green The access point is associated with

Blinking Green

administratively disabled.

wireless clients, but there is no network activity.

Indicates that the access point is transmitting or receiving data through wireless links.

Security Slot

The access point includes a Kensington security slot on the rear panel. You can prevent unauthorized removal of the access point by wrapping the Kensington security cable (not provided) around an unmovable object, inserting the lock into the slot, and turning the key.

Console Port

This port is used to connect a console device to the access point through a serial cable. This connection is described under “Console Port Pin Assignments” on page B-4. The console device can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal.

Ethernet Port

The access point has one 10BASE-T/100BASE-TX RJ-45 port that can be attached directly to 10BASE-T/100BASE-TX LAN segments. These segments must conform to the IEEE 802.3 or

802.3u specifications.

This port uses an MDI (i.e., internal straight-through) pin configuration. You can therefore use straight-through twisted-pair cable to connect this port to most network interconnection devices such as a switch or router that provide MDI-X ports.

1-5

Introduction

However, when connecting the access point to a workstation or other device that does not have MDI-X ports, you must use crossover twisted-pair cable.

The access point appears as an Ethernet node and performs a bridging function by moving packets from the wired LAN to remote workstations on the wireless infrastructure.

Note: The RJ-45 port also supports Power over Ethernet (PoE) based

on the IEEE 802.3af standard. Refer to the description for the “Power Connector” for information on supplying power to the access point’s network port from a network device, such as a switch, that provides Power over Ethernet (PoE).

Reset Button

This button is used to reset the access point or restore the factory default configuration. If you hold down the button for less than 5 seconds, the access point will perform a hardware reset. If you hold down the button for 5 seconds or more, any configuration changes you may have made are removed, and the factory default configuration is restored to the access point.

Power Connector

The access point does not have a power switch. It is powered on when connected to the AC power adapter, and the power adapter is connected to a power source. The access point automatically adjusts to any voltage between 100-240 volts at 50 or 60 Hz. No voltage range settings are required.

The access point may also receive Power over Ethernet (PoE) from a switch or other network device that supplies power over the network cable based on the IEEE 802.3af standard.

Note that if the access point is connected to a PoE source device and also connected to a local power source through the AC power adapter, PoE will be disabled.

1-6

Features and Benefits

• Local network connection via 10/100 Mbps Ethernet ports or

54 Mbps wireless interface (supporting up to 64 mobile users)

• IEEE 802.11b, 802.11g and 802.3af compliant

• Antennas with SMA connectors for optional external 2.4 GHz

high-gain antenna to extend range and coverage

• Flexible network management through Command Line

Interface (CLI), Web-based, Telnet, TFTP and SNMP, make it simple and easy to monitor, troubleshoot and remotely manage the network

• Power over Ethernet support reduces access point installation

costs and provides centralised power management.

• Advanced security through 64/128/152-bit Wired Equivalent

Privacy (WEP) encryption, IEEE 802.1x port authentication, Wi-Fi Protected Access (WPA), SSID broadcast disable, remote authentication via RADIUS server, and MAC address filtering features to protect your sensitive data and authenticate only authorized users to your network

• Provides seamless roaming within the WLAN service area

• Scans all available channels and selects the best channel for

each client based on the signal-to-noise ratio

1-7

Introduction

Applications

The Wireless products offer a high speed, reliable, cost-effective solution for 10/100 Mbps wireless Ethernet client access to the network in applications such as:

• Remote access to corporate network information

E-mail, file transfer, and terminal emulation.

• Difficult-to-wire environments

Historical or old buildings, asbestos installations, and open areas where wiring is difficult to employ.

• Frequently changing environments

Retailers, manufacturers, and banks that frequently rearrange the workplace or change location.

• Temporary LANs for special projects or peak times

Trade shows, exhibitions and construction sites which need temporary setup for a short time period. Retailers, airline and shipping companies that need additional workstations for a peak period. Auditors who require workgroups at customer sites.

• Access to databases for mobile workers

Doctors, nurses, retailers, or white-collar workers who need access to databases while being mobile in a hospital, retail store, or an office campus.

1-8

System Defaults

The following table lists some of the access point’s basic system defaults. To reset the access point defaults, use the CLI command “reset configuration” from the Exec level prompt.

Feature Parameter Default

Identification System Name Enterprise AP Administration User Name admin

Password smcadmin

General HTTP Server Enabled

HTTP Server Port 80

TCP/IP DHCP Enabled

IP Address 192.168.2.2 Subnet Mask 255.255.255.0 Default Gateway 0.0.0.0 Primary DNS IP 0.0.0.0 Secondary DNS IP 0.0.0.0

RADIUS (Primary and Secondary)

IP Address 0.0.0.0 Port 1812 Key DEFAULT Timeout 5 seconds Retransmit attempts 3

1-9

Introduction

Feature Parameter Default

MAC Authentication

802.1x Authentication

VLAN Native VLAN ID 1

Filter Control Local Bridge Disabled

SNMP Status Enabled

MAC Local MAC Authentication

Session Timeout Local MAC

System Default Local MAC

Permission Status Disabled Broadcast Key

Refresh Session Key Refresh 0 minutes (disabled) Reauthentication

Refresh Rate

VLAN Tag Support Disabled

Local Management Disabled Ethernet Type Disabled

Location null Contact Contact Community

(Read Only) Community

(Read/Write) Traps Enabled Trap Destination

IP Address Trap Destination

Community Name

0 seconds (disabled)

Allowed

0 minutes (disabled)

0 seconds (disabled)

Public

Private

null

Public

1-10

Feature Parameter Default

System Logging

Ethernet Interface

Wireless Interface

802.11b/g

Syslog Disabled Logging Host Disabled Logging Console Disabled IP Address / Host

Name Logging Level Informational Logging Facility Type 16 Speed and Duplex Auto

IAPP Enabled SSID SMC Status Enabled Auto Channel Select Enabled SSID Broadcast Disabled Transmit Power Full Maximum Data Rate 54 Mbps Beacon Interval 100 TUs Data Beacon Rate

(DTIM Interval) RTS Threshold 2347 bytes

0.0.0.0

2 beacons

System Defaults

1-11

Introduction

Feature Parameter Default

Wireless Security

802.11b/g

Authentication Type Open System WEP Encryption Disabled WEP Key Length 128 bits WEP Key Type Hexadecimal WEP Transmit Key

Number WEP Keys null WPA Configuration

Mode WPA Key

Management Multicast Cipher WEP

All clients

WPA authentication over 802.1x

1-12

Chapter 2

Hardware Installation

1. Select a Site – Choose a proper place for the access point. In

general, the best location is at the center of your wireless coverage area, within line of sight of all wireless devices. Try to place the access point in a position that can best cover its Basic Service Set (refer to “Infrastructure Wireless LAN” on page 3-3). Normally, the higher you place the access point, the better the performance.

2. Mount the Access Point – The access point can be mounted

on any horizontal surface or wall. You can mount the access point on a wall as shown in the illustrations on the next page.

Mounting on a horizontal surface – To keep the access point from sliding on the surface, attach the four rubber feet provided in the accessory kit to the embossed circles on the bottom of the access point.

Mounting on a wall – The access point should be mounted only to a wall or wood surface that is at least 1/2-inch plywood or its equivalent.

Position the mounting bracket on the wall, and mark the holes. The orientation shown in the following figure is the most secure position for mounting the access point. Do not mount the access point with the retaining latches pointing down.

To mount the access point on a plastered brick or concrete wall, first drill four holes 22 mm deep and 3.5 mm in diameter, and press the four included wall plugs firmly into the drilled holes until they are flush with the surface of the wall.

2-1

Hardware Installation

Set the four 5/8-inch number 12 wood screws in the holes, leaving about 3 mm clearence from the wall.

Position the mounting bracket over the wall screws, slide the bracket onto the screws, and then tighten down the screws.

3. Attaching the Bracket – Line up the three mounting points on the bracket with the three mounting slots on the rear of the access point, as directed in the figure on the next page.

Place the mounting points of the bracket into the mounting slots of the access point and while pushing down on the bracket, slide it into position so that the two retaining latches slip into place over the back of the access point.

2-2

Attaching the Mounting Bracket

Back of Access Point

Mounting

slots

Hardware Installation

Mounting

points

Bracket

4. Lock the Access Point in Place – To prevent unauthorized removal of the access point, you can use a Kensington Slim MicroSaver security cable (not included) to attach the access point to a fixed object.

2-3

Hardware Installation

5. Connect the Power Cord – Connect the power adapter to the access point, and the power cord to an AC power outlet.

Otherwise, the access point can derive its operating power directly from the RJ-45 port when connected to a device that provides IEEE 802.3af compliant Power over Ethernet (PoE).

Note: If the access point is connected to both a PoE source device

and an AC power source, PoE will be disabled.

Warning: Use ONLY the power adapter supplied with this access

point. Otherwise, the product may be damaged.

6. Observe the Self Test – When you power on the access point, verify that the PWR indicator stops flashing and remains on, and that the other indicators start functioning as described under “LED Indicators” on page 1-4.

If the PWR LED does not stop flashing, the self test has not completed correctly. Refer to “Troubleshooting” on page A-1.

7. Connect the Ethernet Cable – The access point can be wired to a 10/100 Mbps Ethernet through a network device such as a hub or a switch. Connect your network to the RJ-45 port on the back panel with category 3, 4, or 5 UTP Ethernet cable. When the access point and the connected device are powered on, the LAN LED should light indicating a valid network connection.

Note: The RJ-45 port on the access point uses an MDI pin

configuration, so you must use straight-through cable for network connections to hubs or switches that only have MDI-X ports, and crossover cable for network connections to PCs, servers or other end nodes that only have MDI ports. However, if the device to which you are connecting supports auto-MDI/MDI-X operation, you can use either straight-through or crossover cable.

8. Position the Antennas – The antennas emit signals along a toroidal plane, and thus provide more effective coverage when positioned along different axes. For example, you might

2-4

Hardware Installation

position the antennas around 45 to 90 degrees from each other.

The access point also compares the strength of an incoming signal on both antennas, and uses the antenna receiving the stronger signal to communicate with a wireless client.

9. Connect the Console Port – Connect the console cable (included) to the RS-232 console port for accessing the command-line interface. You can manage the access point using the console port (Chapter 6), the web interface (Chapter 5), or SNMP management software such as SMC’s EliteView.

2-5

Hardware Installation

2-6

Chapter 3

Network Configuration

The wireless solution supports a stand-alone wireless network configuration as well as an integrated configuration with 10/100 Mbps Ethernet LANs.

Wireless network cards, adapters, and access points can be configured as:

• Ad hoc for departmental, or enterprise LANs

• Infrastructure for wireless LANs

• Infrastructure wireless LAN for roaming wireless PCs

The 802.11b and 802.11g frequency band which operates at

2.4 GHz can easily encounter interference from other 2.4 GHz

devices, such as other 802.11b or g wireless devices, cordless phones and microwave ovens. If you experience poor wireless LAN performance, try the following measures:

• Limit any possible sources of radio interference within the

service area

• Increase the distance between neighboring access points

• Decrease the signal strength of neighboring access points

• Increase the channel separation of neighboring access points

(e.g., up to 3 channels of separation for 802.11b or up to 5 channels for 802.11g)

3-1

Network Configuration

Network Topologies

Ad Hoc Wireless LAN (no AP or Bridge)

An ad hoc wireless LAN consists of a group of computers, each equipped with a wireless adapter, connected via radio signals as an independent wireless LAN. Computers in a specific ad hoc wireless LAN must therefore be configured to the same radio channel.

Ad Hoc Wireless LAN

Notebook with Wireless USB Adapter

Notebook with Wireless PC Card

PC with Wireless PCI Adapter

3-2

Network Topologies

Infrastructure Wireless LAN

The access point also provides access to a wired LAN for wireless workstations. An integrated wired/wireless LAN is called an Infrastructure configuration. A Basic Service Set (BSS) consists of a group of wireless PC users, and an access point that is directly connected to the wired LAN. Each wireless PC in this BSS can talk to any computer in its wireless group via a radio link, or access other computers or network resources in the wired LAN infrastructure via the access point.

The infrastructure configuration not only extends the accessibility of wireless PCs to the wired LAN, but also increases the effective wireless transmission range for wireless PCs by passing their signal through one or more access points.

A wireless infrastructure can be used for access to a central database, or for connection between mobile workers, as shown in the following figure.

Wired LAN Extension

to Wireless Adapters

File Server

Desktop PC

Switch

Notebook with Wireless PC Card Adapter

Access Point

PC with Wireless PCI Adapter

3-3

Network Configuration

Infrastructure Wireless LAN for Roaming Wireless PCs

The Basic Service Set (BSS) defines the communications domain for each access point and its associated wireless clients. The BSS ID is a 48-bit binary number based on the access point’s wireless MAC address, and is set automatically and transparently as clients associate with the access point. The BSS ID is used in frames sent between the access point and its clients to identify traffic in the service area.

The BSS ID is only set by the access point, never by its clients. The clients only need to set the Service Set Identifier (SSID) that identifies the service set provided by one or more access points. The SSID can be manually configured by the clients, can be detected in an access point’s beacon, or can be obtained by querying for the identity of the nearest access point. For clients that do not need to roam, set the SSID for the wireless card to that used by the access point to which you want to connect.

3-4

Network Topologies

A wireless infrastructure can also support roaming for mobile workers. More than one access point can be configured to create an Extended Service Set (ESS). By placing the access points so that a continuous coverage area is created, wireless users within this ESS can roam freely. All SMC wireless network cards and adapters and SMC2552W-G wireless access points within a specific ESS must be configured with the same SSID.

File Server

Desktop PC

Switch

Notebook with Wireless PC Card Adapter

Switch

PC with Wireless PCI Adapter

Access Point

Notebook with Wireless PC Card Adapter

<BSS1>

Access Point

<ESS>

Seamless Roaming

<BSS2>

3-5

Network Configuration

3-6

Chapter 4

Initial Configuration

The EliteConnect 2.4GHz 802.11g Wireless Access Point SMC2552W-G offers a variety of management options, including a web-based interface, a direct connection to the console port, or using SNMP software such as SMC’s EliteView.

The initial configuration steps can be made through the web browser interface using the Setup Wizard (page 4-4). The access point requests an IP address via DHCP by default. If no response is received from a DHCP server, then the access point uses the default address 192.168.2.2. You can also use the command line interface (CLI) as described below to configure a valid address.

Note: Units sold in countries outside the United States are not

configured with a specific country code. You must use the CLI to set the country code and enable wireless operation (page 4-4).

Initial Setup through the CLI

Required Connections

The SMC2552W-G provides an RS-232 serial port that enables a connection to a PC or terminal for monitoring and configuration. Attach a VT100-compatible terminal, or a PC running a terminal emulation program to the access point. You can use the console cable provided with this package, or use a null-modem cable that complies with the wiring assignments shown on page B-4.

4-1

Initial Configuration

To connect to the console port, complete the following steps:

1. Connect the console cable to the serial port on a terminal, or a PC running terminal emulation software, and tighten the captive retaining screws on the DB-9 connector.

2. Connect the other end of the cable to the RS-232 serial port on the access point.

3. Make sure the terminal emulation software is set as follows:

• Select the appropriate serial port (COM port 1 or 2).

• Set the data rate to 9600 baud.

• Set the data format to 8 data bits, 1 stop bit, and no parity.

• Set flow control to none.

• Set the emulation mode to VT100.

• When using HyperTerminal, select Terminal keys, not

Windows keys.

Note: When using HyperTerminal with Microsoft® Windows® 2000,

make sure that you have Windows 2000 Service Pack 2 or later installed. Windows 2000 Service Pack 2 fixes the problem of arrow keys not functioning in HyperTerminal’s VT100 emulation. See www.microsoft.com for information on Windows 2000 service packs.

4. Once you have set up the terminal correctly, press the [Enter] key to initiate the console connection. The console login screen will be displayed.

For a description of how to use the CLI, see “Using the Command Line Interface” on page 6-1. For a list of all the CLI commands and detailed information on using the CLI, refer to “Command Groups” on page 6-10.

4-2

Initial Setup through the CLI

Initial Configuration Steps

Logging In – Enter “admin” for the user name. The default

password is “smcadmin”. The CLI prompt appears displaying “SMC Enterprise AP#.”

Username: admin Password: smcadmin SMC Enterprise AP#

Setting the IP Address – By default, the access point is configured to obtain IP address settings from a DHCP server. You may also use the command line interface (CLI) to assign an IP address that is compatible with your network.

Type “configure” to enter configuration mode, then type “interface ethernet” to access the Ethernet interface-configuration mode.

SMC Enterprise AP#configure SMC Enterprise AP(config)#interface ethernet SMC Enterprise AP(config-if)#

First type “no dhcp” to disable DHCP client mode. Then type “ip address ip-address netmask gateway,” where “ip-address” is the access point’s IP address, “netmask” is the network mask for the network, and “gateway” is the default gateway router. Check with your system administrator to obtain an IP address that is compatible with your network.

SMC Enterprise AP(if-ethernet)#no dhcp SMC Enterprise AP(if-ethernet)#ip address 192.168.2.2

255.255.255.0 192.168.2.254

SMC Enterprise AP(if-ethernet)#

After configuring the access point’s IP parameters, you can access the management interface from anywhere within the attached network. The command line interface can also be

4-3

Initial Configuration

accessed using Telnet from any computer attached to the network.

Setting the Country Code – Units sold in the United States are configured by default to use only radio channels 1-11 as defined by FCC regulations. Units sold in other countries are configured by default without a country code (i.e., 99). You must use the CLI to set the country code. Setting the country code restricts operation of the access point to the radio channels permitted for wireless networks in the specified country.

Type “exit” to leave configuration mode. Then type “country?” to display the list of countries. Select the code for your country, and enter the country command again, following by your country code (e.g., IE for Ireland).

SMC Enterprise AP#country ie SMC Enterprise AP#

Using Web-based Management

Setup Wizard

There are only a few basic steps you need to complete to connect the SMC2552W-G to your corporate network, and provide network access to wireless clients. The Setup Wizard takes you through configuration procedures for the wireless Service Set Identifier, the radio channel selection and IP configuration.

The SMC2552W-G can be managed by any computer using a web browser (Internet Explorer 5.0 or above, or Netscape Navigator 6.2 or above). Enter your configured IP address or the default IP address: http://192.168.2.2

4-4

Using Web-based Management

Logging In – Enter the username “admin,” the password “smcadmin,” and click LOGIN. For information on configuring a user name and password, refer to page 5-28.

The home page displays the Main Menu.

4-5

Initial Configuration

Launching the Setup Wizard – To perform initial configuration, click Setup Wizard on the home page, then click on the [Next] button to start the process.

1. Service Set ID – Enter the service set identifier in the SSID box which all wireless clients must use to associate with the access point. The SSID is case sensitive and can consist of up to 32 alphanumeric characters. (Default: SMC)

4-6

Using Web-based Management

2. Radio Channel – You must enable radio communications for

802.11b and 802.11b/g, and set the operating radio channel.

Auto Channel Select – Select Enable for automatic radio channel detection. (Default: Enable)

802.11g Radio Channel: Set the operating radio channel number. (Range: 1-11)

Note: Available channel settings are limited by local

regulations which determine which channels are available. (See “Maximum Channels” on page C-1.)

4-7

Initial Configuration

3. IP Configuration – Either enable or disable (Dynamic Host

Configuration Protocol (DHCP) for automatic IP configuration. If you disable DHCP, then manually enter the IP address and subnet mask. If a management station exists on another network segment, then you must enter the IP address for a gateway that can route traffic between these segments. Then enter the IP address for the primary and secondary Domain Name Servers (DNS) servers to be used for host-name to IP address resolution.

4-8

DHCP Client – With DHCP Client enabled, the IP address, subnet mask and default gateway can be dynamically assigned to the access point by the network DHCP server. (Default: Enable)

Note: If there is no DHCP server on your network, then the access

point will automatically start up with its default IP address,

192.168.2.2.

Using Web-based Management

4. Click Finish.

5. Click the OK button to restart the access point.

4-9

Initial Configuration

4-10

Chapter 5

System Configuration

Before continuing with advanced configuration, first complete the initial configuration steps described in Chapter 4 to set up an IP address for the SMC2552W-G.

The SMC2552W-G can be managed by any computer using a web browser (Internet Explorer 5.0 or above, or Netscape Navigator 6.2 or above). The SMC2552W-G Access Point is DHCP enabled by default.

To log into the SMC2552W-G, enter the default user name “admin” and password “smcadmin.” When the home page displays, click on Advanced Setup. The following page will display.

5-1

System Configuration

The information in this chapter is organized to reflect the structure of the web screens for easy reference. However, we recommend that you configure a user name and password as the first step under advanced configuration to control management access to this device (page 5-28).

Advanced Configuration

The Advanced Configuration pages include the following options.

Menu Description Page

System Configures basic administrative and client

Identification Specifies the host name and Service Set

TCP / IP Settings Configures the IP address, subnet mask,

Radius Configures the RADIUS server for wireless

Authentication Configures 802.1x client authentication, with

Filter Control Filters communications between wireless

SNMP Controls access to this access point from

Administration Configures user name and password for

System Log Controls logging of error messages; sets the

access

Identifier (SSID)

gateway, and domain name servers

client authentication

an option for MAC address authentication

clients, access to the management interface from wireless clients, and traffic matching specific Ethernet protocol types

management stations using SNMP, as well as the hosts that will receive trap messages

management from local file, FTP or TFTP server; configuration settings to factory defaults; and resets the access point

system clock via SNTP server or manual configuration

access; upgrades software

resets

5-4

5-6

5-9

5-12

5-20

5-25

5-28

5-34

5-2

Advanced Configuration

Menu Description Page

802.11b/g Interface

Radio Settings Configures radio signal parameters, such as

Security Configures data encryption with Wired

WPA Configures advanced encryption and

Configures the IEEE 802.11b/g interface 5-40

5-41 radio channel, transmission rate, and beacon settings

5-47 Equivalent Protection (WEP)

5-45 authentication with Wi-Fi Protected Access (WPA)

5-3

System Configuration

System Identification

The system information parameters for the SMC2552W-G can be left at their default settings. However, modifying these parameters can help you to more easily distinguish different devices in your network.

You should set a Service Set Identification (SSID) to identify the wireless network service provided by the SMC2552W-G. Only clients with the same SSID can associate with the access point.

System Name – An alias for the access point, enabling the device to be uniquely identified on the network. (Default: Enterprise AP; Range: 1-22 characters)

SSID – The name of the basic service set provided by the access point. Clients that want to connect to the network through the access point must set their SSID to the same as that of the access point. (Default: SMC; Range: 1-32 characters, case sensitive)

5-4

Advanced Configuration

CLI Commands for System Identification – Enter the global configuration mode, and use the system name command to specify a new system name. Enter the wireless configuration mode (11g), and use the ssid command to set the service set identifier. Then return to the Exec mode, and use the show system command to display the changes to the system identification settings.

SMC AP#configure 6-11 SMC-AP(config)#system name R&D 6-20 SMC-AP(config)#interface wireless g 6-68 SMC-AP(if-wireless g)#ssid r&d 6-78 SMC-AP(if-wireless g)#end 6-12 SMC-AP#show system 6-33

System Information =================================================== Serial Number : A324003220 System Up time : 0 days, 0 hours, 32 minutes, 51 seconds System Name : r&d System Location : System Contact : Contact System Country Code : US - UNITED STATES MAC Address : 00-30-F1-91-91-5B IP Address : 192.168.2.51 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.2.250 VLAN State : DISABLED Native VLAN ID : 1 IAPP State : ENABLED DHCP Client : ENABLED HTTP Server : ENABLED HTTP Server Port : 80 Slot Status : Band(g) Software Version : v2.0.22 ===================================================

SMC-AP#

5-5

System Configuration

TCP / IP Settings

Configuring the SMC2552W-G with an IP address expands your ability to manage the access point. A number of access point features depend on IP addressing to operate.

Note: You can use the web browser interface to access IP addressing

only if the access point already has an IP address that is reachable through your network.

By default, the SMC2552W-G will be automatically configured with IP settings from a Dynamic Host Configuration Protocol (DHCP) server. However, if you are not using a DHCP server to configure IP addressing, use the CLI to manually configure the initial IP values (page 4-3). After you have network access to the access point, you can use the web browser interface to modify the initial IP configuration, if needed.

Note: If there is no DHCP server on your network, or DHCP fails, the

access point will automatically start up with a default IP address of

192.168.2.2.

5-6

Advanced Configuration

DHCP Client (Enable) – Select this option to obtain the IP

settings for the access point from a DHCP (Dynamic Host Configuration Protocol) server. The IP address, subnet mask, default gateway, and Domain Name Server (DNS) address are dynamically assigned to the access point by the network DHCP server. (Default: Enable)

DHCP Client (Disable) – Select this option to manually configure a static address for the access point.

• IP Address: The IP address of the access point. Valid IP addresses consist of four decimal numbers, 0 to 255, separated by periods.

• Subnet Mask: The mask that identifies the host address bits used for routing to specific subnets.

• Default Gateway: The default gateway is the IP address of the router for the access point, which is used if the requested destination address is not on the local subnet.

If you have management stations, DNS, RADIUS, or other network servers located on another subnet, type the IP address of the default gateway router in the text field provided. Otherwise, leave the address as all zeros (0.0.0.0).

• Primary and Secondary DNS Address: The IP address of Domain Name Servers on the network. A DNS maps numerical IP addresses to domain names and can be used to identify network hosts by familiar names instead of the IP addresses.

If you have one or more DNS servers located on the local network, type the IP addresses in the text fields provided. Otherwise, leave the addresses as all zeros (0.0.0.0).

5-7

System Configuration

CLI Commands for TCP/IP Settings – From the global configuration mode, enter the interface configuration mode with the interface ethernet command. Use the ip dhcp command to enable the DHCP client, or no ip dhcp to disable it. To manually configure an address, specify the new IP address, subnet mask, and default gateway using the ip address command. To specify DNS server addresses use the dns server command. Then use the show interface ethernet command from the Exec mode to display the current IP settings.

SMC-AP(config)#interface ethernet 6-68 Enter Ethernet configuration commands, one per line. SMC-AP(if-ethernet)#no ip dhcp 6-71 SMC-AP(if-ethernet)#ip address 192.168.1.2

255.255.255.0 192.168.1.253 6-69 SMC-AP(if-ethernet)#dns primary-server 192.168.1.55 6-68 SMC-AP(if-ethernet)#dns secondary-server 10.1.0.55 6-68 SMC-AP(config)#end 6-12 SMC-AP#show interface ethernet 6-72 Ethernet Interface Information ======================================== IP Address : 192.168.2.2 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.1.253 Primary DNS : 192.168.1.55 Secondary DNS : 10.1.0.55 Admin status : Up Operational status : Up ======================================== SMC-AP#

5-8

Advanced Configuration

Radius

Remote Authentication Dial-in User Service (RADIUS) is an authentication protocol that uses software running on a central server to control access to RADIUS-aware devices on the network. An authentication server contains a database of user credentials for each user that requires access to the network.

A primary RADIUS server must be specified for the SMC2552W-G to implement IEEE 802.1x network access control and Wi-Fi Protected Access (WPA) wireless security. A secondary RADIUS server may also be specified as a backup should the primary server fail or become inaccessible.

Note: This guide assumes that you have already configured RADIUS

server(s) to support the access point. If using WPA (PSK) mode then no RADIUS configuration is necessary. Configuration of RADIUS server software is beyond the scope of this guide, refer to the documentation provided with the RADIUS server software.

5-9

System Configuration

Primary Radius Server Setup – Configure the following settings

to use RADIUS authentication on the access point.

• IP Address: Specifies the IP address or host name of the RADIUS server.

• Port: The UDP port number used by the RADIUS server for authentication messages. (Range: 1024-65535; Default: 1812)

• Key: A shared text string used to encrypt messages between the access point and the RADIUS server. Be sure that the same text string is specified on the RADIUS server. Do not use blank spaces in the string. (Maximum length: 255 characters)

• Timeout: Number of seconds the access point waits for a reply from the RADIUS server before resending a request. (Range: 1-60 seconds; Default: 5)

• Retransmit attempts: The number of times the access point tries to resend a request to the RADIUS server before authentication fails. (Range: 1-30; Default: 3)

Note: For the Timeout and Retransmit attempts fields, accept the

default values unless you experience problems connecting to the RADIUS server over the network.

Secondary Radius Server Setup – Configure a secondary RADIUS server to provide a backup in case the primary server fails. The access point uses the secondary server if the primary server fails or becomes inaccessible. Once the access point switches over to the secondary server, it periodically attempts to establish communication again with primary server. If communication with the primary server is re-established, the secondary server reverts to a backup role.

5-10

Advanced Configuration

CLI Commands for RADIUS – From the global configuration mode, use the radius-server address command to specify the address of the primary or secondary RADIUS servers. (The following example configures the settings for the primary RADIUS server.) Configure the other parameters for the RADIUS server. Then use the show show radius command from the Exec mode to display the current settings for the primary and secondary RADIUS servers.

SMC-AP(config)#radius-server address 192.168.1.25 6-46 SMC-AP(config)#radius-server port 181 6-46 SMC-AP(config)#radius-server key green 6-47 SMC-AP(config)#radius-server timeout 10 6-48 SMC-AP(config)#radius-server retransmit 5 6-47 SMC-AP(config)#exit SMC-AP#show radius 6-49

Radius Server Information ======================================== IP : 192.168.1.25 Port : 181 Key : ***** Retransmit : 5 Timeout : 10 ========================================

Radius Secondary Server Information ======================================== IP : 0.0.0.0 Port : 1812 Key : ***** Retransmit : 3 Timeout : 5 ======================================== SMC-AP#

5-11

System Configuration

Authentication

Wireless clients can be authenticated for network access by checking their MAC address against the local database configured on the access point, or by looking up their MAC addresses on a RADIUS server. The 802.1x protocol can also be configured to check other user credentials such as a user name and password.

5-12

Advanced Configuration

MAC Authentication – You can configure a list of the MAC

addresses for wireless clients that are authorized to access the network. This provides a basic level of authentication for wireless clients attempting to gain access to the network. A database of authorized MAC addresses can be stored locally on the SMC2552W-G or remotely on a central RADIUS server. (Default: Local MAC)

• Local MAC: The MAC address of the associating station is compared against the local database stored on the access point. The Local MAC Authentication section enables the local database to be set up.

• Radius MAC: The MAC address of the associating station is sent to a configured RADIUS server for authentication. When using a RADIUS authentication server for MAC address authentication, the server must first be configured in the Radius window (page 5-9).

• Disable: No checks are performed on an associating station’s MAC address.

Local MAC Authentication – Configures the local MAC authentication database. The MAC database provides a mechanism to take certain actions based on a wireless client’s MAC address. The MAC list can be configured to allow or deny network access to specific clients.

• System Default: Specifies a default action for all unknown MAC addresses (that is, those not listed in the local MAC database).

- Deny: Blocks access for all MAC addresses except those

listed in the local database as “allowed.”

- Allow: Permits access for all MAC addresses except

those listed in the local database as “denied.”

5-13

System Configuration

• MAC Authentication Settings: Enters specified MAC addresses and permissions into the local MAC database.

- MAC Address: Physical address of a client. Enter six pairs

of hexadecimal digits separated by hyphens; for example, 00-90-D1-12-AB-89.

- Permission: Select Allow to permit access or Deny to

block access. If Delete is selected, the specified MAC address entry is removed from the database.

- Update: Enters the specified MAC address and

permission setting into the local database.

• MAC Authentication Table: Displays current entries in the local MAC database.

Note: Client station MAC authentication occurs prior to the IEEE 802.1x

authentication procedure configured for the access point. However, a client’s MAC address provides relatively weak user authentication, since MAC addresses can be easily captured and used by another station to break into the network. Using 802.1x provides more robust user authentication using user names and passwords or digital certificates. So, although you can configure the access point to use MAC address and 802.1x authentication together, it is better to choose one or the other, as appropriate.

802.1x Setup – IEEE 802.1x is a standard framework for network

access control that uses a central RADIUS server for user authentication. This control feature prevents unauthorized access to the network by requiring an 802.1x client application to submit user credentials for authentication. The 802.1x standard uses the Extensible Authentication Protocol (EAP) to pass user credentials (either digital certificates, user names and passwords, or other) from the client to the RADIUS server. Client authentication is then verified on the RADIUS server before the access point grants client access to the network.

5-14

Advanced Configuration

The 802.1x EAP packets are also used to pass dynamic unicast session keys and static broadcast keys to wireless clients. Session keys are unique to each client and are used to encrypt and correlate traffic passing between a specific client and the access point. You can also enable broadcast key rotation, so the access point provides a dynamic broadcast key and changes it at a specified interval.

You can enable 802.1x as optionally supported or as required to enhance the security of the wireless network.

• Disable: The access point does not support 802.1x authentication for any wireless client. After successful wireless association with the access point, each client is allowed to access the network.

• Supported: The access point supports 802.1x authentication only for clients initiating the 802.1x authentication process (i.e., the access point does not initiate 802.1x authentication). For clients initiating 802.1x, only those successfully authenticated are allowed to access the network. For those clients not initiating 802.1x, access to the network is allowed after successful wireless association with the access point.

• Required: The access point enforces 802.1x authentication for all associated wireless clients. If 802.1x authentication is not initiated by a client, the access point will initiate authentication. Only those clients successfully authenticated with 802.1x are allowed to access the network.

When 802.1x is enabled, the broadcast and session key rotation intervals can also be configured.

• Broadcast Key Refresh Rate: Sets the interval at which the broadcast keys are refreshed for stations using 802.1x dynamic keying. (Range: 0-1440 minutes; Default: 0 means disabled)

5-15

System Configuration

• Session Key Refresh Rate: The interval at which the access point refreshes unicast session keys for associated clients. (Range: 0-1440 minutes; Default: 0 means disabled)

• 802.1x Re-authentication Refresh Rate: The time period after which a connected client must be re-authenticated. During the re-authentication process of verifying the client’s credentials on the RADIUS server, the client remains connected the network. Only if re-authentication fails is network access blocked. (Range: 0-65535 seconds; Default: 0 means disabled)

5-16

Advanced Configuration

CLI Commands for Local MAC Authentication – Use the

mac-authentication server command from the global configuration mode to enable local MAC authentication. Set the default for MAC addresses not in the local table using the address filter default command, then enter MAC addresses in the local table using the address filter entry command. To remove an entry from the table, use the address filter delete command. To display the current settings, use the show authentication command from the Exec mode.

SMC-AP(config)#mac-authentication server local 6-57 SMC-AP(config)#address filter default denied 6-54 SMC-AP(config)#address filter entry 00-70-50-cc-99-1a denied 6-55 SMC-AP(config)#address filter entry 00-70-50-cc-99-1b allowed 6-55 SMC-AP(config)#address filter entry 00-70-50-cc-99-1c allowed 6-55 SMC-AP(config)#address filter delete 00-70-50-cc-99-1c 6-56 SMC-AP(config)#exit SMC-AP#show authentication 6-59

Authentication Information ========================================================= MAC Authentication Server : LOCAL MAC Auth Session Timeout Value : 300 secs

802.1x : DISABLED Broadcast Key Refresh Rate : 5 min Session Key Refresh Rate : 5 min

802.1x Session Timeout Value : 300 secs Address Filtering : DENIED

System Default : DENY addresses not found in filter table. Filter Table

MAC Address Status

----------------- ---------00-70-50-cc-99-1a DENIED 00-70-50-cc-99-1b ALLOWED ========================================================= SMC-AP#

5-17

System Configuration

CLI Commands for RADIUS MAC Authentication – Use the mac-authentication server command from the global configuration mode to enable remote MAC authentication. Set the timeout value for re-authentication using the mac-authentication session-timeout command. Be sure to also configure connection settings for the RADIUS server (not shown in the following example). To display the current settings, use the show authentication command from the Exec mode.

SMC-AP(config)#mac-authentication server remote 6-57 SMC-AP(config)#mac-authentication session-timeout 300 6-58 SMC-AP(config)#exit SMC-AP#show authentication 6-59

Authentication Information ========================================================= MAC Authentication Server : REMOTE MAC Auth Session Timeout Value : 300 secs

802.1x : DISABLED Broadcast Key Refresh Rate : 5 min Session Key Refresh Rate : 5 min

802.1x Session Timeout Value : 300 secs Address Filtering : DENIED

5-18

System Default : DENY addresses not found in filter table. Filter Table

MAC Address Status

----------------- ---------00-70-50-cc-99-1a DENIED 00-70-50-cc-99-1b ALLOWED ========================================================= SMC-AP#

Advanced Configuration

CLI Commands for 802.1x Authentication – Use the 802.1x supported command from the global configuration mode to

enable 802.1x authentication. Set the session and broadcast key refresh rate, and the re-authentication timeout. To display the current settings, use the show authentication command from the Exec mode.

SMC-AP(config)#802.1x supported 6-51 SMC-AP(config)#802.1x broadcast-key-refresh-rate 5 6-52 SMC-AP(config)#802.1x session-key-refresh-rate 5 6-53 SMC-AP(config)#802.1x session-timeout 300 6-54 SMC-AP(config)#exit SMC-AP#show authentication 6-59

Authentication Information ========================================================= MAC Authentication Server : REMOTE MAC Auth Session Timeout Value : 300 secs

802.1x : SUPPORTED Broadcast Key Refresh Rate : 5 min Session Key Refresh Rate : 5 min

802.1x Session Timeout Value : 300 secs Address Filtering : DENIED

System Default : DENY addresses not found in filter table. Filter Table

MAC Address Status

----------------- ---------00-70-50-cc-99-1a DENIED 00-70-50-cc-99-1b ALLOWED ========================================================= SMC-AP#

5-19

System Configuration

Filter Control

The access point can employ VLAN ID and network traffic frame filtering to control access to network resources and increase security.

Native VLAN ID – The VLAN ID assigned to wireless clients that are not assigned to a specific VLAN by RADIUS server configuration.

VLAN – Enables or disables VLAN tagging support on the SMC2552W-G. If enabled, the access point will tag traffic passing from wireless clients to the wired network with the VLAN ID associated with each client on the RADIUS server. Up to 16

5-20

Advanced Configuration

VLAN IDs can be mapped to specific wireless clients, allowing users to remain within the same VLAN as they move around a campus site. This feature can also be used to control access to network resources from wireless clients, thereby improving security.

A VLAN ID (1-4095) is assigned to a client after successful authentication using IEEE 802.1x and a central RADIUS server. The user VLAN IDs must be configured on the RADIUS server for each user authorized to access the network. If a user does not have a configured VLAN ID, the access point assigns the user to its own configured native VLAN ID.

When setting up VLAN IDs for each user on the RADIUS server, be sure to use the RADIUS attributes and values as indicated in the following table.

Number RADIUS Attribute Value

64 Tunnel-Type VLAN (13) 65 Tunnel-Medium-Type 802 81 Tunnel-Private-Group VLANID

(1 to 4095 in hexadecimal)

Note: The specific configuration of RADIUS server software is beyond

the scope of this guide. Refer to the documentation provided with the RADIUS server software.

5-21

System Configuration

When VLAN filtering is enabled, the access point must also have

802.1x authentication enabled and a RADIUS server configured.

Wireless clients must also support 802.1x client software to be assigned to a specific VLAN.

When VLAN filtering is disabled, the access point ignores the VLAN tags on any received frames.

Local Bridge Filter – Controls wireless-to-wireless communications between clients through the SMC2552W-G. However, it does not affect communications between wireless clients and the wired network.

• Disable: Allows wireless-to-wireless communications between clients through the access point.

• Enable: Blocks wireless-to-wireless communications between clients through the access point.

AP Management Filter – Controls management access to the SMC2552W-G from wireless clients. Management interfaces include the web, Telnet, or SNMP.

• Disable: Allows management access from wireless clients.

• Enable: Blocks management access from wireless clients.

Ethernet Type Filter – Controls checks on the Ethernet type of all incoming and outgoing Ethernet packets against the protocol filtering table.

• Disable: Access point does not filter Ethernet protocol types.

• Enable: Access point filters Ethernet protocol types based on

the configuration of protocol types in the filter table. If a protocol has its status set to “ON,” the protocol is filtered from the access point.

5-22

Advanced Configuration

CLI Commands for VLAN Support – From the global configuration mode use the native-vlanid command to set the default VLAN ID for the Ethernet interface, then enable VLANs using the vlan enable command. When you change the access point’s VLAN support setting, you must reboot the access point to implement the change. To view the current VLAN settings, use the show system command.

SMC-AP(config)#native-vlanid 3 6-100 SMC-AP(config)#vlan enable 6-99 Reboot system now? <y/n>: y SMC-AP#show system 6-33

System Information =================================================== Serial Number : A324003220 System Up time : 0 days, 0 hours, 32 minutes, 51 seconds System Name : r&d System Location : System Contact : Contact System Country Code : US - UNITED STATES MAC Address : 00-30-F1-91-91-5B IP Address : 192.168.2.2 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.2.250 VLAN State : DISABLED Native VLAN ID : 3 IAPP State : ENABLED DHCP Client : ENABLED HTTP Server : ENABLED HTTP Server Port : 80 Slot Status : Band(g) Software Version : v2.0.22 ===================================================

SMC-AP#

5-23

System Configuration

CLI Commands for Bridge Filtering – Use the filter local-bridge command from the global configuration mode to prevent wireless-to-wireless communications through the access point. Use the filter ap-manage command to restrict management access from wireless clients. To configure Ethernet protocol filtering, use the filter ethernet-type enable command to enable filtering and the filter ethernet-type protocol command to define the protocols that you want to filter. To remove an entry from the table, use the address filter delete command. To display the current settings, use the show filters command from the Exec mode.

SMC-AP(config)#filter local-bridge 6-60 SMC-AP(config)#filter ap-manage 6-61 SMC-AP(config)#filter ethernet-type enable 6-62 SMC-AP(config)#filter ethernet-type protocol ARP 6-63 SMC-AP(config)#exit SMC-AP#show filters 6-64

Protocol Filter Information ========================================================= Local Bridge :ENABLED AP Management :ENABLED Ethernet Type Filter :ENABLED

5-24

Enabled Protocol Filters

--------------------------------------------------------Protocol: ARP ISO: 0x0806 ========================================================= SMC-AP#

Advanced Configuration

SNMP

You can use a network management application such as SMC’s EliteView to manage the SMC2552W-G via the Simple Network Management Protocol (SNMP) from a network management station. To implement SNMP management, the SMC2552W-G must have an IP address and subnet mask, configured either manually or dynamically. Once an IP address has been configured, appropriate SNMP communities and trap receivers should be configured.

Community names are used to control management access to SNMP stations, as well as to authorize SNMP stations to receive trap messages from the access point. To communicate with the access point, a management station must first submit a valid community name for authentication. You therefore need to assign community names to specified users or user groups and set the access level.

5-25

System Configuration

SNMP – Enables or disables SNMP management access and

also enables the access point to send SNMP traps (notifications). SNMP management is enabled by default.

Location – A text string that describes the system location. (Maximum length: 20 characters)

Contact – A text string that describes the system contact. (Maximum length: 255 characters)

Community Name (Read Only) – Defines the SNMP community access string that has read-only access. Authorized management stations are only able to retrieve MIB objects. (Maximum length: 23 characters, case sensitive)

Community Name (Read/Write) – Defines the SNMP community access string that has read/write access. Authorized management stations are able to both retrieve and modify MIB objects. (Maximum length: 23 characters, case sensitive)

Trap Destination IP Address – Specifies the recipient of SNMP notifications. Enter the IP address or the host name. (Host Name: 1 to 20 characters)

Trap Destination Community Name – The community string sent with the notification operation. (Maximum length: 23 characters)

5-26

Advanced Configuration

CLI Commands for SNMP – Use the snmp-server enable server command from the global configuration mode. To set

read/write and read-only community names, use the

snmp-server community command. Use the snmp-server location and snmp-server contact commands to indicate the

physical location of the access point and define a system contact. The snmp-server host command defines a trap receiver host. To view the current SNMP settings, use the show snmp command.

SMC-AP(config)#snmp-server enable server 6-37 SMC-AP(config)#snmp-server community alpha rw 6-35 SMC-AP(config)#snmp-server community beta ro SMC-AP(config)#snmp-server location WC-19 6-39 SMC-AP(config)#snmp-server contact Paul 6-36 SMC-AP(config)#snmp-server host 10.1.19.23 alpha 6-38 SMC-AP(config)#exit SMC-AP#show snmp 6-40

SNMP Information ============================================ Service State : Enable Community (ro) : **** Community (rw) : ***** Location : WC-19 Contact : Paul Traps : Enabled Host Name/IP : 10.1.19.23 Trap Community : ***** =============================================

SMC-AP#

5-27

System Configuration

Administration

Changing the Password

Management access to the web and CLI interface on the SMC2552W-G is controlled through a single user name and password. You can also gain additional access security by using control filters (see “Filter Control” on page 5-20).

To protect access to the management interface, you need to configure an Administrator’s user name and password as soon as possible. If the user name and password are not configured, then anyone having access to the access point may be able to compromise access point and network security.

Note: Pressing the Reset button on the back of the SMC2552W-G for

more than five seconds resets the user name and password to the factory defaults. For this reason, we recommend that you protect the access point from physical access by unauthorized persons.

Username – The name of the user. The default name is “admin.” (Length: 3-16 characters, case sensitive.)

New Password – The password for management access. (Length: 3-16 characters, case sensitive)

5-28

Advanced Configuration

Confirm New Password – Enter the password again for

verification.

CLI Commands for the User Name and Password – Use the username and password commands from the CLI configuration mode.

SMC-AP(config)#username bob 6-21 SMC-AP(config)#password smcadmin 6-22 SMC-AP#

5-29

System Configuration

Upgrading Firmware

You can upgrade new SMC2552W-G software from a local file on the management workstation, or from an FTP or TFTP server. New software may be provided periodically on SMC’s web site (http://www.smc.com).

After upgrading new software, you must reboot the SMC2552W-G to implement the new code. Until a reboot occurs, the SMC2552W-G will continue to run the software it was using before the upgrade started. Also note that rebooting the access point with new software will reset the configuration to the factory default settings.

Before upgrading new software, verify that the SMC2552W-G is connected to the network and has been configured with a compatible IP address and subnet mask.

5-30

Advanced Configuration

If you need to download from an FTP or TFTP server, take the following additional steps:

• Obtain the IP address of the FTP or TFTP server where the access point software is stored.

• If upgrading from an FTP server, be sure that you have an account configured on the server with a user name and password.

• If VLANs are configured on the access point, determine the VLAN ID with which the FTP or TFTP server is associated, and then configure the management station with the same VLAN ID. If you are managing the access point from a wireless client, the VLAN ID for the the wireless client must be configured on a RADIUS server.

Current version – Version number of runtime code.

Firmware Upgrade Local – Downloads an operation code image

file from the web management station to the access point using HTTP. Use the Browse button to locate the image file locally on the management station and click Start Upgrade to proceed.

• New firmware file: Specifies the name of the code file on the server. The new firmware file name should not contain slashes (\ or /), the leading letter of the file name should not be a period (.), and the maximum length for file names is 32 characters for files on the access point. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”)

• Firmware Upgrade Remote – Downloads an operation code image file from a specified remote FTP or TFTP server. After filling in the following fields, click Start Upgrade to proceed.

• New firmware file: Specifies the name of the code file on the server. (\ or /), (.), and the maximum length for file names on the FTP/TFTP

The new firmware file name should not contain slashes

the leading letter of the file name should not be a period

5-31

System Configuration

server is 255 characters or 32 characters for files on the access point. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”)

• IP Address: IP address or host name of FTP or TFTP server.

• Username: The user ID used for login on an FTP server.

• Password: The password used for login on an FTP server.

Restore Factory Settings – Click the Restore button to reset the configuration settings for the SMC2552W-G to the factory defaults and reboot the system. Note that all user configured information will be lost. You will have to re-enter the default user name (admin) and password (smcadmin) to re-gain management access to this device.

Reset Access Point – Click the Reset button to reboot the system.

Note: If you have upgraded system software, then you must reboot the

SMC2552W-G to implement the new operation code. Before rebooting please reset the access point to the factory default and clear the browser cache.

5-32

Advanced Configuration

CLI Commands for Downloading Software from a TFTP Server – Use the copy tftp file command from the Exec mode and then specify the file type, name, and IP address of the TFTP server. When the download is complete, the dir command can be used to check that the new file is present in the access point file system. To run the new software, use the reset board command to reboot the access point.

SMC-AP#copy tftp file 6-42

1. Application image

2. Config file

3. Boot block image Select the type of download<1,2,3>: [1]:1 TFTP Source file name:smc-img.bin TFTP Server IP:192.168.1.19

SMC-AP#dir 6-44 File Name Type File Size

-------------------------- ---- ----------dflt-img.bin 2 1319939 smc-img.bin 2 1629577 syscfg 5 17776 syscfg_bak 5 17776

262144 byte(s) available

SMC-AP#reset board 6-14 Reboot system now? <y/n>: y

5-33

System Configuration

System Log

The SMC2552W-G can be configured to send event and error messages to a System Log Server. The system clock can also be synchronized with a time server, so that all the messages sent to the Syslog server are stamped with the correct time and date.

Enabling System Logging

The SMC2552W-G supports a logging process that can control error messages saved to memory or sent to a Syslog server. The logged messages serve as a valuable tool for isolating access point and network problems.

System Log Setup – Enables the logging of error messages.

Logging Host – Enables the sending of log messages to a Syslog

server host.

Server Name/IP – The IP address or name of a Syslog server.

Logging Console – Enables the logging of error messages to the

console.

5-34

Advanced Configuration

Logging Level – Sets the minimum severity level for event

logging. The system allows you to limit the messages that are logged by

specifying a minimum severity level. The following table lists the error message levels from the most severe (Alert) to least severe (Debug). The message levels that are logged include the specified minimum level up to the Alert level.

Error Level Description

Alerts Immediate action needed Critical Critical conditions (e.g., memory allocation, or free

memory error - resource exhausted) Error Error conditions (e.g., invalid input, default used) Warning Warning conditions (e.g., return false, unexpected

Notice Normal but significant condition, such as cold start Informational Informational messages only Debug Debugging messages

Note: The access point error log can be viewed using the Event Logs

window in the Status section (page 5-66).The Event Logs window displays the last 128 messages logged in chronological order, from the newest to the oldest. Log messages saved in the access point’s memory are erased when the device is rebooted.

return)

5-35

System Configuration

CLI Commands for System Logging – To enable logging on the access point, use the logging on command from the global configuration mode. The logging level command sets the minimum level of message to log. Use the logging console command to enable logging to the console. Use the logging host command to specify up to four Syslog servers. The CLI also allows the logging facility-type command to set the facility-type number to use on the Syslog server. To view the current logging settings, use the show logging command.

SMC-AP(config)#logging on 6-24 SMC-AP(config)#logging level alert 6-26 SMC-AP(config)#logging console 6-25 SMC-AP(config)#logging host 1 10.1.0.3 514 6-24 SMC-AP(config)#logging facility-type 19 6-27 SMC-AP(config)#exit SMC-AP#show logging 6-27

Logging Information ============================================ Syslog State : Enabled Logging Host State : Enabled Logging Console State : Enabled Server Domain name/IP : 1 10.1.0.3 Logging Level : Error Logging Facility Type : 16 =============================================

5-36

SMC-AP#

Advanced Configuration

Configuring SNTP

Simple Network Time Protocol (SNTP) allows the SMC2552W-G to set its internal clock based on periodic updates from a time server (SNTP or NTP). Maintaining an accurate time on the access point enables the system log to record meaningful dates and times for event entries. If the clock is not set, the access point will only record the time from the factory default set at the last bootup.

The SMC2552W-G acts as an SNTP client, periodically sending time synchronization requests to specific time servers. You can configure up to two time server IP addresses. The access point will attempt to poll each server in the configured sequence.

SNTP Server – Configures the access point to operate as an SNTP client. When enabled, at least one time server IP address must be specified.

• Primary Server: The IP address of an SNTP or NTP time server that the access point attempts to poll for a time update.

• Secondary Server: The IP address of a secondary SNTP or NTP time server. The access point first attempts to update the time from the primary server; if this fails it attempts an update from the secondary server.

Note: The SMC2552W-G also allows you to disable SNTP and set the

system clock manually.

Set Time Zone – SNTP uses Coordinated Universal Time (or UTC, formerly Greenwich Mean Time, or GMT) based on the time at the Earth’s prime meridian, zero degrees longitude. To display a time corresponding to your local time, you must indicate the number of hours your time zone is located before (east) or after (west) UTC.

Enable Daylight Saving – The access point provides a way to automatically adjust the system clock for Daylight Savings Time

5-37

System Configuration

changes. To use this feature you must define the month and date to begin and to end the change from standard time. During this period the system clock is set back by one hour.

CLI Commands for SNTP – To enable SNTP support on the access point, from the global configuration mode specify SNTP server IP addresses using the sntp-server ip command, then use the sntp-server enable command to enable the service. Use the sntp-server timezone command to set the time zone for your location, and the sntp-server daylight-saving command to set daylight savings. To view the current SNTP settings, use the show sntp command.

SMC-AP(config)#sntp-server ip 10.1.0.19 6-28 SMC-AP(config)#sntp-server enable 6-29 SMC-AP(config)#sntp-server timezone +8 6-32 SMC-AP(config)#sntp-server daylight-saving 6-31 Enter Daylight saving from which month<1-12>: 3 and which day<1-31>: 31 Enter Daylight saving end to which month<1-12>: 10 and which day<1-31>: 31 SMC-AP(config)#exit SMC-AP#show sntp 6-32

5-38

SNTP Information ========================================================= Service State : Enabled SNTP (server 1) IP : 137.92.140.80 SNTP (server 2) IP : 192.43.244.18 Current Time : 19 : 35, Jan 10th, 2004 Time Zone : +8 (TAIPEI, BEIJING) Daylight Saving : Enabled, from Mar, 31th to Oct, 31th =========================================================

SMC-AP#

Advanced Configuration

CLI Commands for the System Clock – The following example shows how to manually set the system time when SNTP server support is disabled on the access point.

SMC-AP(config)#no sntp-server enable 6-29 SMC-AP(config)#sntp-server date-time 6-30 Enter Year<1970-2100>: 2004 Enter Month<1-12>: 10 Enter Day<1-31>: 10 Enter Hour<0-23>: 18 Enter Min<0-59>: 35 SMC-AP(config)#

5-39

System Configuration

Radio Interface

The IEEE 802.11b and 802.11g interface includes configuration options for radio signal characteristics and wireless security features.

The access point can operate in three modes, IEEE 802.11b only,

802.11g only, or a mixed 802.11b/g mode. Also note that 802.11g is backward compatible with 802.11b. The 802.11b/g interface can be configured independently under the following web pages:

• Radio Interface : 802.11b/g

Note: The radio channel settings for the SMC2552W-G are limited by

local regulations, which determine the number of channels that are available.

5-40

Radio Interface

Radio Settings (802.11g)

The IEEE 802.11g standard operates within the 2.4 GHz band at up to 54 Mbps. Also note that because the IEEE 802.11g standard is an extension of the IEEE 802.11b standard, it allows clients with 802.11b wireless network cards to associate to an

802.11g access point.

Enable – Enables radio communications on the SMC2552W-G. (Default: Enabled)

5-41

System Configuration

Radio Channel – The radio channel that the access point

uses to communicate with wireless clients. When multiple access points are deployed in the same area, set the channel on neighboring access points at least four channels apart to avoid interference with each other. For example, in the United States you can deploy up to four access points in the same area (e.g., channels 1, 6, 11). Also note that the channel for wireless clients is automatically set to the same as that used by the access point to which it is linked. (Range: 1-11; Default: 1)

Auto Channel Select – Enables the access point to automatically select an unoccupied radio channel. (Default: Enabled)

SSID Broadcast – The SSID broadcast can be disabled to prevent access to clients without a pre-configured SSID. When disabled, the access point will not include its SSID in beacon messages. Nor will it respond to probe requests from clients that do not include the correct SSID. (Default: Enabled)

Select Antenna Mode – Specifies whether the antenna used will be automatically selected based on best signal reception (i.e., Diversity mode), or will be fixed to use an optional high-gain antenna. (Default: Diversity)

Working Mode – The access point can be configured to support both 802.11b and 802.11g clients simultaneously, 802.11b clients only, or 802.11g clients only. (Default: 802.11b and 802.11g)

Transmit Power – Adjusts the power of the radio signals transmitted from the access point. The higher the transmission power, the farther the transmission range. Power selection is not just a trade off between coverage area and maximum supported clients. You also have to ensure that high-power signals do not

5-42

Radio Interface

interfere with the operation of other radio devices in the service area. (Options: 100%, 50%, 25%, 12%, minimum; Default: 100%)

Maximum Station Data Rate – The maximum data rate at which a client can connect to the access point. The maximum transmission distance is affected by the data rate. The lower the data rate, the longer the transmission distance. (Options: 54, 48, 36, 24 Mbps; Default: 54 Mbps)

Beacon Interval – The rate at which beacon signals are transmitted from the access point. The beacon signals allow wireless clients to maintain contact with the access point. They may also carry power-management information. (Range: 20-1000 TUs; Default: 100 TUs)

Data Beacon Rate – The rate at which stations in sleep mode must wake up to receive broadcast/multicast transmissions.

Known also as the Delivery Traffic Indication Map (DTIM) interval, it indicates how often the MAC layer forwards broadcast/multicast traffic, which is necessary to wake up stations that are using Power Save mode. The default value of 2 indicates that the access point will save all broadcast/multicast frames for the Basic Service Set (BSS) and forward them after every second beacon. Using smaller DTIM intervals delivers broadcast/multicast frames in a more timely manner, causing stations in Power Save mode to wake up more often and drain power faster. Using higher DTIM values reduces the power used by stations in Power Save mode, but delays the transmission of broadcast/multicast frames. (Range: 1-255 beacons; Default: 2 beacons)

RTS Threshold – Sets the packet size threshold at which a Request to Send (RTS) signal must be sent to a receiving station prior to the sending station starting communications. The access point sends RTS frames to a receiving station to negotiate the

5-43

System Configuration

sending of a data frame. After receiving an RTS frame, the station sends a CTS (clear to send) frame to notify the sending station that it can start sending data.

If the RTS threshold is set to 0, the access point never sends RTS signals. If set to 2347, the access point always sends RTS signals. If set to any other value, and the packet size equals or exceeds the RTS threshold, the RTS/CTS (Request to Send / Clear to Send) mechanism will be enabled.

The access points contending for the medium may not be aware of each other. The RTS/CTS mechanism can solve this “Hidden Node Problem.” (Range: 0-2347 bytes: Default: 2347 bytes)

5-44

Radio Interface

CLI Commands for the 802.11g Wireless Interface – From the global configuration mode, enter the interface wireless g command to access the 802.11g radio interface. Set the interface SSID using the ssid command and, if required, configure a name for the interface using the description command. You can also use the no ssid-broadcast command to stop sending the SSID in beacon messages. Select a radio channel or set selection to Auto using the channel command. Set any other parameters as required. To view the current 802.11g radio settings, use the show interface wireless g command.

SMC-AP(config)#interface wireless g 6-68 Enter Wireless configuration commands, one per line. SMC-AP(if-wireless g)#description RD-AP#3 6-75 SMC-AP(if-wireless g)#ssid r&d 6-78 SMC-AP(if-wireless g)#channel auto 6-77 SMC-AP(if-wireless g)#ssid-broadcast 6-75 SMC-AP(if-wireless g)#select-antenna-mode right antenna 6-74 SMC-AP(if-wireless g)#radio-mode g 6-73 SMC-AP(if-wireless g)#transmit-power full 6-86 SMC-AP(if-wireless g)#speed 6 6-76 SMC-AP(if-wireless g)#max-association 32 6-87 SMC-AP(if-wireless g)#beacon-interval 150 6-78 SMC-AP(if-wireless g)#dtim-period 5 6-79 SMC-AP(if-wireless g)#fragmentation-length 512 6-80 SMC-AP(if-wireless g)#rts-threshold 256 6-81 SMC-AP(if-wireless g)#exit

5-45

System Configuration

SMC-AP#show interface wireless g 6-95

Wireless Interface Information ===========================================================

----------------Identification----------------------------Description : Enterprise 802.11g Access Point SSID : r&d Channel : 11 (AUTO) Status : Enable

----------------802.11 Parameters-------------------------Transmit Power : HALF (10 dBm) Max Station Data Rate : 6Mbps Fragmentation Threshold : 512 bytes RTS Threshold : 256 bytes Beacon Interval : 150 TUs DTIM Interval : 5 beacons Maximum Association : 32 stations

----------------Security----------------------------------SSID Broadcast : ENABLED Multicast cipher : WEP Unicast cipher : WEP WPA clients : SUPPORTED Encryption : DISABLED Default Transmit Key : 1 Static Keys : Key 1: EMPTY Key 2: EMPTY Key 3: EMPTY Key 4: EMPTY Authentication Type : OPEN =========================================================== SMC-AP#

5-46
