Baby IP Camera HD
Installation and Operating Instructions
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
Important Note
The state of the art Baby IP Camera HD is capable of delivering high quality Digital High Definition
(HD) video to your smart-mobile device(s), which would require higher internet bandwidth. Due
to your local internet environment condition, your mobile device(s) may display black-screen
or temporary disconnect to the camera.
* Make sure the camera is operating with sufcient internet bandwidth, 1Mbps (upload/
download speed) is suggested.
* For best performance, the smart-mobile device(s) need to be on Wi-Fi or 4G mobile network
in order to receive maximum download speed.
* When the internet transmission is low, your WAPP APP will automatically switch to Relay
Mode:
‧
By adjusting to “Better Streaming” in the system setting section may improve
the camera performance.
* Your internet bandwidth is limited.
For best performance, try to avoid more than two users
connecting to the camera simultaneously.
* Make sure your smart-mobile device(s) is equipped with up-to-date technology, 1.5GHz dual
core processor or equivalent is suggested.
* If the signal strength of your Wi-Fi router is weak, there are several ways to improve
transmission:
‧
Change router/camera relative position to receive better signal.
‧
Use wire Ethernet cable on the camera to establish connection between camera and
your router.
‧
Use Wi-Fi repeater/extender to maximize the service range of your Wi-Fi route.
‧
Switch your router to 11b/11g mode in order to improve router service range.
‧
Purchase extension cable or high gain antenna for your camera from the vendor.
* Please make sure the memory card used is CLASS10 rated.
1
CONTENTS
INTRODUCTION .............................................................................................. 2
IMPORTANT SAFETY PRECAUTIONS .....................................................................2
KIT CONTENT ................................................................................................. 4
NIGHT VISION .........................................................................................................5
CAMERA INSTALLATION .........................................................................................5
CAMERA OVERVIEW ...................................................................................... 6
SETUP THE CAMERA ..................................................................................... 7

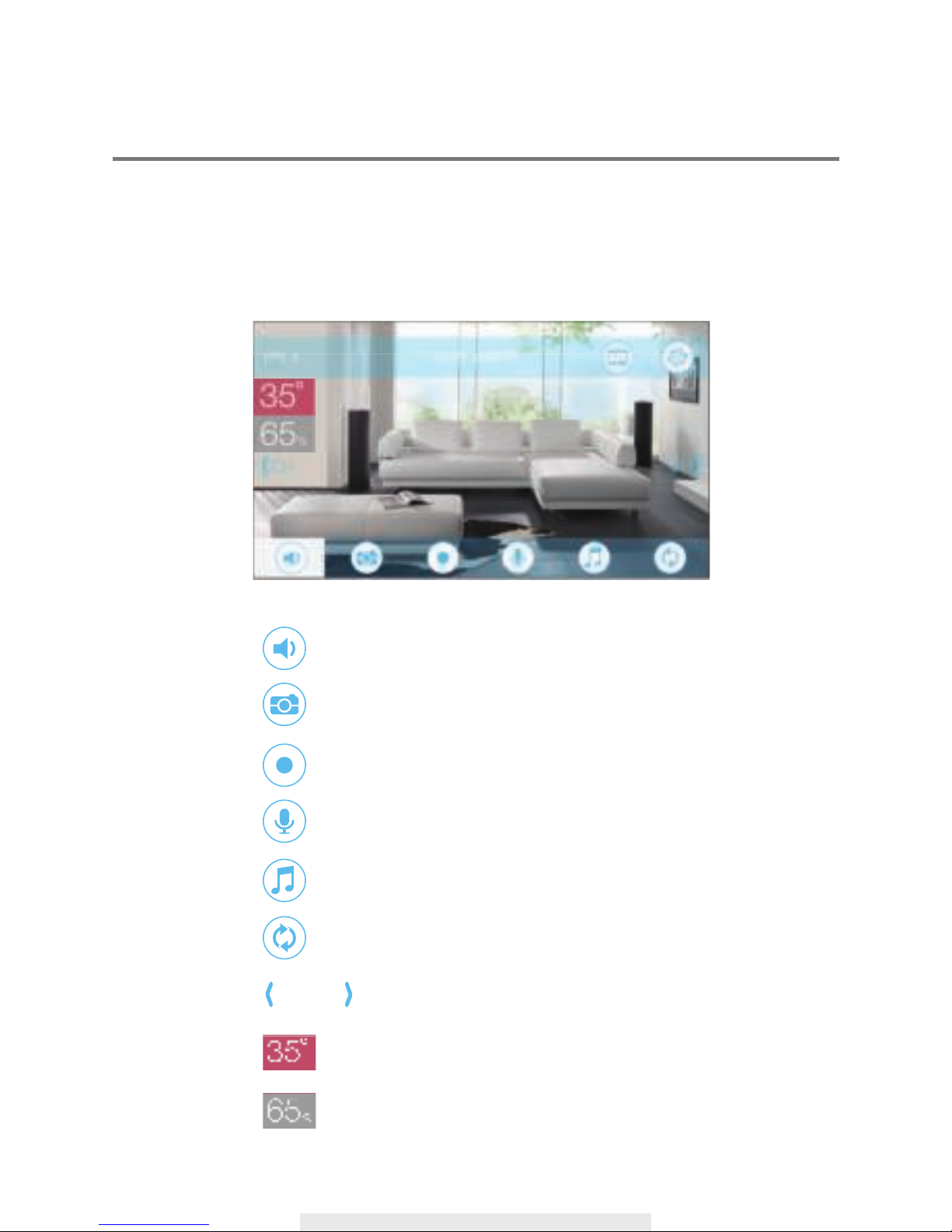

MAIN SCREEN OVERVIEW .............................................................................9
VIEW SNAPSHOT ......................................................................................... 11
VIEWING YOUR SNAPSHOTS ...................................................................... 11
PLAYBACK RECORDED VIDEOS ................................................................. 12
MANUAL RECORD ........................................................................................ 16
PUSH-TO-TALK ............................................................................................. 16
LULLABY ...................................................................................................... 16
REFRESH ...................................................................................................... 16
IMAGE ADJUST ............................................................................................ 17
CAMERA SETTING........................................................................................17
NOTIFY (PUSH NOTIFICATION) ................................................................... 18
ADVANCED SETTING ................................................................................... 19
TROUBLE SHOOTING .................................................................................. 22
PRODUCT SPECIFICATION .......................................................................... 25
STORAGE MEDIA MANAGEMENT ............................................................... 26
APPENDIX: COMPATIBLE LIST .................................................................... 27
2
INTRODUCTION
I
IMPORTANT SAFETY PRECAUTIONS
Damages caused by non-compliance with this operating manual will void the warranty!We will
not assume any liability for damages to items or persons caused by improperhandling or noncompliance with the safety notices! Any warranty claim will be null andvoid in such cases.
1. Do not drop, puncture or disassemble the camera; otherwise the warranty will bevoided.
2. Avoid all contact with water, and dry hands before using.
3. Never tug on the power cords. Use the plug to unplug it from the wall outlet.
4. Do not expose the camera to high temperature or leave it in direct sunlight. Doingsomay
damage the camera or cause camera temporary malfunction.
5. Use the devices with care. Avoid pressing hard on the camera body.
6. For your own safety, avoid using the camera or power off the camera when thereisastorm or
lightning.
7. Remove the power adapter during long periods between usages.
8. Use only the accessories and power adapters supplied by the manufacturer.
9. To meet the regulations pertaining to parental responsibility, keep the devices out ofthe reach of
infants.
10. Check power cables, do not get crushed or damaged by sharp edges whenever thedevices are
in operation.
11. Keep the power cord at least 3 feet away from infant. NEVER allowing infant to be able to
reach the wireless baby monitor.
PLEASE READ BEFORE YOU START
Always use discretion when installing monitoring system, especially when local regulation(s)
may have certain policy concerning the surveillance, video recording and/or listen-in
function(s) the device have to offer. Please check with your local authority for more detail.
Third party consent may also be required.
WIRELESS BABY MONITOR OPERATING RANGE
To ensure maximum signal transmission performance, if necessary, the distance between
the wireless monitor and Wi-Fi router may need to be reduced. The wireless baby monitor is
operating on a 2.4GHz frequency therefore the performance of wireless baby monitor may also
be inuenced by other device(s) operating on the same frequency, such as neighbor's Wi-Fi
network, cordless phone, microwave oven, etc.
3
FCC/CE WARNING
This equipment has been tested and found to comply with limits for a Class B digital device,
pursuant to Part 15 of the FCC rules and ETSI(EN) 300328. These limits are designed to provide
reasonable protection against harmful interference in residential installations. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does interference to radio or
television equipment reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Move the equipment away from the receiver.
•
Plug the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/television technician for additionalsuggestions.
You are cautioned that any change or modications to the equipment not expressly
approved by the party responsible for compliance could void your authority to operate
such equipment.
DISPOSAL
If the camera system no longer functions or can no longer be repaired, it must be
disposed of according to the valid statutory regulations.
Disposal of spent batteries/accumulators:
You are required by law (Battery Ordinance) to return all spent batteries and
accumulators. Disposing of spent batteries/accumulators with common household waste is
prohibited! Batteries/accumulators that contain hazardous substances are marked with the symbols
on the side. These symbols indicate that it is prohibited to dispose of these batteries/accumulators
in the household waste. The abbreviations for the respective heavy metals are: Cd=cadmium,
Hg=mercury, Pb=lead. You can return spent batteries and accumulators that can no longer be
charged to the designated collection points in your community, outlets or wherever batteries or
accumulators are sold. Following these instructions will allow you to fulll the legal requirements
and contribute to the protection of our environment!
FCC Compliance Statement: This
device complies with Part 15 of the
FCC rules. Operation is subjected to
the following two conditions: (1)
this
device may not cause harmful interference,
and (2) this
device must accept any interference
received, including
interference that may cause
undesired operation.
Products with CE Marking comply
with
EMC Directive (2004/108/
EC); Low
Voltage Directive (73/23/
EEC);
R&TTE(1999/5/EC); ROHS
Directive
(2011/65/EU) issued by the Commission
of the
European Community. Compliance with
these
directives implies conformity to the following
European Norms:
EMC: EN 301 489
LVD: EN 60950
Radio: EN 300 328
4
For best system performance:
- iOS: iPhone5 / iPad2 / Mini iPad or above.
- Android: 1.5G dual core processor dual core procesor with 1G Ram or above.
- Storage: Class 10 memory card.
- Bandwidth: 1Mbps or above upload/download speed suggested.
Camera
(including stand & wall-
bracket)
Power Adapter
x 1
Tools Required:
‧
Electric drill
‧
5mm masonry drill bit
‧
15mm masonry drill bit
‧
No. 2 Philips screwdriver
x 1
Quick Start Guide
x 1
KIT CONTENT
5
NIGHT VISION
The camera has built-in infrared LEDs to allow you to view at night for 24-hour surveillance. The
LEDs will automatically activate at low light environment and the picture viewed will turn to black
and white. The night viewing range is up to 5 meters.
CAMERA INSTALLATION
1. Place the mounting base on the mounting surface as a pattern to mark the holes.
2. Drill the mounting holes and use the wall plug screws to secure the mouting base to the wall.
3. Plese the camera stand into the mouting base for wall mount installation.
Note:
The wall mount bracket will not be necessary when placing the camera on at
surfaces.
6
CAMERA OVERVIEW
Micro SD
Infrared LEDs
Microphone
Power
Status LED
Speaker
Camera Stand
Temperture/
Humidity Sensor
Reset
Light Sensor
Comfort Light
7
SETUP THE CAMERA
1. APP Download
Download the APP from APP Store/Google Play.
APP Name: BabyAdore
2. Power up the camera
(1) Provide power to the camera by using the supplied camera power adaptor.
(2) 60 seconds later the GREEN LED will ash, go on to step 3.
3. MAKING CONNECTION (camera - mobile device)
(1) Go to the "Wi-Fi" setting section of mobile device and look for the camera's SSID
(e.g., "HD-000123") uniquely assigned for your camera. Select the camera's SSID to connect.
(2) Enter the default password 12345678. Save the setting and exit the Wi-Fi setting section.
(3) Launch the OMG Care app and tap the "ADD Camera" icon the "Camera Info"
section will appear, tap "Search" and select the camera's DID.
(4) Enter the camera name preferred and camera's default password 123456. Tap "Save" to exit.
Note:
Every camera has its unique DID and you can locate the information on the back of the
camera. If for any reason the Search function cannot automatically bring up the DID
information, you can always manually input the DID (including the dashes).
