Installation and Operation manual
PROGRAMMABLE THERMOSTAT
Model 42158
1
42711-01 08-18-08
2
Table of Contents
Tools 6
Uninstalling the Existing Unit ............................ 7
installing the wall plate ................................ 12
connecting the wires ................................... 16
attaching the thermostat ............................. 18
Settings........................................................... 22
manual operation ........................................ 28
default programs ......................................... 32
creating custom programs .......................... 34
Icons and Features .........................................38
3
Smart Temp
Smart Temp
Programmable Thermostat
Programmable Thermostat
Model 42158
Model 42158
Congratulations!
Thank you for choosing a Smart Temp programmable thermostat. Your new Smart Temp thermostat will provide years of reliable service and year-round energy savings.
Please read this manual before beginning installation and save this booklet for complete operation instructions.
4
IMPORTANT INFORMATION
This thermostat is designed to work on the following
heating and cooling systems:
Gas – Standing Pilot
Gas – Electronic Ignition
Gas – Fired Boilers
Gas – Milivolt Systems
Gas Heat with Add on Cooling
Single Stage Heat Pump - No auxilary
This thermostat is not designed for multi-stage systems or mains 240V AC Switching. If 240V Switching is required an optional Smartpak-03 interface is required. Please contact your place of purchase or Smart Temp.
If you are unsure what kind of heating and cooling
system you have, please contact a qualied HVAC
Technician for assistance.
5
TOOLS
This thermostat includes two #8 slotted screws
and two wall anchors for mounting.
To install your new thermostat, you will need the
following supplies:
....................................................................................
Small Phillips-head screwdriver
Flat-head screwdriver
....................................................................................
Hammer
....................................................................................
Electric drill and 3/16” bit
....................................................................................
6
NOTICE! Do not disconnect the
wires from the existing thermostat
before reading these instructions.
The wires must be labeled prior
to removal to ensure proper
reconnection.
7
Y
RC
G
W
Y
RC
G
W
8
UNINSTALLING THE EXISTING UNIT
1. Turn the system power OFF from the existing thermostat. Turn the power to the HVAC system OFF at the main power panel or at the furnace.
2. Remove the existing thermostat cover to access the wires from the wall.
(Some thermostats may have multiple covers, screws
or other locking devices that must be removed or disengaged.)
3. Locate, but do not disconnect the wires.
(If wires are not visible, they may be connected to the
back of the wall plate. Some models may have doors that open to expose the wires and mounting screws.)
9
if your existing
thermostat is marked...
label the wire
with this stic
k
:
G / F
G
G
W / H / B
W/B
W / B
Y / C* / M / O
Y/0
Y / 0
RC / VC
RC
R C
RH / R / VR / 4
RH
R H
24 Volt
24 Volt cool
air conditioning
compressor
heating
fan
Y1
Y1
Y 1
heat pump
compressor
10
UNINSTALLING THE EXISTING UNIT, CONT.
Y
RC
G
W
W
4. Using the provided stickers, label each wire according to the chart.
(If the terminals are not labeled, contact
a qualied HVAC technician.)
Note: Wire colors do not always comply with standards, so wire color should be ignored. Refer to the existing terminal
designation for proper identication.
*If wires marked Y & C are both present, C may be a Common wire and should not be used. If you have a wire marked C, do not connect it to any terminal. This wire is used only for non­battery powered thermostats.

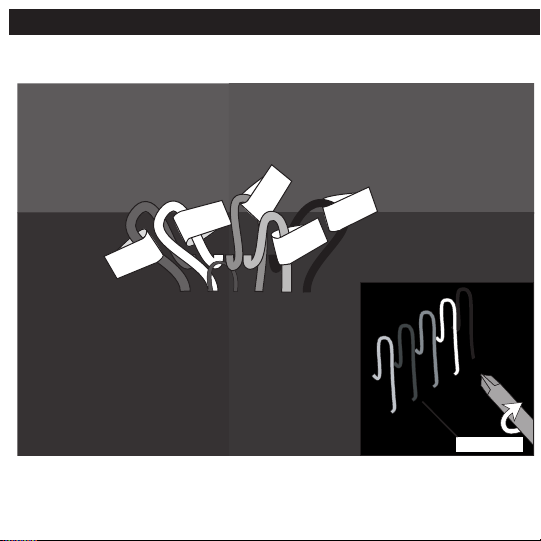

5. Do not let the wires slip back into the wall during disconnection. You may want to secure the wires to the wall as you disconnect them. After all wires are labeled, disconnect each wire and remove the existing wall plate.
11
W
R C
Y
G
12
INSTALLING THE THERMOSTAT
INSTALLING THE WALL PLATE
1. Remove the wall plate from the new
thermostat by pressing the release tab on the bottom of the thermostat.
2. Position the new wall plate on the wall and
pull the labeled wires through the opening.
3. If the existing holes do not match those on
the Smart Temp 42158 wall plate, or if there are no existing holes, visually level the wall plate and mark the wall for two holes.
13
W
R C
Y
G
14
INSTALLING THE THERMOSTAT, CONT.
4. Remove the wall plate and drill two 3/16”
holes where marked.
5. Tap the plastic anchors into the holes until
they are ush with the wall.
6. Reposition the wall plate on the wall, pulling
the wires through the opening. Insert the mounting screws through the wall plate and into the anchors. Verify that the wall plate is visually level and securely tighten both screws.
15
G
RCRH
Y/0
W/B
R C
G
Y1
Y/ 0
W / B
Y 1
Terminal Shield
16
INSTALLING THE THERMOSTAT, CONT.
GRCRHYW
Jumper
CONNECTING THE WIRES

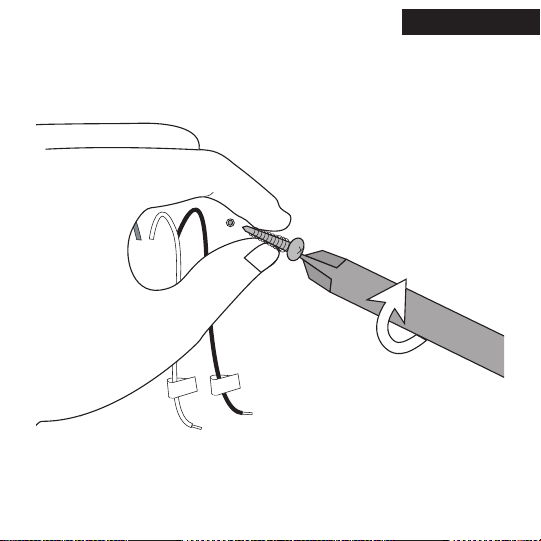

1. Loosen, but do not remove, the terminal
screws.
Note: A jumper wire has been provided, connecting the RC and RH terminals for systems that do not provide both an RH and RC wire. If you have both an RH and RC wire, remove this jumper. If you do not have both an RH and RC wire, leave the jumper in
place.
2. Match and connect the wires from the wall
to the terminals as shown. Wires should be inserted behind the black terminal shields. Tighten each screw after the connection has been made.
(The ends of any extra wires should be wrapped in
electrical tape and carefully pushed back into the wall.)
3. Push any excess wire length back into the
wall to prevent interference.
17
DISABLE
ENABLE
RECOVERY
HG
HE
W/BY/ORHRC G
SYSTEM TYPE
STD
HP
Y1
FAN OPTION
Thermostat
Cover
System
Switch
G RC RH Y/O W/B Y1
18
INSTALLING THE THERMOSTAT, CONT.
ATTACHING THE THERMOSTAT
Lift the thermostat cover and set the SYSTEM switch to OFF
and the FAN switch to AUTO.
1. Locate the HE/HG switch on the back of the thermostat.
Set the switch to HG (default) for gas furnace and oil burners. Set the switch to HE for electric furnaces.
(The switch has no effect when the system is set to
cooling mode.)
2. Locate the Auto Recovery switch on the back of
the thermostat. If you wish to use the Energy Star compliant Auto Recovery feature, verify that the switch is in the ENABLE position. If you do not wish to use this feature, simply change the switch to the DISABLE position. See pages 44-45 for more information.
3. System type - Locate the S
back of the thermostat. Select either STD (Standard) or HP (Heat Pump) to match your system.
y S t e m ty p e switch on the
19
1
2
Tab
20
INSTALLING THE THERMOSTAT, CONT.
4. Place the top of the thermostat over the two
tabs on the wall plate. Press the thermostat onto the wall plate and press to snap the bottom tab into place.
Note: Do not force the thermostat onto the wall plate, as the terminal pins may be damaged. If the thermostat does not snap into place properly, the unit may not work.
5. Insert two AA alkaline batteries.
6. Restore power at the electrical panel or
furnace.
21
reset
22
SETTINGS
The default setting of the thermostat is Celsius(Co).
NOTICE: CHANGING THIS SETTING WILL RESET THE THERMOSTAT TO FACTORY DEFAULT PROGRAMS.
(If no button is pressed for 5 seconds, the unit will
return to the Normal Display mode.)
To change to Faranheit (Fo):
1. Press and hold the
2. Use a paperclip to press the
3. Continue to press the
Up button.
Reset button.
Up button, but release
the Reset button when the LCD turns on.
o
To reset the unit to C
, press only the Reset
button.
23
day/time
AM PM
24
SETTINGS, CONT.
The default for this thermostat setting is in a 12 hour format. You can change the format to 24 hour format by pressing Day/Time and then Program.
The AM/PM indicator will be off when the thermostat is in 24 hour mode.
Setting day and time:
1. Press
Day/Time. (AM/PM and current hour will
ash)
2. Press
3. Press
Up or Down to adjust the setting. Day/Time again to adjust the minute
setting.
4. Press
Day/Time again to adjust the day of the
week.
5. Press
Day/Time to return to the normal display.
You may also press Hold/Return at any time to return to the normal display.
25
26
AM
HEAT
4
T
METHODS OF OPERATION
This thermostat gives you the ability to program up to 4 custom temperature settings per day or utilize pre-programmed settings.
For manual operation instructions, see pages 28-31.
To utilize the pre-programmed settings, see pages 32-33.
To create custom programs, see pages 34-37.
27
AM
HEAT
2
TH
28
METHODS OF OPERATION, CONT.
1. MANUAL OPERATION
Many people prefer to operate their thermostats manually, adjusting settings as needed. You can either temporarily override the settings for the current program, or permanently override all settings and adjust temperatures manually.
1. Press and hold
Up or Down for one second to
enter Manual Override mode. (Release the button
when the display ashes.)
2. Press the Up or Down buttons to adjust the
temperature setting as desired.
29
hold
/return
system
off
heat
cool
HOL
D
30
METHODS OF OPERATION, CONT.
MANUAL OPERATION, CONT.
If you want to permanently override all settings and adjust the thermostat manually:
1. Press
2. Press and hold
Hold/Return until the Hold icon appears.
Up or Down for one second to
enter Manual Override mode. (Release the button
when the display ashes.)
3. Press the Up or Down buttons to adjust the
temperature setting as desired.
4. Press and release
Hold/Return to return to the
normal display.
31
Program 1
Heat : 20o C Cool : 26
o
C
Program 2
Heat : 16o C
Cool : 29
o
C
Program 3
Heat : 20o C
Cool : 26
o
C
Program 4
Heat : 16o C
Cool : 28
o
C
4 pm

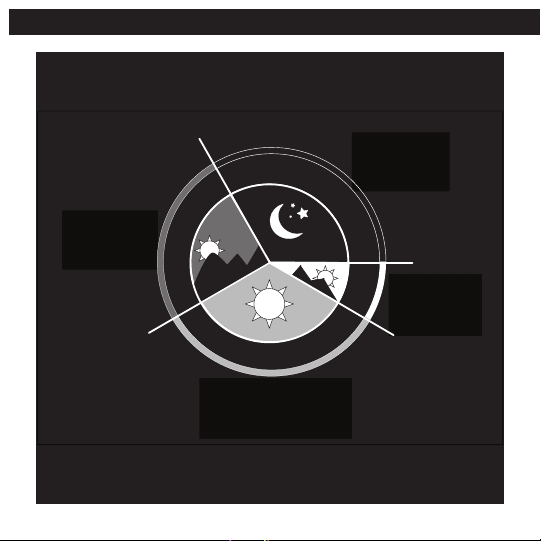

DEFAULT PROGRAMS CHART
32
METHODS OF OPERATION, CONT.
2. DEFAULT PROGRAMS
This thermostat meets ENERGY STAR
guidelines for energy efciency. By using the
pre-programmed settings, this thermostat can save you money by optimizing energy usage in heating and cooling.
After setting the time and temperature scale, no additional action is needed to utilize the pre­programmed settings.
Refer to the Default Programs Chart for detailed information about the pre-programmed settings.
33
AM PM
program
hold
/return
system
off
heat
cool
34
METHODS OF OPERATION, CONT.
3. CREATING CUSTOM PROGRAMS
• Program times can be set in 10 minute
increments.
• Program temperature can be set in
increments of 1
o
C (1o F).
• After 15 seconds of inactivity during
programming, the thermostat will return to Normal Display mode.
• When setting the program time, note the AM/
PM indicator.
• Press
Hold/Return at any time to exit Program
mode.
1. Slide the
system switch to HE AT or COOL to
program the corresponding system.
2. Press Program to enter Program mode. (The
LCD will begin to ash)
35
AM
PM
HEATCOOL
SA
2134
SUMTWTHF
program
hold
/return
system
off
heat
cool
36
METHODS OF OPERATION, CONT.
3. Press Up or Down to change the hour. Press
Program to save the hour and adjust the
minute setting.
4. Press
Press
Up or Down to change the minute. Program to save the minute setting and
adjust the temperature.
5. Press
Press
Up or Down to set the temperature. Program again to move to the next
program number.
(There are 4 programs per day. If you do not wish to
assign all 4 programs per day set at least 2, keeping in mind that the total program time must equal 24 hours.)
6. Repeat steps 2-5 for the remaining days.
7. To review your program settings, press
Program repeatedly to review the customized
programs.
(You can make changes at any time when the
thermostat is in Program mode.)
8. Slide the system selector switch to the opposite
position and repeat steps 2-5.
37
FILTE
R
filter
38
ICONS AND FEATURES
1. INDIGLO® Night-Light - will backlight the
display for easy viewing in the dark. Press any button to illuminate the light.
(If no button is pressed after 5 seconds, the backlight
will turn off.)
Note: If the thermostat shows a Low Battery Warning, the backlight will not operate. Follow the instructions on pages 42-43 to change batteries.
2. Filter change indicator - will ash after 400
hours of system use as a reminder to check
or change your lter. Press and hold the
Filter
button for 3 seconds after changing the lter to reset the lter timer.
(Pressing the Filter button for less than 3 seconds will
cause the Filter change indicator icon to appear. The
lter timer will not be affected unless the button is held
for more than 3 seconds.)
39
HEATCOOL
system
off
heat
cool
reset
40
ICONS AND FEATURES, CONT.
3. Span setting mode – allows you to adjust
the system ON/OFF cycle rate. The default setting is 2 (the system cycles ON or OFF when the temperature is within 0.5
o
C (1o F) above and below the set temperature.) The span setting can be adjusted if your system is cycling too fast or too slowly.
Press and hold both the
until the word SPAN appears. Use the
Down button to adjust the span setting.
(Up will increase your cycle time by allowing the system
to run longer; Down will decrease your cycle time by causing the system to run for a shorter length of time.)
Up and Down buttons
Up or
Span settings remain the same for H EAT and
COOL system settings. When batteries are
installed, or the unit is
RESET, the span cycle
will revert to 2.
41
STAGE 1
PM
COOL
4
M
STAGE 2
42
ICONS AND FEATURES, CONT.
4. Low battery warning – indicates two stages of battery power shortage.
When the batteries are detected as weak, the
icon will ash until new AA alkaline batteries
are installed. If the batteries become too weak for normal operation, the thermostat enters the second battery power shortage mode.
When insufcient battery power is left, the battery icon will ash alone on the display and your system will
turn off. The system will remain off until new batteries are installed. After removing the batteries, program and time settings will remain in memory for one minute. If all battery power is lost, programs and time
settings will be erased.
The thermostat will resume normal operation
after new batteries are installed.
43
44
hold
/return
ICONS AND FEATURES, CONT.
5. Auto recovery – allows heating and cooling systems to gradually recover from an energy-saving setpoint temperature to a comfort setpoint temperature. Auto recovery calculates the time needed to adjust the temperature to the next program setting. When the thermostat is in Auto Recovery
mode, the display will ash alternating
messages of RECO and the time. Auto Recovery can be disabled by sliding the recovery switch on the back of the circuit board to the disable position.
(Auto Recovery will not operate if Permanent or
Temporary holds are on.)
Press Hold/Return during the Auto Recovery
process to manually cancel the recovery.
45
46
ICONS AND FEATURES, CONT.
6. Error mode – indicates an unexpected
battery problem. The screen will ash an
ERR message and shut your system off until the batteries are replaced with new AA alkaline batteries. You must Reset and reprogram the thermostat after replacing the batteries if the thermostat has entered Error mode.
7. Auto cut off – automatically turns the system off if the temperature rises above 35 F) or drops below 4
(If your HVAC system has malfunctioned, the system
will no longer respond to thermostat controls and the Auto cut off will have no effect.)
o
C (95o F).
o
C (95o
47
1. Temperature Range
reset
Display Range
0oC
37o C
(30o F)
(99
o F
)
7o C
Program Range
35o C
(45o F)
(95o F)
Out of Range
"HI"
>
37o C
Out of Range
"LO"
<
0o C
2. Compressor Protection
After the system stops running in cooling mode, there will be a
3.5 minute delay before it can be restarted to prevent compressor damage due to rapid cycling.
3. Resetting the unit
To restore the thermostat to the original factory settings, press the reset button with a paperclip.
(This will erase any user-programs.)
48
WIRING
49
WIRING, CONT.
50
WIRING, CONT.
51
TROUBLESHOOTING
1. My display will not come on.
1 a. Check batteries and battery connections. 1 b. Reset the thermostat.
...................................................................................
2. The auto fan feature will not operate properly.
2 a. Remove the thermostat from the wall plate and set the
HG/HE switch to the correct position.
..............................................................................
3. My display is erratic.
3 a. Reset the thermostat and reprogram your settings.
....................................................................................
4. The program will not change at my desired
setting.
4 a. Check that the time is set properly to AM or PM. 4 b. Make sure the thermostat is not in permanent override
mode.
4 c. Check that the day setting is correct.
52
TROUBLESHOOTING
5. My heating or cooling will not turn on or off.
5 a. Check the Heat/Cool function switch to ensure it is set to
the desired position.
5 b. Wait. There may be as much as a 4-minute delay before
the system turns on or off to protect the compressor.
5 c. Check the circuit breakers and switches to ensure there
is enough power to the system. 5 d. Replace the batteries. 5 e. If applicable, make sure the furnace blower door is
closed properly. 5 f. If your system has 4 wires, ensure the jumper wire is
installed between the RC and RH terminals.
....................................................................................
6. The display will come on, but it will not stay illuminated.
6 a. Replace batteries.
53
TROUBLESHOOTING
7. My system continues to operate when the
thermostat is in the off position.
7 a. Replace unit.
....................................................................................
8. The LCD screen permanently reads HI, LO,
or ERR.
8 a. Replace unit.
....................................................................................
9. How do I just operate my thermostat
manually?
9 a. Manual operation instructions are on pages 28-31.
54
Is there help on the web?
Yes. Visit http://www.smarttemp.com.au for more
information or email us at support@smarttemp.om.au
........................................................................
Smart Temp Australia Pty Ltd
Unit 20, 1488 Ferntree Gully Road
Knoxeld Victoria 3180
Tel (03) 9763 0094
Fax (03) 9763 0098
info@smarttemp.com.au
www.thermostat.om.au
55
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
