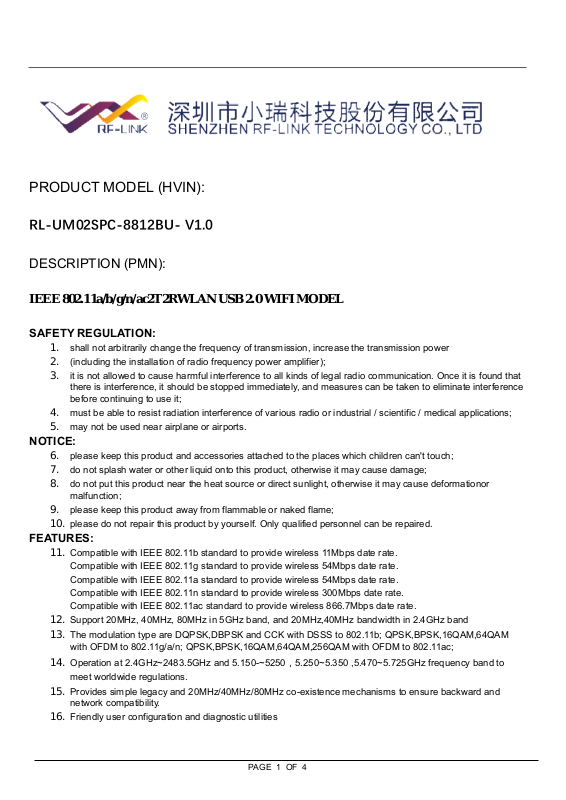

SMART Technologies IDXMOD1 User Manual

PRODUCT MODEL (HVIN):

RL-UM02SPC-8812BU- V1.0

DESCRIPTION (PMN):

IEEE 802.11a/b/g/n/ac2T2RWLAN USB 2.0 WIFI MODEL

SAFETY REGULATION:

1. shall not arbitrarily change the frequency of transmission, increase the transmission power

2. (including the installation of radio frequency power amplifier);

3. it is not allowed to cause harmful interference to all kinds of legal radio communication. Once it is found that

there is interference, it should be stopped immediately, and measures can be taken to eliminate interference
before continuing to use it;

4. must be able to resist radiation interference of various radio or industrial / scientific / medical applications;

5. may not be used near airplane or airports.

NOTICE:

6. please keep this product and accessories attached to the places which children can't touch;

7. do not splash water or other liquid onto this product, otherwise it may cause damage;

8. do not put this product near the heat source or direct sunlight, otherwise it may cause deformationor

malfunction;

9. please keep this product away from flammable or naked flame;

10. please do not repair this product by yourself. Only qualified personnel can be repaired.

FEATURES:

11. Compatible with IEEE 802.11b standard to provide wireless 11Mbps date rate.

Compatible with IEEE 802.11g standard to provide wireless 54Mbps date rate.
Compatible with IEEE 802.11a standard to provide wireless 54Mbps date rate.
Compatible with IEEE 802.11n standard to provide wireless 300Mbps date rate.
Compatible with IEEE 802.11ac standard to provide wireless 866.7Mbps date rate.

12. Support 20MHz, 40MHz, 80MHz in 5GHz band, and 20MHz,40MHz bandwidth in 2.4GHz band

13. The modulation type are DQPSK,DBPSK and CCK with DSSS to 802.11b; QPSK,BPSK,16QAM,64QAM

with OFDM to 802.11g/a/n; QPSK,BPSK,16QAM,64QAM,256QAM with OFDM to 802.11ac;

14. Operation at 2.4GHz~2483.5GHz and 5.150-~5250，5.250~5.350 ,5.470~5.725GHz frequency band to

meet worldwide regulations.

15. Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and

network compatibility.

16. Friendly user configuration and diagnostic utilities

PAGE 1 OF 4

Operating Temperature:

0℃ to+70℃

Relative Humidity:

5-90%non-condensing)

Temperature:

-20℃ to+85℃ (no-operating)

Relative Humidity:

5-90%non-condensing)

Software Version:

RL-UM02SPC-8812BU-V1.0

Hardware Version:

rtl88x2bu v5.2.4.5_26498.20180205_Coex20171012- 5044

2412MHz to 2462MHz

Maximum E.I.R.P: 14 dBm

5180MHz to 5320MHz

Maximum E.I.R.P: 12.68 dBm

5500MHz to 5700MHz

Maximum E.I.R.P: 14.19 dBm

AT

BE

BG

HR

CY

CZ

DK

EE

FI

FR

DE

EL

HU

IE

IT

LV

LT

LU

MT

NL

PL

PT

RO

SK

SI

ES

SE

UK

17. Drivers support: Linux/Android/Windows

18. High speed USB 2.0 interface for WLAN and USB 1.1 .

19. RoHS compliant

20. Transmit power no more than 1000mW

21. Voltage is 3.3VDC

ENVIRONMENTAL:

Operating

Storage

EU Declaration Conformity

Hereby, we (SMART Technologies Inc.) declared that this device is in
compliance with the essential requirements and other relevant provisions of
Directive 2014/53/EU
Address: 3636 Research Road NW Calgary, AB T2L 1Y1, Canada

Software/Hardware

Working Frequency Maximum Transmit Power:

Legal Information
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device is restricted to indoor use only when operating in 5150MHz to
5350MHz frequency range in following countries:

PAGE 2 OF 4
