Specifications

SMARTBoard™ interactive
whiteboard system

Model 480iv

Physical specifications

SMART Board™ 480iv interactive whiteboard

Size

160.5 cm W × 127.2 cm H × 13 cm D
(63 1/4" × 50" × 5 1/8")

Active screen area

(maximum

interactive projected

image)

Weight

Shipping size

Shipping weight

SMART V25 projector system

Projector 47 cm W × 39.4 cm H × 130.2 cm D (18 1/2" × 15 1/2" × 51 1/4")

Remote control 4 cm W × 8.6 cm H × 0.7 cm D (1 5/8" × 3 3/8" × 1/4")

Weight 6.7 kg (14 lb. 8 oz.)

Shipping size Mounting kit box

156.5 cm W × 117.2 cm H
(61 5/8" × 46 1/8")

195.6 cm (77") diagonal

23.2 kg (51 lb.)

178 cm W × 136 cm H × 11 cm D
(70" × 53 1/2" × 4 1/2")

28.7 kg (63 lb. 3 oz.)

72.5 cm W × 45.5 cm H × 17 cm D (28 1/2" × 18" × 6 5/8")

All dimensi ons + /- 0.3 cm (1/8"). All weights +/- 0.9kg (2 lb.).

Projector box

45 cm W × 32.6 cm H × 16.1 cm D (17 3/4" × 12 7/8" × 6 3/8")

Shipping weight 9.3 kg (20 lb. 8 oz.)

S P E C I F I C A T I O N S

SMARTBoard interactivewhiteboard system – Model 480iv

Standard features

System

requirements

Software The DVDincludes SMARTNotebook software and SMARTProductDrivers. Software

Environmental

compliance

Regulatory

certification

Interactive

whiteboard system

Interactive

whiteboard

Projector CB, cULus, CCC, KC, NOM, PSB, PSE, TUV-GS, VCCI

Windows® operating systems and Linux® operating systems. See the SMARTNotebook™

collaborative learning software release notes for Windows operating systems

(smarttech.com/kb/126571), or Linux operating systems (smarttech.com/kb/146487) for a

complete list of system requirements.

upgrades are available from smarttech.com/software.

China EIP, EU RoHS, EU WEEE, Packaging and US CPSIA

CB, CE, C-Tick, FCC, GOST-R

CB, cCSAus

Warranty The projector and projector lamp have a two-year limited equipment warranty. Your

interactive whiteboard has a two-year limited equipment warranty. See warranty documents

for details.

Cables Includes a 3 m (10') USB cable and a country-specific power cable

Interactive whiteboard features

Pen Includes a pen tray pen

Resolution Digitizing resolution is approximately 32767 × 32767

Screen surface The hard-coated steel surface is durable, optimized for projection, compatible with dry-erase

markers and easily cleaned with whiteboard cleaner.

Digitizing

technology

Projector

mounting template

Frame finish Dark gray (approximates PANTONE® Charcoal Gray 18-0601 TPX)

DViT™ (DigitalVisionTouch) technology

Ensures simple installation and accurate alignment between your projector and your

interactive whiteboard.

2

S P E C I F I C A T I O N S

SMARTBoard interactivewhiteboard system – Model 480iv

Wall-mount

bracket

Computer

connection

Power

requirements

Installation

instructions

System

components

Includes a 81.3 cm (32") wide bracket, five screws and five concrete or brick anchors to

support your wall-mounted interactive whiteboard

12 Mbps USB connection (full-speed USB 1.1 or USB 2.0)

Your SMART Board 480 interactive whiteboard supports one computer connection on a

primary display only.

Obtains power from the computer through the USB cable. Power consumption is less than

0.5 W (100 mA at 5V).

The installation instructions for your SMART Board 480iv interactive whiteboard system are

included in the projector boom box. Additional documentation is available from

smarttech.com/support.

I  I M P O R T A N T

Do not use the installation instructions included in your interactive whiteboard box when

installing your SMART Board 480iv interactive whiteboard system.

SMART V25 projector system features

SMART V25 projector remote control and boom mount with a safety tether

Image adjustment The boom mount includes mechanical adjustments for aligning the projector image with your

interactive whiteboard. The projector also has a focus ring and a digital on-screen menu for

brightness, contrast and other image attributes.

Display type Native XGA 1024 × 768 projector

Display technology The projection engine uses DLP® technology by TexasInstruments™, providing

BrilliantColor™ performance and quality Gamma 2.2 correction with Bright Room, Dark

Room, sRGB, User and SMART Presentation modes.

3D technology 3D-ready projector using DLPLink™ technology

Brightness Estimated at 2000 lumens (typical) at a CCT of 6500 K by the IEC method

Lamp life 4500 hours (Standard 190 W mode) or 6000 hours (Economy 160 W mode)

Aspect ratio Native 4:3 aspect ratio, with support for 16:9, 16:10 and 5:4 aspect ratios

Contrast ratio 1600:1

Video system

compatibility

NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM

3

S P E C I F I C A T I O N S

SMARTBoard interactivewhiteboard system – Model 480iv

Video interface

compatibility

Video format

compatibility

Composite, S-video, and VESA® RGB, with additional interface support for Component

YPbPr and Component YCbCR inputs with the proper adapters (not included)

Native 4:3 aspect ratio XGA resolution. Supports VGA, SVGA, SXGA, Quad VGA, SXGA+

and UXGA formats with scaling.

Synchronization Auto image synchronization (auto tracking, frequency, position adjustment, source detect

and phase detect)

Input/output

connections

HDDB15F connector RGB video input from the computer

4-pin mini-DINconnector S-video input

Pair of audio jacks (RCA, stereo) reserved for use with S-video

Composite video connector RCA-style video input

Pair of audio jacks (RCA, stereo) reserved for use with composite video

3.5 mm stereo jack audio input from the computer

3.5 mm stereo jack audio output to connect speakers

RJ45 network connection for SNMP management and

control, and for sending e-mail alerts

DB9F (RS-232) connector input for control codes from external source

Projector noise 36 dBA (high fan speed) or 31 dBA (standard fan speed), measured using the JIS method

Power

100V AC to 240V AC, at 50 Hz to 60 Hz

requirements

Power cable Includes a 4.5 m (14' 9") country-specific power cable

Room control The DB9F (RS-232) connector is configured to accept control codes from your computer or a

room control system.

Power

consumption

240 W in High Brightness, 200 W in Economy mode and <1 W in Standby mode (without a

network connection)

Remote control Provides an alternative method of controlling the projector settings

Theft protection The projector system features an optional padlocked ring to prevent theft.

A Kensington security lock slot is provided to secure the system to a wall as a visual and

physical theft deterrent.

Storage and operating specifications

Storage -20°C to 70°C (-4°F to 158°F) at 5% to 90% relative humidity (non-condensing)

Operation

Humidity 5% to 85% relative humidity at 0 m to 3000 m (0' to 9800')

4

S P E C I F I C A T I O N S

SMARTBoard interactivewhiteboard system – Model 480iv

Temperature l 5°C to 35°C (41°F to 95°F) from 0 m to 1800 m (0' to 6000')

l 5°C to 30°C (41°F to 86°F) from 1800 m to 3000 m (6000' to 9800')

Fan mode l Automatic from 0 m to 2000 m (0' to 6500')

l Manually set to High using the service menu from 2000 m to 3000 m (6500' to 9800')

SMART order numbers

SB480iv SMARTBoard 480 interactive whiteboard with a SMART V25 projector

SB480iv-A SMARTBoard 480 interactive whiteboard with a SMART V25 projector and 20 W audio

system

20-01500-20 Replacement projector lamp

Optional accessories

20-01623-20 Mounting hardware kit for the SMART V25 projector

SBA-V SMART 20 W audio system for SMART Board 480iv interactive whiteboard systems

HAWM-UX/UF SMARTHeight-Adjustable Wall Mount

FS-UX Mobile height-adjustable floor stand solution for SMART Board interactive whiteboards. This

product includes both the height-adjustable wall mount and the floorstand.

AK-00122-20 V25 projector image stabilizer for the SMARTHeight-Adjustable Wall Mount

For more information on additional accessories for your SMARTBoard 480iv interactive

whiteboard system, see smarttech.com/accessories.

5

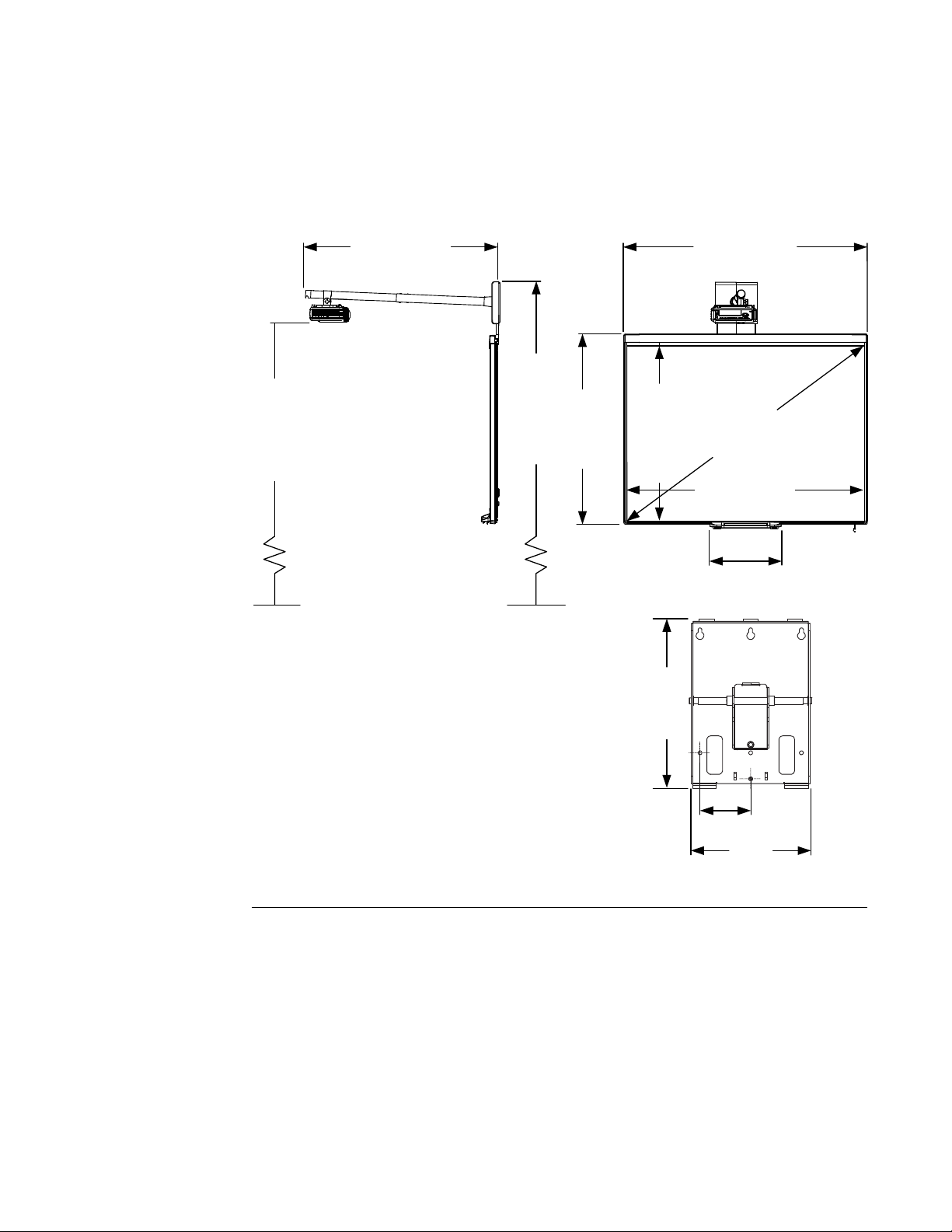

156 .5 cm (61 5 /8 ")

11 7 .2 c m (46 1 /8 ")

1

9

6

.

6

c

m

(

7

7

"

)

12 7 .2 c m (50 ")

160 .5 cm (63 1 /4" ) 130 .2 cm (51 1 /4 ")

28 .0 c m ( 11")

19 .4 cm

(7 5 /8 ")

Front viewRight side view

Projector mounting bracket

47 .0 cm (18 1 /2 ")

8. 3 cm

(3 1 /4 ")

24 5.1 cm (9 6 1/ 2" )

(h ei gh t fro m f loo r to to p

of p ro jec tor bo om )

2 17 .6 c m ( 85 5 /8 ")
