Welcome!

Thank you for purchasing this SmartRG product.

SmartRG offers solutions that simplify the complex Internet ecosystem. Our solutions include hardware, software, applications, enhanced network insights, and security delivered via a future-proof operating system. Based in the USA, SmartRG provides local, proactive software development and customer support. We proudly offer the best, most innovative broadband gateways available.

Learn more at www.SmartRG.com.

Purpose & Scope

This Gateway User Manual provides SmartRG customers with installation, configuration and monitoring information for their SR700ac gateway.

Intended Audience

The information in this document is intended for Network Architects, NOC Administrators, Field Service Technicians and other networking professionals responsible for deploying and managing broadband access networks. Readers of this manual are assumed to have a basic understanding of computer operating systems, networking concepts and telecommunications.

Getting Assistance

Frequently asked questions are provided at the bottom of the Subscribers page of the SmartRG Web site.

Subscribers: If you require further help with this product, please contact your service provider.

Service providers: if you require further help with this product, please open a support request.

Copyright and Trademarks

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of SmartRG, Inc.

Disclaimer

SmartRG does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor patent rights of others. SmartRG further reserves the right to make changes to any products described herein without notice. This publication is subject to change without notice.

Any trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Getting Familiar with your Gateway

This section contains a quick description of the Gateway's lights, ports, and buttons. SmartRG produces several models that vary slightly in capabilities (See Appendix B for details) but the basic scheme of lights, ports and buttons represented in this section exists on each model.

LED Status Indicators

Your SmartRG gateway has several indicator lights (LEDs) on its exterior. The following table explains the actions of the LEDs located on the front of the SR700ac gateway.

Legend: Green Green blinking Red Red blinking

LED Action Explanation

All LEDs except those listed below Connection enabled.

Data being transferred.

POWER DSL sync acquired and device online.

Power up test.

DSL DSL sync in progress.

WPS WPS setup procedure in progress.

WPS connection completed. Session overlap detected. Possible security risk.

Failed to find any partner with which to pair.

Connections

Below is a generic representation of a SmartRG gateway, Your specific model may have more or fewer ports and controls. Refer to the Quick Start Guide enclosed with your gateway for specifics regarding installation of your particular model.

The ports depicted in this example are described below.

DSL

The grey RJ12 port labeled DSL is specifically intended for connection to an internet provider via a DSL (Digital Subscriber Line) service. The center pair carries the first DSL line. For models like the SR550n equipped with two DSL ports and bonded DSL capability, the outer pair carries the second line.

WAN

A stand-alone RJ45 port labeled WAN enables your SmartRG gateway to be hard-wired to another network device with a RJ45/Ethernet output such as a cable, fiber, or DSL modem.

For models with a stand-alone, RJ45, WAN port and a DSL port, the WAN port can be re-purposed to function as an additional LAN port when your internet connection is via DSL.

For instructions to enable this SmartPortTMfeature, see the Ethernet Configuration section in this manual.

LAN

The four (yellow) RJ45 ports across the back of your gateway labeled LAN1, LAN2, LAN3, LAN4 are the means to connect client devices such as computers and printers to your gateway.

On some models, one of these four ports may be labeled as WAN indicating SmartPortTMsupport. SmartPort allows a LAN port to be re-purposed to function as an Ethernet WAN port (described above). When this port is serving as a LAN port, the corresponding LED on the face of the unit is labeled "WAN"

For instructions to enable this SmartPortTMfeature, see the Ethernet Configuration section in this manual.

USB

USB ports on SmartRG products currently provide +5 DC volts.

POWER

Use only the power supply included with your gateway. Intended for indoor use only.

External Buttons

SmartRG gateways provide push-button controls on the exterior for critical features. These buttons provide a convenient way to trigger WPS mode, toggle the WiFi radio on and off, or reset the gateway. Their presence and locations vary by model.

WPS Button

The WPS button triggers WPS (Wi-Fi Protected Setup™) mode. WPS is a standard means for creating a secure connection between your gateway and various wireless client devices. It is designed to simplify the pairing process between devices.

This button is located on the top of the gateway. If you have client devices that support WPS, use this button to automatically configure wireless security for your network.

WPS configures one client device at a time. You can repeat the steps as necessary for each additional WPS-compliant device you wish to connect.

For specific instructions, refer to the Quick Start Guide included with your gateway. Also see the "Basic" section of this manual.

WiFi or WLAN Button

The button labeled WiFi or WLAN (depending on model) toggles the WiFi radio on and off. The WLAN LED indicator on the gateway displays the current state of the Wi-Fi radio. This button is located on the top of the gateway.

To activate the Wi-Fi radio, press and hold the WiFi (WLAN) button for 3-5 seconds and then release. Expect a 1-3 second delay before the WiFi (WLAN) LED turns on. Repeat this step to deactivate the Wi-Fi radio.

Reset Button

The Reset button is a small hole in the gateway's enclosure with the actual button mounted behind the surface. This style of pushbutton prevents the gateway from being inadvertently reset during handling. Reset must be actuated with a paper clip or similar implement. This button is located on the back of the gateway.

This pin-hole sized reset button has three functions. The duration for which the button is held dictates which function is carried out.

!!!ASKSME: Are the hold durations correct?

Hold Duration Effect

Less than 6 seconds

6-20 seconds Performs the software equivalent to the 20 or more seconds Changes the POWER LED to red and the gateway enters CFE mode which is a state associated with performing

Performs a modem reset that is equivalent to the

Restore Defaults

firmware updates via Internet browser.

Reboot

function in the gateway software.

Installing your SR700ac Gateway

1. Connect one end of the phone cable to the DSL port on the gateway and connect the other end to the phone jack on the wall installed by your provider.

2. Connect one end of the Ethernet cable to a LAN port on the gateway and connect the other end to your computer.

3. Plug the power adapter to the wall outlet and then connect the other end of it to the Power port of the gateway. Turn on the unit by pressing the On/Off button on the back of the gateway.

Your gateway is now automatically being set up to connect to the Internet. This process may take a few minutes to complete before you can begin using your Internet applications (browser, email, etc.). If you are unable to connect to the Internet, verify that all cable connections are in place and the gateway’s power is turned on.

Logging into your Gateway's UI

To manually configure the SmartRG Gateway, you must access the gateway's embedded web UI.

1. Open a browser and enter the gateway's default address (usually http://192.168.1.1; may also be http://192.168.0.1) in the address bar.

2. For some models, the Network status page appears. If so, click the Manage gateway (advanced) link (usually located in the upper right corner). The Authentication Required dialog box appears.

3. For all models, enter the default username and password (usually admin/admin) and click Login or OK to display the default landing page. For many models, this is the Device Info page.

Note: The gateway's UI can be accessed via the WAN connection by entering the WAN IP address in your browser's address bar and entering the default username and password: support/support. WAN HTTP access control MUST be enabled to access the gateway's UI via the WAN connection. For more information, see the Management Access Control section.

If your SmartRG gateway is configured for "bridge mode" (modem) operation, your PC will NOT be able to acquire an address via CPE DHCP. Instead, manually configure your PC's interface with an IP address on the default network (e.g., 192.168.1.100).

The remainder of this guide is dedicated to a sequential walk-through of the gateway user interface. Screen captures are provided along with descriptions of the options available on the pictured page. Where applicable, valid values are provided.

For in-depth "how-to" information for specific scenarios, go to the knowledge base found on our support web site. Access to this site is restricted to SmartRG customers and partners. Do not share links to this site with your subscribers.

Device Info

There are several selections under Device Info in the left navigation bar. Each of them shows a different element of the gateway's setup, status or nature of its connection with the provider and also with LAN devices. Device Info pages are read-only. You cannot interact with or change the settings in this section.

Summary

When you log into the gateway interface, the Device Info summary page is the first to appear. This page displays details about the hardware and software associated with your gateway. In addition, the current status of the WAN connection (if present) is shown.

WAN

On this page, you can view information about the connection between your ISP and your gateway. The WAN interface can be DSL or Ethernet and supports a number of Layer 2 and above configuration options (explained later in this document). Some features are supported only on specific SmartRG models. Those exceptions are specified in this guide.

In the left navigation bar, click Device Info > WAN. The following page appears.

The fields on this page are explained in the following table.

Field Name Description

Interface The connection interface (Layer 2 interface) through which the gateway handles the traffic. Description The service description such ipoe_0_0_1, showing the type of WAN and its ID. Type The service type. Options are VlanMuxId The VLAN ID. Options are IPv6 The state of IPv6. Options are Igmp Pxy The IGMP proxy. Options are Igmp Src Enbl The IGMP source option. Options are MLD Pxy The MLD proxy. MLD Src Enbl The MLD source option. Options are NAT The state of NAT. Options are Firewall The state of the Firewall. Options are Status The status of the WAN connection. Options are

IPv4 Address The obtained IPv4 address. IPv6 Address The obtained IPv6 address.

Connected

PPPoE,IPoE

Disabledor0-4094

Enabled

and

Enabled

and

Enabled

Bridge

, and

Disabled

and

Disabled

and

Disconnected,Unconfigured,Connecting

, and

Statistics

In this section, you can view network interface information for LAN, WAN Service, xTM and xDSL. All data is updated in 15-minute intervals.

LAN

On this page, you can view the received and transmitted bytes, packets, errors and drops for each LAN interface configured on your gateway. All local LAN Ethernet ports, Ethernet WAN ports and wireless Interfaces are included. For some models, statistics are provided for multicast, unicast and broadcast traffic.

In the left navigation bar, click Device Info > Statistics. The Statistics -- LAN page appears where you can view detailed information about the status of your LAN.

To reset the counters, click Reset Statistics near the bottom of the page.

The fields on this page are explained in the following table.

Field Name Description

Interface Available LAN interfaces. Options are

(Wireless LAN-side interface), and

Received&Transmitted

Bytes Total number of packets in bytes. Pkts Total number of packets. Errs Total number of error packets. Drops Total number of dropped packets.

columns

LAN1-LAN4,WAN

2.4 GHz

and

5 GHz

(if configured on your device), and

Wl0

WAN Service

On this page, you can view the received and transmitted bytes, packets, errors and drops for each WAN interface for your SmartRG Gateway. All WAN interfaces configured for your gateway are included.

In the left navigation bar, click Device Info > Statistics > WAN Service. The Statistics -- WAN page appears where you can view detailed information about the status of your WAN.

To reset the counters, click Reset Statistics near the bottom of the page.

The fields on this page are explained in the following table.

Field Name Description

Description Service description. Options are:

Received&Transmitted

Bytes Total quantity of packets in bytes. Pkts Total quantity of packets. Errs Total quantity of error packets. Drops Total quantity of dropped packets.

columns

pppoe,ipoe

, andb.

xTM

On this page, you can view the ATM/PTM statistics for your gateway. All WAN interfaces configured for your SmartRG gateway are included.

In the left navigation bar, click Device Info > Statistics > xTM. The Interface Statistics page appears.

To reset these counters, click Reset Statistics near the bottom of the page.

The fields on this page are explained in the following table.

Field Name Description

Port Number Statistics for Port 1, or both ports if bonded. In Octets Total quantity of received octets. Out Octets Total quantity of transmitted octets. In Packets Total quantity of received packets. Out Packets Total quantity of transmitted packets. In OAM Cells Total quantity of received OAM cells. Out OAM Cells Total quantity of transmitted OAM cells. In ASM Cells Total quantity of received ASM cells. Out ASM Cells Total quantity of transmitted ASM cells. In Packet Errors Total quantity of received packet errors. In Cell Errors Total quantity of received cell errors.

xDSL

On this page, you can view the DSL statistics for your gateway. All xDSL (VDSL or ADSL) interfaces configured for your SmartRG gateway are included. The terms and their explanations are derived from the relevant ITU-T standards and referenced accordingly.

1. In the left navigation bar, click Device Info > Statistics > xDSL. The Statistics - xDSL page appears.

2. To run an xDSL Bit Error Rate (BER) test (to determine the quality of the xDSL connection):

a. Scroll to the bottom of the page and click xDSL BER Test. The ADSL BER Test dialog box appears.

b. In the Tested Time field, select the duration in seconds and click Start. Options range from 1 second to 360 seconds.

The test transfers idle cells containing a known pattern and compares the received data with this known pattern. Comparison errors are tabulated and displayed.

3. To reset the counters, click Reset Statistics at the bottom of the page.

The fields on this page are explained in the following table.

Field Name Description

Mode xDSL mode that the modem has trained under, such as ADSL2+, G.DMT, etc. Traffic Type Connection type. Options are:

ATM,PTM

Status Status of the connection. Options are:Up,

ETH

and

Disabled,NoSignal

, and

Initializing

Link Power State Current link power management state (e.g., L0, L2, L3).

Downstream

Line Coding (Trellis) State of theTrellis Coded Modulation. Options areOnand

and

Upstream

columns

Off

SNR Margin (0.1 db) The signal-to-noise ration margin (SNRM) is the maximum increase (in dB) of the

received noise power, such that the modem can still meet all of the target BERs over all the frame bearers. [2]

Attenuation (0.1 db)

Output Power (0.1

The signal attenuation is defined as the difference in dB between the power received at the near-end and that transmitted from the far-end. [2]

Transmit power from the gateway to the DSL loop relative to one Milliwatt (dBm).

dBm) Attainable Rate (Kbps) The typically obtainable sync rate, i.e., the attainable net data rate that the

receive PMS-TC and PMD functions are designed to support under the following conditions:

l Single frame bearer and single latency operation l Signal-to-Noise Ratio Margin (SNRM) to be equal or above the SNR Target Mar-

gin

l BER not to exceed the highest BER configured for one (or more) latency

paths

l Latency not to exceed the highest latency configured for one (or more)

latency paths

l Accounting for all coding gains available (e.g., trellis coding, RS FEC) with

latency bound

l Accounting for the loop characteristics at the instant of measurement [2]

Rate (Kbps) The current net data rate of the xDSL link. Net data rate is defined as the sum of all

frame bearer data rates over all latency paths. [2] Super Frames The number of xDSL Super Frames transmitted/received. Super Frame Errors The number of xDSL Super Frames transmitted/received with errors. RS Words The number of Reed-Solomon-based Forward Error Correction (FEC) codewords trans-

mitted/received. RS Correctable Errors The number of Reed-Solomon-based FEC codewords received with errors that have

been corrected. RS Uncorrectable

Errors

The number of Reed-Solomon-based FEC codewords received with errors that were

not correctable. HEC Errors A count of ATM HEC errors detected. As per ITU-T G.992.1 and G.992.3, a1-byte HEC

is generated for each ATM cell header. Error detection is implemented as defined in

ITU-T I.432.1 with the exception that any HEC error shall be considered as a mul-

Field Name Description

tiple bit error, and therefore, HEC Error Correction is not performed. [1],[2] OCD Errors Total number of Out-of-Cell Delineation errors. ATM Cell delineation is the process

which allows identification of the cell boundaries. The HEC field is used to achieve

cell delineation. [4] An OCD Error is counted when the cell delineation process trans-

itions from the SYNC state to the HUNT state. [2] LCD Errors Total number of Loss of Cell Delineation errors. An LCD Error is counted when at

least one OCD error is present in each of four consecutive overhead channel periods

and SEF (Severely Errored Frame) defect is present. [2] Total Cells The total number of cells (OAM and Data cells) transmitted/received. Data Cells The total number of data cells transmitted/received. Bit Errors The total number of Idle Cell Bit Errors in the ATM Data Path. [3] Total ES Total number of Errored Seconds. This parameter is a count of 1-second intervals

with one or more CRC-8 anomalies. [4] Total SES Total number of Severely Errored Seconds. An SES is declared if, during a 1-second

interval, there are 18 or more CRC-8 anomalies in one or more of the received

bearer channels, or one or more LOS (Loss of Signal) defects, or one or more SEF

(Severely Errored Frame) defects, or one or more LPR (Loss of Power) defects. [4]

Total UAS

Total number of Unavailable Seconds. This parameter is a count of 1-second inter-

vals for which the xDSL line is unavailable. The xDSL line becomes unavailable at

the onset of 10 contiguous SESs. These 10 SES’s shall be included in the unavailable

time. Once unavailable, the xDSL line becomes available at the onset of 10 con-

tiguous seconds with no SESs. These 10 seconds with no SES’s shall be excluded from

unavailable time. [4]

References

[1] ITU-T Recommendation G.992.1 (1999), Asymmetric digital subscriber line (ADSL) transceivers.

[2] ITU-T Recommendation G.992.3 (2005), Asymmetric digital subscriber line transceivers 2 (ADSL2).

[3] ITU-T Recommendation G.997.1 (2006), Physical layer management for digital subscriber line (DSL) transceivers.

[4] ITU-T Recommendation I.432.1 (1999), B-ISDN user-network interface – Physical layer specification: General characteristics.

Route

On this page, you can view the LAN and WAN route table information configured in your SmartRG Gateway for both IPv4 and IPv6 implementation.

In the left navigation bar, click Device Info > Route. The following page appears.

The fields on this page are explained in the following table.

Field Description

Destination Destination IP addresses. Gateway Gateway IP address. Subnet Mask Subnet Masks. Flag Status of the flags. Metric Number of hops required to reach the default gateway. Service Service type. Interface WAN/LAN interface. Next Hop (

For IPv6 Route only

) Next hop IP address.

ARP

On this page, you can view the host IP addresses and their hardware (MAC) addresses for each LAN Client connected to the gateway via a LAN Ethernet port or wireless LAN.

In the left navigation bar, click Device Info > ARP. The following page appears.

The fields on this page are explained in the following table.

Field Name Description

IP address The IP address of the host. Flags Each entry in the ARP cache will be marked with one of these flags. Options are:

HW Address The hardware (MAC) address of the host. Device The system level interface by which the host is connected. Options are:

manent

atm(n)

and

, and

Published

br(n),atm(n),eth(n)

Complete,Per-

DHCP

The DHCP page displays a list of locally connected LAN hosts and their DHCP lease status, which are directly connected to the SmartRG Gateway via a LAN Ethernet port or Wireless LAN.

In the left navigation bar, select Device Info > DHCP. The following page appears.

The fields on this page are explained in the following table.

Field Name Description

Hostname The host name of each connected LAN device. MAC Address The MAC Address for each connected LAN device. IP Address The IP Address for each connected LAN device. Expires In The time until the DHCP lease expires for each LAN device.

CPU & Memory

On this page, you can view the CPU and memory data for the gateway.

In the left navigation bar, click Device Info > CPU & Memory. The following page appears, showing the current usage and history. The information refreshes automatically.

Advanced Setup

In this section, you can configure network interfaces, security, quality of service settings, and many other settings for your gateway and network.

Layer2 Interface

In this section, you can configure interfaces for ATM, PTM and Ethernet interfaces. Generally you can accept the settings configured by default. If your network is highly customized, you may need to modify some of the settings, such as Username and Password.

ATM Interface

On this page, you can configure Asynchronous Transfer Mode / Permanent Virtual Conduit (ATM/PVC) settings for your gateway. You can customize latency options, link type, encapsulation mode and more.

Note: Devices (routers) on both ends of the connection must support ATM / PVC.

1. In the left navigation bar, click Advanced Setup > Layer2 Interface > ATM Interface and then click Add. The following page appears.

2. Modify the settings as desired, using the information provided in the table below.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

VPI Enter a Virtual Path Identifier. A VPI is an 8-bit identifier that uniquely identifies a network

path for ATM cell packets to reach its destination. A unique VPI number is required for each

Field Name Description

ATM path. This setting works with the VCI. Each individual DSL circuit must have a unique VPI/VCI combination. String limits are:0-

255

VCI Enter a Virtual Channel Identifier. A VCI is a 16-bit identifier that has a unique channel.

65535

Select DSL Latency

Options are:32Select the level of DSL latency. Options are:

l Path0 Fast: No error correction and can provide lower latency on error free lines. l Path1 Interleaved: Error checking that provides error free data which increases

latency.

l Path0&1 Both: Fast & Interleaved.

Select Link Type Select the linking protocol.

EoA

is the most popular with

PPPoA

a close second (used with

many legacy ISPs). Options are:

l EoA: Ethernet over ATM. l PPPoA: Point-to-Point Protocol over ATM. l IPoA: Internet Protocol over ATM.

Encapsulation Mode

Select whether multiple protocols or only one protocol is carried per PVC (Permanent Virtual Circuit). Options are:

l LLC/ENCAPSULATION: (Available when PPPoA is selected as the Link Type) Logical

Link Control (LLC) encapsulation protocols used with multiple PVCs.

l LLC/SNAP-BRIDGING: (Available when EoA is selected as the Link Type) LLC used to

carry multiple protocols in a single PVC.

l LLC/SNAP-ROUTING: (Available when IPoA is selected as the Link Type) LLC used to

carry one protocol per PVC.

l VC/MUX: Virtual Circuit Multiplexer creates a virtual connection used to carry one

protocol per PVC.

Service Category Select the bit rate protocol. Options are:

l UBR without PCR: Unspecified Bit Rate with no Peak Cell Rate, flow control or time

synchronization between the traffic source and destination. Commonly used with applications that can tolerate data / packet loss.

l UBR with PCR: Same as above but with a Peak Cell Rate. l CBR: Constant Bit Rate relies on timing synchronization to make the network traffic

predictable. Used commonly in Video and Audio traffic network applications.

l NON Realtime VBR: Non Realtime Variable Bit Rate used for connections that trans-

port traffic at a Variable Rate. This category requires a guaranteed bandwidth and latency. It does not rely on timing synchronization between the destination and source.

l Realtime VBR: Realtime Variable Bit Rate. Same as the above option but relies on tim-

ing and synchronization between the destination and source. This category is commonly used in networks with compressed video traffic.

Minimum Cell Rate

Minimum allowable rate (cells per second) at which cells can be sent on a ATM network. For no shaping, enter-1.

Field Name Description

Scheduler for Queues of Equal Precedence as the Default Queue

The algorithm used to schedule the queue behavior. VC scheduling is unique from Default Queues. Options are:

l WRR: Weighted Round Robin packets are accessed in a round robin style and classes

can be given.

l WFQ: Weighted Fair Queuing packets are assigned in a specific queue. l Default Queue Weight: The default weight of the specified queue. Options are: 1-

63.

l Default Queue Precedence: The precedence of the specified group. Options are: 1-8

PTM Interface

The SmartRG gateway's VDSL2 standards support Packet Transfer Mode (PTM). An alternative to ATM mode, PTM transports packets (IP, PPP, Ethernet, MPLS, and others) over DSL links. For more information, refer to the IEEE802.3ah standard for Ethernet in the First Mile (EFM). Some 500 series gateways have a PTM interface configured by default.

On this page, you can configure a PTM interface for your gateway.

1. In the left navigation bar, click Advanced Setup > Layer2 Interface > PTM Interface and then click Add. The following page appears.

2. Modify the settings as desired.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Select DSL Latency Select the level of DSL latency. Options are:

l Path0 Fast: No error correction and can provide lower latency on error-free

lines.

l Path1 Interleaved: Error checking that provides error-free data which

increases latency.

Select Scheduler for Queues of Equal Precedence as the Default Queue

Select an algorithm for applying queue data priority. Options are:

l Weighted Round Robin: Time slices are assigned to each process in equal por-

tions and in circular order, handling all processes without priority (also known as cyclic executive).

l Weighted Fair Queuing: A data packet scheduling technique allowing dif-

ferent scheduling priorities to be assigned to statistically multiplexed data flows. Since each data flow has its own queue, an ill-behaved flow (that sent larger packets or more packets per second than the others since it became active) will only affect itself and not other sessions.

Default Queue

Enter a default weight of the specified queue. Options are:1-63.

Weight Default Queue Pre-

Enter a precedence for the specified queue. Options are:1-8.

cedence

ETH Interface

If you are using a gateway that is Ethernet-specific (non-DSL), you may want to configure an ETH interface to manage communication. Most models support Ethernet and can be configured for Ethernet and DSL at the same time. Your gateway has four LAN ports. One of them can be re-purposed to become an RJ45 WAN port when needed.

On this page, you can configure an Ethernet interface for your gateway.

1. In the left navigation bar, click Advanced Setup > Layer2 Interface > ETH Interface.

2. If no WAN port is configured, the Add button appears. Click Add.

3. If a WAN port is already configured or you clicked Add, the following page appears.

Note: If a WAN port it is already configured, you must remove it before you can define a new one. Before you can remove the existing port, you must first modify or delete any WAN service that uses it. The Add button does not appear until the existing port is removed.

4. Select the LAN port you wish to act as a WAN port.

5. Click Apply/Save to commit your changes.

6. To remove the WAN interface, click the Remove checkbox and then click the Remove button.

WAN Service

In this section, you can configure WAN services for:

l "xPPP over Ethernet" l "IP over Ethernet" l "Bridging"

A sample configuration scenario is provided for each variation.

xPPP over Ethernet

There are several parts to configuring a PPP over Ethernet WAN service. You will progress through several pages to complete the configuration.

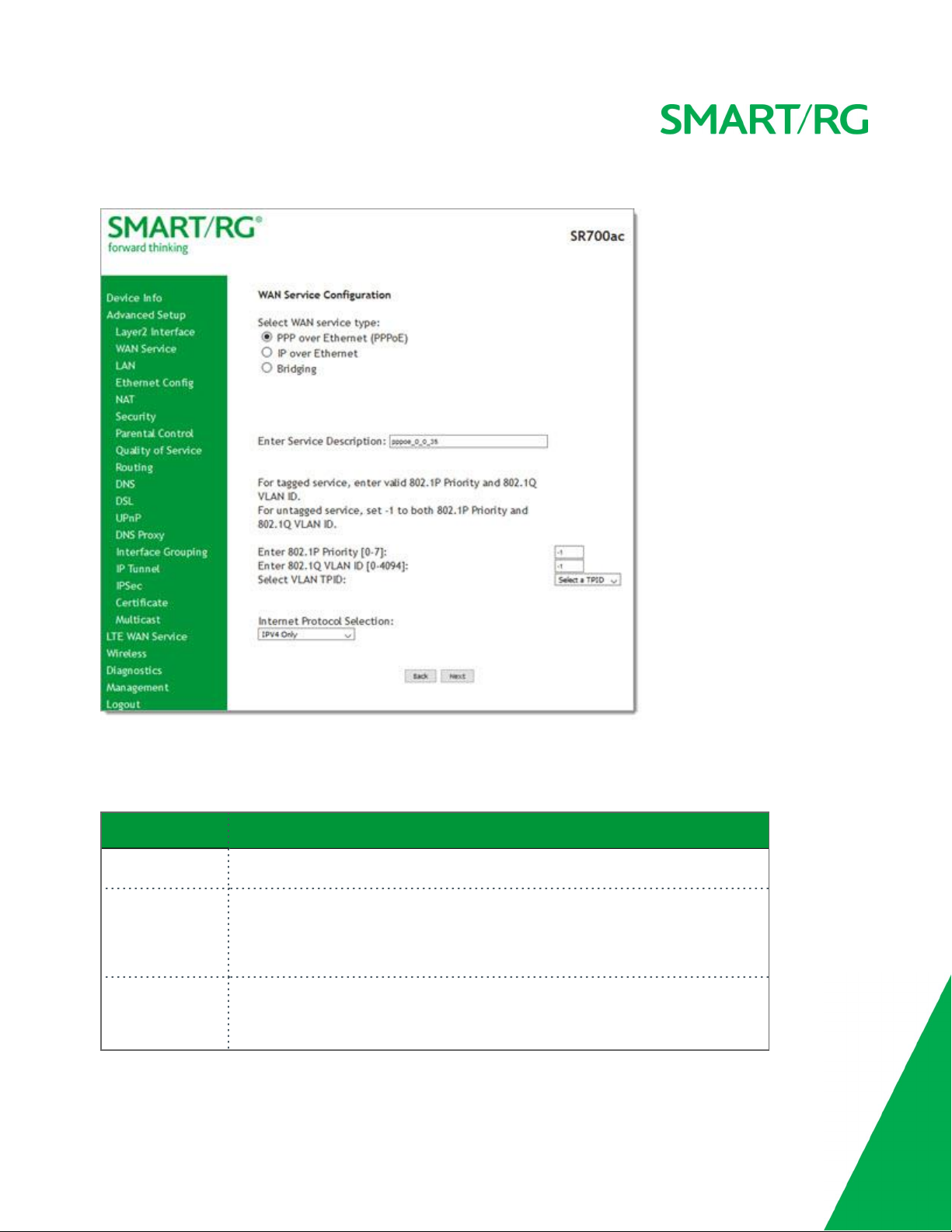

1. In the left navigation bar, click Advanced Setup > WAN Service and then click Add. The following page appears.

2. Select the Layer2 interface to use for the WAN service.

3. Click Next. The following page appears.

4. Accept the default of PPP over Ethernet (PPPoE) WAN service type.

5. Modify the other settings as needed.

The fields on this page are explained in the following table.

Field Name Description

Enter Service

Enter a name to describe this configuration.

Description Enter 802.1P Priority Options are0-7. The default is0.

For tagged service, enter values in this field and the 802.1Q VLAN ID field. For untagged service, enter -1 (disabled) in this field and the 802.1Q VLAN ID field.

Enter 802.1Q VLAN ID Options are0-

4094

. The default is-1(disabled).

For tagged service, enter values in this field and the 802.1P Priority field. For untagged service, enter -1 (disabled) in this field and the 802.1P Priority field.

Select VLAN TPID Select the TPID for this VLAN. Options are

0x8100,0x88A8

, and

0x9100

Field Name Description

Internet Protocol Selection

Different scheduling priorities can be applied to statistically multiplexed data flows. Since each data flow has its own queue, an ill-behaved flow (which has sent larger packets or more packets per second than the others) will only punish itself and not other sessions. Options are

IPv4&IPv6

(Dual Stack), and

IPv6 Only

IPv4 Only

Note: When you select IPV4&IPV6 or IPV6, the subsequent options presented will change accordingly.

6. Click Next. The following page appears where you will configure the PPP Username, Password and related information.

7. Modify the fields as needed.

The fields on this page are explained in the following table.

Field Name Description

PPP Username Enter the username required for authentication to the PPP server. PPP Password Enter the password required for authentication to the PPP server. PPPoE Service Name (

Optional

) Enter a description for this service.

Authentication Method Select a means for authentication. Options are:

l AUTO: Attempt to automatically detect handshake protocols

(listed below). This is the default.

l PAP: Password Authentication Protocol (plaintext pass-

words).

l CHAP: Challenge Handshake Authentication Protocol. (MD5

hashing scheme on passwords).

l MSCHAP: Microsoft Challenge Handshake Authentication Pro-

tocol. (Microsoft encrypted password authentication protocol).

LCP Keepalive Period The frequency at which the keepalive packet is sent by the gateway

to the PPP server.

LCP Retry Threshold Enter the number of additional attempted packets that the gateway

will send (in the event that the PPP server does not respond to the Keepalive) before giving up and declaring the connection as Failed.

PPP IP Extension Select whether to forward all traffic to the advanced DMZ IP spe-

cified in the next field.

Advanced DMZ (

Available when PPP IP Extension is selected

) Specify the IP

address and net mask to which PPPoE traffic is forwarded.

Use Static IPv4 Address Specify the IPv4 Address to apply for this WAN service in the

Address

field that appears.

Use Static IPv6 Address Specify the IPv6 Address to apply for this WAN service in the

Enable IPv6 Unnumbered Model

Address

Click to enable IP processing on a serial interface without assigning it an explicit IP address. The IP address of another interface can be

field that appears.

can "borrow" the IP address of another interface already configured on the router, which conserves network and address space.

Launch Dhcp6c for Address Assignment (IANA)

Launch Dhcp6c for Prefix Delegation (IAPD)

Available only for IPv6 environments

(

) Select this option for the CPE

to receive the WAN IP from the ISP.

Available only for IPv6 environments

(

) This option is enabled by default. The CPE generates the WAN IP's prefix from the server's REST by MAC address. Click the checkbox to disable this option.

Retry PPP password on authentication error>

Enter the maximum number of PPP authentication retries on failure

Max PPP authentication retries

in the The default is

65536

(unlimited retries).

field. Options are1-

IPv4

IPv6

65536

Field Name Description

Enable PPP Debug Mode Select to have the system put more PPP connection information into

the system log of the device. This is for debugging errors and not for normal usage.

Bridge PPPoE Frames Between WAN and Local

Select to enable PPPoE passthrough to relay PPPoE connections from behind the modem. Also known as Half-Bridged mode.

Ports

Enable Firewall

This option enables functions in the enabled by default. Click the checkbox to disable this option.

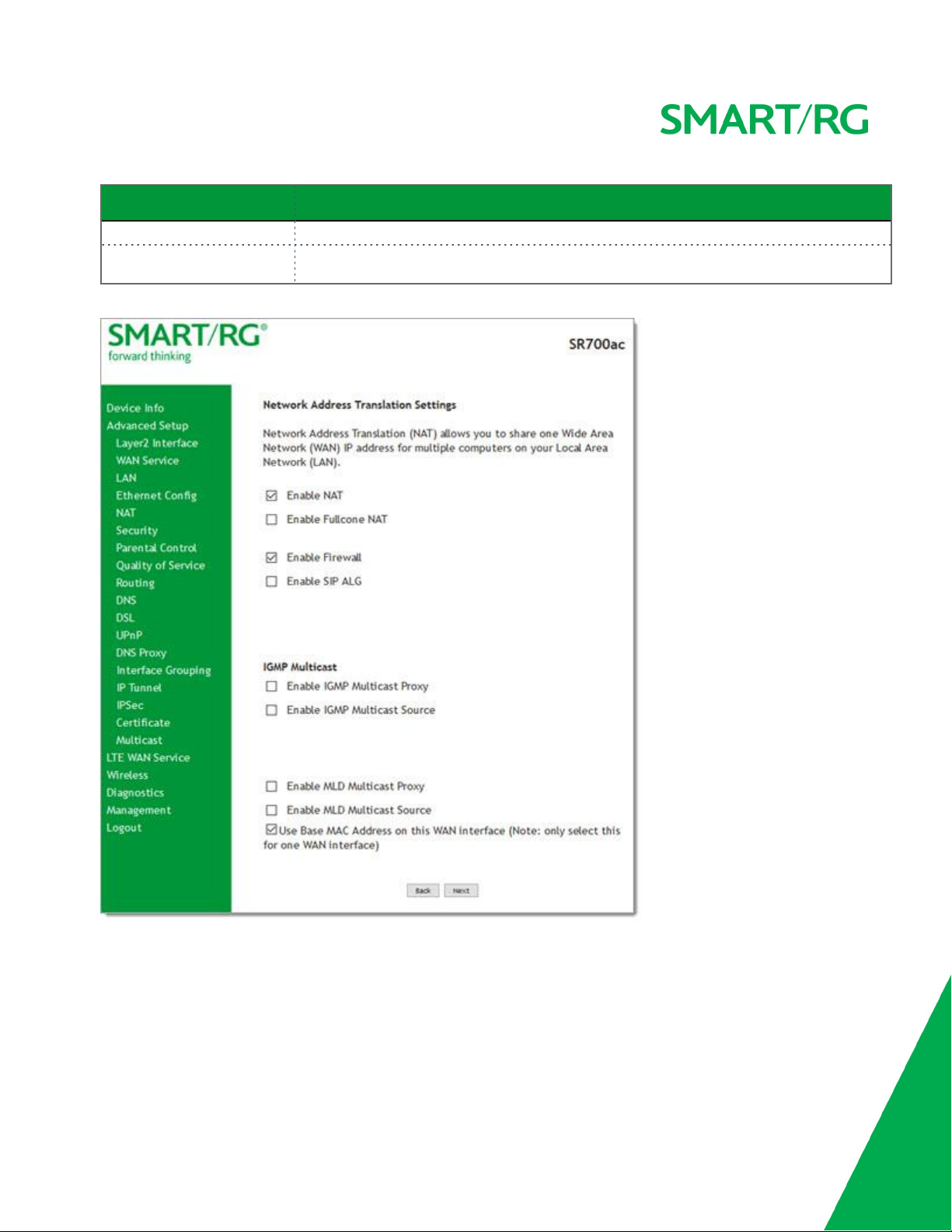

Network Address Translation Settings

section

Security

sub-menu and is

Enable NAT This option is selected by default and enables sharing the WAN inter-

face across multiple devices on the LAN. Click the checkbox to disable NAT.

Enable Fullcone NAT (

Available only when Enable NAT is selected

) Click to enable one-

to-one NAT.

Enable SIP ALG (

Available only when Enable NAT is selected

) Click to enable Session Initiation Protocol (SIP) pass-through NAT. Used for Voice over IP (VOIP) applications.

IGMP Multicast

Enable IGMP Multicast Proxy

section

Click to enable Internet Group Membership Protocol (IGMP) multicast. Used by IPv4 hosts to report multicast group memberships to any neighboring multicast routers.

Enable IGMP Multicast

Select to enable this service to act as an IGMP multicast source.

Source

MLD Multicast

section

Enable MLD Multicast Proxy Click to enable Multicast Listener Discovery (MLD) multicast. Used by

IPv4 hosts to report multicast group memberships to any neighboring multicast routers.

Enable MLD Multicast

Select to enable this service to act as an MLD multicast source.

Source MTU size Enter the MTU (Maximum Transmission Unit) size for SmartRG gate-

1370

) Enter the

Use Base MAC Address on this WAN interface

Enable MAC Clone (

ways supporting a gigabit-capable WAN interface. Options are

1492 bytes

. The default is

1492

bytes.

Use the SmartRG Devices Base (Primary) MAC address. When unchecked, a unique MAC is assigned for each service.

Appears when Use Base MAC Address is NOT selected

MAC address to be used as the close address.

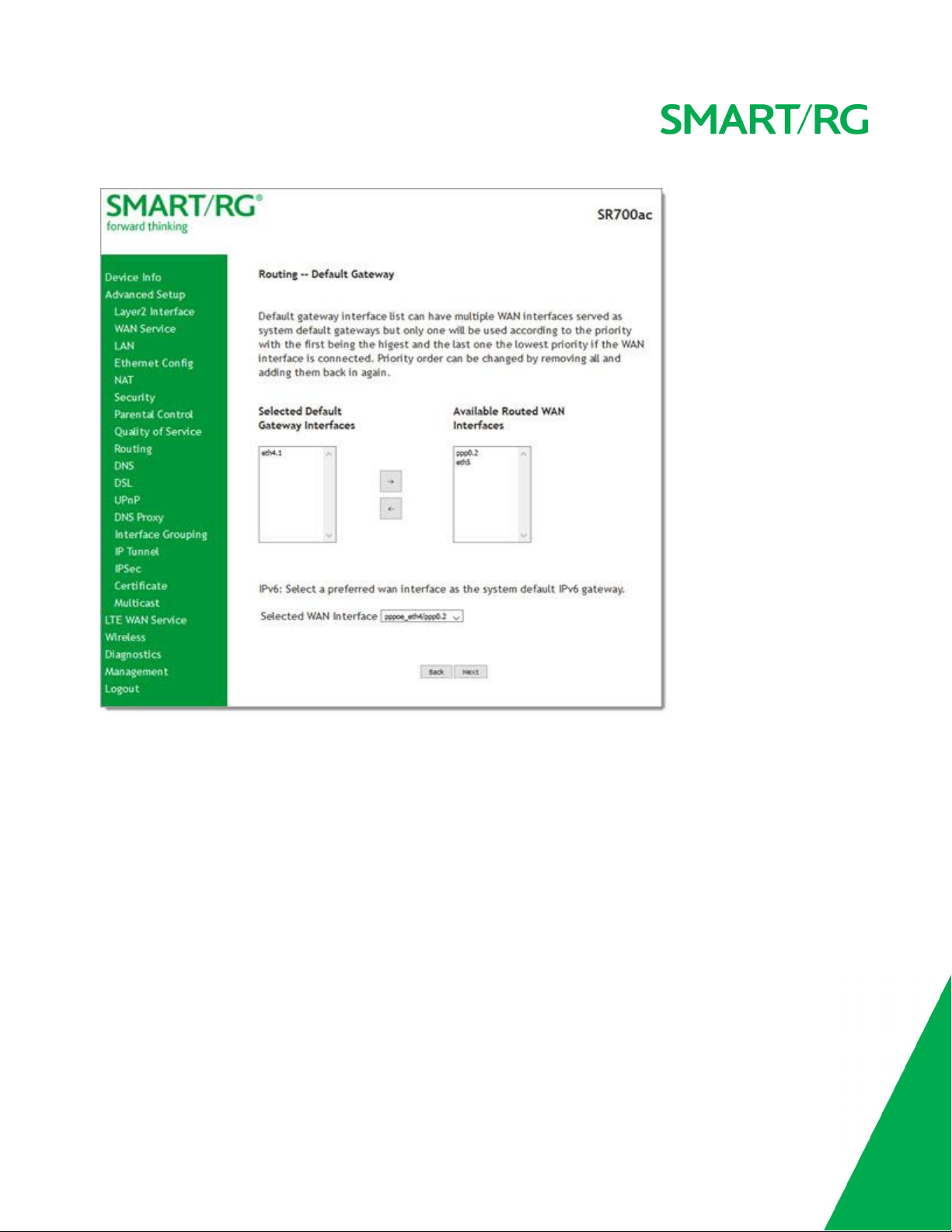

8. Click Next. The following page appears where you will select the interface used as a default gateway used for the PPP service being created.

9. Click the arrows to move your selection from left to right or from right to left.

10. Click Next. The following page appears where you will select DNS Server settings.

11. Select the DNS server interface from the available WAN interfaces.

12. Click the arrows to move your selection from left to right or from right to left.

13. Alternatively, you can enter static DNS IP addresses in the Use the following Static DNS IP address section.

14. Click Next. The summary page appears indicating that your PPPoE WAN setup is complete.

15. Review the summary and either click Apply/Save to commit your changes or click Back to step through the pages in reverse order to make any necessary alterations.

IP over Ethernet

There are several parts to configuring a IP over Ethernet WAN service. You will progress through several pages to complete the configuration.

1. In the left navigation bar, click Advanced Setup > WAN Service and then click Add. The following page appears.

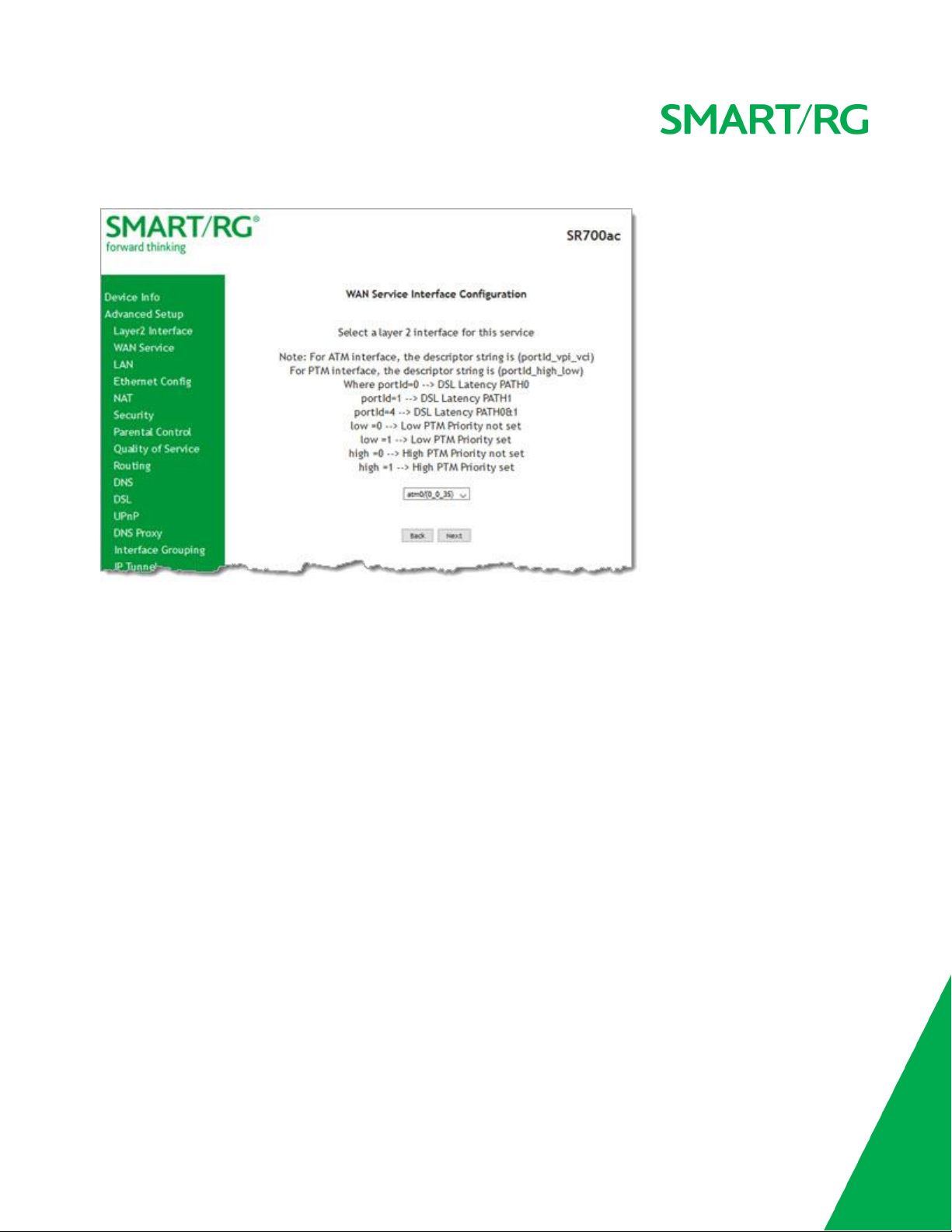

2. Select the Layer2 interface to use for the WAN service and click Next. The following page appears.

3. Select the IP over Ethernet WAN service type.

4. Modify the other fields as needed.

The fields on this page are explained in the following table.

Field Name Description

Enter Service

Optional

(

) Enter a name to describe this configuration.

Description Enter 802.1P Pri-

ority

Enter a priority for this WAN service. Options are0-7. The default is0.

For tagged service, enter values in this field and the 802.1Q VLAN ID field.

For untagged service, enter -1 (disabled) in this field and the 802.1Q VLAN ID field.

Enter 802.1Q VLANIDEnter the VLAN ID for this WAN service. Options are0-

4094

. The default is-1(dis-

abled).

For tagged service, enter values in this field and the 802.1P Priority field.

Field Name Description

For untagged service, enter -1 (disabled) in this field and the 802.1P Priority field.

Select VLAN TPID Select the TPID for this VLAN. Options are Internet Protocol

Selection

This data packet scheduling technique allows different scheduling priorities to be applied to statistically multiplexed data flows. Since each data flow has its own queue, an ill-behaved flow (which has sent larger packets or more packets per second than the others since it became active) will only punish itself and not other sessions. Options are

IPv4 Only

IPv4 Only,IPv4&IPv6 (Dual Stack)

Note: When you select IPV4&IPV6 or IPV6, the options presented on the following

screens change accordingly.

5. Click Next. The following page appears.

0x8100,0x88A8

, and

0x9100

, and

IPv6 Only

. The default

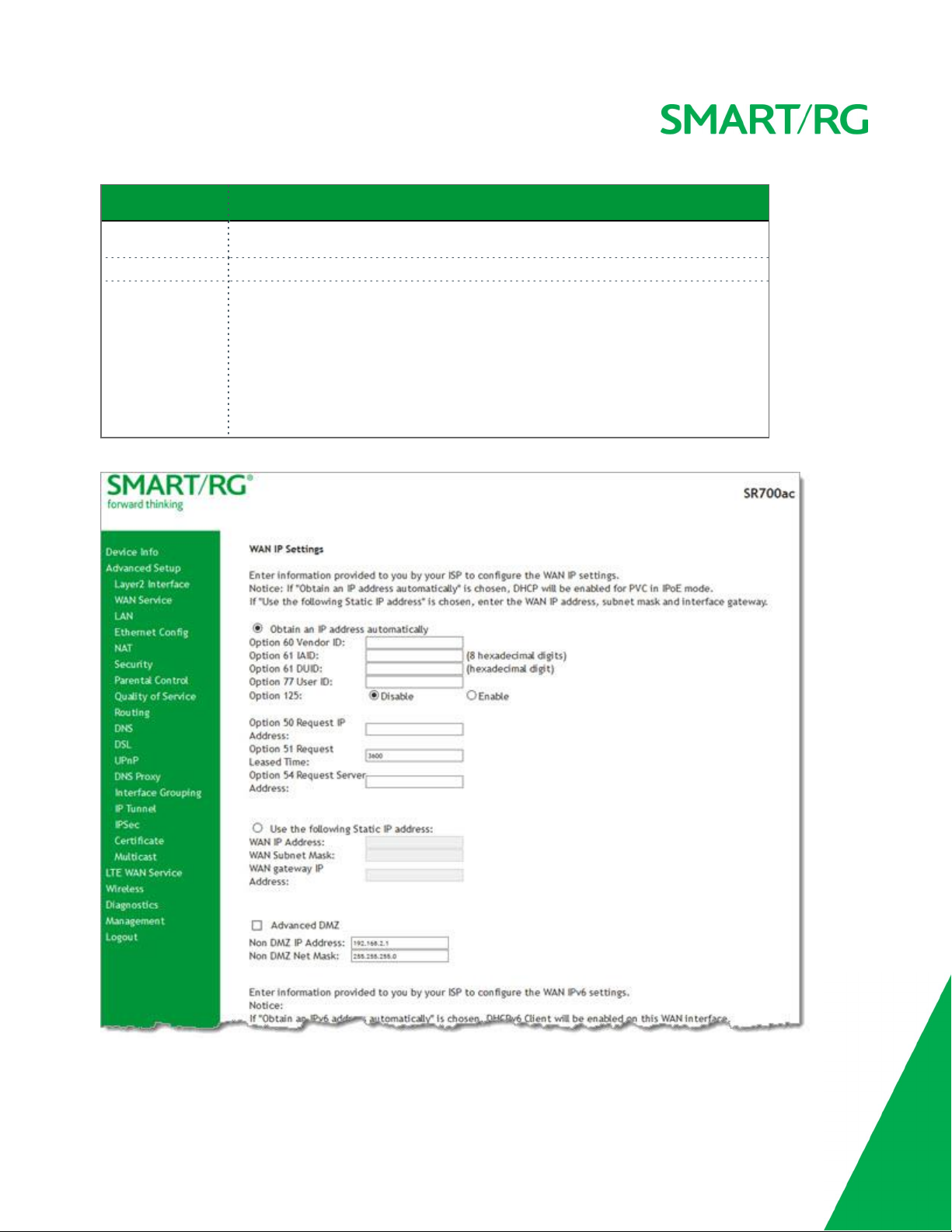

6. Enter the relevant WAN IP Settings.

The fields on this page are explained in the following table.

Field Name Description

Obtain an IP address auto-

When you wish the ISP to automatically assign the WAN IP to the gateway.

matically Option 60 Vendor ID ( Option 61 IAID (

Optional

) Broadcast a specific vendor ID for the DHCP server to accept the device. ) Interface Association Identifier (IAID). A unique identifier for an IA, chosen by the

client.

Option 61 DUID (

Optional

) DHCP Unique Identifier (DUID) is used by the client to get an IP address from the

DHCP server. Option 77 User ID ( Option 125 (

Optional

) Enter the user class ID that should be used to filter traffic. ) Select whether to enable local devices to automatically receive DHCP options

from the server. Option 50 Request IP Address Select to request a specific IP address when sending messages. If the address is not avail-

able, the DHCP server assigns the next allowed IP address. Option 51 Request Leased

Select to request the maximum lease time defined for the client. Time

Option 54 Request Server

Select to request the IP address of the source server. Address

Use the following Static IP

Select this option to manually declare the static IP information provided by your ISP. address

WAN IP Address If using a static IP address, enter the static WAN IPV4 Address. WAN Subnet Mask If using a static IP address, enter the static Subnet Mask. WAN gateway IP Address If using a static IP address, enter the static Gateway IP address. Advanced DMZ (

Optional

) Select this option to enable Advanced DMZ on the WAN service.

Non DMZ IP Address If using the Advanced DMZ feature, you can enter a specific vendor ID that will be broadcast

for the DHCP server to accept the device, y. e.g., 192.168.2.1.. Non DMZ Net Mask If using the Advanced DMZ feature, you can enter a secondary LAN IP address for the gate-

255.255.255.0

IPv6 settings

way. The default is

section

The following fields appear when either IPv6 Only or IPv4&IPv6 (Dual Stack) network protocol values is selected on the WAN Service Configuration page.

Obtain an IPv6 address automatically

Dhcpv6 Address Assignment

Enables the DHCPv6 Client on this WAN interface. Select this option when you want the ISP

to automatically assign the WAN IP to the gateway.

Select this option for the CPE to receive WAN IP from ISP. (IANA)

Dhcpv6 Prefix Delegation (IAPD)

Use the following Static IPv6 address

This option is selected by default and enables the CPE to generate the WAN IP's prefix from

the server's REST by MAC address.

Select this option to manually declare the v6 Static IP information provided by your ISP. In

WAN IPv6 Address/Prefix Length

the

field, enter the IP address / prefix length. If you do

Field Name Description

not specify a prefix length, the default of Specify the Next-Hop IPv6

address

In the

This address can be either a local link or a global unicast IPv6 address.

7. Click Next. The following page appears.

WAN Next Hop IPv6 Address

/64

is used.

field, enter the IP address of the next WAN in the group.

8. Modify the settings if desired. All settings are optional. Network Address Translation (NAT) allows you to share one Wide Area Network (WAN) IP address for multiple computers on your Local Area Network (LAN). If you do not want to enable NAT (atypical) and wish the user of this gateway to access the Internet normally, you need to add a route on the uplink equipment. Failure to do so will cause access to the Internet to fail.

The fields on this page are explained in the following table.

Field Name Descriptopn

Enable NAT This option is enabled by default and supports sharing the WAN interface

across multiple devices on the LAN. Also enables the functions in the NAT sub-menu and addition PPPoE NAT features to select. Click the checkbox to

disable NAT. Enable Fullcone NAT Enables one-to-one NAT. Enable Firewall This option is enabled by default and enables functions in the

sub-menu. Enable SIP ALG Click to enable Session Initiation Protocol (SIP) pass-through NAT. Used for

Voice over IP (VOIP) applications.

IGMP Multicast

Enable IGMP Multicast Proxy

Enable IGMP Multicast Source

MLD Multicast

Enable MLD Multicast Proxy

Enable MLD Multicast Source

Use Base MAC Address on this WAN interface

Enable MACClone (

section

Click to enable Internet Group Membership Protocol (IGMP) multicast.

Used by IPv4 hosts to report multicast group memberships to any neigh-

boring multicast routers.

Click to enable this service to act as an IGMP multicast source.

section

Click to enable multicast filtering. Used by IPv4 hosts to report multicast

group memberships to any neighboring multicast routers.

Click to enable this service to act as a multicast source.

Click to use the gateway's base (Primary) MAC address. Otherwise, a unique

MAC is assigned for each service.

Appears when Use Base MAC Address is NOT selected

address to be used as the close adddress.

Security

) Enter the MAC

9. For the remaining WAN Service configuration pages, use the instructions provided in the default gateway step in the PPP over Ethernet section.

Bridging

Before you can configure a bridge WAN service, you must create the related ATM interface.

Note: This feature is available for SR515ac models only.

1. In the left navigation bar, click Advanced Setup > WAN Service and then click Add. The following page appears.

2. Select an ATM interface for the WAN service and then click Next. The following page appears.

3. Select Bridging. The multicast source fields appear.

4. Modify the fields as needed, using the information in the following table.

Field Name Description

Allow as IGMP Multicast

Select to enable this service to act as an IGMP multicast source.

Source Allow as MLD Multicast

Select to enable this service to act as an MLD multicast source.

Source Enter Service Descrip-

Optional

(

) Enter a name to describe this configuration.

tion Enter 802.1P Priority Enter the priority for this WAN service. Options are0-7. The default is-1(disabled).

For tagged service, enter values in this field and the 802.1Q VLAN ID field.

For untagged service, accept the default of -1 in this field and in the 802.1Q VLAN ID field.

Enter 802.1Q VLAN ID Enter the VLAN ID for this WAN service. Options are0-

4094

. The default is-1(disabled).

Field Name Description

For tagged service, enter values in this field and the 802.1P Priority field.

For untagged service, enter -1 (disabled) in this field and in the 802.1P Priority field.

Select VLAN TPID (

Optional

) Select the TPID for this VLAN. Options are

0x8100,0x88A8

5. Click Next. The summary page appears indicating that your Bridging WAN setup is complete.

, and

0x9100

6. Review the summary and either click Apply/Save to commit your changes or click Back to step through the pages in reverse order to make any necessary alterations.

LAN

On the Local Area Network (LAN) Setup page, you can configure the router’s local IP addresses, subnet mask, DHCP behavior and other related LAN side settings for your gateway.

1. In the left navigation bar, click Advanced Setup > LAN. The following page appears.

2. Customize the fields as desired.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

GroupName Select an interface group from the list of available groups (defined on the Interface

Grouping page). IP Address Enter the LAN IP address to be used by LAN devices connecting to this gateway. Subnet Mask Enter the subnet mask to be used by LAN devices connecting to this gateway. Enable IGMP Snooping Select to enable your gateway to listen to IGMP network traffic between hosts and

routers. By listening to these conversations, the gateway maintains a map of which

links need which IP multicast streams. Standard Mode Allows multicast traffic will flood to all bridge ports when there is no client sub-

scribed to any multicast group. Blocking Mode Blocks multicast data traffic, preventing it from flooding to all bridge ports when no

client subscriptions to a multicast group are present. This option is enabled by

default. Enable IGMP LAN to

LAN Multicast Enable LAN Side Fire-

Allows multicast traffic between LANs. Options are

Disable

Enables the restriction of traffic between LAN hosts.

Disable

and

Enable

. The default

wall Disable DHCP Server Prevents the DHCP functionality of your gateway from automatically assigning LAN

IPaddresses to host devices as they connect with the gateway. Enable DHCP Server Allows the DHCP functionality of your gateway to automatically assign LAN IP

addresses to host devices as they connect with the gateway. This option is selected

by default.

Fill in the next three fields to configure this action.

Start IP Address Enter the beginning of the class C IP address range to be assigned by the DHCP

server. End IP Address Enter the end of the class C IP address range to be assigned by the DHCP server. Leased Time (hour) Enter the number of hours for which an IP address will be leased. The default is

hours

Static IP Lease List Specify a static

your LAN host devices. Click

Apply/Save

click Automatically create

static IP leases from the following OUIs

Configure DHCP Options

For LAN hosts, IP addresses can be assigned manually or by using DHCP. Click

OUI

. Enter the OUI and click

entries that you need.

Enter information for the following three DHCP options:

l Option 66: For some devices that also require access to a TFTP server (device

IP address

to be associated with a

Add Entries

. Enter the MAC address and IP address and

. Repeat this step to create any additional entries that you need.

Apply/Save

. Repeat this step to create any additional

specific MAC Address

of one of

Add

configuration name filesare in .cnf file format), which enables the device to communicate with other infrastructure, select this option to specify the name of the TFTP server. Option 66 is an IEEE standard.

Field Name Description

l Option 150: Enter a comma-separated list of TFTP IPv4 server addresses. The

maximum allowed is 2.

l Option 43: Enter the loopback address of the master controller in ASCII

format.

Configure the second IP address and subnet mask for LAN interface

When you select this option, the

you can enter a second IP address and Subnet mask to support a second, sim-

ultaneous LAN.

For example, the primary LAN might be defined as 192.168.0.1 and this secondary LAN

IP Address

defined as 192.168.2.1.

IPv6 Autoconfig

On this page, you can configure your gateway's IPv6 environment.

Subnet Mask

and

fields appear where

1. In the left navigation bar, click Advanced Setup > LAN > IPv6 Autoconfig . The following page appears.

2. Modify the fields as needed, using the information in the table below.

3. Click Save/Apply to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Interface Address IPV6 address to assign as the gateways Local LAN IPV6 address and prefix length. Prefix length is required.

IPv6 LAN Applications

Enable DHCPv6

section

This option is selected by default. Click to disable the DHCPv6 feature on the LAN.

Server Stateless This option is selected by default. Click to stop inheriting IPV6 address assignments from the WAN IPV6 inter-

face.

Stateful Click this option to identify the DHCPv6 server given by the LAN IPV6 network as configured with additional

Field Name Description

options. Zero compression is not supported. Make sure to enter zeros between the colons, that is, do not use shorthand notation (::2). Options are:

l Start interface ID: Enter the beginning IPv6 available addresses for DHCP to assign to LAN devices. l End interface ID: Enter the ending IPv6 available addresses for DHCP to assign to LAN devices. l Leased Time (hour): Amount of time before a new IPv6 lease is requested by the LAN client.

Enable RADVD (

Optional

) This option is enabled by default. It enables Router Advertisement Daemon (RADVD) service that

sends router advertisements to LAN clients. Clear the check box to disable RADVD. Options are:

l Randomly Generate: This option is selected by default. The prefix is generated automatically. l Enable ULA Prefix Advertisement: Check this option to enable unique local address (ULA) advert-

isement on the LAN. When you select this option, the Randomly Generate option is selected and the gateway can generate a random IPv6 prefix.

l Statically Configure: Select this option to configure the IPv6 prefix, and enter values in the Prefix,

Preferred Life Time, and Valid Life Time fields (in hours). The default value for the Time fields is -1

(no limit).

Enable MLD Snooping (

Optional

) This option is enabled by default. It enables Multicast Listener Discovery (MLD) snooping to man-

age IPV6 multicast traffic. Options are:

l Standard Mode: Multicast traffic will flood to all bridge ports when no client subscribes to a mul-

ticast group even if IGMP snooping is enabled.

l Blocking Mode: The multicast data traffic will be blocked and not flood to all bridge ports when

there are no client subscriptions to any multicast group. This is the default.

Enable MLD LAN to LAN Multicast

Optional

(

) This option is enabled by default. It enables LAN-to-LAN Multicast until the first WAN service is

connected. Options are

Disable

and

Enable

. The default is

Disable

Ethernet Config

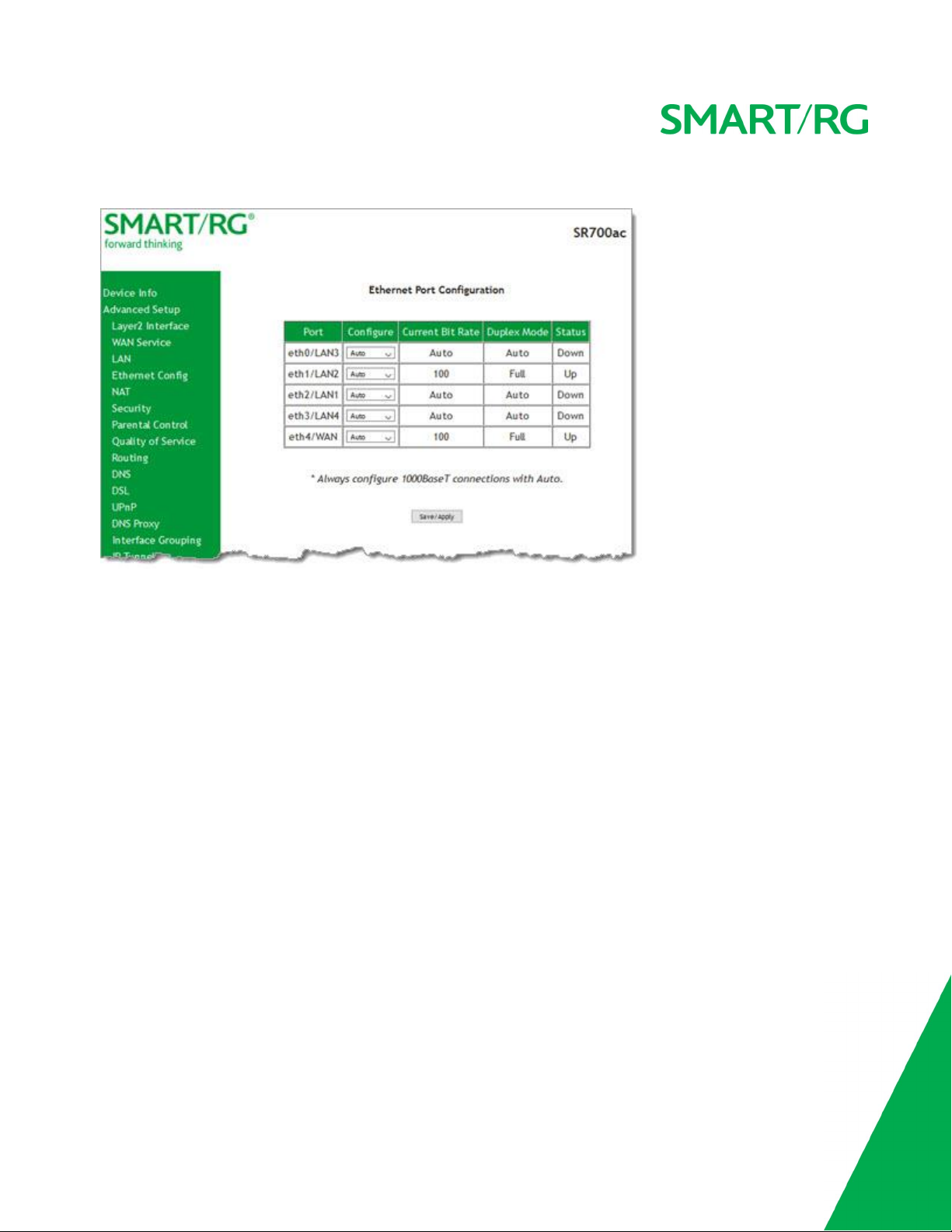

On this page, you can set the speed and duplex mode for the Ethernet ports and the WAN port, if configured,

1. In the left navigation bar, click Advanced Setup > Ethernet Config . The following page appears.

2. In the Configure column, select an option (Auto, 100 Full, 100 Half, 10 Full or 10 Half) for each of the four Ethernet ports

on your gateway.

These options represent 100 megabits or 10 megabits using half or full duplex transmission protocols. When you have a specific device with a known limited transmission speed capability, select one of the latter four options. If you select Auto, your gateway will automatically select an appropriate setting based on Ethernet auto negotiation with the NIC of the LAN host.

Note: Always select Auto for 1000 BaseT connections.

3. Click Apply/Save to commit your changes.

NAT

In this section, you can configure the settings for Network Address Translation including setting up virtual servers, port triggering and a DMZ host. There is seldom need to customize these settings as the default settings manage the related features sufficiently for most environments.

Virtual Servers

Virtual Servers (more commonly known as Port Forwards) is a technique used to facilitate communications by external hosts with services provided within a private local area network.

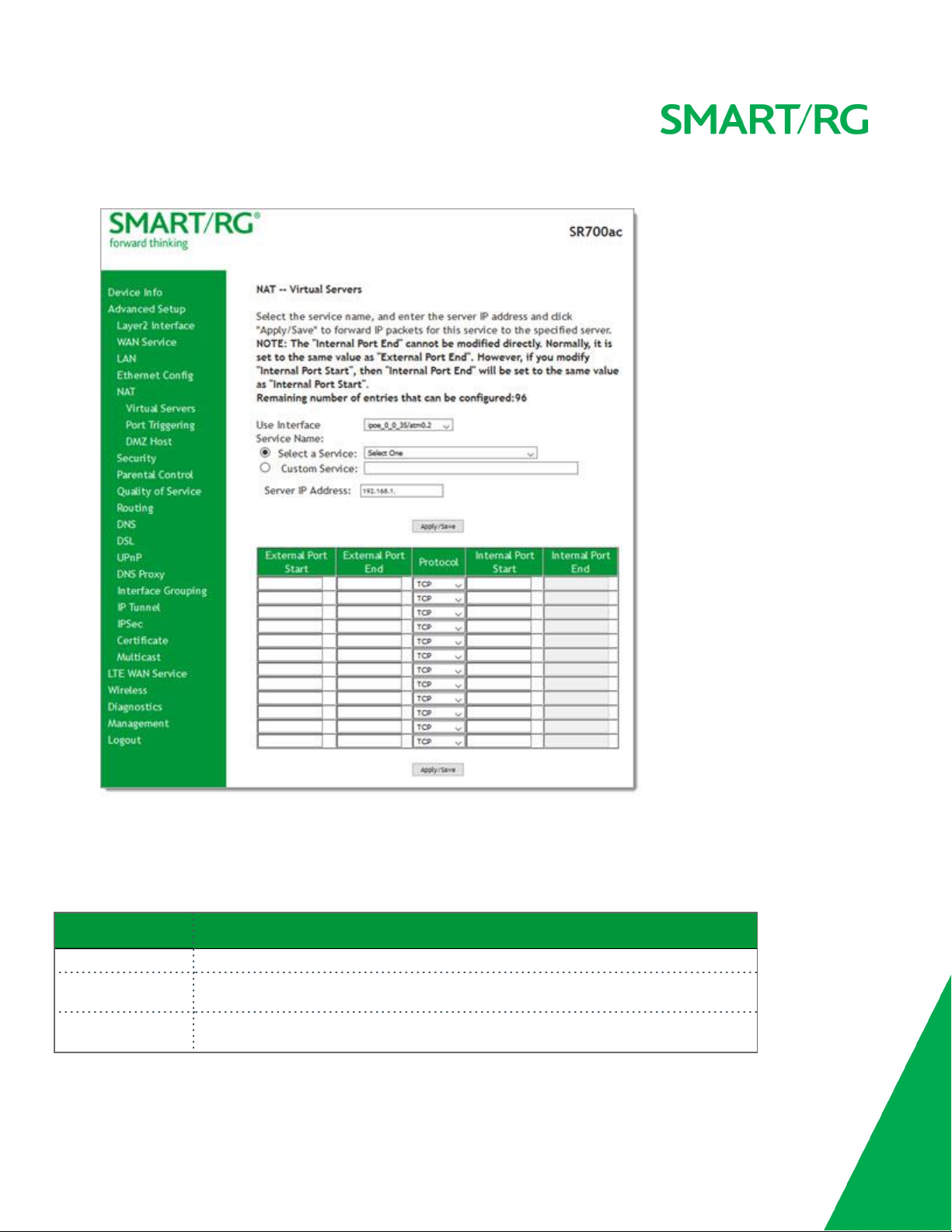

On this page, you can configure the virtual server settings for your gateway.

1. In the left navigation bar, select Advanced Setup > NAT and then click Add. The following page appears.

2. Customize the fields to create your port forwarding entry.

3. Click Apply/Save to commit your changes. The servers for the selected service appear on the NAT Virtual Servers Setup page.

The fields on this page are explained in the following table.

Field Name Description

Use Interface Select the WAN interface to which this NAT rule will apply. Select a Service Select from a list of application that typically require port forwards configured. The

port ranges and protocol fields will be pre-populated.

Custom Service If your application does not appear in the

Select a Service

list, you can enter a unique

name for the application in this field.

Field Name Description

Server IP Address Enter the IP address of the LAN client where the service is hosted. External Port Start Enter the first external port for this server. External Port End Enter the last external port for this server. Protocol Select the protocol to be used with this range of ports. Options are:

Internal Port Start Enter the first internal port for this server. Internal Port End Enter the last internal port for this server.

TCP/UDP

TCP,UDP

, or

Port Triggering

Some applications require that specific ports in the gateway's firewall be opened for access by remote parties. The Port Trigger feature dynamically opens up the open ports in the firewall when an application on the LAN initiates a TCP/UDP connection to a remote party using the triggering ports. The gateway allows the remote party from the WAN side to establish new connections back to the application on the LAN side using the Open Ports.

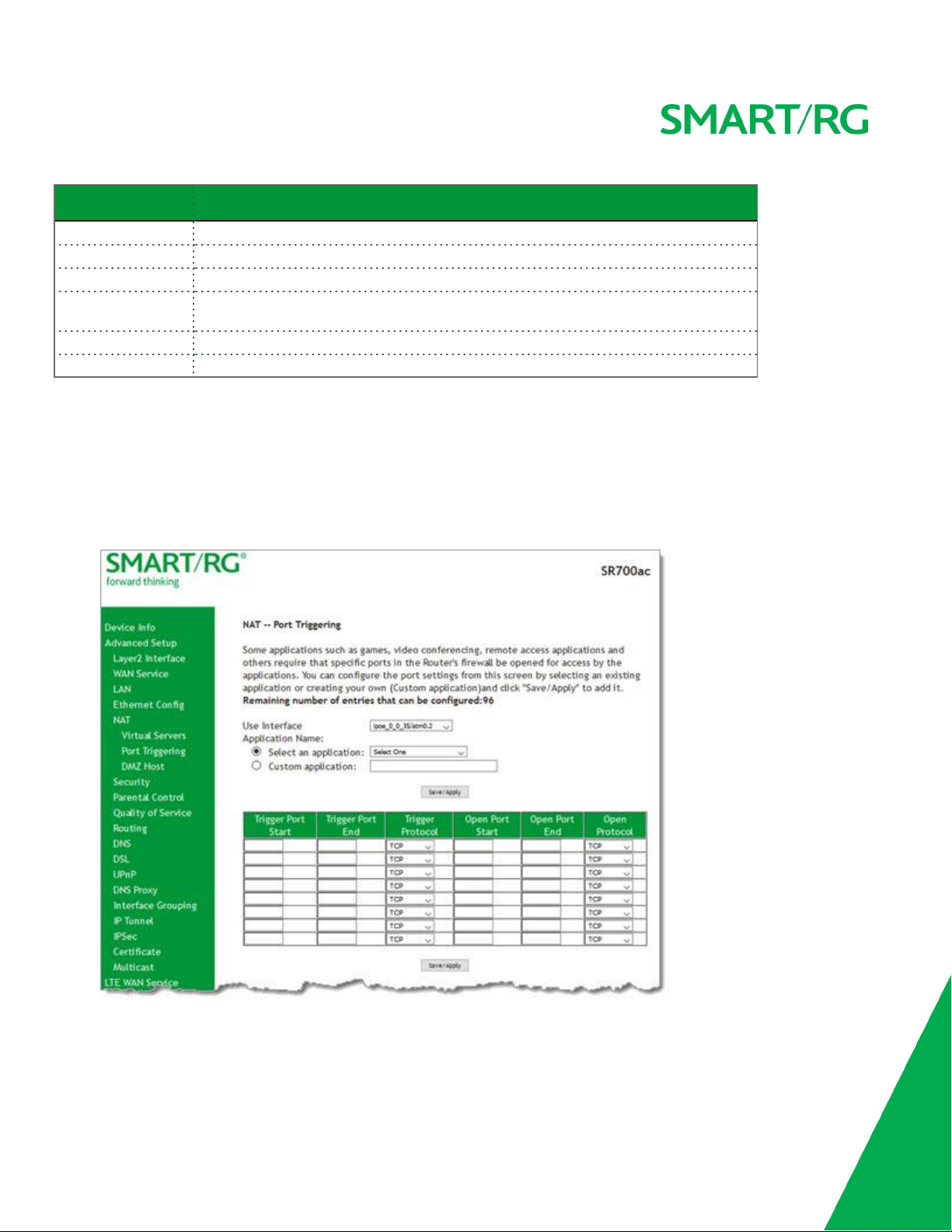

1. In the left navigation bar, click Advanced Setup > NAT > Port Triggering and then click Add. The following page appears.

2. Customize the fields as needed for the firewall pinholes you wish to establish. A maximum 96 entries can be configured.

3. Click Save/Apply to commit your changes. The selected service appears on the NAT Port Triggering Setup page.

The fields on this page are explained in the following table.

Field Name Description

Use Interface Select the interface for which the port triggering rule will apply. Select an Application Select the application which requires a port trigger entry. The

fields are populated.

Custom Application If the application you want does not appear in the selection list, enter a unique name

for the application for which you are creating a port trigger entry.

Trigger Port Start Enter the starting number of the range of available outgoing trigger ports. Options

are:1-

Trigger Port End Enter the end number of the range of available outgoing trigger ports. Options are:1-

65535

Trigger Protocol Select the protocol required by the application that will be using the ports in the spe-

cified range. Options are:

Open Port Start Enter the starting number of the range of available incoming ports. Options are:1-

65535

Open Port End Enter the end number of the range of available incoming ports. Options are:1-

65535

Open Protocol Select the protocol for the open port. Options are:

65535

TCP,UDP

, and

TCP/UDP

TCP,UDP

Port

, and

Protocol

and

TCP/UDP

DMZ Host

The Broadband Router will forward IP packets from the WAN that do not belong to any of the applications configured in the Virtual Servers table to the DMZ host computer. If you want to route all internet traffic to a specific LAN device with no filtering or security, add the IP address of that device to this page.

1. In the left navigation bar, click Advanced Setup > NAT > DMZ Host. The following page appears.

2. Enter the DMZ Host IP Address.

3. Click Save/Apply to commit the new or changed address.

Security

In this section, you can configure filtering for IP and MAC.

IP Filtering - Outgoing

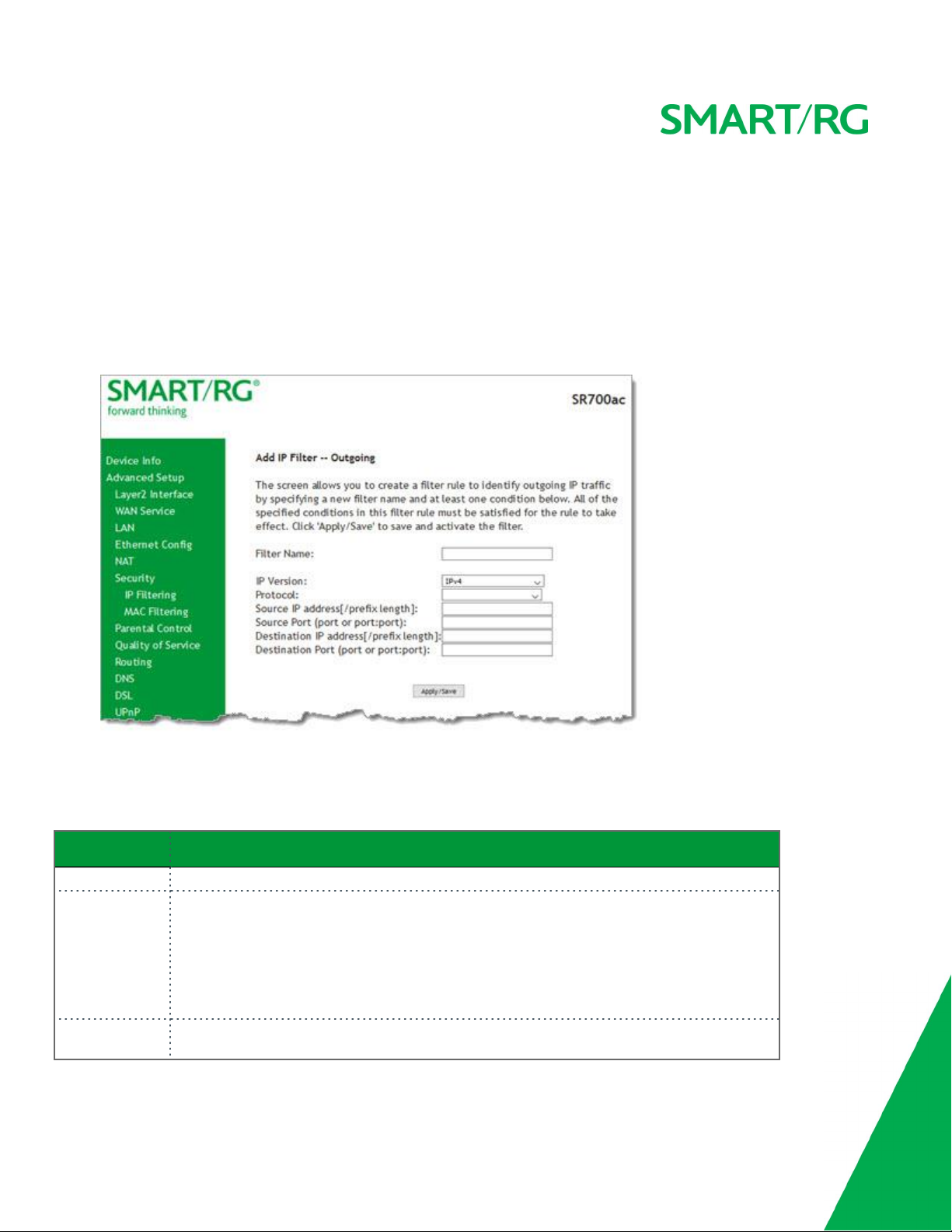

On this page, you can add an outgoing filter when refusal of data from the LAN to the WAN is desired.

1. In the left navigation bar, click Advanced Setup > Security and then click Add. The following page appears.

2. Fill in the fields, using the information in the table below.

3. Click Apply/Save to commit the completed entry.

The fields on this page are explained in the following table.

Field Name Description

Filter Name Enter a descriptive name for this filter. This is a free-form text field. IP Version For the filter to be configured and effective for IPV6 , the gateway must be installed on a net-

work that is either a pure IPV6 network (with that protocol enabled) or is both IPV4 and IPV6 dual protocol enabled/configured. Options are

If you select IPV6, both the Source and Destination IP address must be specified in IPV6 format. The following is an IPV6-compliant, hexadecimal address: 2001:0DB8:AC10:FE01:0000:0000:0000:0001.

Protocol Select the protocol profile for the filter you are defining. TCP/UDP is most commonly used.

The options are

TCP/UDP,TCP,UDP

, and

ICMP

IPv4

and

IPv6

. The default is

IPv4

Field Name Description

Source IP address [/prefix length]

Source Port (port or port:port)

Destination IP address

estination Port (port or port:port)

Enter the source IP address of a LAN side host for which you wish to filter/block outgoing traffic for the specified protocol(s).

Note: The address specified here can be a particular address or a block of IP addresses on a given network subnet. This is done by appending the associated routing "/prefix" length decimal value (preceded with the slash) to the addresses. A valid decimal routing prefix is required for defining the subnet mask per CIDR notation.

Set the outgoing host port (or range of ports) for the above host (or range of hosts defined by optional routing or "/prefix" subnet mask) to define the ports profile for which egress traffic will be filtered from reaching the specified destination(s).

Enter the destination IP address of a LAN side host for which you wish to filter/block outgoing traffic for the specified protocol(s).

Note: The address specified here can be a particular address or a block of IP address on a given network subnet. This is done through appending the address with the routing " /prefix " length decimal value (preceded with the slash) associated. A valid decimal routing prefix is required for defining the subnet mask per CIDR notation.

Set the destination host port (or range of ports) for the above host (or range of hosts) to define the destination port profile for which the filtered host egress traffic will be filtered from reaching the otherwise intended destination(s), e.g., to block the traffic to those ports on, say, a computer external to the local network.

IP Filtering - Incoming

On this page, you can add an incoming filter when refusal of data from the WAN to the LAN is desired.

Note: This option is not available in the SR515ac model.

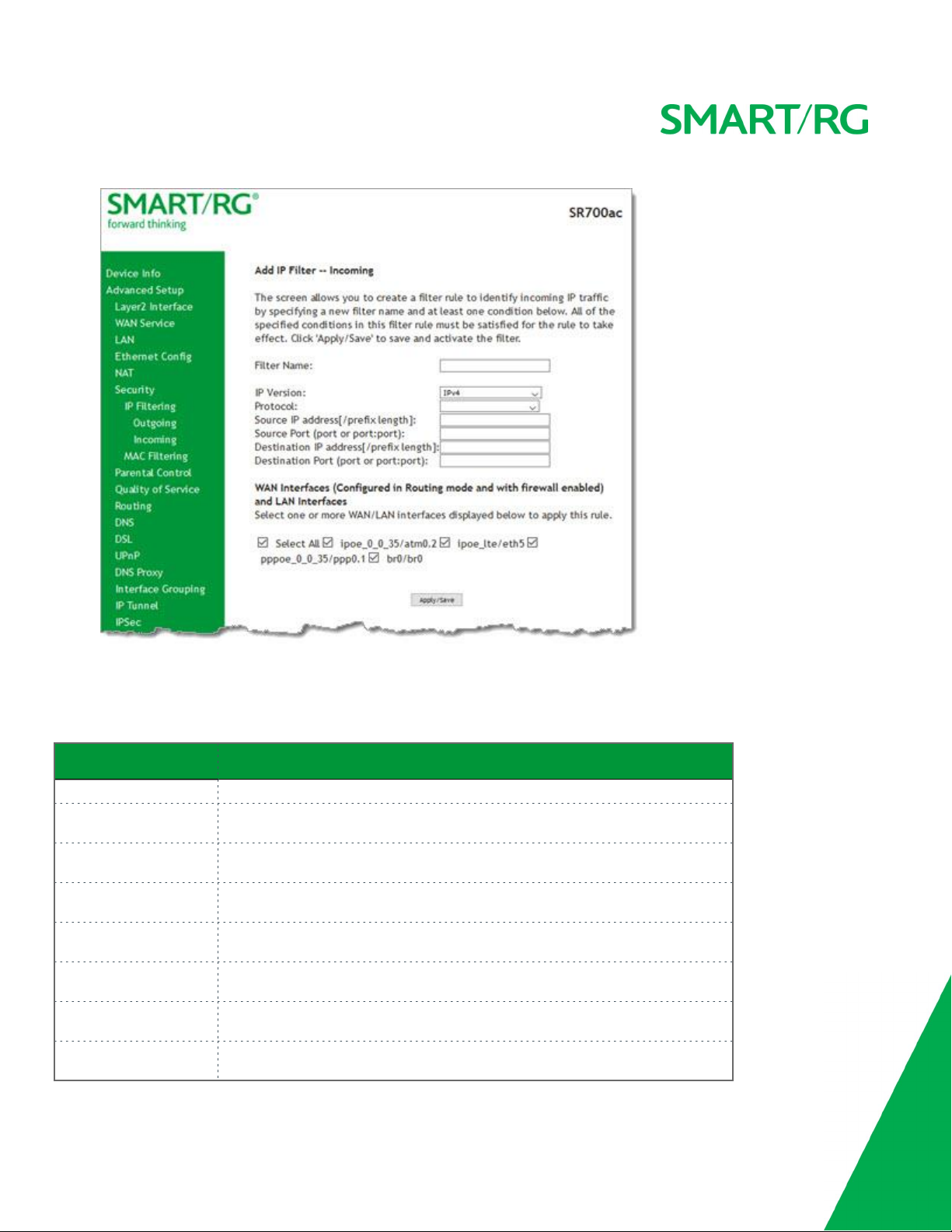

1. In the left navigation bar, click Advanced Setup > Security > IP Filtering > Incoming and then click Add. The following page appears.

2. Fill in the fields, using the information in the table below.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Filter Name A free-form text field. Enter a descriptive name for this filter. IP Version Select the IP version for this filter. Options are

IPv4

and

IPv6

. The default is

Protocol Select the protocol to be associated with this incoming filter. Options are:

Source IP address [/pre-

TCP/UDP,TCP,UDP

Enter the source IP address for rule. For IPv6, enter the prefix as well.

, or

ICMP

fix length] Source Port (port or

Enter source port number or range (xxxxx:yyyyy).

port:port) Destination IP address

Enter the destination IP address for rule. For IPv6, enter the prefix as well.

[/prefix length] Destination Port (port or

Enter destination port number or range (xxxxx:yyyyy).

port:port) WAN Interfaces Select the WAN interfaces to which this rule will be applied. Options are

All

or the interfaces defined for your network. The default is

Select All

Select

MAC Filtering

Your SmartRG gateway can block or forward packets based on the originating device. This MAC filtering feature is available only in Bridge mode. For other modes, similar functionality is available via IP Filtering. On this page, you can manage MAC filtering for your gateway.

1. In the left navigation bar, click Advanced Setup > Security > MAC Filtering. The following page appears.

2. To modify policy settings:

a. Review the information on the page.

b. Once you understand the consequences of changing the policy, click the Change checkbox, and then click Change

Policy. The policy is switched to FORWARD or BLOCKED.

3. To add a rule, follow the instructions in "MAC Filtering".

4. To remove a rule, click the Remove checkbox next to the rule and click the Remove button.

The fields on this page are explained in the following table.

Field Name Description

Interface The interface associated with an established policy rule. Policy The policy type that is currently active. Options are

FORWARD

and

BLOCKED

Add a MAC Filtering Rule

You cannot edit rules but you can add new ones and then remove the obsolete ones.

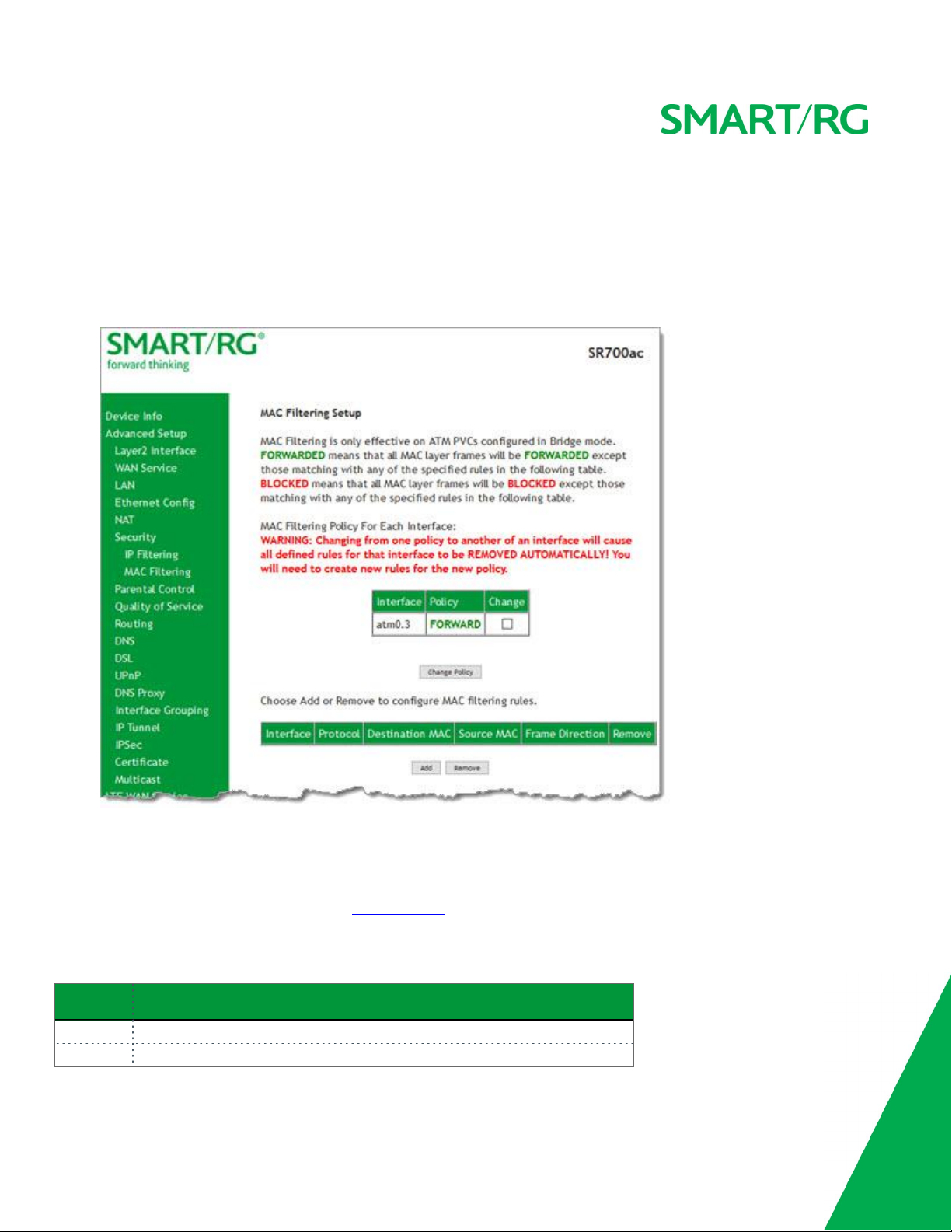

1. On the MAC Filtering page, click Add. The following page appears.

2. Fill in the fields, using the information provided in the following table.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Protocol Type Select the protocol associated with the device at the destination MAC

address. Options are Destination MAC Address Enter the MAC address of the hardware you wish to associate with this filter. Source MAC Address Enter the MAC address of the device that is originating requests intended for

the device associated with the Destination MAC address. Frame Direction Select the incoming/outgoing packet interface. Options are

WAN Interfaces Select the interface to which this filter is applied.

WAN=>LAN

, and

PPPoE,IPv4,IPv6,AppleTalk,IPX,NetBEUI

LAN=>WAN

. The default is

LAN <=> WAN

IGMP

, and

LAN<=>WAN

Parental Control

In this section, you can configure the Parental Control features of your SmartRG gateway to restrict Internet access to certain hours and to certain URLS.

Time Restriction

On this page, you can restrict Internet access to particular days and specific times for each device that accesses your gateway.

1. In the left navigation bar, click Advanced Setup > Parental Control > Time Restriction and then click Add. The following page appears.

2. Fill in the fields using the information in the table below.

3. Click Apply/Save.

The fields on this page are explained in the following table.

Field Name Description

User Name Enter a descriptive name for this restriction. This is a free-form text

field.

Browser's MAC Address The MAC address of the connected device. This option is selected by

default.

Other MAC Address Select this option to restrict access to another device. You can view a

list of the connected devices and MAC addresses on the

ARP

page. Days of the week Select the days Start Blocking Time / End

Blocking Time

Enter the range of time that the devices listed above are restricted from access to the Internet. Use 24-hour clock notation (

(Mon-Sun

) for which the restrictions apply.

Device Info

00:00-24:00

URL Filter

On this page, you can exclude and include URLs as desired to control access to them. Each list can include up to 100 addresses.

Note: Only one Exclude list and one Include list are supported for each gateway. Unique lists are not supported for connecting

devices.

1. In the left navigation bar, click Advanced Setup > Parental Control > Url Filter.

2. To block a URL: a. Select Exclude List.

b. Click Add. The following page appears.

c. Click Apply/Save to save your settings. You are returned to the Url Filter page.

3. To create a list of URLs to allow, select Include and repeat the steps 2b and 2c.

The fields on this page are explained in the following table.

Field Name Description

URL Address Enter the URL address to be included in the list. Port Number (

Optional

) Enter the port number associated with the URL. The default is80.

Quality Of Service

Quality of Service (QoS) enables prioritization of Internet content to help ensure the best possible performance. This is particularly useful for streaming video and audio content with minimized potential for drop-outs. QoS becomes significant when the sum of all traffic (audio, vid"QoS Classification", data) exceeds the capacity of the line.

In this section, you can configure QoS settings including traffic queues, classifications (rules) and port shaping.

QoS Config

On this page, you can enable QoS and set the DSCP Mark classification.

The maximum number of queues that can be configured vary by mode, as shown below.

Mode Maximum # of queues

ATM 16 Ethernet 4 per interface PTM 8

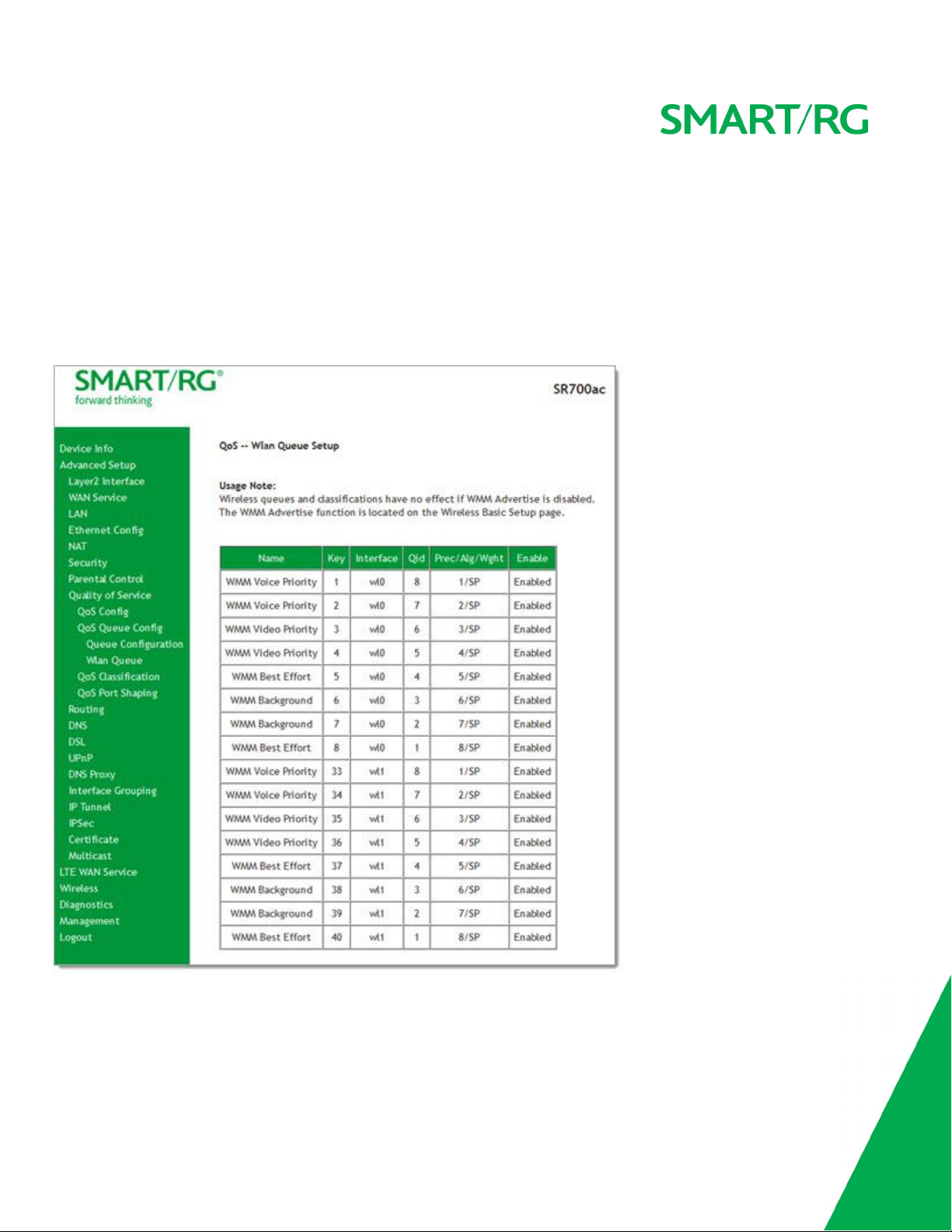

Note: Wireless queues (e.g., the WMM Voice Priority queue) are shown only when wireless is enabled. If the WMM Advertise func- tion on the Wireless Basic Setup page is disabled, assigning classifications to wireless traffic has no effect.

1. In the left navigation bar, click Advanced Setup > Quality Of Service > QoS Config. The following page appears. QoS is

enabled by default.

2. To disable this feature, click the Enable QoS checkbox.

3. (Optional) In the Select Default DSCP Mark field, select the default Differentiated Services Code Point (DSCP) Mark clas-

sification value to be used. For a list of supported values, see "Supported DSCP Values". The default is No Change(-1).

Warning: If this option was already enabled and you clear the checkbox, QoS will be disabled for ALL interfaces.

4. Click Apply/Save to save your settings.

Supported DSCP Values

The DSCP marking QoS Queue Management Configuration marking on ingress packets is based on the selection you make in the Select

Default DSCP Mark field. The selected default marking is applied automatically to all incoming packets without reference to a par-

ticular classification.

Note: A default DSCP mark value of Default(000000) will mark all egress packets that do NOT match any classification.

The following values are supported. For more information about commonly used DSCP values, refer to RFC 2475.

No Change(-1) CS1(001000) AF32(011100) CS4(100000)

Auto Marking(-2) AF23(010110) AF31(011010) EF(101110)

Default(000000) AF22(010100) CS3(011000) CS5(101000)

AF13(001110) AF21(010010) AF43(100110) CS6(110000)

AF12(001100) CS2(010000) AF42(100100) CS7(111000)

AF11(001010) AF33(011110) AF41(100010)

QoS Queue Config

On this page you can configure a queue and add it to a selected Layer2 interface.

1. In the left navigation bar, click Advanced Setup > Quality Of Service > QoS Queue Config and then click Add. The following

page appears.

2. In the Name field, enter a brief descriptive name for this queue.

3. In the Interface field, select the Layer 2 interface to be associated with this queue. Options include Dynamic WAN and the

interfaces defined for your gateway. When you select an interface, additional fields appear. If you select Dynamic WAN, they appear once for each defined WAN interface.

4. Fill in the other fields, using the information in the table below.

5. Click Apply/Save to save your settings.

The fields on this page are explained in the following table.

Field Name Description

Name Enter a descriptive name for this configuration. This is a free-form text field. Enable Select to enable or disable a given QoS queue configured on the selected inter-

face.

Note: Only one queue can be defined for any one interface/precedence pair, resulting in a maximum of three queues per interface.

Queue Precedence

Select the priority value to be associated with QoS queue defined. Options include levels for SP and SP|WRR|WFQ.

Note: Lower value = higher priority.

Scheduler Algorithm (

Appears when you select SP|WRR|WFQ in the Queue Precedence field

Select an algorithm for data priority in queues. Options are:

l Strict Priority: Allows shaping of rate and burst size for packets in

queue.

l Weighted Round Robin: Applies a fair round robin scheme weighting

that is effective for networks with fixed packet sizes, e.g., ATM networks.

l Weighted Fair Queuing: Applies a fair queuing weighting scheme via

allowing different sessions to have different service shares for improved data packets flow in networks with variable packet size, e.g., PTM/IP networks.

The following options appear only when the

Scheduler Algorithm

field is set to

Strict Priority

Queue Precedence

field is set to

SP|WRR|WFQ

and the

Minimum Rate Enter the minimum shaping rate for packets in QoS queues. Options are1-

100000

Kbps.

To specify no minimum shaping, enter -1.

Shaping Rate Enter the shaping rate for packets in QoS queues. Options are1-

100000

To specify no minimum shaping, enter -1.

)

Kbps.

Shaping Burst Size Enter the shaping burst size to be applied to packets in the defined queue.

Options are

Queue Weight (

Appears when you select either of the Weighted options in the Scheduler

Algorithm field

1600 bytes

or greater.

) Enter a weight for prioritizing this queue. Options are1-63.

WLAN Queue

On this page, you can view the wireless queues and classifications.

Note: The WMM Advertise option must be enabled before these classifications will function. This option is enabled by default. If you have disabled it, go to the Wireless > Basic page and clear the Disable WMM Advertise checkbox.

In the left navigation bar, click Advanced Setup > Quality Of Service > QoS Queue Config > Wlan Queue. The following page appears.

QoS Classification

On this page, you can create traffic class rules for classifying the ingress traffic into a priority queue. You can also mark the DSCP or Ethernet priority of the packet.

1. In the left navigation bar, click Advanced Setup > Quality Of Service > QoS Classification and then click Add. The following

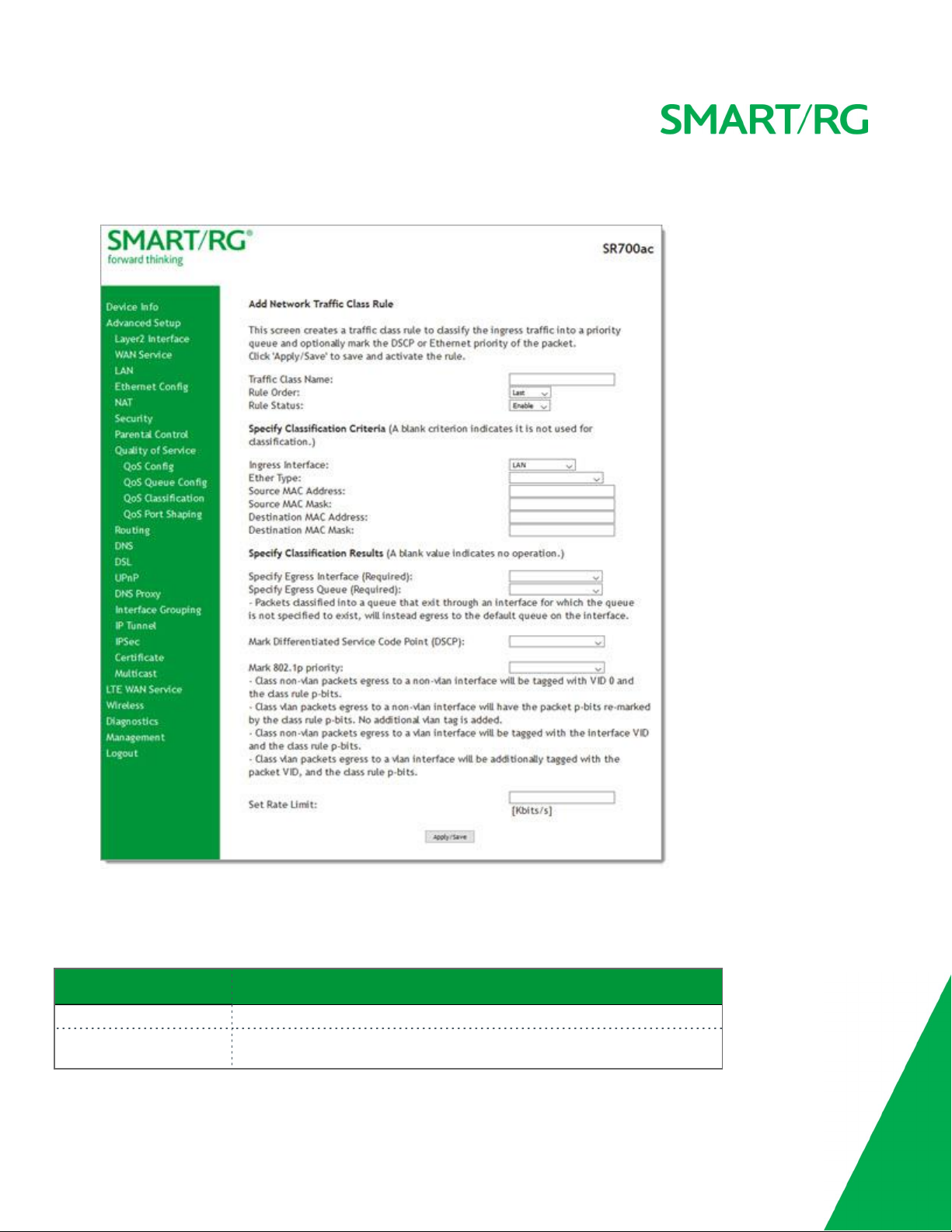

page appears. A maximum of 32 entries can be configured.

2. Fill in the fields, using the information in the table below.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Traffic Class Name Enter a descriptive name for this rule. This is a free-form text field. Rule Order Select whether this rule is processed next or last in the list of classification

rules. The only option is Last and cannot be changed.

Field Name Description

Rule Status Select whether this rule is active or inactive. Options are:

able

. The default is

Specify Classification Criteria

section

Ingress Interface Select an interface. Options are

Enable

LAN,WAN

and any interface already con-

Enable

and

Dis-

figured for your gateway.

Ether Type Select the Ethernet interface type for this classification. Options include:

Source MAC Address

IP,ARP,IPV6,8855,8856

Enter the source MAC address and mask for this classification.

,and

8021Q

Source MAC Mask

Destination MAC Address

Enter the destination MAC address and mask for this classification.

Destination MAC Mask

Source IP Address/Mask Vendor Class ID User Class ID

Destination IP

Appear when you select IP or IPv6 in the Ether Type field

(

) Select an option and enter the appropriate value, i.e, the source IP address and Source IP mask, vendor class ID, or user class ID.

Enter the destination IP Address and Mask for this classification.

Address/Mask Differentiated Service

Select the DSCP code that must be present in the queue identifiers.

Code Point (DSCP) Check Protocol Enter the protocol specified for this classification. Options are

UDP/TCP Source Port (

ICMP

Appears when TCP or UDP is selected in the Protocol field

, and

IGMP

TCP,UDP

) Enter the

source port for this classification. You can enter a single port or a range of ports (port:port).

UDP/TCP Destination Port (

Appears when TCP or UDP is selected in the Protocol field

) Enter the destination port for this classification. You can enter a single port or a range of ports (port:port).

802.1p Priority Check (Appears when

8021Q

is selected in the

Ether Type

field) Select priority

level. Options are 1 - 7.

Specify Classification Results

section

Specify Egress Interface Select the egress interface for this rule. Options are the interfaces already

configured.

Specify Egress Queue Select the egress queue for this rule. Options are the queues already con-

figured.

Mark Differentiated Ser-

Select the desired DSCP code.

vice Code Point Mark 802.1P priority This value is inserted into the Ethernet frame and used to differentiate

traffic. Lower values assign higher priorities. Options are:1-7.

Set Rate Limit (Kbps) Enter the data traffic rate limit applied for this classification.

QoS Port Shaping

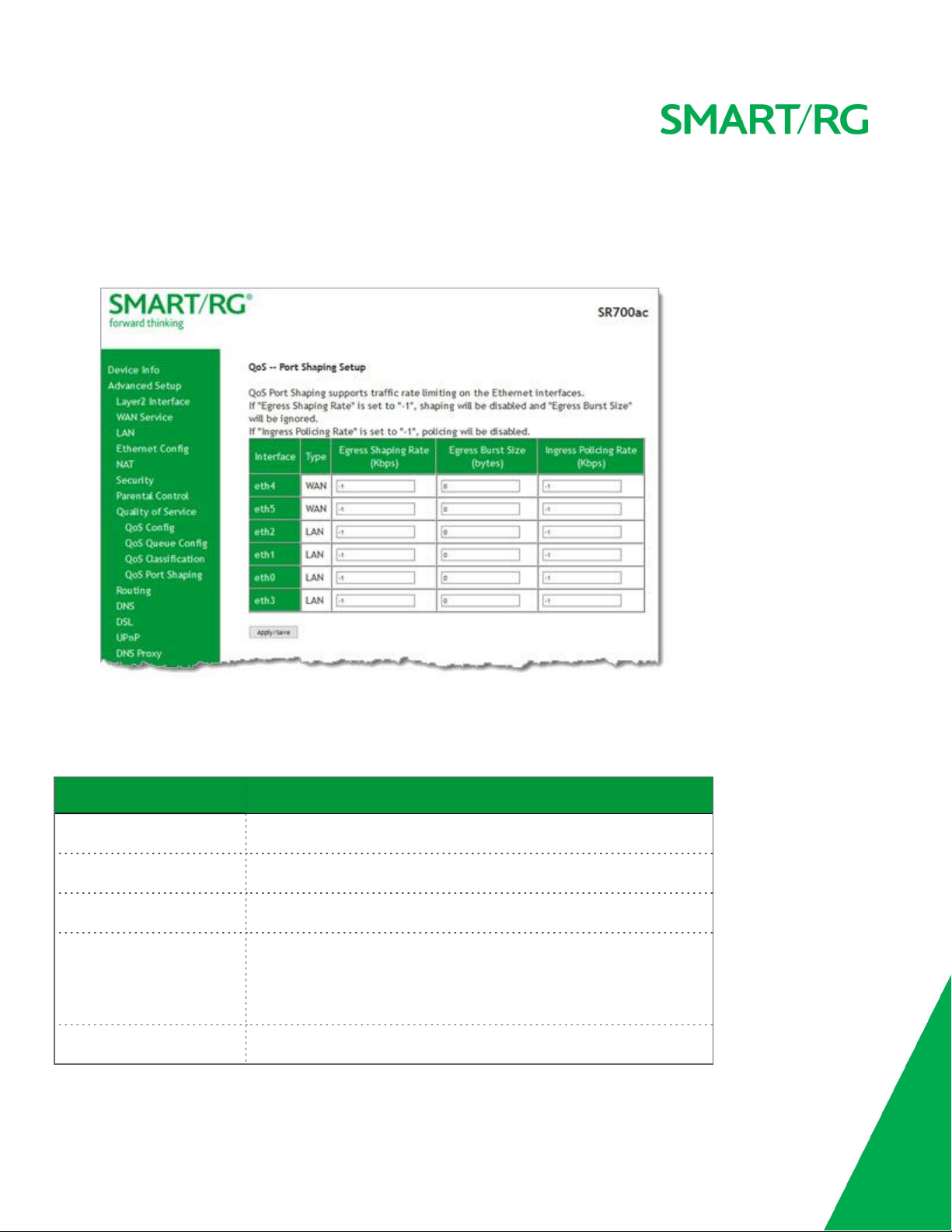

QoS Port Shaping facilitates setting a fixed rate (Kbps) for each of the Ethernet ports.

1. In the left navigation bar, click Advanced Setup > Quality Of Service > QoS Port Shaping. The following page appears.

2. Fill in the fields, using the information in the table below.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Interface Each entry in this column represents one of the Ethernet LAN ports on

the gateway.

Type Each entry in this column identifies the function for which each physical

port is configured on the gateway.

Egress Shaping Rate (Kbps) Enter the data rate for packets on the specified Interface. Options are:

Egress Burst Size (bytes Enter the burst size to be applied to packets in the defined queue.

Ingress Policing Rate (Kbps) Enter data rate for policing incoming packets in the defined queue. The

1-1,000,000

Options are

If you enter a value of -1 (disabled) in the Egress Shaping Rate field, the value in this field is ignored.

default is-1(no policing).

Kbps. The default is-1(no shaping).

1600 bytes

or greater. The default is0(no size limit).

Routing

In this section, you can configure default gateways, static routing, policy routing and RIP settings.

Default Gateway

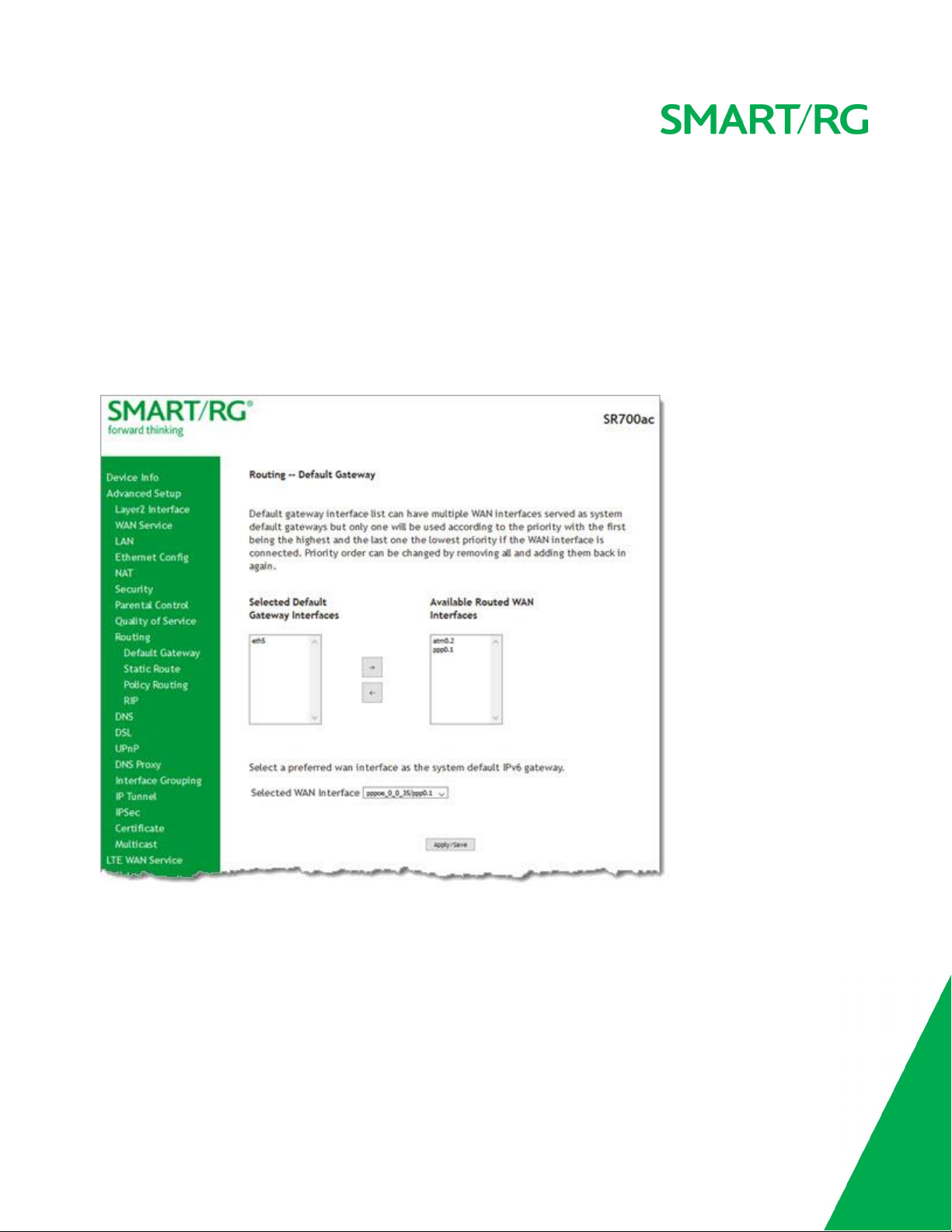

On this page, you can configure the default gateway interface list to establish access priority, that is, iInterfaces are accessed in the order listed in the Selected Default Gateway Interfaces column.

1. In the left navigation bar, select Advanced Setup > Routing. The following page appears.

2. Select the interfaces that you want used as default gateway interfaces. Click the arrows to move your selection between the columns. Move the highest priority interface first, followed by the next highest priority interface, and so on.

3. (Optional) In the Selected WAN Interface field, select an IPv6 interface. You must configure the IPv6 interface before it appears in this field.

4. Click Apply/Save to commit your changes.

Static Route

On this page, you can configure static routes for your network. A static route is a manually configured, fixed route for IP data. You can enter a maximum of 32 entries.

1. In the left navigation bar, click Advanced Setup > Routing > Static Route and then click Add. The following page appears.

2. Fill in the fields, using the information in the table below.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

IP Version Select the IP version associated with the static route you wish to create.

Options are:

Destination IP address/prefix length

Interface Select the WAN Interface for this route. This list filtered by the selected IP

Gateway IP Address Enter the destination IP address for this route. If needed, include the /prefix

Metric (

Enter the destination network address / subnet mask for route.

version.

length.

Optional

zero(>

than

IPv4

) Establishes traffic priority/weighting. Must be equal to or greater

0).

and

IPv6

Policy Routing

Policy routing makes somewhat automated routing choices based on policies defined by a network administrator. For example, a network administrator might want to deviate from standard routing based on destination markers in the packet and, instead, forward a packet based on the source address.

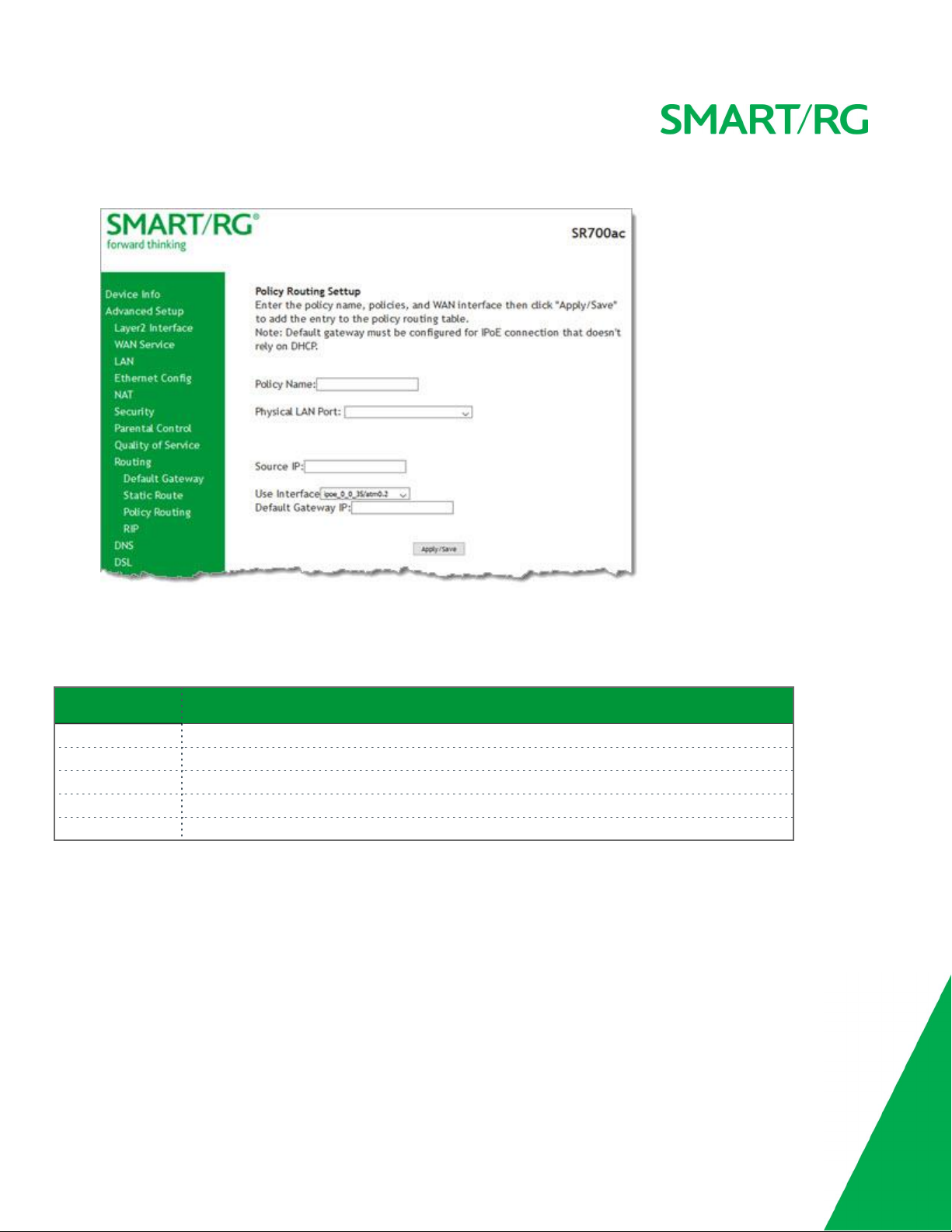

On this page, you can configure similar policies.

1. In the left navigation bar, click Advanced Setup > Routing > Policy Routing and then click Add. The following page appears.

2. Fill in the fields, using the information in the table below.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Policy Name Enter a descriptive name for this entry to the policy routing table. This is a free-form text field. Physical LAN Port Select a physical LAN interface for the policy route. Source IP Enter the IP address for the source of this policy route. Use Interface Select the WAN Interface for this policy route. Default Gateway IP Enter the IP address of the default gateway.

RIP (Routing Information Protocol)

RIP is a type of distance-vector routing protocol, which leverages hop count as a metric for routing. RIP puts a limit on the number of hops (maximum of 15) allowed in order to prevent routing loops. This can sometimes limit the size of networks where RIP can be successfully employed.

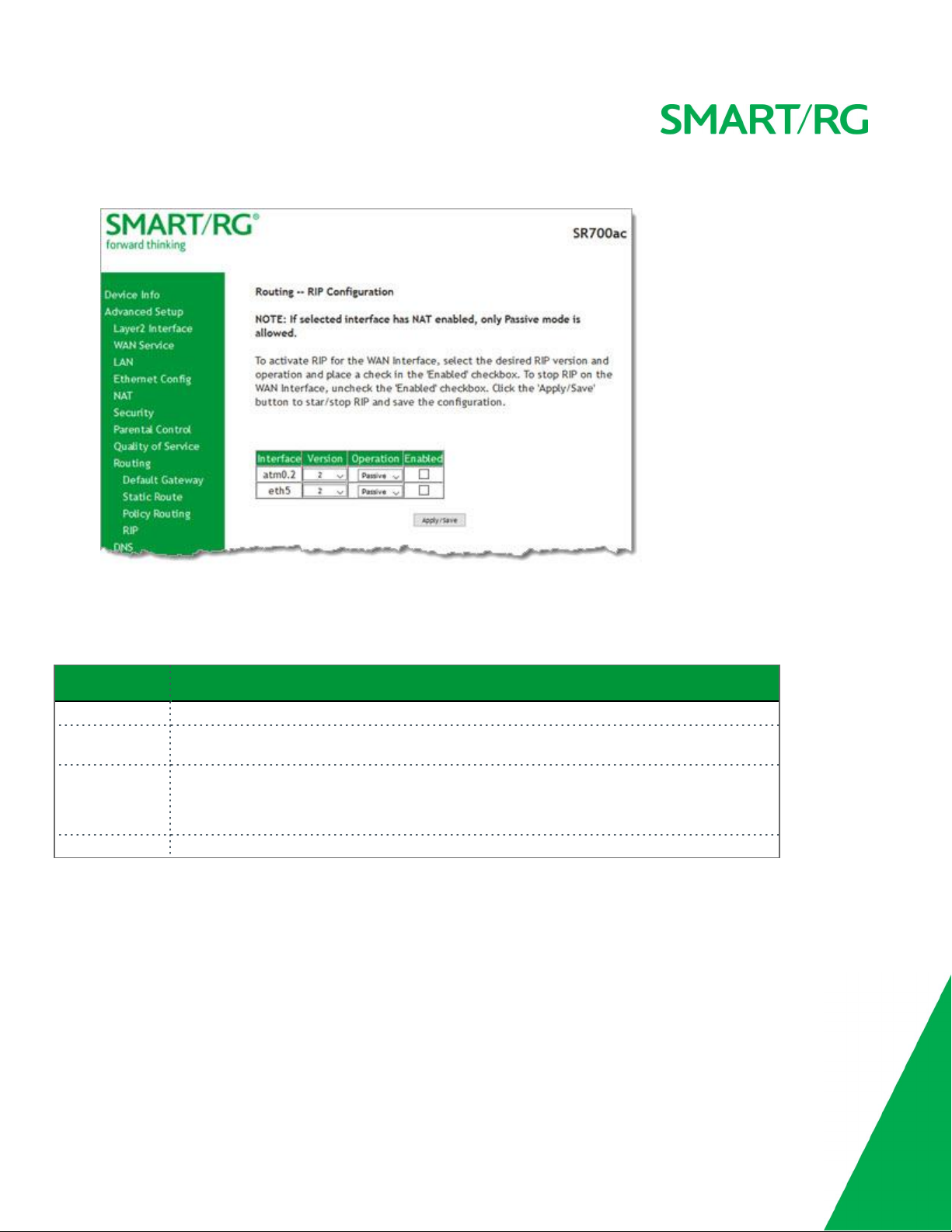

On this page, you can configure the RIP settings.

1. In the left navigation bar, click Advanced Setup > Routing > RIP, and then click Add. The following page appears.

2. Fill in the fields, using the information in the table below.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Interface Available WAN interfaces. Version Select the applicable Routing Interface Protocol version. Options are:1,2, and

default is2.

Operation Select the operation mode. Options are:

l Active: This mode listens and advertises routes. l Passive: This mode listens only. It does not advertise routes. This is the default.

Enabled Click the checkbox to employ RIP on the displayed interface.

Both

. The

DNS

In this section, you can configure a DNS server, dynamic DNS and static DNS.

DNS Server

On this page, you can input the Domain Name Server (DNS) information supplied by your service provider.

1. In the left navigation bar, click Advanced Setup > DNS. The following page appears.

2. Modify the settings as needed, using the information supplied by your provider and that supplied in the table below.

3. Click Apply/Save.

The fields on this page are explained in the following table.

Field Name Description

Select DNS Server Interface from available WAN interfaces

Use the following Static DNS IP address

Obtain IPv6 DNS info from a WAN interface

Use the following Static IPv6 DNS IP address

Select entries in the

Interfaces

least one entry must remain in the column.

Click to use static DNS IP addresses. Then, enter the IP addresses of the primary and secondary DNS servers.

This option is selected by default. Change the value in the

selected

Click to use static DNS IP addresses. Then, enter the IP addresses of the primary and secondary IPv6 DNS servers.

columns and click the arrows to move them left or right. At

field only for IPv6 environments.

Selected DNS Server Interfaces

Available WAN

and

WAN Interface

Dynamic DNS

Dynamic DNS (DDNS) automatically updates a name server in the DNS with the active DNS configuration of its configured hostnames, addresses or other data. Often this update occurs in real time. On this page, you can configure the settings for this feature.

1. In the left navigation bar, click Advanced Setup > DNS > Dynamic DNS and then click Add. The following page appears.

2. Enter your desired settings.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

D-DNS provider Select a dynamic Domain Name Server provider. Hostname Enter the hostname of the dynamic DNS server. Interface Select the gateway WAN interface whose traffic will be pointed at the specified Dynamic DNS provider. Username Enter the username for the dynamic DNS server. Password Enter the password for the dynamic DNS server.

Static DNS

The Static DNS service allows you to resolve DNS queries on the Broadband Router by adding a static host name to the IP Address mappings.

On this page, you can configure up to 10 static DNS entries.

1. In the left navigation bar, click Advanced Setup > DNS > Static DNS and then click Add. The following page appears.

2. In the Host Name field, enter the name of the client computer.

3. In the IP Address field, enter the IP address of the DNS server client used to assist in resolving domain names.

4. Click Apply/Save to commit your changes.

DSL

On this page, you can configure settings for the DSL interface.

Caution: Altering these settings unnecessarily can result in the gateway being unable to attain DSL synchronization.

1. In the left navigation bar, click Advanced Setup > DSL. The following page appears.

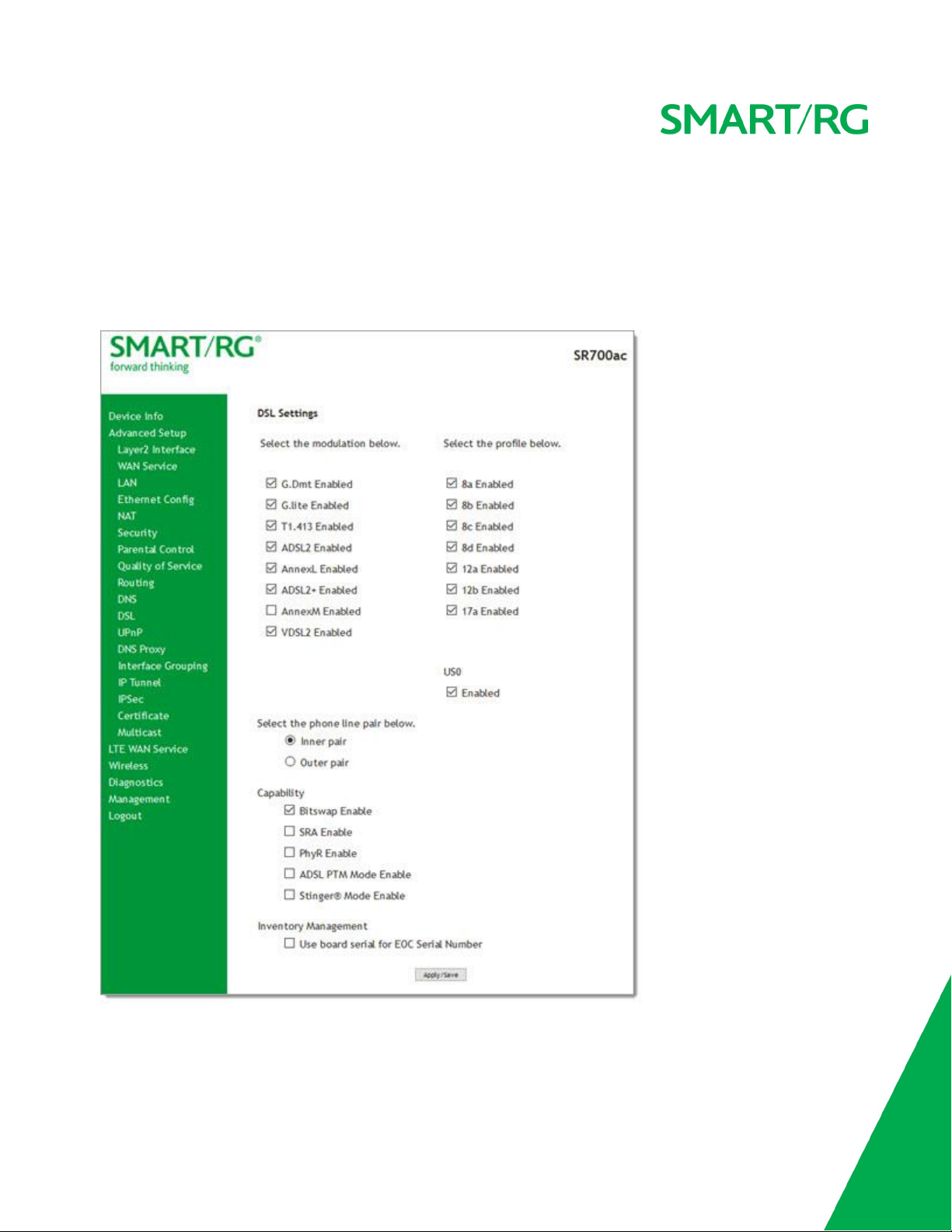

2. Modify the fields as needed.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Modulation Data Transmission Rate Max Downstream

(Mbps)

G.Dmt ITU-T G.992.1 standard. 12 1.3 G.lite ITU-T G.991.2 standard. 4 0.5 T1.413 ANSI T1.413 Issue 2 standard. 8 1.0 ADSL2 ITU-T G.992.3 standard. 12 1.0 AnnexL Annex L of ITU-T G.992.3 standard which supports longer loops but with

reduced transmission rates. ADSL2+ ITU-T G.992.5 standard. 28 1.0 AnnexM Annex L of ITU-T G.992.5 standard which supports extended upstream

24 3

bandwidth. VDSL2 ITU-T G.993.2 standard. 100 60

The following table explains the maximum transaction power for each profile supported for SRG gateways.

Parameter 8a 8b 8c 8d 12a 12b 17a

Max DS Tx Power (dBm) +17.5 +20.5 +11.5 +14.5 Max US Tx Power (dBm) +14.5 Min bidirectional net data rate 50Mbps 68Mbps 100Mbps

Max Upstream (Mbps)

UPnP

On this page, you can enable UPnP when 3rd party devices on your LAN support this Universal Plug and Play standard. Common client devices include gaming consoles, IP cameras, printers and others. This feature is enabled by default.

1. In the left navigation bar, select Advanced Setup > UPnP. The following page appears.

2. To disable this option, click Enable UPnP to clear the box.

3. Click Apply/Save to commit your changes.

DNS Proxy

On this page, you can configure the DNS proxy settings. A DNS proxy improves domain look-up performance for clients by creating a historical cache of look-ups.

1. In the left navigation bar, click Advanced Setup > DNS Proxy. The following page appears. This feature is enabled by default.

2. To disable the DNS proxy feature, click the Enable DNS Proxy checkbox to clear it. The Host name and Domain Name fields are hidden.

3. Click Apply/Save to commit your changes.

Interface Grouping

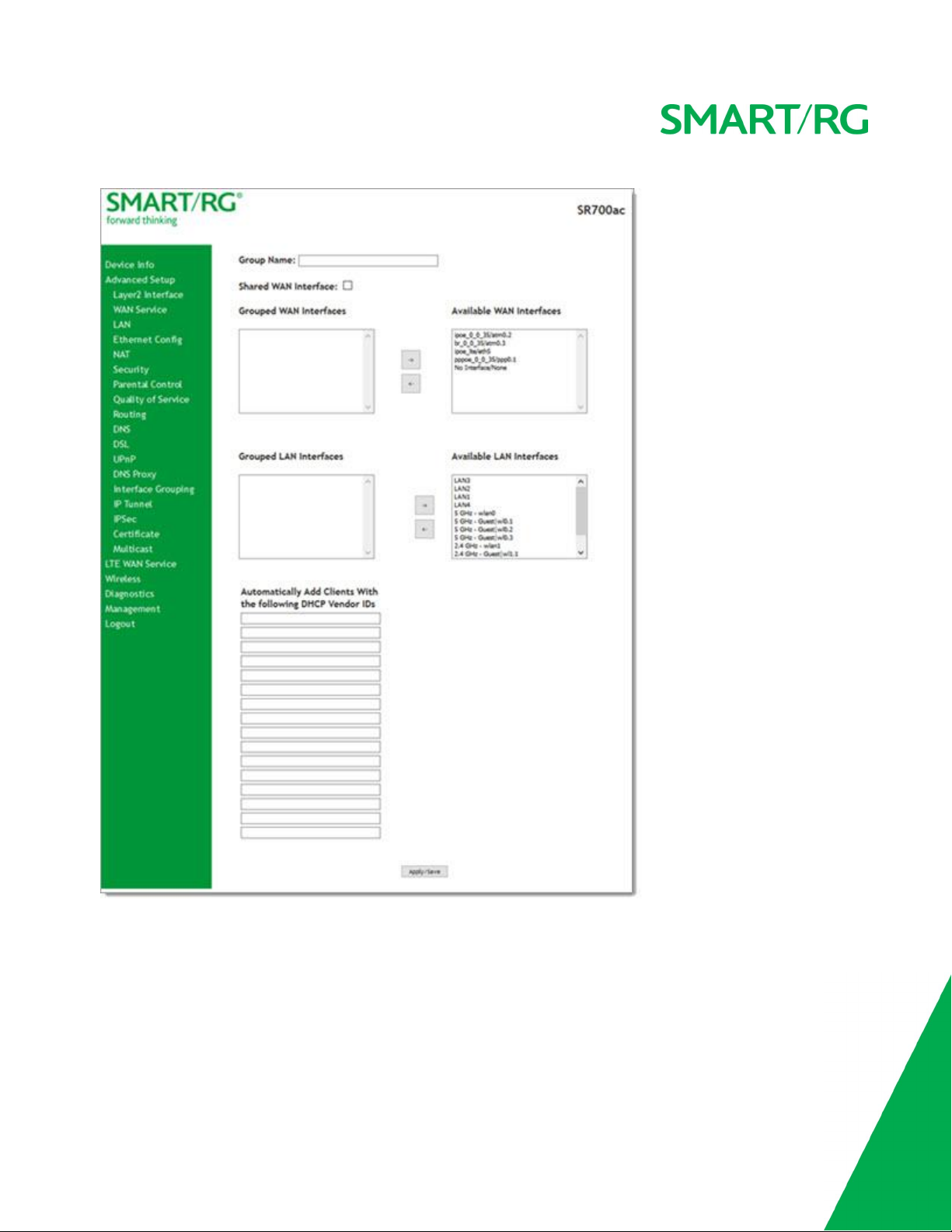

On this page, you can create an interface group to map local interfaces to WAN interfaces. A typical application for this feature is assigning IPTV set-top boxes to a WAN interface.

1. In the left navigation bar, click Advanced Setup > Interface Grouping and then click Add (below the table). The following page appears. (The instructions that display at the top of this page are not shown below).

2. To create a new interface group, enter a unique Group Name, then proceed with either step 3 (dynamic) or step 4 (static) below.

3. If this new grouped interface is to share the WAN interface, click Shared WAN Interface. Not selecting this option this will cause the WAN interface you select to be removed from any other interface groups.

Important: If a vendor ID is configured for a specific client device, make sure to reboot the client device attached to the gate-

way to allow it to obtain an appropriate IP address.

4. In the Available WAN Interfaces list, select the interface(s) that you want to group and click the left arrow to move it to the

Grouped WAN Interfaces list. Hold down the CTRL key or Shift key to select multiple interfaces.

Note: Depending on the WAN interface configuration, these clients may obtain public IP addresses.

5. Do the same in the Grouped and Available LAN Interfaces lists for any applicable LAN interfaces.

6. To automatically add LAN clients (such as set-top boxes) to a WAN Interface in the new group, enter the DHCP vendor ID string. You can add up to 16 vendor IDs. When you configure a DHCP vendor ID string, any DHCP client request that includes this vendor ID is denied an IP address from the local DHCP server (DHCP option 60).

7. Click Apply/Save. Your changes take effect immediately.

8. To remove a grouping, select the grouping and click Remove. You can only remove groupings that you create.

IP Tunnel

IP Tunneling is typically used as a means to establish a path between two independent networks. Your SmartRG gateway supports connecting islands of IPv6 networks across the IPv4 internet or IPv4 in IPv6 as well.

In this section, you can configure IP tunnel settings.

Note: For IPv6inIPv4, only 6rd configuration is supported. For IPv4inIPv6, only DS-Lite configuration is supported.

IPv6inIPv4

On this page, you can configure the IPv6inIP4 settings.

1. In the left navigation bar, click Advanced Setup > IP Tunnel > IPv6inIPv4 and then click Add. The following page appears.

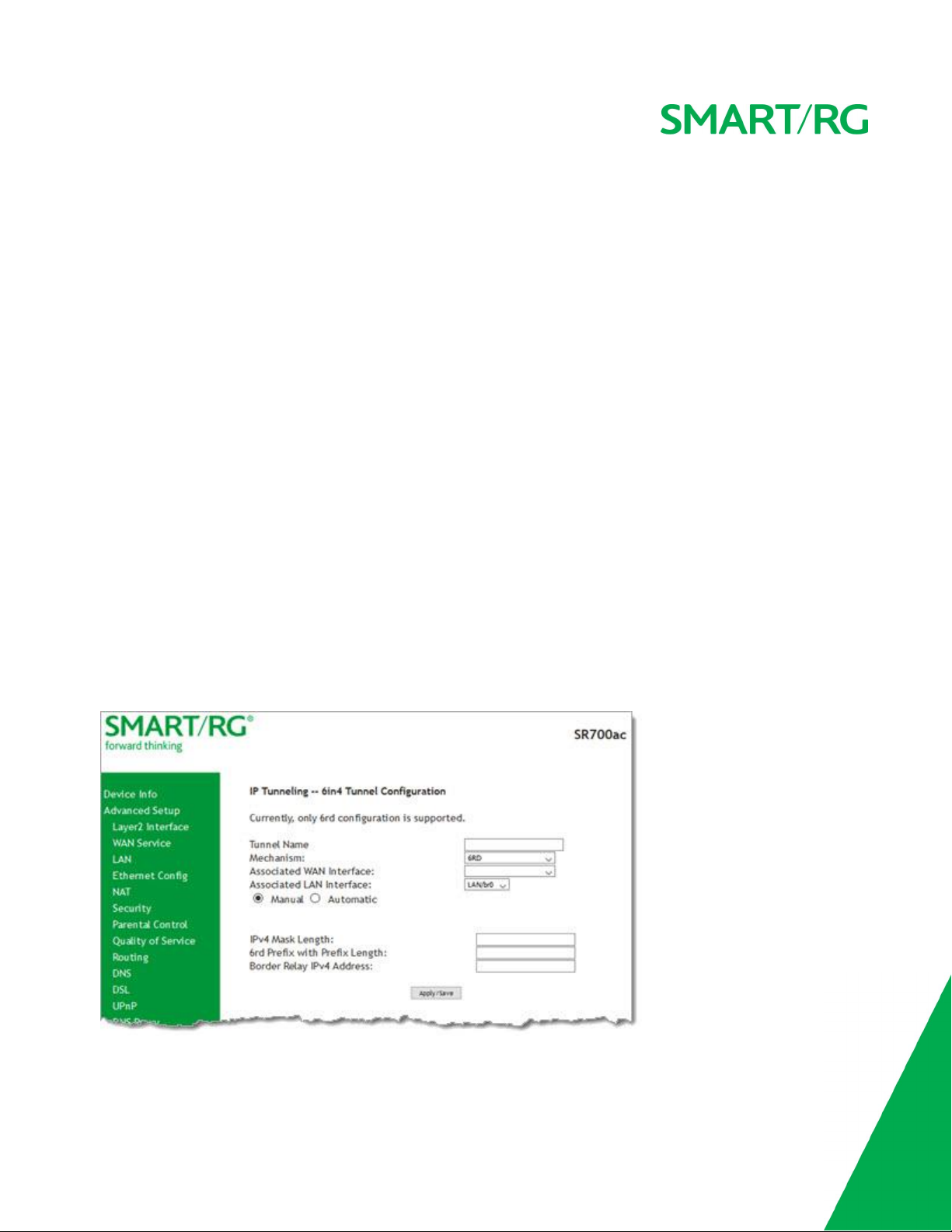

2. Enter a Tunnel Name.

3. Select the WAN and LAN interfaces associated with the tunnel you wish to establish. The Manual button is selected by default.

4. Enter the appropriate values in the IPv4 Mask Length, 6rd Prefix with Prefix Length and Border Relay IPv4 Address fields.

5. Click Apply/Save to commit your changes.

IPv4inIPv6

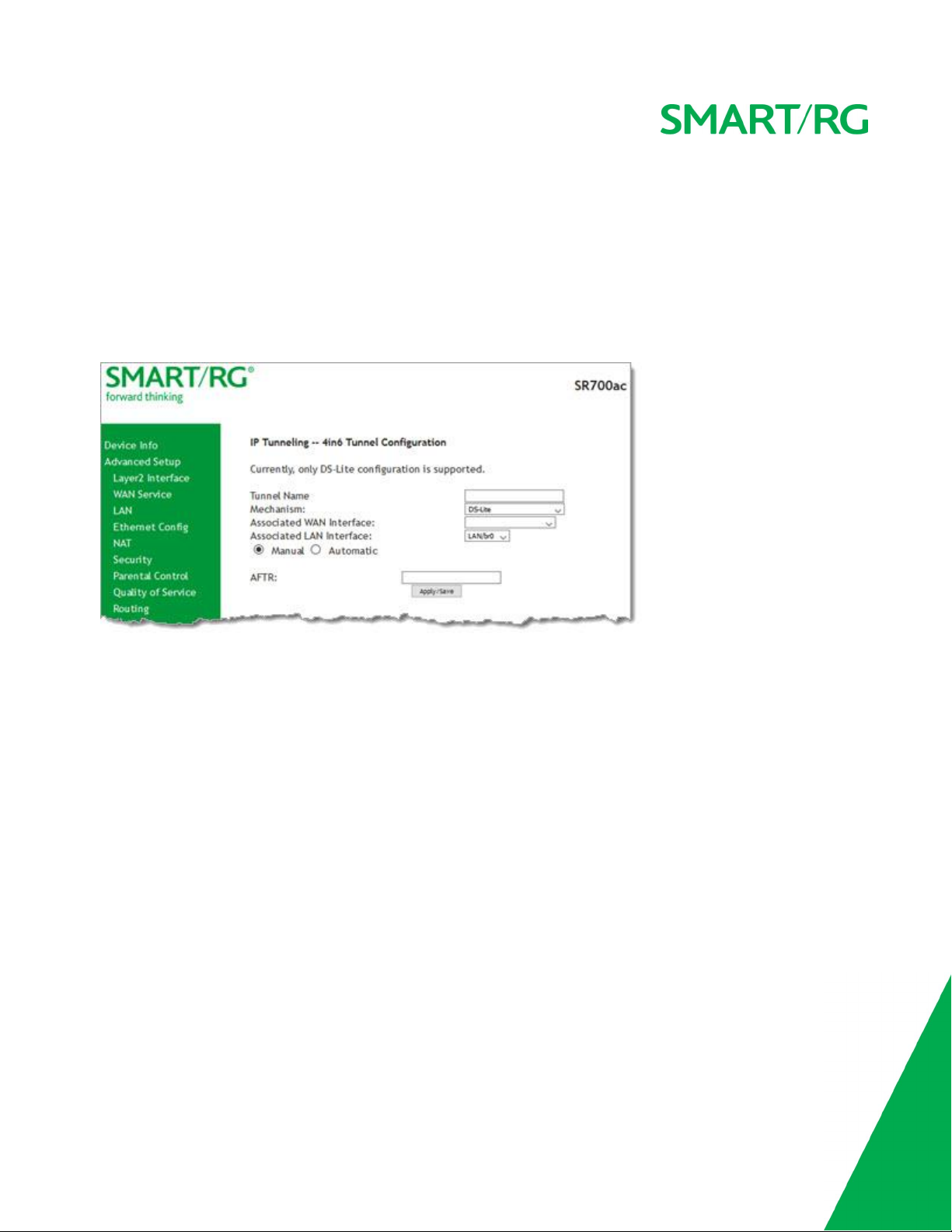

On this page, you can configure the IPv4inIP6 settings.

1. In the left navigation bar, click Advanced Setup > IP Tunnel > IPv6inIPv4 and then click Add. The following page appears.

Note: Currently, only the DS-Lite mechanism is supported.

2. Enter a brief descriptive Tunnel Name.

3. Select the LAN and WAN interfaces associated with the tunnel you wish to establish.

4. In the AFTR field, enter the Address Family Transition Router remote address.

5. Click Apply/Save to commit your changes.

IPSec

Internet Protocol Security is a protocol for securing communications by packet level encryption and authentication.

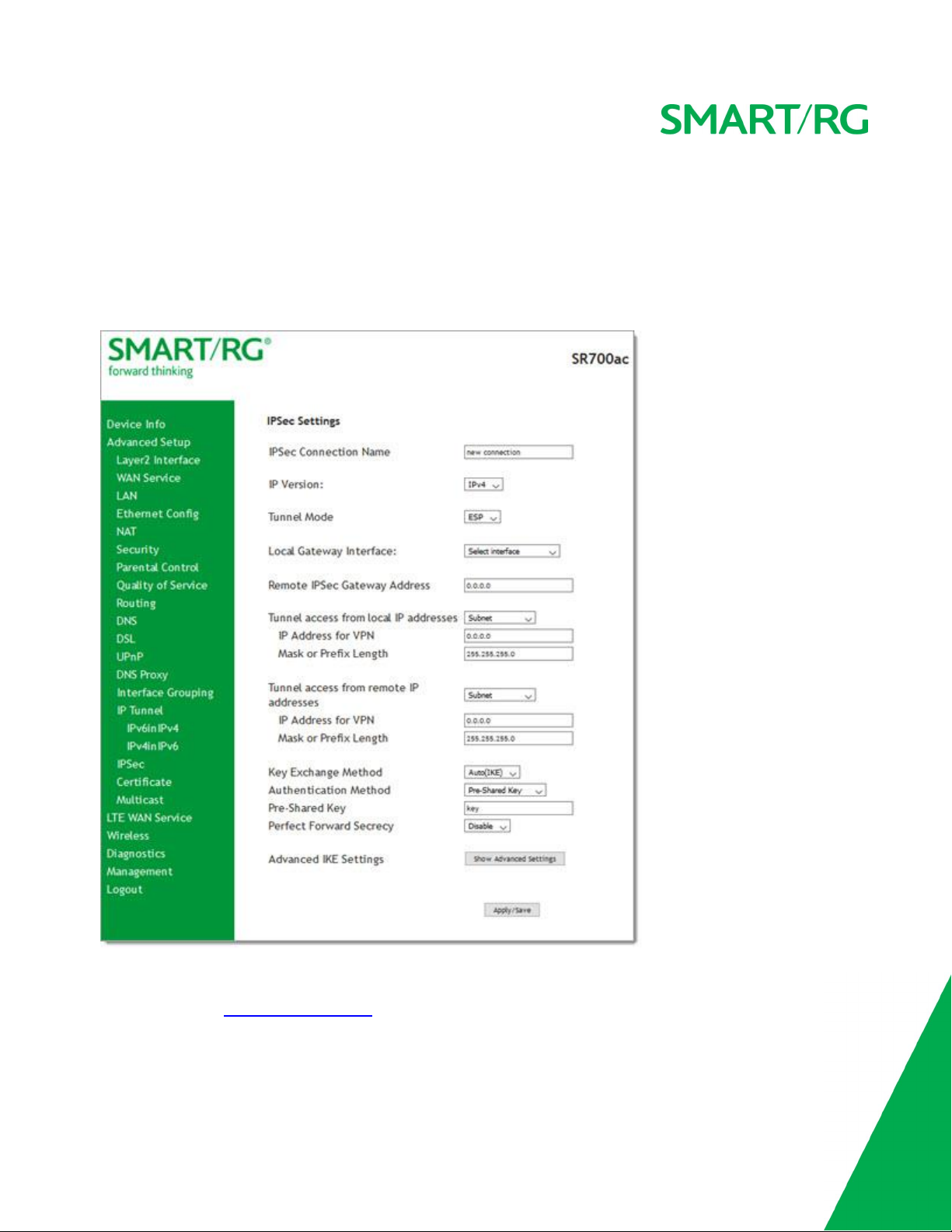

On this page, you can enable and remove connections, or edit existing connections.

1. In the left navigation bar, click Advanced Setup > IP Sec and then click Add New Connection. The following page appears.

2. Enter your connection details by completing the appropriate fields.

3. If desired, click Advanced IKE Settings to select Phase 1 and Phase 2 specific parameters. For detailed information about these settings, see "Advanced IKE Settings".

4. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

IPSec Connection Name A free form text field. Enter a descriptive name for this connection IP Version Select the IP version environment associated with your infrastructure. Options are

IPv4

and

IPv6

Tunnel Mode Select the encapsulation method to be used. Options are:

l ESP: Use this mode to encapsulate a packet with ESP and IP headers. An ESP trailer is added to

the packet for authentication and integrity.

l AH: Use this mode to encapsulate a packet with AH and IP headers. For authentication, the

entire packet is signed.

Local Gateway Interface Select the WAN connection to be associated with this tunnel. Remote IPSec Gateway

Enter the WAN IP for this tunnel.

Address Tunnel Access From Local

IP Addresses

Select IP information for site A and B. Options are:

l Subnet: Allows access to the entire LAN. l Single Address: For single host, select this option.

IP Address for VPN Enter the IP address for local access. Mask or Prefix Length Enter the subnet mask or prefix length for IP address entered for local access, e.g., 255.255.255.0. Tunnel Access From

Remote IP Addresses

Select IP information for site A and B. Options are:

l Subnet: Allows access to the entire LAN. l Single Address: For single host, select this option.

IP Address for VPN Enter the IP address for remote access. Mask or Prefix Length Enter the subnet mask or prefix length for IP address entered for remote access, e.g., 255.255.255.0. Key Exchange Method The key-exchange method to be used for IPSec. Options are:

l Auto(IKE): This method uses the negotiated key-exchange method for IPSec. This is the default

and recommended for best results.

l Manual: This method requires that you configure the details.

Authentication Method Select the method by which the remote end will authenticate. Options are:

l Pre-Shared Key: A key is distributed to authorized users for logging into the system. Enter the

key in the Pre-shared Key field.

l Certificate (x.509): A certificate is used for authentication. Select the certificate file in the

Certificate field that appears.

Perfect Forward Secrecy This setting determines whether a session key derived from a set of long-term keys is compromised if

one of the long-term keys in the set is compromised.

l Enable: Prevents long-term key from being compromised. l Disable: Permits long-term keys to be compromised.

Advanced IKE Settings

You can configure advanced IKE settings if desired.

1. On the IPSec Settings page, click Show Advanced IKE Settings to display the Phase 1 and Phase 2 fields.

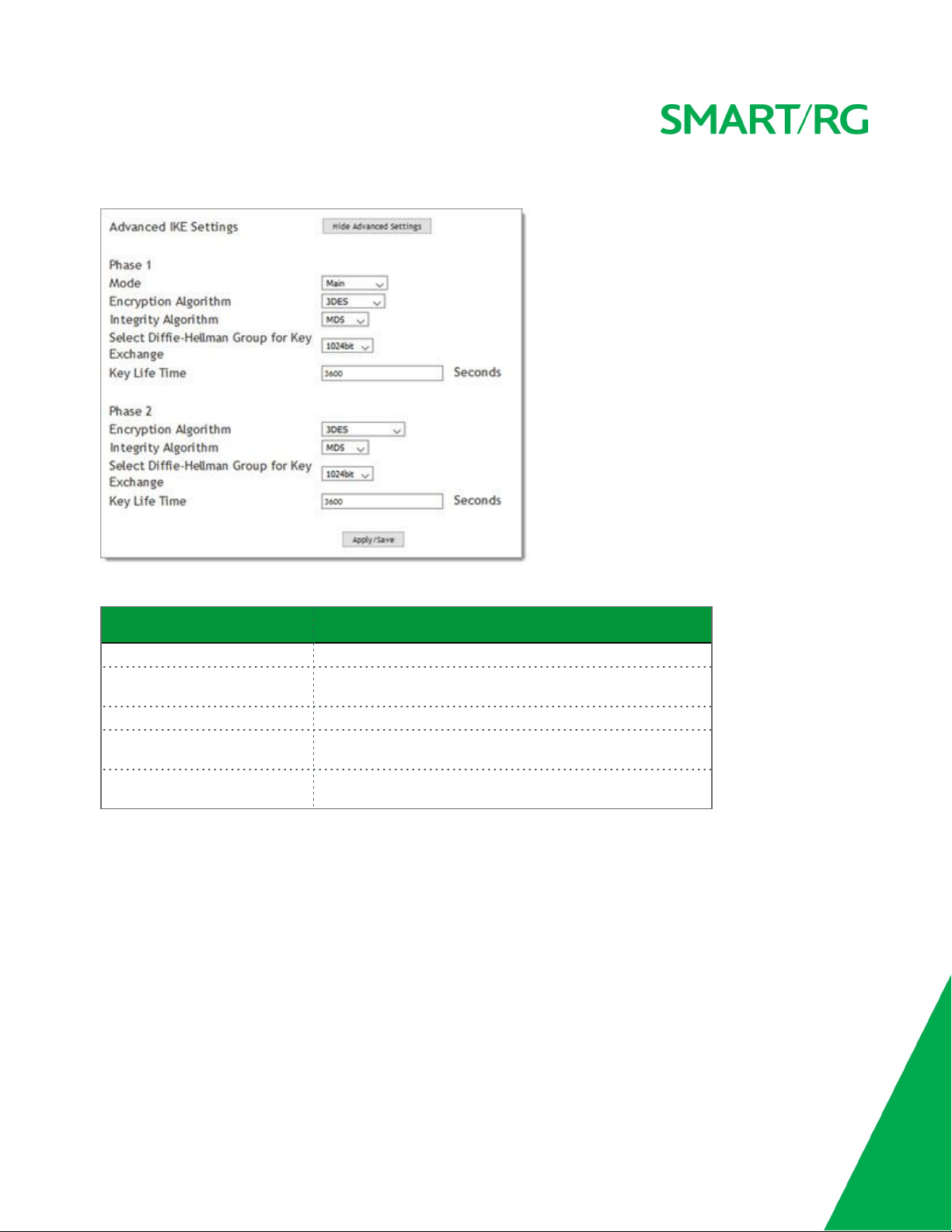

2. Fill in the fields, using the information in the table below.

Field Name Description

Mode Select a mode. Options are Encryption Algorithm Select the encryption algorithm. Options are

Integrity Algorithm Select the integrity algorithm. Options are Select Diffie-Hellman Group for

Key Exchange Key Life Time Enter the number of seconds that a key is valid. The default

3. Click Apply/Save to commit your changes.

128,AES-192

Select the D-H group. Options are default is

3600

1024bit

seconds.

, and

AES-256

Main

Aggressive

and

3DES,AES -

MD5

768bit-8192bit

and

SHA1

. The

Certificate

On this page, you can configure certificates for the gateway. You can use Local and Trusted CA certificates on this gateway.

Local

Local certificates are used to identify the gateway to other users.

On this page, you can create a new certificate request locally and have it signed by a certificate authority, or you can import an existing certificate.

1. In the left navigation bar, click Advanced Setup > Certificate > Local and then click Create Certificate Request. The following page appears.

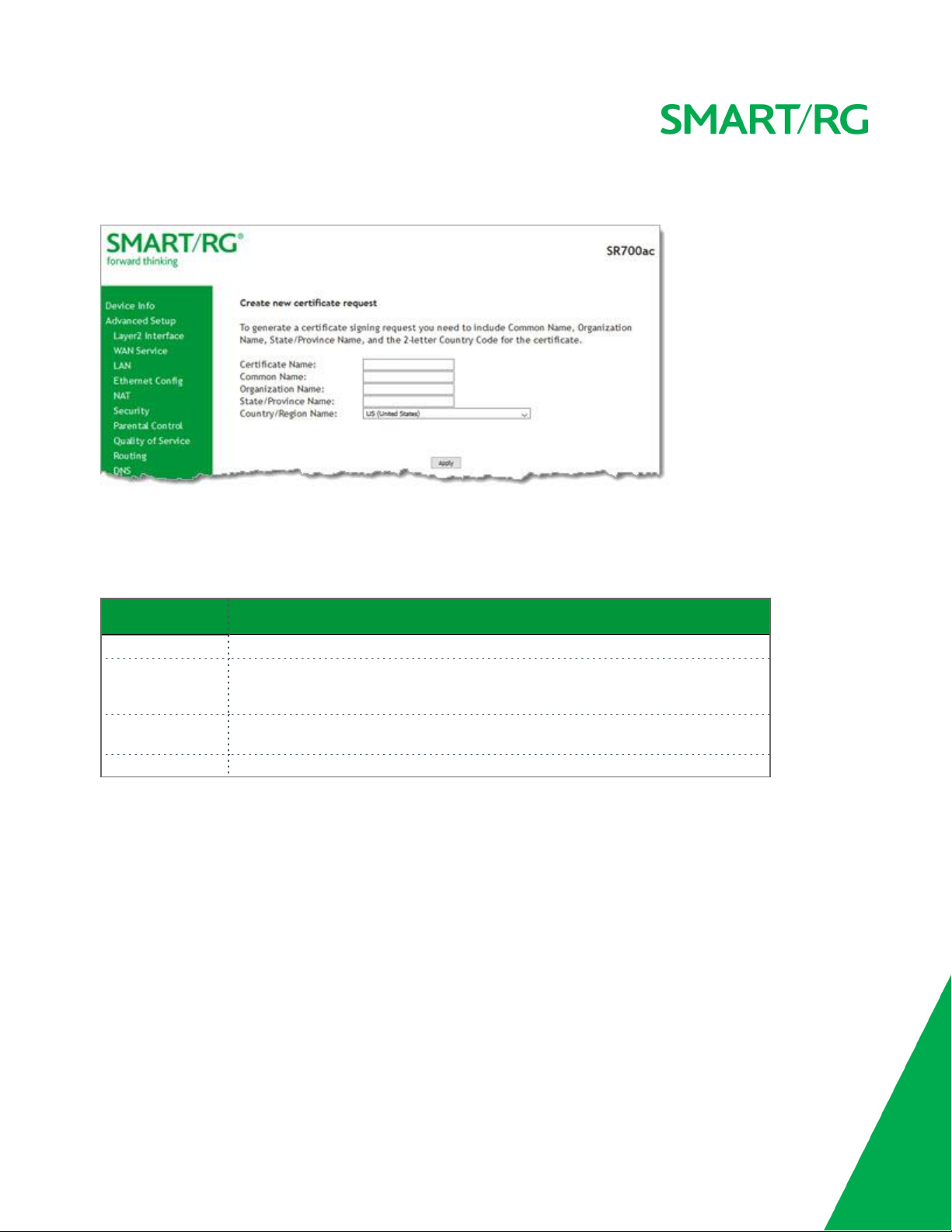

2. Enter your connection details by completing the appropriate fields. For more information about certificates, refer to the ITU X.509 standard.

3. Click Apply to complete the request.

The fields on this page are explained in the following table.

Field Name Description

Certificate Name A free-form text field used to describe the intended use of the certificate. Common Name Enter the IP address (in dotted decimal notation), domain name or email address in

the field provided. The domain name or email address is for identification purposes and is a free-form text field.

Organization Name Enter the organization for which this certificate is requested. Typically, this is the

name of the company creating the request.

Country/Region Select the country or region in which this certificate will be employed.

4. To import a certificate and the corresponding private key, click Import Certificate. The following page appears.

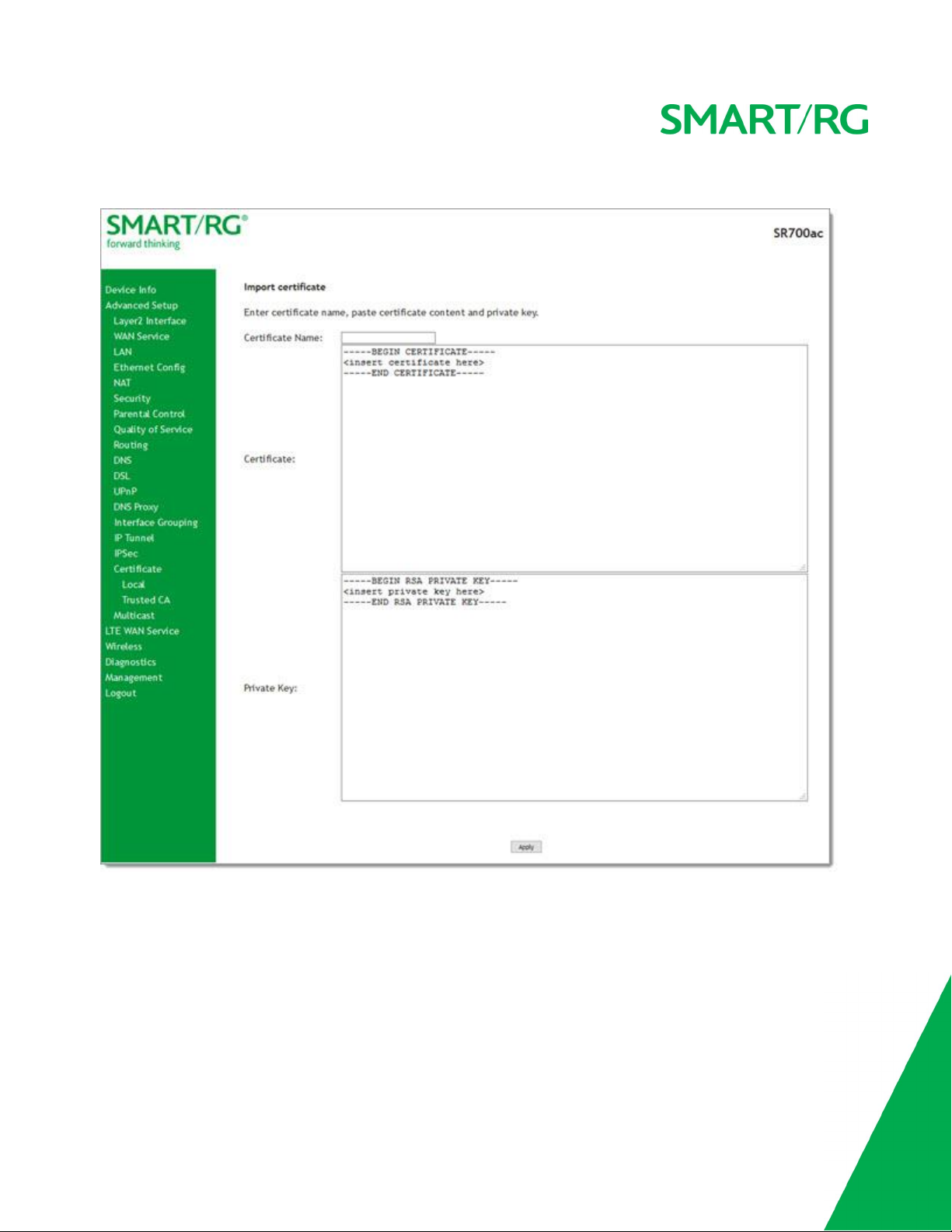

5. In the Certificate Name field, type "cpecert".

6. Paste the Certificate details between the BEGIN and END markers.

7. Paste the Private Key information between the BEGIN and END markers.

8. Click Apply to implement this certificate.

Trusted CA

On this page, you import and store up to four trusted certificates. Trusted Certificates are used to identity other gateways to your gateway as a trusted source.

1. In the left navigation bar, click Advanced Setup > Certificate > Trusted CA and then click Import Certificate. The following page appears.

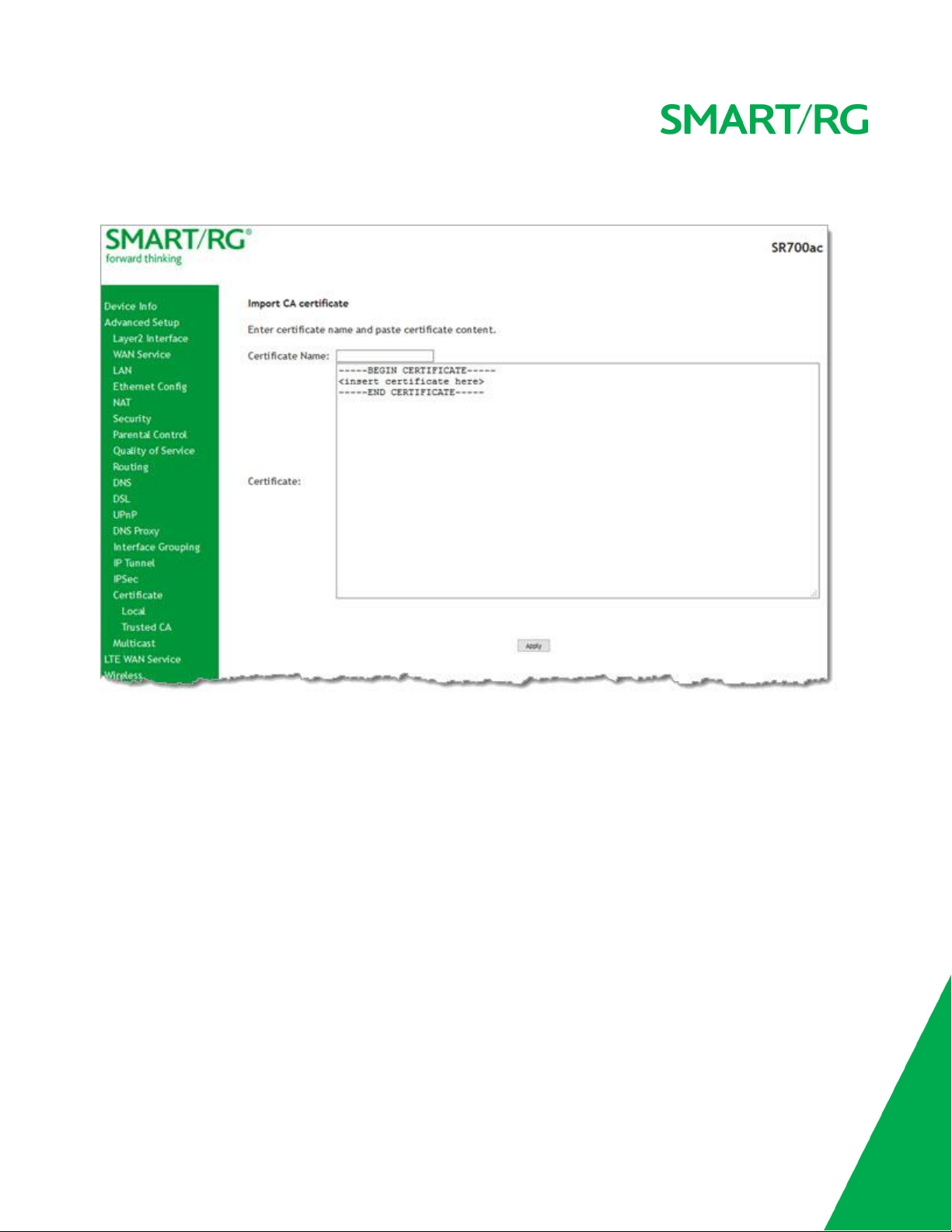

2. In the Certificate Name field, type "acscert", and then paste the certificate details between the BEGIN and END markers.

3. Click Apply to commit this certificate.

After you add one certificate, a Remove button appears on the Trusted CA landing page. Click this button to remove the current certificate and replace it with a new one.

Multicast

Multicast methodology is used for applications shipping information simultaneously to multiple destinations. The most common scenario is Internet television and other streaming media. In IP Multicast, the implementation occurs at the IP routing level, where routers create the most efficient distribution paths for packets sent to a destination.

On this page, you can configure the multicast settings.

1. In the left navigation bar, select Advanced Setup > Multicast. The following page appears.

2. In the Multicast Precedence field, select whether IGMP packets are given priority handling and at what level. Options are:

l Disable: IGMP packets are not prioritized. This is the default. l Enable: IGMP packets are prioritized using the multicast precedence value. The lower the multicast precedence

value, the higher that IGMP packets will be placed in the queue.

3. In the Multicast Strict Grouping Enforcement field, select whether grouping is stricly enforced. Options are Disable and Enable. The default is Disable.

4. Modify the other fields as needed, using the information in the table below. The same fields are provided for both IGMP and MLD configuration.

5. To add an IPaddress to a group exception list, type the IP address and mask/mask bits in the appropriate fields and click Add.

6. Click Apply/Save to commit your changes.

7. To remove an IP addresses from a group exception list, click the Remove checkbox next to the address and then click

Remove Checked Entries.

The fields on this page are explained in the following table.

Field Name Description

Default Version Enter the supported IGMP version. Options are:1-3. Query Interval The interval at which the multicast router sends a query messages to hosts,

expressed in seconds.

If you enter a number below 128, the value is used directly. If you enter a number 128, it is interpreted as an exponent and mantissa.

Query Response Interval

Upon receiving a query packet, a host begins counting down seconds, from a random number. When the timer expires, the host sends its report.

Enter the maximum number of seconds that a host can pick to count down from. The value must be greater than the Query Interval. If using IGMP v1, this value is fixed at 10 seconds.

Last Member Query Interval

Enter the maximum response time within which the host must respond to the Out of Sequence query from the router. The default is

1000ms

IGMP uses this value when the router receives an IGMPv2 Leave report indicating at least one host wants to leave the group. Upon receiving the Leave report, the router verifies whether the interface is configured for IGMP Immediate Leave. If not, the router sends the out-of-sequence query.

Robustness Value Enter the value representing the complexity of the query. The greater the value,

the more robust the query. Options are:2-7.

Maximum Multicast

Enter the maximum number of groups allowed.

Groups Maximum Multicast

Enter the maximum number of data sources allowed. Options are:1-24.

Data Sources Maximum Multicast

Group Members

Enter the maximum number of multicast groups that can be joined on a port or group of ports.

Fast Leave Enable Select whether the IGMP proxy removes group members immediately without

sending a query. Options are:

Field Name Description

l Enabled: Group members are removed immediately. l Disabled: Group members are removed after a query is sent and a

response received.

LTE WAN Service

In this section, you can view LTE WAN status and configure the related network settings.

Status Information

On this page, you can view information about the LTE connection between your provider and your gateway.

In the left menu, click LTE WAN Service > Status Information. The following page appears.

The fields on this page are explained in the following table.

Field Name Description

SIM status

SIM State of the SIM card if inserted into the SIM slot on the rear of the SR700ac. Options are READY and

LTE Module Info

Manufacturer Manufacturer of the LTE Module.

section

NA.

section

Field Name Description

Model Model of the LTE Module. Firmware Version Firmware version of the LTE Module IMEI International Mobile Equipment Identity is a unique 15-digit number used to identify valid equip-

ment on a network provider.

IMSI International Mobile Subscriber Identity is a unique number stored on the SIM Card used to identify

the subscriber of the network provider.

LTE Information

Network Connected Status State of the LTE connection. Options are

Signal Quality Quality of the LTE signal. Options are RSSI Received Signal Strength Indicator. The measured dBm level of the received radio signal with the

IPv4 Address IPv4 Address for the LTE connection.

section

4G Connected,3G Connected,Disconnected,Not

Attached

network provider. If no signal is found, “No Signal” appears in this field.

SIM Card not detected

, and

Excellent,Average,Poor

, and

No Signal

Network Settings

On this page, you can configure the Network Settings of the LTE connection between your provider and your gateway.

1. Insert the SIM card received from your network provider into the SIM card slot on the back of the SR700ac with the gold contacts facing up. Note: The SIM card slot is located beneath the black WAN Ethernet port on the back of the gateway.

2. In the left navigation bar, click LTE WAN Service > Network Settings. The following page appears.

3. Modify the settings as needed, using the information provided in the table below.

4. Click Save to commit your changes. Note: The settings take up to 90 seconds to save.

The fields on this page are explained in the following table.

Field Name

Network Mode

Network Dial Mode

APN Settings

APN Name

Description

section

Select the Network Dial Mode. Options are 4G/3G Auto, 4G Only, and 3G Only.

section

Enter the Access Point Name for your network provider.

Wireless

In this section, you can configure the wireless interface settings for your gateway, including basic and advanced settings, MAC filtering, and wireless bridging.

Note: While separate pages are provided for both wireless bands (2.4 Ghz and 5 Ghz), the fields are the same for both bands.

Basic

On this page, you can configure basic features of the Wi-Fi LAN interface. You can enable or disable the Wi-Fi LAN interface, hide the network from active scans, set the Wi-Fi network name (also known as SSID) and restrict the channel set based on country requirements.

1. In the left navigation bar, click Wireless. The following page appears.

Note: Menu options appear for both wireless channels. Click the wireless channel that you want to configure and proceed

with configuration. The same fields are available for both channels.

2. Modify the settings as desired, using the information provided in the table below. The table at the bottom of the page lists the guest/virtual access points defined for your gateway. If desired, you can define up to three virtual access points for guest use.

3. Click Apply/Save to commit your settings.

The fields on this page are explained in the following table.

Field Name Description

Enable WiFi Button This option is enabled by default. To disable the gateway's Wi-Fi button, click

the checkbox to clear it.

Enable Wireless This option is enabled by default. To disable the gateway's Wi-Fi radio, click

the checkbox to clear it.

Hide Access Point Click to hide the access point SSID from end users.

Field Name Description

Clients Isolation Click to prevent LAN client devices from communicating with one another on

the wireless network.

Disable WMM Advertise Click to stop the wireless from advertising Wireless Multimedia (WMM) func-

tionality. WMM provides basic Quality of Service (QOS) for applications.

Enable Wireless Multicast Forwarding

SSID Enter the Wi-Fi SSID. BSSID Enter the Basic Service Set Identifier (BSSID) to provide the MAC address

Country Select the country in which the gateway is deployed. Country RegRev Enter the revision number of the regulations being followed for the selected

Max Clients Enter the maximum number of clients that can access the route wirelessly.

Wireless - Guest/Virtual Access Points

Enabled Click to enable a virtual wireless access point for guest access. SSID Enter your wireless SSID. Hidden Click to hide the SSID from being broadcast publicly. Isolate Clients Click to prevent client PCs from communicating with one another. Disable WMM Advertise Click to stop the wireless from advertising Wireless Multimedia (WMM) func-

Enable WMF Click to enable Wireless Multicast Forwarding (WMF). Max Clients Enter the maximum number of clients allowed for this wireless channel. BSSID Displays the Basic Service Set Identifier or

Click to enable Wireless Multicast Forwarding (WMF). Multicast traffic is forwarded across wireless clients.

assigned to the wireless router.

country. The default is0.

table

tionality.

N/A

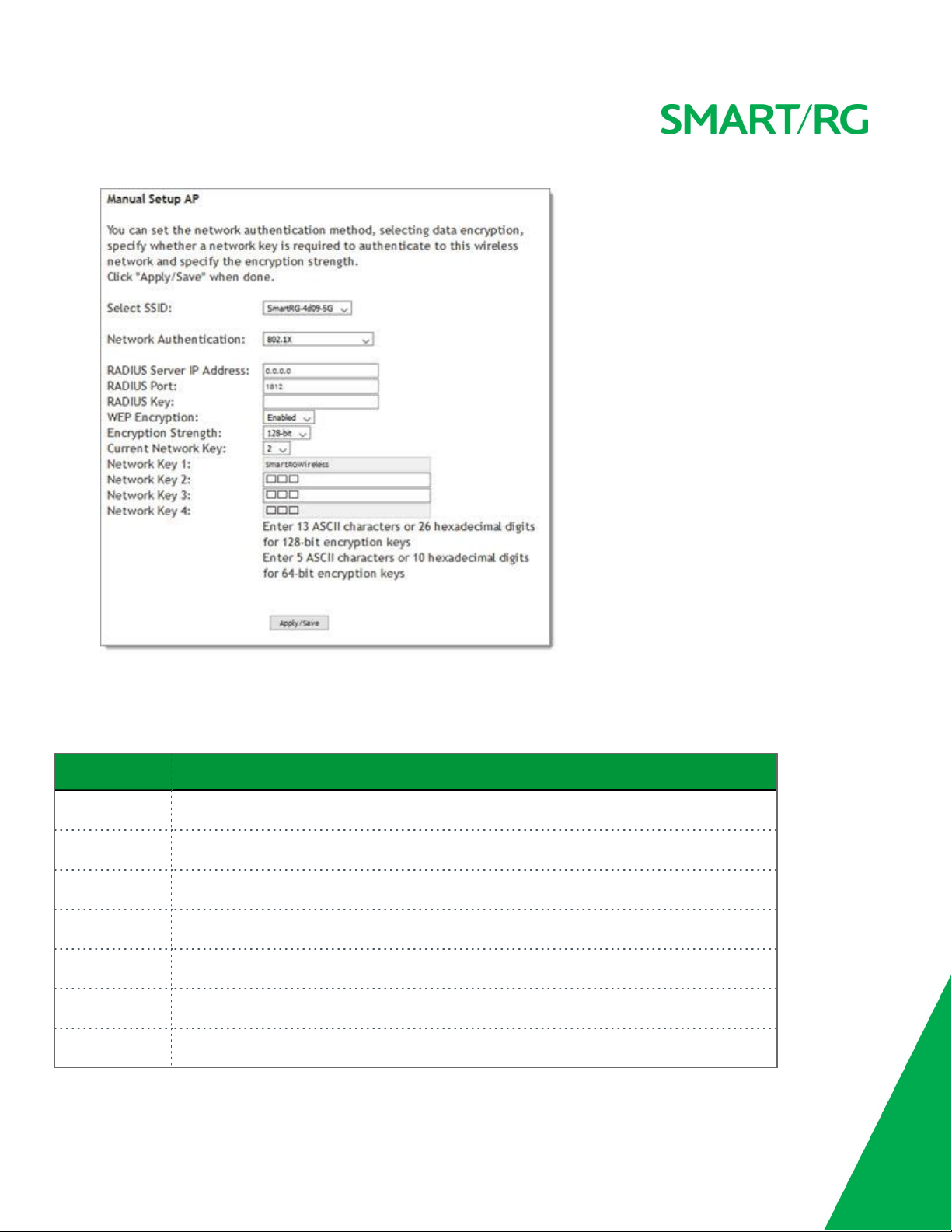

Security

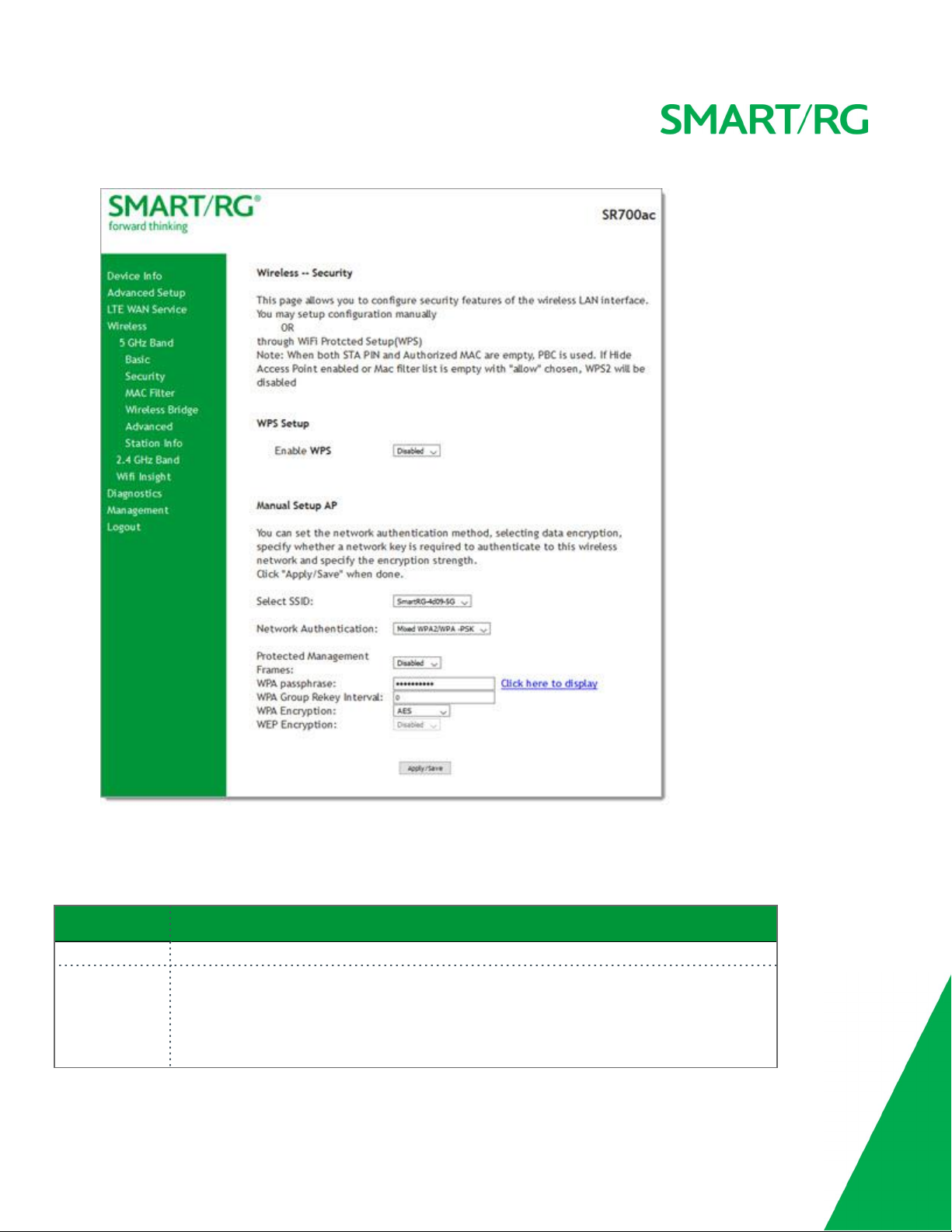

On this page, you can configure security features of the wireless LAN interface, either manually or via Wi-Fi Protected Setup (WPS).

Note: When WPS is enabled, the STA PIN and Authorized MAC fields appear. If both of these fields are empty, PBC becomes the default value. If Hide Access Point is enabled or the MAC filter list is empty with "Allow" selected, WPS2 will be disabled.

1. In the left navigation bar, click Wireless > Security. The Security page appears for the 5 GHz band page. To configure the 2.4 GH band, click 2.4 Ghz Band in the left menu.

2. Modify the settings as needed, using the information provided in the field description table.

3. Click Apply/Save to commit your changes.

The fields on this page are explained in the following table.

Field Name Description

Enable WPS Select to enable Wi-Fi Protected Setup. Options are: Add Client (

Appears when WPS is enabled

Enter STA PIN

Use AP PIN

and

) Select the method for generating the WPS PIN. Options are:

Enabled

and

Disabled

To add an enrollee station, click Add Enrollee.

Note: If the PIN and Set Authorized Station MAC fields are left blank, the PBC (push-button)

Field Name Description

mode is automatically made active.

Set WPS AP Mode (

Device PIN (

Appears when WPS is enabled

l Configured: The gateway assigns security settings to clients. l Unconfigured: An external client assigns security settings to the gateway.

Appears when WPS is enabled

) Select how security is assigned to clients.

) The PIN for the gateway. This value is generated by the access

point.

Manual Setup AP

section Select SSID Select the SSID of the wireless network to which this security configuration will apply. Network

Authentication

Select the desired network security authentication type. Options are:

WPA2,WPA2-PSK,Mixed WPA2/WPA

Mixed WPA2/WPA-PSK

, and

Open,Shared,802.1X

The fields shown in the Manual Setup AP section of the page vary based on the network authentication method that you select. The variations are explained in the following sections:

l "Open & Shared Authentication" l "802.1X Authentication" l "WPA2 & Mixed WPA2/WPA Authentication" l "WPA2-PSK & Mixed WPA2/WPA-PSK Authentication"

Open & Shared Authentication

The same configuration fields apply for both Open and Shared authentication types. However, WPS may not be used with the Shared method.

1. On the Wireless > Security page for the band that you want to configure, select Open or Shared in the Network Authentic-

ation field.

2. For Open authentication, in the Enable WPS field, select Enabled. The following fields appear. Note: For Shared authentication, this option is set to Disabled and cannot be changed.

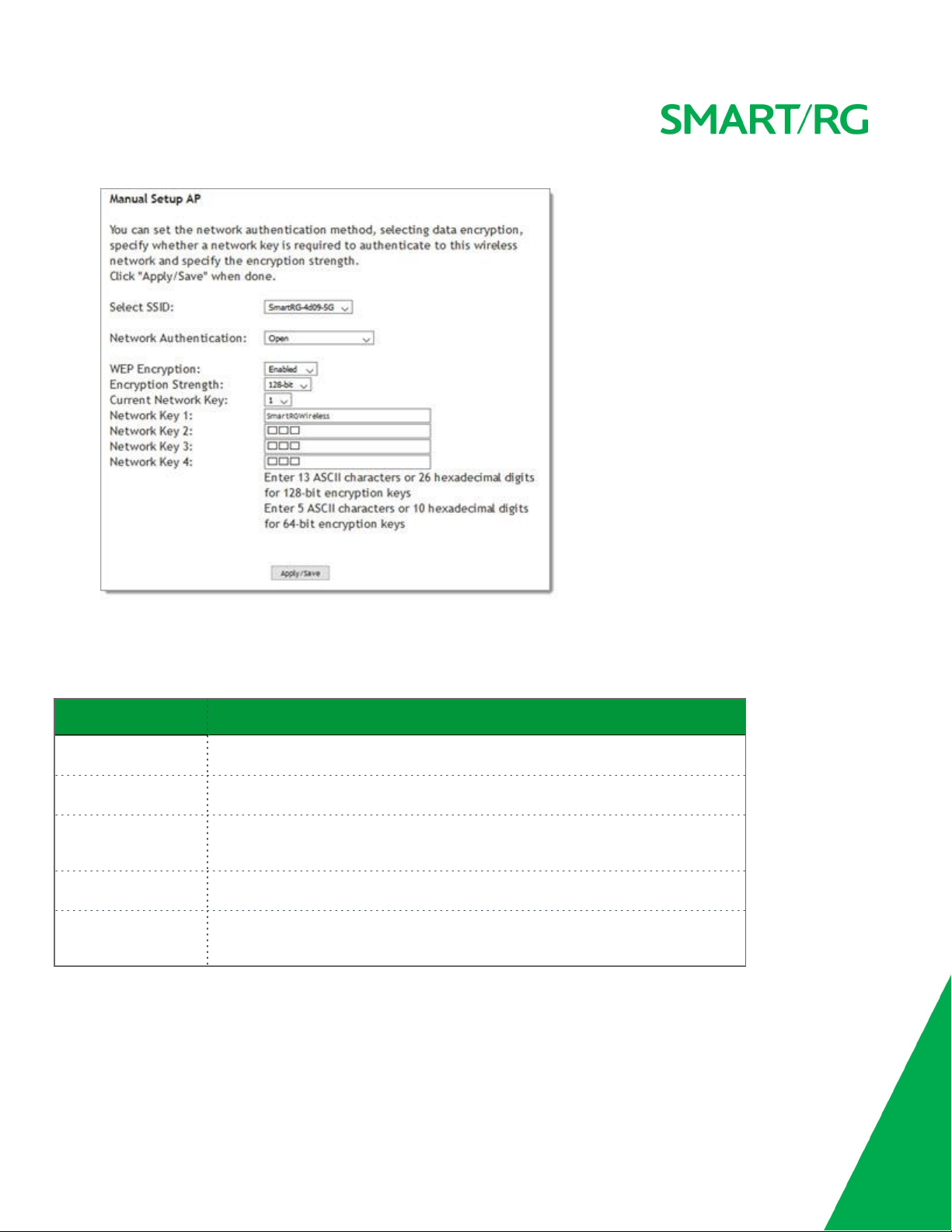

3. Fill in the fields, using the information in the field description table below.

4. Click Apply/Save to save the settings.

The fields on this page are explained in the following table.

Field Name Description

Select SSID Select the SSID of the wireless network to which this security configuration will

apply.

WEP Encryption Select to enable Wired Equivalent Privacy (WEP) mode. Options are

Encryption Strength (

Current Network Key (

Network Key 1-4 (

Disabled

Appears when WEP Encryption is set to Enabled

tion method. Options are security.

Appears when WEP Encryption is set to Enabled

presently in effect.

Appears when WEP Encryption is set to Enabled

keys using the on-screen instructions to achieve the desired security strength (128bit or 64-bit).

128-bit

and

64-bit

) Select the length of the encryp-

. 128-bit is the more robust option for

) Select which of the four keys is

) Enter up to four encryption

Enabled

and

802.1X Authentication

1. On the Wireless > Security page for the band that you want to configure, select 802.1X in the Network Authentication field. The following fields appear.

2. Fill in the fields, using the information in the field description table below.

3. Click Apply/Save to save the settings.

The fields on this page are explained in the following table.

Field Name Description

RADIUS Server IP address

RADIUS Port Enter the port number for the RADIUS server. Port

RADIUS Key (

Enter the IP address of the RADIUS (Remote Authentication Dial In User Service) server associated with your network.

1812

is the current standard for RADIUS

authentication per the IETF RFC 2865. Older servers may use port

Optional

) Enter the encryption key (if required) needed to authenticate to the specified

1645

. Options are1-

65535

RADIUS Server.

WEP Encryption Wired Equivalent Privacy (WEP) encryption mode is enabled by default and cannot be

changed.

Encryption Strength

Current Network

Select the length of the encryption method. Options are more robust option for security.

Select which of the four keys is presently in effect.

128-bit

and

64-bit

. 128-bit is the

Key Network Key 1-4 Enterone or two encryption keys using the on-screen instructions to achieve the desired secur-

ity strength (128-bit or 64-bit).

SmartRG SR700A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Welcome!

Purpose & Scope

Intended Audience

Getting Assistance

Copyright and Trademarks

Disclaimer

Getting Familiar with your Gateway

LED Status Indicators

Connections

POWER

External Buttons

WPS Button

WiFi or WLAN Button

Reset Button

Installing your SR700ac Gateway

Logging into your Gateway's UI

Device Info

Summary

Statistics

WAN Service

xDSL

References

Route

DHCP

CPU & Memory

Advanced Setup

Layer2 Interface

ATM Interface

PTM Interface

ETH Interface

WAN Service

xPPP over Ethernet

IP over Ethernet

Bridging

IPv6 Autoconfig

Ethernet Config

Virtual Servers

Port Triggering

DMZ Host

Security

IP Filtering - Outgoing

IP Filtering - Incoming

MAC Filtering

Add a MAC Filtering Rule

Parental Control

Time Restriction

URL Filter

Quality Of Service

QoS Config

Supported DSCP Values

QoS Queue Config

WLAN Queue

QoS Classification

QoS Port Shaping

Routing

Default Gateway

Static Route

Policy Routing

RIP (Routing Information Protocol)

DNS Server

Dynamic DNS

Static DNS

UPnP

DNS Proxy

Interface Grouping

IP Tunnel

IPv6inIPv4

IPv4inIPv6

IPSec

Advanced IKE Settings

Certificate

Local

Trusted CA

Multicast

LTE WAN Service

Status Information
