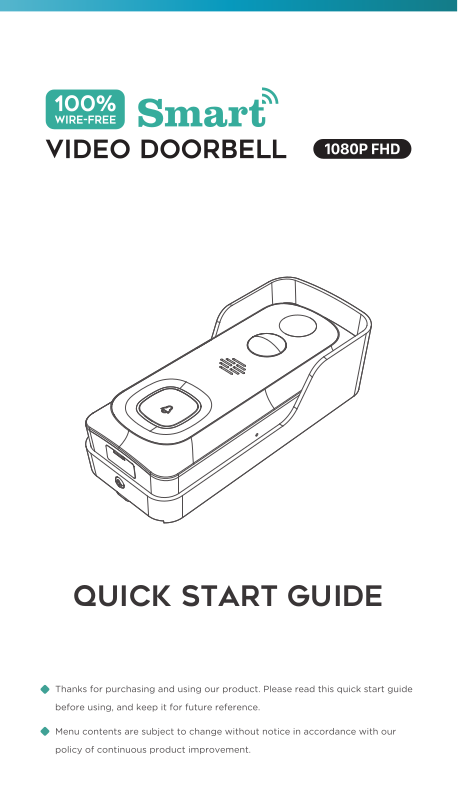

Quick Start Guide
1. what’s in the box
Please consult below checklist for all the components.
Video Doorbell
Screws & Tools
Batteries
Double-sided Tape
2. meet the doorbell
1
6
9
10
11
12
10
11
12
Reset Hole
Hardwire Power Port
SD Card Slot
Battery Compartment
3
4
5
7
8
2MP Camera
1
PIR Motion Sensor
2
3
Speakers
4
Status Indicator
2
9
5
6
7
8
Doorbell Button
Microphone
Charging Indicator
Micro USB Port
User GuideUSB Cable
3. Battery installation
The batteries are pre-installed into the doorbell. If you had
taken out the batties somehow, please note the electrodes
when install them back. Do put the positive poles upward!
Note:
Improper battery installation will cause damage to the
internal components and may result in serious injury.
4. Battery charging
The batteries inside the video doorbell are not fully charged
in accordance with transportation safety regulations.
Please charge the batteries with an USB compatible wall
charger(not included in the box) and the provided USB cable
for around 8~10 hours prior to Wi-Fi set up and installation.
5. App download
Download and install the '
or the App Store
The app is also available by scanning below QR codes, using
your QR code scanner in your smart phone.
CloudEdge
TM
.
' app from Google PlayTM
CloudEdge
Note:
AndroidTM is a trademark of Google Inc. Google PlayTM is a trademark
of Google Inc. Apple, iPhone and iOS are trademarks of Apple Inc.
TM
is a service mark of Apple Inc.
App Store
iOS
Android
6. wifi set up
Before you start the Wi-Fi configuration, please note below:
1). The doorbell works with 2.4 GHz Wi-Fi, but not with 5 GHz
Wi-Fi.
2). Avoid using special characters or punctuation symbols
(
@~!#$%^&*...) either in your Wi-Fi name or in the password.
3). Perform the configuration near your Wi-Fi router.
2.4GHz Wi-Fi
Launch the
mobile phone numer of email ID. Then tap the ‘+’ button to
add a new device, select doorbell and follow the in-app
instructions to set up your doorbell.
CloudEdge APP and register an account with your
7. run a test
After setup, tap on the live view window in the app for a test.
Then take your doorbell outside to the installation spot and
run a test there. Make sure the installation spot is covered
by strong 2.4 GHz Wi-Fi signal.
Note:
If the video quality from the
doorbell outside is not as good
as it was indoors, you may
need to move your router
closer to your installation spot,
or invest in an Wi-Fi extender.
8. Live view interface
1. Quit live viewing
1
4
7
9 101211
2
2. Setting menu
3
3. Battery status
4. Volume on/off
5
HD
5. HD/SD switch
6
6. Full screen view
7. Stream bit rate
8
13
8. Wi-Fi signal status
14
Playback
9. Screenshot button
10. Speak to the scene
11. Record on smart phone
12. Body detection on/off
13. Notification history
14. Cloud storage
9. leave a Voice message
You can leave a max 30 seconds voice message on the
on-board memory of your doorbell, so as to quickly respond
your visitor by a tap on your phone when you are out and
occupied. It can be done even without an Micro-SD card.
Steps:
Setting -> Host Leaves Message -> Record your message -> Hang
off doorbell call and play the pre-recorded voice message.
10. installation
Select location
Your doorbell has 140-degree view
140°
angle and 120-degree human
detection range.
5 feet
160cm
It is suggested to mount your
doorbell at least 5 feet (160 cm)
above the ground for the best angle
of view and motion detection
performance.

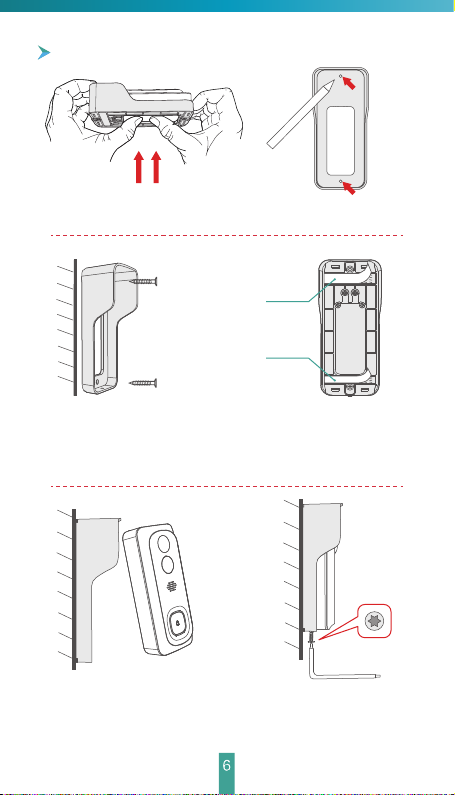

mount your doorbell
1. Take out the wall mount by
pushing from its back.
3. Drive the screws into the
anchors, or directly into your
wall until the bracket is tightly
fastened on your wall.
5. Attach your doorbell to the
mounting bracket. Make sure
it reaches the bottom where
you can hear a click.
2. Mark the screw positions to
mount the bracket.
Tape
Tape
4. (Optional) You can also use
the double-sided tape we
provided instead of screws.
6. Secure your doorbell with the
provided star-shaped security
screw and screwdriver.
All set. Congratulations!

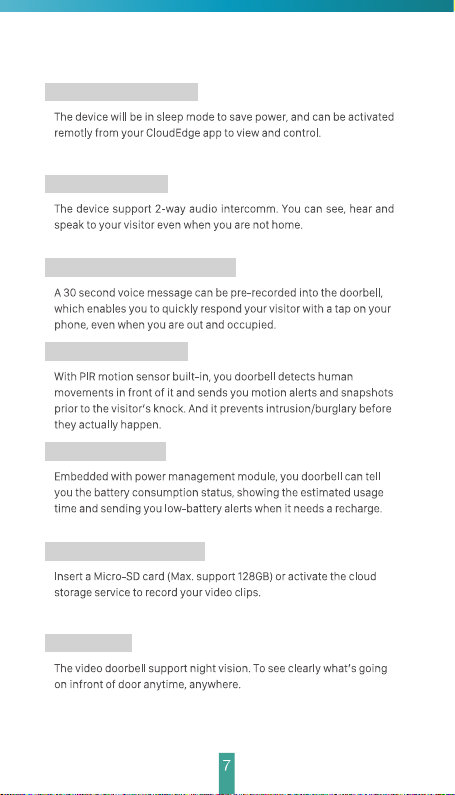

11. Key features
Remote view & control
Full-duplex audio
Pre-recorded quick response
PIR human detection
Low battery alert
Local & cloud recording
Day & night
12. Specification
Video & Audio
Image Sensor
OS
Effective Pixels
Stream
Infrared LED
Lens
Angle of View
Min. Illuminance
WDR
Audio
Storage
Storage Type
Cloud storage
Recording
Network
Wifi Frequency
Standards
Live View Speed
APP
App Name
OS
Remote View
Notification
Others
Working Temp.
& Humidity
Power Source
Standby Current
Working Current
Standby Time
Working Time
Battery Charging
Firmware Upgrade
Size (mm)
Weight (g)
1/2.7” CMOS (2.0MP)
Hisilicon Lite-OS
1920 × 1080 px
HD/SD dual stream
High power IR LED with ICR
1.7mm/F2.0
140°
Color: 0.01 Lux; B&W: 0.001Lux
Digital WDR
Two-way audio with noise cancellation
Micro SD Card (Max 128G)
Support
Triggered by PIR motion sensor
2.4 GHz ~ 2.4835 GHz
IEEE 802.11 b/g/n
within 3 ~ 4 Sec
CloudEdge
iOS, Android
Within 2~4 sec
Notification push within 2~4 sec
-20℃ ~ 50℃; <90% (No condensation )
Lithium 18650 Battery (3.5V, 3000mAh ) × 2
300μA
250mA
4 ~ 6 Months
2 ~ 3 Months (20 times wake up per day)
DC5V 1A~2A Power Adapter (Micro USB Port)
OTA (on the air)
61× 41 × 135
235
Trouble shooting
Q1: Why I failed to set up Wi-Fi for the doorbell?
A1: ①.Device works with 2.4GHz Wi-Fi only, but not support 5GHz
Wi-Fi. ②.Wi-Fi network is not good, try to keep the camera near the
Wi-Fi router when setting up. ③.The Wi-Fi password is wrong.
Please check if there are special characters in the password, or the
network is specially encrypted.
Q2: How do I know if I have 2.4G or 5G wifi?
A2: Please check the user manual of your Router or call the network
operator for help.
Q3: It has to be on same WiFi to see the camera, or is it over internet
from anywhere?
A3: You can view the camera from anywhere, if your camera is well
connected to the internet.
Q4: Do any of the recordings get saved to the cloud? Or is it mainly
saved in the built-in SD card?
A4: It supports SD card recording as well as cloud storage. You can
activate the cloud storage service in App.
Q5: What happens when the SD is full?
A5: When the memory card is full, the camera automatically erase
the oldest footage.
Q6: Does it work with Google Home or Alexa?
A6: Sorry, this model does not support Google Home or Alexa.
Q7: Why does it lose connection to wifi?
A8: Please check the network connection of your phone and the
Wi-Fi router. If the network signal is not strong, you may need to
move your router closer to the device, or invest in an extender.
Q9: Can the motion detection be disabled?
A9: Yes, sure. Recording is triggered by detected motions. You can
set up the sensitivity or disable motion detection in the setting
menu.
Q10: Do we get charger for the batteries?
A10: Battery charger is not included. Please charge the batteries
with a USB compatible charger(DC5V 1A~2A) for about 8-10 hours.
Q11: Can we have 2 or more doorbells at the same residence?
A11: Yes, you can add more than one device at the same residence.
