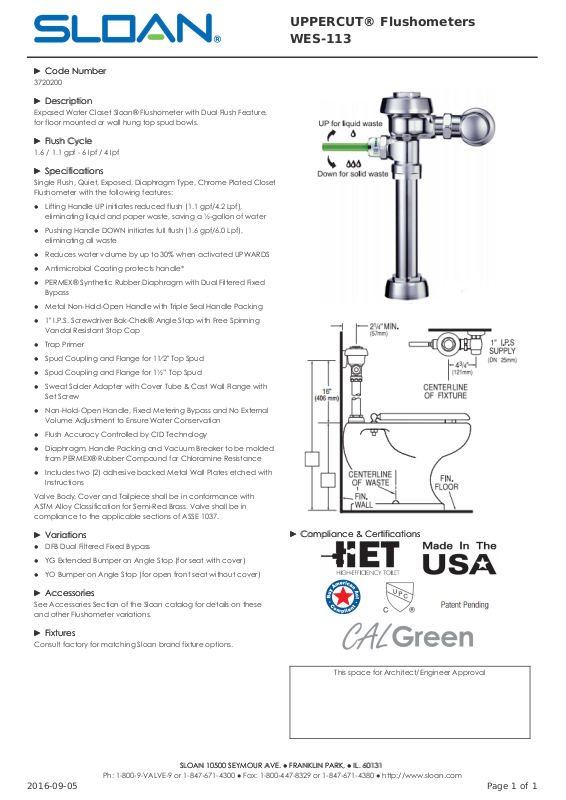

Sloan WES-113 User Manual

►► Code NumberCode Number

3720200

►► DescriptionDescription

Exposed Water Closet Sloan® Flushometer with Dual Flush Feature,
for floor mounted or wall hung top spud bowls.

►► Flush CycleFlush Cycle

1.6 / 1.1 gpf - 6 lpf / 4 lpf

►► SpecificationsSpecifications

Single Flush, Quiet, Exposed, Diaphragm Type, Chrome Plated Closet
Flushometer with the following features:

● ● Lifting Handle UP initiates reduced flush (1.1 gpf/4.2 Lpf),
eliminating liquid and paper waste, saving a ½-gallon of water

● ● Pushing Handle DOWN initiates full flush (1.6 gpf/6.0 Lpf),
eliminating all waste

● ● Reduces water volume by up to 30% when activated UPWARDS

● ● Antimicrobial Coating protects handle*

● ● PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass

● ● Metal Non-Hold-Open Handle with Triple Seal Handle Packing

● ● 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning
Vandal Resistant Stop Cap

● ● Trap Primer

● ● Spud Coupling and Flange for 11⁄2" Top Spud

● ● Spud Coupling and Flange for 1½” Top Spud

● ● Sweat Solder Adapter with Cover Tube & Cast Wall Flange with
Set Screw

● ● Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation

● ● Flush Accuracy Controlled by CID Technology

● ● Diaphragm, Handle Packing and Vacuum Breaker to be molded
from PERMEX® Rubber Compound for Chloramine Resistance

● ● Includes two (2) adhesive backed Metal Wall Plates etched with
Instructions

Valve Body, Cover and Tailpiece shall be in conformance with
ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE 1037.

►► VariationsVariations

● ● DFB Dual Filtered Fixed Bypass

● ● YG Extended Bumper on Angle Stop (for seat with cover)

● ● YO Bumper on Angle Stop (for open front seat without cover)

►► AccessoriesAccessories

See Accessories Section of the Sloan catalog for details on these
and other Flushometer variations.

►► FixturesFixtures

Consult factory for matching Sloan brand fixture options.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

UPPERCUT® Flushometers
WES-113

2016-09-05 Page 1 of 1
