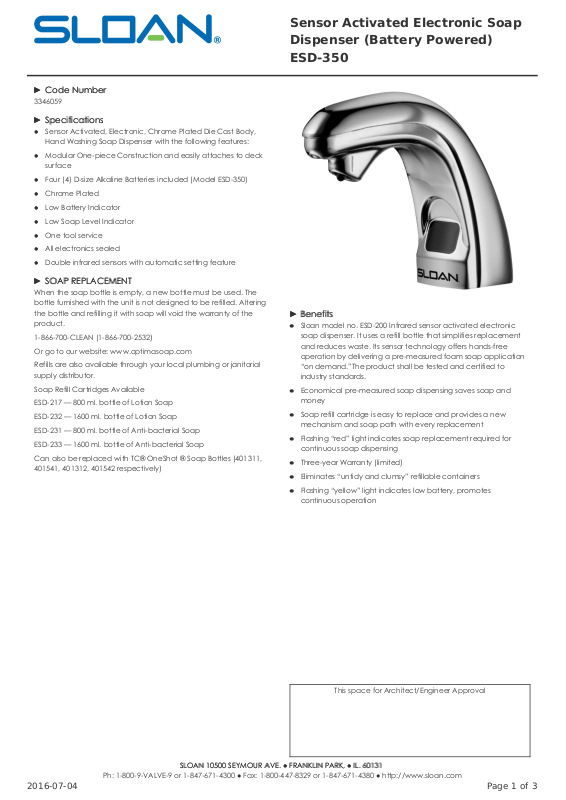

Page 1
►► Code NumberCode Number
3346059
►► SpecificationsSpecifications
● ● Sensor Activated, Electronic, Chrome Plated Die Cast Body,
Hand Washing Soap Dispenser with the following features:
● ● Modular One-piece Construction and easily attaches to deck
surface
● ● Four (4) D-size Alkaline Batteries included (Model ESD-350)
● ● Chrome Plated
● ● Low Battery Indicator
● ● Low Soap Level Indicator
● ● One tool service
● ● All electronics sealed
● ● Double infrared sensors with automatic setting feature
►► SOAP REPLACEMENTSOAP REPLACEMENT
When the soap bottle is empty, a new bottle must be used. The
bottle furnished with the unit is not designed to be refilled. Altering
the bottle and refilling it with soap will void the warranty of the
product.
1-866-700-CLEAN (1-866-700-2532)
Or go to our website: www.optimasoap.com
Refills are also available through your local plumbing or janitorial
supply distributor.
Soap Refill Cartridges Available
ESD-217 — 800 ml. bottle of Lotion Soap
ESD-232 — 1600 ml. bottle of Lotion Soap
ESD-231 — 800 ml. bottle of Anti-bacterial Soap
ESD-233 — 1600 ml. bottle of Anti-bacterial Soap
Can also be replaced with TC® OneShot ® Soap Bottles (401311,
401541, 401312, 401542 respectively)
►► BenefitsBenefits
● ● Sloan model no. ESD-200 Infrared sensor activated electronic
soap dispenser. It uses a refill bottle that simplifies replacement
and reduces waste. Its sensor technology offers hands-free
operation by delivering a pre-measured foam soap application
“on demand.”The product shall be tested and certified to
industry standards.
● ● Economical pre-measured soap dispensing saves soap and
money
● ● Soap refill cartridge is easy to replace and provides a new
mechanism and soap path with every replacement
● ● Flashing “red” light indicates soap replacement required for
continuous soap dispensing
● ● Three-year Warranty (limited)
● ● Eliminates “untidy and clumsy” refillable containers
● ● Flashing “yellow” light indicates low battery, promotes
continuous operation
This space for Architect/Engineer Approval
Sensor Activated Electronic Soap
Dispenser (Battery Powered)
ESD-350
2016-07-04 Page 1 of 3
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
►► OPERATIONOPERATION
As the user’s hands enter the beam’s effective range, the beam is reflected back into the sensor receiver and activates the solenoid
valve allowing a single soap application to flow from the spout.
Flashing “red” light in the sensor window indicates low refill
Flashing “yellow” light in the sensor window indicates low battery
Sensor Activated Electronic Soap
Dispenser (Battery Powered)
ESD-350
2016-07-04 Page 2 of 3
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 3

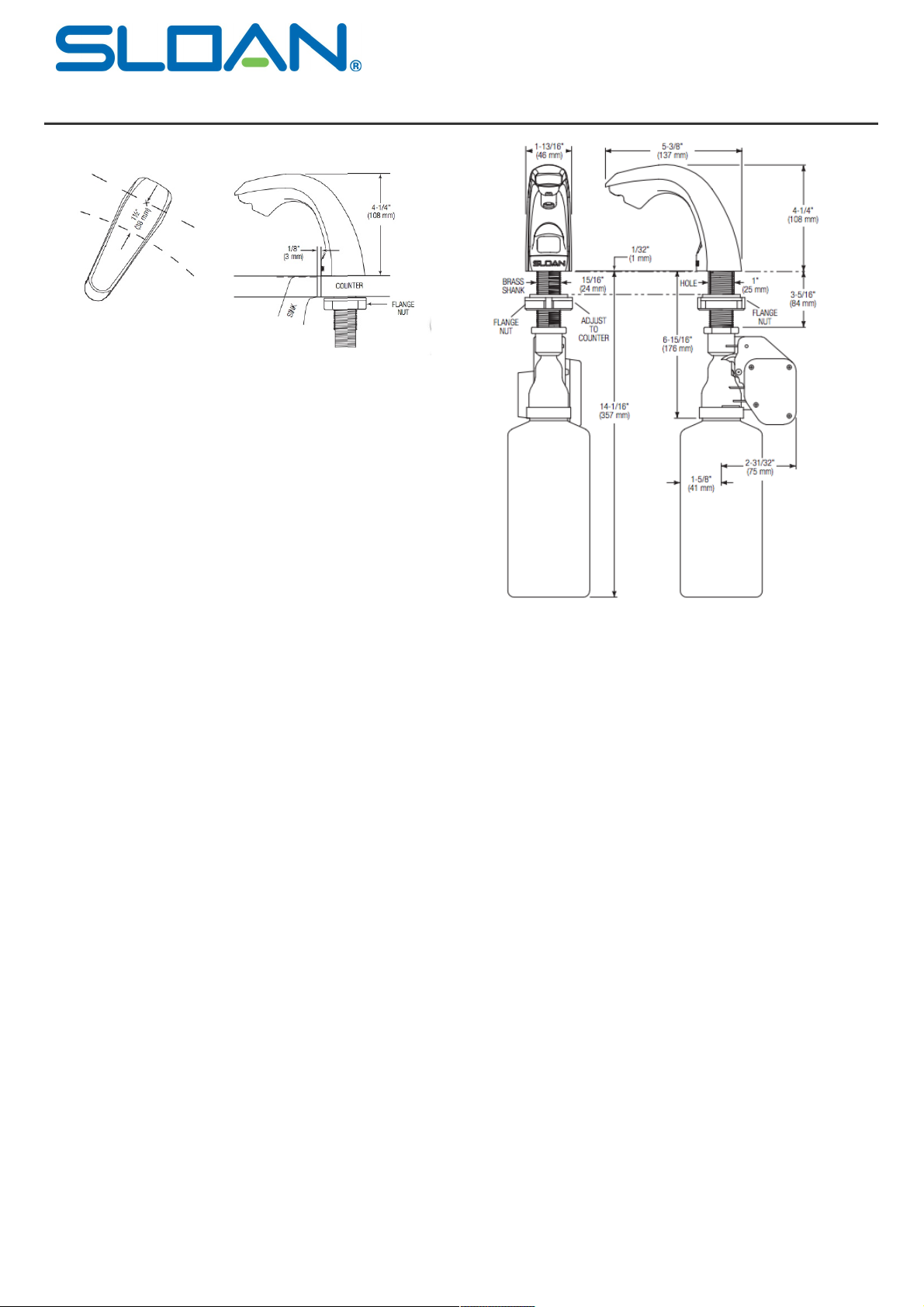

►► Line DrawingLine Drawing
Sensor Activated Electronic Soap
Dispenser (Battery Powered)
ESD-350
2016-07-04 Page 3 of 3
