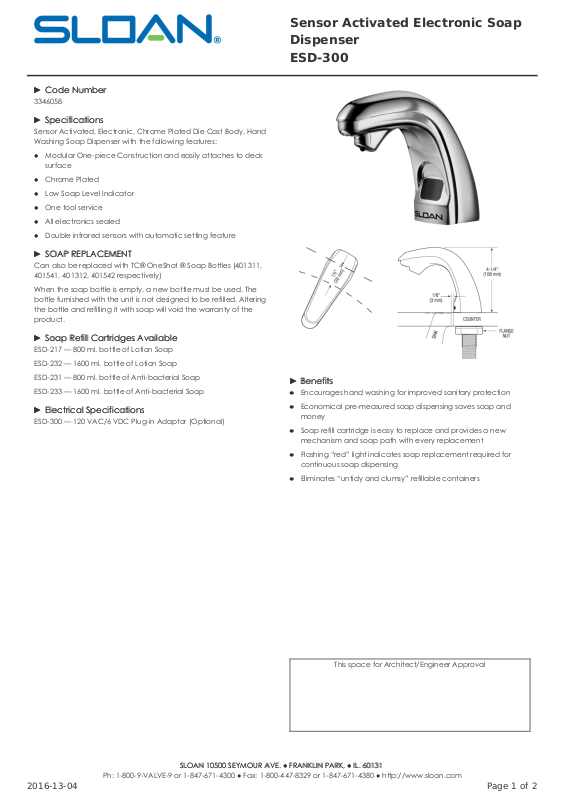

Page 1
►► Code NumberCode Number
3346058
►► SpecificationsSpecifications
Sensor Activated, Electronic, Chrome Plated Die Cast Body, Hand
Washing Soap Dispenser with the following features:
● ● Modular One-piece Construction and easily attaches to deck
surface
● ● Chrome Plated
● ● Low Soap Level Indicator
● ● One tool service
● ● All electronics sealed
● ● Double infrared sensors with automatic setting feature
►► SOAP REPLACEMENTSOAP REPLACEMENT
Can also be replaced with TC® OneShot ® Soap Bottles (401311,
401541, 401312, 401542 respectively)
When the soap bottle is empty, a new bottle must be used. The
bottle furnished with the unit is not designed to be refilled. Altering
the bottle and refilling it with soap will void the warranty of the
product.
►► Soap Refill Cartridges AvailableSoap Refill Cartridges Available
ESD-217 — 800 ml. bottle of Lotion Soap
ESD-232 — 1600 ml. bottle of Lotion Soap
ESD-231 — 800 ml. bottle of Anti-bacterial Soap
ESD-233 — 1600 ml. bottle of Anti-bacterial Soap
►► Electrical SpecificationsElectrical Specifications
ESD-300 — 120 VAC/6 VDC Plug-in Adaptor (Optional)
►► BenefitsBenefits
● ● Encourages hand washing for improved sanitary protection
● ● Economical pre-measured soap dispensing saves soap and
money
● ● Soap refill cartridge is easy to replace and provides a new
mechanism and soap path with every replacement
● ● Flashing “red” light indicates soap replacement required for
continuous soap dispensing
● ● Eliminates “untidy and clumsy” refillable containers
This space for Architect/Engineer Approval
Sensor Activated Electronic Soap
Dispenser
ESD-300
2016-13-04 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2

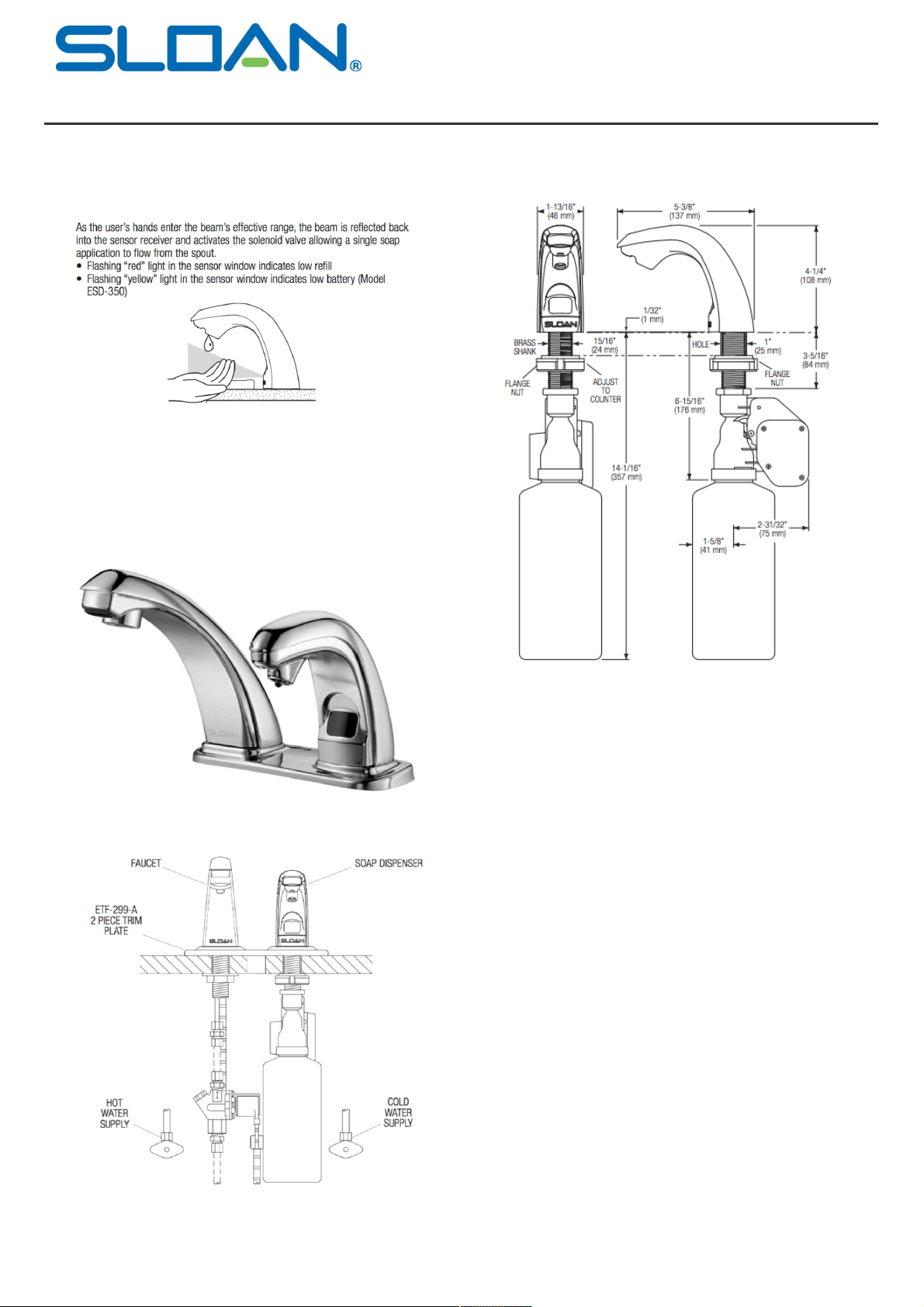

►► OPERATIONOPERATION
Model ESD-35187 Soap Dispenser and Faucet Combination
Available
Sensor Activated Electronic Soap
Dispenser
ESD-300
2016-13-04 Page 2 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
