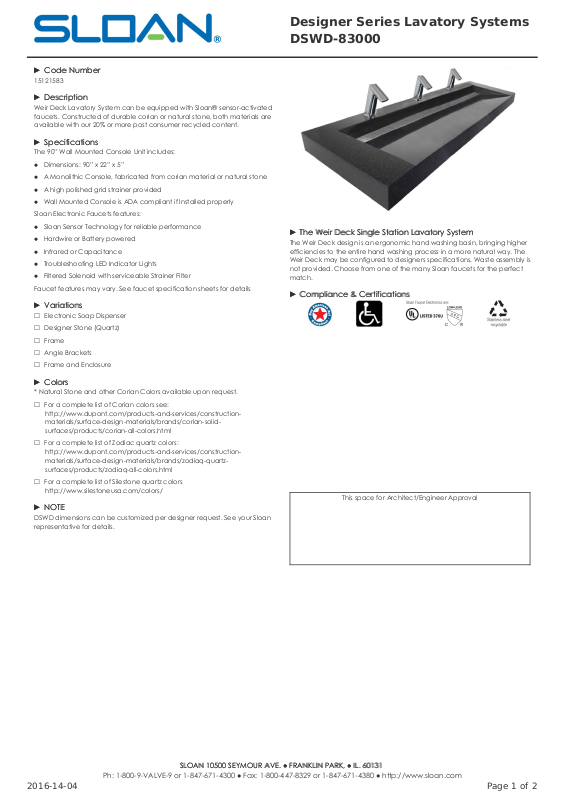

Page 1
►► Code NumberCode Number
15121583
►► DescriptionDescription
Weir Deck Lavatory System can be equipped with Sloan® sensor-activated
faucets. Constructed of durable corian or natural stone, both materials are
available with our 20% or more post consumer recycled content.
►► SpecificationsSpecifications
The 90” Wall Mounted Console Unit includes:
● ● Dimensions: 90” x 22” x 5”
● ● A Monolithic Console, fabricated from corian material or natural stone
● ● A high polished grid strainer provided
● ● Wall Mounted Console is ADA compliant if Installed properly
Sloan Electronic Faucets features:
● ● Sloan Sensor Technology for reliable performance
● ● Hardwire or Battery powered
● ● Infrared or Capacitance
● ● Troubleshooting LED Indicator Lights
● ● Filtered Solenoid with serviceable Strainer Filter
Faucet features may vary. See faucet specification sheets for details
►► VariationsVariations
☐ Electronic Soap Dispenser
☐ Designer Stone (Quartz)
☐ Frame
☐ Angle Brackets
☐ Frame and Enclosure
►► ColorsColors
* Natural Stone and other Corian Colors available upon request.
☐ For a complete list of Corian colors see:
http://www.dupont.com/products-and-services/constructionmaterials/surface-design-materials/brands/corian-solidsurfaces/products/corian-all-colors.html
☐ For a complete list of Zodiac quartz colors:
http://www.dupont.com/products-and-services/constructionmaterials/surface-design-materials/brands/zodiaq-quartzsurfaces/products/zodiaq-all-colors.html
☐ For a complete list of Silestone quartz colors
http://www.silestoneusa.com/colors/
►► NOTENOTE
DSWD dimensions can be customized per designer request. See your Sloan
representative for details.
►► The Weir Deck Single Station Lavatory SystemThe Weir Deck Single Station Lavatory System
The Weir Deck design is an ergonomic hand washing basin, bringing higher
efficiencies to the entire hand washing process in a more natural way. The
Weir Deck may be configured to designers specifications. Waste assembly is
not provided. Choose from one of the many Sloan faucets for the perfect
match.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Designer Series Lavatory Systems
DSWD-83000
2016-14-04 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2

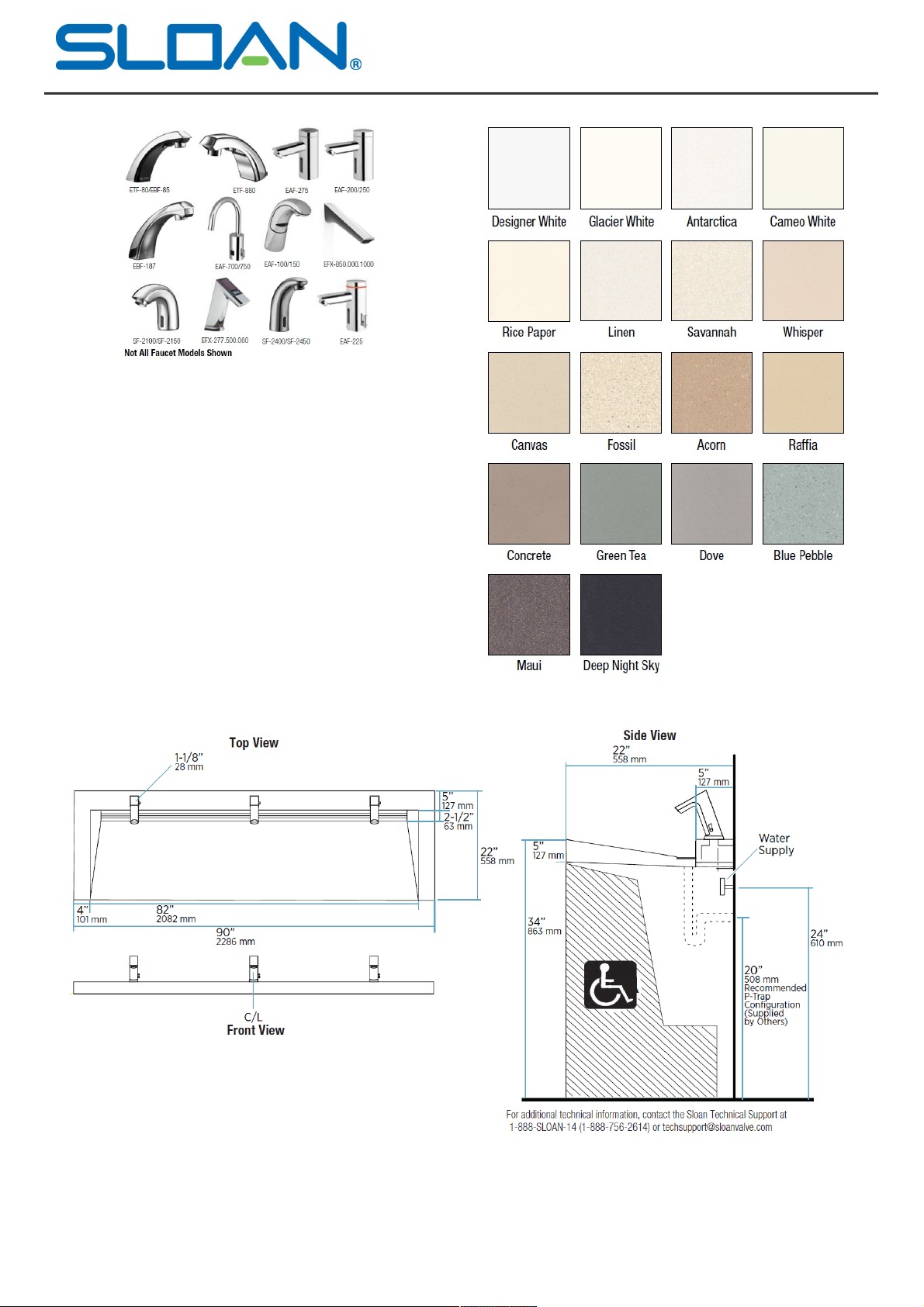

►► FAUCET OPTIONSFAUCET OPTIONS ►► SINK COLORSSINK COLORS
►► ROUGH-INROUGH-IN
Designer Series Lavatory Systems
DSWD-83000
2016-14-04 Page 2 of 2
