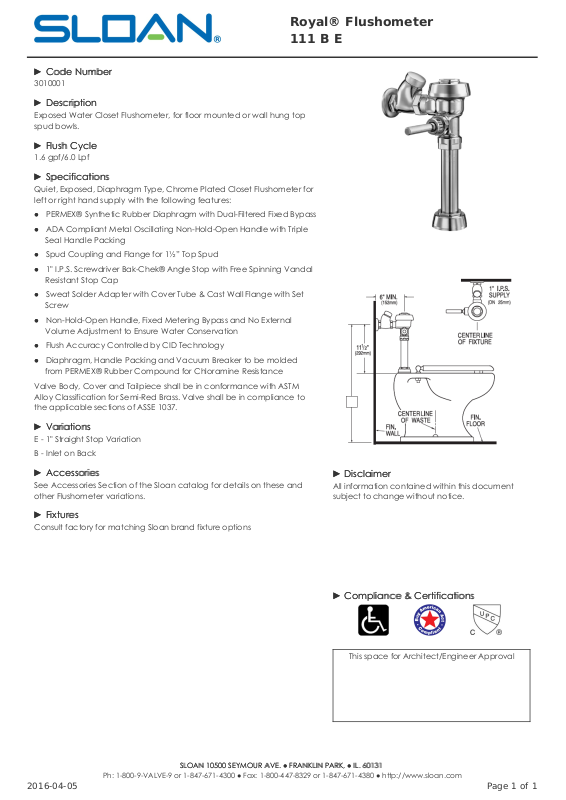

Sloan 111 BE User Manual

►► Code NumberCode Number

3010001

►► DescriptionDescription

Exposed Water Closet Flushometer, for floor mounted or wall hung top
spud bowls.

►► Flush CycleFlush Cycle

1.6 gpf/6.0 Lpf

►► SpecificationsSpecifications

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for
left or right hand supply with the following features:

● ● PERMEX® Synthetic Rubber Diaphragm with Dual-Filtered Fixed Bypass

● ● ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple
Seal Handle Packing

● ● Spud Coupling and Flange for 1½” Top Spud

● ● 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal
Resistant Stop Cap

● ● Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set
Screw

● ● Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation

● ● Flush Accuracy Controlled by CID Technology

● ● Diaphragm, Handle Packing and Vacuum Breaker to be molded
from PERMEX® Rubber Compound for Chloramine Resistance

Valve Body, Cover and Tailpiece shall be in conformance with ASTM
Alloy Classification for Semi-Red Brass. Valve shall be in compliance to
the applicable sections of ASSE 1037.

►► VariationsVariations

E - 1" Straight Stop Variation

B - Inlet on Back

►► AccessoriesAccessories

See Accessories Section of the Sloan catalog for details on these and
other Flushometer variations.

►► FixturesFixtures

Consult factory for matching Sloan brand fixture options

►► DisclaimerDisclaimer

All information contained within this document
subject to change without notice.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

Royal® Flushometer
111 B E

2016-04-05 Page 1 of 1
