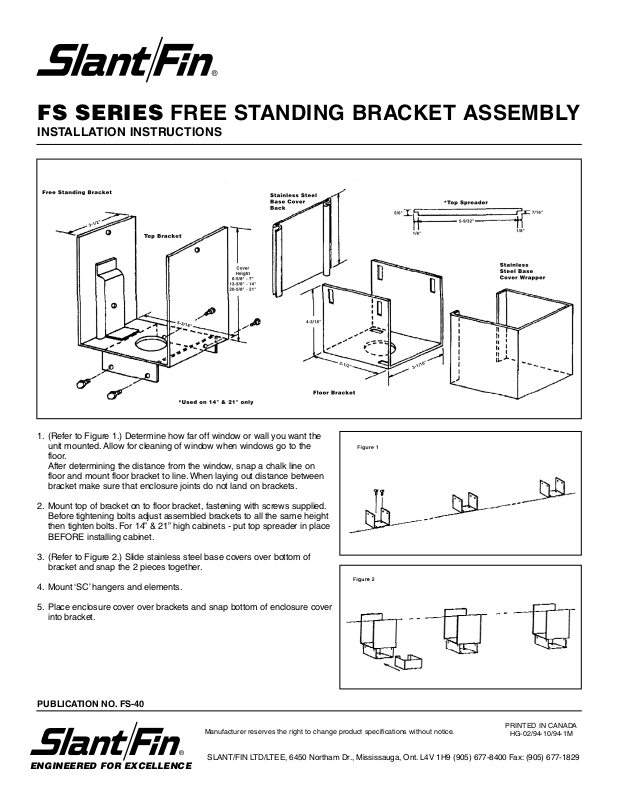

FS SERIES FREE STANDING BRACKET ASSEMBLY

INSTALLATION INSTRUCTIONS

1. (Refer to Figure 1.) Determine how far off window or wall you want the
unit mounted. Allow for cleaning of window when windows go to the
floor.
After determining the distance from the window, snap a chalk line on
floor and mount floor bracket to line. When laying out distance between
bracket make sure that enclosure joints do not land on brackets.

2. Mount top of bracket on to floor bracket, fastening with screws supplied.
Before tightening bolts adjust assembled brackets to all the same height
then tighten bolts. For 14” & 21” high cabinets - put top spreader in place
BEFORE installing cabinet.

3. (Refer to Figure 2.) Slide stainless steel base covers over bottom of
bracket and snap the 2 pieces together.

4. Mount ‘SC’ hangers and elements.

5. Place enclosure cover over brackets and snap bottom of enclosure cover
into bracket.
