Page 1

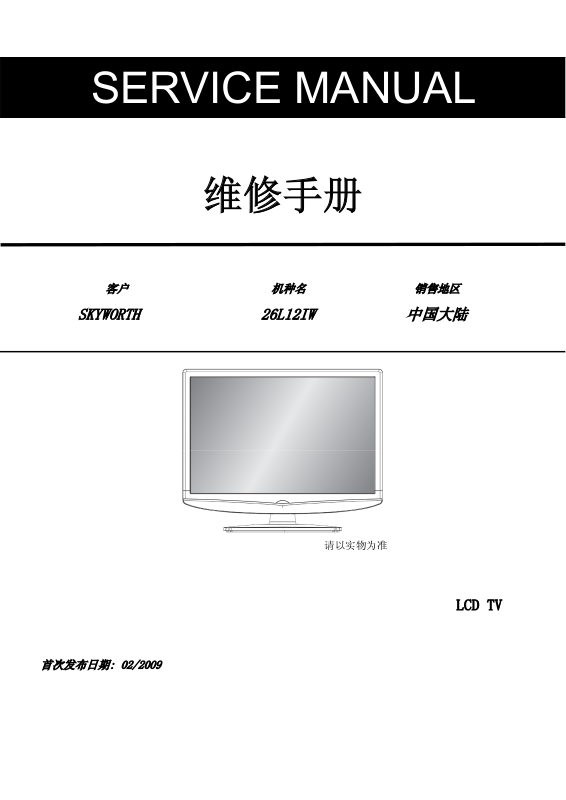

SERVICE MANUAL
客户
维修手册
机种名
销售地区
SKYWORTH
26L12IW
请以实物为准
中国大陆
首次发布日期: 02/2009
LCD TV
Page 2
目录
1. 安全与注意事项------------------------------------------------------------------- 03
2. 技术规格------------------------------------------------------------------------- 05
3. 操作说明及工厂模式调整-----------------------------------------------------------06
4. 故障处理流程--------------------------------------------------------------------- 16
5. PCB 分布图 -----------------------------------------------------------------------21
6. 线路图---------------------------------------------------------------------------25
7. 电气方框图----------------------------------------------------------------------- 38
8. 拆卸流程图----------------------------------------------------------------------- 39
9. 爆炸图---------------------------------------------------------------------------42
10. BOM-----------------------------------------------------------------------------43
2
Page 3
1. 安全与注意事项
为了您的安全
在操作本电视之前，请先仔细阅读本手册，并将本手册保存起来以备将来参考。
重要安全说明
操作设备之前应阅读
1. 阅读这些说明。
2. 遵守这些说明。
3. 注意所有警告信息。
4. 按照所有说明进行操作。
5. 不要在靠近水的地方使用本设备。
6. 只使用干布进行清洁。
7. 不要堵塞任何通风孔，按照制造商说明进行安装。
8. 不要安装在电暖器、散热器、炉子或其它散热设备（包括扩音器）等热源附近。
9. 请务必使用正负极或接地类型的插头，正负极插头带有宽窄两个插脚，接地类型插头带有两个插脚和第
三个接地针脚，宽插脚和第三个针脚均用于安全用途。当提供的插头不能插入您的电源插座时，请找电
工换一个新的插座。
10. 电源线不可被踩到或挤压，特别是在插头、连接插座及设备的出口位置。
11. 只使用制造商指定的附件。
12. 仅与制造商指定或随设备一起销售的推车、底座、三脚架、支架或桌子一同使用。当使用推车时，应小
心移动推车/设备的组合，以避免因翻倒而造成伤害。
13. 应使用标签上标示的电源类型供电给电视。如果您不确定自己家里所使用的电源类型，请向经销商或当
地电力公司咨询。
14. 在雷雨期间或长时间不使用时，请拔下电视的电源插头。
15. 所有维修工作必须由专业维修人员执行。当电视已经损坏时，如电源线或插头损坏，电视内溅入了液体
或异物，电视遭到了雨淋或受潮，不能正常作业，或已经摔坏，则需要进行维修。
16. 本产品可能包含有铅或汞元素，处理这些材料要考虑环境因素。要了解处理或回收的信息，请与当地有
关部门或电子工业联盟（Electronic Industries Alliance）联系：www.eiae.org
17. 需要维修的损坏情况 – 当出现以下情况时应请专业的维修人员进行维修：
A. 电源线或插头损坏。
B. 电视内溅入了异物或液体。
C. 电视遭到雨淋。
D. 电视疑似不正常或性能发生明显变化。
E. 电视摔坏或外壳损坏。
。
3
Page 4
倾斜度/稳定性 – 所有电视在机壳设计倾斜度和稳定性方面都必须符合建议的全球国际标准。
y 请不要在机壳的前面或顶部用强力来检查这些设计标准，这样做可能会使电视翻倒。
y 另外，不要将电子设备/玩具放在机壳上，以免对自己或孩子造成伤害。这些对象可能会意外从电
视机上掉下来，从而造成产品损坏或人身伤害。
18. 墙壁或天花板安装 – 将此设备安装到墙壁或天花板上时，必须遵循制造商的建议。
19. 电力线路 – 室外天线应远离电力线路。
20. 室外天线接地 – 如果外部天线连接到接收器，确定该天线系统已接地，可以提供保护，能防止电涌和
静电聚集。
National Electric Code 的 810 节， ANSI/NFPA No. 70-1984 提供了以下方面的信息：线网正确接
地，天线引入线到天线放电装置的支撑结构接地，接地接头的大小，天线充电装置的位置，接地电极的
连接，以及接地电极的要求。请参阅下图。
按照国家电力法规天线接地的实例
CATV 系统安装者注意：CATV 系统安装者应注意 NEC 的第 820-40 条款，它规定了正确接地的原则，特
别是规定了电缆接地应连接到建筑物的接地系统，并且尽可能靠近天线接入点。
将电源插头连接到墙上插座，请确保电视有电源输入！
21. 异物和液体进入 – 应特别注意不要使异物或液体通过槽孔进入到机壳内。
4
Page 5
2. 技术规格
5
Page 6
3. 操作说明及工厂模式调整
使用遥控器说明
菜单功能
6
Page 7
操作说明
菜单功能
1. 按菜单按钮可以显示菜单。
2. 使用左或右键可以选择所要调整之菜单选项，光标所在位置为选中项。
3. 使用上或下键可以进入子菜单表，或启用或调整所选择之功能，光标所在位置为调整状态。
4. 按菜单按钮可以离开菜单。
信号源菜单
1. 按信源按钮进入信源菜单，包括电视、视频1、视频2、S视频、分量、电脑.
2. 按菜单按钮进入主菜单，调节项目包括：图像设定、声音设定、高级设定、电视设定、系统设定。请见
以下详述：
★ 电视模式可调节项目包括：图像、声音、高级、电视、系统。
★ 视频1、视频2、S视频、分量输入时可调节项目包括：图像、声音、高级、系统。
★ PC模式时可调节项目包括：图像、声音、PC、系统。
图像设置
1. 预设:使用者可选择标准、柔和、个人设定、鲜艳模式，若使用者选择个人以外之选项,则亮度、对比度、
色饱和度、色调、锐利度不可调。
3. 亮度:调节画面亮度，一般与对比度配合使用，调整范围是0 到100。
2. 对比度:调节画面的黑白层次，适当的对比度可使画面清晰明亮，调整范围是0 到100。
7
Page 8
4. 色饱和度:调节色彩的鲜艳度、饱和度，调整范围是0 到100。（电脑模式无该选项）
5. 色调(NTSC 制式可调节):调节画面的色调，达到颜色正常、调整范围是0 到100。（分量、电脑模式无
该选项）
6. 锐利度:调节画面清晰度，调整范围是0 到100。（电脑模式无该选项）
7. 色温:此选项为用户提供了三种色温选项：标准、暖色、冷色。电脑模式下多一个“个人设定”选项，
可调节R、G、B三色。
8. 复位:恢复图像设定下各选项的默认值，预设恢复成标准模式，色温恢复成标准模式。
声音设置
1. 预设:可选择标准、个人设定、对白、音乐与剧场（默认值为标准），当使用者选择除个人设定以外之
选项，低音、高音不可调。
2. 低音:调整范围是从-10～+10，用于调整低频声音输出的大小。
3. 高音:调整范围是从-10～+10，用于调整高频声音输出的大小。
4. 平衡:调整范围是从-10～+10，当从0～-10调整时，右声道声音慢慢减小直至消失，当从0～+10调整时，
左声道声音慢慢减小直至消失。
5. 音效:默认为单声道。
6. 复位:恢复声音设定下各选项的默认值，预设恢复成标准模式。
8
Page 9
高级设定
电脑模式无高级设定:
1. 降噪:可以选择关、弱、中、强四种选项，画面出现严重噪点时选择消除噪点的强弱，强弱选择请用户
根据实际画面判定，建议有轻微噪点时无需使用。
2. 高级对比度:可以选择关闭、演示、开启三种选项，选择演示项，整个屏幕会以中央为线等分为两种画
面，一边为高级对比度关闭的效果，另一边为开启的效果，高级对比度打开以后用于增强颜色饱和度，提
升色彩效果。
3. 画面比例:调整画面比例，可切换16：9、4：3显示模式。
4. 复位：用于恢复高级设定下各功能的默认值。
电视设定
以下菜单只有在电视模式才出现：
1. 自动搜台:用于给用户自动搜索并存储节目功能，按“菜单”（MENU）键可以退出自动搜台模式。
2. 手动搜台:按左右按钮进入子菜单。
★ 频道号:显示目前正在收看的频道。
★ 频道名称:显示当前电视频道名。
★ 频率:显示目前收看频道的频率。
手动微调方法:按上下键选择频率选项，频率选项变为黄色，然后通过左右键调整频率或直接按遥控器
上的数字键输入固定频率来选择您需要收看的节目。
半自动搜台方法:当按住左或右键3秒以上时，会进入半自动搜台状态，当搜索到有信号的节目时自动退
出半自动搜台并将当前节目存储与当前节目号中。
★ 彩色制式:用于选择电视广播系统，可选择自动、PAL、NTSC。
★ 声音制式:用于选择电视广播系统的声音制式，可选择D/K、I、M&BG。中国大陆大部分地区为D/K制式。
★ 微调:对频道频率进行微调，微调范围：-50～50.
★ AFC：可以被设定为开和关，当设定为开时，电视会对电视信号自动侦测，在一定频率范围内当信号
9
Page 10
有偏移时会自动调整频道到正确位置。
★ 保存：保存手动搜台的各个设定值。
3. 频道列表:按左右按钮进入子菜单，可以按照菜单最下方的指示，编辑搜索到的电视节目频道信息，包
括跳过、互换功能。
系统设定
1. 语言.LANG:选择菜单显示语言，包括简体中文、英文，默认值是简体中文。
2. 菜单显示时间:有10、20、30、40、50、60s的时间可供选择，来设置菜单的显示时间。
3. 睡眠时间:选择打开或关闭时待机功能，如果打开，时间可以选择15分钟到120分钟。（PC模式无该项功
能）
4. 菜单透明度:调整菜单透明度，调整范围是0到15.
5. 复位:可以将系统设定内容恢复为出厂预设值。
6. 系统重置:可以将各个调整项目设定内容恢复为出厂预设值。
10
Page 11
PC 设定
以下菜单只有在电脑模式下出现
1. 自动调节:PC画面调整到最佳位置。
2. 水平位置，垂直位置:调整范围-50～50，手动调整PC画面位置，改变画面水平及垂直位置。
3. 时钟，相位:调整范围-50～50，手动调整PC画面。
4. 复位:用于恢复PC设定下各功能的默认值。
11
Page 12
连接外部设备
控制面板
12
Page 13
主机背板信源接口
13
Page 14
工厂模式调整
进行白平衡调整之前，大约需要有2小时的时间来对机器进行预热。
进行白平衡调整之前，请先对彩色分析仪Ca210进行设置。
Channel 1为北美向系列机种使用通道。
Color temp
x 0.313 0.283 0.295
y 0.329 0.297 0.311
LV Panel最大亮度
表1 白平衡调整Source及色温标准
整个白平衡调整的操作过程如下：
先按菜单健，出现主菜单，再依次按数字键 1 Æ 9 Æ 9 Æ 9，就会出现工厂OSD菜单，即进入工厂模式。
如图1所示(类似图片):
PC，CVBS，S-Video，Component
WARM COOL NORMAL
图1 工厂OSD菜单
1. 在工厂OSD菜单中选择“Source”来选择不同Source色温调整（PC/AV/S-Video/component等）；
2. 选择好Source，选择工厂菜单的“Color Temp”选择调整相应Source的色温选项,如图2所示：
R、G、BÆ R, G, B 增益调整；
图2
14
Page 15
注意：
1） 所有Source调整WARM，COOL，NORMAL，其中PC timing 为137（1024*768 60hz），AV timing 为303 （NTSC
制式），YPbPr timing 为311（576I），HDMI timing为350 （1080I）。
2）在所有色温调整之前，请先做PC(timing137,pat185)和 YPbPr(timing311,pat185)的Auto Color。备注：
YPbPr需要接三个线，做彩阶的YPbPr 100IRE。
3）此机种一般情况下无需调整 W/B，只需要做 Auto Color 动作即可。
15
Page 16
4. 故障处理流程
4.1 死机 (LED 灯不亮)
无LED指示灯
检测电源线及电源板接口
OK
检测F901、BD901、C920
OK
检测IC901、Q901 更换IC901或Q901
OK
检测T901，T902
检测按键板 更换相关元件
NG
NG
NG
更换T901，T902
NG
更换F901或BD901或C920
OK
检测D950、D970
NG
OK
检测C975，C999及其他相关点位
更换D950、D970
16
Page 17
4.2 无画 (LED 橙色)
无画
OK
检测按键板及遥控器
OK
检测 U700，U701, U702, U703
OK
检测 U400
OK
检测 I2C 总线
4.3 无显示（LED 绿灯）
检测有无背光
NG
更换按键板或遥控器
NG
更换 U700，U701, U702, U703
NG
更换 U400
NG NG
检测12V供电
检测PS信号
OK
检测电源板
OK
检测LVDS接口和线材
OK
NG
检测UH200
OK
检测U202
NG
OK
检测Panel
OK
检测BL-ON/OFF信号
更换UH200
更换U202
NG
NG
检测Q705、Q706
更换Panel
NG
NG
更换Q705、Q706
17
Page 18
4.4 画异
画异
更换U400
检查 信号源
OK
检查 信号滤波电路
OK
检查 输入
AV, S-video, Comp，PC信号
NG
检查U400
OK
检查 LVDS 线
NG
NG
TV 信号
NG
重接信号源
换 滤波电容，电阻
换 LVDS 线
检查 TV 制式
OK
检查 TU101
OK
NG
重调制式
NG
更换 TU101
OK
检查 panel
NG
换 panel
18
Page 19
4.5 无声
检测信号源
检测是否被静音
OK
检测输入信号
检测U600
OK
检测U602/U603
OK
检测喇叭
OK
NG
NG
NG
NG
NG
重接信号源
关闭静音功能
TV SIF
检测TU101
更换U600
更换U602/U603
更换喇叭
检测TV制式
NG
NG
更换TU101
重调TV制式
19
Page 20
4.6 按键板
OSD 不稳定或无法正常工作
按键板连接正常吗？
OK
按键正常吗？
OK
按键板有无故障？
OK
检查主板
NG
NG
NG
接好按键板
更换按键
更换按键板
20
Page 21
5. PCB 分布图

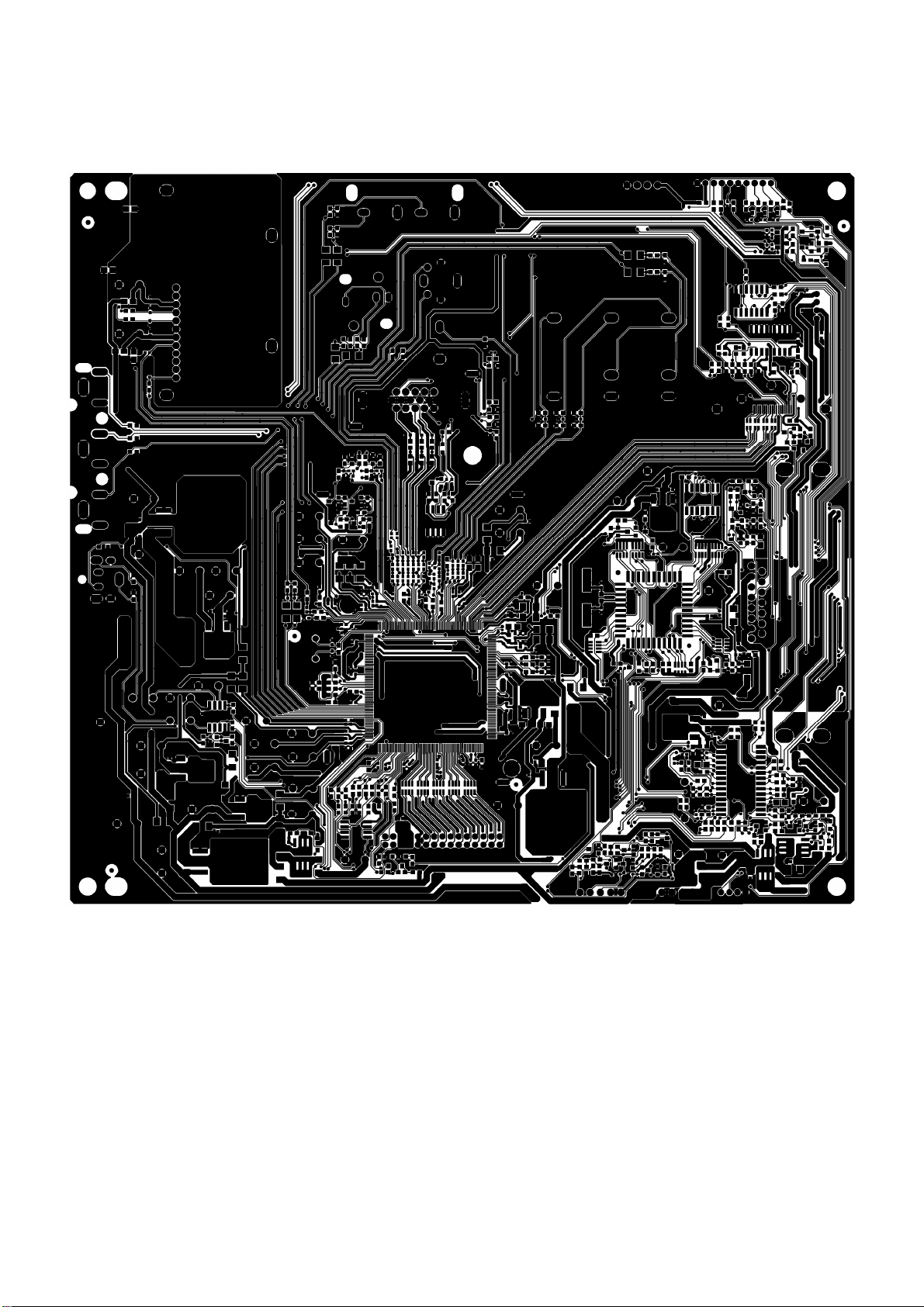

5.1 主板

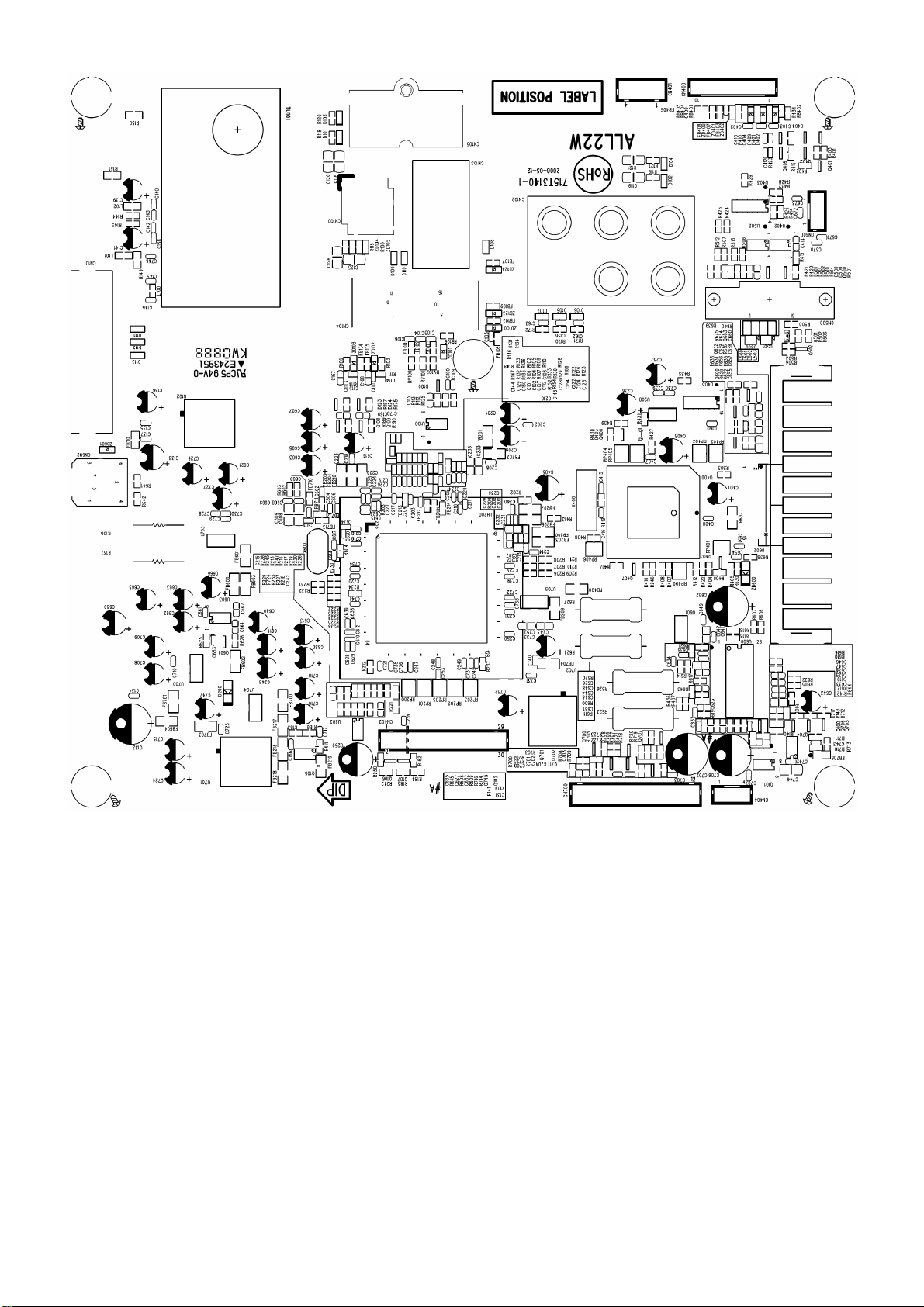

715T3140 1
21
Page 22
22
Page 23

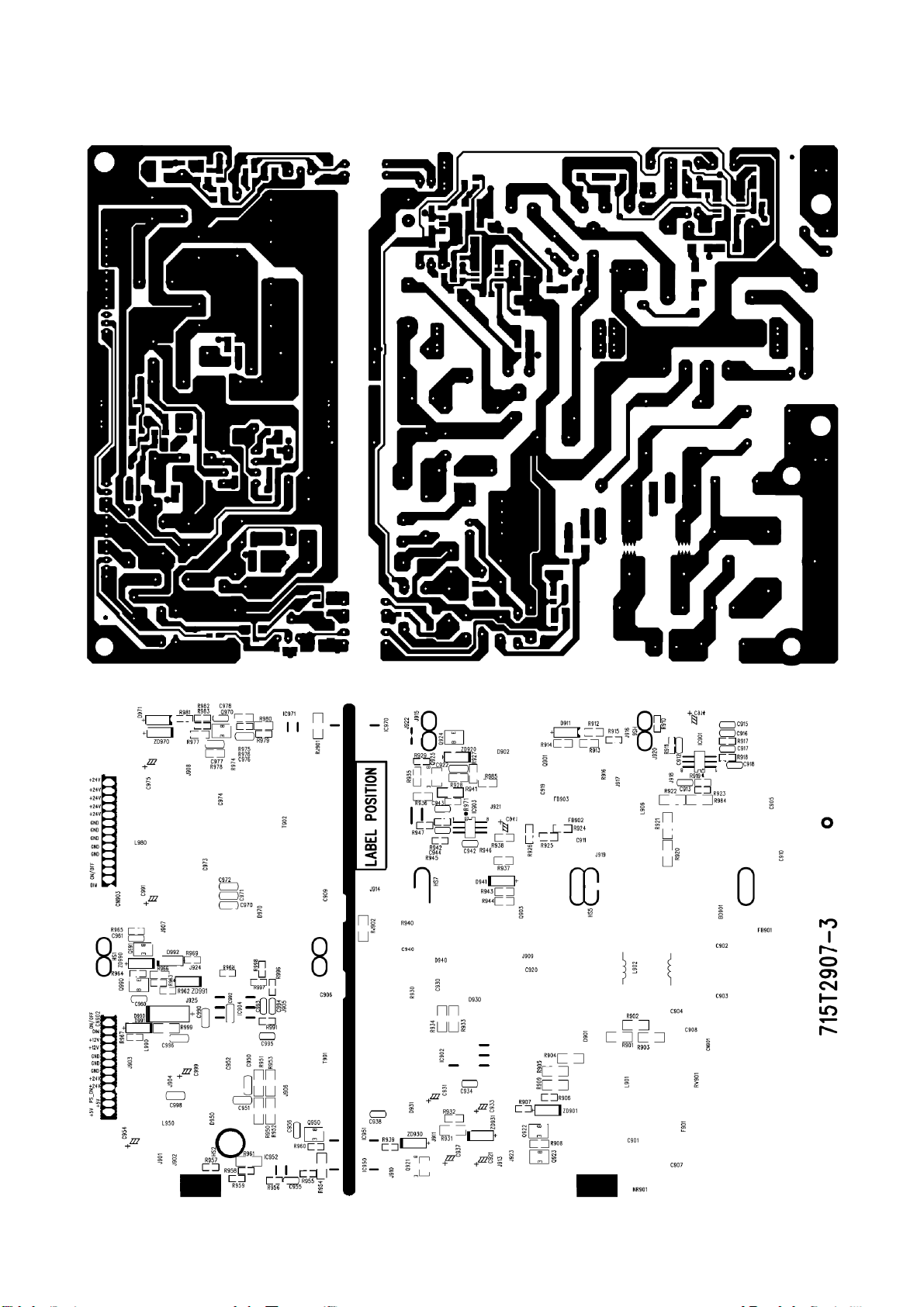

6.2 电源板

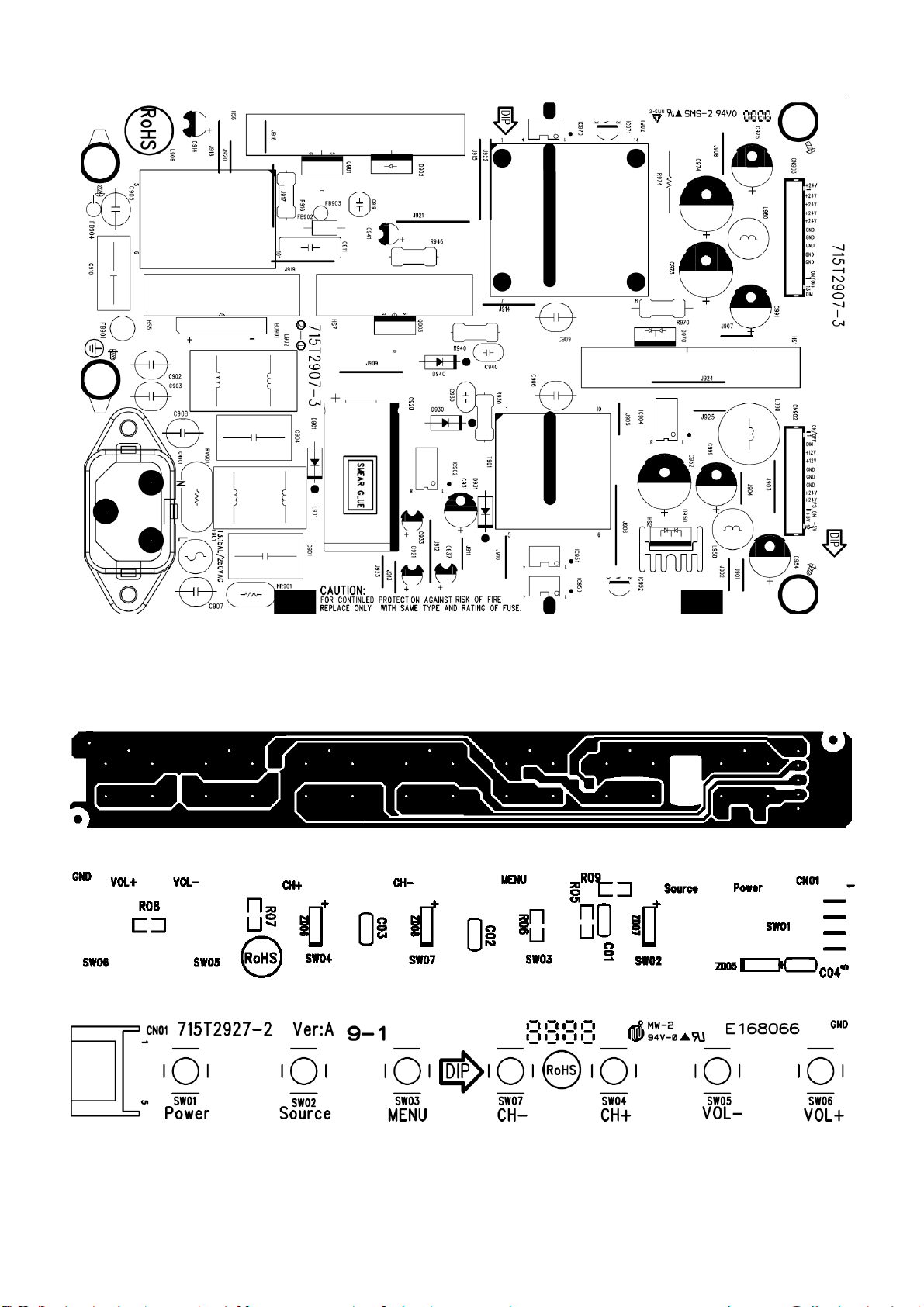

715T2907 3
23
Page 24
6.3 按键板
715T2927 2
24
Page 25
6.线路图

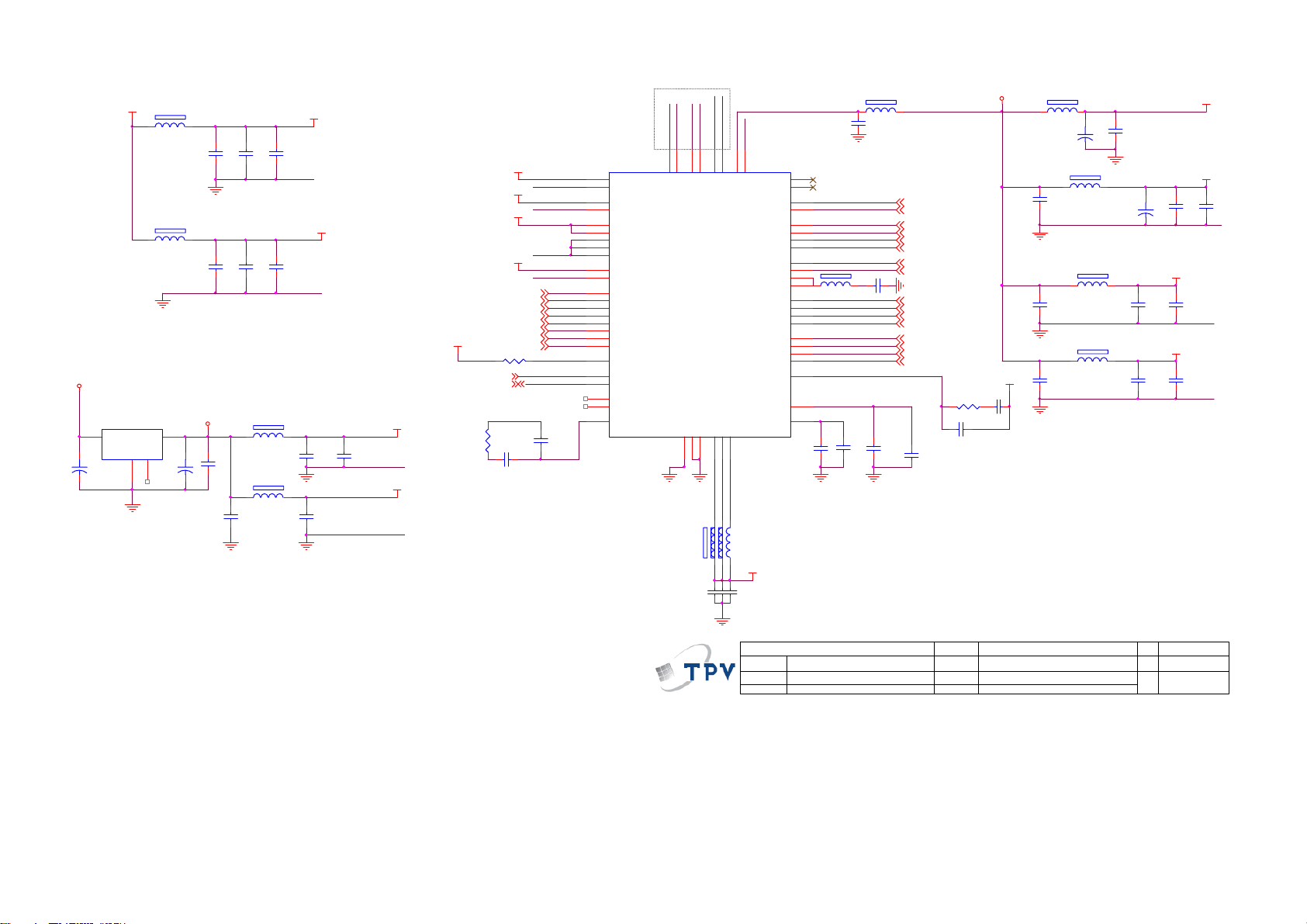

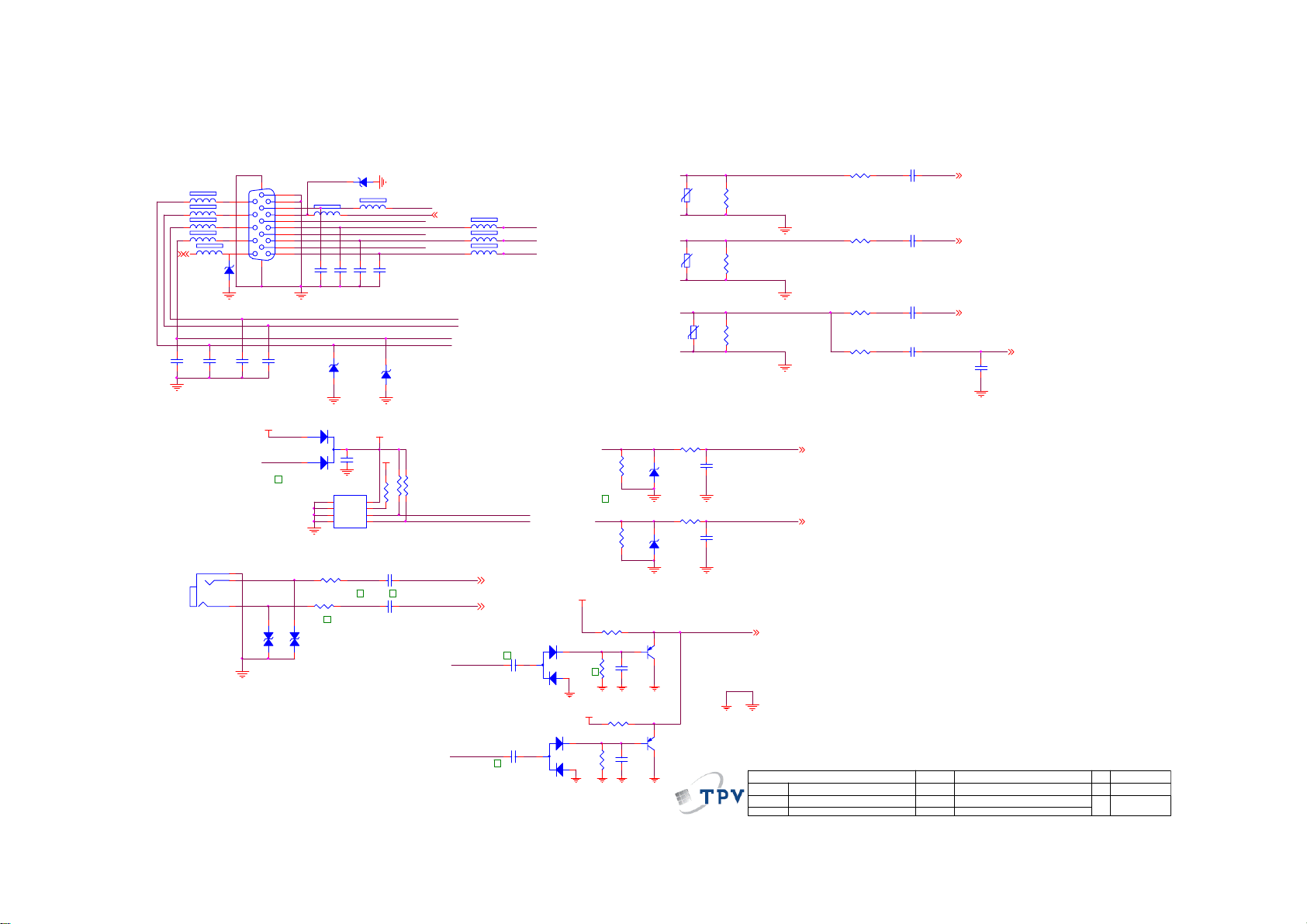

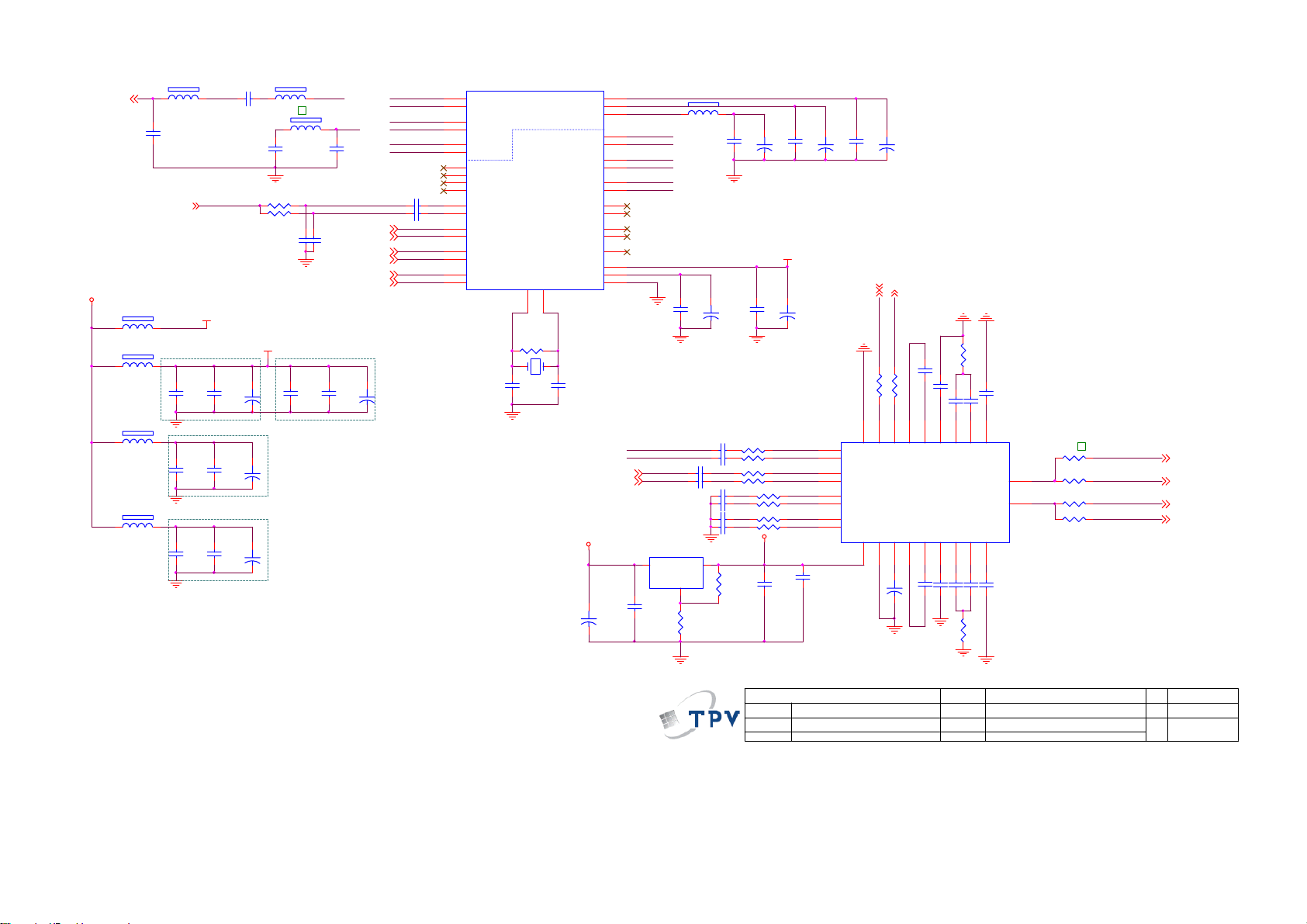

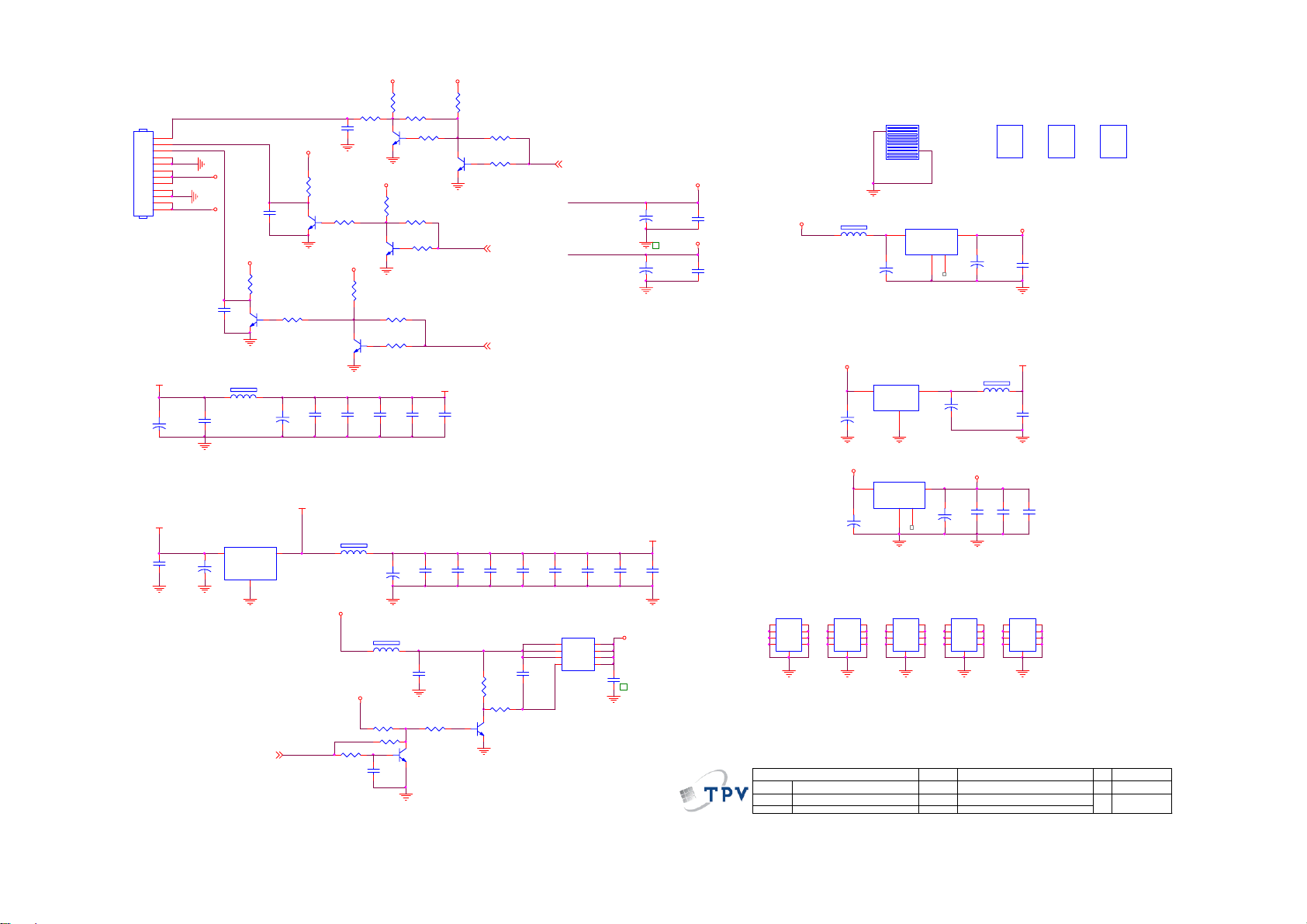

主板
715T3140 1
7
33PF 50V
FB103 120 OHM
FB104 120 OHM
FB105 120 OHM
FB106 120 OHM
FB107 120 OHM
1 2
1 2
1 2
1 2
RS_RXD
C100
AGND
1 2
ZD124
UDZ S5.6B
C109
33PF 50V
CN100
PHONEJ ACK
PHONEJ ACK
15
14
13
12
11
1 2
AGND
C110
33PF 50V
1
2
3
AGND
FB109 120 OHM
CN104
DB15
10
5
9
4
8
3
7
2
6
1
17 16
C111
33PF 50V
MCU5V
VGA_5V
FOR VGA DDC
AUDIO_P_L
AUDIO_P_R
ZD104
1 2
VPORT0603100KV05
1 2
C103
NC
AGND
1
2
AGND
R100
33K OHM 1/10W
R115
33K OHM 1/10W
ZD105
1 2
VPORT0603100KV05
UDZS5.6B
VGA INTERFACE
12
1 2
C105
NC
ZD100
UDZS5.6B
3
1uF/25V
VCC
WP
SCL
C113
AGND
FB108 120 OHM
B_GND
G_GND
R_GND
C106
NC
ZD101
UDZS5.6B
1 2
AGNDAGND
VGA_5V_S
MCU5V
8
7
6
5
C125
10uF/25V
C126
10uF/25V
ZD123
C104
NC
1 2
D100
BAT54C
AGND
U100
1
A0
2
A1
3
A2
VSS4SDA
M24C02-WMN6TP
VGA_5V
VGA_H
VGA_V
VGA_SDA
VGA_SCL
R125
R112
R113
4.7K OHM 1/10W
4.7K OHM 1/10W
4.7K OHM 1/10W
VGA_SCL
VGA_SDA
C103,C104,C105,C106靠近CN100
RS_TXD 7
FB102
FB101
FB100
1 2
1 2
1 2
VGA_B
VGA_B
VGA_G
VGA_G
VGA_R
60 OHM
60 OHM
60 OHM
RV100,RV101,RV102
R102,R105,R108
R101,R104,R107
PC_L 4
PC_R 4
D123
VGA_V
VGA_H
C167
0.47uF
C168
0.47UF 25V
3
BAT54S
MCU 5V
D124
3
BAT54S
R103
2.2K OHM 1/10W
VGA_V
R106
2.2K OHM 1/10W
MCU5V
180K OHM 1/10W
2
1
R187
470K OHM 1/10W
180K OHM 1/10W
2
1
R175
100K OHM 1/10W
靠近
靠近
靠近
VGA_H
R189
R190
CN100
UH200
UH200
1 2
AGND AGND
1 2
23
PMBS3906
1
C169
0.47uF/ 25V
23
1
C170
0.47uF/2 5V
VGA_R
VGA_R
12
RV100
PESD0603-240
R_GND
R_GND
VGA_B
VGA_B
12
RV101
PESD0603-240
B_GND
B_GND
VGA_G
12
RV102
PESD0603-240
R111
33 OHM 1/16W
33PF 50V
ZD102
UDZS5.6B
R114
33 OHM 1/16W
C115
33PF 50V
ZD103
UDZS5.6B
Q108
PMBS3906
Q109
G_GND
AGNDAGND
R102
75 OHM 1/16W
AGND
R105
75 OHM 1/16W
AGND
75 OHM 1/16W
R108
AGND
HS_M2 3
C114
C114,C115靠近CN100
VS_M2 3
SYNC_DETECT 7
AGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
01)VGA_INPU T
Date
R101
100 OHM 1/16W
R104
100 OHM 1/16W
R107
100 OHM 1/16W
R110
100 OHM 1/16W
1000pF
C108
1 2
C101
0.047UF 25V
C102
0.047UF 25V
C107
0.047UF 25V
Near to HX6203(UH1)
OEM MO DEL
TPV MODEL
PCB NAME
Sheet
R_M2 3
B_M2 3
G_M2 3
AGND
715T3140 1
215Wednesday , January 21, 2009
of
C112
NC
SOG_VGA_M2 3
Size
Rev
称爹
A3
1B
<
称爹
>
25
Page 26
AGND
HD/L
HD/R
CN105
2
1
4
3
JACK
HD/L
HD/R
JACK
CN103
AV1
D102
D104
7
12
AGND
12
AGND
6
R119
33K OHM 1/10W
VPORT0603100KV05
R121
VPORT0603100KV05
33K OHM 1/10W
AGND
1 3
C118
C120
C156
33pF
R118
33K OHM 1/10W
R120
33K OHM 1/10W
C163
C162
33pF
33pF
AGND
12
D105
AV1_L4 HD_L 4
10uF/25V
AV1_R4
10uF/25V
Y
PB
PR
VPORT0603100KV05
AV1/L
12
D101
AGND
AV1/R
VPORT0603100KV05
12
D103
AGND
CN102
1
2
3
4 5
6
7 8
12
12
D106
D107
AGND
JACK
VPORT0603100KV05
VPORT0603100KV05
VPORT0603100KV05
10uF/25V
5
8
VPORT0603100KV05
VPORT0603100KV05
VPORT0603100KV05
C119
10uF/25V
AGND
SVIDEO_C
4
2
SVIDEO_Y
C121
AV1
HD_R 4
D108
AGND
D109
AGND
D110
12
12
12
33 OHM 1/16W
R131
33 OHM 1/16W
R134
33 OHM 1/16W
R128
100 OHM 1/16W
R130
43 OHM +-5% 1/16W
AGND
100 OHM 1/16W
R133
43 OHM +-5% 1/16W
AGND
100 OHM 1/16W
R136
43 OHM +-5% 1/16W
R132
R135
R129
C128
0.047UF 25V
Video1 3
C129
0.047UF 25V
C130
0.047UF 25V
S-Video_C 3
S-Video_Y 3
100 OHM 1/16W
100 OHM 1/16W
100 OHM 1/16W
Y
PB
PR
AGND
R172
R171
R170
75 OHM 1/10W
75 OHM 1/10W
75 OHM 1/10W
R122
R123
R124
C122
0.047UF 25V
C123
0.047UF 25V
C124
0.047UF 25V
Y
R166
100 OHM 1/10W
1000pF
C154
3
Video2
AV2_R4
AV2_L4
C148
0.047UF 25V
R154
100 OHM 1/16W
R152
43 OHM +-5% 1/16W
AGND
R644
33K OHM 1/10W
33K OHM 1/10W
AGND
R643
AGND
R153
33 OHM 1/16W
12
D113
VPORT0603100KV05
R601
27K OHM 1/10W
R600
27K OHM 1/10W
AGND
AV2
AGND
VPORT0603100KV05
AGND
HD_Y 3
HD_PB 3
HD_PR 3
12
VPORT0603100KV05
D112
12
D111
HD_SOY 3
AGND
AGND
AGND
JACK
9
8
7
6
5
4
3
2
1
CN101
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component

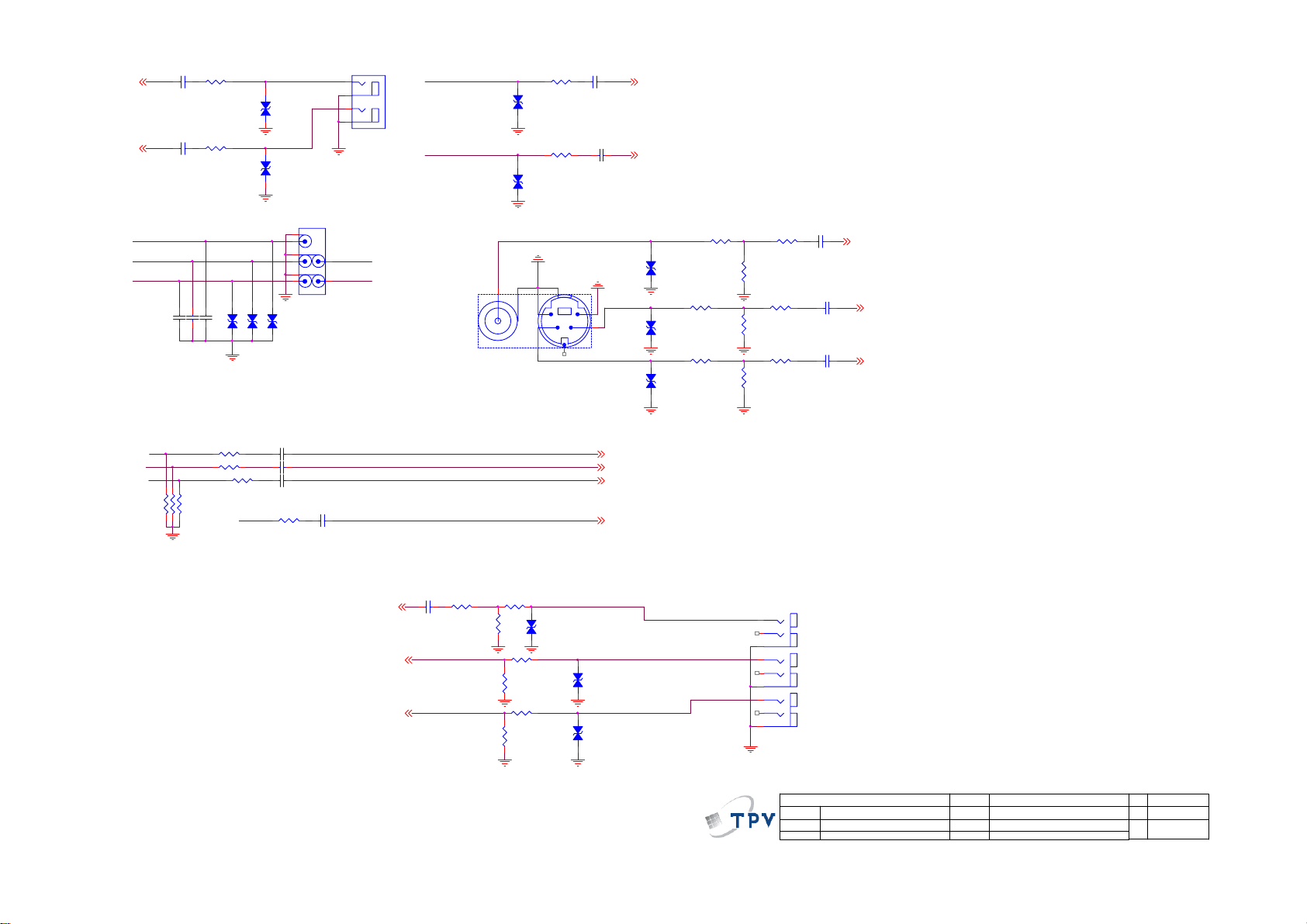

02)VIDEO_IO
Date
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
715T3140 1
of
315Wednesday , January 21, 2009
Size
Rev
称爹
A3
1B
<
称爹
>
26
Page 27
DVI/HDMI 1.8V POWER 20mA
A_1.8
FB200
CLOSE
FB203
2
V3D3_M1_HDMI
+
C237
10uF/16V
PIN190
C200
0.1uF 25V
AGND
C212
0.1uF 25V
C230
0.1uF25V
C239
0.1uF25V
1 2
300 OHM
1 2
300 OHM
AGND
HDMI POWER 3V3 100mA
5VS
U200
AP1117E33LA
3
+
C236
10uF/16V
M1 register and setting path:
SYS_PW = 0 : Normal
SYS_PW = 1 : ISP HDCP
VOUT
VIN
VSS
4
1
4
AGND
C207
C206
100pF
0.1uF 25V
VCCP_HDMI
VCCP_HDMI
C214
C213
100pF
GNDP_HDMI
0.1uF 25V
FB206
1 2
300 OHM
FB207
1 2
300 OHM
PVCCG
PVCCG
PGNDG
VCCP_HD MI
CLOSE
PIN188
CLOSE
PIN196,202
C231
0.1uF 25V
AGND
CLOSE PIN194
C240
0.1uF 25V
AGNDAGND
C232
0.1uF 25V
VSSP_DV
VDDA_DV
VSSA_DV
VDDP_DV
PVCCG
VCCP_HD MI
VDDA_DV
VDDP_DV
RX0+9
RX0-9
RX1+9
RX1-9
RX2+9
RX2-9
VDDA_DV
DDCSCL_M29
M1 register and setting path:
SYS_PW = 0 : Normal
SYS_PW = 1 : ISP HDCP
RXC+9
RXC-9
R202
390 OHM 1% 1/10W
DDCSD A_M29
PVCCG
R204
C235
3.3K O HM 1/16W
4.7uF
C235,R204,C228
PVCCG
PGNDG
VCCP_HDMI
GNDP_HDMI
VDDA_DV
VSSA_DV
VDDP_DV
VSSP_DV
DDCSCL_M2
DDCSDA_M2
C228
0.47uF
EXTCAP
要靠近
REXT
UH200
190
192
188
189
196
202
199
205
208
194
193
201
200
204
203
207
206
198
197
195
187
186
184
183
191
UH200A
HX6203-A
PVCCG(1.8V)
PGND
VCCP(1.8V)
GNDP
VDDA_DV(3. 3V)
VDDA_DV(3. 3V)
VSSA_DV
VSSA_DV
VSSA_DV
VDDP_DV(3. 3V)
VSSP_DV
RX0P
RX0N
RX1P
RX1N
RX2P
RX2N
RXCKP
RXCKN
REXT
DDCSCL
DDCSDA
MSC L
MSD A
EXTCAP
FB214300 OH M
FB213300 OH M
FB212300 OH M
PLL POWER
VDDP_AD
241
AGND
ADC POWER 3.3V 500mA
FB216
1 2
300 OHM
211
210
239
238
216
217
218
219
221
222
223
224
227
228
229
230
232
233
234
235
242
214
213
C229
0.1uF25V
C217
0.1uF25V
FB208
1 2
300 OHM
FILT
VREF
VMID
C233
4.7uF
AGND
AGND
C216
0.1uF 25V
C234
0.1uF25V
AGND
VS_M2 1
HS_M2 1
HD_PB 2
HD_PR 2
HD_Y 2
HD_SOY 2
Video1 2
Video2 2
AGND
SOG_VGA_M2 1
G_M2 1
B_M2 1
R_M2 1
S-Video_Y 2
S-Video_C 2
TV_CVBS 11
KEY1 7
1.6KOHM + -5% 1/16W
C227
0.01UF 50V
C227,R203,C226
C238
4.7uF
BVDDA
BVSSA
VSSDP
VDDDP
VSSP_AD
245
243
VSSP_AD
VDDP_AD(3.3V)
HDMI/DVI
VSSA_AD
226
236
C2030.1uF25V
C2040.1uF25V
C2050.1uF25V
AGND
209
240
212
237
244
AOUT1
AOUT2
VSYN C
VSSD_AD
BVSSA_VD
VSSDP_AD
VDDDP_AD(3.3V)
VSSA_AD
VSSA_AD
220
215
AGND
1 2
HSYNC
AI11(RIN 1)
VDDD_AD(3.3V)
BVDDA_VD(3.3V)
AI21(GIN1)
AI31(BIN1)
AI41(YI N1)
AI12(RIN 2)
AI22(GIN2)
AI32(BIN2)
AI42(YI N2)
AI13(RIN 3)
AI23(GIN3)
AI33(BIN3)
AI43(YI N3)
AI14(RIN 4)
AI24(GIN4)
AI34(BIN4)
AI44(YI N4)
- RGB/YPbPr/Video -
Analog Input / Output
FILT
VREF(1.25V)
VMIDS(0.5v )
VDDA_AD(3.3V)
VDDA_AD(3.3V)
VDDA_AD(3.3V)
231
225
for EMI Issue
CLOSE
PIN220,231,225,237
1 2
1 2
VDDA_AD
V33ADC
2007-10-31
VDDP_AD
R203
0.1uF25V
VDDP_AD
要靠近
FB201
CLOSE
1 2
C208
0.1uF25V
AGND
ADC PLL 3.3V
C218
0.1uF25V
AGND
C223
0.1uF25V
C226
AGND
UH200
PIN220,231,225,237
300 OHM
+
C201
10uF/16V
FB202
1 2
300 OHM
FB204
1 2
300 OHM
FB205
1 2
300 OHM
C202
0.1uF 25V
AGND
CLOSE PIN209
+
C209
C210
10uF/16V
0.1uF 25V
CLOSE PIN241,242
VDDP_AD
C219
0.1uF 25V
0.1uF 25V
CLOSE PIN245
C224
0.1uF 25V
C220
100pF
VSSP_AD
VDDDP
C225
100pF
VSSDP
VDDA_AD
BVDDA
C211
BVSSA
AGND
<
Custom
1B
称爹
>
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
03)HX6203_AD_ INPUT
OEM MO DE L
TPV MODEL
PCB NA ME
Sheet
715T3140 1
415Wednesday , January 21, 2009
of
Size
Rev
称爹
27
Page 28
TUN ER _SI F11
VDD_AU D
TUNER_MONO11
FB600
1 2
300 OHM
FB601
1 2
300 OHM
FB602
1 2
300 OHM
FB603
1 2
300 OHM
FB710
1 2
300 OHM
C746
NC
33K OHM 1/10W
33K OHM 1/10W
TV_S IF R
C600
0.1uF25V
FB712
300 OHM
1 2
1 2
C601
0.1uF25V
AGND
R602
R603
C668NC
C669NC
FB713
300 OHM
AGND
SIF1+
AUD 3.3V 200mA
VRP
C620
0.1uF25V
VDDD _AU
C629
VSSD_AU
0.1uF25V
VDDA_AU
C639
VSSA_AU
0.1uF25V
VDD_SI F
+
C621
C622
10uF/16V
100pF
CLOSE PIN63
+
C630
10uF/16V
CLOSE PIN58
C640
+
10uF/16V
CLOSE PIN246 CLOSE PIN253
C618
100pF
20mA
AGND
C628
100pF
AGND
C638
100pF
AGND
SIF1-
SIF1-
C674
0.1uF25V
C615
VSS_SIF
0.1uF25V
AV1_L2
AV1_R2
HD_L2
HD_R2
PC_L1
PC_R1
+
C616
10uF/16V
VSS_SIF
VDD_SIF
VSS_SIF
SIF1+
SIF1-
C608 10uF/ 25V
C609 10uF/ 25V
246
247
253
256
251
252
38
39
40
41
44
45
46
47
48
49
50
51
UH200C
VDDA_SI F
VSSA_SIF
VDDD _SIF
VSSD_SIF
SIFP
SIFN
I2SREF CK
I2SCKI
I2SWSI
I2SDTI
AUIL1
AUIR 1
AUIL2
AUIR 2
AUIL3
AUIR 3
AUIL4
AUIR 4
HX6203-A
X60 0
C614
33PF 50V
. Audio
Analog
I2S / S P DIF
SIF MUX
In / Out
XTAL_IN
24.576MHz
254
R604
XTAL_IN
1M OHM 1/10W
24.576MHz
AGND
XTAL_OUT
255
100uF/25V
VREFP
VCMG
VREFN
VDDD _AU
VSSD_AU
VDDA_AU
VSSA_AU
AUOL1
AUOR1
AUOL2
AUOR2
AUOL3
AUOR3
SPDIF
XTAL_O
C617
33PF 50V
1uF/25V
1uF/25V
0.1uF25V
0.1uF25V
+12VA
+
C650
VRP
VCM
VRN
VREFPVDD_SIF
248
VCMG
249
VREFN
250
VDDD _AU
63
VSSD_AU
64
VDDA_AU
58
VSSA_AU
59
AOUT1_L
53
AOUT1_R
52
55
54
57
56
65
VRP
60
VCM
62
VRN
61
AGND
AOUT1_R
AOUT1_L
AV2_R2
AV2_L2
2.4K OHM 1/10W
2.4K OHM 1/10W
330 OHM 1/10W
330 OHM 1/10W
330 OHM 1/10W
330 OHM 1/10W
3
C649
0.1uF25V
1 2
FB711
C610
+
10uF/16V
0.1uF25V
AGND AGND
1uF/25V
1uF/25V
C627
C632
C631
C633
C634
C635
C6360.1uF25V
C6370.1uF25V
U601
VIN
AGND
AZ1117H-AD J-E1
2
VOUT
ADJ
1
220 OHM 1/10W
R621
1.2K OHM 1/10W
0 OHM
C602
+
10uF/16V
0.1uF25V
AGND
C612
C611
0.1uF25V
R6082.4K OHM 1/10W
R609
2.4K OHM 1/10W
R611
R612
R614
R615
R617
R619
9VDD
10uF/16V
R620
C603
9VDD
VRP
C642
C604
0.1uF25V
+
C613
10uF/16V
+
10uF/16V
11
16
10
15
14
13
PT2314
C641
0.1UF 16V
C605
9
8
0.1uF25V
U600
RIN1
LIN1
RIN2
LIN2
RIN3
LIN3
RIN4
LIN4
22uF/16V
C606
AGND
C643
10uF/16V
M_SD A7,11
R607
0 OHM 1/10W
26
25
DATA
DGND
AGND
VDD
2
1
AGND
+
C607
S_SCL_PT2314 7
C6192.2uF/ 16V
R606
0 OHM 1/10W
18
27
17
LIN
CLK
LOUT
REF28RIN
ROUT
5
6
C645
+
C644
2.2uF/ 16V
AGND
5.6K OHM 1/10W
0.1uF
R622
AGND
C6230.1uF
0.1uF
12
LOUT_L
LOUT_R
7
C6460.1uF
0.1uF
AGND
AGND
R605
5.6K OHM 1/10W
C626
C624
C625
0.1uF
0.1uF
0.1uF
0.1uF
19
20
3
BIN_L
TREB_L
BOUT_L
OUT_R
OUT_L
BIN_R
BOUT_R
TREB_R
4
21
22
C647
C6482700PF 50V
0.1uF
0.1uF
0.1uF
AGNDAGND
2700PF 50V
AUDIO_R
R610
100 OHM 1/10W
23
24
R613
R616
R618
HP_R
1K OHM 1/10W
AUDIO_L
100 OHM 1/10W
HP_L
1K OHM 1/10W
AUDI O_R 8
HP_R 8
AUDI O_L 8
HP_L 8
T P V ( Top Victory Electronic s Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
28
Date
04)HX6203_Audio
OEM MODEL
TPV MO DE L
PCB NAME
Sheet
715T3140 1
of
515Wednesday , January 21, 2009
Size
Rev
称爹
A2
1B
称爹
>
<

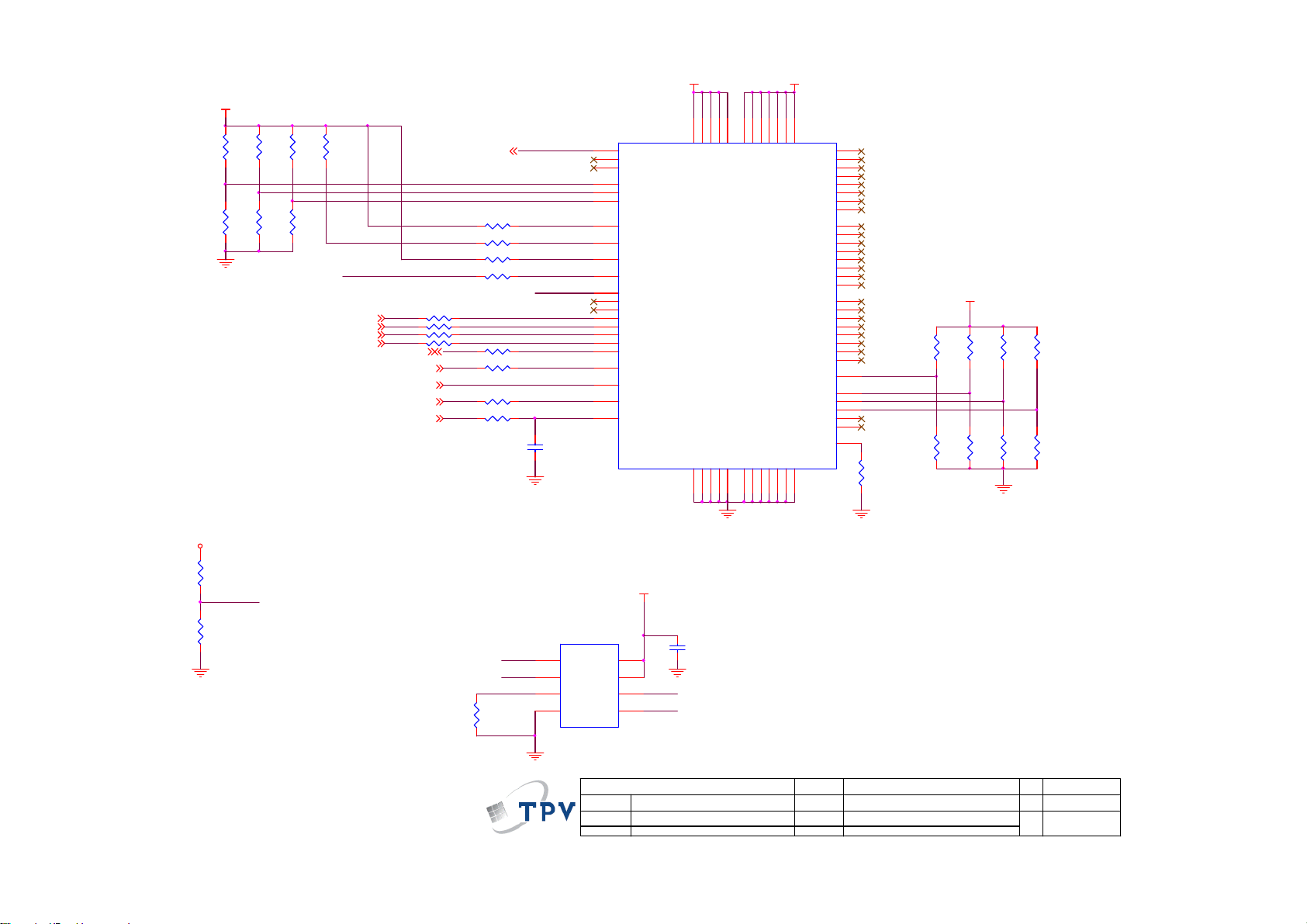

Page 29
5VS
VCC3I O
4.7K OHM 1/10W
R206
R209
NC
AGND
M2 register and setting path:
BUSTYPE = 0 : Parallel interface
BUSTYPE = 1 : I2C interface
4.7K OHM 1/10W
4.7K OHM 1/10W
R207
R210
NC
4.7K OHM 1/10W
R208
R724
R211
NC
CE7
SO7
SI7
SCK7
TSTMD 1
TSTMD 2
TSTMD 3
R212
R245 22 OHM 1/10W
R213
SPI_FLASH M_WE
R217 68 OHM 1/10W
R218 0 OHM 1/10W
R219 68 OHM 1/10W
R220 68 OHM 1/10W
S_SDA7
S_SCL7
INTO_N7
IR_DATA7
RESET#7
R247 22 OHM 1/10W
BL_ADJ10
4.7K OHM 1/10W
4.7K OHM 1/10W
R221
0 OHM 1/10W
R226
0 OHM 1/10W
R228
NC
R229
22 OHM 1/10W
AGND
BUSTYPE_R
DBUS0
DBUS3_1
DBUS4_1
DBUS5_1
DBUS6_1
DBUS7
INTO_N
IRDAT
RST_N
C215
1UF/ 25V
176
177
179
180
181
182
67
71
72
73
76
77
78
79
80
82
83
84
85
70
68
66
UH200B
PWMB
PWMC
PWMD
TSTMD 1
TSTMD 2
TSTMD 3/P D
BUSTYP
ALE
RDZ
WRZ
DBUS0
DBUS1
DBUS2
DBUS3
DBUS4
DBUS5
DBUS6
DBUS7/SDA
SCL/C S
INTO_N
IRDAT
RST_N
HX6203-A
VCC3IO
160
178
VCCK
117
PWM Output, Direct B us, I2C Control & MISC
VCC3IO(3.3V)5VCC3IO(3.3V)25VCC3IO(3.3V)69VCC3IO(3.3V)
GNDIO
185
170
VCCK(1. 8V)20VCCK(1. 8V)43VCCK(1. 8V)87VCCK(1. 8V)75VCCK(1. 8V)
VCC3IO(3.3V)
GNDIO
GNDIO81GNDIO34GNDIO14GNDK
GNDK
GNDK
GNDK86GNDK74GNDK42GNDK
166
150
116
AGND AGND
149
165
VCCK(1. 8V)
19
VCCK(1. 8V)
TTL Input
SYNC1
SYNC2
SYNC3
SYNC4
SYNC5
P_A0
P_A1
P_A2
P_A3
P_A4
P_A5
P_A6
P_A7
P_B0
P_B1
P_B2
P_B3
P_B4
P_B5
P_B6
P_B7
P_C0
P_C1
P_C2
P_C3
P_C4
P_C5
P_C6
P_C7
CLK_A
CLK_B
1
2
3
4
6
7
8
9
10
11
12
13
15
16
17
18
21
22
23
24
26
27
28
29
30
31
32
33
35
36
37
1K OHM 1/10W
R230
R234
1K OHM 1/10W
R222
NC
VCC3I O
R223
NC
R231
NC
AGND
R224
NC
R232
NC
R225
NC
R233
NC
R216
4.7K OHM 1/10W
DBUS0
R227
NC
Power On latch the DBUS0 value
for support HDCP Key from :
Use Pull-High to 8051 firmware
Use Pull-Low external key ROM
Use 1K for avoid MCU pull high
4.7K resistor effect.
CE
SO
SPI_FLASH M_WE
R235
4.7K OHM 1/10W
AGND
U202
M25P40-VMN6TP/X
1
2
3
3.3V
C242
CE#
SO
WP#
VSS4SI
8
VDD
7
HOLD#
6
SCK
5
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
1uF/25V
AGNDAGND
SCK
SI
05)HX6203_CTRLBUS
29
K310 SPI interface share pin
with MCU parallel bus
{csn, sdi, sdo, sck}
{DBUS3,DBUS5,DBUS4,DBUS6}
K310_gpio[5:0] =
DBUS2,DBUS1,DBUS0,WRN,RDN,ALE
OEM MO DE L
TPV MODEL
PCB NAME
Sheet
715T3140 1
of
615Wednesday , January 21, 2009
Size
Rev
称爹
A3
1B
称爹
>
<

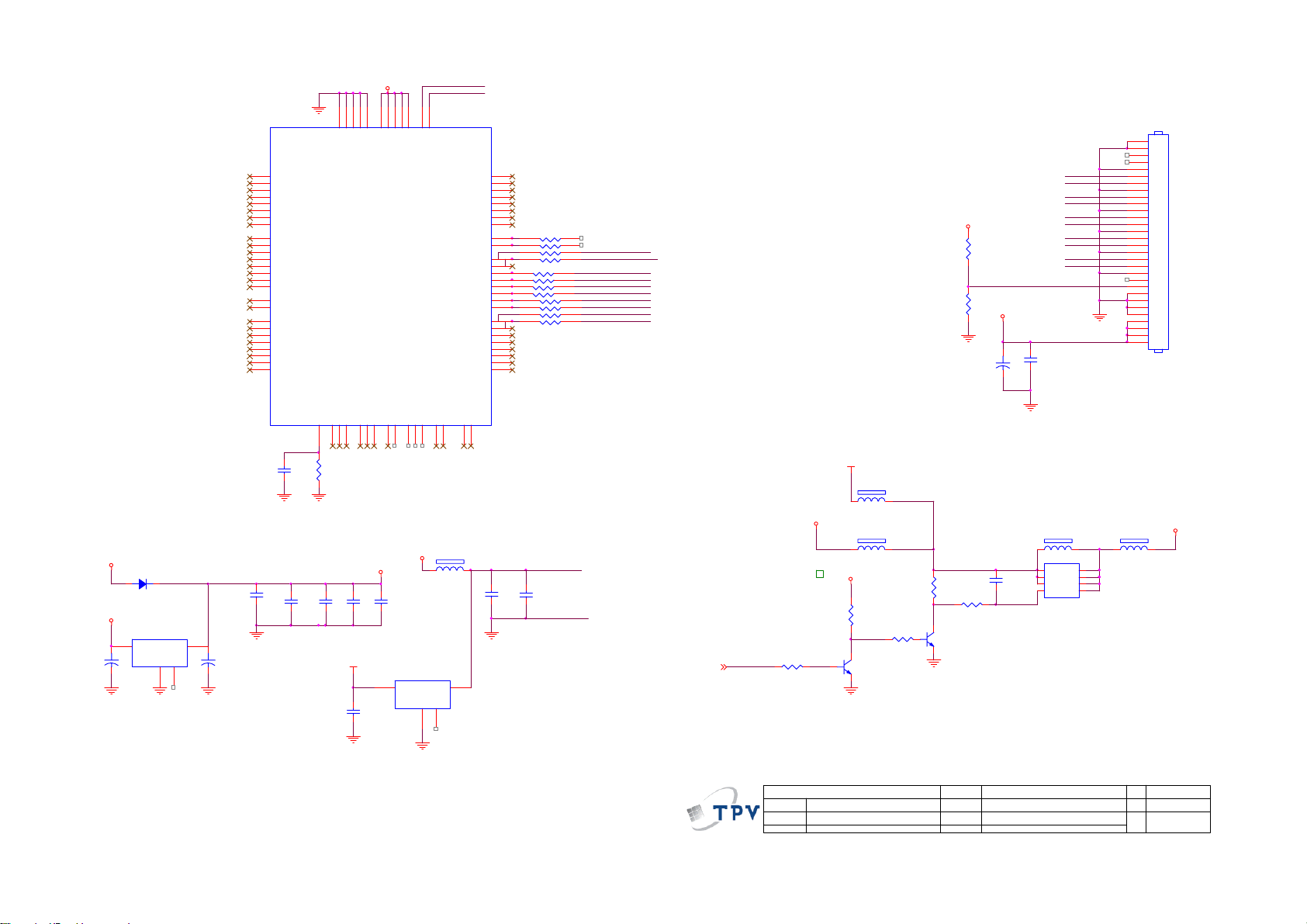

Page 30
VCCLV
GNDLVP
VCCLVP
47 ohm-->
0ohm / Bead
5VS
+
10uF/16V
AGND
LVDS 120mA
D200
NC
（
1N4148
AP1117E25LA
3
VIN
C747
AGND
1
U704
）
VSS
VOUT
4
4
C246
10uF/16V
VDD_AUD
CANCEL FB210,CA:C747 U704,D200
156
155
154
153
152
151
146
145
144
143
142
141
140
139
138
137
136
135
134
133
130
129
128
127
126
125
For panel
RSDS
driving
2
AGND
AGND AGND
CLOSE
PIN88,100,114,132,148
C247
0.1uF25V
+
AGND
UH200D
BRSB3N/ OR0/B2POL20
BRSB3P/OR 1/B2BITST
BRSB2N/ OR2/B2CLK
BRSB2P/OR 3/B2RSR2
BRSB1N/ OR4/B2RSR1
BRSB1P/OR 5/B2RSR0
BRSB0N/ OR6/B2RSG2
BRSB0P/OR 7/B2RSG1
BRSG3N/ OG0/B2RSG0
BRSG3P/OG1/ B2RSB2
BRSG2N/ OG2/B2RSB1
BRSG2P/OG3/ B2RSB0
BRSG1N/ OG4/B1RSB0
BRSG1P/OG5/ B1RSB1
BRSG0N/ OG6/B1RSB2
BRSG0P/OG7/ B1RSG0
BRSCLKN
BRSCLKP
BRSR3N/ OB0/B1RSG1
BRSR3P/ OB1/B1RSG2
BRSR2N/ OB2/B1RSR0
BRSR2P/ OB3/B1RSR 1
BRSR1N/ OB4/B1RSR2
BRSR1P/ OB5/B1CLK
BRSR0N/ OB6/B1BITST
BRSR0P/ OB7/B1POL20
HX6203-A
124
R237
C245
NC
13K OHM 1/10W
C248
0.1uF25V
PI
89
BSTH2
157
158
C249
0.1uF25V
103
GNDLV
BSTH1
159
3.3V
AGND
147
115
GNDLV
GNDLV
BTP
162
C250
0.1uF25V
C243
NC
GNDLV
LVDS /CMDI MUX I/O
FSTH2
131
GNDLV
FSTH1
161
163
VCCLV
88
VCCLV(3. 3V)
RSDS/Turb o RSDS/TT L/
FTP
C251
0.1uF25V
3
100
169
148
114
132
101
102
GNDLVP
VCCLV(3. 3V)
VCCLV(3. 3V)
VCCLV(3. 3V)
VCCLV(3. 3V)
VCCLVP(1.8V)
FRSR 0P/LVB3P/EB7/F1POL20
FRSR0N /LVB3N/EB6/F1BITST
FRSR1P/ LVBCKP/EB5/F1CLK
FRSR 1N/LVBC KN/EB4/F 1RSR2
FRSR2P/ LVB2P/EB3/F1RSR1
FRSR2N /LVB2N/EB2/F1RSR 0
FRSR3P/ LVB1P/EB1/F1RSG2
FRSR3N /LVB1N/EB0/F1RSG1
FRSCLKP/LVB0P
FRSC LKN/LVB0N
FRSG0P/LVA3P/EG7/F1RSG0
FRSG0N/LVA3N/EG6/F2RSB2
FRSG1P/LVACKP/ EG5/F1RSB1
FRSG1N/LVACKN/EG4/F1RSB0
FRSG2P/ LVA2P/EG3/F 2RSB0
FRSG2N/LVA2N/EG2/F2RSB1
FRSG3P/ LVA1P/EG1/F 2RSB2
FRSG3N/LVA1N/EG0/F2RSG0
FRSB0P/LVA0P/ER7/F2RSG1
FRSB0N/LVA0N/ER6/F2RSG2
FRSB1P/ER5/F2RSR0
FRSB1N/ER4/F2RSR1
FRSB2P/ER3/F2RSR2
FRSB2N/ER2/F2CLK
FRSB3P/ER1/F2BITST
FRSB3N /ER0/F2POL20
POL/CLK
STV1
CPV
STV2
OEV
UDC/VS
GVOF/HS
GVON/DEN
164
167
168
171
175
174
173
172
VCCK
FB209
1 2
300 OHM
U705
NC
VIN
AGND
2
VOUT
VSS
4
1
4
90
91
92
93
94
95
96
97
4
98
3
99
2
104
1
105
4
106
107
3
108
2
1
109
4
110
111
3
2
1
112
113
118
119
120
121
122
123
RLC
LVDS_PLL 20mA
C252
C253
10uF/10V
0.1uF25V
AGNDAGND
5
6
7
8
5
6
7
8
5
6
7
8
CHIP BE AD Array 1206 80ohm
CHIP BE AD Array 1206 80ohm
CHIP BE AD Array 1206 80ohm
VCCLVP
CLOSE
PIN101
GNDLVP
RP200,RP201,RP202,RP203,RP204靠近UH200
RP205
TX3AP
TX3AN
TXCKA P
TXCKA N
RP202
TX2AP
TX2AN
TX1AP
TX1AN
TX0AP
TX0AN
RP203
PANEL POWER
1>OFF ;
0>ON
PANEL_PW7
R182
4.7K OHM 1/10W
+12VA
1 2
5Vstb
1 2
5Vstb
Q107
PMBS3904
AGND
FB221
300 OHM
FB218
NC
R186
4.7K OHM 1/10W
R184
4.7K OHM 1/10W
R185
4.7K OHM 1/10W
22K OHM 1/10W
Q106
PMBS3904
AGND
5VS
AGND
470uF/16V
R183
R242
NC
R250
NC
C259
PANEL_VC C
+
AGND
C166
0.1UF 16V
C258
0.1uF25V
FB215
1 2
Q105
AO4411
1
S
2
S
3
S
4
G
NC
TX3AP
TX3AN
TXCKAP
TXCKAN
TX2AP
TX2AN
TX1AP
TX1AN
TX0AP
TX0AN
SELLVDS
D
D
D
D
8
7
6
5
AGND
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2
CN701
CONN
PANEL_VCC
FB219
300 OHM
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
06)HX6203_PANEL INTERF ACE
Date
30
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
715T3140 1
715Wednesday , January 21, 2009
of
Size
Rev
称爹
A3
1B
<
称爹
>

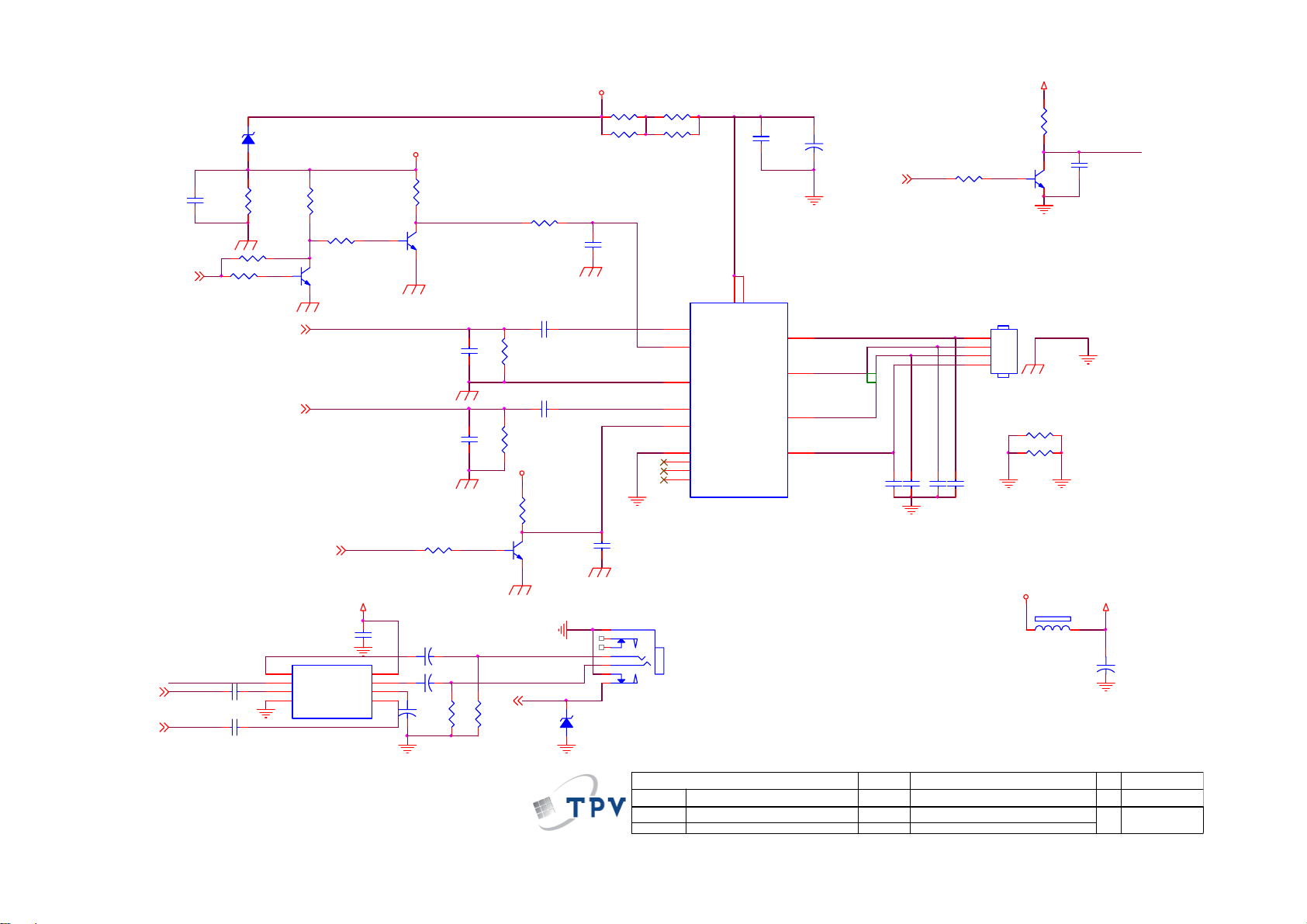

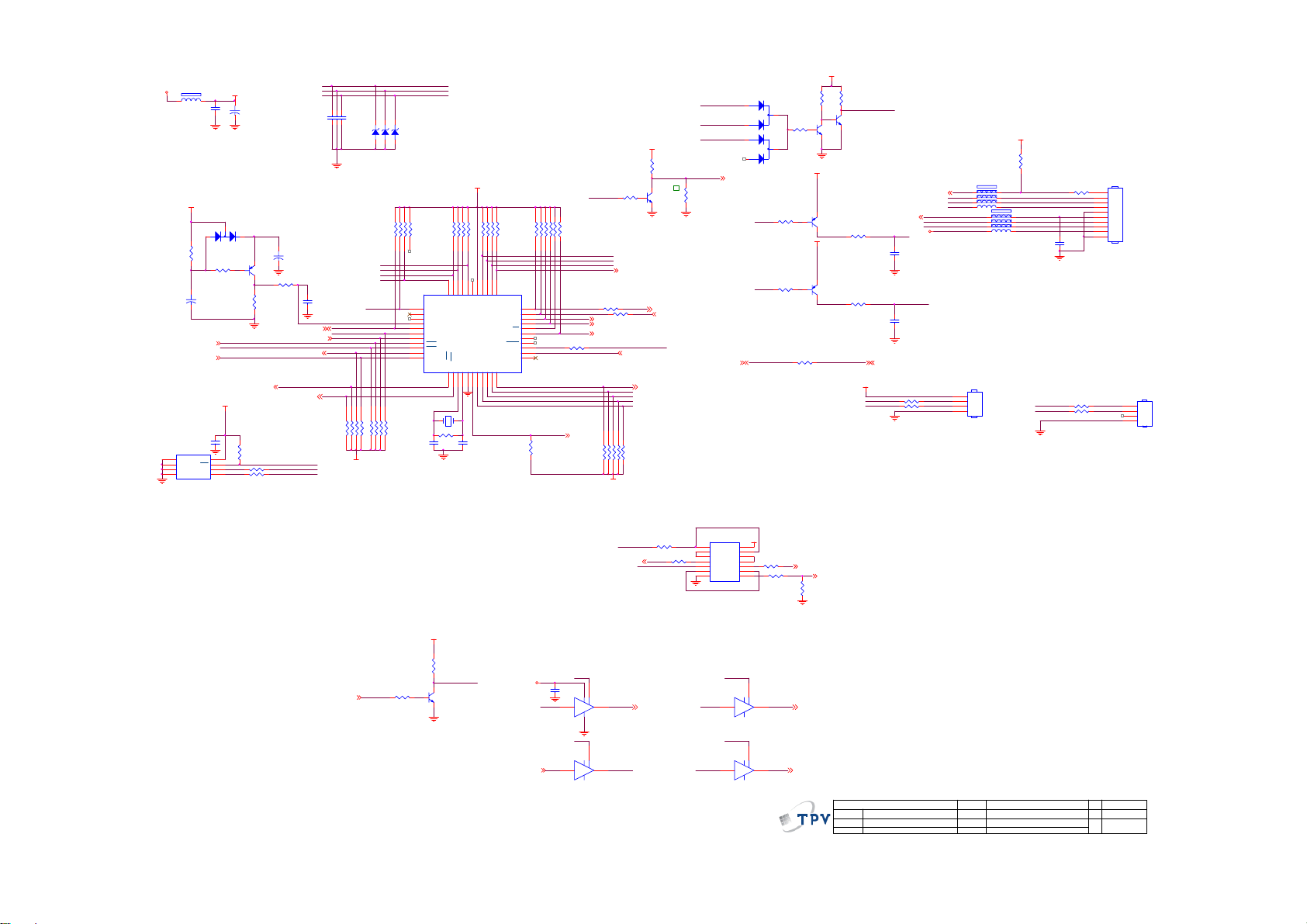

Page 31
5Vstb
R430
10KΩ 1/10W
AGND
1 2
FB400
300 OHM
MCU 5V
HDMI_5V9
U402
1
E0
2
E1
3
E2
4
VSS
M24C32-WMN6TP
AGND AGN D
1 2
+
C406
10uF/16V
INTO_N5
C414
1uF/25V
AGND
VCC
WC
SCL
SDA
C400
0.1uF25V
D403
BAV99
R459
1KΩ 1/10W
R431
10KΩ 1/10W
MCU5 V
8
7
6
5
MCU5 V
3
CLOSE
PIN44
+
C401
100uF/16V
1
3 2
SYS_RST
INTO_N
IR_DATA
HDMI_5V
HDMI_HOTPLUG9
R415
4.7K OHM 1/10W
75 OHM 1/10W
75 OHM 1/10W
0.1UF16V
NC
+
Q400
3906
R427
100Ω 1/10W
7
10KOHM +- 5% 1/16W
10KOHM +- 5% 1/16W
EPROM_WE
R424
R425
NC
C405
47UF/16V
PS_ON/OFF10
SPI_MUX_1
M_SC L
M_SD A
C407
100pF
RS_RXD
1
RS_TXD
1
C402
C403
C404
AGND
10KOHM +- 5% 1/16W
10KOHM +- 5% 1/16W
10KOHM +- 5% 1/16W
10KOHM +- 5% 1/16W
RS_RXD
ISP_EN#
RS_TXD
RP404
RP405
Power
K7
CH Up
K3
CH Down
K4
ZD400UDZS5.6B
ZD401UDZS5.6B
1 2
1 2
4
5
LED_OR
LED_GR
K3
K4
W79E632X40PX
123
876
123
876
U400
X40 0
22.1184MHz
20PF50V
ZD402UDZS5.6B
7
8
9
10
11
12
13
14
15
16
17
C415
P1.5
P1.6
P1.7
RST
RXD,P3.0
P4.3
TXD,P3 .1
INT0,P3.2
INT1,P3.3
T0,P3 .4
T1,P3 .5
RP402
1 2
R419
AGND
MCU5 V
123
4
4
876
5
5
2
44
4
1
3
P1.46P1.35P1.2
P4.2
VDD
P1.0,T2
P0.0,AD043P0.1,AD142P0.2,AD241P0.3,AD3
P1.1,T2EX
P3.6,WR18P3.7,RD19XTAL220XTAL121VSS22P4.023P2.0,A824P2.1,A925P2.2,A1026P2.3,A1127P2.4,A12
AGND
1M OHM 1/10W
C416
20PF50V
10K OHM 1/10W
123
876
40
28
RP401
P0.4,AD4
P0.5,AD5
P0.6,AD6
P0.7,AD7
P2.7,A15
P2.6,A14
P2.5,A13
P4.1
PSEN
R438
RP400
EA
ALE
4
5
39
38
37
36
35
34
33
32
31
30
29
10K OHM 1/10W
123
R407
R408
876
M_SDA
M_SCL
RESET#_R
R246 22 O HM 1/10W
SPI_SCK
SPI_CS#
SPI_SDI
SPI_SDO
PANEL_PW
6
10KOHM +- 5% 1/16W
RP406
1.8K OHM 1/10W
RESET#_R
10K OHM 1/10W
NC
R412
NC
0 OHM 1/10W
AMP_MUTE 8
MUTE_H PHON E 8
AMP_STB 8
876
5
123
4
MCU5 V
MCU 5V
R405
ON_PBACK 10
R413
EPROM_WE
SYNC _DETECT 1
TUNE R_O N 1 0,1 1
R435
10K OHM 1/10W
1
R404
Q403
PMBS3904
2 3
CEC 9
HEADPHONE 8
1 2
RP403
K7
123
4
4
876
5
5
MCU 5V
K7
K3
K4
R406
NC
AGNDAGND
BAT54C
1
2
BAT54C
1
2
RESET# 5
LED_OR LED_ORANGE
4.7K OHM 1/10W
LED_GR
4.7K OHM 1/10W
M_SD A
M_SDA4,11
MCU5 V
R402
10K OHM 1/10W
R401
D401
3
D402
R403
3
MCU 5V
R409
MCU 5V
R418
1
AGND
10K OHM 1/10W
23
1
23
1
R422
0 OHM 1/10W
Q402
2 3
PMBS3906
Q404
PMBS3906
Q408
1
2 3
10K OHM 1/10W
ISP_EN#
Q401
PMBS3904
PMBS3904
LED_ORANGE
R410
4.7K OHM 1/16W
C410
100pF
AGND
R423
4.7K OHM 1/16W
C412
100pF
AGND
S_SDA 5
MCU5 V
RS_TXD TXD
AGND
IR_DATA5
LED_GREEN
IR_DATA
LED_GREEN
MCU5 V
R420
R421
0 OHM 1/10W
0 OHM 1/10W
1 2 FB402 300 OHM
KEY1
K4
1 2 FB403 300 OHM
K3
1 2 FB407 300 OHM
K7
1 2 FB408 300 OHM
NC
1
RXDRS_RXD
2
3
4
CN401
3.3V
R411
10K OHM 1/10W
1 2 FB401 300 OHM
1 2 FB404 300 OHM
1 2 FB405 300 OHM
1 2 FB406 300 OHM
S_SCL
S_SDA
AGND
AGND
C409
100pF
R434
100 OHM 1/10W
R436
R437
0 OHM 1/10W
0 OHM 1/10W
CN400
1
2
3
4
5
6
7
8
9
10
CONN
NC
1
2
3
4
CN404
R428
22 OHM 1/10W
M_SCL M_SCL 1
R432
S_SCL_PT23144
M_SC L1
22 OHM 1/10W
SPI_MUX = 0 : ISP SPI CODE
SPI_MUX = 1 : NC
MCU 5V
R417
4.7K OHM 1/10W
SPI_MUX
SPI_MUX_1
SPI_MUX_15
4.7K OHM 1/10W
Q407
PMBS3904
1
R416
2 3
AGND
VCC3IO
C160
0.1uF25V
AGND
SO5
SPI_SDI
SPI_MUX
2 3
AGND
SPI_MUX
5 6
U405A
1
4
SI 5
74HC126D
U405B
SPI_SDO
74HC126D
31
AGND
SPI_CS#
SPI_SCK
1
A1
2
Y1
3
A2
4
Y2
5
A3
6
Y3
GND7Y4
MM74HC14MX
U403
VCC
A6
Y6
A5
Y5
A4
SPI_MUX
9 8
SPI_MUX
12 11
MCU 5V
14
13
12
11
10
9
8
R429
22 OHM 1/10W
U405C
10
74HC126D
U405D
13
74HC126D
S_SCL_tuner
22 OHM 1/10W
R426
S_SCL5
AGND
CE 5
SCK 5
11
R414
NC
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
07)MCU
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
715T3140 1
815Wednesday , January 21, 2009
of
A2
Size
Rev
1B
<
称爹
>
称爹
Page 32
R624
R627
4
7
9
12
6
8
5
10
11
3 OHM 3W
3 OHM 3W
3 OHM 3W
3 OHM 3W
U602
IN1
ST_BY
S_GND
IN2
MUTE
PW_GND
NC
NC
NC
08)AudioAMP
VCC3VCC
13
C651
0.1uF25V
TDA7297SA
OUT1+
OUT1-
OUT2+
OUT2-
C652
+
1000uF/ 25V
MUTE _HPH ON E7
PW_GND
1
2
15
14
680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%
C670
C671
OEM MO D EL
TPV MODEL
PCB NAME
Sheet
R628
10K OHM 1/10W
C672
C673
AGND
715T3140 1
915Wednesday , January 21, 2009
of
V_PHONE
R625
47K OHM 1/10W
AGND
CN600
4
3
2
1
CONN
R637
R638
PW_GND
5VS
1 2
Q601
PMBS3904
AGND
FB604
300 OHM
MUTE_EAR
C653
1uF
AGND
0 OHM 1/4W
0 OHM 1/10W
V_PHONE
C663
+
AGND
100uF/ 16V
Size
Rev
称爹
A3
1B
称爹
>
<
+12V
R623
1 2
1
7
6
2
3
4
5
ZD601
UDZ S5.6B
R626
PW_GND
C660
1uF
PHONEJ ACK
CN602
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
ZD600
RLZ6.8C
1 2
R630
C654
0.1U F16V
R675
R634
100K OHM 1/10W
1uF/ 25V
HP_R
1uF/ 25V
NC
C664
C667
AUDI O_L4
AUDI O_R4
AGND
AMP_STB7
MUTE_EAR
HP_L
HP_L4
HP_R4
4.7K O HM 1/10W
AMP_MUTE7
1
2
3
4
R631
47K OHM 1/10W
R633
10K OHM 1/10W
Q602
PMBS3904
U603
OUT1
MUTE
IN1
GND
PT2309
AUDI O_L
V_PHONE
AGND
VDD
OUT2
BIAS
IN2
AUDI O_R
C661
0.1U F16V
8
7
6
5
C666
47uF/ 16V
5VM
R629
47K OHM 1/10W
Q600
PMBS3904
C656
0.01uF
C659
0.01uF
R640
10K OHM 1/10W
C662 100uF /16V
+
C665 100uF /16V
+
+
AGND
R639
47K OHM 1/10W
R642
R641
4.7K OHM 1/10W
4.7K OHM 1/10W
R632
10K OHM 1/10W
C655
1uF/ 25V
C657
1uF/ 16V
R635
10K OHM 1/10W
C658
1uF/ 16V
R636
10K OHM 1/10W
5VM
Q603
PMBS3904
AGND
HP_LO
HP_RO
HEADPH ONE7
AGND
32
Page 33

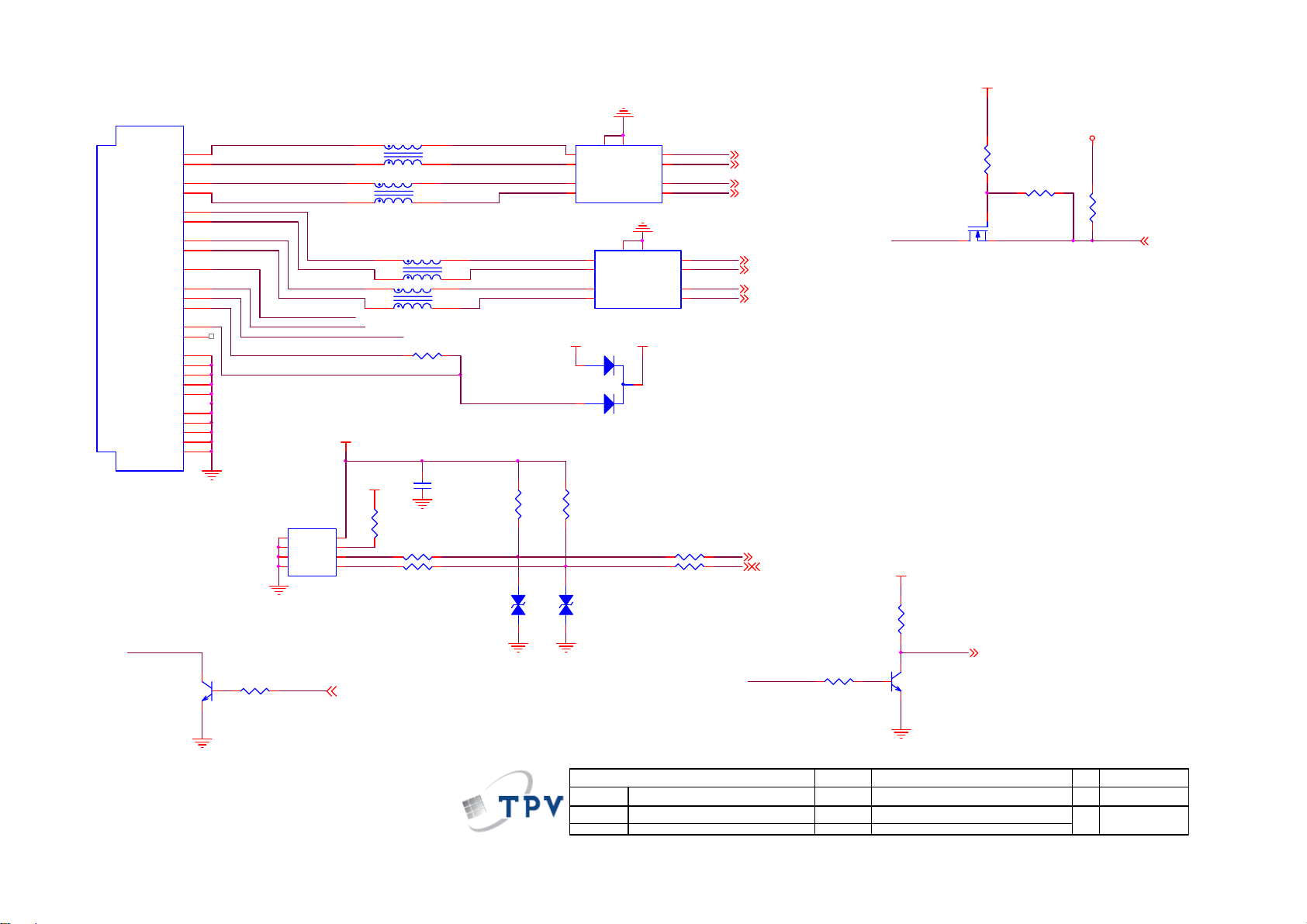

NC
TMDSD2+
TMDSD2-
TMDSD1+
TMDSD1-
TMDSD0+
TMDSD0-
TMDSC+
TMDSC-
SCL
SDA
CEC
HPD
VCC5
NC
DSHLD0
DSHLD1
DSHLD2
CSHLD0
DDC_GND
SHLD1
SHLD2
SHLD3
SHLD4
SHLD5
HPD
NC
CN500
Q500
1
3
4
6
7
9
10
12
15
16
13
19
18
14
2
5
8
11
17
20
21
22
23
24
AGND
2 3
HMDI_5V
AGND
RX2+
RX2-
RX1+
RX1-
RX0+
RX0-
RXC+
RXC-
HDMI_SCL_I
HDMI_SDA_I
HDMI_5VIN
2
L500 NC
1
2
L501 NC
1
L502 NC
2
L503
1
HDMI_CEC
HPD
NC
3
4
3
4
2
1
R500
3
4
3
NC
4
U500,U501靠近CN500
HMDI_5V
MCU5V
U502
1
A0
VCC
2
A1
WP
3
A2
SCL
VSS4SDA
NC
AGND
1
NC
R501
R514
8
NC
7
6
5
NC
NC
HDMI_HOTPLUG 7
AGND
R511
R510
C500
NC
R507
NC
NC
D501
1 2
AGND AGND
5
IN4
4
IN3
2
IN2
1
IN1
U500 NC
5
4
2
1
NC
MCU5V
1
D500
NC
2
R508
NC
HDMI_SCL_I
HDMI_SDA_I
NC
D502
1 2
8
IN4
IN3
IN2
IN1
U501
GND
OUT4
OUT3
GND
OUT2
OUT1
3
8
GND
HMDI_5V
3
AGND
OUT4
OUT3
GND
OUT2
OUT1
RX2+
6
RX2-
7
RX1+
9
RX1-
10
RX0+
6
RX0-
7
RXC+
9
RXC-
10
R512
R513
NC
NC
RX2+ 3
RX2- 3
RX1+ 3
RX1- 3
RX0+ 3
RX0- 3
RXC+ 3
RXC- 3
DDCSCL_M2 3
DDCSDA_M2 3
HDMI_5VIN
NC
R506
MCU5V
1
HDMI_CEC
NC
R505
NC
Q502
NC
2 3
R502
NC
Q501
HDMI_5V 7
3
V3D3_M1_HDMI
R503
NC
R504
NC
CEC 7
AGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
09)HDMI
33
OEM MO D EL
TPV MO DE L
PCB N AME
Sheet
AGND
715T3140 1
10 15Wednesday , January 21, 2009
of
Size
Rev
称爹
<
1B
称爹
A4
>
Page 34
CN700
CONN
3.3V
3.3V
AGND
1
2
3
4
5
6
7
8
9
10
11
12
+
10uF/16V
C731
0.1uF25V
C716
C711
0.1UF16V
C717
0.1uF25V
AGND
+
AGND
5Vstb
+12V
1 2
300 OHM
U702
AIC1084-18PM
3
IN
C732
100uF/16V
C704
0.1UF16V
5Vstb
R708
1K OHM 1/10W
AGND
VCC3IO 50mA
FB700
C718
10uF/16V
OUT
GND
1
AGND
PS_ON/OFF7
Q702
PMBS3904
R709
4.7K OHM 1/10W
Q703
PMBS3904
+
2
4.7K OHM 1/10W
R700
1K OHM
C700
2.2UF 16V
5Vstb
R706
1K OHM 1/10W
4.7K OHM 1/10W
AGND
Q707
NC
CLOSE
PIN5,25,69,160,178
C719
0.1uF25V
A_1.8
1 2
FB704
300 OHM
5Vstb
10K OHM 1/10W
5Vstb
R701
1KOHM
Q700
PMBS3904
AGND
AGND
5Vstb
R721
R718
NC
NC
AGND
C720
0.1uF25V
Q708
NC
AGND
R720
0 OHM 1/10W
R719
VCC3IO
C721
0.1uF25V
NC
0 OHM 1/10W
R707
5Vstb
VCCK 800mA
+
C733
10uF/16V
AGND AGND
FB706
1 2
120 OHM
5Vstb
10K OHM 1/10W
R712
R714
R716
NC
C745
0.1UF16V
AGND
R725
NC
R703
4.7KOHM
Q701
PMBS3904
R723
R722
NC
VCC3IO
C723
C722
0.1uF25V
0.1uF25V
C734
0.1uF25V
C742
0.1UF16V
AGND
R713
4.7K OHM 1/10W
Q706
PMBS3904
5Vstb
R702
1KOHM
R704
NC
R705
4.7KOHM
AGND
TUNER_ON 7,11
ON_PBACK 7
CLOSE
PIN20,43,87,75,117,149,165
C735
C736
0.1uF25V
R711
22K OHM 1/10W
Q705
PMBS3904
C737
0.1uF25V
C743
0.1UF16V
0.1uF25V
R710
AGND
C738
0.1uF25V
1
2
3
4
BL_ADJ 5
5Vstb
+12V
C739
0.1uF25V
Q704
AO4411
8
S
D
7
S
D
6
S
D
5
G
D
如
PANEL-VCC为3.3V时，Q401改为AO4403
AGND
VCCK
C740
0.1uF25V
5VS
C744
10uF/16V
VCCK
+
470UF16V
+
470UF25V
C741
0.1uF25V
C702
C706
5Vstb
+12V
0.1uF25V
C703
0.1UF16V
C707
Heak Sink
Fix Hole
AGND
5VS
1 2
FB701
300 OHM
5VS
U701
3
+
C724
10uF/16V
AGND AGND AGND
5VS
3
+
C726
10uF/16V
8
7
6
9
9
8
7
6
5
10)POWER
V2
JGK
1
8
1
8
2
7
2
7
3
6
3
6
5
445
9
9
AGNDAGND AGNDAGNDAGND
V1
JGK
1
1
2
2
3
3
445
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
HS1
NU,H S-46*43-A
3
+
C708
10uF/16V
AIC1084-33PM
VIN
VOUT
ADJ
1
U703
AP1117E33LA
VIN
VSS
1
V3
JGK
1
1
2
2
3
3
445
U700
AP1117E33LA
VIN
VOUT
4
4
10uF/16V
8
7
6
9
9
OEM MODEL
TPV MOD EL
PCB NAME
VSS
1
2
C715
10uF/16V
2
C727
8
7
6
5
Sheet
VOUT
4
4
+
1
2
3
2
C709
10uF/16V
+
V4
JGK
1
2
3
445
9
715T3140 1
+
1 2
300 OHM
V33ADC
C728
0.1uF25V
AGNDAGND
8
8
7
7
6
6
5
9
of
11 15Wednesday , January 21, 2009
Point
PH1
Photo point
FB703
C729
0.1uF25V
1
2
3
VDD_AUD
C710
0.1uF25V
AGND
3.3V
C725
0.1uF25V
V5
JGK
1
2
3
445
9
9
C730
0.1uF25V
8
8
7
7
6
6
5
PH2
Photo point
PH3
Photo point
Size
Rev
称爹
A3
1B
称爹
>
<
34
Page 35

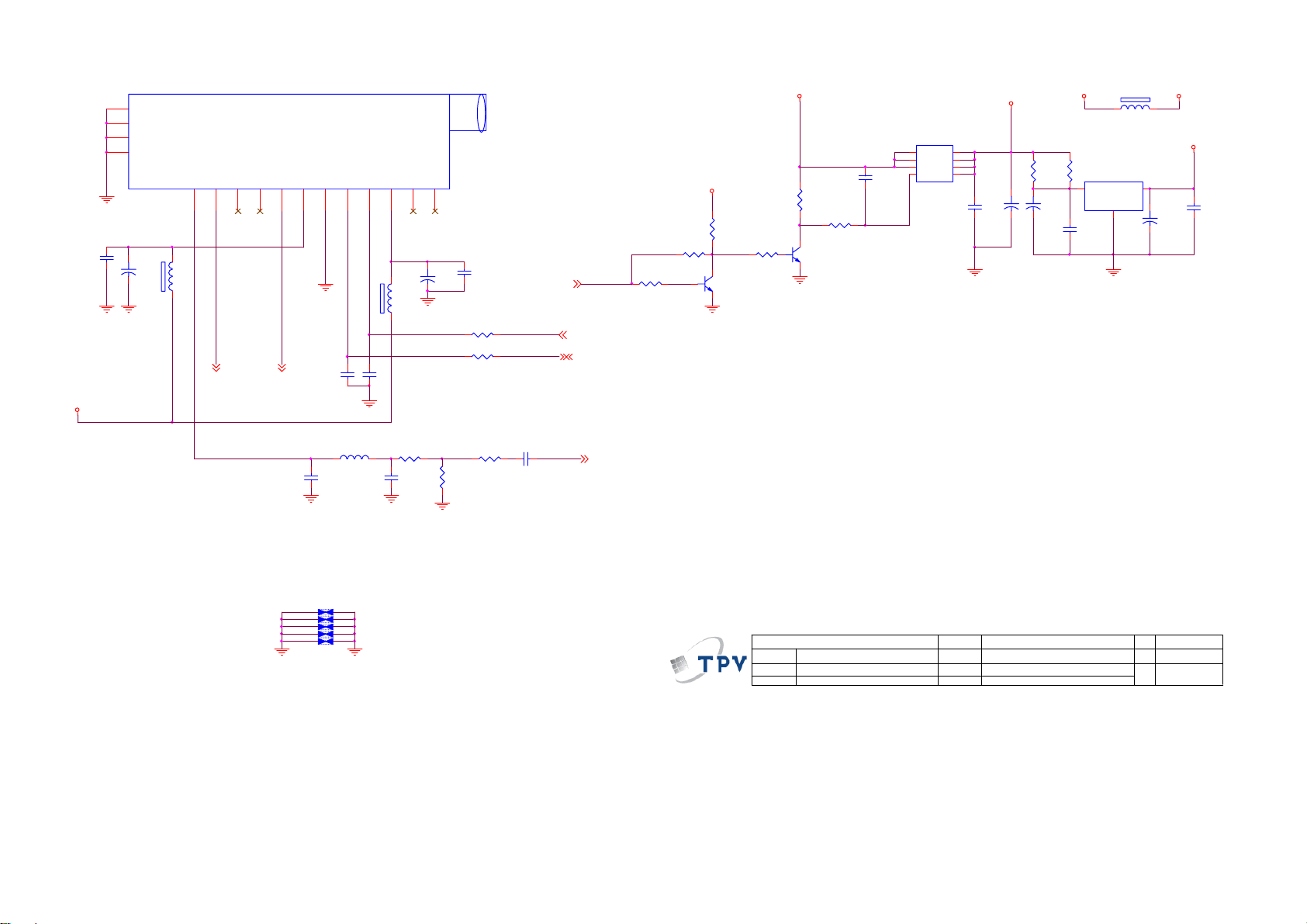

16
15
14
13
Tune r_GN D
C138
0.1UF 16V
Tune r_GN D Tun er_G ND
TUNER_VCC
TH1
TH2
TH3
TH4
+
C141
100uF/16V
TU101
TM18-C2212VH
ANT IN
C143
56pF
BT3SCL4SDA
L102
NC
IF
NC
2
1
+
C139
NC
Tune r_GN D
C140
NC
R144
200 OHM 1/10W
R145
200 OHM 1/10W
TUNER_ON7,10
S_SCL_tuner 7
M_SD A 4 ,7
R143
TUNER_ON
4.7K OHM 1/10W
R717
NC
5Vstb
R140
4.7K OHM 1/10W
4.7K OHM 1/10W
Q100
PMBS3904
AGND
C145,L100,C146靠近U101
R146,R147,R148
靠近
SIF8AGC
AFT
CVBS
Audio
9
10
12
11
L101
300 OHM
4
TUNER_MONO
TUNER_SIF
4
BP
7
Tuner_GND
6
C142
56pF
AS
5
Tune r_GN D
+12V
R139
4.7K OHM 1/10W
R142
AGND
UH200
R141
220K OHM 1/10W
Q102
PMBS3904
C131
220NF25V
1
2
3
4
Q101
AO4411
S
S
S
G
+12VA
C132
470uF/25V
39 OHM 1/2W
R137
+
+
C133
100uF/25V
8
D
7
D
6
D
5
D
C134
0.1uF25V
AGND AGND
22 OHM 1/2W
5VS
R138
U102
AZ1117D-5. 0-E1
3
INPUT
0.1UF 16V
C137
FB110
1 2
NC
OUTPUT
1
ADJ/ GND
2
+
C136
100uF/16V
TUN ER _VC C
C135
0.1UF 16V
TUNER_VCC
L100
0R
C145
NC
SH201
SH202
SH203
SH204
SH205
Tuner_GND AGND
AGNDAGND
R146
C146
NC
75 OHM 1/16W
100 OHM 1/16W
R148
43 OHM +-5% 1/16W
AGND
R147
C144
0.047uF
TV_CVBS 3
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
11)TUNER
OEM MOD EL
TPV MODEL
PCB NAME
Sheet
715T3140 1
of
12 15Wednesday , January 21, 2009
Size
Rev
称爹
A3
1B
称爹
>
<
35
Page 36

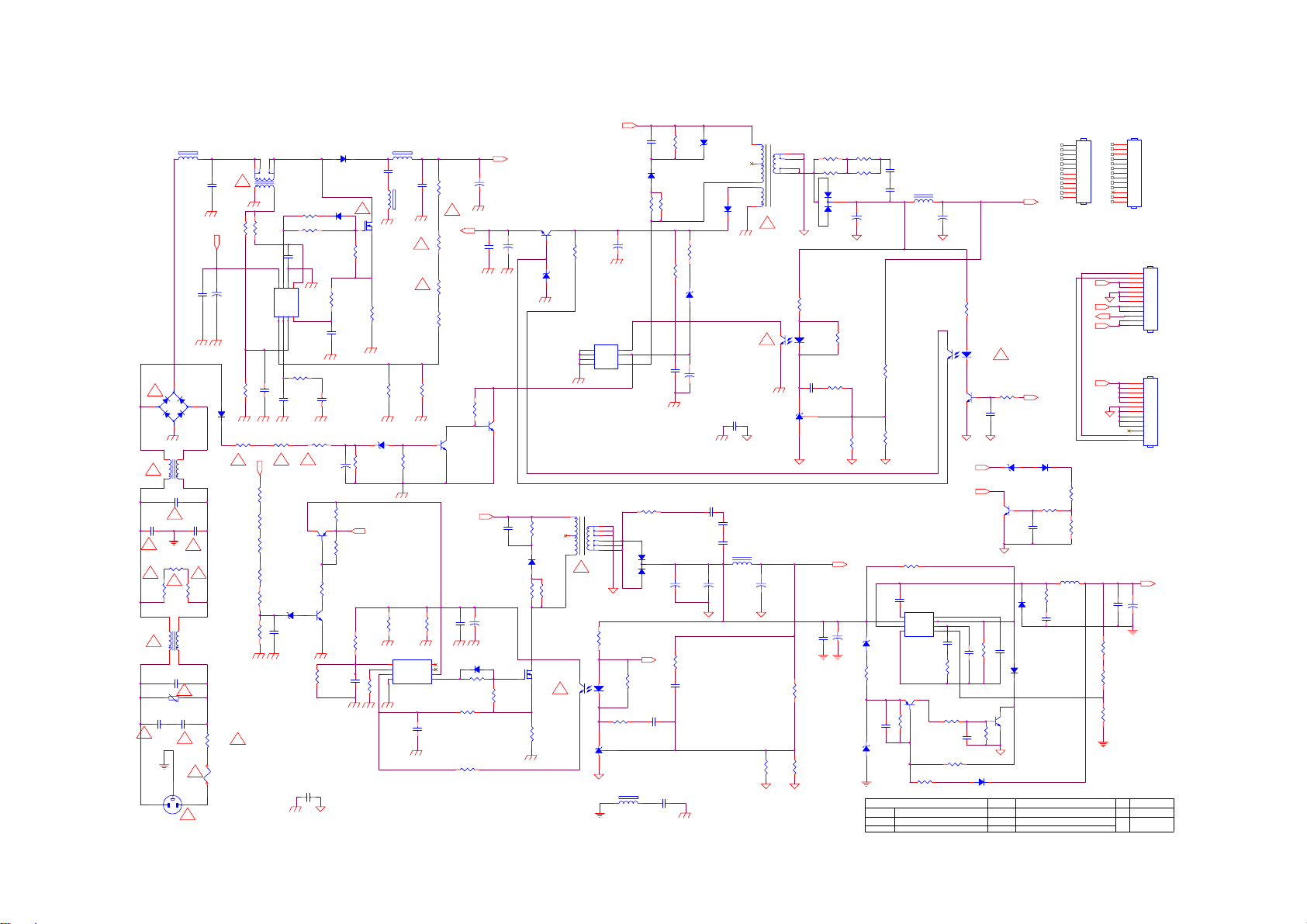

电源板
715T2907 3
!
3
!
C903
680PF/250V
!
!
R903
330K OHM 1/4W
!
C908
!
330pF/250V
FB901
1 2
BEAD
BU1006A-E3/45
1
+
-
4
L902
3
124
13mH
C904 0.047UF
!
680PF/ 250V
R902
330K OHM 1/4W
!
2
3
L901
1
4
C901 0.47UF
!
RV901
NC
330PF/250V
!
3
CN901
SOCKET
C913
0.1uF
BD901
C902
!
R901
330K OHM 1/4W
13.0mH
C907
!
12
!
220K OHM 1/10W
VCC
56K OHM 1/10W
2
680KOHM +-5% 1/8W
680KOHM +-5% 1/8W
680KOHM +-5% 1/8W
!
270KOHM +-5% 1/8W
NR901
NTCR
C910
!
1uF/450V
R910
+
C914
47uF/50V
R917
D901
1N4007-E3/73
R904
680K OHM +-1% 1/ 4W
!
R924
R925
R926
R985
680KOHM +-5% 1/8W
R927
R928
100K OHM 1/8W
!
F901
FUSE
2
1679
R911
8.2K OHM 1% 1/10W
C916
NC
680K OHM +-1% 1/4W
B+_390V
10
L906
300uH
678
OUT
VCC
GND
INV
COMP
MOT
123
R918 10K OHM 1/10W
C917
0.047uF
R905
!
ZD920
RLZ5.6B
C922
1uF
10K OHM 1/10W
R912
10 OHM 1/8W
R913 22 OHM 1/8W
C912
82PF/50V
IC901
FAN7529MX
CS ZCD
4 5
R909
680K OHM +-1% 1/4W
!
KTB1124B
12
R971
C909
C918
0.22uF
C921
10uF/50V
Q925
R929
10K OHM 1/10W
Q924
DTC144WKA
0.047UF 50V
330PF/250V
D902
FMXA-1106S
D911
LL4148
R915
470 OHM 1/10W
C915
NC
+
R936
(NC)0 OHM 1/8W
R935
1K OHM 1/8W
C943
!
Q901
2SK4085LS
R914
10K OHM 1/8W
R919
470PF/50V
ZD901
RLZ 2.4B TE-11
R906
120K OHM 1/10W
VCC
R938
4.7K OHM 1/8W
R941
10K OHM 1/4W
R942
10K OHM 1/10W
FB903
1 2
BEAD
C919
N/A
12
FB902
N/A
R916
0.15 OHM 2W
12
4.7K OHM 1/8W
IC903
1
LUVP
2
Latch/Plim it
3
CS/FB
4 5
GND OUT
FAN7602BMX
C911
10nF
!
!
R923
13K OHM 1% 1/10W
R907
100K OHM 1/10W
R937
VSTR
NC
VCC
C944
220pF
R920
0 OHM +-5% 1/4W
!
VCC
R921
680K OHM +-1% 1/4W
R922
680K OHM +-1% 1/4W
R984
680K OHM 1/4W
100K OHM 1/8W
Q922
PMBS3904
C942
0.1uF
8
7
6
1K OHM 1% 1/10W
6.2K OHM 1/10W
R908
B+_390V
+
D941
LL4148
R943
100 OHM 1/8W
R945
R947
+
C941
10uF/50V
C920
100uF/450V
C938
1uF/25V
Q923
PMBS3904
R944
10K OHM 1/8W
B+_390V
+
NC
C937
10uF/50V
C940
2200pF
R949
ZD930
RLZ15B
Q921
KTD1624C
1 2
R940
100K OHM 2W
D940
SARS01-V1
R948
Q903
ST
R946
0.27 OHM 2W
B+_390V
C930
2200pF
SARS01-V1
R934
22 OHM 1/4W
+
IC902
TNY 277 PN -TL
8
S
7
S
6
S
EN/UV
BP/M
12
13
14
8
9
10
R974
1K OHM 1/2W
12
IC970
EL817MC
10K OHM 1/10W
IC971
AZ431AZ-AE1
C931
100uF/50V
1
2
45
DS
R976
FB904
1 2
BEAD
16.8K OHM 1/8W
C934
0.1uF
R970
3.3OHM
D970
3
FME-230B
2
C973
1
1000uF 35V
R975
3.9KOHM +-5% 1/8W
C976
0.33UF 50V
0.01uF/250V
R939
10K OHM 1/10W
T902
7
POWER X'FMR
6
5
!
NC
43
!
D930
R932
A24V
C905
R933
22 OHM 1/4W
12
R930
100KOHM +-5% 1WS
R931
47 OHM 1/4W
ZD931
RLZ18B
1 2
+
C933
NC
C970
+
C974
1000uF 35V
R977
NC
C977
NC
ZD932
NC
D931
AU02Z
3300PF/100V
+
C906
0.001UF
C971
3300PF/100V
C972
3300PF/100V
L980
L
T901
POWER X'FMR
1
2
3
4
5
!
!
+
C975
470uF/35V
R980
NC
9
10
6
7
43
R950
47 OHM 1/4W
R952
47 OHM 1/4W
R954
47 OHM 1/4W
12
IC950
EL817MC
C955
0 OHM 1/10W
0.1uF
IC952
AZ431AZ-AE1
0.47UF 50V X7R
C990
R978
13K OHM 1% 1/8W
R979
1.5K OHM 1% 1/10W
3
1
R956
R951
47 OHM 1/4W
R953
47 OHM 1/4W
D950
SBT15006JST
2
+
C952
330uF/16V
R955
1K OHM 1/10W
R959
NC
+24V
+
C991
ZD991
470uF/35V
NC
1 2
NC
R962
NC
C960
ZD990
NC
1 2
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
C950
1000pF
C951
L950
1000pF
L
R957
10K OHM 1% 1/10W
R958
10K OHM 1% 1/10W
NC
R969
C992
10NF/0805 X7R
IC904
1
BS
2
IN
3
SW
COMP
4 5
GND FB
SI-8005QL
1K OHM 1/10W
Q990
NC
NC
R963
02.POWER
SS
EN
C993
1000PF/50V
R991
R967
NC
+
C954
470uF/16V
R960
1K OHM 1/10W
12
43
IC951
!
EL817MC
Q950
R961
PMBS3904
10 KOHM +-5% 1/4W
C956
0.1uF
ZD970
RLZ27B
+24V
A24V
8
7
6
C994
NC
R964
NC
R965
C961
NC
R966
NC
D991
NC
12
Q970
PMBS3904
D990
SR54
C995
0.22uF/50V
NC
R968
D992
NC
Q991
NC
NC
OEM MOD EL Size
TPV MODE L
PCB NAME
715T2907 3
Sheet
of
11Friday, D ecember 19, 2008
+5V
Panel DIM
PS_ON
D971
LL4148
R983
10K OHM 1/10W
C978
0.1uF
R999
47 OHM 1/4W
C996
470pF/50V
1
2
3
4
5
6
7
8
9
10
11
12
L990
20uH
CN902
CONN
95T801312D650
Panel ON/OFF
+12V
+24V
PS_ON
+5V
+24V
R981
56 OHM +-1% 1/10W
R982
62K OHM 1% 1/10W
CN903
1
2
3
4
5
6
7
8
9
10
11
12
13
CONN
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
C998
+
1uF
R996
110KOHM +-1% 1/10W
R997
8.2K OHM 1% 1/10W
R998
4.99K OHM 1% 1/10W
Custom
Rev
3
称爹
称爹
<
CN902
CONN
33T380212B Y
CN903
CONN
+12V
C999
470uF/25V
>
36
Page 37

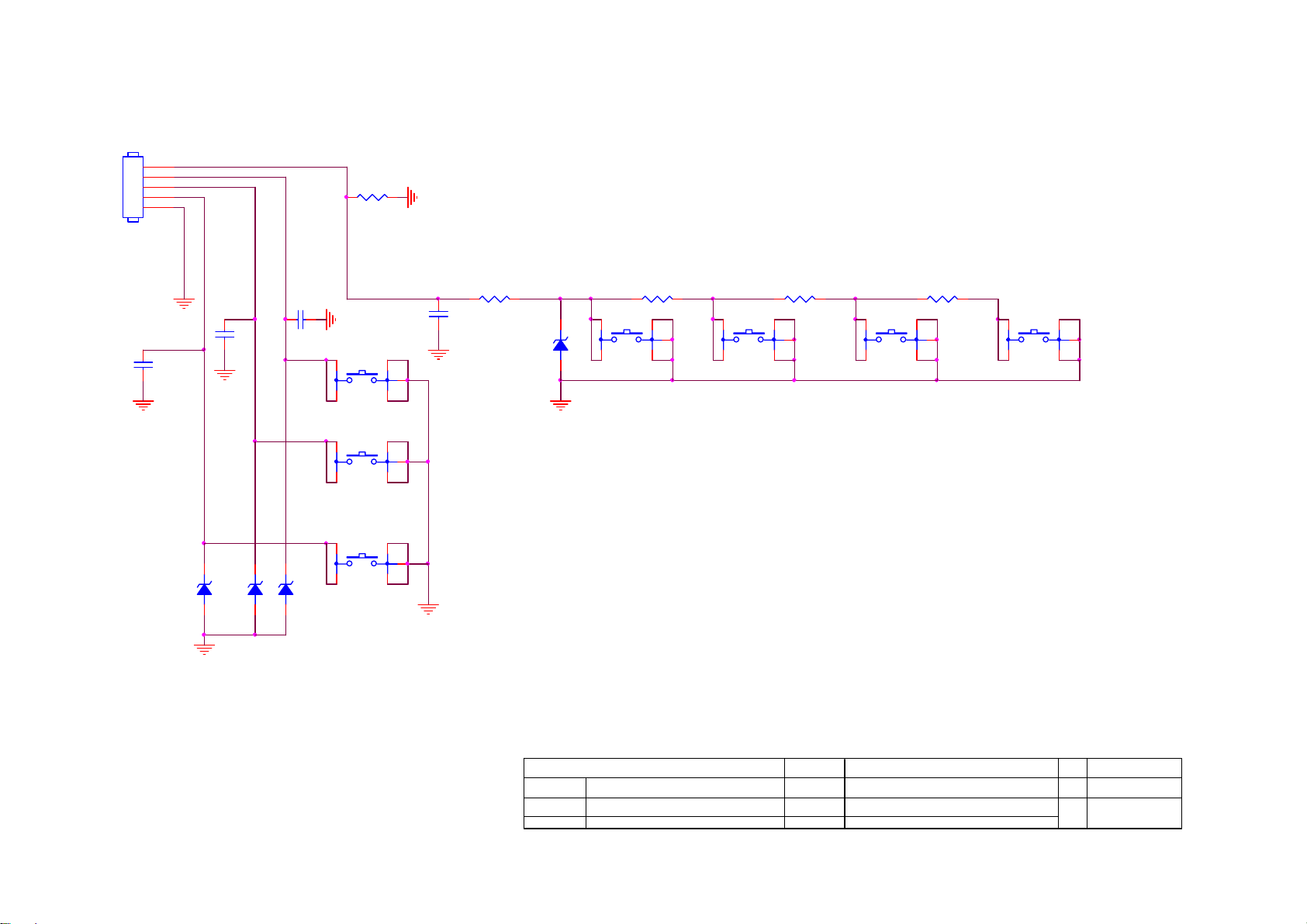

按键板
715T2927 2
CN01
1
2
3
4
5
CONN
KEY 1
CH_DOWN
CH_UP
PWR
R09
200K OHM 1/10W
C04
NC 0. 068uF
ZD05
5.6V
1 2
C03
NC 0. 068uF
ZD06
5.6V
1 2
C02
NC 0. 068uF
ZD08
5.6V
1 2
2
SW07
1 3
SW
CH_DOWN
2
SW04
1 3
SW
CH_UP
2
SW01
1 3
SW
POWER
R05
0Ω 1/10W
C01
0.1uF /16V
4
5
4
5
4
5
ZD07
5.6V
1 2
MODEL_SEL
R06
3.3K OHM 1% 1/10W
2
SW02
1 3
SW
4
5
2
1 3
SW
MENU
4
SW03
R07
6.8K OHM 1% 1/10W
5
2
SW05
1 3
SW
R08
22K OHM 1% 1/10W
4
5
VOL_DOWN
2
SW06
1 3
SW
VOL_UP
4
5
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
2.Key
37
OEM MO D EL Size
TPV MO D EL
PCB N AME
Sheet
715T2927-2
22Sunday , D ecember 07, 2008
of
Rev
称爹
A4
1.0
<
称爹
>
Page 38

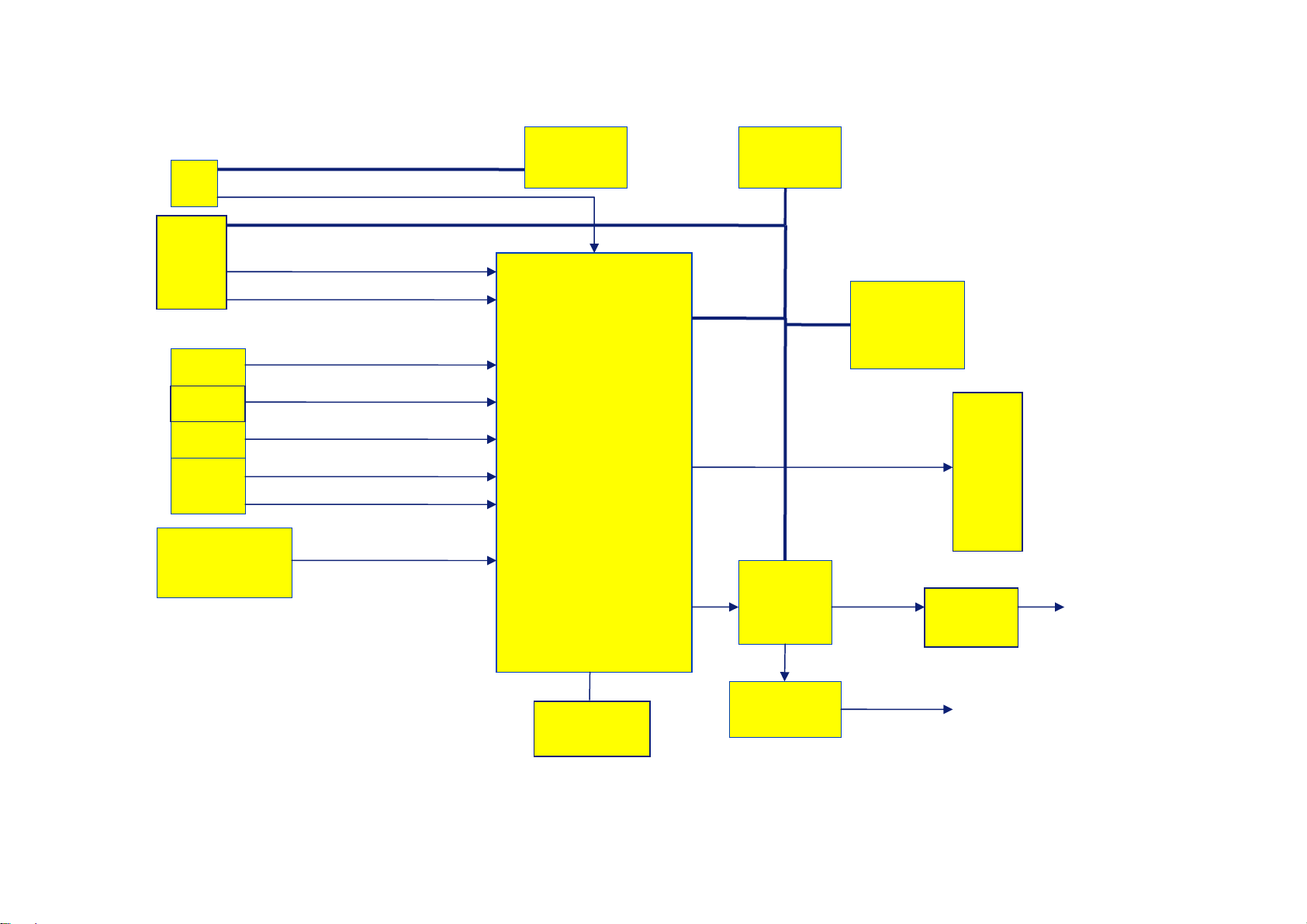

7．电气方框图
Y
PC
TUNER
SV
JACK
AV1
AV2
COMPONENT
-
CVBS
SV&AV1 –R/L
PbPr
-
VGA DDC
U100
S-SCL & M-SDA
VIDEO
DECODER
&
AUDIO DECODER
&
SCALER
HX6203
UH200
EEPROM
U402
PT2314L
U600
MCU
W79E632
U400
Panel
HP R&L Earphone
PT2309
U603
M25P40
U202
TDA7297
U602
SPEAKER
38
Page 39
8. 拆卸流程图

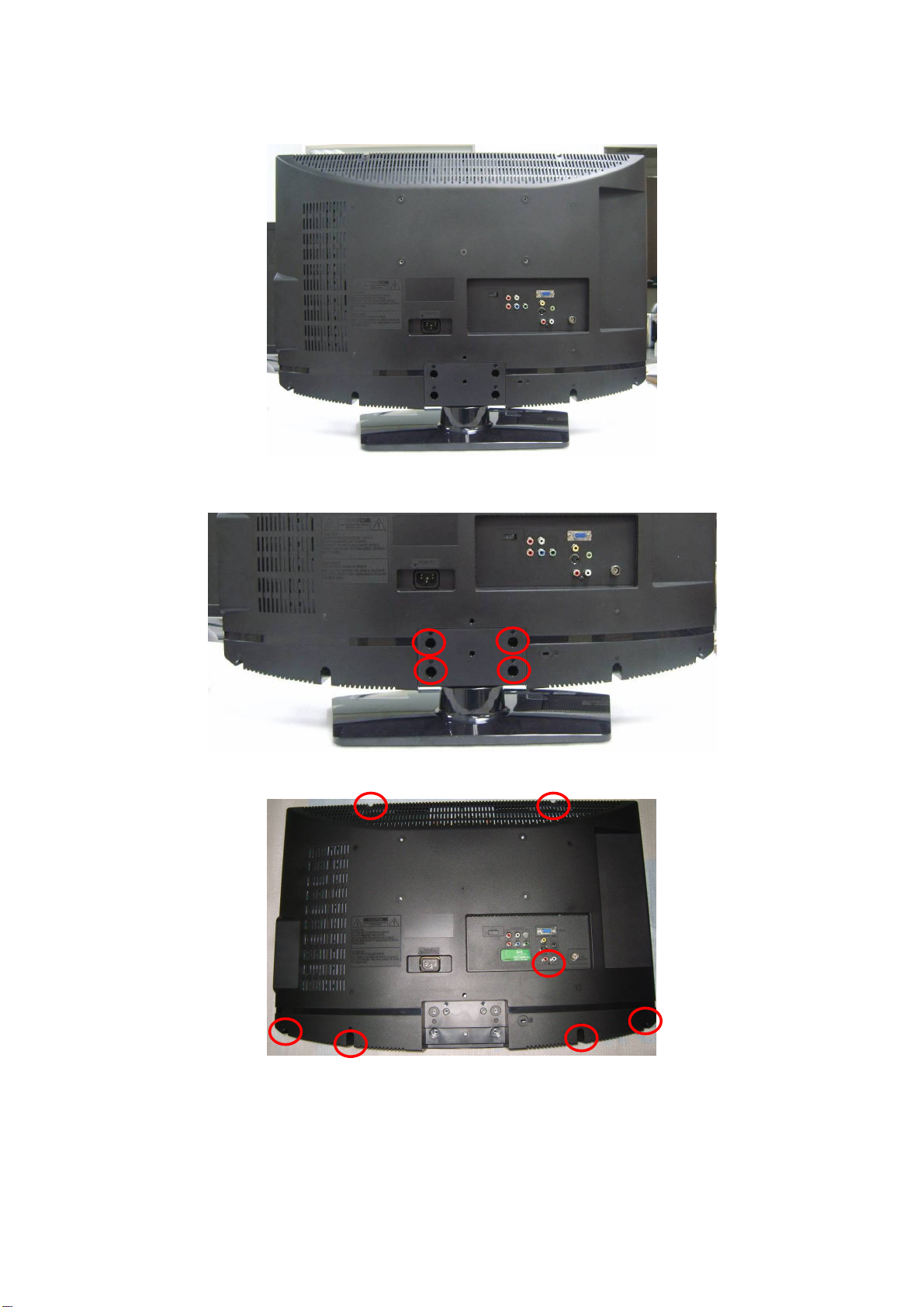

1.将 TV 放置于干净的平台上,panel 面朝下,注意不要被尖锐物品刮伤。
2.拆除底座。
4.拆卸后壳。
39
Page 40

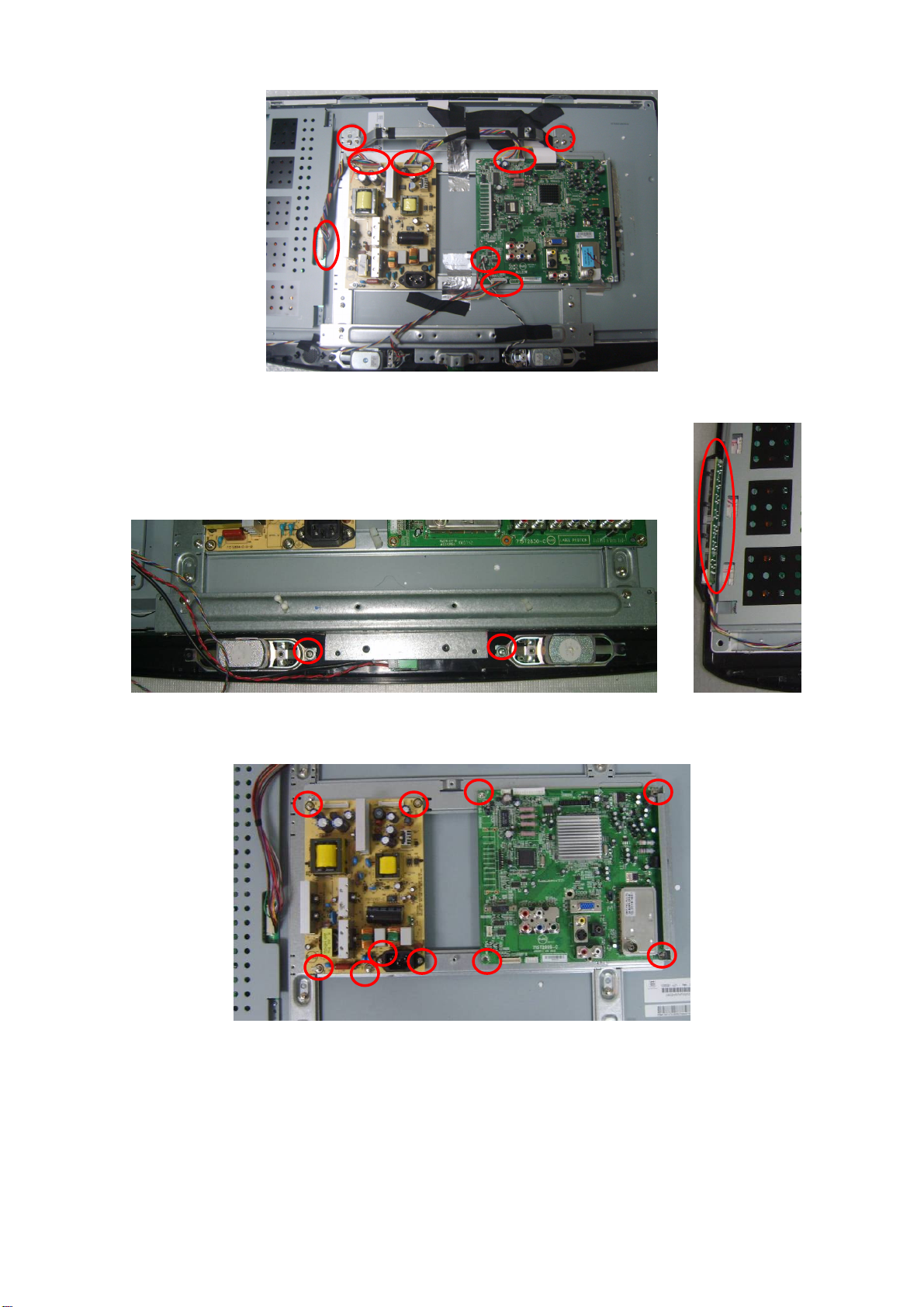

5.释放线材和拆卸壁挂铁片。
6.拆卸按键板和喇叭。
7.拆卸主板，电源板。
40
Page 41

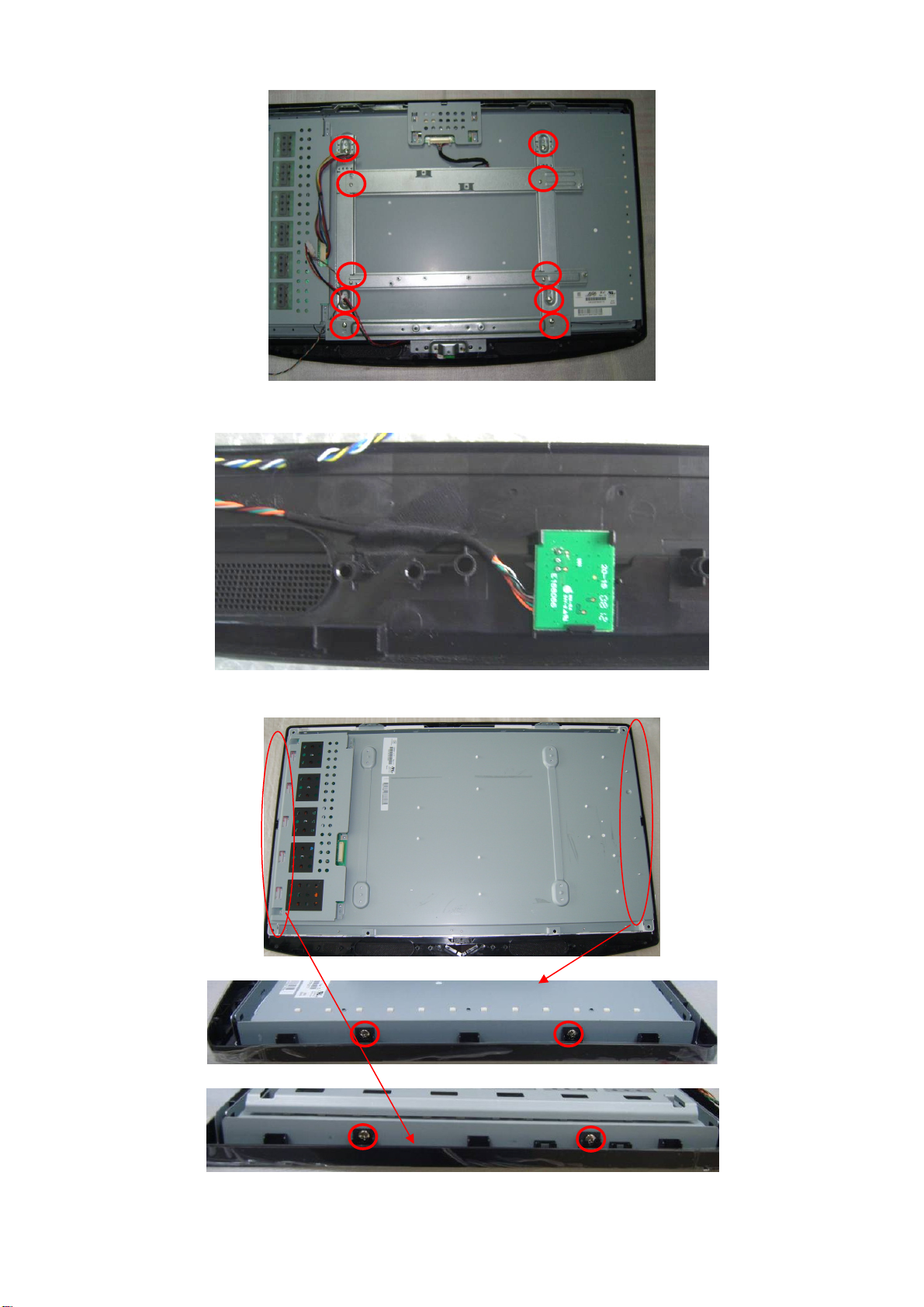

8.拆卸龙骨和支架铁片。
9.拆卸 IR 板。
10.拆卸前框。
41
Page 42

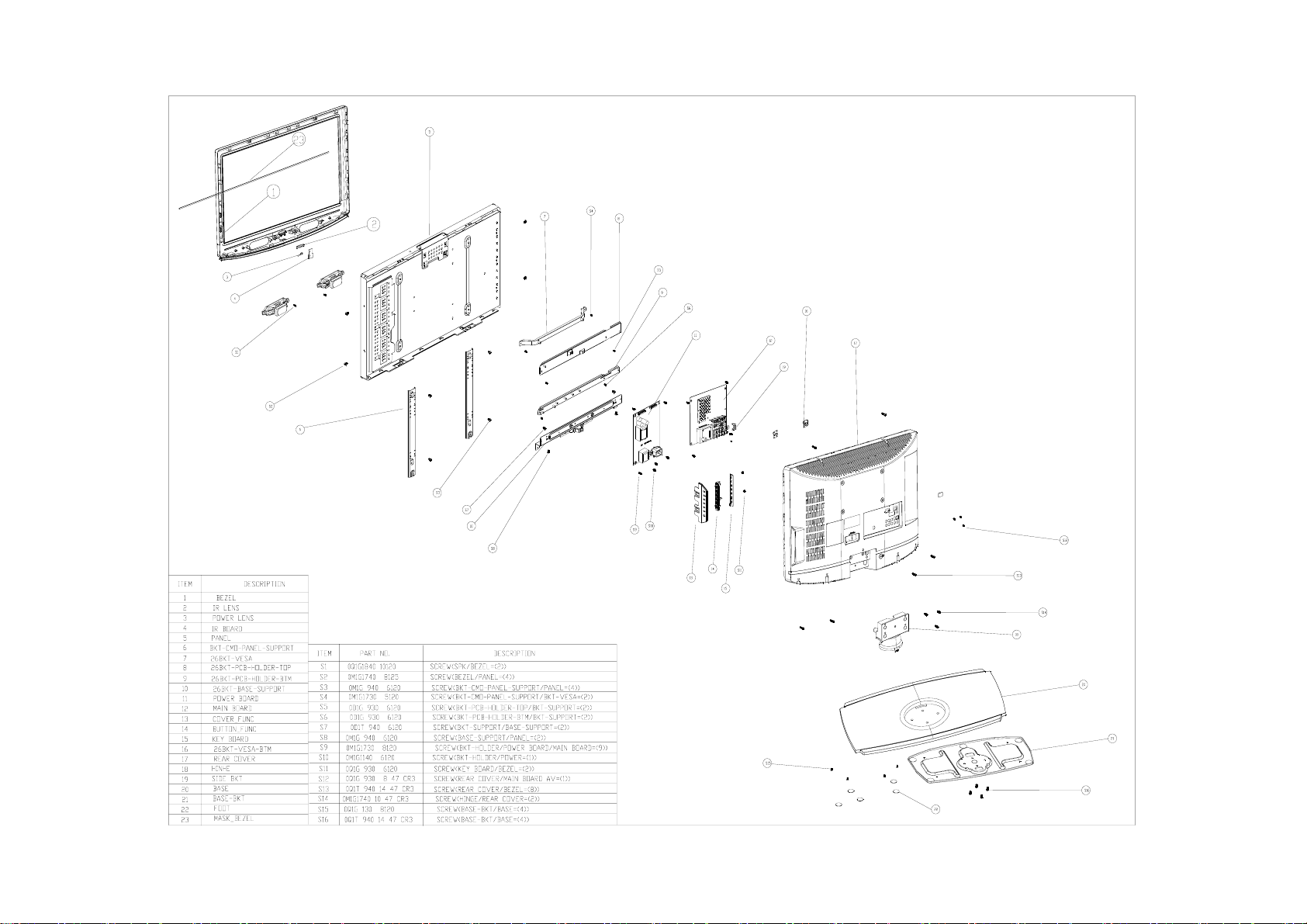

9. 爆炸图
42
Page 43
10. BOM
E26RMANDWJSWNN
点位 料号 描述 备注
E017 017T DW RF501 TV RF BUFFER FOR
E017 017T DW RF502 RF BUFFER FOR CD
E017 017T DW RF503 RF BUFFER FOR Õ×»Ù
049T 51 1A ERADICATOR
052G 1150 C INSULATING TAPE
052G 1150510 INSULATING TAPE
052G 1185 MIDDLE TAPE
052G 1186 SMALL TAPE
052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 1211511 ALUMINUM FOIL TAPE
052G 1212 A ALUMINUM FOIL TAPE
052G 2191 A PAPER TAPE
078T 495500 K SPK 8 OHM 5W 120*30MM KUAIDA
089T176E 30512 FFC CABLE
089T414A18NYHL POWER CORD
095T801312D650 WIRE HARNESS 12P-12P 160MM
E09501 095T8014 4D541 WIRE HARNESS 4P(PLUG)-B&R+B&W
E09501 095T8014 4X541 WIRE HARNESS 4P(PLUG)-B&R+B&W 2nd source
E09502 095T801410D601 HARNESS 10P-5P(450MM)+5P(290MM) 2nd source
E09502 095T801410J601 HARNESS 10P-5P(450MM)+5P(290MM)
095T801414DH33 WIRE HARNESS 14P-13P 260MM
098TRABD2NCSWC REMOTE CONTROL FOR 19"SKYWORTH
0D1G 930 6120 SCREW
0D1G 930 6120 SCREW
0D1T 940 6120 SCREW
0M1G 940 6120 SCREW (M4X6)
0M1G 940 6120 SCREW (M4X6)
0M1G1140 6120 SCREW
0M1G1730 5120 SCREW
0M1G1730 8120 SCREW
0M1G1740 8125 SCREW
0M1G1740 10 47 CR3 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G1840 10120 SCREW
0Q1T 940 14 47 CR3 SCREW
705TQ833081 PLASTIC ASS`Y
0Q1G 930 6120 SCREW 3X6MM
A33E0304 GMH1L0100 COVER_FUNC
A33E0305 QV 1L0200 BUTTON_FUNC
KEPF8YA5 KEY BOARD
CN01 033G3802 5B YH W WAFER
SW05 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW06 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW07 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
43
Page 44
SW01 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW02 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW03 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
SW04 077G 600 1GCJ TACT SWITCH TSPB-2 -NP
R05 061G0603000 RST CHIP MAX 0R05 1/10W
R09 061G0603204 RST CHIPR 200 KOHM +-5% 1/10W
R08 061G0603220 2F RST CHIPR 22 KOHM +-1% 1/10W
R06 061G0603330 1F BST CHIPR 3.3KOHM +-1% 1/10W
R07 061G0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W
ZD05 093G 39S 34 T UDZSNP5.6B ROHM
ZD06 093G 39S 34 T UDZSNP5.6B ROHM
ZD07 093G 39S 34 T UDZSNP5.6B ROHM
715T2927 2 KEY BOARD PCB
Q12T6101 1 FOOT PAD
705TQ834758 BEZEL TV26W-8A8 ASS'Y
A33E0453 1 1C0100 POWER LENS-A8
A33E0459 ED 1C0100 IR LENS
A34E0558 GMJ8L0130 BEZEL TV26W-8A8
Q35E0041AEX 1C0100 MASK_BEZEL TV26W-8A8
705TQ834759 STAND ASS`Y
0M1T6050 1 SCREW
0Q1G 130 8120 SCREW 42A9930011
A34E0729 GM 2L0100 STAND-SWIVEL
A34E0730 GM 1L0100 STAND-NECK
A34E0731 GM 1L0120 BASE-26
Q02T7015 1 NUT
Q12G6300 25 1 RUBBER FOOT
Q15T0293101 BASE-BKT-A4
Q37T0089011 GM HINGE ASS'Y
705TQ834761 REAR COVER ASS'Y
052G 2191 A PAPER TAPE
A34E0559 GM 4L0130 REAR COVER 26
Q15T0257101 BKT-VESA-BTM
Q36T 600 31 2 NONWOVEN FABRIC
Q36T 600 40 1 NONWOVEN FABRIC
Q44T3121510537 PU FOAM
E750 750TVM260B1111N000 PANEL V260B1-L11 26" CMO TW 2nd source
E750 750TVM260B1112N000 PANEL V260B1-L11 NB CMO
E750 750TVM260B1113N000 PANEL V260B1-L11 NH CMO 2nd source
E750 750TVM260B11TQN000 PANEL V260B1-L11 T FQ CMO 2nd source
756TQ8CB AD013 MAIN BOARD-CBPFRA1DQ9
U400 056G1125170 X IC W79E632A40PL
U202 056T1133527 ST IC M25P40-VMN6TP/X ST
SMTF-U202 100TWHMF001D11 MCU ASS'Y-056T1133527 ST
SMTF-U400 100TWHMF002D21 MCU ASS'Y-056G1125170 X
ADTV72412YD1 POWER BOARD
44
Page 45
040G 45762412B CBPC LABEL
009T6005 1 GROUND TERMINAL
CN902 033G380212B Y WAFER
CN903 033T380213B Y CONNECTOR
IC951 056G 139 7 IC EL817MC M-TYPE
IC970 056G 139 7 IC EL817MC M-TYPE
IC950 056G 139 7 IC EL817MC M-TYPE
IC950 056G 139 7 1 IC EL817MA M-TYPE
IC951 056G 139 7 1 IC EL817MA M-TYPE
IC970 056G 139 7 1 IC EL817MA M-TYPE
IC902 056G 581 7 IC TNY277PN DIP-8C
IC904 056T 563134 IC SI-8105QL DIP-8
NR901 061G 58030 W NTCR 3 OHM 5A
C901 063G107K474 US 0.47UF +-10%
C904 063G107K474 US 0.47UF +-10%
C910 063G213J105GFA MPF CAP
C911 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5P
C908 065G306K3312BM Y1/CAP 330PF 250VAC MURATA
C907 065G306K3312BM Y1/CAP 330PF 250VAC MURATA
C903 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX
C902 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX
C905 065G306M1022B2 1000PF 400VAC/250VAC Y1
C906 065G306M1022B2 1000PF 400VAC/250VAC Y1
C909 065T306K3312F2 Y1 330PF K 250VAC
C952 067G204V331 3K CS CAP 330UF 16V 10*12 MM
C954 067G215P4713AV CAP 105℃ 470UF M 16V
C999 067G215P4714AV CAP 105℃ 470UF M 25V
C920 067G215Z10115A CAP 105℃ 100UF M 450V
C973 067T215P1026AV CAP 105C 1000UF M 35V
C974 067T215P1026AV CAP 105C 1000UF M 35V
C975 067T215P4716AV CAP 105C 470UF M 35V
C991 067T215P4716AV CAP 105C 470UF M 35V
FB901 071G 55 21 FERRITE BEAD
FB903 071G 55 26 S FERRITE CORE
FB904 071G 55 26 S FERRITE CORE
L950 073G 253 91 L CHOKE BY LI TA
L980 073G 253 91 L CHOKE BY LI TA
L901 073T 174106 DN LINE FILTER 13MH LK.TF032.A20
L902 073T 174106 DN LINE FILTER 13MH LK.TF032.A20
L906 073T 174124 S PFC CHOKE 300UH
L990 073T 253194 S CHOKE COIL 20UH
T902 080TL26T 6 S X'FMR POWER 370UH
T901 080TL26T 7 S X'FMR POWER 1MH
CN901 087T 501 44 DL AC SOCKET 3PIN + 2 SCREW HOLE V/T
705TQ793028 D970 ASS'Y
D970 093G 52 57 DIODE FMXA-2202S 20A/200V TO-220F
45
Page 46
D970 093G 60265 FCH20A20 TO-220
0M1G1730 8120 SCREW
Q90T0095 2 HEAT SINK
705TQ793029 BD901 ASS'Y
090T 425502 HEAT SINK
BD901 093G 50460 39 BRIDGE BU1006A-E3/45 10A/600V BU
0M1G1730 8120 SCREW
705TQ793030 D950 ASS'Y
090G6084 1 HEAT SINK
D950 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)
0M1G1730 8120 SCREW
705TQ793031 Q901&D902 ASS'Y
Q901 057G 667 55 FET 2SK4087LS 14A/600V TO-220FI(LS)
D902 093G 220 33 DIODE FMXA-1106S
0M1G1730 8120 SCREW
Q90T0095 2 HEAT SINK
705TQ857008 Q903 ASS`Y
Q903 057G 667 21 STP10NK70ZFP
090T 425502 HEAT SINK
0M1G1730 8120 SCREW
IC901 056G 368 12 IC FAN7529MX SOP-8
IC903 056G 379101 IC FAN7602BMX SOP-8
Q922 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q923 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q924 057G 760 5 DTC144WKA BY ROHM SMT
Q921 057G 761 11 TRA KTD1624C RTF/P 60V/3A SOT-89
Q925 057G 761 12 TRA KTB1124B SOT-89 KEC
R956 061G0603000 RST CHIP MAX 0R05 1/10W
R945 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R957 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R958 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W
R955 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R991 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R960 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R918 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R929 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R939 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R983 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R976 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R942 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R971 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R907 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R996 061G0603110 3F RST CHIPR 110KOHM +-1% 1/10W
R906 061G0603124 RST CHIPR 120 KOHM +-5% 1/10W
46
Page 47
R923 061G0603130 2F RST CHIPR 13 KOHM +-1% 1/10W
R979 061G0603150 1F RST CHIPR 1.5 KOHM +-1% 1/10W
R910 061G0603224 RST CHIPR 220 KOHM +-5% 1/10W
R915 061G0603471 RST CHIPR 470 OHM +-5% 1/10W
R998 061G0603499 1D RST CHIPR 4.99K OHM +-0.5% 1/10W
R981 061G0603560 9F RST CHIPR 56 OHM +-1% 1/10W
R917 061G0603563 RST CHIPR 56 KOHM +-5% 1/10W
R982 061G0603620 2F RST CHIPR 62 KOHM +-1% 1/10W
R947 061G0603622 RST CHIPR 6.2 KOHM +-5% 1/10W
R997 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
R911 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
R912 061G0805100 RST CHIPR 10 OHM +-5% 1/8W
R943 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R935 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R914 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R944 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R908 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R928 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R978 061G0805130 2F RST CHIP 13K 1/8W 1%
R913 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R927 061G0805274 RST CHIPR 270 KOHM +-5% 1/8W
R975 061G0805392 3.9 KOHM 1/10W
R937 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W
R938 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W
R985 061G0805684 680K/0805
R924 061G0805684 680K/0805
R925 061G0805684 680K/0805
R926 061G0805684 680K/0805
RJ902 061G1206000 RST CHIP MAX 0R05 1/4W
R920 061G1206000 RST CHIP MAX 0R05 1/4W
RJ901 061G1206000 RST CHIP MAX 0R05 1/4W
R941 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R961 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R933 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R934 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R901 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R902 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R903 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R953 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R954 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R999 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R931 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R950 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R951 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R952 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R921 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
47
Page 48
R922 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R984 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R905 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R904 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R909 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R932 061T0805168 2F CHIP 16.8K OHM 1/8W 1%
C993 065G0603102 31 CHIP 1000PF 50V NPO
C955 065G0603104 32 CHIP 0.1UF 50V X7R
C942 065G0603104 32 CHIP 0.1UF 50V X7R
C934 065G0603104 32 CHIP 0.1UF 50V X7R
C913 065G0603104 32 CHIP 0.1UF 50V X7R
C956 065G0603104 32 CHIP 0.1UF 50V X7R
C978 065G0603104 32 CHIP 0.1UF 50V X7R
C944 065G0603221 31 CER1 0603 NP0 50V 220P P
C918 065G0603224 32 CHIP 0.22UF 50V X7R
C995 065G0603224 32 CHIP 0.22UF 50V X7R
R919 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603
C917 065G0603473 32 CHIP 0.047UF 50V X7R
C943 065G0603473 32 CHIP 0.047UF 50V X7R
C912 065G0603820 31 0603 82PF +-5%, 50V NPO
C950 065G0805102 31 CAP CHIP 0805 1000PF J 50V NPO
C951 065G0805102 31 CAP CHIP 0805 1000PF J 50V NPO
C992 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R
C922 065G0805105 37 CHIP 1UF 50V Y5V
C998 065G0805105 37 CHIP 1UF 50V Y5V
C976 065G0805334 32 CHIP 0.33UF 50V X7R
C996 065G0805471 31 CHIP 470PF 50V NPO
C990 065G0805474 32 0.47UF +-10% 50V X7R
C938 065T0603105 25 CHIP 1UF 25V X5R
C970 065T080533242H CAP CHIP 0805 3300PF K 100V X7R
C971 065T080533242H CAP CHIP 0805 3300PF K 100V X7R
C972 065T080533242H CAP CHIP 0805 3300PF K 100V X7R
D911 093G 6432V LL4148-GSO8
D971 093G 6432V LL4148-GSO8
D941 093G 6432V LL4148-GSO8
ZD930 093G 39S 15 T RLZ15B LLDS
ZD920 093G 39S 24 T RLZ 5.6B LLDS
ZD970 093G 39S 42 T RLZ27B LLDS
ZD931 093G 39S 44 T RLZ18B LLDS
ZD901 093G 39S103 T DIODE RLZ 2.4BTE-11 500MW/2.4V LL-34
D990 093G5004 1 SR54 T0-214AA
T902 006T 31 4 1.7MM RIVET
CN901 006T 31501 EYELET
IC971 056G 158 10 T IC AS431AZTR-E1 TO-92
IC952 056G 158 10 T IC AS431AZTR-E1 TO-92
R940 061G152M10452T RST MOFR 100KOHM +-5% 2WS
48
Page 49
R946 061G152M27852T RST MOFR 0.27 OHM +-5% 2WS
R970 061G152M33952T RST MOFR 3.3 OHM +-5% 2WS
R974 061G175L10252T 1KOHM +-5% 1/2W
R930 061G208M10452T RST MOF 100K 5% 1W
R916 061T152M15852T RST MOFR 0.15 OHM +-5% 2WS
C940 065G 1K222 5T6213 CER CAP 2200PF K 1KV TDK
C930 065G 1K222 5T6213 CER CAP 2200PF K 1KV TDK
C921 067G215A1007KT EC 10UF 50V M 5*11MM
C937 067G215A1007KT EC 10UF 50V M 5*11MM
C941 067G215A1007KT EC 10UF 50V M 5*11MM
C931 067G215A1017KT EC 100UF 50V 8*12MM
C914 067G215A4707KT EC 47UF 50V 6.3*11MM
F901 084G 55 7 B FUSE 3.15A 250V BUSSMANN
D901 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41
D931 093G 5250S52T DIODE AU02Z-V1 SANKEN
D930 093T1080 252T DIODE SARSO1-V1 SANKEN
D940 093T1080 252T DIODE SARSO1-V1 SANKEN
J925 095G 90 23 JUMPER WIRE
J923 095G 90 23 JUMPER WIRE
J922 095G 90 23 JUMPER WIRE
J921 095G 90 23 JUMPER WIRE
J920 095G 90 23 JUMPER WIRE
J919 095G 90 23 JUMPER WIRE
J918 095G 90 23 JUMPER WIRE
J917 095G 90 23 JUMPER WIRE
J916 095G 90 23 JUMPER WIRE
J915 095G 90 23 JUMPER WIRE
J914 095G 90 23 JUMPER WIRE
J913 095G 90 23 JUMPER WIRE
J912 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
J909 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J907 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J901 095G 90 23 JUMPER WIRE
715T2907 3 POWER BOARD PCB
Q51G 6 4509 GLUE_RTV
071FPC28301 01 MAGNETIC CORE DMR40 EC28A A95.6
040FP253194 V LABEL S73T253194V
071FPC28201 00 MAGNETIC CORE DMR40 EC28B
49
Page 50
071FPG25101 00 MAGNETIC CORE DMR40 EPC25
040G 45762412B CBPC LABEL
CN700 033T327812D WAFER 12P PLUG
CN600 033T3802 4B Y CONNECTOR
CN400 033T380210B Y CONNECTOR
R138 061G175L22052T RST CFR 22 OHM +-5% 1/2W
R623 061T153M309 59 RST MOFR 3 OHM +-5% 3WS
R624 061T153M309 59 RST MOFR 3 OHM +-5% 3WS
R626 061T153M309 59 RST MOFR 3 OHM +-5% 3WS
R627 061T153M309 59 RST MOFR 3 OHM +-5% 3WS
R137 061T175L39052T 39 OHM 5% 1/2W
C652 067G 305102 4 105C 1000UF +-20% 25V
C702 067G215P4713AV CAP 105℃ 470UF M 16V
C706 067G215P4714AV CAP 105℃ 470UF M 25V
C132 067T 305471 4 EC 105℃ 470UF M 25V
CN105 088G 78 1357S RCA JACK 1*1 W+R V/A
CN602 088G 30211K PHONE JACK 5PIN
CN100 088G 30252S PHONE JACK 3.5MM 3P V/A GREEN
CN103 088T 78 13932 C RCA JACK + S JACK Y/B
CN103 088T 78 13932 S RCA JACK + S JACK Y/B
CN102 088T 78 V5 C RCA JACK 3+2 G/BLU/R+W/R
CN101 088T 7813C19C RCA JACK 1*3 R/W/Y
CN104 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR
HS1 090T 372 2 HEAT SINK
X600 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ
TU101 094T PAL DK 2C TUNER TMI8-C22I2VH CHANGHONG
095G 900H04 X CW GROUD WIRE 130MM YELLOW
0Q1G 930 8 47 CR3 SCREW
U602 705TQ856001 U602 ASS'Y
U602 056T 616511 ST IC TDA7297SA ST
0M1G1730 10120 SCREW 42A9930016
Q90T0155 1 HEAT SINK FOR U602
A15T0354401 GM SIDE BKT
C715 067G 305100 3T 10UF 16V
C709 067G 305100 3T 10UF 16V
C708 067G 305100 3T 10UF 16V
C640 067G 305100 3T 10UF 16V
C630 067G 305100 3T 10UF 16V
C621 067G 305100 3T 10UF 16V
C616 067G 305100 3T 10UF 16V
C613 067G 305100 3T 10UF 16V
C611 067G 305100 3T 10UF 16V
C607 067G 305100 3T 10UF 16V
C605 067G 305100 3T 10UF 16V
C603 067G 305100 3T 10UF 16V
C246 067G 305100 3T 10UF 16V
50
Page 51
C237 067G 305100 3T 10UF 16V
C236 067G 305100 3T 10UF 16V
C209 067G 305100 3T 10UF 16V
C201 067G 305100 3T 10UF 16V
C716 067G 305100 3T 10UF 16V
C718 067G 305100 3T 10UF 16V
C724 067G 305100 3T 10UF 16V
C726 067G 305100 3T 10UF 16V
C727 067G 305100 3T 10UF 16V
C733 067G 305100 3T 10UF 16V
C747 067G 305100 3T 10UF 16V
C732 067G 305101 3T 100UF 16V 105C
C665 067G 305101 3T 100UF 16V 105C
C663 067G 305101 3T 100UF 16V 105C
C662 067G 305101 3T 100UF 16V 105C
C401 067G 305101 3T 100UF 16V 105C
C141 067G 305101 3T 100UF 16V 105C
C136 067G 305101 3T 100UF 16V 105C
C133 067G 305101 4T 100UF +-20% 25V
C650 067G 305101 4T 100UF +-20% 25V
C643 067G 305220 3T 22UF +-20% 16V
C666 067G 305470 3T 47UF +-20% 16V
C259 067G 305471 3T 105℃ 470UF +-20% 16V
U601 056G 133 30AAC AZ1117H-ADJ-E1
U701 056G 563 7 IC AIC1084-33PMTR-R AIC
U702 056G 563 34 IC AIC1084-18PMTR-R AIC
U102 056G 585 11 IC AZ1117D-5.0-E1 AAC
U200 056G 585 4A IC AP1117E33L-13
U700 056G 585 4A IC AP1117E33L-13
U703 056G 585 4A IC AP1117E33L-13
U704 056G 585 5A IC AP1117E25L-13
U400 056G1125170 X IC W79E632A40PL
U100 056G1133 34 M24C02-WMN6TP
U402 056G113353A IC M24C32-WMN6T SO-8 ST
U403 056G74HC 14 F IC MM74HC14MX SOIC-14
U405 056G74HC126 P IC 74HC126D SO-14 PHILIPS
UH200 056T 562566 IC HX6203-A010QBG
U600 056T 616 4 IC PT2314L SO28 PTC
U603 056T 616507 IC AUDIO PT2309 PTC
U202 056T1133527 ST IC M25P40-VMN6TP/X ST
Q100 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q102 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q106 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q107 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
51
Page 52
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q701 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q700 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q401 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q403 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q600 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q404 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q408 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q400 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q109 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q108 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q101 057G 763 3 AO4411 SO-8
Q105 057G 763 3 AO4411 SO-8
Q704 057G 763 3 AO4411 SO-8
RP400 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP401 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP402 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP403 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP404 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP405 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP406 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
R154 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R147 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R135 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R132 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R129 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R124 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R123 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R122 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R110 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R107 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R104 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R101 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R203 061G0402162 RST CHIP 1K6 1/16W 5%
R153 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R134 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R131 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R128 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R114 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R111 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R204 061G0402332 RST CHIPR 3.3KOHM +-5% 1/16W
52
Page 53
R130 061G0402430 RST CHIP 43R 1/16W 5%
R133 061G0402430 RST CHIP 43R 1/16W 5%
R136 061G0402430 RST CHIP 43R 1/16W 5%
R148 061G0402430 RST CHIP 43R 1/16W 5%
R152 061G0402430 RST CHIP 43R 1/16W 5%
R423 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R410 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R102 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R105 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R108 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R146 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R421 061G0603000 RST CHIP MAX 0R05 1/10W
R420 061G0603000 RST CHIP MAX 0R05 1/10W
R413 061G0603000 RST CHIP MAX 0R05 1/10W
R226 061G0603000 RST CHIP MAX 0R05 1/10W
R221 061G0603000 RST CHIP MAX 0R05 1/10W
R218 061G0603000 RST CHIP MAX 0R05 1/10W
L100 061G0603000 RST CHIP MAX 0R05 1/10W
R422 061G0603000 RST CHIP MAX 0R05 1/10W
R436 061G0603000 RST CHIP MAX 0R05 1/10W
R437 061G0603000 RST CHIP MAX 0R05 1/10W
R606 061G0603000 RST CHIP MAX 0R05 1/10W
R607 061G0603000 RST CHIP MAX 0R05 1/10W
R638 061G0603000 RST CHIP MAX 0R05 1/10W
R720 061G0603000 RST CHIP MAX 0R05 1/10W
R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R610 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R434 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R166 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R708 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R702 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R701 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R700 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R618 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R613 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R459 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R234 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R230 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R438 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R628 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R640 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
53
Page 54
R710 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R712 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R401 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R402 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R403 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R405 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R407 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R411 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R430 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R431 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R435 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R175 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R634 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R419 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R604 061G0603105 RST CHIPR 1M OHM +-5% 1/10W
R621 061G0603122 RST CHIPR 1.2 KOHM +-5% 1/10W
R237 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W
R404 061G0603182 RST CHIPR 1.8 KOHM +-5% 1/10W
R189 061G0603184 RST CHIPR 180 KOHM +-5% 1/10W
R190 061G0603184 RST CHIPR 180 KOHM +-5% 1/10W
R144 061G0603201 RST CHIPR 200 OHM +-5% 1/10W
R145 061G0603201 RST CHIPR 200 OHM +-5% 1/10W
R229 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R245 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R246 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R247 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R426 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R428 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R429 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R432 061G0603220 RST CHIPR 22 OHM +-5% 1/10W
R620 061G0603221 RST CHIPR 220 OHM +-5% 1/10W
R103 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R183 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W
R711 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W
R141 061G0603224 RST CHIPR 220 KOHM +-5% 1/10W
R608 061G0603242 RST CHIPR 2.4 KOHM +-5% 1/10W
R609 061G0603242 RST CHIPR 2.4 KOHM +-5% 1/10W
R611 061G0603242 RST CHIPR 2.4 KOHM +-5% 1/10W
R612 061G0603242 RST CHIPR 2.4 KOHM +-5% 1/10W
R601 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R600 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R614 061G0603331 RST CHIP 330R 1/10W 5%
R615 061G0603331 RST CHIP 330R 1/10W 5%
R617 061G0603331 RST CHIP 330R 1/10W 5%
R619 061G0603331 RST CHIP 330R 1/10W 5%
54
Page 55
R100 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R115 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R118 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R119 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R120 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R121 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R602 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R603 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R643 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R644 061G0603333 RST CHIPR 33KOHM +-5% 1/10W
R202 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R185 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R186 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R206 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R207 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R208 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R212 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R213 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R216 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R235 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R184 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R182 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R143 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R142 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R140 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R139 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R125 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R113 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R112 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R724 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R714 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R713 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R709 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R705 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R703 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R642 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R641 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R630 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R418 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R417 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R416 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R415 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R409 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R639 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R631 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R629 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
55
Page 56
R625 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R187 061G0603474 RST CHIPR 470 KOHM +-5% 1/10W
R605 061G0603562 RST CHIPR 5.6 KOHM +-5% 1/10W
R622 061G0603562 RST CHIPR 5.6 KOHM +-5% 1/10W
R220 061G0603680 RST CHIPR 68 OHM +-5% 1/10W
R219 061G0603680 RST CHIPR 68 OHM +-5% 1/10W
R217 061G0603680 RST CHIPR 68 OHM +-5% 1/10W
R171 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R172 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R424 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R425 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R170 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R149 061G0805000 RST CHIP MAX 0R05 1/8W
R150 061G0805000 RST CHIP MAX 0R05 1/8W
R151 061G0805000 RST CHIP MAX 0R05 1/8W
R637 061G1206000 RST CHIP MAX 0R05 1/4W
C638 065G0402101 32 100PF +-10% 50V X7R
C628 065G0402101 32 100PF +-10% 50V X7R
C622 065G0402101 32 100PF +-10% 50V X7R
C618 065G0402101 32 100PF +-10% 50V X7R
C412 065G0402101 32 100PF +-10% 50V X7R
C410 065G0402101 32 100PF +-10% 50V X7R
C409 065G0402101 32 100PF +-10% 50V X7R
C407 065G0402101 32 100PF +-10% 50V X7R
C225 065G0402101 32 100PF +-10% 50V X7R
C214 065G0402101 32 100PF +-10% 50V X7R
C211 065G0402101 32 100PF +-10% 50V X7R
C207 065G0402101 32 100PF +-10% 50V X7R
C108 065G0402102 32 1000PF +-10% 50V X7R
C154 065G0402102 32 1000PF +-10% 50V X7R
C227 065G0402103 22 CHIP 0.01UF 25V X7R
C656 065G0402103 32 0.01UF +-10% 16V X7R
C659 065G0402103 32 0.01UF +-10% 16V X7R
C135 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C137 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C138 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C166 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C226 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C402 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C641 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C654 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C661 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C703 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C711 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C742 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C743 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
56
Page 57
C745 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
C134 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V
C649 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V
C651 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V
C707 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V
C653 065G0402105 A5 CAP 0402 1UF K 10V X5R
C660 065G0402105 A5 CAP 0402 1UF K 10V X5R
C415 065G0402200 31 CHIP 20PF 50V NPO
C416 065G0402200 31 CHIP 20PF 50V NPO
C626 065G040227232K T CAP CHIP 0402 2700PF 50V X7R
C648 065G040227232K T CAP CHIP 0402 2700PF 50V X7R
C156 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO
C162 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO
C163 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO
C100 065G040233031T CHIP 33PF 50V NPO
C109 065G040233031T CHIP 33PF 50V NPO
C110 065G040233031T CHIP 33PF 50V NPO
C111 065G040233031T CHIP 33PF 50V NPO
C114 065G040233031T CHIP 33PF 50V NPO
C115 065G040233031T CHIP 33PF 50V NPO
C614 065G040233031T CHIP 33PF 50V NPO
C617 065G040233031T CHIP 33PF 50V NPO
C144 065G0402473 12 CHIP 0.047UF 16V X7R
C148 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C130 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C129 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C128 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C124 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C123 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C122 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C107 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C102 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C101 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R
C142 065G0402560 31 CHIP 56PF 50V X7R
C143 065G0402560 31 CHIP 56PF 50V X7R
C670 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C671 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C672 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C673 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C647 065G0603104 37 CHIP 0.1UF 50V/Y5V
C646 065G0603104 37 CHIP 0.1UF 50V/Y5V
C645 065G0603104 37 CHIP 0.1UF 50V/Y5V
C625 065G0603104 37 CHIP 0.1UF 50V/Y5V
C624 065G0603104 37 CHIP 0.1UF 50V/Y5V
C623 065G0603104 37 CHIP 0.1UF 50V/Y5V
C657 065G0603105 12 CHIP 1UF 16VX7R 0603
57
Page 58
C658 065G0603105 12 CHIP 1UF 16VX7R 0603
C215 065G060310522Y MLCC 0603 1UF K 25V X7R
C131 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%
C700 065G060322517Y MLCC 0603 2.2UF Z 16V Y5V
C167 065G0603474 27 CHIP 0.47UF 25V Y5V
C228 065G0603474 27 CHIP 0.47UF 25V Y5V
C169 065G0603474 27 GP 0603 0.47UF -20%~+80% 25V Y5N
C170 065G0603474 27 GP 0603 0.47UF -20%~+80% 25V Y5N
C168 065G060347427Y MLCC 0603 0.47UF Z 25V Y5V
C655 065G0805105 27 CHIP 1UF Y5V 0805
C642 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R
C252 065G0805106 A7 CHIP 10UF 10V Y5V 0805
C619 065G0805225 17 CHIP 2.2UF 16V Y5V
C644 065G0805225 17 CHIP 2.2UF 16V Y5V
C744 065G1206106 17 MLCC 10 UF Z 16V Y5V
C738 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C737 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C217 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C218 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C219 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C220 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C223 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C224 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C229 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C230 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C231 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C232 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C234 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C239 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C739 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C731 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C734 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C735 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C736 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C240 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C247 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C248 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C249 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C250 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C251 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C253 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C258 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C400 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C600 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C601 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C602 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
58
Page 59
C604 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C606 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C610 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C612 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C615 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C740 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C741 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C637 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C636 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C635 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C634 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C629 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C620 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C639 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C674 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C710 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C717 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C719 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C720 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C721 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C722 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C723 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C725 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C728 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C729 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C730 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C160 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C200 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C202 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C203 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C204 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C205 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C206 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C208 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C210 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C212 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C213 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C216 065T040210427T CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN
C667 065T0603105 25 CHIP 1UF 25V X5R
C664 065T0603105 25 CHIP 1UF 25V X5R
C633 065T0603105 25 CHIP 1UF 25V X5R
C632 065T0603105 25 CHIP 1UF 25V X5R
C631 065T0603105 25 CHIP 1UF 25V X5R
C627 065T0603105 25 CHIP 1UF 25V X5R
C414 065T0603105 25 CHIP 1UF 25V X5R
C242 065T0603105 25 CHIP 1UF 25V X5R
59
Page 60
C113 065T0603105 25 CHIP 1UF 25V X5R
C233 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V
C235 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V
C238 065T0805475 17 GP MLCC 0805 4.7UF Z 16V Y5V
C609 065T1206106 25 CHIP 10UF 25V X5R 1206
C608 065T1206106 25 CHIP 10UF 25V X5R 1206
C126 065T1206106 25 CHIP 10UF 25V X5R 1206
C125 065T1206106 25 CHIP 10UF 25V X5R 1206
C121 065T1206106 25 CHIP 10UF 25V X5R 1206
C120 065T1206106 25 CHIP 10UF 25V X5R 1206
C119 065T1206106 25 CHIP 10UF 25V X5R 1206
C118 065T1206106 25 CHIP 10UF 25V X5R 1206
L101 071G 56G301 EA BEAD 300 OHM
FB706 071G 56K121 CHIP BEAD
FB704 071G 57G301 EA CHIP BEAD
FB703 071G 57G301 EA CHIP BEAD
FB701 071G 57G301 EA CHIP BEAD
FB700 071G 57G301 EA CHIP BEAD
FB604 071G 57G301 EA CHIP BEAD
FB603 071G 57G301 EA CHIP BEAD
FB602 071G 57G301 EA CHIP BEAD
FB601 071G 57G301 EA CHIP BEAD
FB600 071G 57G301 EA CHIP BEAD
FB400 071G 57G301 EA CHIP BEAD
FB219 071G 57G301 EA CHIP BEAD
FB216 071G 57G301 EA CHIP BEAD
FB209 071G 57G301 EA CHIP BEAD
FB207 071G 57G301 EA CHIP BEAD
FB206 071G 57G301 EA CHIP BEAD
FB205 071G 57G301 EA CHIP BEAD
FB204 071G 57G301 EA CHIP BEAD
FB203 071G 57G301 EA CHIP BEAD
FB202 071G 57G301 EA CHIP BEAD
FB201 071G 57G301 EA CHIP BEAD
FB200 071G 57G301 EA CHIP BEAD
FB109 071G 59B121 TB160808B
FB108 071G 59B121 TB160808B
FB107 071G 59B121 TB160808B
FB106 071G 59B121 TB160808B
FB105 071G 59B121 TB160808B
FB104 071G 59B121 TB160808B
FB103 071G 59B121 TB160808B
FB100 071G 59C600 CHIP BEAD
FB101 071G 59C600 CHIP BEAD
FB102 071G 59C600 CHIP BEAD
FB208 071G 59G301 CHIP BEAD 300OHM
60
Page 61
FB212 071G 59G301 CHIP BEAD 300OHM
FB213 071G 59G301 CHIP BEAD 300OHM
FB713 071G 59G301 CHIP BEAD 300OHM
FB712 071G 59G301 CHIP BEAD 300OHM
FB711 071G 59G301 CHIP BEAD 300OHM
FB710 071G 59G301 CHIP BEAD 300OHM
FB408 071G 59G301 CHIP BEAD 300OHM
FB407 071G 59G301 CHIP BEAD 300OHM
FB406 071G 59G301 CHIP BEAD 300OHM
FB405 071G 59G301 CHIP BEAD 300OHM
FB404 071G 59G301 CHIP BEAD 300OHM
FB403 071G 59G301 CHIP BEAD 300OHM
FB402 071G 59G301 CHIP BEAD 300OHM
FB401 071G 59G301 CHIP BEAD 300OHM
FB214 071G 59G301 CHIP BEAD 300OHM
D100 093G 60230 BAT54C(L43)
D401 093G 60230 BAT54C(L43)
D402 093G 60230 BAT54C(L43)
D123 093G 60231 BAT54S
D124 093G 60231 BAT54S
D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D109 093G 64 37 N VPORT0603100KV05
D110 093G 64 37 N VPORT0603100KV05
D111 093G 64 37 N VPORT0603100KV05
D112 093G 64 37 N VPORT0603100KV05
D113 093G 64 37 N VPORT0603100KV05
ZD104 093G 64 37 N VPORT0603100KV05
ZD105 093G 64 37 N VPORT0603100KV05
D108 093G 64 37 N VPORT0603100KV05
D107 093G 64 37 N VPORT0603100KV05
D106 093G 64 37 N VPORT0603100KV05
D105 093G 64 37 N VPORT0603100KV05
D104 093G 64 37 N VPORT0603100KV05
D103 093G 64 37 N VPORT0603100KV05
D102 093G 64 37 N VPORT0603100KV05
D101 093G 64 37 N VPORT0603100KV05
RV100 093G 64 65 TY SMD ESD PROTECTER PESD0603-240
RV101 093G 64 65 TY SMD ESD PROTECTER PESD0603-240
RV102 093G 64 65 TY SMD ESD PROTECTER PESD0603-240
X400 093G 22S 78 J XTL NXE22.1184AC18F HC-49/U-S SMD
ZD601 093G 39S 34 T UDZSNP5.6B ROHM
ZD402 093G 39S 34 T UDZSNP5.6B ROHM
ZD401 093G 39S 34 T UDZSNP5.6B ROHM
ZD400 093G 39S 34 T UDZSNP5.6B ROHM
ZD124 093G 39S 34 T UDZSNP5.6B ROHM
ZD123 093G 39S 34 T UDZSNP5.6B ROHM
61
Page 62
ZD103 093G 39S 34 T UDZSNP5.6B ROHM
ZD102 093G 39S 34 T UDZSNP5.6B ROHM
ZD101 093G 39S 34 T UDZSNP5.6B ROHM
ZD100 093G 39S 34 T UDZSNP5.6B ROHM
ZD600 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34
715T3140 1 MAIN BOARD PCB
C704 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R
Q702 057G 417 4 PMBS3904/PHILIPS-SMT(04)
R723 061G0603000 RST CHIP MAX 0R05 1/10W
R706 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R707 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
RP202 071T 57U800 TS CHIP BEAD ARRAY 1206 80 OHM
RP203 071T 57U800 TS CHIP BEAD ARRAY 1206 80 OHM
RP205 071T 57U800 TS CHIP BEAD ARRAY 1206 80 OHM
C405 067G 305470 3T 47UF +-20% 16V
C406 067G 305100 3T 10UF 16V
PTPF8AQ1 CONNECT BOARD
CN101 033G801730A H WAFER
CN102 033T803430X FPC/FFC CONN. 1.0MM 30P 196108-30041
715T3112 1 2 CONNECT BOARD PCB
IRPF8QDA IR BOARD
U01 056T 627 14 2 IC GP18C38BAE
CN01 033G8032 5F HR CONNECTOR
R01 061G0603153 RST CHIPR 15KOHM +-5% 1/10W
C01 065G0603104 32 CHIP 0.1UF 50V X7R
LED01 081G 14 6 GP LED GPTD1210RGC GUANGPU
715T3167 1 IR BOARD PCB
Q11T5005 1 GP WIRE SADDLE
Q15T0258101 26BKT-VESA
Q15T0259201 BKT-CMO-PANEL-SUPPORT
Q15T0260201 26BKT-BASE-SUPPORT
Q15T0261102 26BKT-PCB-HOLDER-BTM
Q15T0263301 26BKT-PCB-HOLDER-TOP
Q36T 600 30 1 NONWOVEN FABRIC
Q36T 600 31 2 NONWOVEN FABRIC
Q36T 600 31 3 NONWOVEN FABRIC
Q36T 600 37 28 GP NONWOVEN FABRIC
Q40G 260001 1A RATING LABEL
Q40T0002001 1A SIDE LABEL
Q40T0002001 2A WARRANTY LABEL
Q40T0002001 3A 8X01 LABEL
Q40T0002954 8A I-O LABEL FOR LT2651
Q41T7800001 1A WARRANTY BOOKLET
Q44GE014001 1A 26 TV SKYWORTH CARTON
Q44TE014 5 1B U TYPE SHEET FOR BASE
Q44TE014101 EPS-FOR BBY
62
Page 63
Q44TE014201 EPS-FOR BBY
Q44TE014301 EPS-FOR BBY
Q44TE014BLO001 PAPER SHEET
Q45G 77 5 PE PACKING
Q45G 99609 78 EPE BAG FOR MONITOR
Q45T 99609 79 EPE COVER FOR BASE
Q50T 500523 CABLE TIE
041T780062415A CERTIFICATE CARD
0Q1T 940 14 47 CR3 SCREW
Q41G2601001 1A MANUAL
Q41T7800954 A MANUAL
Q45G2007M0102A PE BAG FOR MANUAL
Q45T 76 28NV2 L PE BAG FOR CLAMP
040G 58162435A P/N LABEL FOR MANUAL PE BAG
Q40T0001001 1A SN LABEL
Q36T 600 31 2 NONWOVEN FABRIC
Q36T 600 31 3 NONWOVEN FABRIC
63
Loading...
