Skyworth 26K01HR, 32K01HR, 40K01HR Schematic

26K01HR, 32K01HR, 40K01HR

1. 安全与注意事项……………..………………………………………………………………..... 2

1.1 安全注意点………………..……………………………………………………...………… 2

1.2 操作使用注意…………………..……………………………………...…………………… 2

1.3 存储注意事项…………………..……………………………………...…………………… 2

1.4 高压警告………………………..…………………………...……………………………… 2

2. 基本规格……………………..…………………………………………………………………. 3

3. 操作说明及调整…………………….………………………………………………………….. 4

3.1 遥控器说明……………………..……………...…………………………………………… 4

3.2 控制面板………………………..……………...…………………………………………… 5

3.3 后壳接口介绍…………………………..…...……………………………………………… 6

3.4 菜单介绍…………………………..…………...…………………………………………… 8

4. 连接介绍………………………….…………………………………………………………….. 13

4.1 引脚介绍……………………….…………………...………………………………………. 13

4.2 工厂预设模式…………………..………………...………………………………………… 14

5. 故障处理流程………………….……………………………………………………………….. 15

6. 拆卸流程图…………………….……………………………………………………………….. 21

7. 工厂模式调整.………………….………………………………………………………………. 27

8. 电气方框图………...………………………………………………………………………....… 28

9. 电路图…………………..……………………………………………………….…………….... 30

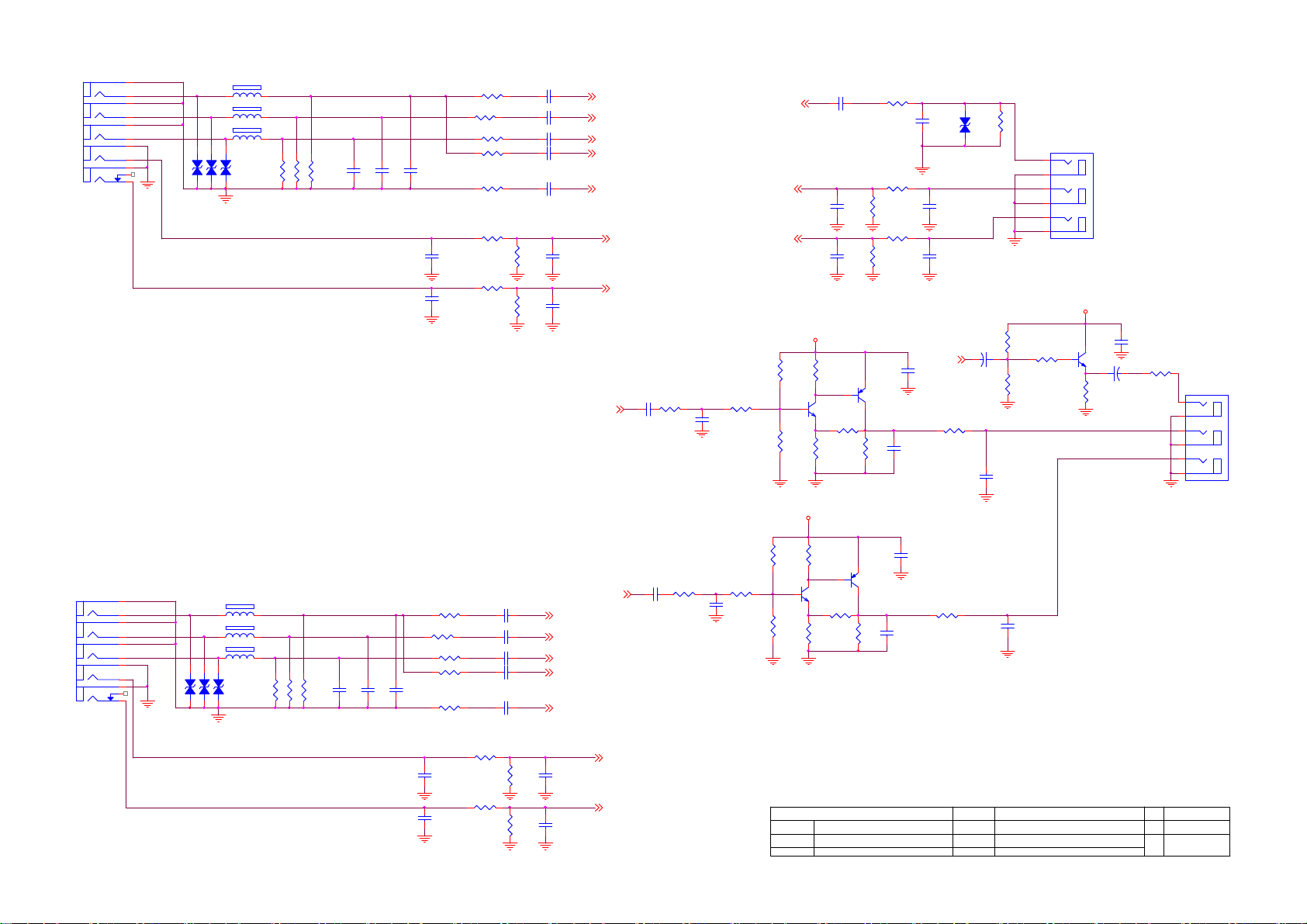

9.1 主板…………………………………………………………………….…………………… 30

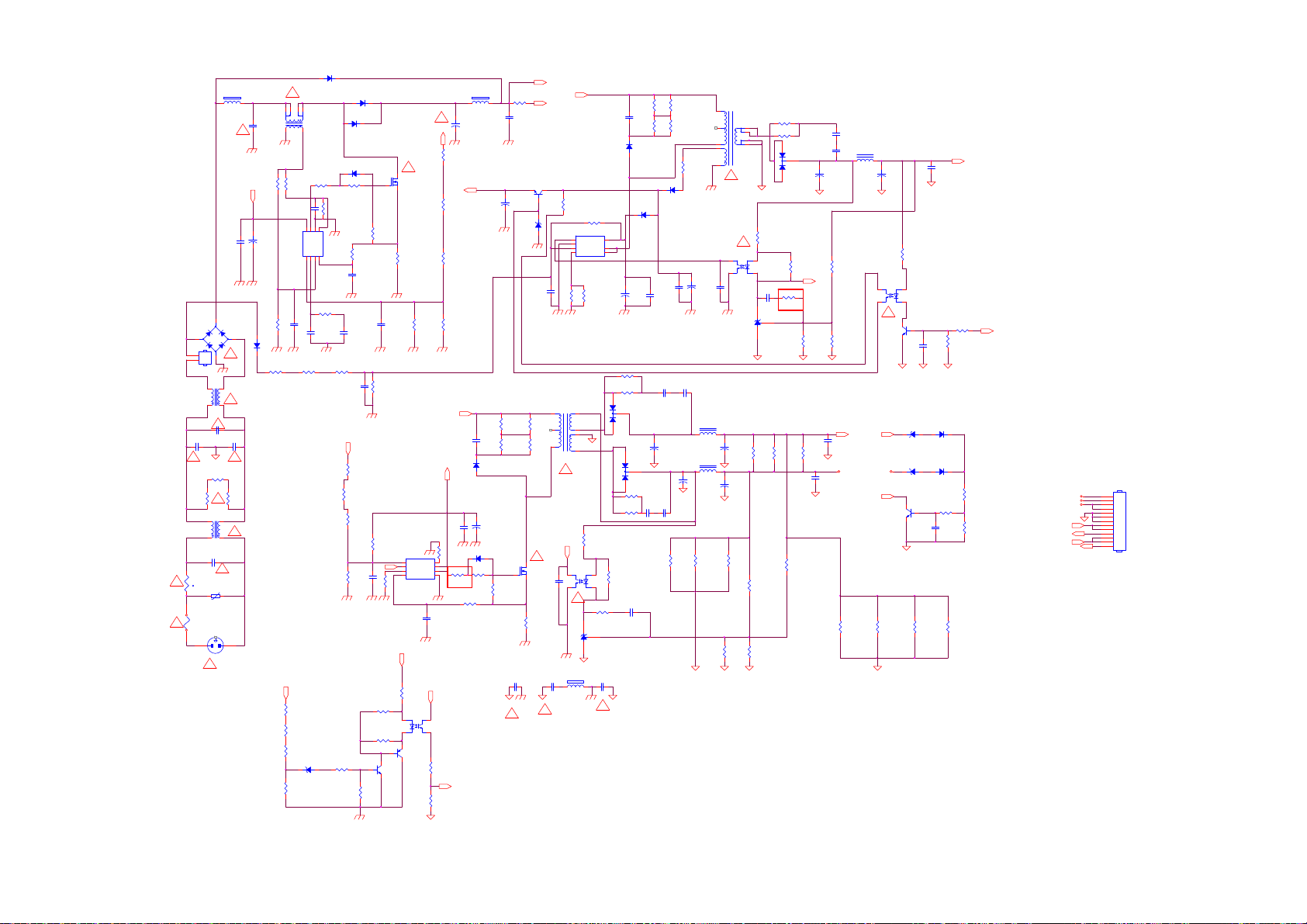

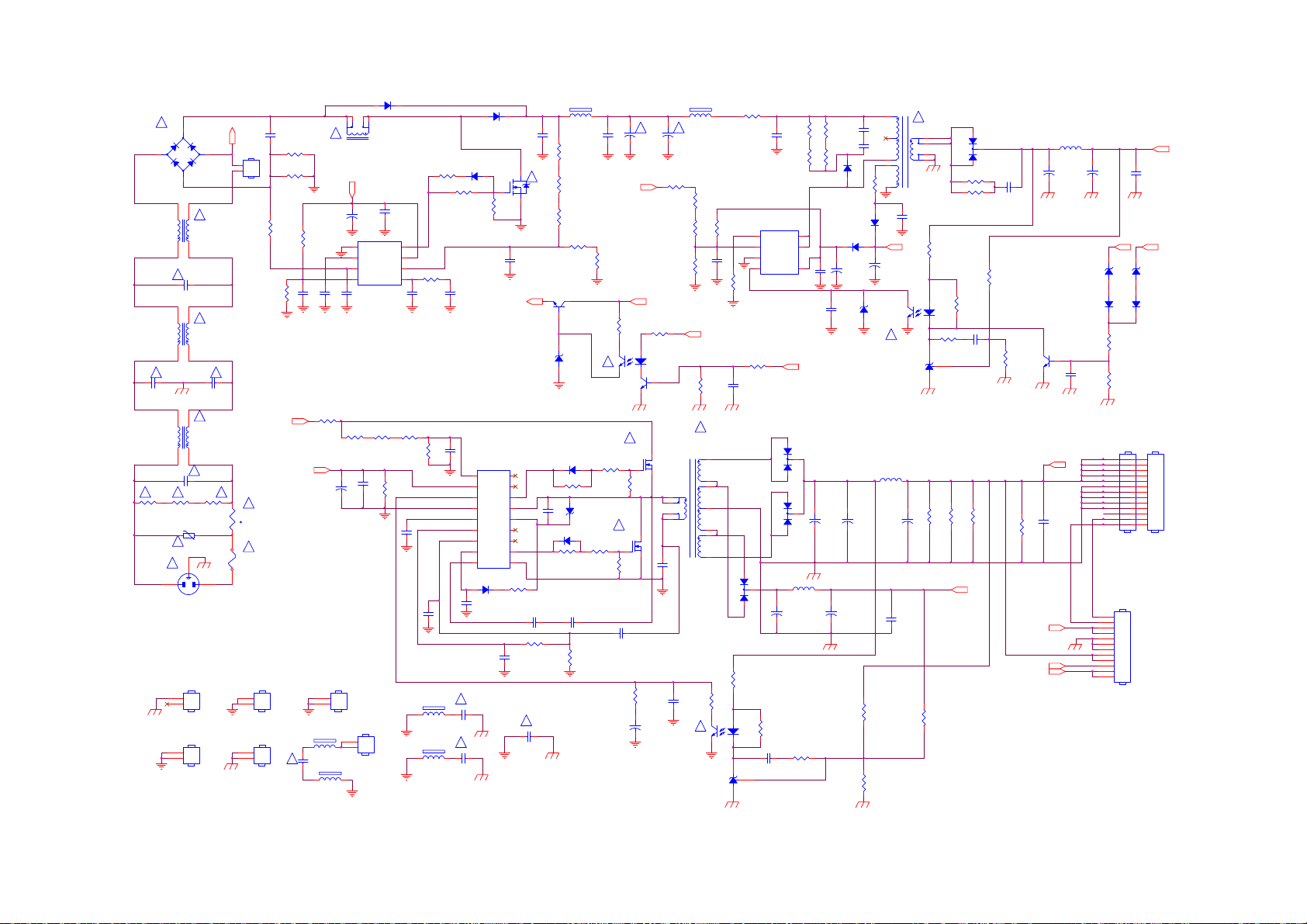

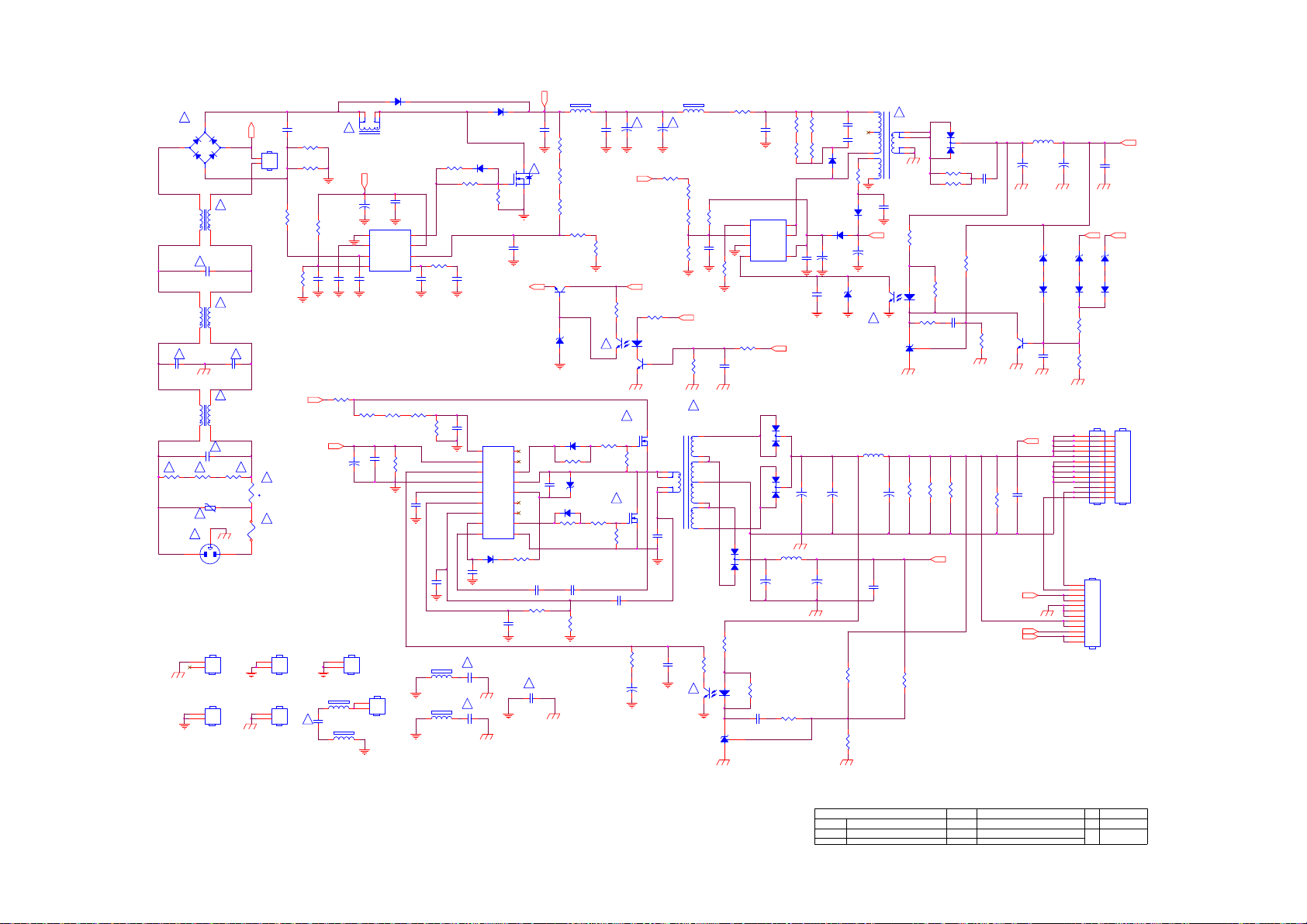

9.2 电源板…………………………………………………………..…………………………... 41

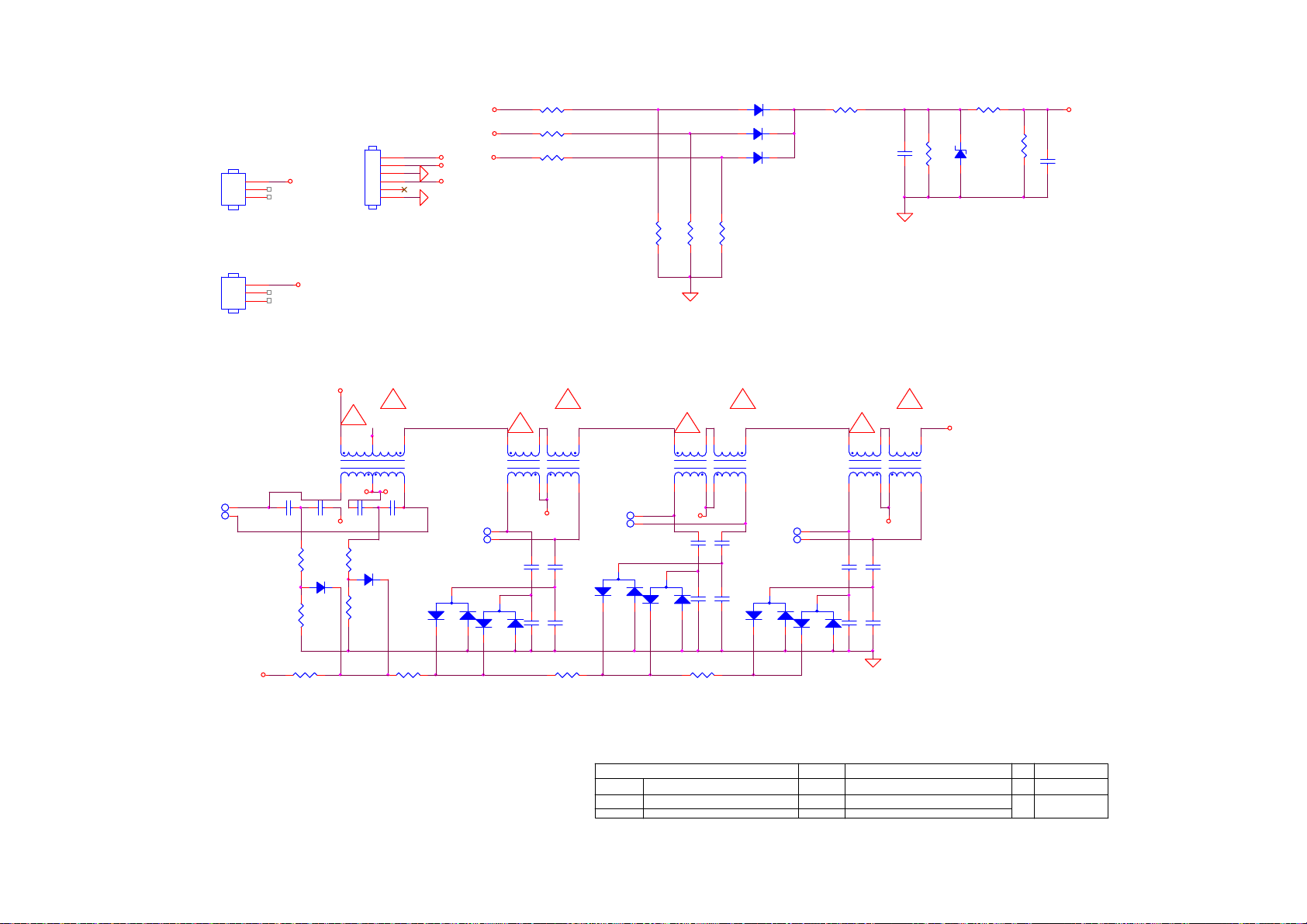

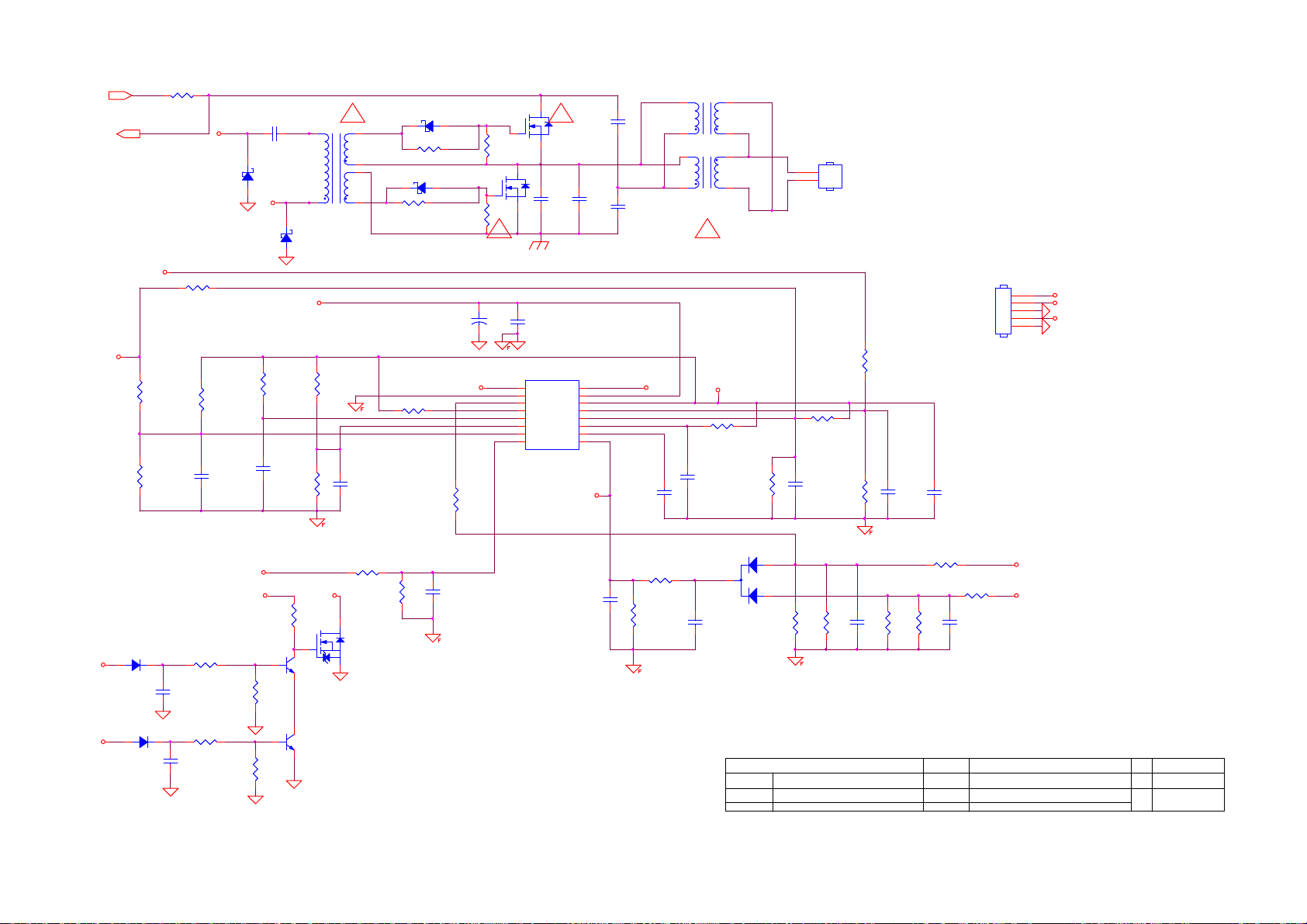

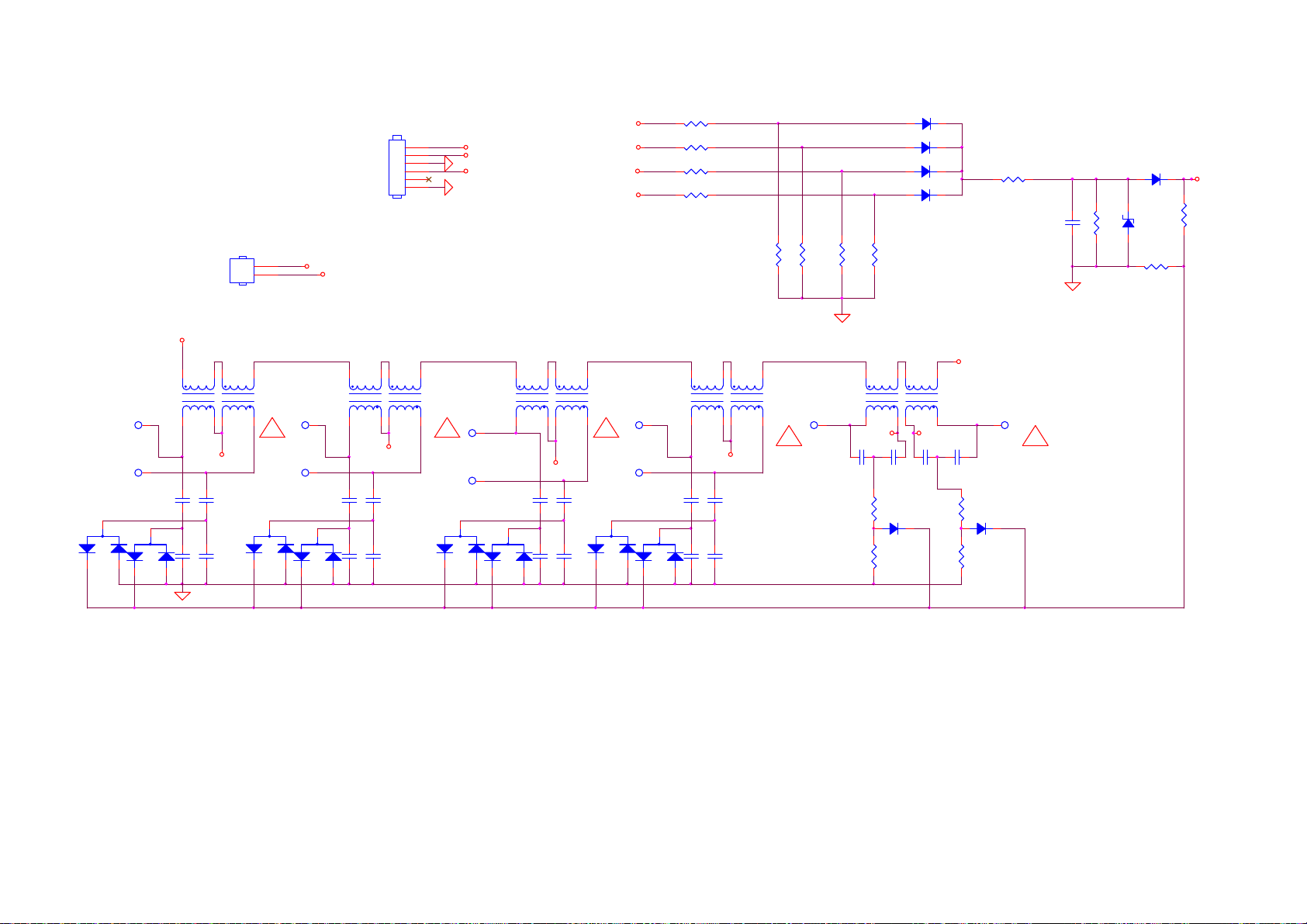

9.3 升压板………………………………………………………………………………………. 47

9.4 遥控板…………………………………………………………...………………………….. 49

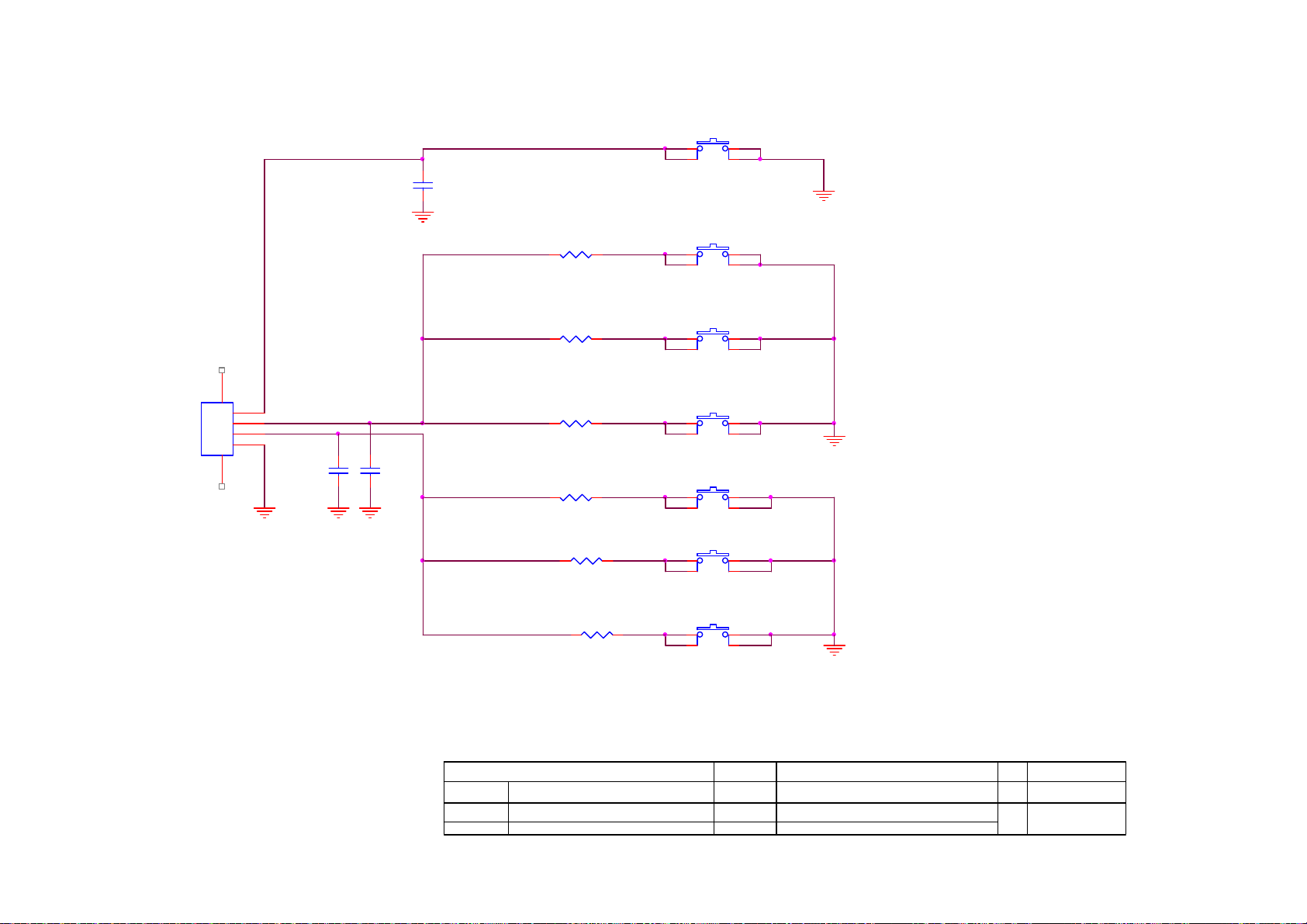

9.5 按键板……………………………………………………………….……………………… 50

10. BOM…………………………………………………………………….……………………… 51

1

1. 安全与注意事项

1.1 安装注意点

(1) 请不要用力压或擦、刮液晶表面，不要随意用手触摸显示器的表面。

(2) 当显示器表面被弄脏了，请用药棉或柔软的棉布轻轻擦拭。 (3) 当有水滴或其它带粘性污染屏幕时请立即擦拭，

它可能造成显示器表面或显示器色彩的变化。

(4) 请不要使显示器受强烈的外力震动。

1.2 操作使用注意点

(1) 移动显示器之前请拔掉电源接线。 (2) 请不要改变主板的原先设置，如果被调整亮度不符合白平衡的规格。 (3) 请注意长时间的使用的辐射在常温比低温要大。 (4) 请注意在长时间显示同一个画面后关机原来的图像信息可能还保持在上面。 (5) 避免手机对TV影响，以免损坏TV。

1.3 存储注意事项

(1) 当你长时间存储时请保持在-20℃~+60℃之间，不要暴露在阳光下，湿度小于80％RH。 (2) 请不要将显示器放置在高湿度和高温环境下，例如温度：60℃，湿度：90%RH. (3) 请不要将显示器放置在低温环境下，例如低于-10℃以下。

1.4 高压警告

显示器高压是由电源升压板产生的，如果不注意接触到高压，可能被严重电击。

2

2. 基本规格

项目

电源电压 220V，50Hz/60Hz

机型

26K01HR 32K01HR 40K01HR

整机消耗功耗

固有分辨率 1366×768 1366×768 1920×1080

最大可视图像尺寸

含底座尺寸

( 长× 厚× 高)mm 不含底座尺寸 ( 长× 厚× 高)mm

整机净重含底座(kg) 约7.8 约9.8 约18.5

整机净重不含底座(kg) 约6.6 约8.2 约16.2

接收电

视制式

节日储存容量 256 个频道(0-255)

标准模式约120W 约150W 约230W

66cm 80cm 102cm

645×228×473 778.5×250.7×552.3

645×82×430 778.5×79.7×509.2

1 PAL DK/I/BG 2 NTSC M/N

3 PAL

4 NTSC 4.43

5 NTSC 3.58

标准电视射频信号

标准视听设备播放的视频信号

970.6X277.9X677.8

970.6X108X626

射频输入方式 75Ω 不平衡式

音频输入约400mV 47KΩ

AV 端子视频/音频输入

视频／音频输入

分量输入 YCb(Pb)Cr(Pr) 输入

分量信号支持格式

(YCbCr/YPbPr)

VGA 支持格式 640×480@60Hz 800×600@60Hz 1024×768@60Hz 1280×1024/60Hz

HDMI 支持格式

声音输出功率 5W×2 10W×2 10W×2

遥控距离最大遥控距离不小于8.0m

1080P 50Hz/60Hz 1080I 50Hz/60Hz 720P/60Hz 576P/50Hz 576I/50Hz 480P/60Hz 480I/60Hz

1080P 50Hz/60Hz、1080I 50Hz/60Hz、720P/60Hz、576P/50Hz、576I/50Hz、 480P/60Hz、480I/60Hz、640×480/60Hz、800×600/60Hz、1024×768/60Hz

视频输入 1Vp-p 75Ω

Y:1.0Vp-p 75Ω Cb(Pb)Cr(Pr) ： 0.7Vp-p 75Ω

3

3. 操作说明及调整

3.1 遥控器说明

4

3.2 控制面板

说明：下列示图只是方便你认识各个端子所在位置，并方便连接外部设备，由于产品的改进，可能与实际的标示不一致，请以实物为准。

5

3.3 后壳接口介绍

6

7

3.4 菜单介绍

一、图像设定菜单

1、按遥控器或控制面板上“菜单”键进入主菜单。

2、按遥控器的导航键或控制面板上的音量加减键选择“图像菜单”。

3、按遥控器的导航键或控制面板上的频道选择键选择您想设置的图像子菜单。

4、连续按“菜单”键退出系统菜单。

5、图像菜单包括以下选项：

亮度调整整个屏幕的明亮程度。一般与对比度配合使用，数值越大，图像越亮，反之则越暗。

对比度调节画面的黑白层次。

彩色调节画面彩色的鲜艳度（饱和度）。

色调调节颜色矩阵的偏转角度。在 NTSC制式下有效，在 PAL制式下不可调，显示为灰色。

清晰度

降噪

显示模式

图像模式

调节画面清晰度。数值越大，图像越清晰，但相应图像噪点会增多，请根据个人观看需求设置。该项功能使用全数字降噪技术处理，用于降低噪声对图像的影响。“自动”表示根据图像内容自动降噪；“弱”、“中”、“强”、“关”表示降噪程度等级。降噪越强，图像噪点越少，但相应图像层次感越差，有可能导致个别运动图像拖尾。 16：9（全屏）模式：水平延展4：3图像以填满16：9屏幕，这种尺寸适合于 DVD或宽广播。4：3：以原始尺寸显示4：3图像，在屏幕的左右两侧会出现黑带。人物模式：放大图像的上下部分，延展图像的上边和下边填满16：9屏幕。电影模式：垂直放大 16： 9宽幕以适合屏幕尺寸。使用此模式图像的顶部和底部可能会被部分切除。全景模式：放大图像的左右部分。延展图像的左边和右边以填满16：9屏幕。字幕模式：垂直延展16：9图像显示，完整显示底部字幕。使用此模式图像的顶部可能会被切除。注：电脑通道下只支持 “全屏模式和4：3”，分量及 HDMI通道下无“全景模式”。此功能可方便用户根据收视环境明暗程度，选择最符合观看要求的图像模式，其中“标准”、“亮丽”、“柔和”均为工厂预设模式，“自设”为用户根据个人喜好调整设定的图像参数。

色温本机可调整色温选项，其中有“标准”、“冷色”、“暖色”三种模式。

8

二、声音设定菜单

1、按遥控器或控制面板上“菜单”键进入主菜单。

2、按遥控器的导航键或控制面板上的音量加减键选择“声音菜单”。

3、按遥控器的导航键或控制面板上的频道选择键选择您想设置的声音子菜单。

4、连续按“菜单”键退出系统菜单。

5、声音菜单包括以下选项：

平衡

环绕声此功能打开可使声音具有虚拟环绕声效果。

低音提升此功能打开可增强重低音效果。

语音清晰度此功能打开可使影院模式下的声音更加清晰。

自动音量

均衡器根据自己的喜好，通过调节均衡器的各个频率点的幅度，达到自己理想的声音效果。

三、调台设定菜单

调整左/ 右扬声器的伴音平衡，左右声道会随着平衡值的变化而进行伴音大小的转换，建议设置为中间值。

由于电视节目制作时声音调制度不同，在更换电视频道或插播广告时可能出现音量突变，打开此功能可保持音量等级不变，而不会受电视节目的声音输入幅度影响过大。

9

1、按遥控器或控制面板上“菜单”键进入主菜单。

2、按遥控器的导航键或控制面板上的音量加减键选择“调台菜单”。

3、按遥控器的导航键或控制面板上的频道选择键选择您想设置的调台子菜单。

4、连续按“菜单”键退出系统菜单。

5、调台菜单包括以下选项：

频道号

跳台

彩色制式

声音制式

频段

手动搜台

自动搜台

显示当前频道号，可通过按遥控器的导航键或控制面板上的音量加减键进行当前节目频道号的变更。

当一些重复或不想看的频道，可使用跳台功能，在该节目下，将跳台功能设置为开，设置后，当您通过频道或减顺序选台时，将不再显示此台。但通过数字键输入相应的台号则可以出现此台，若要恢复该节目，重复上述操作将菜单跳台项设置为关即可。

设置当前频道的彩色制式，各个国家和地区采用的彩色制式可能不同，搜台前确定您所在的地区采用何种制式，我国内地的彩色制式一般为PAL，建议设置为自动。

设置当前频道的声音制式，各个国家和地区采用的声音制式可能不同，搜台前请确认您所在的地区采用何种制式，当电视机设置的声音制式也电视台发射的声音制式不一致时，将不能挺到正常的声音，此时需调节声音制式，我国内地的声音制式一般为D/K制式，深圳地区为I制式。

在手动搜台时，若已知节目频率所在的频段，可在手动搜台前讲频段设置为相应频段（VHFL、VHFH、UHF），再进行手动搜台以节省搜台时间。

从当前频道的频率开始，向频率增加或减少的方向搜一个台，取代当前频道。选中手动搜台后按 ◄ /► 进行搜台，搜索动作自动停止并自动存台，按菜单键退出手动搜台菜单。

此功能可实现对整个电视是新的自动搜索和存储，自动搜索完成后电视机将自动退出搜台菜单并保存，在搜台过程中科按菜单键退出搜台。

如果当前收看节目图像或伴音不正常，可能为电视和太的实际信号频率变化，导致其与电

频率微调

频道编辑

音量补偿

四、电脑设定菜单

视机存储的频率有一定偏差，此时，科通过频率微调得到较好的收看效果，也可以通过手动搜台重新进行节目锁存。

先选择源节目号和目标节目号，再进行节目交换和存储操作，其中，存台功能可以将源节目号的电视频道存往目标节目号，交换功能可以使源节目号和目标节目号交换电视频道。

由于各台录制节目时音量设置不同，可以导致换台时各台音量太小不同，此时可用此功能将各台音量大小调到一致，若个别台声音太大，则音量补偿向左调，反之向右调，默认音量补偿为0

10

1、按遥控器或控制面板上“菜单”键进入主菜单。

2、按遥控器的导航键或控制面板上的音量加减键选择“电脑菜单”。

3、按遥控器的导航键或控制面板上的频道选择键选择您想设置的电脑子菜单。

4、连续按“菜单”键退出系统菜单。

5、电脑菜单包括以下选项：

自动调整此功能可以自动调整电脑状态下的各项系统参数，使画面达到最佳的显示。

水平位置手动调节画面在水平方向的位置。

垂直位置手动调整画面在垂直方向的位置。

相位当画面模糊或抖动时，可以尝试使用此功能进行相位调整。

频率当画面水平幅度过于小或大时，可以尝试使用此功能进行频率调整。

五、设置设定菜单

1、按遥控器或控制面板上“菜单”键进入主菜单。

2、按遥控器的导航键或控制面板上的音量加减键选择“设置菜单”。

3、按遥控器的导航键或控制面板上的频道选择键选择您想设置的设置子菜单。

4、连续按“菜单”键退出系统菜单。

5、设置菜单包括以下选项：

语言简体中文和英语两种语言菜单可供选择。

开机通道开此功能可以设置电视机在开机后进入的信号源通道。设置为“记忆”，则开机时电视

睡眠时间此功能可设置定时时间。当设置的睡眠时间到时，电视机便自动进入待机状态。

为避免家中小孩误按电视机按键而影响观看，您可以设置“童锁”功能，童锁功能打开，

童锁

此时电视机上的按键不起任何作用，仅可通过遥控器进行电视机功能操作。

11

六、设置设定菜单

1、按遥控器或控制面板上“菜单”键进入主菜单。

2、按遥控器的导航键或控制面板上的音量加减键选择“高级菜单”。

3、按遥控器的导航键或控制面板上的频道选择键选择您想设置的高级子菜单。

4、连续按“菜单”键退出系统菜单。

5、高级菜单包括以下选项：

信号源此功能可选择信号源

此功能将演示六基色Ⅲ代技术。“优化 ” 表示在原来基础上以一种最优的画质改善效果为目的，采用六基色处理对图像最优化的处理的预先设置状态。“增强 ” 表示

六基色Ⅲ代

健康屏变

手动背光调节根据需要手动调节液晶电视背光亮度，实现对图像亮度的间接调整，降低能耗。

壁挂音效

菜单操作音此功能可选择菜单操作时是否有提示音。

在优化的基础上以突出画质改善效果为目的，采用六基色处理技术对图像进行强烈又艳丽的处理的预先设置状态。“彩色演示 ” 表示在原来的彩色基础上进行分屏演示，进一步体验、对比欣赏六基色 Ⅲ代技术“开”和“关”的效果。“关” 表示一种不采用六基色处理技术对图像进行处理的预先设置状态。

此功能打开主要目的是改善液晶电视观看的舒适度，改善显示画质和降低功耗。“光感屏变”表示根据环境光的亮度调节显示屏的背光亮度；场景屏变”表示根据图像内容的亮度调节显示屏的背光亮度；健康全屏变”表示综合前述两项内容显示屏的背光亮度；关”表示关闭健康屏变功能。

为了让您在使用不同安装方式时能获得完美的音效体验，请您在使用挂墙安装方式时设为“开”，底座安装方式时请设为“关”。

开机音乐此功能可选择开机时是否有音乐提示音。

关机音乐此功能可选择关机时是否有音乐提示音。

当您只想听音乐而不需要观看电视机图像时，可使用此功能，达到既满足您聆听美妙

单独听

音乐的需要，同时能达到节能环保的作用。进入单独听后，只响应声音相关和待机键功能，按其它键退出单独听功能。

12

4. 连接介绍

4.1 引脚介绍

D-SUB

引脚号功能描述引脚号功能描述

1. Red video 9. No Pin!

2. Green video 10. Sync ground

3. Blue video 11. RXD

4. TXD 12. Serial data for DDC

5. Ground 13. H-Sync

6. Red ground 14. V-Sync

7. Green ground 15. Serial clock for DDC

8. Blue ground

HDMI

引脚号功能描述引脚号功能描述

1. TMDS Data2+ 11. TMDS Clock Shield

2. TMDS Data2 shield 12. TMDS Clock-

3. TDMS Data2- 13. CEC

4. TMDS Data1+ 14. Reserved (N.C. on device)

5. TMDS Data1 shield 15. SCL

6. TMDS Data1- 16. SDA

7. TMDS Data0+ 17. DDC/CEC Ground

8. TMDS Data0 shield 18. +5V Power

9. TMDS Data0- 19. Hot Plug Detect

10. TMDS Clock+

13

4.2 工厂预设模式

分辨率行频频率(KHz) 刷新频率(Hz)

640×480

800×600

1024×768

1280×1024

59.9 31.5

60.3 37.9

60 48.3

60.02 63.981

14

有

5. 故障处理流程

无电（LED不亮）

检测插座是否有电或硬开关是否打开

检测电源板CN902的PIN11/12是否有5V电压输出

检测IR板及LED灯

更换IR板

有

无法启动

无

重插电源插座或开启硬开关

无

更换电源板

检测电源板CN902的PIN8/9是否有24V电压输出

更换按键板

有

检测按键板的POWER键是否失灵

是

检测IR板的红外接收器U01是否失灵

是

更换IR板

15

否

无

更换电源板

否

更换主板

无画

检测TV是否受控，能否用遥控器或按键板开关机

检测LVDS线是否良好

是

检测主板上CN405的PIN5/6/7/8

是否有5V供电

是

先更换主板

检测是否OK

否

更换主板

是

检测是否有背光

是

否

重插或更换LVDS线

检测电源板CN902的PIN8/9是否有24V电压输出

是

否

检测主板CN700是否有BL信号

是

否

更换主板

否

更换主板

更换Panel

更换电源板

16

画异

彩条、水波纹、画抖、画闪、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是否

排除干扰源

检测信号线

是否良好

是否

先更换主板

检测是否OK

检测信号源出信号是否正常

是否

更换信号线

重新设置

信号源

TV画面雪花点、重

影、细线、条纹干扰

检测TV信号线

是否接触不良

是否

重新连接

TV信号线

排除干扰源用场强仪检测信号强度

检测附近是否有高频干扰源

是否

是否在45-100db之间，

65db左右为最佳值

是

间歇性画异加温画异冷开机画异

检测软体版本是否需要更新

是否

升级软体

否

先更换主板

检测是否OK

否

取回站内加温检测

否

更换Panel

更换主板

太弱：加装信号放大器太强：减少信号放大器

或加装信号衰减器

17

无声或声音异常

检测信号源音频接口是否正确，或TV制式是否为DK制

是

检测TV是否被静音，调整音量大小，

或进入菜单进行复位看是否OK

否

检测主板到喇叭的连接线是否断路

是否

更换连接线检测喇叭阻抗是否变质

(喇叭阻抗值标在喇叭上)

是否

更换喇叭更换主板

否

重插音频接口或设置TV制式

升级软体

用别的TV测试是否能收到此台

是

检测此频道是否发生频偏，尤其是使用卫星信号

是

否

收不到台或收台不全

检测软体版本是否需要更新

是否

用场强仪检测信号强度是否在45- 100db之间，65db左右为最佳值

是

否

和客户说明当地TV信号未转播此台

否

太弱:加装信号放大器太强:减少信号放大器或加装信号衰减器

建议客户重新

设置信号源

更换主板

18

异响

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是否

更换喇叭主板功放异常

更换主板

电源板，PANEL异响

更换电源板/PANEL

遥控失灵

检查遥控器电池是否未安置好或没电

是否

重新安置或更换电池用别的遥控器测试是否可用

是否

更换遥控器检测IR板是否异常

是

更换IR板

否

更换主板

19

更换按键

OSD不稳定或无法正常工作

按键板连接正常吗？

是

按键正常吗？

是

按键板有无故障？

是

检查主板

否

接好按键板

更换按键板

20

6. 拆卸流程图

26K01HR

步骤图片描述

准备

把 LCD-TV 平放在干净的柔软的平面上

拆底座

拆后盖

旋开红色标志的螺丝，去底座。

旋开红色标志的螺丝，去后盖。

21

拆主板，电源板，按键板和壁挂龙骨

旋开红色标志的螺丝和连接线，拆主板，电源板，升压板，按键板和壁挂龙骨。

从 Panel 上把前框拆下来

旋开红色标记的螺丝把前框拆下来

前框

22

32K01HR

步骤图片描述

准备

把 LCD-TV 平放在干净的柔软的平面上

拆后盖

拆底座

旋开红色标志的螺丝，去后盖。

旋开红色标志的螺丝，去底座。

23

拆主板，电源板，按键板和壁挂龙骨

旋开红色标志的螺丝和连接线，拆主板，电源板，升压板，按键板和壁挂龙骨。

拆支架铁片

前框

旋开红色标记的螺丝拆支架铁片

前框

24

40K01HR

步骤图片描述

准备

把 LCD-TV 平放在干净的柔软的平面上

拆底座

拆后盖

旋开红色标志的螺丝，去底座。

旋开红色标志的螺丝，去后盖。

25

拆主板，电源板，按键板，喇叭

拆壁挂龙骨

旋开红色标志的螺丝和连接线，拆主板，电源板，升压板，按键板。

旋开红色标记的螺丝拆壁挂龙骨

前框

26

7. 工厂模式调整

1. 进入工厂模式方式为：

将音量减到0，按住面板“音量-”键同时按遥控器“屏显”键，可以进入工厂模式。

2. ADC调整方法：

首先进入工厂模式，选择“Current Source”项，设置时间和图像，点击“Auto Color”。

时间和图像设置：YPbPr:Timing 323(HDTV 1080i) pattern 185(COLORBAR)

VGA: Timing 137(1024*768/60HZ) pattern 146(8 GRAY)

27

8. 电气方框图

28

29

9. 电路图

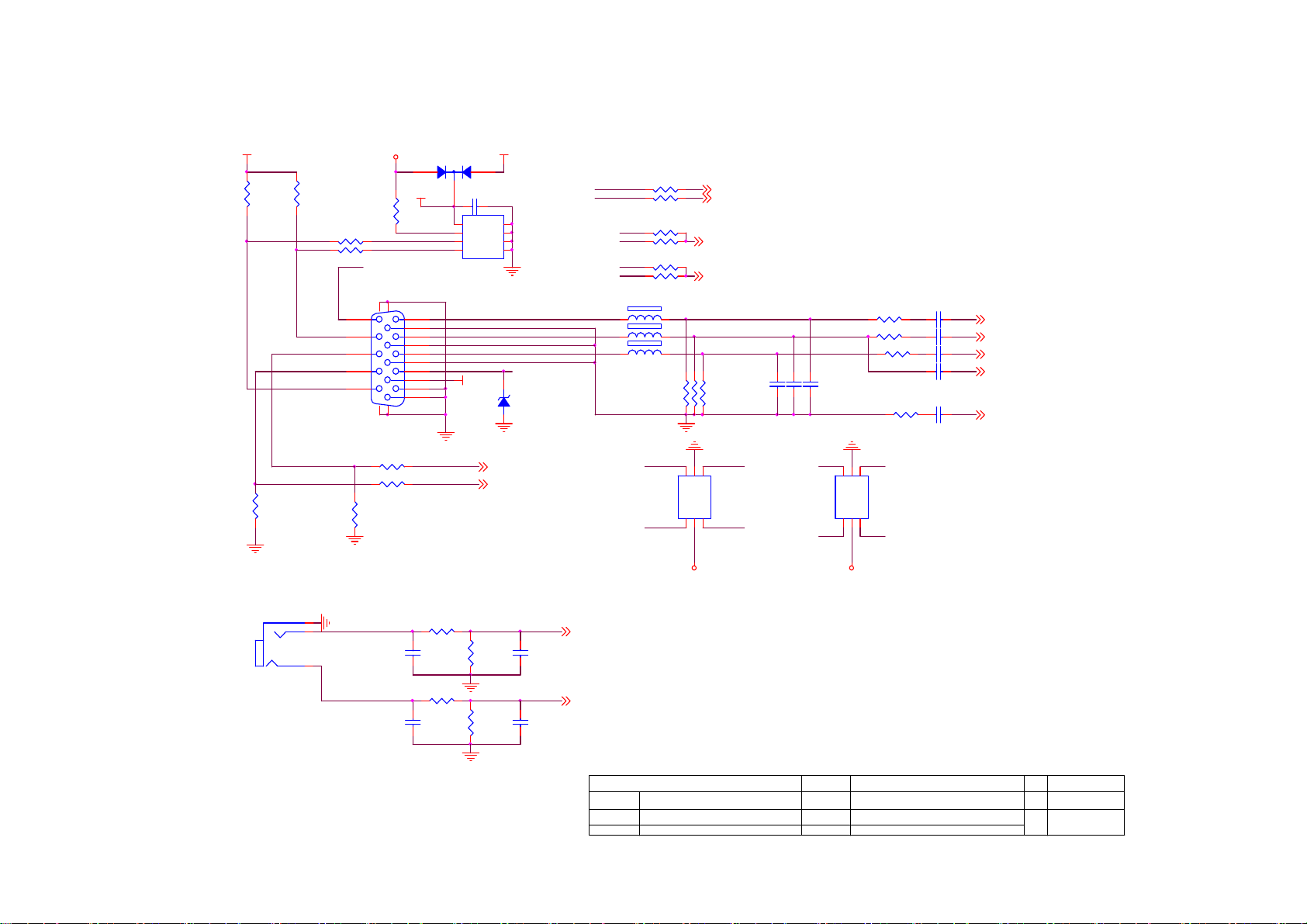

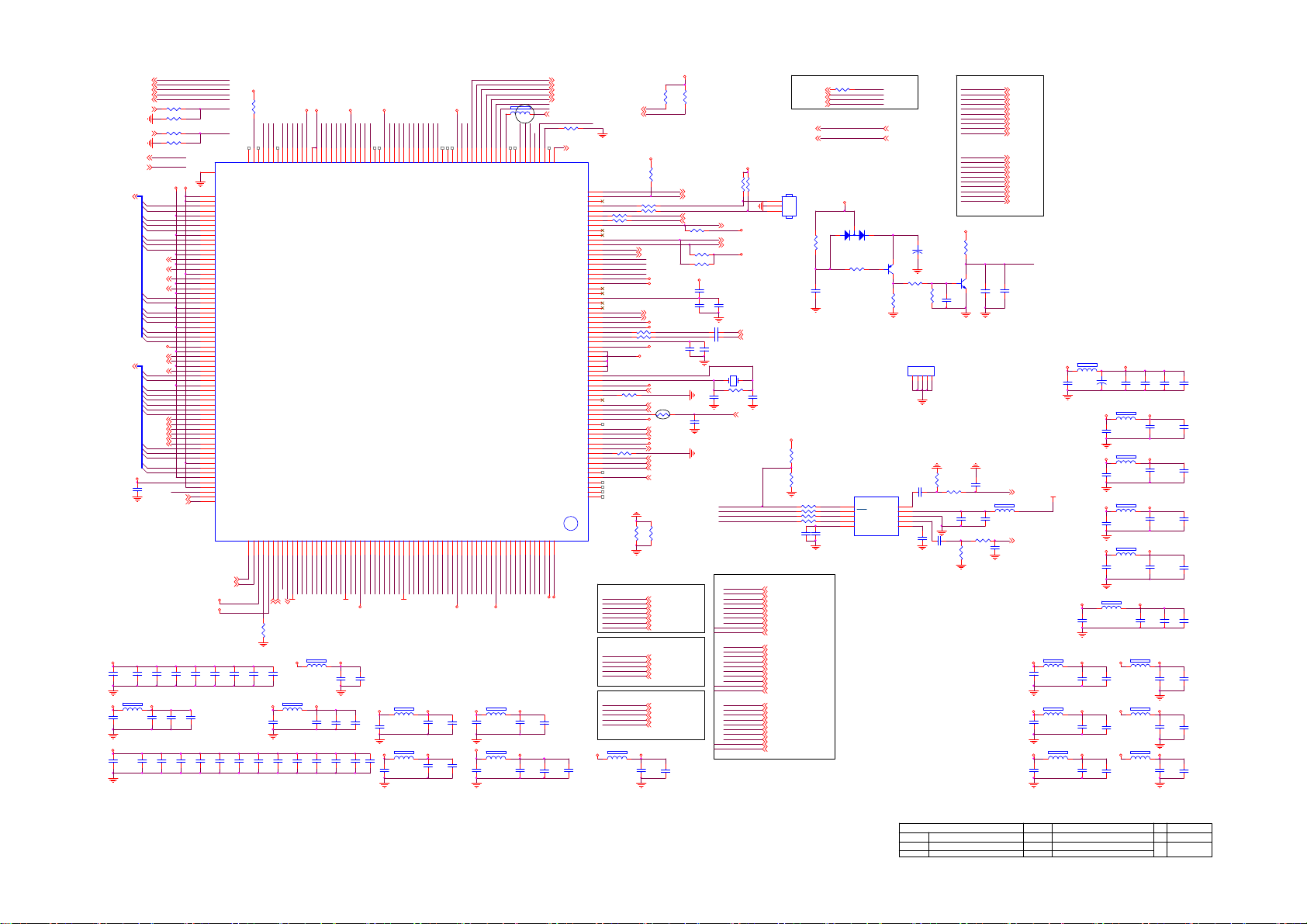

9.1 主板

715G4089M0F000004L

VGA_5V_S

R1104 10K1/16W

+5V_STBY

R1103 10K1/16W

R1000

NC 4. 7K 1/16W

R1112 NC 100OH M1/16W

R1109 N C 100OH M1/16W

RX0

CN1101

11

DDCSDA

HS

VS

DDCSCL

12

13

14

15

VGA_5V_S

1716

1 6 2 7 3 8 4 9 5 10

CONN

18 19

2

BAT54C

3

C1000 NC 220N 25V

8

VCC

7

WP

6

SCL

VSSSDA

TX0

VGA_5V

U100

1

A0

2

NC M24C 02-WMN6TP

A1

3

A2

45

ZD1102

BZX84-C5V6

1 3

DDCSDA DDCSCL

TX0 RX0

RX0 TX0

FB1102 30R/700mA

R

G R1114

B

1 2

FB1103 30R/700mA

1 2

FB1104 30R/700mA

1 2

D1708

1

R1113 R1110 100OHM1/16W 100OHM1/16W

VGA_SDA VGA_SCL

U0RX 13

U0TX 13

R1116 R1117 R1118

75R 1/16W 1% 75R 1/16W 1% 75R 1/16W 1%

R5423 100OHM1/16W R5421 NC 100OHM1/16W R5424 100OHM1/16W R5422 NC 100OHM1/16W

C1112 C1113 C1114

5PF 50V 5PF 50V 5PF 50V

R1111 68OHM 1/16W

68OHM 1/16W R1115 68OHM 1/16W

R1119

100OHM1/16W

C1108

10N 50V

C1109

10N 50V

C1110

10N 50V

C1111

4700P 50V

C1115 10N 50V

PC_R _IN 13

PC_G_I N 13

PC_B_I N 1 3

PC_SOG 1 3

PC_GN D 13

PC_AUDIO

R1122

2.2K 1/ 16W

PHONE JACK

CN1102

R1120

100OHM1/16W R1121 100OHM1/16W

R1123

2.2K 1/16W

1 2

3

R1124 12K 1/16W

C1116

330pF 50V

R1126 12K 1/16W

C1118

330pF 50V

PC_HS YNC 12,1 3

PC_VSY NC 12,13

R1125 7K5 1/16W 5%

R1127

7K5 1/16W 5%

C1117

330pF 50V

C1119

330pF 50V

PC_AUL_IN 18

PC_AUR_I N 18

絬隔瓜絪腹

Key Component

HS

DDCSDA

T P V ( Top Victory Electronics Co . , Ltd. )

<

絬隔瓜絪腹

04: D-SUB INPUT

Date

1234

I/O1

GND

VDD

I/O4

5

6

+5V_STBY

>

VS

U101 AZC199-04S

I/O2I/O3

DDCSCL

U103

AZC199-04S

OEM MO D EL Size

TPV MO DE L

PCB NAME

Sheet

R

1234

B

6

+5V_STBY

RX0

I/O1

I/O2I/O3

GND

VDD

I/O4

G

5

A4

A

Rev

111Saturday , March 13, 2010

of

称爹

30

NC JACK

CN1201

JACK

A

B

C

D

E

CN1202

1

A

2 3

B

4 5

C

6 7

D

8 9 10

E

11

ZD103 NC MLVG0402 ZD102 NC MLVG0402 ZD101 NC MLVG0402

1

2 3

4 5

6 7

8 9 10 11

ZD106 MLVG0402 ZD108 MLVG0402 ZD107 MLVG0402

1 2

FB1407

1 2

FB1408

1 2

FB1409

NC 120R /500mA

1 2

FB1410

1 2

FB1411

1 2

FB1412

120R/500m A

1 2

NC 120R /500mA

R1205N C 75R 1/16W 1% R1206N C 75R 1/16W 1% R1207N C 75R 1/16W 1%

120R/500m A

R1218 75R 1/ 16W 1% R1220 75R 1/ 16W 1% R1219 75R 1/ 16W 1%

15P 50V

C1208

NC 15P 50V

C1205

15P 50V

C1215

NC 15P 50V

C1206

15P 50V

C1216

NC 15P 50V

C1207

C1210

NC 330pF 50V

C1212

NC 330pF 50V

R1204 68OHM 1/16W

R1221 68OHM 1/16W

R1222 68OHM 1/16W

100OHM1/16W

C1220

330pF 50V

C1222

330pF 50V

R1201 NC 68OHM 1/16W

R1202 NC 68OHM 1/16W

R1203 NC 68OH M 1/16W

NC 100OHM1/16W

R1209 NC 10K1/ 16W

R1211 NC 10K1/ 16W

C1209 10N 50V

C1217 10N 50V

C1218 10N 50V

C1235 4700P 50V

R1233 0R05 OHM

R1217

C1219 10N 50V

R1213

6.2K 1/16W R1215

20K 1/16W

R1214

6.2K 1/16W R1216

20K 1/16W

C1201 NC 10N 50V

C1202 NC 10N 50V

C1203 NC 10N 50V

R1231

C1232 NC 4700P 50V

NC 0R 05 OHM

R1208

C1204 NC 10N 50V

R1210 NC 12K 1/ 16W

R1212 NC 12K 1/ 16W

COMP1_Y_I N 13

COMP1_PB_IN 13

COMP1_PR_IN 13

COMP1_SOG 6,13

COMP1_GND 13

C1211

NC 330pF 50V

C1213

NC 330pF 50V

COMP2_Y_I N 13

COMP2_PB_IN 13

COMP2_PR_IN 13

COMP2_SOG 6,13

COMP2_GND 13

C1221

330pF 50V

C1214

330pF 50V

COMP1_AUL_IN 18

COMP1_AUR_I N 18

C1508

AL313

1uF 25V

C1509

AR313

1uF 25V

COMP2_AUL_IN 18

COMP2_AUR_IN 18

R1508

0R05 OHM

C7164

2N2 50V

18K 1/10W

R1509

C7165

2N2 50V

CVBS1_IN _AUL_IN18

CVBS1_IN_AUR_IN18

R7513

0R05 1/10W

15K 1/10W

R7515

0R05 1/10W

15K 1/10W

CVBS1_IN13

R658

R663

GND

C1233 47N 16V

C1229

330pF 50V

C1237

330pF 50V

+5V_ON

R670

1K 1/10W

R669

1

Q609

1

PMBS3904

R659

2 3

1.2K 1/10W

R657

1K 1/10W

GND

+5V_ON

R668

R667

1K 1/10W

1

Q611

1

PMBS3904

R664

2 3

1.2K 1/10W

R662

1K 1/10W

GND

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

05: REAR I/O

Date

23

PMBS3906

R660

1K 1/10W

23

Q610

PMBS3906

R665

1K 1/10W

47pF 50V

R1240 20K 1/16W

R1241 20K 1/16W

Q608

100P 50V

R1232 100OHM1/16W

C1234

R1239

6.2K 1/16W

R1238

6.2K 1/16W

C676

100NF 25V

GND

C675

100P 50V

C678

100NF 25V

GND

C677

R1223

75R 1/16W 1%

ZD104

1 2

MLVG0402

C1231

330pF 50V

C1236

330pF 50V

C1503

47UF 16V

CVBS_OUT13,16

1UF K 10V

+

R1517 1UF K 10V

2010-03-31 PO PO

R1518

OEM MOD EL Size

TPV MODEL

PCB NAME

Sheet

2

1

4

3

6

5

R1502 10K1/16W

R1503

10OHM1/16W

R1505 33K 1/16W 5%

C1513

100P 50V

声改善

C1519

100P 50V

A3

211Wednesday , March 31, 2010

of

CN1203

A

B

C

JACK

+5V_ON

Q1502 PMBS3904

+

C1504 330uF 10V

R1506

150 OHM 1/8W

C1502

100N 16V

75R 1/16W 1%

R1504

Rev

称爹

CN1501

2

A

1

4

B

3

6

C

5

JACK

B

31

C1408 47N 16V

JACK CN1401

R1407

R1408

75R 1/16W 1%

7 9 8 4 6 5 1 3

ZD105

MLVG0402

1 2

R1409

6.2K 1/16W

C1415

330pF 50V

100OHM1/16W

C1403

47pF 50V

R1410 20K 1/16W

C1414

330pF 50V

SIDE_C VBS_IN 13

SIDE_C VBS_AUL_IN 18

CN1402

10

2

9

657

5678

123 4

CONN

123

0R05 OHM

8

4

0R05 OHM 0R05 OHM

11

12

R14180R05 OHM

R1405

USB1_5V

USB0_5V

R1404 R1417

USB0_DN 13 USB0_DP 13

USB1_DP 13

USB1_DN 13

C1407

+

100N 16V

FB1403

220R/2000m A

C1410

100uF 16V

R1414

6.2K 1/16W

C1416

330pF 50V

C1405

100N 16V

12

R1416 20K 1/16W

220R/2000m A

+

C1406

100uF 16V

USB_OC1 13

C1411

NC

FB1402

t

TH1402

C1417

330pF 50V

12

C1409

NC

SIDE_C VBS_AUR_IN 18

USB_OC0 13

t

12

+5V_ON

TH1401

HDMI3_5V

12

+5V_ON

HDMI3_HPD10,11

R1419 NC 1K 1/10W

HDMI3_DDC_SDA10,11,13 HDMI3_DDC_SCL10,11,13

HDMI3_CK-11,13

HDMI3_C K+11,13

HDMI3_D0-11,13

HDMI3_D 0+11,13

HDMI3_D1-11,13

HDMI3_D 1+11,13

HDMI3_D2-11,13

HDMI3_D 2+11,13

R1411 NC 470KOHM 5% 1/16W

R1413 NC 1KOHM +-1% 1/16W

R1412 NC 10OHM1/16W R1415 NC 10OHM1/16W

CEC10,11

CN1403

19 18 17 16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

HP DET +5V GND DDC DATA DDC CLK NC CE Remote CKCK Shield CK+ D0D0 Shield D0+ D1D1 Shield D1+ D2D2 Shield D2+

NC HDMI

SHELL2

SHELL4

SHELL3

SHELL1

21

23

22

20

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

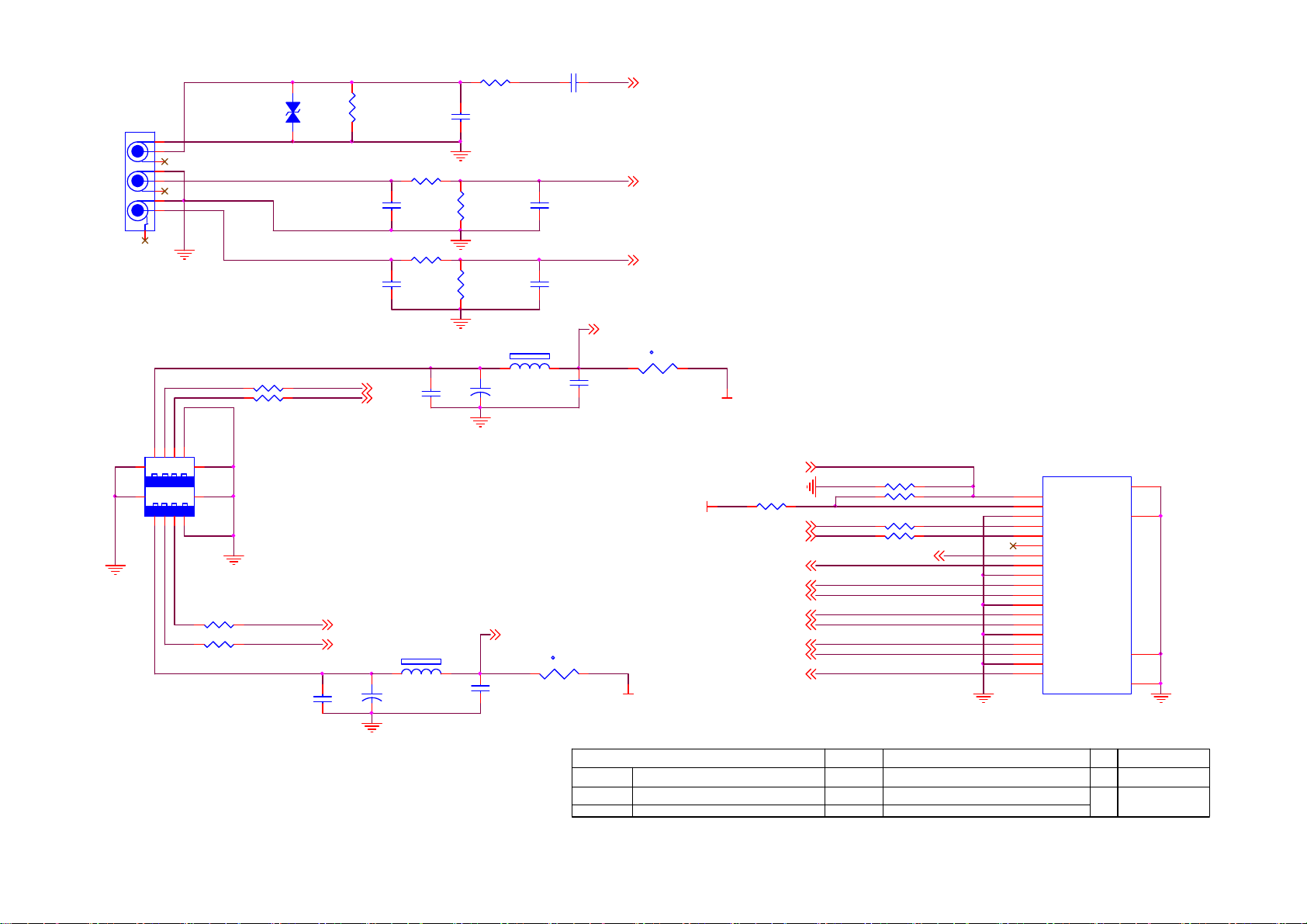

07: SIDE INPUT

Date

32

OEM MOD EL Size

TPV MO D EL

PCB NAME

Sheet

of

311Tuesday , F ebruary 09, 2010

Rev

称爹

A4

B

M40CTP-2PN-E

12

TH1

13

TH2

14

TH3

15

TH4

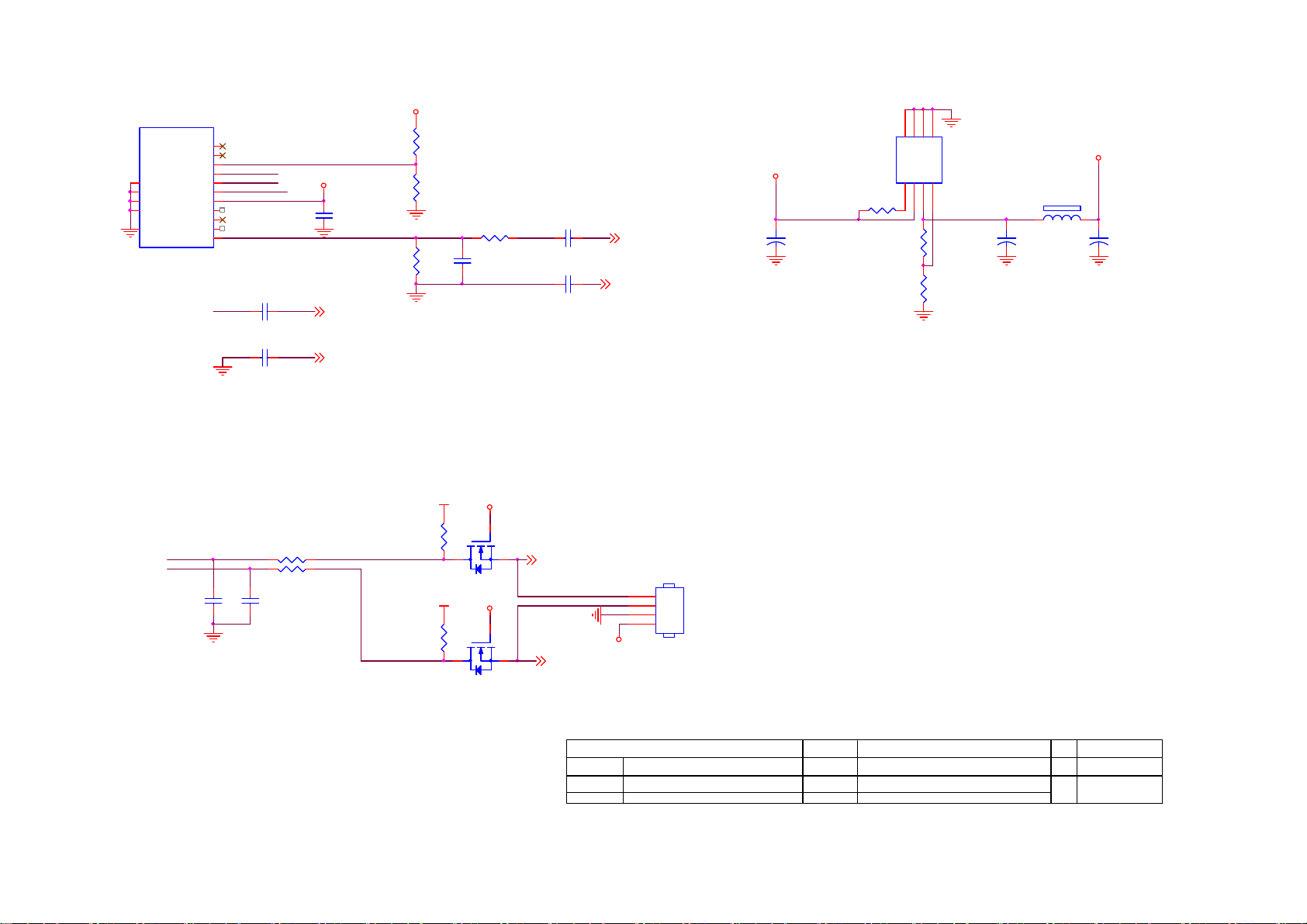

TU1 00

SDA

IF_SOUND

VCC AGC

AUDI O OUT

CVBS

TU_ SCL

TU_ SDA

C1621

33P 50V

NC NC

SCL

NC

AS

TU_ SI F

1 2

TU_ AS

3 4

TU_ SD A

5

TU_ SC L TU_ SI F

6 7

+5VT

8 9 10

TU_ CVB S

11

C1615

100N 16V

C1620 100N 16V

C1622

33P 50V

TU_ AS

+5VT

C1602

TU_ CVB S

SIF_P 13

SIF_N 13

R1624 10OHM1/16W R1625 10OHM1/16W

100N 16V

75R 1/16W 1%

+5VT

R1610

R1623

4.7K 1/16W

R1626

4.7K 1/16W

R1601 NC

R1606 0R05 OH M

+5V_ON

0 OHM 1/16W

47pF 50V

+3V3

Q1601

2N7002

+3V3

Q1605

2N7002

C1610 47nF 50V

R1609 100OHM1/16W

C1627

1uF 25V

MT_SCL 12,13,16

TV_C VB S 1 3

Tuner_CVBS_GND 13

+3V3

MT_SDA 12,13,16

4 3 2 1

CN7103

CONN

+5V_ON

+

C219

330uF 10V

5V for Tuner

U159

G965-25ADJPIU F

2.2 OHM 1/10W

R739

38.3KOHM +-1% 1/8W

123

R172

GND

VEN

678

GND

VINVOADJ GND

4 5

12K1/10W

R173

1 2

+

C218

47uF/16V

FB151

220R/2000mA

C201

100uF 16V

+5VT

+

T P V ( Top Victory Electronics Co . , Ltd. )

<

絬隔瓜絪腹

Key Component

Date

>

09: TUN ER

33

OEM MO D EL Size

TPV MO DE L

PCB NAME

<Title> A4

<Doc > B

715T3285

Sheet

411Tuesday, February 09, 2010

of

Rev

称爹

CN1701

HDMI

24

TH5

23

TH4

22

TH3

21

TH2 TH1

DDC DATA

DDC CLK

CE Remote

CK Shield

D0 Shield

D1 Shield

D2 Shield

20

HP DET

+5V

GND

NC

CK-

CK+

D0-

D0+

D1-

D1+

D2-

D2+

19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

R1701 470KOHM 5% 1/16W

R1703 1K 1/16W

R1707 10OHM1/16W R1708 10OHM1/16W

HDMI1_HPD 11

R1706 1K 1/10W

HDMI1_D DC_SD A 11,13 HDMI1_DDC_SCL11,13

HDMI1_C K- 11,13

HDMI1_C K+ 11,13 HDMI1_D 0- 11, 13

HDMI1_D 0+ 11,13 HDMI1_D 1- 11, 13

HDMI1_D 1+ 11,13 HDMI1_D 2- 11, 13

HDMI1_D 2+ 11,13

HDMI1_5V

HDMI1_DDC_SCL11,13 HDMI1_DDC_SDA11,13

HDMI1_5V

R1705

R1704 47K 1/16W 47K 1/16W

HDMI2_5V

BAT54C

2

BAT54C

2

D1705

D1706

3

+5V_STBY

1

3

+5V_STBY

R1001

NC 4. 7K 1/16W

+5V_STBY

1

C1001 NC 220N 25V

8

VCC

7

WP

6

SCL

VSSSDA

1

A0

2

A1

NC M24C02-WMN6TP

3

A2

45

U102

24 23 22 21 20

CEC

TH5 TH4 TH3 TH2 TH1

Q1501

HP DET

DDC DATA

DDC CLK

CE Remote

CK Shield

D0 Shield

D1 Shield

D2 Shield

+5V_STBY

NC 2N 7002

CN1702

HDMI

+5V

GND

NC

CK-

CK+

D0-

D0+

D1-

D1+

D2-

D2+

470KOHM 5% 1/16W

19 18 17 16 15

R1724 10OHM1/16W

14

R1723 10OHM1/16W

13 12 11 10 9 8 7 6 5 4 3 2 1

HDMI3_HPD7,11

R1106

27K 1/10W

MST_C EC 1 1

HDMI1_HPD11

+3V3

R1725

R1722 1K 1/16W

HDMI2_H PD11

HDMI2_HPD 11

R1726 1K 1/10W

HDMI2_D DC_SD A 11,13 HDMI2_D DC_SC L 11,13

HDMI2_C K- 11,13

HDMI2_C K+ 11,13 HDMI2_D 0-11,13

HDMI2_D 0+ 11,13 HDMI2_D 1- 11, 13

HDMI2_D 1+ 11,13 HDMI2_D 2- 11, 13

HDMI2_D 2+ 11,13

R1715 10OHM1/16W

R1719 NC 10OHM1/16W

HDMI2_5V

Q1705

PMBS3904

Q1706

NC PMBS3904

R1710 10OHM1/16W

Q1702

PMBS3904

R1716

10OHM1/16W

R1721

NC 10OHM1/16W

R1711

10OHM1/16W

47K 1/16W

R1713 R1712

47K 1/16W

HDMI2_DDC_SCL11,13 HDMI2_DDC_SDA11,13

CEC

HDMI2_H PD_CTL 13

HDMI3_H PD_CTL 13

HDMI1_H PD_CTL 13

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

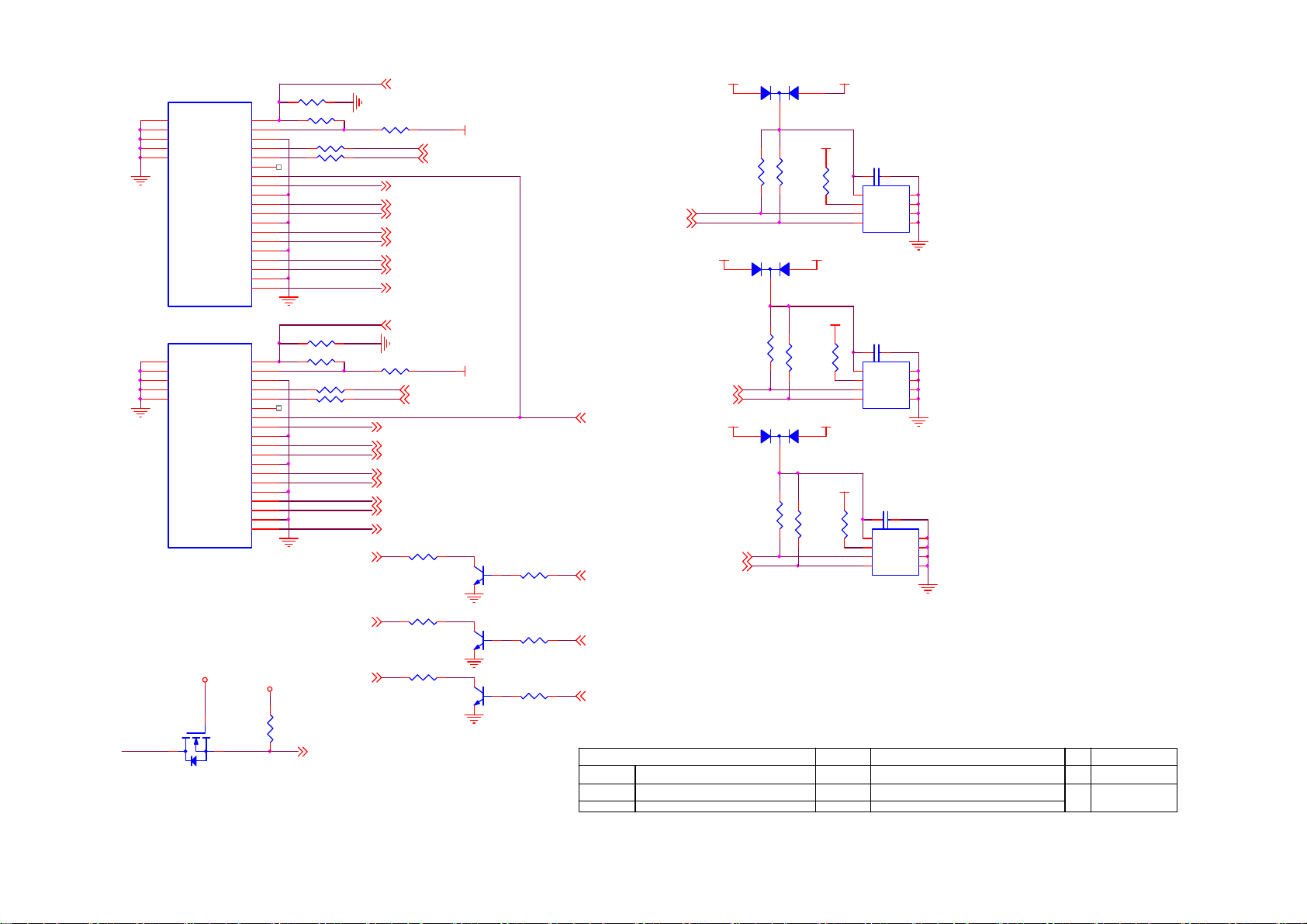

5: HDMI INTPUT

Date

HDMI3_DDC_SCL11,13 HDMI3_DDC_SDA11,13

HDMI3_5V

2

NC BAT54C

R1717

R1714

NC 47K 1/ 16W NC 47K 1/ 16W

NC 4. 7K 1/16W

D1707

3

+5V_STBY

R1002

+5V_STBY

1

+5V_STBY

R1003

NC 4. 7K 1/16W

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

C1002 NC 220N 25V

8

VCC

7

WP

6

SCL

VSSSDA

8

VCC

7

WP

6

SCL

511Monday, June 28, 2010

1

A0 A1 A2

C1003 N C 220N 25V

VSSSDA

of

U104

2

NC M24C02-WMN6TP

3 45

1

A0

2

A1

U105

3

A2

NC M24C02-WMN6TP

45

Rev

称爹

A4

B

34

INVERTER_ON _OFF21

C4239

4.7UF 10V

C4278

4.7UF 10V

RDQ[15.. 0]14

AV12

DDRV

PANEL_PWR_CTL21

HDMI1_HPD_C TL10 HDMI2_HPD_C TL10 HDMI3_HPD_C TL10

RA[12..0 ]14

4.7UF 10V

ODSEL15

USB_OC07

USB_OC17

EARP_DET7

AV12_MEMPLL

MEM_VRE F

C4223

100N 16V

C4240

100N 16V

FB4212

1 2

120R/3000mA

C4254

C4279

100N 16V

RCLK0#14 RCLK014

C4241

100N 16V

AV12_PLL

C4280

100N 16V

RDQ0 RDQ1

RDQ2 RDQ3 RDQ4

RDQ5 RDQ6 RDQ7

RDQS014

RDQM014

RDQM114

RDQS114

RDQ8 RDQ9

RDQ10 RDQ11 RDQ12

RDQ13 RDQ14 RDQ15

RCKE14

RA11

RA9 RA8 RA7 RA6 RA5 RA4

RWE#14 RCAS#14 RRAS#14 RCS#14 RBA014 RBA114

RA0 RA1

RA2 RA3

C4255

4.7UF 10V

GPIO_8

GPIO_10

DDRV

VGA_SDA VGA_SCL

C4242

100N 16V

C4281

100N 16V

R4226 51K 1/16W 5% R4222 100K 1/16W

R4230 51K 1/16W 5% R4227 100K 1/16W

DV10

DV33

C4243

100N 16V

C4256

100N 16V

RA12

RA10

C4259

3N3 50V

C4282

100N 16V

GPIO_0 GPIO_1 GPIO_2 GPIO_3

GPIO_4

GPIO_6

GPIO_7

257

129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192

C4244

100N 16V

C4283

100N 16V

USB0_DN7 USB0_DP7

U4201

TH1

DVDD10_2 DVDD10_2 RDQ0 RDQ1 VCC2IO_2 RDQ2 RDQ3 RDQ4 VCC2IO_2 RDQ5 RDQ6 RDQ7 VCC2IO_3 RDQS0 VCC2IO_2 RDQM0 DVDD10_2 RDQM1 VCC2IO_2 RDQS1 VCC2IO_2 RDQ8 RDQ9 VCC2IO_2 RDQ10 RDQ11 RDQ12 VCC2IO_2 RDQ13 RDQ14 RDQ15 AVDD12_MEMPLL_1 VCC2IO_1 RCLK0# RCLK0 VCC2IO_2 RCKE RA12 RA11 VCC2IO_2 RA9 RA8 RA7 RA6 RA5 RA4 RWE# RCAS# RRAS# RCS# RBA0 RBA1 RA10 RA0 RA1 DVDD10 RA2 RA3 VCC2IO_1 RVREF0 DVDD10_2 VDD33_2 VGA_SDA VGA_SCL

AV33_USB

AV12_USB

R4221

5K1 1/10W 1%

C4246

C4247

100N 16V

C4284

C4285

100N 16V

+3V3

GPIO_10

127

128

GPIO10

GPIO11

USB_DP0

USB_DM0

194

193

R4202 NC 10K1/16W

GPIO_6

GPIO_8

GPIO_7

123

124

125

126

GPIO7

GPIO8

GPIO9

AVDD12_USB

USB_VRT

AVDD33_USB

198

197

196

195

AV33_USB

USBVRT

7

C4248

100N 16V

AV12

C4261

10uF 6.3V

C4286

100N 16V

GPIO_4

GPIO_3

120

121

122

GPIO3

GPIO4

GPIO5

GPIO6

HDMI_CEC

DVDD10

USB_DP1

USB_DM1

201

200

199

DV10

USB1_DP

USB1_DN

MST_CEC

FB4213

1 2

120R/3000mA

C4287

100N 16V

GPIO_0

GPIO_1

GPIO_2

117

118

119

GPIO1

GPIO2

HDMI_SDA2

PWR5V_2

204

203

202

HDMI3_DDC_SDA

HDMI3_D DC_SCL

HDMI3_5V

AV12DV10

1 2

DV33

DV10

AV33_LVDS

DV33

O2P

O1P

O0P

O1N

O2N

DV10

O0N

OCKN

AV33_LVDS

106

107

108

109

110

111

112

113

114

115

116

O2P

O1P

O0P

O2N

O1N

O0N

GPIO0

VDD33_2

DVDD10_3

AVDD33_LVDSA

MT8222AHMU/B

HDMI_SDA1

PWR5V_1

RX2_2

RX2_1

RX2_2B

RX2_1B

RX2_0

RX2_C

RX2_0B

RX2_CB

HDMI_SCL2

205

HDMI3_C K-

FB4201

120R/3000mA

C4293

100N 16V

208

206

207

HDMI3_D 0-

HDMI3_D 0+

HDMI3_C K+

AV12_LVDS

C4267

10uF 6.3V

C4294

100N 16V

210

209

HDMI3_D 1-

HDMI3_D 1+

215

214

213

212

211

HDMI3_D 2-

HDMI2_DDC_SDA

HDMI3_D 2+

HDMI2_D DC_SCL

HDMI2_5V

AV12_LVDSPLL

C4238

10uF 6.3V

C4268

100N 16V

C4295

100N 16V

AV33_HDMI

C4269

100N 16V

C4306

OCKP

O3N

104

105

OCKP

OCKN

AVDD33_HDM I

HDMI_SCL1

217

216

HDMI2_C K-

C4245

100N 16V

4.7UF 10V

O3N

RX1_CB

O3P

103

O3P

RX1_C

218

HDMI2_C K+

AV12_LVDS

101

102

O4N

RX1_0B

220

219

HDMI2_D 0-

HDMI2_D 0+

AV12

C4270

10uF 6.3V

AV12

E0N

100

E0N

O4P

AVDD12_LVDS

RX1_1

RX1_1B

RX1_0

222

221

HDMI2_D 1+

HDMI2_D 1-

1 2

E1N

E2N

E0P

E1P

E0P

E1N

PWR5V_0

RX1_2

RX1_2B

226

225

224

223

HDMI2_D 2-

HDMI1_DDC_SDA

HDMI2_D 2+

HDMI1_5V

FB4214

120R/3000mA

FB4219

120R/3000mA

C4288

4.7UF 10V

E2P

E2N

HDMI_SCL0

HDMI_SDA0

227

HDMI1_D DC_SCL

ECKN

ECKP

AV33_LVDS

ECKN

AVDD33_LVDSB

RX0_C

RX0_CB

229

230

228

HDMI1_D 0-

HDMI1_C K-

HDMI1_C K+

AV12_USB

C4262

10uF 6.3V

AV12_MEMPLL

C4296

NC/10uF 6. 3V

AV12_LVDSPLL

E3NHDMI1_D 0+

E3P

E3N

ECKP

RX0_1B

RX0_0

RX0_0B

233

232

231

HDMI1_D 1-

HDMI1_D 1+

TP

E4P

E4N

AVDD12_VPLL

AVDD12_HDM I_3

RX0_2

RX0_1

RX0_2B

236

235

234

HDMI1_D 2+

HDMI1_D 2-

AV12_HDMI

C4263

100N 16V

C4297

NC/100N 16V

LED2_ON 12,17

LED1_STBY

17

STANDBY 12,21

FLASH_WR# 12

5V_PWR_SW 12,21

U0TX U0RX

FB7119

1 2

RC_IR_3V3 12,17

30OHM

U0TX

U0RX

UP34

UP30

UP31

UP33

DV10

DV33

UP35

IR_

UP30

UP31

UP33

UP34

UP35

TXD0

RXD0

INT0_

VDD33_1

DVDD10_4

COM1

Y1P

SOY1

AVDD33_VGARPCOMGPSOGBPHSYNC

VSYNC

247

246

245

244

243

242

241

240

239

238

237

VGAVSYNC#

BLUP

VGAHSYNC#

AV12

REDP

VGAGND

VGASOG

GRNP

AV33_VGA

FB4215

1 2

120R/3000mA

C4264

10uF 6.3V

FB4220

1 2

120R/3000mA

C4289

4.7UF 10V

YPBPR2_N

SOY2

Y2P

SPI_SI

SPI_SCK

SPI_SI

SPI_CS1

SPI_SCK

SOY0

PR1P

PB1P

250

249

248

SOY1

PR2P

PB2P

AV12D_RGB

AV12_HDMI

C4265

4.7UF 10V

AV12A_RGB

C4290

10uF 6.3V

ICE

SPI_SO

SPI_CS#

6566676869707172737475767778798081828384858687888990919293949596979899

ICE

PWM3

PRST#

SPI_SO

SPI_CS0

I2S_AOSDATA0

AVDD33_ADAC

AVDD33_REF P_AADC

AVDD33_AADC

AVDD12_SYS PLL AVDD12_ADC PLL

AVDD12_PSPLL AVDD12_DMPLL

AVDD33_CVBS CVBS_BYPASS1 CVBS_BYPASS0

AVDD12_DIG _RGB

PR0P

PB0P

COM0

Y0P

256

255

254

253

252

251

YPBPR1_N

PR0P

AV12D_RGB

AV12A_RGB

PB0P

Y1P

AV12A_RGB

C4266

100N 16V

C4291

100N 16V

RST_MT8222

EEPROM_WP 12

PWM2

SPDIF_OU T

HW_SCL HW_SDA

GPIO25 GPIO24 GPIO23 GPIO22 GPIO21 GPIO20

I2S_ADIN

I2S_AOBCLK I2S_AOLRCK I2S_AOMCLK

VDD33_1

DVDD10_3

AVICM2

AIN_R

AVDD12_APLL

XTAL O

AVDD33_XTAL

ADIN5 ADIN4 ADIN3 ADIN2 ADIN1 ADIN0

AVDD33_DIG

MPX2_N MPX2_P

AVDD33_SIF

CVBS0P CVBS0N CVBS1P CVBS2P

CVBS3P CVBS_SY0 CVBS_SC0 CVBS_SY1 CVBS_SC1

AVDD12_RGB

MT8222AHMU/B

C4292

3N3 50V

R4207 1K1/16W

PWM1 PWM0

TXD1

RXD1

AR1 AL1

AR2 AL2 AR3 AL3

AIN_L

VMID

XTAL I

MPX1

64 63 62 61 60

R4210 10OHM1/16W

59

R4211 10OHM1/16W

58 57

GPIO_25

56 55

GPIO_22

54 53

GPIO_21

GPIO_20

52 51 50

AOSDATA0

AOBCK

49

AOLRCK

48

AOMCLK

47

DV33

46 45

DV10

44 43

AVICM

42 41 40 39

AR3

AL3

38 37

AV33_ADCREF

36

MT_AUD_R

35

MT_AUD_L

34

AUD_VMID

33 32

AV33_ADC

31 30

AV12_PLL

29 28 27

XTAL I

26

XTAL O

25

AV33_XTL

24

MTK_DC _ON_ OFF

23 22 21 20

ADIN2 ADIN1

19 18

AV33_SIFDI G

17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

VGAHSYN C# VGAVSYNC #

COMP1 input

SOY1

YPBPR1_N

COMP2 input

YPBPR2_N

FB4216

AV12

1 2

120R/3000mA

U0TX17 U0RX17

R4224 22 OHM 1/16W R4225 22 OHM 1/16W

R4259 10K1/16W

R4219 0R05 OHM

VGA input

REDP VGAGND VGASOG

GRNP

BLUP

Y1P

PB0P PR0P

SOY2

Y2P

PB2P PR2P

+3V3

R4229 10K1/16W

AUDIN_SEL1 18 AUDIN_SEL2 18

DV33 DV10

AR3 8 AL3 8

AV33_DAC AV33_ADCREF

R4258 0R05 OHM

AV33_ADC

AV12_PLL

AV33_XTL

DC_ON_OFF 12,17

KEY2 17 KEY1 12,17

AV33_SIFDI G

SIF_N 9

SIF_P 9

AV33_SIF AV33_CVBS

CVBS_OUT 8, 16

TV_CV BS 9 Tuner_CVBS_GND 9

SIDE_CVBS_IN 7

CVBS1_IN 5

R7520

R7521

0R05 1/4W

PC_R_IN 4 PC_GND 4 PC_SOG 4 PC_G_IN 4 PC_B_IN 4 VGAHSYN C VGAVSYNC

COMP1_SOG 5, 6 COMP1_Y_IN 5 COMP1_GND 5 COMP1_PB_IN 5 COMP1_PR_IN 5

COMP2_Y_IN 5 COMP2_GND 5 COMP2_PB_IN 5 COMP2_PR_IN 5

AV12D_RGB

C4271

4.7UF 10V

+3V3

R4215

R4214 10K1/16W 10K1/16W

AUDIN_SEL3 18

BRIGHTNESS_PW M 21

MT_SCL 9,12,16 MT_SDA 9,12,16

R4236 NC 10K1/16W

R4235 10K1/16W

C4204

4.7UF 10V

R4257 0R05 OHM

C4207

10uF 6.3V

R4260

100OHM1/16W

C4272

100N 16V

R4234 10K1/16W

AV33_DAC

C4203

4.7UF 10V

C4303 10uF 6.3V C4304 10uF 6.3V

C4208

100N 16V

C4214

27P 50V

C4305

12P 50V

HDMI1_DDC _SCL HDMI1_DDC _SDA

HDMI2_DDC _SCL HDMI2_DDC _SDA

HDMI3_DDC _SCL HDMI3_DDC _SDA

OP_MUTE 19

AMP_EN 20

AMP_MUTE 20

C4205

100N 16V

X4201

27MHz

12

C4215

27P 50V

AOSDATA0 AOBCK AOLRCK AOMCLK

HDMI

HDMI1_D0+ HDMI1_D0HDMI1_D1+ HDMI1_D1HDMI1_D2+ HDMI1_D2HDMI1_CK+ HDMI1_CK-

HDMI2_D0+ HDMI2_D0HDMI2_D1+ HDMI2_D1HDMI2_D2+ HDMI2_D2HDMI2_CK+ HDMI2_CK-

HDMI3_D0+ HDMI3_D0HDMI3_D1+ HDMI3_D1HDMI3_D2+ HDMI3_D2HDMI3_CK+ HDMI3_CK-

+3V3

R4223 R4220 10K1/16W 10K1/16W

NC/CONN

+3V3

AUD_R 18 AUD_L 18

R4217

820K 1/10W

LIGHT_SENSOR 17

HDMI1_D0+ 10,11

HDMI1_D0- 10, 11

HDMI1_D1+ 10,11

HDMI1_D1- 10, 11

HDMI1_D2+ 10,11

HDMI1_D2- 10, 11

HDMI1_CK+ 10, 11

HDMI1_CK- 10 ,11 HDMI1_DDC _SCL 10, 11 HDMI1_DDC _SDA 10, 11

HDMI2_D0+ 10,11

HDMI2_D0- 10, 11

HDMI2_D1+ 10,11

HDMI2_D1- 10, 11

HDMI2_D2+ 10,11

HDMI2_D2- 10, 11

HDMI2_CK+ 10, 11

HDMI2_CK- 10 ,11 HDMI2_DDC _SCL 10, 11 HDMI2_DDC _SDA 10, 11

HDMI3_D0+ 7,11COMP2_SOG 5

HDMI3_D0- 7, 11

HDMI3_D1+ 7,11

HDMI3_D1- 7, 11

HDMI3_D2+ 7,11

HDMI3_D2- 7, 11

HDMI3_CK+ 7, 11

HDMI3_CK- 7, 11 HDMI3_DDC _SCL 7, 10,11 HDMI3_DDC _SDA 7, 10,11

Serial Flash IF

SPISCK12 SPI_SI12 SPI_SO12 SPI_CS#12

VGAHSYN C

VGAVSYNC

CN5402

1 2 3

R490

10K 1/10W

+3V3

R4212 NC

R4216 10K1/16W

R4228 22 OHM 1/16W R4231 22 OHM 1/ 16W R4232 22 OHM 1/ 16W R4233 22 OHM 1/ 16W

C4299

10uF 10V

C4298

100N 16V

C425 10uF 6.3V

R4250

100OHM1/16W

SPI_SI SPI_SO SPI_CS#

+5V_STBY

3

1 2

D403 BAV99

R460 1K 1/10W

10K 1/10W

U4203

1

SDIN

2

DEM/SCLK

3

LRCK

4

MCLK

5 6

VQ FILT+

CS4344-CZZ

SPI_SCK

PC_HSYN C 4, 12

PC_VSYN C 4,12

1

R491

AOUTR

GND

AOUTL

23

Q414

PMBS3906

100 OHM 1/10W

GLZ

10 9

VA

8 7

R438

R454

10K 1/10W

FB1

12345

C4300

10uF 10V

C410

47uF/16V

+

G1G2G3G4G5

C4000

1uF 25V

LVDS INTERFACE

+3V3

R456

5.1K 1/10W

PMBS3904 Q404 C427

C415

NC

100P 50V

R4000

10K1/16W

R4002

470 OHM 1/16W

C4301

C4302

100N 16V

10uF 10V

C4001

470 OHM 1/16W

1uF 25V

R4001

10K1/16W

R4003

O0N O0P O1N O1P O2N O2P OCKN OCKP O3N O3P

E0N E0P E1N E1P E2N E2P ECKN ECKP E3N E3P

C4002

1.5nF 50V

FB4221

1 2

120R/3000mA

RXO0- 15 RXO0+ 15 RXO1- 15 RXO1+ 15 RXO2- 15 RXO2+ 15 RXOC- 15 RXOC+ 15 RXO3- 15 RXO3+ 15

RXE0- 15 RXE0+ 15 RXE1- 15 RXE1+ 15 RXE2- 15 RXE2+ 15 RXEC- 15 RXEC+ 15 RXE3- 15 RXE3+ 15

RST_MT8222

C424 10uF 6.3V

MAIN_AOR19

MAIN_AOL 19

C4003

1.5nF 50V

+3V3

1 2

C4236

10uF 6.3V

+3V3

1 2

C4249

10uF 6.3V

+3V3

+5V_ON

FB4208

120R/3000mA

FB4210

120R/3000mA

FB4217

1 2

120R/3000mA

C4273

4.7UF 10V

FB4202

+3V3

1 2 120R/3000mA

+

C4209

C4206

4.7UF 10V

100uF 16V

FB4203

+3V3

1 2

120R/3000mA

C4217

4.7UF 10V

FB4204

+3V3

1 2

120R/3000mA

C4221

4.7UF 10V

FB4205

+3V3

1 2

120R/3000mA

C4222

4.7UF 10V

FB4206

+3V3

1 2

120R/3000mA

C4226

4.7UF 10V

FB4207

+3V3

1 2

120R/3000mA

C4229

4.7UF 10V

AV33_ADC

+3V3

C4234

C4233

100N 16V

10uF 6.3V

AV33_USB

+3V3

C4251

C4250

100N 16V

10uF 6.3V

AV33_XTL

+3V3

C4275

C4274

100N 16V

10uF 6.3V

LED26DM99U/LED32DM99U

DV33

C4210

100N 16V

AV33_LVDS

FB4209

1 2

120R/3000mA

FB4211

1 2

120R/3000mA

FB4218

1 2

120R/3000mA

C4211

100N 16V

AV33_VGA

AV33_SIF

AV33_DAC

AV33_CVBS

C4230

10uF 6.3V

C4212

100N 16V

C4216

10uF 6.3V

C4219

10uF 6.3V

C4224

10uF 6.3V

C4227

10uF 6.3V

C4231

100N 16V

AV33_HDMI

C4235

4.7UF 10V

AV33_SIFDI G

C4252

4.7UF 10V

AV33_ADCREF

C4276

4.7UF 10V

C4213

100N 16V

C4218

100N 16V

C4220

100N 16V

C4225

100N 16V

C4228

100N 16V

C4232

100N 16V

C4237

100N 16V

C4253

100N 16V

C4277

100N 16V

35

T P V ( Top Victory Electronic s Co . , Ltd. )

絬隔瓜絪腹

Key Component

13: MTK8222

Date

OEM MODEL Size

TPV MODEL

PCB NAME

of

611Monday, June 28, 2010

Sheet

A2

B

Rev

称爹

www.ma163.com 电子技术资料网

C5124

100uF 16V

DDRV

1K 1/16W 1%

1Kohm 1/16W +/ -1%(NC)

DDRV

+

1K 1/16W 1%

R4146

R4147

C5121

3N3 50V

FLASH_WR#13

R4149

1K 1/16W 1%

R4148

1K 1/16W

MEM_R A0 MEM_R A1 MEM_R A2 MEM_R A3 MEM_R A4 MEM_R A5 MEM_R A6 MEM_R A7 MEM_R A8 MEM_R A9 MEM_R A10 MEM_R A11 MEM_R A12

MEM_BA 0 MEM_BA 1

MEM_R CLK 0 MEM_RCLK0# MEM_C S# MEM_C KE MEM_R AS# MEM_C AS #

MEM_W E#

MEM_D QM1 MEM_D QM0

MEM_VR EF

C5122

3N3 50V

R4143

EEPROM_WP13

A1E1J9C1M9R1J1A9C3C7C9E9G1G3G7

U4106

VDD

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10

P7

A11

R2

A12

L2

BA0

L3

BA1

L1

NC

J8

CK

K8

CK#

L8

CS

K2

CKE

K7

RAS

L7

CAS

K3 A2

WE NC

K9

ODT

B3

UDM

F3

LDM

R3

NC

R7

NC

NT5TU32M16CG-25C

DDRV

C5111

4.7uF 10V

+3V3_F

R4142

10K 1/10W

Q4102 NC/PD TC114ET

R4137 10K+-5%1/16W 10K+-5%1/16W

MT_SC L9,13,16 MT_SD A9,13,16

VDD

VDDL

VDDQ

VSS

A3

E3J3N1P9J7B2B8D2D8E7F2F8H2

C5112

100N 16V

SPI_CS#13

SPI_SI13

+3V3_F

VSS

R4138

VSS

C5113

100N 16V

VSSDL

+3V3

VSSQ

A7

C5114

100N 16V

1 2 3 4 5

12

FB4103

120R/3000mA

R4139 10K1/16W

R4141

47 OHM 1/16W

Q4101 PDTC114ET

VDDQ

VSSQ

CS# SO/SIO1 WP#/SIO2 GND SI/ SIO0

DDRV

G9

VDDQ

VREF

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15

UDQS UDQS

LDQS LDQS

NC NC NC NC NC NC NC NC NC NC

VSSQ

H8

C5116

C5115

3N3 50V

100N 16V

C4108

10uF 10V

U4105

VCC

NC/SIO3

SCLK

MX25L6445EM2I-10G

U4103

8

A0

VCC

7

A1

WP

6

A2

SCL

GNDSDA

AT24C32CN-SH-T

IIC ADRESS "A0"

MEM_D Q0 MEM_D Q1 MEM_D Q2

MEM_V RE F

J2

G8

MEM_D Q6 MEM_D Q2

G2

MEM_D Q4

H7 H3

MEM_D Q0

H1

MEM_D Q1 MEM_D Q7

H9 F1

MEM_D Q3

F9

MEM_D Q5

C8

MEM_D Q1 3

C2

MEM_D Q1 0

D7

MEM_D Q1 5

D3

MEM_D Q8 MEM_D Q9

D1

MEM_D Q1 4

D9 B1

MEM_D Q1 1

B9

MEM_D Q1 2

MEM_D QS1

B7 A8 F7

MEM_D QS 0

E8

E2 R8 AA1 AA2 AA3 AA4 AA6 AA7 AA8 AA9

C5120

C5119

C5118

3N3 50V

+3V3_F

8 7 6

1 2 3 45

3N3 50V

C4109

100N 16V

SPISCK

SPI_SO

+3V3

C4107

220N 25V

3N3 50V

13

C4110

100N 16V

MEM_D Q3

MEM_D Q4 MEM_D Q5 MEM_D Q6 MEM_D Q7

MEM_D QS 0 MEM_D QM0 MEM_D QM1 MEM_D QS 1

MEM_D Q8 MEM_D Q9 MEM_D Q1 0 MEM_D Q1 1

MEM_D Q1 2 MEM_D Q1 3 MEM_D Q1 4 MEM_D Q1 5

MEM_W E# MEM_C AS # MEM_R AS #

MEM_C S# MEM_B A0 MEM_B A1 MEM_R A1 0

MEM_R A4 MEM_R A5 MEM_R A6 MEM_R A7

MEM_R A12

MEM_R A11 MEM_R A9 MEM_R A8

MEM_R A0

MEM_R A1

MEM_R A2

MEM_R A3

MEM_RCLK0

MEM_RCLK0#

MEM_C KE

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

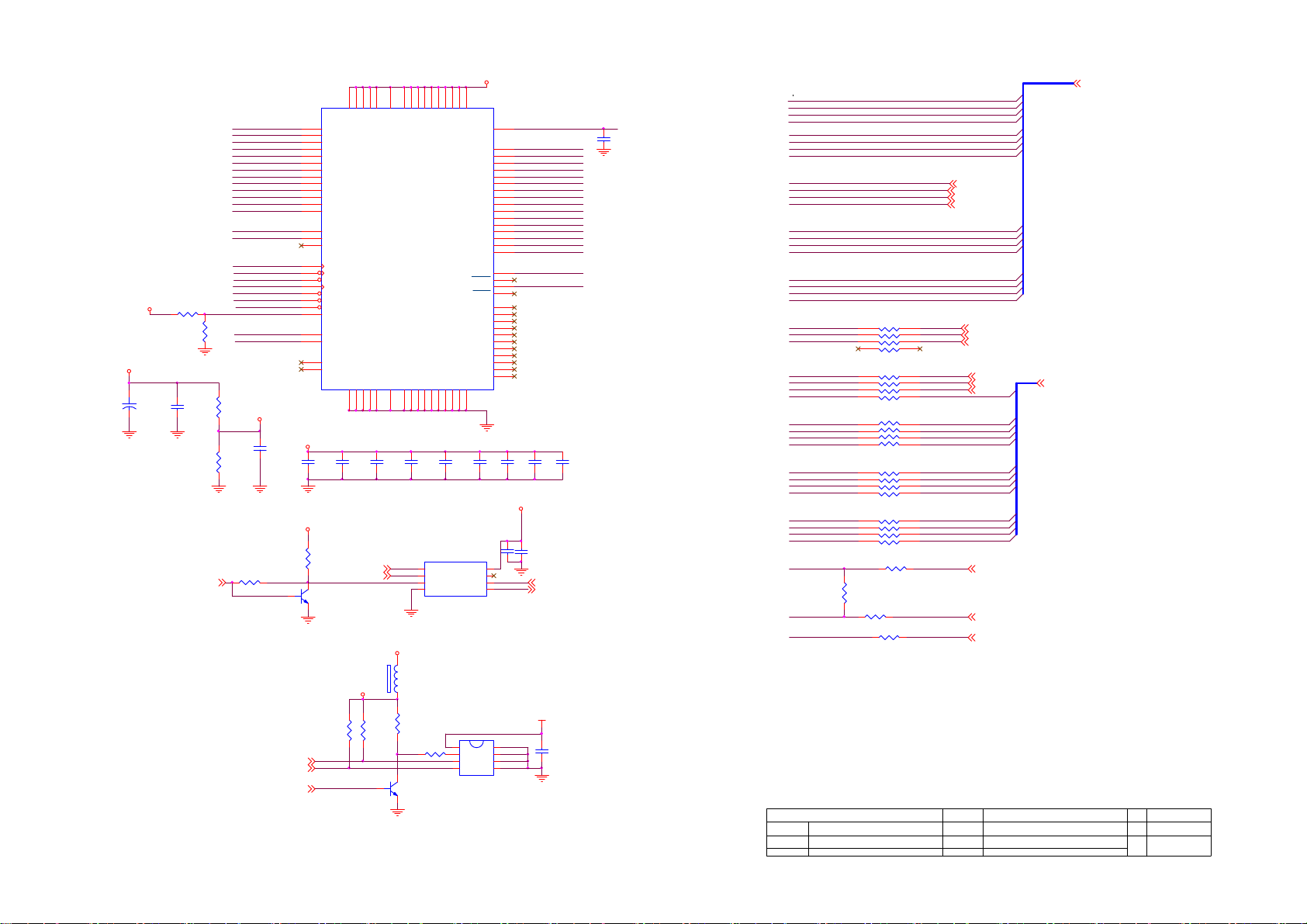

14: DDR1 MEMORY

Date

RP5102

5 6 7 8

22 OHM +-5% 1/16W

RP5103

5 6 7 8

22 OHM +-5% 1/16W

RP5104

8 7 6 5

22 OHM +-5% 1/16W

RP5105

5 6 7 8

22 OHM +-5% 1/16W

RP5106

5 6 7 8

22 OHM +-5% 1/16W

R5111

100R 1/16W 1%

R5113

22 OHM 1/16W

R5114

22 OHM 1/16W

R5112

22 OHM 1/16W

RDQS0 RDQM0 RDQM1 RDQS1

RWE#

4 3

RCAS#

2

RRAS#

1

RCS#

4 3

RBA0 RBA1

2 1

RA10

RA4

1

RA5

2 3

RA6 RA7

4

RA12

4

RA11

3 2

RA9

1

RA8

RA0

4 3

RA1 RA2

2 1

RA3

RCLK0

RCLK0#

RDQ0 RDQ1 RDQ2

RDQ3

RDQ4 RDQ5 RDQ6 RDQ7

RDQS0 12 RDQM0 12 RDQM1 12 RDQS1 12

RDQ8 RDQ9 RDQ10 RDQ11

RDQ12 RDQ13 RDQ14 RDQ15

RWE# 12 RCAS# 12 RRAS# 12

RCS# 12 RBA0 12 RBA1 12

RCLK0 12

RCLK0# 12

RCKE

RCKE 12

<Title> A3

OEM MODEL Size

TPV MODEL

<Doc > B

PCB NAME

715T3285

711Wednesday , February 10, 2010

Sheet

of

36

RDQ[15. .0] 12

RA[12..0] 12

Rev

称爹

www.ma163.com 电子技术资料网

31

CN5205

NC/CONN

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 3032

RXO0- 13 RXO0+ 13

RXO1- 13 RXO1+ 13

RXO2- 13 RXO2+ 13

RXOC- 13 RXOC+ 13

RXO3- 13 RXO3+ 13

PANEL_HI GH

PANEL_VCC

LED2_ON12,13 LED1_STBY13

C7177

100pF 50V

C7176

100pF 50V

LIGHT_SENSOR13

DC_ON_OFF

10K 1/10W

10K 1/10W 10K 1/10W

R404

R406

10K 1/10W

R442 R440

KEY213 KEY112,13

DC_ON_OFF

ZD5401

BZX84-C5V6

1 3

Q402

PMBS3906

ZD5402

1

1 3

+3V3

BZX84-C5V6

23

+3V3

ZD5405

R5401

R5402

+3V3

R5404

0R05 OHM

4.7 OHM +-5% 1/16W

47 OHM 1/16W

470 OHM

13 12 11 10

9 8 7 6 5 4 3 2 1

3 2 1

CONN

CN5401

CN5403

R444 R443

R441 3.3K +-1% 1/10W C5401 C5402

12,13

C5403 C5404

100N 16V 100N 16V 100N 16V 100N 16V

LED_G R5414

LED_R

ZD5406

BZX84-C5V6

+3V3

BZX84-C5V6

1 3

23

Q403 PMBS3906

RC_I R_3V3

1 3

1

3.3K +-1% 1/10W 10K 1/10W

+3V3

R5416 R5417

C5405

33P 50V

CN5201

3132

RXE3+4, 12 RXEC+4,12 RXE2+4, 12

RXE1+4, 12 RXE0+4, 12 RXO3+4,12 RXOC+4,12

RXO2+4,12 RXO1+4,12 RXO0+4,12

PANEL_HI GH

RXEC+ RXE2+

RXE1+ RXE0+ RXO3+ RXOC+

RXO2+ RXO1+ RXO0+

29 27 25 23 21 19 17 15 13 11

9 7 5 3 1

30 28 26 24 22 20 18 16 14 12 10 8 6 4 2

CONN

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

PANEL_VCC

RXE3RXECRXE2-

RXE1RXE0RXO3RXOC-

RXO2RXO1RXO0-

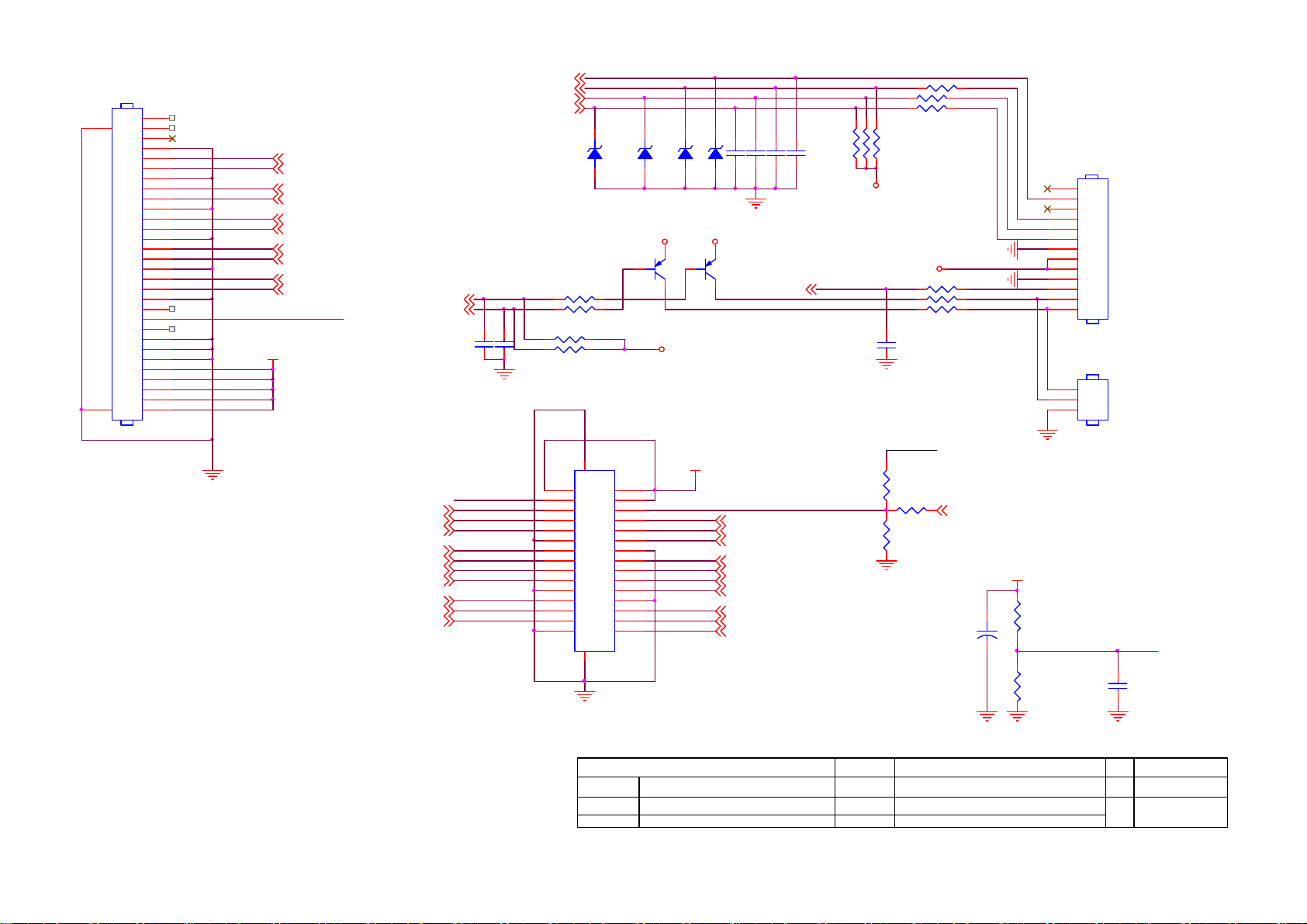

17: KEY , I R BD, & Com pair I/F

RXE3- 4,12 RXEC- 4,12 RXE2- 4,12

RXE1- 4,12 RXE0- 4,12 RXO3- 4,12 RXOC- 4,12

RXO2- 4,12 RXO1- 4,12 RXO0- 4,12

PANEL_HI GH

R5215 NC

ODCRXE3+

OEM MOD EL Size

TPV MODEL

PCB NAME

Sheet

R5210

NC R5214 NC

715T3285

811Monday, June 28, 2010

ODSEL 13

C5201

of

+

47uF/16V

PANEL_VCC

R5201 NC

R5202 NC/ 2K7 1/16W 5%

NC/CONN

PANEL_HI GH

Rev

称爹

C5406

NC/ 100NF 25V

A4

B

37

www.ma163.com 电子技术资料网

+5V_ON

R6101

CVBS1_IN_AU L_IN5

CVBS1_IN_AUR_IN5

+5V_ON

AUDIN_SEL113

+5V_ON

AUDIN_SEL213

R6114 470KOHM 5% 1/16W R6168 470KOHM 5% 1/16W R6119 470KOHM 5% 1/16W

R6120 NC 470KOHM 5% 1/16W

R6129 470KOHM 5% 1/16W

R6130

470KOHM 5% 1/16W R6131 470KOHM 5% 1/16W

R6132 NC 470KOHM 5% 1/16W

C6123

100N 16V

12 14 15 11

1 5 2 4

10

9

6

7

16

U6101

74HC4052D

X0 X1 X2 X3

Y0 Y1 Y2 Y3

A B

EN

VEE VDD

Y

GND

8

R6110

R6109

470KOHM 5% 1/16W 470KOHM 5% 1/16W

13

X

3

R6125 10K1/16W

R6127 10K1/16W

C6102 1uF 25V

1uF 25V

C6113

C6104 1uF 25V

C6106 NC 1uF 25V

C6107 1uF 25V

1uF 25V

C6117

C6109 1uF 25V

C6110 NC 1uF 25V

Q6101 PDTC114ET

Q6103 PDTC114ET

+5V_ON

C6119

22uF 10V

PC_AUL_IN4

COMP2_AUL_IN5

COMP1_AUL_IN5

PC_AUR_IN4

COMP2_AUR_IN5

COMP1_AUR_IN5

C6101

1UF16V

AUD_MUX_R

AUD_MUX_L

2.2KOHM +-1% 1/16W

R6103

2.2KOHM +-1% 1/16W

SIDE_C VBS_AUL_IN7

SIDE_C VBS_AUR_IN7

+5V_ON

AUDI N_SEL313

AUD_MUX_L

AUD_MUX_R

R6126 10K1/16W

C6118

1uF 25V

C6103 1uF 25V

C6114

1uF 25V

Q6102 PDTC114ET

C6121

22uF 10V

R6122 470KOHM 5% 1/16W

R6123 470KOHM 5% 1/16W

R6135 470KOHM 5% 1/16WC6108 1uF 25V

R6136 470KOHM 5% 1/16W

12 14 15 11

10

+5V_ON

16

C6122

100N 16V

U6102

74HC4052D

X0 X1 X2 X3

1

Y0

5

Y1

2

Y2

4

Y3

A

9

B

6

EN

7

VEE VDD

GND

8

X

Y

R6111

470KOHM 5% 1/16W

13

3

R6112

470KOHM 5% 1/16W

+5V_ON

C6105

1UF16V

AUD_R 13

AUD_L 13

R6102

2.2KOHM +-1% 1/16W

R6104

2.2KOHM +-1% 1/16W

+5V

C648 NC 100nF 50V

R7518

NC 0R 05OHM1/16W

C659 NC 100nF 50V

C649 NC 10uF 16V

GND

R6210

NC 1K1/16W

C7174

NC 2N2 50V

GND

R7519

NC 0R 05OHM1/16W

C6207

NC 1U F 16V

CN601

5 4 3 2 6 7 1

NC PH ONEJACK

MAI N_ AOR

13

NC 1K1/16W

C7175

NC 2N 2 50V

OP_MUTE

R6212

C6215

NC 1U F 16V

R633

NC 10K 1/10W

MAI N_ AOL

GND

+5V

13

Q604

NC PMBS3904

GND

C600

NC 10uF 16V

D601

NC BAS32L

GND

C645

NC 2.2U 25V

C647

NC 2.2U 25V

C601

NC 0. 1uF 50V

EARP_DET

C660

NC

1

2

3

4

GND

U604

CP+

PGND

CP-

NC

16

15

/LSD

PVDD

APA2176A

CVSS

VSS

567

13

14

NC

GND

RIN

/RSD

LIN

ROUT

LOUT

VDD

8

C658

NC 100nF 50V

12

11

10

9

GND

R630 NC 47K 1/16W

C656 NC 100nF 50V

38

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

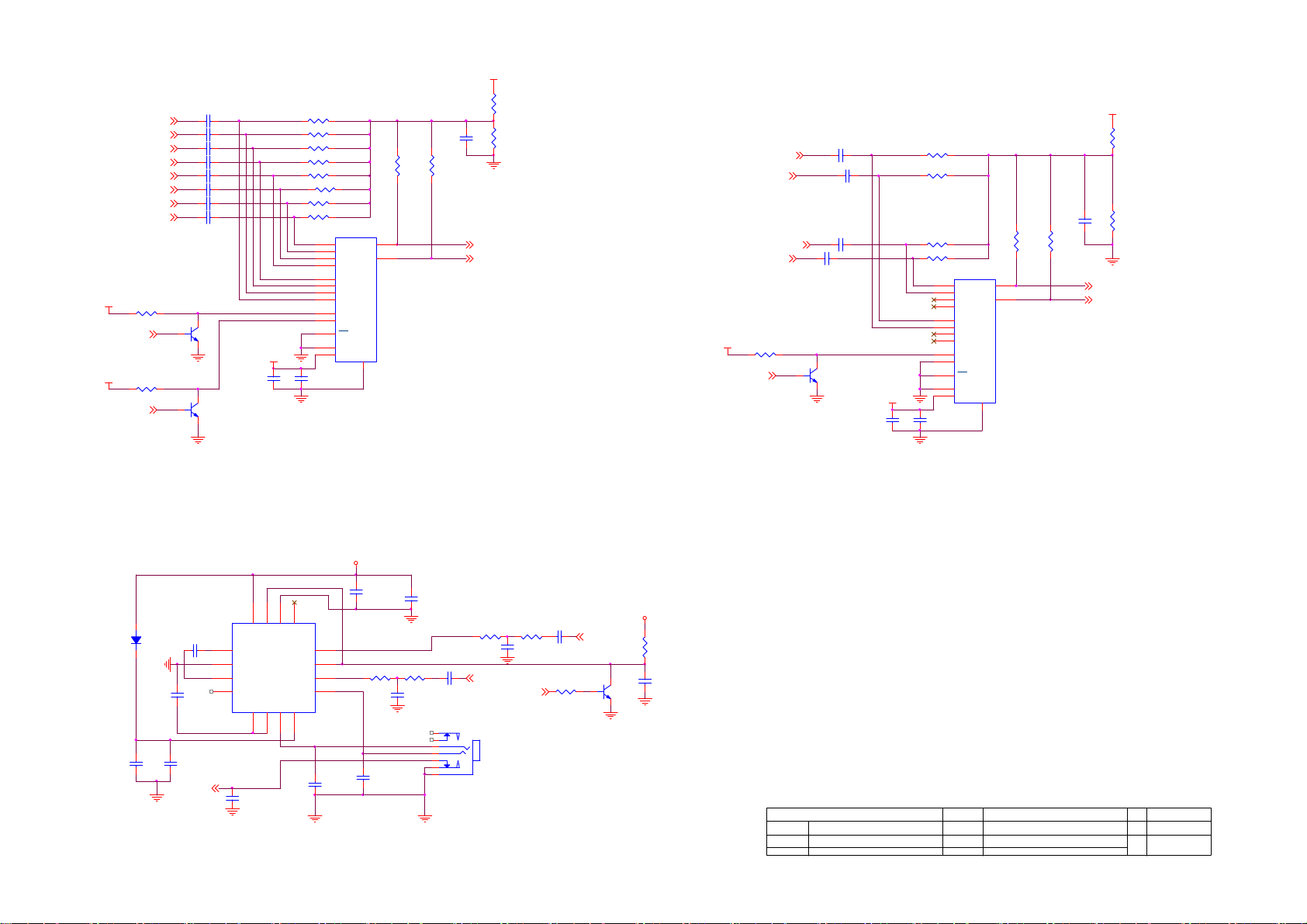

9: AUDIO SW

Date

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

of

911Tuesday , February 09, 2010

Rev

称爹

A3

B

www.ma163.com 电子技术资料网

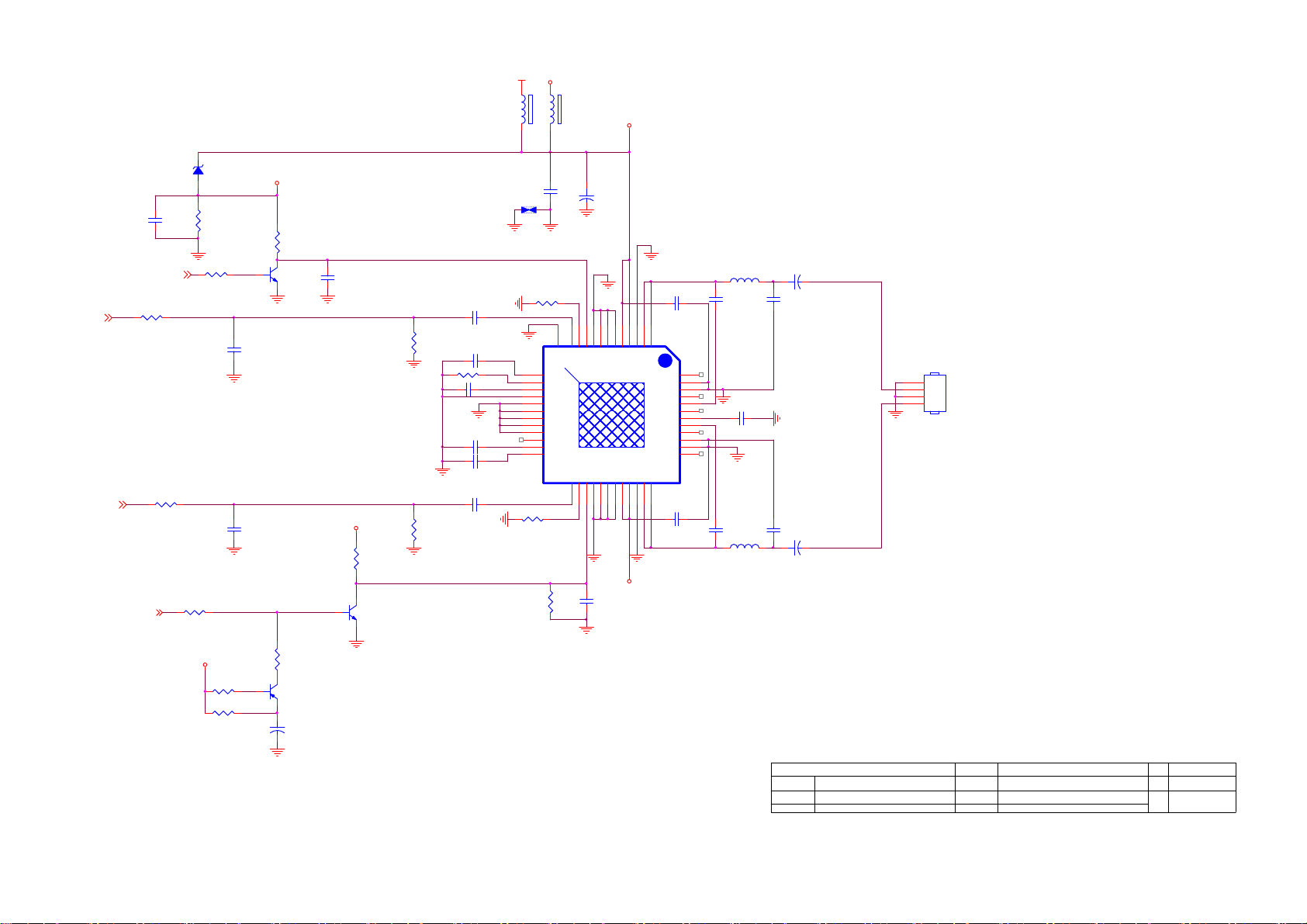

MAI N_A OR 13

MAI N_A OL 13

16V

24V

12

GND

SGND

13 14 15 16 17 18 19 20 21 22 23 24

R619

NC

U603

SGND

12

0.1uF 50V

49

CBIAS ROSC AVCC GND NC NC NC NC NC CLOCK VREF PROT

R617

NC

R799

FB7117

NC

C636

C635

+

330uF 35V

SGND

12

NC

IN1

TGND

GAIN1

STBYL

IN2

GAIN2

MUTELNCNCNCNC

2526272829303132333435

SGND

C667

0.1uF 5 0V

SGND

VD

10U 16V

C640

330uF 35V

+

C642

0.47UF 50V

SGND

C668

0.47UF 50V

+

330uF 35V

C666

SGND

CONN

1 2 3 4

CN602

SGND

C638

0.1uF 50V

1234567891011

NC

NCNCNC

VD1

OUT1

NC VS1 VS1

NC

HB1

NC

DVDD

HB2

NC VS2 VS2

NC

VD2

VD2NCOUT2

OUT2

36

C657

0.1uF 5 0V

SGND

48 47 46 45 44 43 42 41 40 39 38 37

C665

0.1uF 50V

SGND

L600

22uH

C641

0.1uF 50V

C653

SGND

L601

22uH

VD

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

10: AUDI O/AMP

Date

OEM MODEL Size

TPV MO DEL

PCB NAME

10 11Tuesday , February 09, 2010

Sheet

of

Rev

称爹

A3

B

FB7116

120R/6000mA

ZD600

RLZ11B

1 2

R610

C637

100NF 25V

AMP_EN13

R6313 12K 1/16W

R6314 12K 1/16W

AMP_MUTE8

4.7K 1/ 10W

SGND

R613

1K 1/10W

C6306

100P 50V

R622

10K 1/10W

+5V_STBY

10K 1/10W

R638

R637

MUTE 5V

SW_AMP_LIN

C6321

100P 50V

SGND

1

SGND

R616

10K+-5%1/16W

Q601

PMBS3904

SGND

SW_AMP_RI N

R639

10K 1/10W

Q413

PMBS3906

2 3

C672

+

100uF 16V

STBY

C639

0.1uF 50V SGND

MUTE 5V

47K 1/16W

SGND

R620

47K 1/16W

Q603

PMBS3904

SGND

R614 30K 1/10W

GND

1uF 16V

R618 30K 1/10W

C643 1uF 16V

1uF 16V

C644 10U 16V

R615 33K 1/10W

C646

C651 10U 16V

C654

SGND

SH600

AMP5VO

10U 16V

C652

1uF 16V

SGND

270K 1/10W

SGND

R2A15112FP

39

www.ma163.com 电子技术资料网

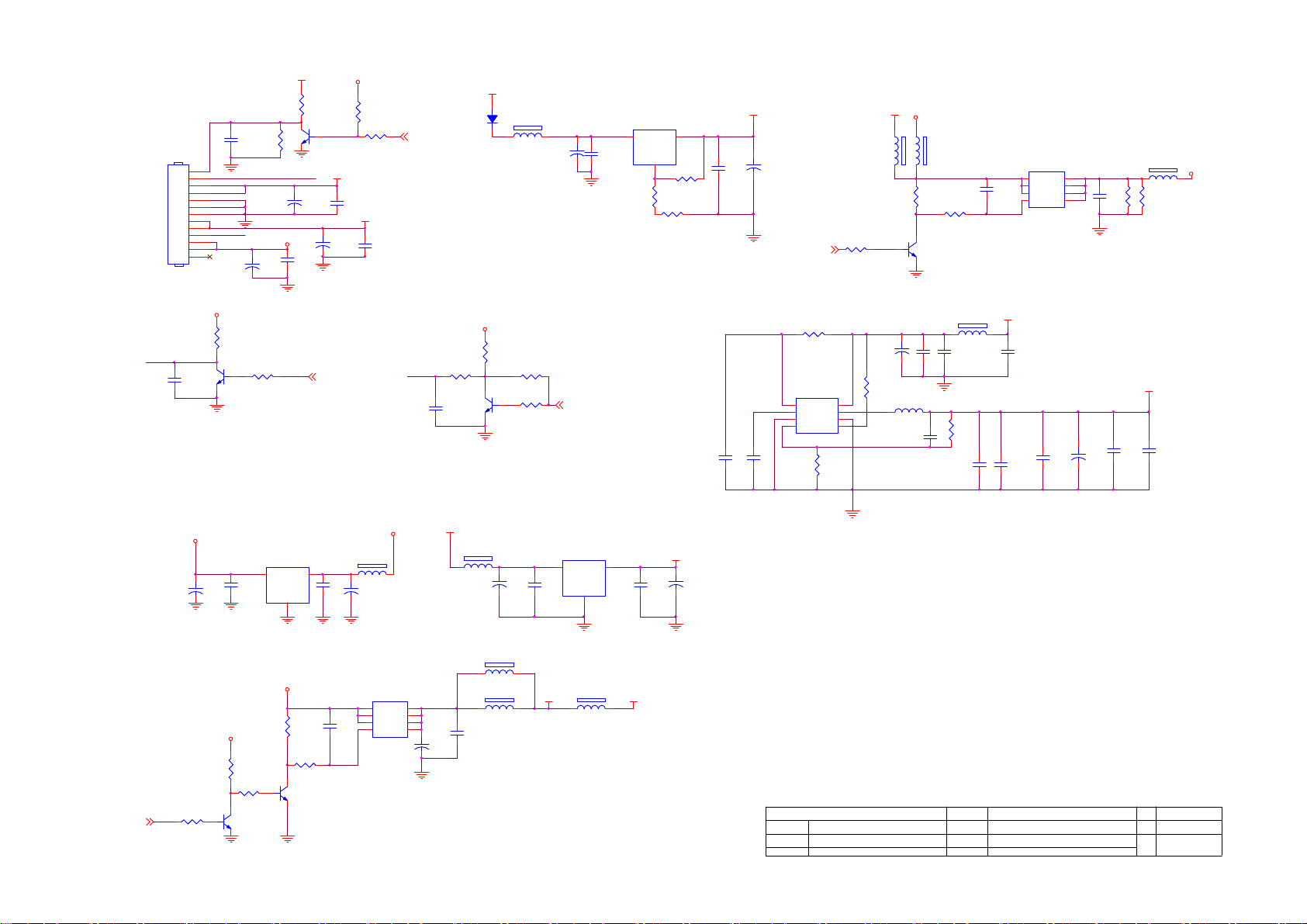

R7121 1K 1/10W

Q7101

PMBS3904

16V

C7110

C7108

100N 50V

+

C7109

330uF 35V

STANDBY 12, 13

+5V_STBY

R7103 47K +-5% 1/10W

470OHM +-5% 1/10W

24V

C7111

100N 50V

R7145

INVERTER_ON_OFF 13

V_IPWM

1K 1/10W

C723 2U2 16V

R719

D7101

S1D-E3

+5V_O N

GND

FB7102

1 2

120R/6000mA

R717 10K 1/10W

Q707 PMBS3904

R720

1K1/16W

C7103

100uF 16V

R718 NC

BRIGHTNESS_PWM 13

+

C7104

100nF 50V

22R 1/10W 1%

U7102

3 2

VIN VOUT

ADJ

1

R7110

C7105

C716

100nF 50V

R7107 100R 1/10W 1%

R7108

24R 1/10W 1%

DDRV

+

C7106

470uF 10V

PANEL_PWR_C TL13

10OHM1/10W

R725

U704 G5627F11U

1

VCC

2

REF

3

GND

4 5

FB EN

PGND

4.7K 1/16W

VIN

LX

FB7115

120R/6000m A

R569

100UF 25V

8 7 6

16V

C717

R726 10K 1/10W

+5V_STBY

12

GND

C718

4.7UF 10V

+

4.7uH L700

C730

1N 25V

6K2 1/10W 1%

12

FB7114

NC 120R /6000mA

VCC5_PANEL_I N

R565

10K 1/10W

Q407 PMBS3904

1 2

100nF 50V

C470

220N 25V

R567 220K 1/10W

300 OHM

FB703

C719

R727

C732

+5V_STBY+5V_STBY

C733

4.7UF 10V

AO4449 -7A/-30V

Q406

1

S

2

S

3

S

4

G

C720 100nF 50V

C731

22uF 10V

FB7105

8

D

7

D

6

D

5

GND

C746

+

220uF16V

R572

NC

R571

NC

C471

C727

4.7uF K 25V

D

120R/6000mA

DV10

C729

1uF 25V

PANEL_VCC

12

PWR_ON

CN7102

CONN

1 2 3 4 5 6 7 8 9 10 11 12 13

C735

100nF 50V

C7102

100N 50V

PWR_ON

C7142

NC 330uF 10V

+5V_STBY

R733 10K 1/10W

Q711 PMBS3904

GND

R7147

2K 1/10W

+5V_STBY

+

R734

1K1/16W

+5V_ON

V_IPWM

+

330uF 35V

C7115

100N 50V

+3V3

FB7111

1 2

120R/6000mA

8

D

7

D

6

D

5

D

+

100uF 16V

GND

C722

100nF 50V

C7155

10uF 16V

FB7118

1 2

120R/6000mA

FB7113

1 2

120R/6000mA

C734

100nF 50V

+

C7154

U7104

3 2

VI VO

+5V_ON

1 2

120R/6000mA

GND

1

FB7112

100nF 50V

+5V

FB152

1 2

220R/2000mA

+

C220

47uF/16V

AO4449 -7A/-30V

1

S

2

S

3

S

4

G

+3V3

Q706

+5V_STBY

U7110

3 2

VIN VOUT

100nF 50V

+5V_STBY

4.7K 1/10W

GND

C7114

R716

10K 1/10W

R732

4.7K 1/10W

R730

Q709 PMBS3904

GND

1

+5V_STBY

GND

C7116

100nF 50V

C721

220N 25V

R731 220K 1/10W

Q708 PMBS3904

2008-9-10

+

C221

47uF 25V

5V_PWR_SW12,13

R729

4.7K 1/10W

C7156

40

AV12

+

C7163

100uF 16V

C728

100nF 50V

R728

16KOHM +-1% 1/10W

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

11: DC-D C POWER

Date

Low ESR EC

OEM MOD EL Si ze

TPV MO DEL

PCB NAME

11 11Friday , February 26, 2010

Sheet

of

Rev

称爹

A3

B

www.ma163.com 电子技术资料网

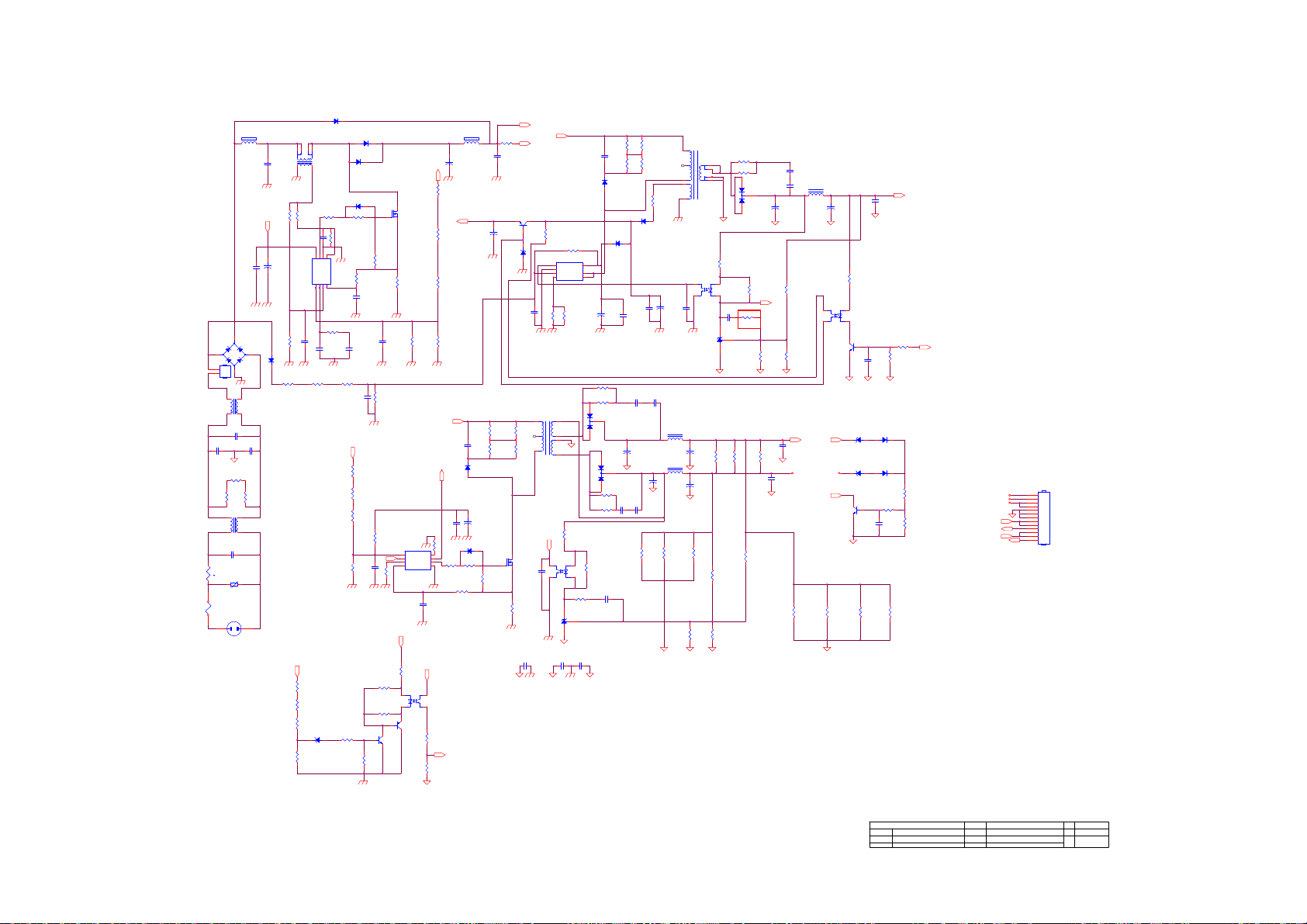

9.2 电源板

26K01HR 715G3811P01H20003H

FB901

1 2

BEAD

C910 1uF/520V

R910

NC

VCC

+

C913

C914

0.1uF 50V 47uF/50V

BD901

R917

1

15K 1/8W

+

D901

3

1N4007-E3/73

-

4

L902

13mH

C904

R902

L901

13mH

RV901

CN901

124

SOCKET

C903 680pF

R903 330K 1/4W

1M5 1/4W 1%

R904

330K 1/4W

12

BRIDGE KBJ608G 6A/800V KBJ

2

CN903

2

N

1

L

CONN

Designator

3

C902 680pF

330K 1/4W

R901

3

C901

NR901 NTCR

t

TVR14561KFC4FY

F901

5A 250V

1 2

FAN6961SZ

B+_390V

126

8

R911 20K 1/4W

IC901

1M5 1/4W 1%

R9101

R9102

R9103

1M5 1/4W 1%

R9104

82K 5%

5

7

56P 50V

C916 NC

R905

1M5 1/4W 1%

ZD9101

MTZJ T-72

L906

310uH

10R 1/8W 5%

R932

C912

678

VCC

GND

GATE

INV

COMP

MOT

CS ZCD

123

4 5

R918

10KOHM +-5% 1/8W

C917 47N 50V

1M5 1/4W 1%

12

10KOHM +-5% 1/8W

51K +-5% 1/8W

D904

IN5408

R912 NC

R909

R924

1MOHM +-1% 1/4W

R925

1M 1/4W 1%

R926

1M 1/4W 1%

R985

13K 1/8W 1%

R9105

D902

FMNS-1106S

D907

IN5408

D905 1N4148

R913

10 OHM +-5% 1/6W

R914

10KOHM +-5% 1/8W

R915 470 OHM 1/4W

C915 220P 50V

C918

0.47uF 50V

C921

0.1uF 50V

B+_390V

C943 47N 50V

10KOHM +-5% 1/8W

100K 1/8W

R9106

R906 560K 1/8W 1%

R941 NC

FB

NC

R9107

R9108

R9109

Q9101 2N3904S-RTK/PS

Q901 2SK4086LS

0R12 5% 2W

C919 NC

1 2 3 4 5

R942

VCC

1

2 3

R916

IC903

BNO COMP (-)LATCH CS GND

LD7522PS

IC9101

EL817M(X)

Q9102 2N3906S-RTK/PS

R919 NC

10KOHM +-5% 1/8W

R947

OVP

VCC

OUT

C944 220P 50V

+5V

4

R9110

16.2K +-1% 1/4W

R9111 33K +-1% 1/4W

R801

R920 680K OHM +-1% 1/4W

R921 680K OHM +-1% 1/4W

R922 680K OHM +-1% 1/4W

R923 13K 1/8W 1%

VCC

C942 100N 50V

8 7 6

1R 1/4W 5%

VCC

B+

R933

1K 1/4W

ACD

+

R945

FB902

1 2

BEAD

C920 82uF M 450V

+

R943

10OHM +-5% 1/8W

C935

0.1NF2KV

D940

PR1007

C941

10uF/50V

100K 1/4W

D906 1N4148

R948

0.1 ohm

C925 10NF1KV

+

C937 10uF/50V

MTZJ T-72 16B

R996

100K 1/4W

R998

100K 1/4W

R944 10KOHM +-5% 1/8W

B+_390V

B+

Q921

KTD1691/P

R939 10K 1/4W

R962

1 2

C907 100N 50V

R997

R999

Q903 2SK4101LS

R946 0R36 5% 2W

C905

470pF/250V

C939 10N 50V

5

4

3

2.2 OHM 1/4W

R908

T902

POWER X'FMR

FB

C924

0.001uF/250V

4.7M OHM +-5% 1/4W

IC902

4 5

FB/OLP VCC

3

GND

2

D/ST

BR

1

D/ST

S/OCP

R907

2.2 OHM 1/4W

9

8 10

11

R974 1K 1/4W

IC970 EL817M(X)

1234 R975

10K 1/4W

IC971 AS431AZTR-E1

470pF/250V

A6069H

7 8

C933

10uF/50V

100 OHM 1/4W

3

1

100 OHM 1/4W

3K9 +-5% 1/8W

R976

C906

ZD930

+

R973 100 OHM 1/4W

R970

D973 YG865C10RSC

2

D972

3

2

1

R977

100 OHM 1/4W

R951

C976

330N 50V

R991

100K 1/4W

C932

0.1NF2KV

R992

100K 1/4W

D930

PR1007

D903

1N4148

C908 100N 50V

YG865C10RSC

C957

1N 500V

+

C973 470uF 35V

1N 500V

100K 1/4W

C934 100N 50V

C970

1N 500V

C952

1.8K 1/4W

R993

R994

D931

AU02Z

R986

C972

1N 500V

+

R931

2.2 OHM 1/4W

+

C945 470uF 35V

C931

L980

L

L951

L

R965

1.8K 1/4W

1

2

3 4

5

T901

POWER X'FMR

IC950 EL817M(X)

C909 1N 50V

+

C975 470uF 35V

+

C946

R967

1.8K 1/4W

R980 NC

6 7

9 10

1234

1.8K 1/4W

R971

1.8K 1/4W

R978

R979 2KOHM +-1% 1/8W

47 OHM 1/4W

R954 100 OHM 1/4W

C955 220N 50V

1K 1/4W

IC952

AS431AZTR-E1

R988

R950

R952

3

1

R956

47 OHM 1/4W

D950 SBT15006JST

2

R955 1K 1/8W

R987 27K 1/8W 1%

R959 NC

R972

1.8K 1/4W

6.8K 1/4W

C950 1N 500V

C951

L950

1N 500V

L

+

+12V

6.8K 1/4W

C954 470uF 16V

R960 1K 1/4W

IC951 EL817M(X)

1234

Q950 PMBS3904

+24V

ZD970

+24V

MTZJ T-72 30B

ZD952

+12V

MTZJ T-72 15B

A5V

Q970 PMBS3904

R969

R968

6.8K 1/4W

+

C953 330uF 16V

R957 8K2 1/8W 1%

A5V

R958 7K5 1/8W +/-1%

C949 100N 50V

C948 100N 50V

R966

12

6.8K 1/4W

C956 100N 50V

R984

D971

1N4148

D951

1N4148

1K 1/8W

C947 100N 50V

R983

10KOHM +-5% 1/8W

R963

10KOHM +-5% 1/8W

C978 100N 50V

+5V

R961

R981

100OHM +-5% 1/8W

R982 1K 1/8W

PS_ON

CN902

1 2

ON/OFF

PDIM

3

+12V

4 5 6 7 8

+24V

9

10

PS_ON

11 12

+5V

13

ACD

CONN

41

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

G3811-P01-X-X-4-100319

Key Component

02.INVERTER

Date

OEM MODEL Size

TPV MODEL

715GG3811P01H20003H

PCB NAME

23Monday, June 28, 2010

Sheet

of

Custom

1.0

Rev

称爹

www.ma163.com 电子技术资料网

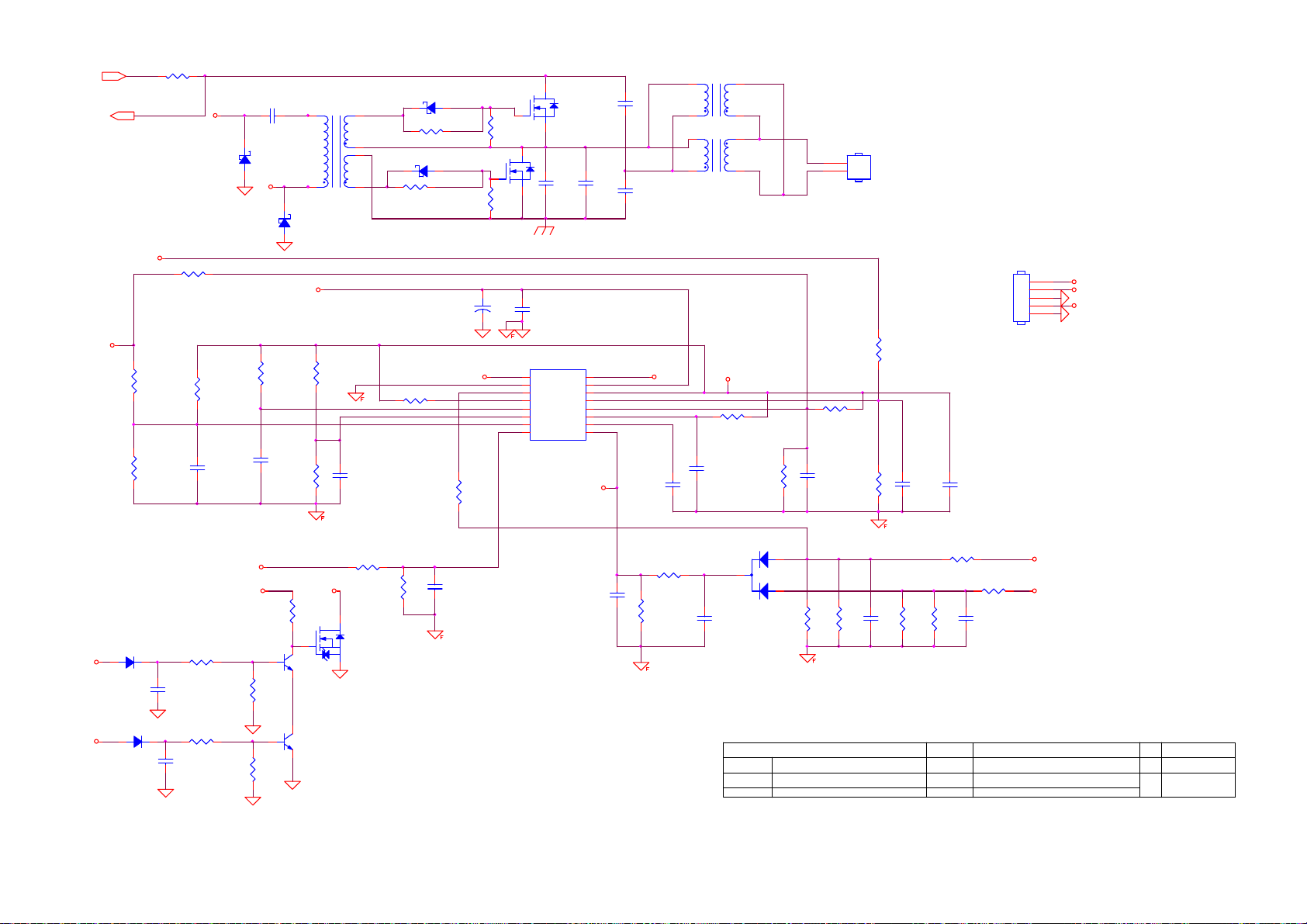

B+_390V

R801

PDIM

240K 1/8W

R801 0.1 ohm

ON/OF F

R830

R831

150K 1/8W 5%

DR1

D801

SCS0520P

R845 NC

100KOHM +-1% 1/4W

R846

1MOHM +-5% 1/4W

C812 1N 50V

C805

2.2uF 25V X7R

1 2

DR2

R832

1 2

C813 330P 50V

T802

1 9

POWER X'FMR

D802

SCS0520P

+12V

R833

3.3 OHM 1/4W

R834 NC

C814

4N7 50V

54

7 10

D803

12

SCS0520P

R802 100R 1/8W 5%

D804

SCS0520P

12

R803 100OHM +-5% 1/8W

C810

R835

301K OHM 1/4W 1%

R816 10KOHM +-5% 1/8W

R817 10KOHM +-5% 1/8W

+

DR1

R814 100OHM +-5% 1/8W

Q801

AOTF12N50

Q802AOTF12N50

C803

0.001uF/1KV

C811 100N 50V

IC801

1

DRV1

DRV2

2

GND

3 4 5 6 7 8 9

VIN

ZCS

VREF

RT1

ENA

CT

ADIM

LCT

TIME R

PDIM

SSTCMP

VSEN I SEN

OZ9976GN-C-0-TR

ISEN

C804

0.001uF /1KV

16 15 14 13 12 11 10

C801

1uF/450V

C802

1uF/450V

47N 50V

DR2

C815

T803

6

POWER X'FMR

6 7

1 11

POWER X'FMR

ENA

T801

VREF

R840 1M5 1/8W 5%

C816

1U 25V

11

71

R841

51K +-5% 1/8W

1 2

10K 1/4W

R839

100K 1/4W

C817 10N 50V

51K +-5% 1/8W

CN801

CONN

R838

R842

C818

4N7 50V

C819

2.2uF 25V X7R

CN803

CONN

5

VS

4

IS1

3 2

IS2

1

R836

ISEN

Q804 PMBS3904

Q805 PMBS3904

1K 1/4W

510K +-5% 1/8W

Q803 RK7002F D5T116

R837

C821

220pF 2% 50V

C820

1N 50V

11KOHM +-1% 1/8W

VS

VREF

R820

100K 1/8W

D805

IS1

1N4148

D806

IS2

1N4148

R821

10KOHM +-5% 1/8W

C830 1N 50V

R824

10KOHM +-5% 1/8W C831 1N 50V

R823

1M 1/8W

R826

1M 1/8W

R843 330OHM1/4W

R844

42

D807

2

3

1

BAV70 C824 NC

絬隔瓜絪腹

Key Component

R810

NC

R811

240 OHM +-1% 1/8W

T P V ( Top Victory Electronics Co . , Ltd. )

G3811-P01-X-X-4-100319

02.IN VERTER

Date

C822

3.9NF 50V

R825

100 OHM 1/4W

R827

R812 NC

R813

240 OHM +-1% 1/8W

OEM MODEL Size

TPV MODEL

PCB NAME

3.9NF 50V

Sheet

100 OHM 1/4W

C823

715GG3811P01H20003H

23Monday , Ju ne 28, 2010

IS1

IS2

of

Rev

称爹

B

1.0

www.ma163.com 电子技术资料网

32K01HR 715G3811P01H20003H

B+_390V

R801

PDIM

R830

10K 1/8W 5%

R831

NC

R801 0. 1 ohm

ON/OF F

NC

DR1

R845 NC

R846

D801

SCS0520P

C812

NC

R832

62K 1/4W

C805

2.2uF 25V X7R

1 2

DR2

C813

330P 50V

SCS0520P

1 2

R834

2.7K 1/8W

D802

+12V

!

T802

1 9

POWER X'FMR

R833

10K 1/4W

C814

NC

T803

D803

12

54

7 10

SCS0520P

R802

100R 1/8W 5%

D804

SCS0520P

12

R803

100OHM +-5% 1/8W

R816

10KOHM +-5% 1/8W

AOTF12N50

R817

10KOHM +-5% 1/8W

Q802

!

Q801

AOTF12N50

C803

1000PF1KV

C804

1000PF1KV

C801

1uF/45 0V

C802

1uF/45 0V

6

POWER X''FMR

11

71

NC

7

111

T801

1 2

CN801

CONN

!!

CN803

5

VS

4

IS1

3

CONN

2

IS2

1

R835

NC

C810

100uF 50V

DR1

R814

51OHM +-5% 1/8W

+

C811

100N 50V

IC801

1

DRV1

DRV2

2

GND

3 4 5 6 7 8 9

VIN

ZCS

VREF

RT1

ENA

CT

ADIM

LCT

TIMER

PDIM

SSTCMP

VSEN ISEN

OZ9976GN- C-0-TR

ISEN

R838

10K 1/4W

16 15 14 13 12 11 10

C815

12N 50V

DR2

ENA

VREF

R840

1M5 1/8W 5%

C816

1U 25V

R841

51K +-5% 1/8W

R839

100K 1/4W

C817

1U 25V

51K +-5% 1/8W

R842

C818

4N7 50V

C819

2.2uF 25V X7R

R836

ISEN

Q804

PMBS3904

Q805

PMBS3904

1K 1/4W

1M 1/8W

Q803

RK7002FD 5T116

R837

C821

1N5 50V

C820

1500PF 50V

R844

9.1KOHM +-1% 1/8W

VS

VREF

R820

100K 1/8W

D805

IS1

1N4148

D806

IS2

1N4148

C830

47N 50V

C831

47N 50V

R821

68K +-5% 1/8W

R824

68K +-5% 1/8W

R823

1M 1/8W

R826

1M 1/8W

R843

1.2K 1/4W

43

D807

2

3

1

BAV70

C824

NC

R810

NC

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

G3811-P01-X-X-1-100319

01.INVER TER

R811

240 OHM +-1% 1/8W

C822

680P 50V

R825

510 OHM +-1% 1/4W

R827

R812

NC

510 OHM +-1% 1/4W

C823

680P 50V

R813

240 OHM +-1% 1/8W

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

IS1

IS2

715GG3811P01H20003H

12Monday , April 12, 2010

of

Rev

称爹

B

1.0

www.ma163.com 电子技术资料网

FB901

1 2

BEAD

C910

1uF/520V

!

R910

NC

VCC

C913

+

0.1uF 50V

C914

47uF/50V

1

BD901

+

KBJ608G

2

3

D901

1N4007-E3/73

!

4

R904

1M5 1/4W 1%

!

124

!

C903 680pF

!

R903 330K 1/4W

!

124

!

RV901 NC

CN901

3

SOCKET

330K 1/4W

!

-

2

N

1

L

CN903

NC

L902

3

13mH

C902

C904

680pF

!

R902

330K 1/4W

R901

L901

3

13mH

C901

12

NR901 NTCR

t

F901

5A 250V

1 2

!

126

8

R911

20K 1/4W

56P 50V

R917

15K +-5% 1/8W

1M5 1/4W 1%

B+_390V

R9101

NC

R9102

NC

R9103

NC

R9104

NC

5

L906

253uH

7

C912

VCC

INV

123

C916

NC

R905

ZD9101

NC

D904

IN5408-E

10R 1/8W 5%

R932

R912

NC

678

OUT

GND

IC901

COMP

MOT

CS ZCD

FAN6961SZ

4 5

R918

10KOHM +-5% 1/8W

C917

47N 50V

R909

1M5 1/4W 1%

R924

1MOHM +-1% 1/4W

R925

1M 1/4W 1%

R926

1M 1/4W 1%

13K 1/8W 1%

12

D907

NC

D905

1N4148

10 OHM +-5% 1/6W

R913

10KOHM +-5% 1/8W

C921

0.1uF 50V

B+_390V

R985

R9105

NC

R9106

NC

D902

FMNS-1106S

R914

R915

470 OHM 1/4W

C915

220P 50V

C918

0.47uF 50V

C943

47N 50V

C919

NC

R906

560K 1/8W 1%

R941

NC

FB

R942

NC

R9107

NC

R9108

NC

R9109

NC

Q9101

NC

!

Q901

2SK4086LS

R916

0R12 5% 2W

R919

NC

10KOHM +-5% 1/8W

IC903

1

BNO

2

COMP

3

(-)LATCH

4 5

CS GND

LD7523GS

VCC

IC9101

1

2 3

NC

Q9102

NC

OVP VCC OUT

+5V

4

R947

R801

8 7 6

C944

220P 50V

R9110

NC

R9111

NC

!

+

C920

82uF M 450V

R920

680K OHM +-1% 1/4W

VCC

R921

680K OHM +-1% 1/4W

R922

680K OHM +-1% 1/4W

R923

13K 1/8W 1%

B+

VCC

C942

100N 50V

R933

1R 1/4W 5%

R945

1K 1/4W

ACD

FB902

1 2

BEAD

100K 1/4W

C935

0.1NF2KV

D940

PR1007

+

C941

10uF/50V

D906

1N4148

R943

10OHM +-5% 1/8W

R948

0.1 ohm

C925

10NF1KV

+

C937

10uF/50V

MTZJ T-72 16B

R996

100K 1/4W

R998

100K 1/4W

R944

10KOHM +-5% 1/8W

C905

470pF/250V

!

ZD930

1 2

C907

100N 50V

R997

R999

!

Q903

2SK4101LS

R946

0R36 5% 2W

C924

0.001uF/250V

B+_390V

B+

Q921

KTD1691/P

C939

10N 50V

!

T902

5

4

3

POWER X'FMR

B+

R939

10K 1/4W

4 5 3 2 1

R908

2.2 OHM 1/4W

!

FB

IC970

EL817M(X)

FB903

1 2

BEAD

R962

4.7M OHM +-5% 1/4W

IC902

FB/OLP VCC GND BR

D/ST

S/OCP

D/ST

A6069H

R907

2.2 OHM 1/4W

9

8 10

11

R974

1K 1/4W

1234

!

R976

10K 1/4W

IC971

AS431AZTR-E1

C906

470pF/250V

!

0.1NF2KV

7 8

C933

10uF/50V

C932

+

R973

100 OHM 1/4W

R970

100 OHM 1/4W

D973

3

YG865C10RSC

2

1

3

1

100 OHM 1/4W

R975

3K9 +-5% 1/8W

330N 50V

D930

PR1007

C908

100N 50V

D972

YG865C10R SC

2

R977

R951

C976

R991

100K 1/4W

R992

100K 1/4W

D903

1N4148

C957

1N 500V

+

C973

470uF 35V

100K 1/4W

C934

100N 50V

C970

1N 500V

C952

1N 500V

1.8K 1/4W

R993

R994

D931

AU02Z

C972

1N 500V

R986

+

C945

470uF 35V

R931

2.2 OHM 1/4W

+

C931

100uF 50V

L980

L

L951

L

1.8K 1/4W

T901

POWER X'FMR

1

2

3 4

5

!

C909

1N 50V

+

C975

470uF 35V

+

C946

470uF 25V

R965

R980

NC

IC950

EL817M(X)

R967

1.8K 1/4W

!

6 7

9 10

1.8K 1/4W

R971

47 OHM 1/4W

R954

100 OHM 1/4W

1234

C955

220N 50V

1K 1/4W

IC952

AS431AZTR-E1

R988

1.8K 1/4W

R978

24KOHM +-1% 1/8W

R979

2KOHM +-1% 1/8W

R950

3

1

R956

R952

47 OHM 1/4W

D950

SBT15006JST

2

R987

27K 1/8W 1%

R955

1K 1/8W

R959

NC

R972

1.8K 1/4W

6.8K 1/4W

C950

1N 500V

C951

1N 500V

L950

L

+24V

+12V

6.8K 1/4W

+

C954

470uF 16V

R960

1K 1/4W

IC951

EL817M(X)

1234

!

Q950

PMBS3904

ZD970

+24V

MTZJ T-72 30B

ZD952

+12V

MTZJ T- 72 15B

A5V

Q970

PMBS3904

R968

R969

6.8K 1/4W

+

C953

330uF 16V

R957

8K2 1/8W 1%

A5V

R958

7K5 1/8W +/-1%

C949

100N 50V

C948

100N 50V

R966

+5V

C947

100N 50V

R961

10KOHM +-5% 1/8W

PS_ON

R963

10KOHM +-5% 1/8W

C956

100N 50V

D971

12

1N4148

D951

12

1N4148

R981

100OHM +-5% 1/8W

R983

1K 1/8W

R982

1K 1/8W

C978

100N 50V

R984

PS_ON

ON/OFF

+24V

+5V

CN902

1 2 3

PDIM

4

+12V

5 6 7 8

9 10 11 12 13

ACD

CONN

44

www.ma163.com 电子技术资料网

40K01HR 715G3196 1 HV

1

-

4

3

!

L903

20.0MH

4

3

!

L902

2.0MH

73L 174 52 LG

4

!

3

L901

20.0MH

73L 174 49 LG

4

!

C903

0.047UF 275V

RV901 NC

G

HS2

HS5

3

!

C906

680pF 250V

R903

330K 1/4W

LN

BO

!

1uF/520V CN902 CONN

2

N

1

L

R941

220R 1/4W

R943

5K1 1/8W

12

!

NR901 NTCR

t

!

F901 FUSE

HS3

HEAT SINK (IC 901)

1 2

HS6

HEAT SINK (D903,D906,D907)

1 2

KBJ1008

93G 50460 49

!

C901

680pF 250V

!

R901

330K 1/4W

!

BD901

+

2

1

!

C904

0.047UF 275V

2

1

2

1

!

R902

330K 1/4W

!

CN901

SOCKET

HEAT SINK (D911)

1 2

HEAT SINK (Q902,Q903)

1 2

C931

R932

0.1R 3W

R934

0.1R 3W

B+

!

C936

47uF 25V

R940 20K 1/8W

C942

C940

4N7

10N

R904

0.1 ohm

VCC1

C908 10uF

HS4

HEAT SINK (Q901)

1 2

HEAT SINK (BD901,D901)

FB903

BEAD

1 2

C902 470pF/250V

1 2

FB904

BEAD

126

5

L906 600uH 10%

73G 174148 S

VCC1

+

1

GND

2

ICOMP

3

ISENSE

VSENSE

4 5

VINS VCOMP

IC906

ICE2PCS02G

56G 379104

C941 1N

R906

2M 1% 1/4W

R905

2M 1% 1/4W

+

C909

0.1uF

HS1

1 2

1N5408-E

C937 100N

GATE

VCC

R908

2K 1/4W

D909

8

7

6

R907

2M 1% 1/4W

R909

30K 1% 1/8W

C914 470N

R942

51K 1/8W

C938 470N

C907

1N 50V

C916

1N

FB905

BEAD

1 2

FB901 BEAD

R933

51R 1/8W

R936

33R 1/8W

C939 1uF 25V

!

IN4148

470pF/250V

D901

FMXA-1106S

D910

1

R938

10K 1/8W

1

Vsen

NC

2

Vcc

NC

3

FB

VGH

4

GND

VS

5

Css

VB

6

OC

NC

7

RC

NC

8

Reg

VGL

9 10

RV COM

IC904 SSC9502S

56G 379112

D905

EG01A

C917

1uF 25V

C944

C929

2

3

C943 1N

VCC1

18

17

16

15

14

13

12

11

R919

7.5R 1/ 4W

C926

1N

C932

NC

!

Q901

STW20NM60

57G 667 25

ZD902

MTZJ T-72 15B

C919 22pF/3KV

R921

1K 1% 1/8W

!

C964 470pF/250V

B+

Q904 KTD1691/P

57G 761 7

C918 1uF 25V

FB902

1 2

BEAD

R935 1M 1% 1/4W

R939 1M 1% 1/4W

R944 1M 1% 1/4W

R945

22K 1% 1/8W

1 2

D902

IN4148

R910

47R 1/8W

12

D904 IN4148

R916

47R 1/8W

C920

22pF/3KV

C905

10NF1KV

ZD901 MTZJ T-72 15B

R976

0R05 1/8W

R922 150R 1/8W

R931 1K2 /8W 1%

43

!

IC905

EL817MA

56G 139 7 1

STP10NK60ZFP

57G 667 50

R975

0R05 1/8W

!

Q902

STP10NK60ZFP

57G 667 50

10K 1/8W

100PF/2KV

R925

24K 1% 1/8W

C928

4.7uF

+

!

C933 82uF 450V

67G 42Z82015K

067G 42Z10115K *2

BO

Vcc

R946 1K 1/8W

R947

1K 1/8W

12

Q905

2N3904S-RTK/PS

!

Q903

R911

10K 1/8W

R917

C924

C927

+

!

C934 82uF 450V

67G 42Z82015K

R958

1M5 1/4W 1%

620K 1/8W 1%

3 4

6 7

C915

0.033uF 1K V

100N

56G 139 7 1

1 2

FB906

BEAD

067G 42Z10115K *2

R961

R964

R967

C960 220N

1.2R 2W

5V

R949 2K 1/8W

!

T902

POWER X'FMR

80TL42T 14 YS

12

9 8

14

11 10

13

R923

0R05 1/8W

43

!

IC902

EL817MA

IC903

KIA431A-AT/P

56G 158 12

R968

R963

4.7M 1/4W

R950

4.7R 1W

C945 100N

3

1

D906 SBT15006JST

93G 60298

R924

4.7K 1% 1/ 8W

12

C948 NC

IC901

1

S/OCP

2

BR

3

GND

4 5

FB/OLP VCC

A6069H

56T 379121

R948

2K7 1/8W

2

R926 3K 1% 1/8W

C930

100N 50V

100K 1/4W

D/ST

PS_ON

3

1

3

1

V40100C

93G 60315

+

C921

1000uF25V

5.1K 1% 1/8W

1

C946

0.1NF 2KV

2

C947

0.1NF 2KV

3 4

5

+

C956 100uF

ZD906 MTZJ1 2B

!

L904

3.0uH +-10%

470UF 35V

R927 20K5 1/8W 1%

R930 2K 1% 1/8W

Vcc

IC907

EL817MA

56G 139 7 1

C912

C923

100N

!

T901

POWER X'FMR

80GL52T 5 N2

C954

NC

43

+

R912

6 7

9 10

R962 220R 1/8W

12

R970

2K 1/8W

IC908 KIA431A-AT/P

56G 158 12

5.1K 1/4W

R928 56K 1% 1/8W

D911

3

SBT15006JST

93G 60298

2

1

R956

47R 1/4W

R957

2N2 500V

47R 1/4W

R965

2.4K 1% 1/8W

R966 1K 1/8W

C961 220N

R914

R913

5.1K 1/4W

12V

C949

R971

2.1K 1% 1/8W

R915

5.1K 1/4W

+

ZD905

MTZJ5 .6B

IN4148

Q906 PMBS3904

C913 1uF

12V

PS_ON

5V

L907

3.5uH

C950 330uF 16V

D919

24V

MTZJ T-72 30B

1 2

100R 1/8W

C963 100N

+

1000uF 16V

ZD903

D917 IN4148

R969

5V

C951

C952

0.1uF

24V

12V

ZD904 MTZJ T-72 15B

1 2

D918 IN4148

R972 1K 1/8W

1

2

3

4

5

6

7

8

9

10

11

12

13

CN904

CN903

CONN

1 2 3 4 5 6 7 8

9 10 11 12

CN905 CONN

R952

R951

100K 1/4W

R954 100K 1/4W

R953

D913

SARS01-V1

R955

2.2R 1/ 4W

D914

PR1007

93G110050152T

8

D916

7

IN4148

+

C955

C958

0.1uF

10uF

C959

4N7

1 2

D903

2

V40100C

93G 60315

2

+

C910

C911

1000UF 35V

D907

3.5uH

R929

1000UF 35V

L905

+

C922

470UF 25V

45

T P V ( Top Victory Electronics Co . , Ltd. )

G3196-1-X-X-5-100318

絬隔瓜絪腹

Key Component

02.Adapter

Date

OEM MOD EL Size

TPV MODEL

PCB NAME

715G3196-1-HV

Sheet

of

11Thursday, March 18, 2010

C

Rev

D

称爹

www.ma163.com 电子技术资料网

40K01HR 715G3885P01W20003M

1

4

3

!

L903

20.0MH

4

3

!

L902

2.0MH

73L 174 52 LG

4

680pF 250V

!

3

L901

20.0MH

73L 174 49 LG

4

!

C903

0.047UF 2 75V

330K 1/4W

RV901 NC

G

LN

033G8105 3A X *2

HS2

HS5

BO

3

2 1

!

C906

!

12

R903

t

F901 FUSE

HEAT SINK (IC 901)

HEAT SINK (D903, D906,D907)

CN902 CONN

N L

R941

220R 1/4W

!

NR901 NTCR

!

HS3

1 2

HS6

1 2

R943

5K1 1/8W

C931

1uF/520V

R932

0.1R 3W

R934

0.1R 3W

B+

!

C936

47uF 25V

R940 20K 1/8W

C942

C940

4N7

10N

R904

0.1 ohm

VCC1

C908 10uF

HS4

HEAT SINK (Q901)

1 2

HEAT SINK (BD901, D901)

FB903

BEAD

1 2

C902 470pF/250V

1 2

FB904 BEAD

VCC1

R905

2M 1% 1/4W

+

C909

0.1uF

93G 50460 35

C901

680pF 250V

!

R901

330K 1/4W

GBJ1008

!

BD901

+

2

-

2

1

!

C904

0.047UF 2 75V

2

1

2

1

!

R902

330K 1/4W

!

CN901

SOCKET

HEAT SINK (D 911)

1 2

HEAT SINK (Q902, Q903)

1 2

126

5

+

1

GND

2

ICOMP

3

ISENSE

VINS4VCOMP

ICE2PCS02G

56G 379104

C941 1N

2M 1% 1/4W

HS1

1 2

1N5408-E

L906 600uH 10%

73G 174148 S

C937 100N

GATE

VCC

VSENSE

IC906

R906

R908

2K 1/4W

D909

8

7

6

5

R907

2M 1% 1/4W

R909

30K 1% 1/8W

C914 470N

51R 1/8W

R942

51K 1/8W

C938 470N

C907

1N 50V

C916

1N

FB905

BEAD

1 2

FB901 BEAD

FB902

1 2

C932

NC

!

Q901

STW20NM60

57G 667 25

ZD902

C919 22pF/3KV

R921

1K 1% 1/8W

C964

470pF/250V

Q904 KTD1691/P

57G 761 7

1 2

C918 1uF 25V

R916

47R 1/8W

22pF/3KV

BEAD

R935 1M 1% 1/4W

R939 1M 1% 1/4W

R944 1M 1% 1/4W

R945

22K 1% 1/8W

D902

IN4148

R910

47R 1/8W

12

ZD901 MTZJ T-72 15B

D904 IN4148

C920

R922 150R 1/8W

C905

10NF1KV

0R05 1/8W

STP10NK60ZFP

R976

0R05 1/8W

R931 1K2 /8W 1%

43

!

IC905

EL817M

56G 139 9

STP10NK60ZFP

57G 667 50

R975

!

Q902

57G 667 50

R917

10K 1/8W

100PF/2KV

R925

24K 1% 1/8W

C928

4.7uF

+

C933 82uF 450V

67G 42Z82015K

067G 42Z10115K *2

BO

R946 1K 1/8W

!

Q903

R911

10K 1/8W

C924

D901

FMXA-1106S

D910

R933

R936

33R 1/8W

C939 1uF 25V

!

IN4148

1

2

3

4

5

6

7

8

C917

1uF 25V

C944

470pF/250V

Vsen

Vcc

FB

GND

Css

OC

RC

Reg

RV9COM

IC904 SSC9502S

56G 379112

D905

EG01A

1

R938

10K 1/8W

NC

VGH

VS

VB

NC

VGL

2

3

C943 1N

VCC1

18

17

16

15

14

13

12

11

10

R919

7.5R 1/4W

C926

1N

MTZJ T-72 15B

!

C929

470pF/250V

!

Vcc

R947

220R 1/8W

12

Q905

2N3904S-RTK/PS

+

!

C934 82uF 450V

67G 42Z82015K

R958

1M5 1/4W 1%

620K 1/8W 1%

3 4

6 7

C915

0.033uF 1KV

C927

100N

1 2

FB906

BEAD

067G 42Z10115K *2

R961

R964

R967

C960 220N

1.2R 2W

5V

R949

2K 1/8W

!

T902

POWER X'FMR

80TL42T 14 YS

12

9 8

14

11 10

13

R923

0R05 1/8W

43

!

IC902

EL817M

56G 139 9

IC903

KIA431A-AT/P

56G 158 12

R968

R963

4.7M 1/4W

R950

4.7R 1W

C945 100N

3

1

D906 SBT15006JST

93G 60298

R924

4.7K 1% 1/8W

12

1

2

3

R948

2K7 1/8W

2

C948 NC

IC901

S/OCP

BR

GND

FB/OLP4VCC

A6069H

56T 379121

R926 3K 1% 1/8W

C930

100N 50V

100K 1/4W

D/ST

PS_ON

3

1

3

1

V40100C

93G 60315

+

C921

1000uF25V

5.1K 1% 1/8W

R952 100K 1/4W

R954 100K 1/4W

D913

3.3R 1/4W

D914

PR1007

93G110050152T

D916

IN4148

+

C958 10uF

+

1000UF 35V

+

C922

470UF 25V

R955

C911

C946

0.1NF 2K V

C947

0.1NF 2K V

+

ZD906 MTZJ1 2B

1 2

3.0uH +-10%

R927 20K5 1/8W 1%

R930 2K 1% 1/8W

2

3 4

5

Vcc

C956 100uF

!

L904

C912

470UF 35V

POWER X'FMR

80GL52T 5 L2

C954

43

IC907

EL817M

56G 139 9

+

C923 100N

NC

T901

6 7

9 10

R962 220R 1/8W

12

2K 1/8W

56G 158 12

R912

5.1K 1/4W

R928 56K 1% 1/8W

R970

IC908 KIA431A-AT/P

R913

5.1K 1/4W

12V

47R 1/4W

R966 1K 1/8W

C961 220N

R956

R957

R914

3

1

D911 SBT15006JST

93G 60298

2

R965

2.4K 1% 1/8W

5.1K 1/4W

C949

2N2 500V

R971

2.2K 1% 1/8W

R915

L907

3.5uH

+

C950

C951

330uF 16V

1000uF 16V

ZD903

MTZJ T-72 30B

1 2

D917 IN4148

R969

Q906

100R 1/8W

PMBS3904

C963 100N

24V

10 11 12

CN905

CONN

1 2 3 4 5 6 7 8 9

13

CN904

CONN

C913

1uF

5.1K 1/4W

12V

PS_ON

5V

R972 1K 1/8W

1 2 3 4 5 6 7 8 9

24V

C952

0.1uF

12V

ZD904 MTZJ T-72 16B

1 2

D918 IN4148

1 2 3 4 5 6 7 8

9 10 11 12 13

CN903

CONN

5V

R951

R953

SARS01-V1

8

7

5

C955

0.1uF

C959

4N7

D903

2

V40100C

93G 60315

2

+

C910

D907

1000UF 35V

L905

3.5uH

R929

1

!

46

www.ma163.com 电子技术资料网

9.3 升压板

26K01HR 715G3335 1 2

CN8802

1

L

2

N

CONN

TA

CN8801

6 5 4 3 2 1

CONN

TB

TA

VS IS1

IS2

P1

P2

P4

P5

R8801 100 OHM +-5% 1/8W

R8802 100 OHM +-5% 1/8W

R8806 100 OHM +-5% 1/8W

R8807

100 OHM +-5% 1/8W

510 OHM +-5% 1/8W

R8811

R8812

510 OHM +-5% 1/8W

R8814

510 OHM +-5% 1/8W

R8815 510 OHM +-5% 1/8W

D8801 1N4148

D8802 1N4148

D8804 1N4148

D8805 1N4148

R8804 10KOHM +-5% 1/8W

C8801

0.01uF

J075 Jumper

D8806

R8808

MTZJ T-72 5.1B

100KOHM +-5% 1/8W

R8805

NC

VS

R8818 1K OHM

3

2

D8808

D-BAV99-7-F

POWER X'FMR

1

2

D8814 D-BAV99-7-F

T8801

POWER X'FMR

TP1TP

TP2TP

C8802 5pF/6KV

3

1

4

6

C8814

0.0056uF

T8802

C8815

0.0056uF

4

6

1 2

P1

C8803 5pF/ 6KV

1 2

!

3

2

D8809 D-BAV99-7-F

POWER X'FMR

1

2

D8815 D-BAV99-7-F

T8803

POWER X'FMR

TP3TP

TP4TP

C8804 5pF/ 6KV

3

1

4

6

C8816

0.0056uF

T8804

C8817

0.0056uF

1 2

P2

4

6

C8805 5pF/6KV

1 2

POWER X'FMR

!

3

2

D8812

D-BAV99-7-F

T8805

TP5TP

TP6TP

1

2

4

T8806

POWER X'FMR

1 2

6

C8810 5pF/6KV

3

C8822

0.0056uF

1

D8818 D-BAV99-7-F

4

6

P5

C8811 5pF/ 6KV

C8823

0.0056uF

1 2

!

2

D8811

D-BAV99-7-F

3

POWER X'FMR

TP7TP

TP8TP

1

2

4

T880 8

T880 7

POWER X'FMR

6

C8808 5pF/6KV

3

C8820

0.0056uF

1

D8817 D-BAV99-7-F

4

6

1 2

P4

C8809 5pF/6KV

C8821

0.0056uF

IS2

C8819

1 2

TB

C8807

5pF/ 6KV

R8816 39K OHM 1/8W

D8821 1N4148

R8817 24K 1/8W 1%

TP10

TP

!

4

T8810

T8809

POWER X'FMR

TP9TP

1 2

!

C8806 5pF/6KV

R8803

39K OHM 1/8W

R8813

24K 1/8W 1%

6

1 2

6

IS1

C8818

820pF

D8820 1N4148

47

www.ma163.com 电子技术资料网

32K01HR 715G4132P01000003H

CN8802

1

TB

2 3

CONN

CN8803

CONN

1 2 3

TA

CN8801

CONN

P1

P2

6 5 4 3 2 1

P3

VS IS1

IS2

R8801 100 OHM +-5% 1/8W

R8802 100 OHM +-5% 1/8W

R8806 100 OHM +-5% 1/8W

R8812

510 OHM +-5% 1/8W

R8811

510 OHM +-5% 1/8W

R8814

510 OHM +-5% 1/8W

D8801 1N4148

D8802 1N4148

D8804 1N4148

R8804 10KOHM +-5% 1/8W

C8801

1N 50V

R8807 1K 1/8W

D8806

R8808

MTZJ T-72 5.1B

100KOHM +-5% 1/8W

VS

R8805

100K OHM 1/8W

C8822 220pF; 50V

GPIN 1 1

GPIN 2

1

C8802 5pF/6KV

22KOHM +-1% 1/8W

R8817

2K2 +-1% 1/8W

VS

T8801

POWER X'FMR

C8818

330pF 50V

R8816

D8821

1N4148

R8823

1K OHM 1/8W +-5%

TA

!

4

IS2

6

IS2

C8819 330pF 50V

R8803 22KOHM +-1% 1/8W

R8813 2K2 +-1% 1/8W

!

T8802

POWER X'FMR

21

4

IS1

6

C8803 5pF/ 6KV

D8820 1N4148

R8818

1K OHM 1/8W +-5%

3

2

D8809 D-BAV99-7-F

POWER X'FMR

GPIN 3 1

GPIN 4

1

2

T8803

!

4

6

1

C8804 5pF/ 6KV

3

1

D8815 D-BAV99-7-F

21

5N6 50V

21

C8816

!

T8804

POWER X'FMR

4

6

P1

C8805 5pF/6KV

C8817 5N6 50V

R8819

1K OHM 1/8W +-5%

POWER X'FMR

T8805

!

4

GPIN5 1

GPIN6

3

2

D8813

D-BAV99-7-F

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

6

P2

1

C8812 5pF/6KV

3

1

2

D8819 D-BAV99-7-F

1K OHM 1/8W +-5%

G4132-P0A-X-X-1-100309

01.INVERTER

POWER X'FMR

21

C8824

5N6 50V

R8820

!

T8806

C8813 5pF/6KV

C8825

5N6 50V

4

6

GPIN7 1

GPIN8

3

2

D8811

D-BAV99-7-F

T8807

POWER X'FMR

!

4

6

1

C8808 5pF/6KV

3

C8820

1

2

OEM MODEL Size

TPV MODEL

PCB NAME

1

D8817 D-BAV99-7-F

Sheet

5N6 50V

G4132-P0A-X-X-1-100309

11Friday , March 12, 2010

of

21

C8809 5pF/6KV

C8821 5N6 50V

!

T8808

POWER X'FMR

21

P3

TB

4

6

Rev

SKYW ORTH MODEL

称爹

Custom

C

48

www.ma163.com 电子技术资料网

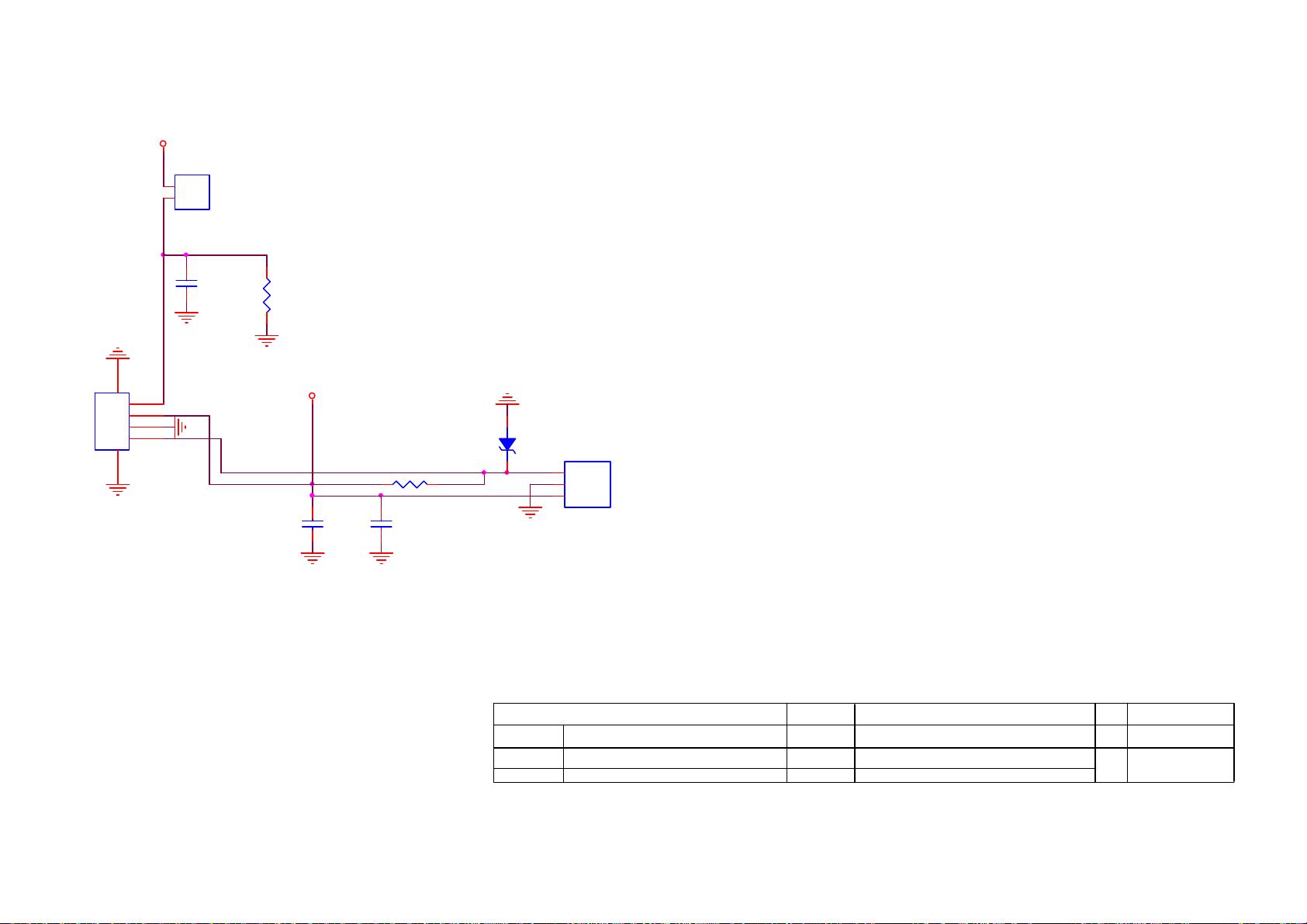

9.4 遥控板

715G4102R01000004S

VCC

U02

1

VCC

2

VOUT

ALS-PDIC 144-6C/L378

CN01

4 3 2 1

CONN

6 5

33G8032 6F HR

C03

3.3UF 10V

IRRV

R002

75K 1/10W

VCC

C01

100N 50V

R001 15K 1/10W

C02

NC/4. 7uF/16V

12

RLZ5.6B

ZD01

U01

1

VOUT

2

GND

3

VCC

KSM-603TM2M

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

01-IR&LED

OEM MODEL Size

TPV MODEL

PCB N AME

Sheet

X

40 Inch Skyworth K02 TV 0.2

11Wednesday , March 17, 2010

of

Rev

称爹

Custom

49

www.ma163.com 电子技术资料网

9.5 按键板

715G4103K01000004F

SW0107

POWER

CN0101

CONN

C0103

100nF 50V

CH+

VOL+

65

1 2

KEY 2

3

KEY 1

4

C0102

100nF 50V

C0101

100nF 50V

VOL-

CH-

Menu

INPUT

R0103

8.2K +-1% 1/8W

R0104

470 OHM +-1% 1/8W

R0105

2.2KOHM +-1% 1/8W

R0101

8.2K +-1% 1/8W

R0102

470 OHM +-1% 1/8W

R0106

77G 607 2 FD

SW0103

77G 607 2 FD

SW0104

77G 607 2 FD

SW0105

77G 607 2 FD

SW0101

77G 607 2 FD SW0102

77G 607 2 FD

SW0106

2.2KOHM +-1% 1/8W

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

01.KEY board

Wednesday , January 27, 2010

50

77G 607 2 FD

OEM MOD EL Size

TPV MO DEL

PCB NAME

Sheet

/

11

of

A

Rev

称爹

www.ma163.com 电子技术资料网

10. BOM

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

26K01HR E26A22NDWFSWNN

点位料号描述备注

052G 1186 SMALL TAPE 052G 2191 A PAPER TAPE 089G214A18N IS POWER CORD 1.8M FA37B201312180TP

ECN7102 095G801313W666 HARNESS 13P(H2506H)-13P(A2008H) 120MM 2nd source ECN7102 095G801313X666 HARNESS 13P(H2506H)-13P(A2008H) 120MM ECN5201 095G8018 3LJ19 LVDS CABLE 30P-30P(1.25MM) 360MM ECN5201 095G8018 3XJ19 LVDS CABLE 30P-30P(1.25MM) 360MM 2nd source

ECN801 095G8021 3D 52 HARNESS 3P-3P 300MM

098GR8BD1NCSWH SKYWORTH-ASSIGNED FOR YK-60HA 0M1G 930 8 47 CR3 SCREW 0M1G 930 8 47 CR3 SCREW 0M1G 940 6120 SCREW (M4X6) 0M1G1730 6120 SCREW,42-D020523 0M1G1730 10120 SCREW 42A9930016 0M1G1740 12 47 CR3 SCREW 0Q1G 930 8 47 CR3 SCREW 0Q1G 940 12 47 CR3 SCREW 0Q1G 940 16 47 CR3 SCREW 0Q1G1030 8120 SCREW 705TQ949001 COMSUPTIVE ASS'Y-A4 705TQA34E15 BEZEL ASS`Y 001G6021 1 SCREW 044G3231 15553 GASKET 044G3231 15563 EVA WASHER

SP01 078G0060502 K SPK 8 OHM 6W KUAIDA

SP01 078G0060502 Y SPK 8 OHM 6W SUNLINK ECN5401 095G801413W678 HARNESS 13P-6P+4P 600/700 ECN5401 095G801413X678 HARNESS 13P-6P+4P 600/700 2nd source

0Q1G1030 6120 SCREW A33E0788ADTD1L0100 KEY COVER A33E0789ADT 1L0100 KEY BUTTON Q33E0409 1 1C0100 LENS_POWER_32SKYWORTH Q34E7157AFLA1L0130 BEZEL 26SKYWORTH Q34E7158 1A1C0100 DECO_BEZE_26SKYWORTH 705TQA34E16 REAR COVER ASS'Y P15T8299 2 VEAS-BKT Q34E7059ADT 2A0130 REAR COVER 26SKYWORTH Q36T 600 37 16 NONWOVEN FABRIC

51

www.ma163.com 电子技术资料网

Q40G2010 26104 I/O LABEL 705TQA34E17 STAND ASS'Y 0M1G1740 12 47 CR3 SCREW 0Q1G 130 6 47 CR3 SCREW Q12G6082 1 FOOT PAD Q15T0669101 BKT-BASE Q34E7060ADT 1L0100 STAND Q34E7061ADT 1L0100 BASE Q37T0175011 HINGE 705TQA77001 SWITCH ASS'Y 077G 30612A S POWER SW 2P 15 600G 2377202

ECN9501 095G8021 3L574 HARNESS 3P(3.96) 550 ECN9501 095G8021 3X574 HARNESS 3P(3.96) 550 2nd source

096G 29 6 H.S. TUBE 096G 29 8 TUBE

E750 750TVV260B2118N000 PANEL TPT260B2-L01 C1A XM TPV

756TQACB 2D004 04 MAIN BOARD-CBPF92QDY1

U4105 056G2233 15 IC MX25L6445EM2I-10G 64MB SOP-8

U4103 056T1133933 IC AT24C32CN-SH-T SO8 SMTF-U4105 100TWKVF001D31 MCU ASS'Y-056G2233 15 SMTF-U4103 100TWKVF002D21 MCU ASS'Y-056T1133933

CN7103 033G3278 4D 2.5MM PITCH WAFER CN7102 033G327813D CONNECTOR

CN602 033T3278 4D CONNECTOR

CN5401 033T380213B Y L CONNECTOR 13P 2.0

C636 067G215S3316KV EC 330UF M 35V 10*12MM C640 067G215S3316KV EC 330UF M 35V 10*12MM

C666 067G215S3316KV EC 330UF M 35V 10*12MM C7108 067G215S3316KV EC 330UF M 35V 10*12MM C7109 067G215S3316KV EC 330UF M 35V 10*12MM

L600 073G 253178 H CHOKE COIL 22UH 25% L220S HA

L601 073G 253178 H CHOKE COIL 22UH 25% L220S HA

L600 073G 253178 L CHOKE COIL 22UH+-25% CC-005184

L601 073G 253178 L CHOKE COIL 22UH+-25% CC-005184

CN1202 088G 78 13 77 YG RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM 2nd source CN1203 088G 78 13 78 YG RCA JACK 1*3 Y/W/R V/T 10.5MM 2nd source CN1501 088G 78 13 78 YG RCA JACK 1*3 Y/W/R V/T 10.5MM 2nd source CN1202 088G 78 1377C RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM CN1203 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM CN1501 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM CN1102 088G 302 69 YG PHONE JACK 3P GREEN 10.5MM V/T 2nd source CN1102 088G 30269C PHONE JACK 3.5MM 3P GREEN V/T 10.5MM CN1402 088G 350 1 CL USB CONN AX2

52

www.ma163.com 电子技术资料网

CN1402 088G 350A00 YG USB CONNECTOR AX2 TYPE USB-202 2nd source CN1101 088G353A15FCSL D-SUB 15PIN FEMALE VERTICAL SCREWED CN1101 088G353A15FXSH D-SUB 15PIN FEMALE VERTICAL SCREWED 2nd source CN1401 088T 7813A19C RCA JACK 1*3 R/W/Y

TU100 094T PALALL1LS TCL TUNER M40CTP-2PN-E

709G4089 QM001 COMSUPTIVE ASS'Y 055G 23524 WELDING FLUX WITHOUT PB Q55G 100625 TIN STICK_LOW ARGENTUM

C7103 067G 3051013PT EC 100UF 20% 16V 5*11 C7106 067G 3054712CT EC 470UF 10V KM 8*11.5MM

C717 067G215H1014CT EC 100UF 20% 25V SY 8*7

C746 067G215H2213CT EC 220UF 16V SY 8X7MM C7155 067G305M1003CT E.C CAP 10UF M 16V 4*7 C5124 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C4209 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C672 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C7163 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C722 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C1410 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C201 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C1406 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C219 067G305M3312CT EC 330UF 10V SJ 8X7MM C1504 067G305M3312CT EC 330UF 10V SJ 8X7MM

C221 067G305M4704PT EC 47UF 25V 6.3¦µ*7MM

709G4089 QA001 COMSUPTIVE ASS'Y

U704 056G 379 92 IC G5627F11U SOP-8(FD) U4201 056G 562312 IC SCALER MT8222AHMU/B LQFP256 U7102 056G 563 93 IC G9084T43U TO-252 U7110 056G 563121 IC G1084-33TU3UF TO-263T U7110 056G 563254 LDO AZ1084S2-3.3TRG1 5A 3.3V TO263-2

U159 056G 563519 IC G965-25ADJPIUF 1.8A SOP-8 U6102 056G 614 1 74HC4052D S016 PHLIPS U6101 056G 614 1 74HC4052D S016 PHLIPS U4106 056G 615 67 IC NT5TU32M16CG-25C 512MB BGA-84

U603 056G 616518 IC R2A15112FP HTQFP48 U4203 056G 638601 CS4344-CZZ

U101 056G 662502 C ESD AZC199-04S SOT23-6L

U103 056G 662502 C ESD AZC199-04S SOT23-6L U4105 056G2233 15 IC MX25L6445EM2I-10G 64MB SOP-8 U7104 056T 563146 IC G912T63U 1A/1.2V SOT-223 U4103 056T1133933 IC AT24C32CN-SH-T SO8

Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04)

53

www.ma163.com 电子技术资料网

Q7101 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q611 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q609 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q1705 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q1702 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q1502 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q608 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q610 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q4101 057G 761 15 PDTC114ET SOT23 Q6101 057G 761 15 PDTC114ET SOT23 Q6102 057G 761 15 PDTC114ET SOT23 Q6103 057G 761 15 PDTC114ET SOT23

Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q1501 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q1601 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q1605 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

TH1402 061G 52902 W PTC CHIP 8V 0R4 KMC4S075RY TH1401 061G 52902 W PTC CHIP 8V 0R4 KMC4S075RY RP5106 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5105 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5104 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5103 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5102 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

R1509 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1508 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R5401 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R4258 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R4257 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R4219 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1233 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1404 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1405 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

54

www.ma163.com 电子技术资料网

R1417 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1418 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1606 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1503 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1624 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1625 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1708 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1710 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1711 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1715 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1716 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1723 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1724 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R4210 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R4211 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1707 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R4260 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R5111 061G04021000FT RST CHIP 100R 1/16W 1% R4149 061G04021001FY RST CHIPR 1KOHM 1% 1/16W YAGEO R4148 061G04021001FY RST CHIPR 1KOHM 1% 1/16W YAGEO R4146 061G04021001FY RST CHIPR 1KOHM 1% 1/16W YAGEO R5424 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R5423 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1110 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1609 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1407 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1232 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1217 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1120 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1119 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R4143 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R1722 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R1703 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R4207 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO

R720 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO

R734 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R4137 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R4138 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R616 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R4229 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4234 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO

55

www.ma163.com 电子技术资料网

R4259 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R6125 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R6126 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R6127 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4235 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4000 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4001 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4223 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4220 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4216 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4215 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4214 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4139 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R1502 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R1104 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R1103 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4227 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R4222 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R6314 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R6313 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R1124 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO R1126 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO R1416 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1410 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1241 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1240 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1216 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1215 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R5114 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R5113 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R5112 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4233 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4232 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4231 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4228 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4225 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4224 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R6104 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R6103 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R6102 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R6101 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R1122 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R1123 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

56

www.ma163.com 电子技术资料网

R1505 061G0402333 JF RST CHIP 33K 1/16W 5% FENGHUA R4141 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R5414 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R4002 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R4003 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R5416 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R5417 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R1623 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R1626 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R569 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R620 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1713 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1712 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1705 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1704 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R6130 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6129 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6123 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6122 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6119 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6114 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6112 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6111 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6110 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6109 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R1725 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R1701 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6136 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6168 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6131 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6135 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R5402 061G0402479 JF RST CHIPR 4.7 OHM +-5% 1/16W FENGHUA R5404 061G0402479 JF RST CHIPR 4.7 OHM +-5% 1/16W FENGHUA R4226 061G0402513 JF RST CHIP 51K 1/16W 5% FENGHUA R4230 061G0402513 JF RST CHIP 51K 1/16W 5% FENGHUA R1414 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1409 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1239 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1238 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1214 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1213 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1222 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1221 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO

57

www.ma163.com 电子技术资料网

R1204 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1115 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1114 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1111 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1116 061G04027509FT RST CHIP 75R 1/16W 1% R1117 061G04027509FT RST CHIP 75R 1/16W 1% R1118 061G04027509FT RST CHIP 75R 1/16W 1% R1218 061G04027509FT RST CHIP 75R 1/16W 1% R1219 061G04027509FT RST CHIP 75R 1/16W 1% R1220 061G04027509FT RST CHIP 75R 1/16W 1% R1223 061G04027509FT RST CHIP 75R 1/16W 1% R1408 061G04027509FT RST CHIP 75R 1/16W 1% R1504 061G04027509FT RST CHIP 75R 1/16W 1% R1610 061G04027509FT RST CHIP 75R 1/16W 1% R1125 061G0402752 JF RST CHIP 7K5 1/16W 5% FENGHUA R1127 061G0402752 JF RST CHIP 7K5 1/16W 5% FENGHUA R7513 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R7515 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R725 061G0603100 JY RST CHIPR 10OHM 1/10W YAGEO R7107 061G06031000FY RST CHIPR 100 OHM +-1% 1/10W YAGEO R4250 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R438 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA R1706 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA R1726 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA R7121 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R719 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R670 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R668 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R665 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R662 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R660 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R657 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R613 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R460 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R404 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R406 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R4142 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R440 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R442 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R454 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R490 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R491 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R565 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

58

www.ma163.com 电子技术资料网

R622 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R637 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R638 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R639 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R716 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R717 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R726 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R733 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R443 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R173 061G06031202FY RST CHIPR 12KOHM +-1% 1/10W YAGEO

R664 061G0603122 JF RST CHIPR 1.2KOHM 5% 1/10W FENGHUA

R659 061G0603122 JF RST CHIPR 1.2KOHM 5% 1/10W FENGHUA

R663 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA

R658 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA

R728 061G06031602FF RST CHIPR 16KOHM +-1% 1/10W FENGHUA

R669 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA

R667 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA R7147 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA R7110 061G06032209FT RST CHIP 22R 1/10W 1%

R567 061G0603224 JF RST CHIPR 220KOHM +-5% 1/10W FENGHUA

R731 061G0603224 JF RST CHIPR 220KOHM +-5% 1/10W FENGHUA

R739 061G0603229 JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA R7108 061G06032409FT RST CHIP 24R 1/10W 1% R7108 061G06032409FY RST CHIP 24R 1/10W 1% R1106 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R799 061G0603274 JF RST CHIPR 270KOHM 5% 1/10W FENGHUA

R614 061G0603303 JY RST CHIPR 30KOHM 1/10W YAGEO

R618 061G0603303 JY RST CHIPR 30KOHM 1/10W YAGEO

R441 061G06033301FF RST CHIPR 3.3KOHM +-1% 1/10W FENGHUA

R444 061G06033301FF RST CHIPR 3.3KOHM +-1% 1/10W FENGHUA

R615 061G0603333 JY RST CHIPR 33KOHM 1/10W YAGEO R7145 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN

R610 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R729 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R730 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R732 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA R7103 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA R4221 061G06035101FY RST CHIPR 5.1KOHM +-1% 1/10W YAGEO

R456 061G0603512 JY RST CHIPR 5.1KOHM +-5% 1/10W YAGEO

R727 061G06036201FY RST CHIPR 6.2KOHM +-1% 1/10W YAGEO R4217 061G0603824 JF RST CHIPR 820KOHM 5% 1/10W FENGHUA R1506 061G08051500FF RST CHIPR 150OHM +-1% 1/8W FENGHUA R1506 061G08051500FT RST CHIPR 150 OHM +-5% 1/8W

59

www.ma163.com 电子技术资料网

R172 061G08053832FF RST CHIPR 38.3KOHM +-1% 1/8W FENGHUA R7520 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R7521 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

C677 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C675 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C6321 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C6306 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C415 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C1519 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C1513 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C1219 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1218 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1217 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1209 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1115 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1110 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1109 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1108 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C4210 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4211 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4212 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4213 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4218 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4220 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4223 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4225 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5114 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5115 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5401 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5402 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5403 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C6122 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C6123 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4110 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5404 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4263 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4256 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4253 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5113 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4283 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4284 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4285 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4286 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

60

www.ma163.com 电子技术资料网

C4287 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4291 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4293 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4294 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4295 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4298 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4301 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5112 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4231 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4228 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4275 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4272 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4269 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4268 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4266 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4280 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4279 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4277 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4281 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4282 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4232 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4251 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4248 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4247 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4246 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4245 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4244 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4243 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4242 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4241 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4240 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4237 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4234 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4208 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1405 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1407 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1502 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1602 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1615 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1620 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4109 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4205 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C637 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

61

www.ma163.com 电子技术资料网

C676 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C678 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R R1517 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R R1518 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R R1518 065G0402105A5K Y CAP 0402 1UF K 10V X5R R1517 065G0402105A5K Y CAP 0402 1UF K 10V X5R C4305 065G040212031J Y CAP CHIP 0402 12P 50V NPO +/-5% C1208 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO C1215 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO C1216 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO C4003 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R C4002 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R C7164 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10% C7165 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10% C4215 065G040227031J A CAP 0402 27PF J 50V NPO C4215 065G040227031J Y CAP CHIP 0402 27P 50V NPO +/-5% C5405 065G040233031J Y CAP CHIP 0402 33P 50V NPO +/-5% C1622 065G040233031J Y CAP CHIP 0402 33P 50V NPO +/-5% C1621 065G040233031J Y CAP CHIP 0402 33P 50V NPO +/-5% C1417 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1416 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1415 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1414 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1237 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1236 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1231 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1229 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1222 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1221 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1220 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1214 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1119 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1118 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1117 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1116 065G040233131J T CAP CHIP 0402 330PF 50V NPO C4259 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C4292 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5116 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5118 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5119 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5120 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5121 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5122 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

62

www.ma163.com 电子技术资料网

C1234 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C1403 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C1612 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C1111 065G040247232K Y CAP CHIP 0402 4700P 50V X7R +/-10% C1235 065G040247232K Y CAP CHIP 0402 4700P 50V X7R +/-10% C1233 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C1408 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C1233 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R C1408 065G040247312K T CAP CHIP 0402 0.047UF 16V X7R C1112 065G040250931J Y CAP CHIP 0402 5PF 50V NPO C1113 065G040250931J Y CAP CHIP 0402 5PF 50V NPO C1114 065G040250931J Y CAP CHIP 0402 5PF 50V NPO

C730 065G060310221J Y CAP CHIP 0603 1N 25V NPO +/-5% C7104 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C7105 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C7114 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C7116 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C7154 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C7156 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C716 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C719 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C720 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C728 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C732 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C734 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C735 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C667 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C665 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C657 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C641 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C639 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C638 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C635 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C7102 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C7110 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C7111 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C7115 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C6105 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C6101 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C6105 065G060310512K M CAP 0603 1UF 10% 16V X7R C6101 065G060310512K M CAP 0603 1UF 10% 16V X7R C6101 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C6105 065G060310512K T CAP CHIP 0603 1UF K 16V X7R

63

www.ma163.com 电子技术资料网

C4000 065G060310522K M CAP MLCC 0603 1UF K 25V X7R C4001 065G060310522K M CAP MLCC 0603 1UF K 25V X7R C4001 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6114 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6113 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6109 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6108 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6107 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6104 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C4000 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6118 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6117 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6103 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C1627 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C6102 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C1627 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6102 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6103 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6104 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6107 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6108 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6109 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C4000 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C4001 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6118 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6117 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6114 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C6113 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R C1508 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10% C1509 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C729 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10% C1508 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C1509 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C729 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C4250 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C425 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4207 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4216 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4219 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4224 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4227 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4230 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4233 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

64

www.ma163.com 电子技术资料网

C4236 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4238 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C424 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4249 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4261 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4304 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4303 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4290 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4274 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4270 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4267 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4264 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4262 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20% C4107 065G060322422K Y CAP CHIP 0603 0.22UF K 25V X7R

C470 065G060322422K Y CAP CHIP 0603 0.22UF K 25V X7R

C721 065G060322422K Y CAP CHIP 0603 0.22UF K 25V X7R C4214 065G060327031J Y CAP CHIP 0603 27P 50V NPO +/-5% C1610 065G060347332K F CAP CHIP 0603 47NF K 50V X7R C4222 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4255 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4254 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4239 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4229 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4217 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C5111 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4289 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4276 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4273 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4271 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4265 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4252 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4235 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4226 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4203 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4204 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4221 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R C4289 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4276 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4273 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4271 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4265 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4252 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4235 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

65

www.ma163.com 电子技术资料网

C4226 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4222 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4221 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4204 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4203 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C5111 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4255 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4254 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4239 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4229 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C4217 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C643 065G080510512K 3 MLCC 0805 CAP 1UF K 16V X7R

C652 065G080510512K 3 MLCC 0805 CAP 1UF K 16V X7R

C654 065G080510512K 3 MLCC 0805 CAP 1UF K 16V X7R

C654 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C652 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C643 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C654 065G080510512K Y CAP CHIP 0805 1U 16V X7R +/-10%

C652 065G080510512K Y CAP CHIP 0805 1U 16V X7R +/-10%

C643 065G080510512K Y CAP CHIP 0805 1U 16V X7R +/-10%

C653 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80%

C651 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80%

C646 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80%

C644 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80% C4108 065G0805106A5K 3 CHIP 10UF 10V X5R 10% C4299 065G0805106A5K 3 CHIP 10UF 10V X5R 10% C4300 065G0805106A5K 3 CHIP 10UF 10V X5R 10% C4302 065G0805106A5K 3 CHIP 10UF 10V X5R 10% C4108 065G0805106A5K T CHIP 10UF 10V X5R 0805 C4299 065G0805106A5K T CHIP 10UF 10V X5R 0805 C4300 065G0805106A5K T CHIP 10UF 10V X5R 0805 C4302 065G0805106A5K T CHIP 10UF 10V X5R 0805

C723 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10%

C723 065G080522512K M MLCC 0805 CAP 2.2UF 16V X7R

C642 065G080547432K F CAP CHIP 0805 0.47UF K 50V X7R

C668 065G080547432K F CAP CHIP 0805 0.47UF K 50V X7R

C642 065G080547432K M MLCC 0805 0.47UF 50V X7R

C668 065G080547432K M MLCC 0805 0.47UF 50V X7R

C642 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C668 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C642 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C642 065G080547432K Y CAP CHIP 0805 470N 50V X7R +/-10%

66

www.ma163.com 电子技术资料网

C668 065G080547432K Y CAP CHIP 0805 470N 50V X7R +/-10%

C727 065G080547525K T CAP MLCC 0805 4.7UF K 25V X5R

C727 065G080547525K Y CAP CHIP 0805 4U7 25V X5R +/-10% C4288 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10% C4278 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10% C4206 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10% C4306 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10% C4288 065G0805475A2K T CAP CHIP 4U7 10V X7R 10% C4278 065G0805475A2K T CAP CHIP 4U7 10V X7R 10% C4206 065G0805475A2K T CAP CHIP 4U7 10V X7R 10% C4206 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R C4278 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R C4306 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R C4288 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C718 065G0805475A7Z Y CAP CHIP 4.7UF 10V Y5V -20%~+80%

C733 065G0805475A7Z Y CAP CHIP 4.7UF 10V Y5V -20%~+80% C6119 065G1206226A5K 3 CHIP 22UF 10V X5R C6121 065G1206226A5K 3 CHIP 22UF 10V X5R

C731 065G1206226A5K 3 CHIP 22UF 10V X5R C6119 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R C6121 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

C731 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

C220 067G311F4703NT

C218 067G311F4703NT C1503 067G311F4703NT

C410 067G311F4703NT C5201 067G311F4703NT FB152 071G 56A221 M CHIP BEAD 0805 220R/2000MA FB151 071G 56A221 M CHIP BEAD 0805 220R/2000MA

FB1403 071G 56A221 M CHIP BEAD 0805 220R/2000MA FB1402 071G 56A221 M CHIP BEAD 0805 220R/2000MA FB1402 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

FB152 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

CAP S105℃ 47UF M 16V CAP S105℃ 47UF M 16V

CAP S105℃ 47UF M 16V

FB151 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

FB1403 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

FB703 071G 56G301 EA BEAD 300 OHM FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A

FB7102 071G 56K121 CHIP BEAD FB7105 071G 56K121 CHIP BEAD FB7111 071G 56K121 CHIP BEAD FB7112 071G 56K121 CHIP BEAD FB7113 071G 56K121 CHIP BEAD FB7118 071G 56K121 CHIP BEAD

67

www.ma163.com 电子技术资料网

FB7115 071G 56K121 CHIP BEAD FB7116 071G 56K121 CHIP BEAD FB7102 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB7105 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB7111 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB7112 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB7113 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB7118 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB7115 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB7116 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB4103 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4201 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4202 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4203 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4204 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4205 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4206 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4207 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4208 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4209 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4210 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4221 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4220 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4219 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4218 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4217 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4216 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4215 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4214 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4213 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4212 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4211 071G 59A121 M CHIP BEAD 0603 120R/3000MA FB4103 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4201 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4202 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4203 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4204 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4205 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4206 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4207 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4208 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4209 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4210 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

68

www.ma163.com 电子技术资料网

FB4211 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4212 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4213 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4214 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4215 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4216 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4217 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4218 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4219 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4220 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB4221 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30 FB1104 071G 59K300 M CHIP BEAD 0603 30R 700MA FB1103 071G 59K300 M CHIP BEAD 0603 30R 700MA FB1102 071G 59K300 M CHIP BEAD 0603 30R 700MA FB1102 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH FB1103 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH FB1104 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH FB1412 071G 59Q121 M CHIP BEAD 120R/500MA MGLB1608E121T-LF FB1411 071G 59Q121 M CHIP BEAD 120R/500MA MGLB1608E121T-LF FB1410 071G 59Q121 M CHIP BEAD 120R/500MA MGLB1608E121T-LF FB1410 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB1411 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT FB1412 071G 59Q121 T CHIP BEAD 120R/500MA MMZ1608S121CT

FB703 071T 56G301 TA CHIP BEAD 300OHM 4000MA HCB2012KF-301T40

L700 073G253S 46 H SMD CHOKE 4.7UH

L700 073G253S 46 X SMD CHOKE 4.7UH 2.8A

CN1701 088G 34019H VA HDMI HEADER 19P V/T H:13.0MM CN1702 088G 34019H VA HDMI HEADER 19P V/T H:13.0MM CN1701 088G 34019H VD HDMI HEADER 19P V/T H:13.0MM 2nd source CN1702 088G 34019H VD HDMI HEADER 19P V/T H:13.0MM 2nd source CN1702 088G 34019H VT HDMI HEADER 19P V/T H:13.0MM 2nd source CN1701 088G 34019H VT HDMI HEADER 19P V/T H:13.0MM 2nd source

D1705 093G 60505 DIO SIG SM BAT54C(PHSE)R D1706 093G 60505 DIO SIG SM BAT54C(PHSE)R D1708 093G 60505 DIO SIG SM BAT54C(PHSE)R

D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R ZD600 093G 39S 44 T RLZ18B LLDS

ZD5406 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS ZD5405 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS ZD5402 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS ZD5401 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS ZD1102 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS

ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

69

www.ma163.com 电子技术资料网

ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ D7101 093G1020 PH DIODE S1D-E3 VISHAY X4201 093T 22S920 C CRYSTAL 27MHZ 20P SMD-49

CN5201 311GW125A30ACH WAFER 1.25MM 30P

709G4089 QS001 COMSUPTIVE ASS'Y 052G 2191 A PAPER TAPE 055G 100610 TIN CREAM W/O PB Q52G6026 7 MESH PRINTTING PAPER

E715 715G4089M0F000004L TV MAIN-PCB FR-4 193X186X1.6MM DS

E715 715G4089M0F000004W TV MAIN-PCB FR-4 193X186X1.6MM DS 2nd source

FB1 Q85T0174101 SHIELDING COVER -TOP FB1 Q85T0175101 SHIELDING COVER -BOTTOM

INTV8GAAMAA5 INVERTER BOARD 040G 45762412B CBPC LABEL

CN8807 033G8020 7D U CONN.DIP R/A 2nd source CN8806 033G8020 7D U CONN.DIP R/A 2nd source CN8805 033G8020 7D U CONN.DIP R/A 2nd source CN8804 033G8020 7D U CONN.DIP R/A 2nd source CN8803 033G8020 7D U CONN.DIP R/A 2nd source CN8807 033G8020 7E F CONNECTOR CN8806 033G8020 7E F CONNECTOR CN8805 033G8020 7E F CONNECTOR CN8804 033G8020 7E F CONNECTOR CN8803 033G8020 7E F CONNECTOR CN8802 033G8029 3A H B2P3S-VH

C8811 065G 6J5096ET CAP CER 5PF J 6KV C8810 065G 6J5096ET CAP CER 5PF J 6KV C8809 065G 6J5096ET CAP CER 5PF J 6KV C8808 065G 6J5096ET CAP CER 5PF J 6KV C8807 065G 6J5096ET CAP CER 5PF J 6KV C8806 065G 6J5096ET CAP CER 5PF J 6KV C8805 065G 6J5096ET CAP CER 5PF J 6KV C8802 065G 6J5096ET CAP CER 5PF J 6KV C8803 065G 6J5096ET CAP CER 5PF J 6KV C8804 065G 6J5096ET CAP CER 5PF J 6KV

T8810 080GL26T 12 H INVERTER X'FMR 230UH VOC T8809 080GL26T 12 H INVERTER X'FMR 230UH VOC T8808 080GL26T 12 H INVERTER X'FMR 230UH VOC T8807 080GL26T 12 H INVERTER X'FMR 230UH VOC T8806 080GL26T 12 H INVERTER X'FMR 230UH VOC

70

www.ma163.com 电子技术资料网

T8805 080GL26T 12 H INVERTER X'FMR 230UH VOC T8804 080GL26T 12 H INVERTER X'FMR 230UH VOC T8803 080GL26T 12 H INVERTER X'FMR 230UH VOC T8802 080GL26T 12 H INVERTER X'FMR 230UH VOC T8801 080GL26T 12 H INVERTER X'FMR 230UH VOC T8810 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8809 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8808 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8807 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8806 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8805 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8804 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8803 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8802 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC T8801 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

CN8801 095G 825 6D504 HARNESS 6P(SCN)-5P(PLUG) 140MM

R8807 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8806 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8801 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R8805 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R8804 061G0805103 RST CHIPR 10K OHM +-5% 1/8W R8808 061G0805104 RST CHIPR 100K OHM +-5% 1/8W R8813 061G0805243 RST CHIPR 24 KOHM +-5% 1/8W R8817 061G0805243 RST CHIPR 24 KOHM +-5% 1/8W R8803 061G0805393 RST CHIPR 39KOHM +-5% 1/8W R8816 061G0805393 RST CHIPR 39KOHM +-5% 1/8W R8815 061G0805511 RST CHIPR 510 OHM +-5% 1/8W R8814 061G0805511 RST CHIPR 510 OHM +-5% 1/8W R8812 061G0805511 RST CHIPR 510 OHM +-5% 1/8W R8811 061G0805511 RST CHIPR 510 OHM +-5% 1/8W JR801 061G1206000 RST CHIP MAX 0R05 1/4W C8801 065G080510332K A CAP CHIP 0805 10NF K 50V X7R C8823 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8822 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8821 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8820 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8817 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8816 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8815 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8814 065G080556231J 3 CAP CHIP 0805 5N6 50V NPO +/-5% C8814 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO C8815 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO

71

www.ma163.com 电子技术资料网

C8816 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO C8817 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO C8820 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO C8821 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO C8822 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO C8823 065G080556231J F CAP CHIP 0805 5600PF J 50V NPO C8814 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8815 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8816 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8817 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8820 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8821 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8822 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8823 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO C8818 065G080582131G F CAP CHIP 0805 820PF G 50V NPO C8819 065G080582131G F CAP CHIP 0805 820PF G 50V NPO D8818 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8814 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8812 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8809 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8808 093G 64 33 DIO SIG SM BAV99 (PHSE)R D8818 093G 6433S DIODE BAV99 SEMTECH D8817 093G 6433S DIODE BAV99 SEMTECH D8815 093G 6433S DIODE BAV99 SEMTECH D8814 093G 6433S DIODE BAV99 SEMTECH D8812 093G 6433S DIODE BAV99 SEMTECH D8811 093G 6433S DIODE BAV99 SEMTECH D8809 093G 6433S DIODE BAV99 SEMTECH D8808 093G 6433S DIODE BAV99 SEMTECH D8806 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34 D8821 093G 64 1152T 1N4148 D8820 093G 64 1152T 1N4148 D8805 093G 64 1152T 1N4148 D8804 093G 64 1152T 1N4148 D8802 093G 64 1152T 1N4148 D8801 093G 64 1152T 1N4148 D8821 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8805 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

72

www.ma163.com 电子技术资料网

D8820 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

J805 095G 90 23 JUMPER WIRE J804 095G 90 23 JUMPER WIRE J806 095G 90 23 JUMPER WIRE J807 095G 90 23 JUMPER WIRE J808 095G 90 23 JUMPER WIRE J809 095G 90 23 JUMPER WIRE J810 095G 90 23 JUMPER WIRE J801 095G 90 23 JUMPER WIRE J811 095G 90 23 JUMPER WIRE J802 095G 90 23 JUMPER WIRE J803 095G 90 23 JUMPER WIRE

715G3335 1 2 INVERTER PCB CEM-1 70X297X1.6MM S/S

T8809 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ Q34FPE13P02P02

T8801 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ Q34FPE13P02P02

T8802 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ Q34FPE13P02P02

T8808 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ

稀释剂半成品骨架 EEL13

稀释剂半成品

Q34FPE13P02P02

T8807 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ Q34FPE13P02P02

T8804 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ

骨架 EEL13

稀释剂半成品骨架 EEL13

稀释剂半成品

73

www.ma163.com 电子技术资料网

Q34FPE13P02P02

T8805 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13

骨架 EEL13

055FP200 4 S80GL26T12VZ Q34FPE13P02P02

T8810 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ Q34FPE13P02P02

T8806 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ Q34FPE13P02P02

T8803 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13 055FP200 4 S80GL26T12VZ

稀释剂半成品骨架 EEL13

稀释剂

半成品 Q34FPE13P02P02 IRPFAYQ3 IR BOARD G4102-D-X-X-1-100317

U02 056G 527 2 IC LS ALS-PDIC144-6C/L378 U01 056G 627911 IR 38KHZ KSM-603TM2M

Q11G5056 6 IR-HOLDER

CN01 033G8032 6F HR CONNECTOR

R001 061G0603153 JY RST CHIPR MAX 15KOHM 1/10W YAGEO R002 061G0603753 JT RST CHIP 75K 1/10W 5% TZAI YUAN R002 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO

C01 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C03 065G0805335A5K T CAP CHIP 0805 3.3UF K 10V X5R

LED01 081T 14 25 EL CHIP LED YELLOW GREEN / RED

ZD01 093G 39S 24 T RLZ 5.6B LLDS

E715 715G4102R01000004F TV IR-PCB 41X25X1.6MM FR4 1OZ DS 2nd source E715 715G4102R01000004S TV IR-PCB 41X25X1.6MM FR4 1OZ DS

PWTVAGA1MQD7 POWER BOARD G3811-P01-X-X-4-100319 040G 45762412B CBPC LABEL

骨架 EEL13

GND1 009G6005 1 GP GROUND TERMINAL

GND3 009G6005 1 GP GROUND TERMINAL CN902 033G327813D CONNECTOR CN803 033G3802 5B Y L CONN 2.0 5P CN903 033G8029 3A 3PIN (2PIN NC) CN801 033G8029 3A 3PIN (2PIN NC)

74

www.ma163.com 电子技术资料网

IC950 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC951 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC970 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC950 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4

IC951 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4

IC970 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4

IC902 056G 379121 IC STR- A6069H DIP-8

Q921 057G 761 7 KTD1691P

Q921 057G 761909 T TRANSISTOR KSD1691YSTU TO-126 RV901 061G 46 17 VARISTOR 560V TNR14V561K RV901 061G 46906 W VARISTOR 560V TVR14561KFC4FY

C904 063G 10747410V 0.47UF 275VAC ARCO C901 063G 10747410V 0.47UF 275VAC ARCO C901 063G107K474 US 0.47UF +-10% C904 063G107K474 US 0.47UF +-10% C910 063G210K105BCN MPP CAP 1UF 520V P=15MM C801 063G213J105GFA MPF CAP C802 063G213J105GFA MPF CAP C801 063G213J105GFC CAP MPE 1UF J 450V C802 063G213J105GFC CAP MPE 1UF J 450V C925 065G 1K103 2E6213 CAP CER 10NF K 1KV C925 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U C905 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES C906 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES C905 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX C906 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX C902 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX C903 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX C924 065G306M1022B2 1000PF 400VAC/250VAC Y1 C924 065G306M1022BM Y1.CAP.001UF 250VAC MURATA C903 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES C902 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES C920 067G 42Z82015H EC 82UF M 450V 18*36MM C920 067G 42Z82015K EC 82UF M 450V 18*36MM C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM C953 067G204V331 3L CS CAP 330UF 16V 10*12.5 MM C954 067G215A4713KV EC 470UF 16V M 10*12MM C946 067G215A4714KV EC 470UF 25V 10*16MM C975 067G215A4716HV EC 470UF M 35V 10*21MM C973 067G215A4716HV EC 470UF M 35V 10*21MM C945 067G215A4716HV EC 470UF M 35V 10*21MM C975 067G215A4716KV EC 470UF 35V M 10*16MM C973 067G215A4716KV EC 470UF 35V M 10*16MM

75

www.ma163.com 电子技术资料网

C945 067G215A4716KV EC 470UF 35V M 10*16MM C954 067G215Y471 3H C946 067G215Y471 4H L901 073G 174106 L LINE FILTER 13MH LF-1008108 L902 073G 174106 L LINE FILTER 13MH LF-1008108 L901 073G 174106 DN LINE FILTER 13MH LK.TF032.A20 L902 073G 174106 DN LINE FILTER 13MH LK.TF032.A20 L906 073G 174166 L PFC CHOKE 310UH 5% CC-012978-1 L906 073G 174166 N PFC CHOKE 310UH 5% YUVA-1304 L906 073G 174166 S PFC CHOKE 310UH 5% L950 073G 253 91 H CHOKE COIL L951 073G 253 91 H CHOKE COIL L980 073G 253 91 H CHOKE COIL L950 073G 253 91 L CHOKE BY LI TA L951 073G 253 91 L CHOKE BY LI TA L980 073G 253 91 L CHOKE BY LI TA L980 073G 253 91 V CHOKE COIL 3.5UH+-10% L951 073G 253 91 V CHOKE COIL 3.5UH+-10%

ELCAP 105℃ 470UF M 16V EC CAP 105 度 470UF 25V

L950 073G 253 91 V CHOKE COIL 3.5UH+-10% T803 080GL26T 14 L X'FMR 6MH CC-011223 T803 080GL26T 14 N X'FMR 6MH YUVA-1095 T802 080GL26T 15 L POWER X'FMR 840UH PT-011699 T802 080GL26T 15 N X'FMR 840UH MIN YUVA-1094 T902 080GL37T 19 L X'FMR 550UH 5% PT-010923-3 T902 080GL37T 19 N X'FMR 550UH 5% YUVA-1089 T901 080GL52T 5 L2 X'FMR 1.0MH 10% T901 080GL52T 5 N2 X'FMR 1.0MH 10% F901 084G 41 11 B FUSE 5A 250V LEAD TYPE F901 084G 41 11 C FUSE 5A 250V UDA-A 005(PF)

F901 084G 41 11 L FUSE 5A 250V CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE 2nd source

D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD

0Q1G 340 8106 CR3 SCREW 705TQ861001 NR901 ASS'Y

NR901 061T 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09T 203 8 PIN FOR NR901 705TQ957041 Q901 ASSY

Q901 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS) Q901 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F

0M1G1730 8120 SCREW

HS8 P90T0027301 HEAT SINK

705TQ957042 Q801/Q802 ASSY

76

www.ma163.com 电子技术资料网

Q802 057G 611903 MOSFET AOTF12N50 TO-220F Q801 057G 611903 MOSFET AOTF12N50 TO-220F Q801 057T 611901 MOSFET 12A/500V FMA12N50E TO-220F Q802 057T 611901 MOSFET 12A/500V FMA12N50E TO-220F

0M1G1730 8120 SCREW

HS1 P90T0027201 HEAT SINK

705TQ957043 Q903 ASSY Q903 057G 667 51 FET 2SK4101LS 7A/650V TO-220FI(LS) Q903 057G 667931 TEST ONLY

HS9 090G6084 1 HEAT SINK

0M1G1730 8120 SCREW

705TQ993055 BD901 ASSY

BD901 093G 50460 34 BRIDGE KBJ608G 6A/800V KBJ

0M1G1730 10120 SCREW 42A9930016

HS5 P90T0027301 HEAT SINK

705TQ993056 D902 ASSY

HS7 090G6084 1 HEAT SINK

D902 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW

705TQ993057 D950 ASSY

HS10 090G6084 1 HEAT SINK

D950 093G1506 2 FMW-2156 D950 093T 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)

0M1G1730 8120 SCREW

705TQ993058 D972/D973 ASSY

HS6 090G6064 1 HEAT SINK D972 093G 60329 DIODE FMEN-220A 20A/100V TO-220 D973 093G 60329 DIODE FMEN-220A 20A/100V TO-220 D973 093G 60331 DIODE YG865C10RSC 20A/100V TO-220F D972 093G 60331 DIODE YG865C10RSC 20A/100V TO-220F

0M1G1730 8120 SCREW IC801 056G 379122 IC OZ9976GN-C-0-TR SOP-16 IC901 056G 379164 IC FAN6961SZ SOP-8 IC903 056G 379175 IC LD7523GS SOP-8

Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

R932 061G0805100 JF RST CHIPR 10 OHM +-5% 1/10W FENGHUA R932 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN R943 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN R943 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

77

www.ma163.com 电子技术资料网

R820 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R820 061G08051003FY RST CHIPR 100KOHM +-1% 1/8W YAGEO R823 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA R826 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA R826 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA R823 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA R823 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R826 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R823 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R826 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W R981 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA R814 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA R803 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA R802 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA R802 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN R803 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R814 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R981 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO R955 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R982 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R983 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA R983 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO R982 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO R955 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO R963 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R961 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R947 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R944 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R918 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R914 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R824 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R821 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R817 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R816 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA R963 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R961 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R947 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R944 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R918 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R914 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R824 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R821 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R817 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO

78

www.ma163.com 电子技术资料网

R816 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO R820 061G0805104 JY RST CHIPR 100KOHM 1/8W YAGEO R844 061G08051102FF RST CHIRP 11K OHM 1/8W 1% FENGHUA R844 061G08051102FY RST CHIP 11K 1/8W 1% R923 061G08051302FT RST CHIP 13K 1/8W 1% R985 061G08051302FT RST CHIP 13K 1/8W 1% R923 061G08051302FY RST CHIPR 13KOHM +-1% 1/8W YAGEO R985 061G08051302FY RST CHIPR 13KOHM +-1% 1/8W YAGEO R840 061G08051504FF RST CHIPR 1M5 +-1% 1/8W FENGHUA R840 061G08051504FT RST CHIPR 1M5 +-1% 1/8W TZAI YUAN R917 061G0805153 JF RST CHIPR 15K +-5% 1/8W FENGHUA R917 061G0805153 JY RST CHIPR 15KOHM 1/8W YAGEO R831 061G0805154 JF RST CHIPR 150KOHM +-5% 1/8W FENGHUA R831 061G0805154 JT RST CHIP 150K 1/8W 5% TZAI YUAN R840 061G0805155 JT RST CHIP 1M5 1/8W 5% TZAI YUAN R979 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA R979 061G08052001FT RST CHIP 2K 1/8W 1% R811 061G08052400FF RST CHIPR 240 OHM +-1% 1/8W FENGHUA R813 061G08052400FF RST CHIPR 240 OHM +-1% 1/8W FENGHUA R811 061G08052400FT RST CHIP R 240 OHM +-1% 1/8W R813 061G08052400FT RST CHIP R 240 OHM +-1% 1/8W R978 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA R978 061G08052402FT RST CHIP 24K 1/8W 1% R830 061G0805244 JF RST CHIPR 240KOHM +-5% 1/8W FENGHUA R830 061G0805244 JT RST CHIP 240K 1/8W 5% TZAI YUAN R987 061G08052702FT RST CHIP 27K 1/8W 1% R987 061G08052702FY RST CHIPR 27KOHM +-1% 1/8W YAGEO R975 061G0805392 JT RST CHIP 3K9 1/8W 5% TZAI YUAN R975 061G0805392 JY RST CHIPR 3K9 +-5% 1/8W YAGEO R841 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN R842 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN R841 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO R842 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO R837 061G0805514 JF RST CHIPR 510KOHM +-5% 1/8W FENGHUA R837 061G0805514 JY RST CHIPR 510K +-5% 1/8W YAGEO R906 061G08055603FT RST CHIP 560K 1/8W 1% R906 061G08055603FY RST CHIPR 560KOHM +-1% 1/8W YAGEO R958 061G08057501FT RST CHIP R 7K5 1/8W +/-1% R958 061G08057501FY RST CHIPR 7.5KOHM +-1% 1/8W YAGEO R957 061G08058201FT RST CHIP 8K2 1/8W 1%

R957 061G08058201FY RST CHIPR 8.2KOHM +-1% 1/8W YAGEO JR902 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA JR903 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA

79

www.ma163.com 电子技术资料网

JR904 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA JR905 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA JR902 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO JR903 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO JR904 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO JR905 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO

R832 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA

R832 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO

R926 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R925 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R924 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R924 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R925 061G12061004FY RST CHIPR 1 MOHM +-1% 1/4W YAGEO

R926 061G12061004FY RST CHIPR 1 MOHM +-1% 1/4W YAGEO

R977 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R973 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R970 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R954 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R951 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R827 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R825 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R977 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R973 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R970 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R954 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R951 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R827 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R825 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R960 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA

R836 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R945 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R956 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R960 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R974 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R836 061G1206102 JY RST CHIPR 1KOHM 5% 1/4W YAGEO

R945 061G1206102 JY RST CHIPR 1KOHM 5% 1/4W YAGEO

R956 061G1206102 JY RST CHIPR 1KOHM 5% 1/4W YAGEO

R974 061G1206102 JY RST CHIPR 1KOHM 5% 1/4W YAGEO

R976 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA

R939 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA

R838 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA

R838 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R939 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

80

www.ma163.com 电子技术资料网

R976 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R999 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R998 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R997 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R996 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R994 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R993 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R992 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R991 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R839 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R839 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R991 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R994 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R996 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R997 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R992 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R993 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R998 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R999 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

R846 061G1206105 JF RST CHIPR 1 MOHM +-5% 1/4W FENGHUA

R846 061G1206105 JT RST CHIPR 1MOHM +-5% 1/4W TZAI YUAN

R933 061G1206109 JT RST CHIPR 1 OHM +-5% 1/4W TZAI YUAN

R933 061G1206109 JY RST CHIP 1R 1/4W 5% YAGEO

R909 061G12061504FT RST CHIP 1M5 1/4W 1%

R905 061G12061504FT RST CHIP 1M5 1/4W 1%

R904 061G12061504FT RST CHIP 1M5 1/4W 1%

R904 061G12061504FY RST CHIP 1M5 1/4W 1%

R905 061G12061504FY RST CHIP 1M5 1/4W 1%

R909 061G12061504FY RST CHIP 1M5 1/4W 1%

R988 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA

R986 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA

R972 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA

R971 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA

R967 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA

R965 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA

R965 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R967 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R971 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R972 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R986 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R988 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R911 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA

R911 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN

81

www.ma163.com 电子技术资料网

R907 061G1206229 JT RST CHIPR 2R2 +-5% 1/4W TZAI YUAN

R908 061G1206229 JT RST CHIPR 2R2 +-5% 1/4W TZAI YUAN

R931 061G1206229 JT RST CHIPR 2R2 +-5% 1/4W TZAI YUAN

R931 061G1206229 JY RST CHIPR 2.2R 5% 1/4W YAGEO

R908 061G1206229 JY RST CHIPR 2.2R 5% 1/4W YAGEO

R907 061G1206229 JY RST CHIPR 2.2R 5% 1/4W YAGEO

R835 061G12063013FF RST CHIPR 301K OHM +-1% 1/4W FENGHUA

R843 061G1206331 JT RST CHIPR 330 OHM 1/4W TZAI YUAN

R843 061G1206331 JY RST CHIPR 330 OHM +-5% 1/4W YAGEO

R901 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R902 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R903 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R901 061G1206334 JT RST CHIPR 330 KOHM 1/4W TZAI YUAN

R902 061G1206334 JT RST CHIPR 330 KOHM 1/4W TZAI YUAN

R903 061G1206334 JT RST CHIPR 330 KOHM 1/4W TZAI YUAN

R833 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA

R833 061G1206335 JT RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN

R950 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA

R952 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA

R950 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN

R952 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN

R915 061G1206471 JF RST CHIPR 470 OHM +-5% 1/4W FENGHUA

R915 061G1206471 JT RST CHIPR 470 OHM 1/4W TZAI YUAN

R962 061G1206475 JF RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA

R962 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN

R920 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R921 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R922 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R920 061G12066803FT RST CHIP 680K 1/4W 1%

R921 061G12066803FT RST CHIP 680K 1/4W 1%

R922 061G12066803FT RST CHIP 680K 1/4W 1%

R966 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R968 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R969 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R984 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R984 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

R969 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

R968 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

R966 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

C909 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C831 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C830 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C820 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

82

www.ma163.com 电子技术资料网

C812 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C939 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C817 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C921 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C913 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C978 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C956 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C949 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C948 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C947 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C942 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C934 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C908 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C907 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C811 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C816 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C821 065G080522131G Y CAP CHIP 0805 220PF 2% 50V NPO

C915 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10%

C944 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10%

C955 065G080522432K Y CAP CHIP 0805 0.22UF K 50V X7R

C805 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R

C819 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R

C819 065G080522522K Y CAP CHIP 0805 2.2UF K 25V X7R

C805 065G080522522K Y CAP CHIP 0805 2.2UF K 25V X7R

C813 065G080533131J Y CAP CHIP 0805 330PF J 50V NPO

C976 065G080533432K 3 CAP CHIP 0805 330N 50V X7R +/-10%

C822 065G080539232K F CAP CHIP 0805 3900PF K 50V X7R

C823 065G080539232K F CAP CHIP 0805 3900PF K 50V X7R

C814 065G080547232K Y CAP CHIP 0805 4700PF K 50V X7R

C818 065G080547232K Y CAP CHIP 0805 4700PF K 50V X7R

C815 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C917 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C943 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C918 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R

C918 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C912 065G080556031J 3 CAP CHIP 0805 56P 50V NPO +/-5%

C912 065G080556031J F CAP CHIP 0805 56PF J 50V NPO

C972 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C970 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C957 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C952 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C951 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C950 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

83

www.ma163.com 电子技术资料网

D807 093G 64 42 PP BAV70 SOT-23

D804 093G 60S 5 T SCS0520P SOD-123

D803 093G 60S 5 T SCS0520P SOD-123

D802 093G 60S 5 T SCS0520P SOD-123

D801 093G 60S 5 T SCS0520P SOD-123

D801 093G 60S931 T DIODE B0520LW SOD-123

D802 093G 60S931 T DIODE B0520LW SOD-123

D803 093G 60S931 T DIODE B0520LW SOD-123

D804 093G 60S931 T DIODE B0520LW SOD-123 CN901 006G 31500 GP EYELET

IC952 056G 158 10 T IC AS431AZTR-E1 TO-92 IC971 056G 158 10 T IC AS431AZTR-E1 TO-92 IC952 056G 158 12 KIA431A-AT/P TO-92 IC971 056G 158 12 KIA431A-AT/P TO-92

R801 061G 30310852T GP FUSE RESISTOR

R948 061G 30310852T GP FUSE RESISTOR

R913 061G 60210052T TZ RST CFR 10R 1/6W 5%

R913 061G 60210052T XZ RST CFR 10 OHM +-5% 1/6W XIANZHENG

R916 061G152M12852T SY RST MOF 0R12 5% 2W

R946 061G152M36852T RST MOF 0R36 5% 2W

C803 065G 1K102 8T6213 CAP CER 1000PF K 1KV RR

C804 065G 1K102 8T6213 CAP CER 1000PF K 1KV RR

C932 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P

C935 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P

C933 067G 2151007NT KY50VB10M-TP5 5*11.5

C937 067G 2151007NT KY50VB10M-TP5 5*11.5

C941 067G 2151007NT KY50VB10M-TP5 5*11.5

C810 067G215A1017KT EC 100UF 50V 8*12MM

C931 067G215A1017KT EC 100UF 50V 8*12MM

C941 067G215Y1007KT KY50VB10M-TP5 5*11.5

C937 067G215Y1007KT KY50VB10M-TP5 5*11.5

C933 067G215Y1007KT KY50VB10M-TP5 5*11.5

C931 067G215Y1017NT EC 100UF 50V 8*11.5MM

C810 067G215Y1017NT EC 100UF 50V 8*11.5MM

C914 067G215Y4707KT 47UF 50V

C914 067G215Y4707LT LOW ESR EC 47UF 50V M 6.3*11MM FB902 071G 55 23 S BEAD FB903 071G 55 26 S FERRITE CORE FB901 071G 55 26 S FERRITE CORE FB903 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8 FB901 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8 ZD952 093G 3916652T MTZJ15B (13.89-14.62) ZD930 093G 3916752T MTZJ T-72 16B

84

www.ma163.com 电子技术资料网

ZD970 093G 3917152T TZJ T-72 30B

D901 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41

D931 093G 5250S52T DIODE AU02Z-V1 SANKEN

D971 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D951 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D906 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D905 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D903 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D806 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D805 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D971 093G 64 1152T RE SWITCH DIODE 1N4148 BY RENESAS

D951 093G 64 1152T RE SWITCH DIODE 1N4148 BY RENESAS

D906 093G 64 1152T RE SWITCH DIODE 1N4148 BY RENESAS

D905 093G 64 1152T RE SWITCH DIODE 1N4148 BY RENESAS

D903 093G 64 1152T RE SWITCH DIODE 1N4148 BY RENESAS

D806 093G 64 1152T RE SWITCH DIODE 1N4148 BY RENESAS

D805 093G 64 1152T RE SWITCH DIODE 1N4148 BY RENESAS ZD952 093G 39G 5 DIODE MTZJ15B DO-34 ZD970 093G 39G 9 DIODE MTZJ30B DO-34

D930 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D940 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J921 095G 90 23 JUMPER WIRE J922 095G 90 23 JUMPER WIRE J917 095G 90 23 JUMPER WIRE J916 095G 90 23 JUMPER WIRE J801 095G 90 23 JUMPER WIRE J802 095G 90 23 JUMPER WIRE J803 095G 90 23 JUMPER WIRE J804 095G 90 23 JUMPER WIRE J915 095G 90 23 JUMPER WIRE J914 095G 90 23 JUMPER WIRE J913 095G 90 23 JUMPER WIRE J912 095G 90 23 JUMPER WIRE J911 095G 90 23 JUMPER WIRE J910 095G 90 23 JUMPER WIRE J909 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J907 095G 90 23 JUMPER WIRE J906 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE

85

www.ma163.com 电子技术资料网

J901 095G 90 23 JUMPER WIRE J808 095G 90 23 JUMPER WIRE J807 095G 90 23 JUMPER WIRE J806 095G 90 23 JUMPER WIRE J805 095G 90 23 JUMPER WIRE J923 095G 90 23 JUMPER WIRE

715G3811P01H20003H TV POWER-PCB 170X200X1.6MM SS CEM-1 Q51G 6 4509 GLUE_RTV Q02G7021 2 BOLT Q02G7022 3 SCREW-STOPPER Q15T0671101 BKT-RAR-SUPPORT Q15T0672101 BKT-PANEL-DOWN-SUPPORT Q15T0673101 BKT-RAR-SUPPORT Q36T 600 31 4 NONWOVEN FABRIC Q36T 600 31 7 NONWOVEN FABRIC Q40T0002001 2A WARNING LABEL Q41G24MV001 5C MANUAL Q44GE054001 1A 26 TV CARTON Q44GE054101 CUSHION EPS -- Q44GE054201 CUSHION EPS -- Q44GE054301 CUSHION EPS -- Q44GE054401 CUSHION EPS -- Q45G 77 5 PE PACKING (Y1900241) Q45G 99609 61 EPE COVER FOR MONITOR Q50G 4 10 TIE (Y1900221) Q50T 500523 CABLE TIE Q52G 1150523 TAPE_INSULATING Q52G 1285 6 BIG TAPE FOR SKYWORTH Q52G 31 41 TAPE DOUBLE Q52G 31 42 TAPE DOUBLE Q52G6025 15277 MYLAR Q85G 583200 5 EMI PAD 041T780062415A CERTIFICATE CARD 0M1G1740 12 47 CR3 SCREW Q41G24MV001 6A USB MANUAL Q41G7800001 1B WARRANTY CARD Q45G 76 28NV2 R PE BAG FOR BASE SCREW SZ02742 Q45G2010M0101A PE BAG FOR MANUAL 040G 58162435A P/N LABEL FOR MANUAL PE BAG Q40G 260001 3A RATING LABEL -FOR 26K01HR Q40G0001001 1B S/N LABEL Q40G0001001 2A CARTON LABEL 0Q1G 330 8 47 CR3 SCREW

86

www.ma163.com 电子技术资料网

Q15T0785101 BKT-SIDE IO_26SKYWORTH Q40G2010 26007 SIDE LABEL Q52G1001 TV001 AL TAPE Q33E0416ADT 1A0100 POWER SWITCH Q36T 600 30 6 NONWOVEN FABRIC 0Q1G 940 20 47 CR3 SCREW KEPFAYQ5 KEY BOARD G4103-B-X-X-1-100104

CN0101 033G8032 4F X WAFER 4P 1.25MM CN0101 033G8032 4F HR CONNECTOR 2nd source

R0105 061G08052201FY RST CHIPR 2.2KOHM +-1% 1/8W YAGEO R0106 061G08052201FY RST CHIPR 2.2KOHM +-1% 1/8W YAGEO R0102 061G08054700FF RST CHIPR 470 OHM +-1% 1/8W FENGHUA R0104 061G08054700FF RST CHIPR 470 OHM +-1% 1/8W FENGHUA R0103 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA R0101 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA C0101 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C0102 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C0103 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

SW0107 077G 607 2 CJ CHIP TACT SWITCH SW0106 077G 607 2 CJ CHIP TACT SWITCH SW0105 077G 607 2 CJ CHIP TACT SWITCH SW0104 077G 607 2 CJ CHIP TACT SWITCH SW0103 077G 607 2 CJ CHIP TACT SWITCH SW0102 077G 607 2 CJ CHIP TACT SWITCH SW0101 077G 607 2 CJ CHIP TACT SWITCH SW0101 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW0102 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW0103 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW0104 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW0105 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW0106 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW0107 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

715G4103K01000004F TV KEY-PCB 133.5X13.3X1.0MM FR4 1OZ DS

87

www.ma163.com 电子技术资料网

32K01HR E32AA2NDWFSWNN

点位料号描述备注

052G 1186 SMALL TAPE 052G 2191 A PAPER TAPE

E08901 089G214A18N IS POWER CORD 1.8M FA37B201312180TP ECN5205 095G176J30N512 FFC CABLE --30 --500 --1.0 ECN7102 095G801313D667 HARNESS 13P(2506)-13P(2506) 300MM 2nd source ECN7102 095G801313X667 HARNESS 13P(2506)-13P(2506) 300MM

095G8021 3D904 HARNESS 3P-3P+2P 290MM FQE92155I 098GR8BD1NCSWH SKYWORTH-ASSIGNED FOR YK-60HA 0M1G 930 8 47 CR3 SCREW 0M1G 940 6120 SCREW (M4X6) 0M1G 940 10 47 CR3 SCREW 0M1G1730 6120 SCREW,42-D020523 0M1G1730 10120 SCREW 42A9930016 0M1G1740 14 47 CR3 SCREW 0Q1G 930 8 47 CR3 SCREW 0Q1G 940 12 47 CR3 SCREW 0Q1G 940 16 47 CR3 SCREW 0Q1G1030 6120 SCREW 705TQ949001 COMSUPTIVE ASS'Y-A4 705TQA34J15 BEZEL ASS'Y 32" 0Q1G1030 6120 SCREW A33E0788ADTD1L0100 KEY COVER A33E0789AFL 1L0100 KEY BUTTON A34E1851AFLB1L0130 BEZEL_TV32W-10A-B-A2 A34E1852AGZ 1C0100 BEZEL DECO Q33E0409 1 1C0100 LENS_POWER_32SKYWORTH Q44T3231 21 27 EVA WASHER Q44T3231 21 28 EVA WASHER 705TQA34J16 REAR COVER ASS'Y 32" A34E1580ADT 5L0101 REAR COVER 32" Q15T0874101 BRACKET_AC_INLET -- Q36T 600 35 2 GP NONWOVEN FABRIC Q36T 600 36 3 GP NONWOVEN FABRIC Q52G6025 13 20 MYLAR 705TQA34J17 BASE ASS'Y 32" 0Q1G 130 6 47 CR3 SCREW A34E1581ADT 1L0100 STAND HINGE -A2_32 A34E1582AFL 1L0100 STAND-A1_32 Q12G6300 25 1 RUBBER FOOT Q15T0704101 BASE BKT Q34E7082AFL 1L0120 BASE

88

www.ma163.com 电子技术资料网

Q37T0177012ADT 2K10-32 HINGE 705TQA77001 SWITCH ASS'Y 077G 30612A S POWER SW 2P 15 600G 2377202

ECN9501 095G8021 3L574 HARNESS 3P(3.96) 550 ECN9501 095G8021 3X574 HARNESS 3P(3.96) 550 2nd source

096G 29 6 H.S. TUBE 096G 29 8 TUBE

E750 750TVU31534L02N000 PANEL T315XW03 V4L0 SZ AUO

756TQACB 2D005 04 MAIN BOARD-CBPFA2QDQ3

U4105 056G2233 15 IC MX25L6445EM2I-10G 64MB SOP-8

U4103 056T1133933 IC AT24C32CN-SH-T SO8 SMTF-U4105 100TWKAK001D31 MCU ASS'Y-056G2233 15 SMTF-U4103 100TWKAK002D21 MCU ASS'Y-056T1133933

040G 45762412B CBPC LABEL CN7103 033G3278 4D 2.5MM PITCH WAFER CN7102 033G327813D CONNECTOR

CN602 033T3278 4D CONNECTOR

CN5401 033T380213B Y L CONNECTOR 13P 2.0

C7108 067G215S3316KV EC 330UF M 35V 10*12MM

C666 067G215S3316KV EC 330UF M 35V 10*12MM C640 067G215S3316KV EC 330UF M 35V 10*12MM C636 067G215S3316KV EC 330UF M 35V 10*12MM

C7109 067G215S3316KV EC 330UF M 35V 10*12MM

L601 073G 253178 H CHOKE COIL 22UH 25% L220S HA L600 073G 253178 H CHOKE COIL 22UH 25% L220S HA L600 073G 253178 L CHOKE COIL 22UH+-25% CC-005184

L601 073G 253178 L CHOKE COIL 22UH+-25% CC-005184 CN1202 088G 78 13 77 YG RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM 2nd source CN1501 088G 78 13 78 YG RCA JACK 1*3 Y/W/R V/T 10.5MM 2nd source CN1203 088G 78 13 78 YG RCA JACK 1*3 Y/W/R V/T 10.5MM 2nd source CN1202 088G 78 1377C RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM CN1203 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM CN1501 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM CN1102 088G 302 69 YG PHONE JACK 3P GREEN 10.5MM V/T 2nd source CN1102 088G 30269C PHONE JACK 3.5MM 3P GREEN V/T 10.5MM CN1402 088G 350 1 CL USB CONN AX2 CN1402 088G 350A00 YG USB CONNECTOR AX2 TYPE USB-202 2nd source CN1101 088G353A15FCSL D-SUB 15PIN FEMALE VERTICAL SCREWED CN1101 088G353A15FXSH D-SUB 15PIN FEMALE VERTICAL SCREWED 2nd source CN1401 088T 7813A19C RCA JACK 1*3 R/W/Y

TU100 094T PALALL1LS TCL TUNER M40CTP-2PN-E

709G4089 QM001 COMSUPTIVE ASS'Y 055G 23524 WELDING FLUX WITHOUT PB

89

www.ma163.com 电子技术资料网

Q55G 100625 TIN STICK_LOW ARGENTUM C7103 067G 3051013PT EC 100UF 20% 16V 5*11 C7106 067G 3054712CT EC 470UF 10V KM 8*11.5MM

C717 067G215H1014CT EC 100UF 20% 25V SY 8*7

C746 067G215H2213CT EC 220UF 16V SY 8X7MM C7155 067G305M1003CT E.C CAP 10UF M 16V 4*7 C1406 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C1410 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C201 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C4209 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C722 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C7163 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C672 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C5124 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V C1504 067G305M3312CT EC 330UF 10V SJ 8X7MM

C219 067G305M3312CT EC 330UF 10V SJ 8X7MM

C221 067G305M4704PT EC 47UF 25V 6.3¦µ*7MM

709G4089 QA001 COMSUPTIVE ASS'Y

CN5205 033G801930F E JS FFC CONNECTOR 30P 1.0PITCH

U704 056G 379 92 IC G5627F11U SOP-8(FD) U4201 056G 562312 IC SCALER MT8222AHMU/B LQFP256 U7102 056G 563 93 IC G9084T43U TO-252 U7110 056G 563121 IC G1084-33TU3UF TO-263T U7110 056G 563254 LDO AZ1084S2-3.3TRG1 5A 3.3V TO263-2

U159 056G 563519 IC G965-25ADJPIUF 1.8A SOP-8 U6101 056G 614 1 74HC4052D S016 PHLIPS U6102 056G 614 1 74HC4052D S016 PHLIPS U4106 056G 615 67 IC NT5TU32M16CG-25C 512MB BGA-84

U603 056G 616518 IC R2A15112FP HTQFP48 U4203 056G 638601 CS4344-CZZ

U101 056G 662502 C ESD AZC199-04S SOT23-6L

U103 056G 662502 C ESD AZC199-04S SOT23-6L U4105 056G2233 15 IC MX25L6445EM2I-10G 64MB SOP-8 U7104 056T 563146 IC G912T63U 1A/1.2V SOT-223 U4103 056T1133933 IC AT24C32CN-SH-T SO8 Q1502 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q1702 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q1705 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q7101 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)

90

www.ma163.com 电子技术资料网

Q611 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q609 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q610 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q608 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q6102 057G 761 15 PDTC114ET SOT23 Q6103 057G 761 15 PDTC114ET SOT23 Q6101 057G 761 15 PDTC114ET SOT23 Q4101 057G 761 15 PDTC114ET SOT23

Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q1501 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q1601 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q1605 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

TH1401 061G 52902 W PTC CHIP 8V 0R4 KMC4S075RY TH1402 061G 52902 W PTC CHIP 8V 0R4 KMC4S075RY RP5102 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5103 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5104 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5105 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP5106 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

R1509 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1508 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R5401 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R4258 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R4257 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R4219 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1606 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1418 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1417 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1405 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1404 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1233 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R1716 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1723 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1724 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R4210 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

91

www.ma163.com 电子技术资料网

R4211 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1707 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R4260 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1715 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1711 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1710 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1708 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1625 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1624 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R1503 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R5111 061G04021000FT RST CHIP 100R 1/16W 1% R4146 061G04021001FY RST CHIPR 1KOHM 1% 1/16W YAGEO R4148 061G04021001FY RST CHIPR 1KOHM 1% 1/16W YAGEO R4149 061G04021001FY RST CHIPR 1KOHM 1% 1/16W YAGEO R5424 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R5423 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1110 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1609 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1407 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1232 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1217 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1120 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R1119 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R1703 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R1722 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R4143 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R4207 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO

R734 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R4137 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R4138 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R616 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R4229 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4234 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4259 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R6125 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R6126 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R6127 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4235 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4000 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4001 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R1103 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO

92

www.ma163.com 电子技术资料网

R1104 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R1502 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4139 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4214 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4215 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4216 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4220 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4223 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R4222 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R4227 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R6313 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R6314 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R1126 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO R1124 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO R1215 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1216 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1240 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1241 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1410 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R1416 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA R5114 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R5113 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R5112 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4233 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4232 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4231 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4228 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4225 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R4224 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R6101 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R6102 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R6103 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R6104 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO R1123 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R1122 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R1505 061G0402333 JF RST CHIP 33K 1/16W 5% FENGHUA R4141 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R5414 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R4002 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R4003 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R5417 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R5416 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA R1623 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

93

www.ma163.com 电子技术资料网

R1626 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R569 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R620 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1713 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1712 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1705 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R1704 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R6168 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6136 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6135 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6131 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6130 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6129 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6123 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6122 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6119 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6114 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6112 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6111 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6110 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R6109 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R1725 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R1701 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA R5402 061G0402479 JF RST CHIPR 4.7 OHM +-5% 1/16W FENGHUA R5404 061G0402479 JF RST CHIPR 4.7 OHM +-5% 1/16W FENGHUA R4230 061G0402513 JF RST CHIP 51K 1/16W 5% FENGHUA R4226 061G0402513 JF RST CHIP 51K 1/16W 5% FENGHUA R1213 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1214 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1238 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1239 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1409 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1414 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO R1222 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1221 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1204 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1115 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1114 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1111 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO R1610 061G04027509FT RST CHIP 75R 1/16W 1% R1504 061G04027509FT RST CHIP 75R 1/16W 1% R1408 061G04027509FT RST CHIP 75R 1/16W 1% R1223 061G04027509FT RST CHIP 75R 1/16W 1%

94

www.ma163.com 电子技术资料网

R1220 061G04027509FT RST CHIP 75R 1/16W 1% R1219 061G04027509FT RST CHIP 75R 1/16W 1% R1218 061G04027509FT RST CHIP 75R 1/16W 1% R1118 061G04027509FT RST CHIP 75R 1/16W 1% R1117 061G04027509FT RST CHIP 75R 1/16W 1% R1116 061G04027509FT RST CHIP 75R 1/16W 1% R1125 061G0402752 JF RST CHIP 7K5 1/16W 5% FENGHUA R1127 061G0402752 JF RST CHIP 7K5 1/16W 5% FENGHUA R7513 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R7515 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R718 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R725 061G0603100 JY RST CHIPR 10OHM 1/10W YAGEO R7107 061G06031000FY RST CHIPR 100 OHM +-1% 1/10W YAGEO R4250 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R438 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA R1706 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA R1726 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA R7121 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R719 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R670 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R668 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R665 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R662 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R660 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R657 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R613 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R460 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R404 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R443 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R733 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R726 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R716 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R639 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R638 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R637 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R622 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R565 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R491 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R490 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R454 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R442 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R440 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R4142 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

95

www.ma163.com 电子技术资料网

R406 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R173 061G06031202FY RST CHIPR 12KOHM +-1% 1/10W YAGEO

R659 061G0603122 JF RST CHIPR 1.2KOHM 5% 1/10W FENGHUA

R664 061G0603122 JF RST CHIPR 1.2KOHM 5% 1/10W FENGHUA

R658 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA

R663 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA

R728 061G06031602FF RST CHIPR 16KOHM +-1% 1/10W FENGHUA

R669 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA

R667 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA R7147 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA R7110 061G06032209FT RST CHIP 22R 1/10W 1%

R567 061G0603224 JF RST CHIPR 220KOHM +-5% 1/10W FENGHUA

R731 061G0603224 JF RST CHIPR 220KOHM +-5% 1/10W FENGHUA

R739 061G0603229 JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA R7108 061G06032409FT RST CHIP 24R 1/10W 1% R7108 061G06032409FY RST CHIP 24R 1/10W 1% R1106 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R799 061G0603274 JF RST CHIPR 270KOHM 5% 1/10W FENGHUA

R441 061G06033301FF RST CHIPR 3.3KOHM +-1% 1/10W FENGHUA

R444 061G06033301FF RST CHIPR 3.3KOHM +-1% 1/10W FENGHUA

R615 061G0603333 JY RST CHIPR 33KOHM 1/10W YAGEO R7145 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN

R610 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R729 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R730 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R732 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA R7103 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA R4221 061G06035101FY RST CHIPR 5.1KOHM +-1% 1/10W YAGEO

R456 061G0603512 JY RST CHIPR 5.1KOHM +-5% 1/10W YAGEO

R727 061G06036201FY RST CHIPR 6.2KOHM +-1% 1/10W YAGEO R4217 061G0603824 JF RST CHIPR 820KOHM 5% 1/10W FENGHUA R1506 061G08051500FF RST CHIPR 150OHM +-1% 1/8W FENGHUA R1506 061G08051500FT RST CHIPR 150 OHM +-5% 1/8W

R172 061G08053832FF RST CHIPR 38.3KOHM +-1% 1/8W FENGHUA R7520 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R7521 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

C677 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C675 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C6321 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C6306 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C415 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C1519 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C1513 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

96

www.ma163.com 电子技术资料网

C1219 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1218 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1217 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1209 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1115 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1110 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1109 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C1108 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C4211 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4210 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4208 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4205 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4109 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4212 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5113 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5114 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5115 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5401 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5402 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5403 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C6122 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C6123 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4110 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5404 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4280 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4279 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4277 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C5112 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4281 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4282 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4283 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4284 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4285 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4286 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4287 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4291 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4293 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4294 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4295 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4298 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4301 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4275 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4242 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

97

www.ma163.com 电子技术资料网

C4241 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4240 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4237 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4234 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4232 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4231 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4228 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4225 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4223 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4220 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4218 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4213 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4243 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4272 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4269 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4268 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4266 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4263 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4256 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4253 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4251 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4248 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4247 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4246 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4245 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C4244 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1620 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1615 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1602 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1502 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1407 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C1405 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C678 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C676 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R

C637 065G040210425K T CAP CHIP 0402 0.1UF 25V X5R R1517 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R R1518 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R R1517 065G0402105A5K Y CAP 0402 1UF K 10V X5R R1518 065G0402105A5K Y CAP 0402 1UF K 10V X5R C4305 065G040212031J Y CAP CHIP 0402 12P 50V NPO +/-5% C1208 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO C1215 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO C1216 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO

98

www.ma163.com 电子技术资料网

C4002 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R C4003 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R C7165 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10% C7164 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10% C4215 065G040227031J A CAP 0402 27PF J 50V NPO C4215 065G040227031J Y CAP CHIP 0402 27P 50V NPO +/-5% C5405 065G040233031J Y CAP CHIP 0402 33P 50V NPO +/-5% C1622 065G040233031J Y CAP CHIP 0402 33P 50V NPO +/-5% C1621 065G040233031J Y CAP CHIP 0402 33P 50V NPO +/-5% C1417 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1416 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1415 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1414 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1237 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1236 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1231 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1229 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1222 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1221 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1220 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1214 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1119 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1118 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1117 065G040233131J T CAP CHIP 0402 330PF 50V NPO C1116 065G040233131J T CAP CHIP 0402 330PF 50V NPO C5122 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5121 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5120 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5119 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5118 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C5116 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C4292 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C4259 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10% C1612 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C1403 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C1234 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C1235 065G040247232K Y CAP CHIP 0402 4700P 50V X7R +/-10% C1111 065G040247232K Y CAP CHIP 0402 4700P 50V X7R +/-10% C1408 065G040247312K 3 CHIP CAP 47N 16V X7R 10% C1233 065G040247312K 3 CHIP CAP 47N 16V X7R 10% C1233 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C1408 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C1114 065G040250931J Y CAP CHIP 0402 5PF 50V NPO

99

Skyworth 26K01HR, 32K01HR, 40K01HR Schematic [en, zh, ca]
