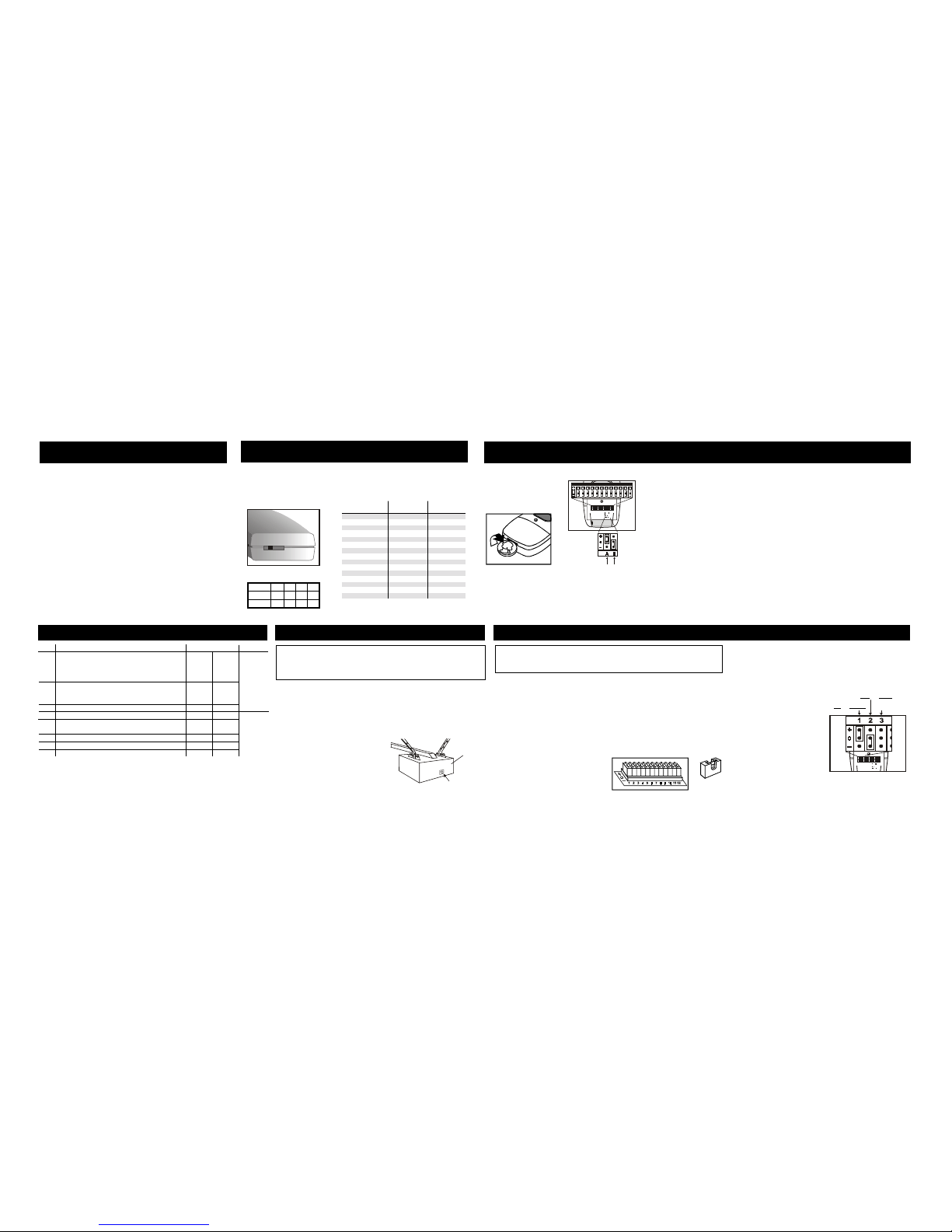

SkyLink 39 User Instructions

Group Brand Brand jumpers setting Proceed to

A B

1 Chamberlain

®

, Sears®, Lift-Master

®

- +
(without DIP switches but with red, orange or green
learn button)

2 Chamberlain

®

, Lift-Master®, Sears®, Wayne Dalton®, 0 -

Master Mechanic

®

(without DIP switches but with

yellow, white, or gray learn button)

3* Genie

®

Intellicode

TM

* (without DIP switches) + +

4 Genie

®

(with DIP switches), Overhead

®

0 +

5 Chamberlain

®

, Lift-Master®, Sears®, Wayne Dalton®, + -

Master Mechanic® (with DIP switches)

6 Stanley

®

, Multi-Code®, Martec

®

- -

7 Linear

®

, Moore-O-Matic

®

+ 0

8 Pulsar®, Allstar®, Allister®, Linear® MegaCode

TM

- 0

1a. Locate frequency

switch on the top of
the transmitter:
(See diagram A)

Code connector Location

1b. Determine the brand of your garage

door opener and set the frequency
switch to the corresponding position.
(See chart 1)

A B C D

2a. To set the brand

jumpers, open the
case with a coin
(see diagram B).

Brand
Jumper

Chart 1

Diagram B

STEP 1 - SET FREQUENCY SWITCH

BATTERY

A = “+”

B = “-”

Diagram C

REMOVE JUMPER = “0”

4c. If the connector is placed on the top and middle posts, that

column is set on “ + ” or “ON” or “CLOSE”. If the connector
is placed on the middle and bottom posts, that column is
set on “ - ” or “OFF” o r “OPEN”. If the connector is removed
completely, (not placed on any posts), it is set to “ 0 ” or the
neutral position. (see
diagram G for examples
of how to set a column
to the three different
positions). When re­moving a connector to
set a column to the
neutral position, save
the connector in case
you change the code
at a later date.

STEP 4 - SET CODE CONNECTORS

STEP

2 - SET BRAND JUMPERS

2b.The Model 39 contains 2 brand jumpers and 12 code

connectors (see diagram C). The brand jumpers are
located just above the battery with markings “A” and
“B”. There are 2 connectors, one is placed on the “A”
column, the other one is placed on the “B” column.
For each column, there is a connector. If the connector
is placed on the top and middle post of that column,
that column is set on “+”. If the connector is placed
on the middle and bottom posts, that column is set on
“-“. If the connector is removed completely, that column
is set on “0” (see diagram C). In order for the Model
39 to work with your existing garage door opener
(motor), you need to set the brand jumpers based on
the brand of your existing garage door opener. Please
set these 2 brand jumpers “A” and “B” based on the
brand jumpers setting on chart 2. Please identify the
group number on chart 2 in order to determine which
is the next step to proceed.

Chart 2

* Note:

For Genie® IntellicodeTM, if the brand jumper for group 3 cannot operate your garage door

opener properly, please use setting A “+”, B “-”.

‘+’ or ‘ON’ or CLOSE

‘0’ = BLANK

‘-’ or ‘OFF’ or ‘OPEN’

Diagram G

Diagram A

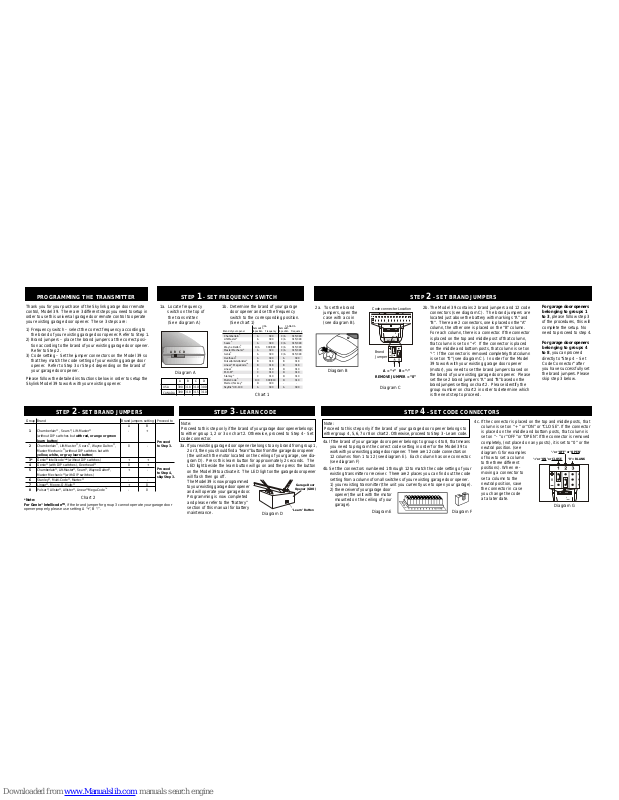

PROGRAMMING THE TRANSMITTER

Thank you for your purchase of the Skylink garage door remote
control, Model 39. There are 3 different steps you n e e d t o setup in
order to use this universal garage door remote control to operate
your existing garage door opener. These 3 steps are:

1) Frequency switch – select the correct frequency according to
the brand of your existing garage door opener. Refer to Step 1.

2) Brand jumpers – place the brand jumpers at the correct posi­tion according to the brand of your existing garage door opener.
Refer to Step 2.

3) Code setting – Set the jumper connectors on the Model 39 so
that they match the code setting of your existing garage door
opener. Refer to Step 3 or Step 4 depending on the brand of
your garage door opener.

Please follow the detailed instructions below in order to setup the
Skylink Model 39 to work with your existing opener.

USA
CANADA

A
390
390

B
318
318

C
310
315

D
300
310

For garage door openers
belonging to groups 1
to 3, please follow step 3

of the procedures, this will
complete the setup. No
need to proceed to step 4.

For garage door openers
belonging to groups 4
to 8, you can proceed

directly to “Step 4 – Set
Code Connector” after
you have successfully set
the brand jumpers. Please
skip step 3 below.

STEP 3 - LEARN CODE

Proceed
to Step 3.

Proceed
to Step 4,
skip Step 3.

Chamberlain

®

Lift-Master

®

Sears

®

Wayne Dalton

®

Master Mechanic

®

Genie

®

Overhead

®

Pulsar/Allister/Allstar

®

Linear® MegaCode

TM

Linear

®

M-O-M

®

Stanley

®

Multi-Code

®

Martec/Teckey

®

Skylink® UR-100

390
390
390

300/390

390
390
390
318
318
310
310
310

300/310

300
390

Brand of your opener

Set switch
to position

Frequency

USA

A
A
A

D/A

A
A
A
B
B
C
C
C

D/C

D
A

Set switch
to position Frequency

CANADA

C/A
C/A
C/A
C/A
C/A
C/A

A
B
B
D
D
D
D

­A

315/390
315/390
315/390
315/390
315/390
315/390

390
318
318
310
310
310
310

-

390

Diagram F

Diagram E

Note:
Proceed to this step only if the brand of your garage door opener belongs to
either group 4, 5, 6, 7 or 8 on chart 2. Otherwise, proceed to Step 3 - Learn code.

4a. If the brand of your garage door opener belongs to groups 4 t o 8 ,

that means

you need to program the correct code setting in order for the Model 39 to
work with your existing garage door opener. There are 12 code connectors on
12 columns from 1 to 12 (see diagram E). Each column has one connector.
(see diagram F)

4b. Set the connectors numbered 1 through 12 to match the code setting of your

existing transmitter or receiver. There are 2 places you can find out the code
setting from a column of small switches of your existing garage door opener.

1) your existing transmitter (the unit you currently use to open your garage).

2) the receiver of your garage door
opener (the unit with the motor
mounted on the ceiling of your
garage).

Note:
Proceed to this step only if the brand of your garage door opener belongs
to either group 1, 2 or 3 on chart 2. Otherwise, proceed to Step 4 - Set
code connector.

3a. If your existing garage door opener belongs to any brand from group 1,

2 or 3, then you should find a “learn” button from the garage door opener
(the unit with the motor located on the ceiling of your garage, see dia­gram D). Press this learn button for approximately 2 seconds. The
LED light beside the learn button will go on and then press the button
on the Model 39 to activate it. The LED light on the garage door opener
will flash then go off.
The Model 39 is now programmed
to your existing garage door opener
and will operate your garage door.
Programming is now completed
and please refer to the “Battery”
section of this manual for battery
maintenance.

Diagram D

‘Learn’ Button

Garage Door

Opener (GDO)

STEP 2 - SET BRAND JUMPERS

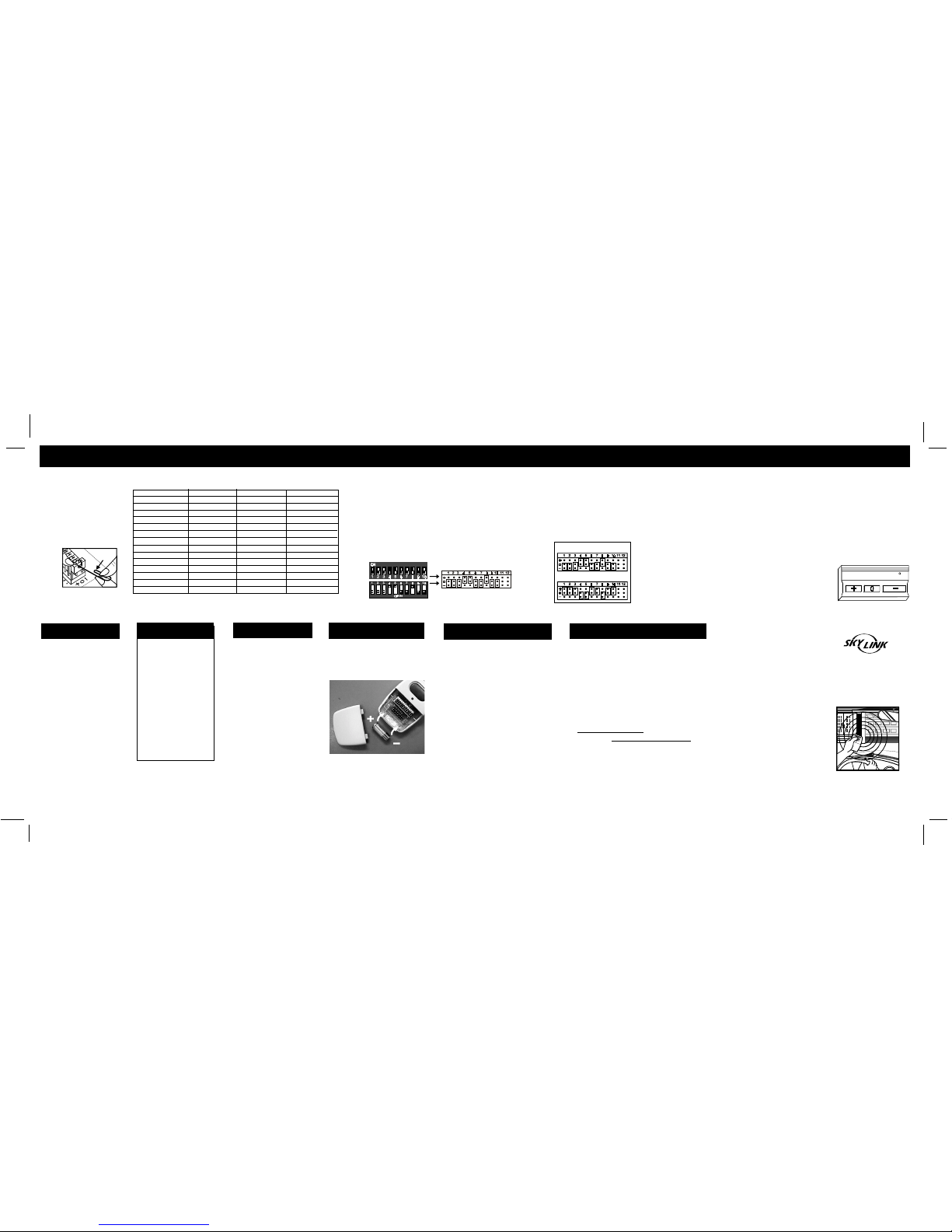

position “ 0 “. If your existing transmitter has fewer
than 12 switches, match only the first corresponding
connectors. Leave the remaining posts blank (remove
the connectors). Press the button on the transmitter.
If the garage door does not open, reverse all of the
connectors on the model 39. The “ + ” will be changed
to the “ - ” position and the “ - ” position will be
changed to the “ + ” position. (see diagram J)

Original Position

Reversed Position

Diagram J

Set the connectors numbered 1 through 12 to match the
switches of your existing transmitter or receiver. If your
garage door opener is manufactured by (Stanley®, Genie® ,
Multi-Code® , Linear® , Moore-O-Matic® , Skylink® ) these
switches may only have two positions, ( “ + , ON, CLOSED”
and “ - , OFF, OPEN”). (see diagram I) Set the connectors
on the model 39 to “ + ” if your existing switches are
either “ +, ON, CLOSE ” and set to “ - ” if your existing
switches are either “ -, OF F, OPEN”. Do not use the blank

Examples of how to set Model 39

Diagram I

STEP 4 - SET CODE CONNECTORS

Model 39

Existing
Transmitter

Linear Position 1 to 8 + OR ­M-O-M Position 1 to 8 + OR ­Stanley (310) Canada Position 1 to 10 + OR - 11,12 set to ‘+’ or ‘-’
Stanley (300) Position 1 to 10 + OR - 11,12 set to ‘+’ or ‘-’
Multi-Code Position 1 to 10 + OR - 11,12 set to ‘+’ or ‘-’
Chamberlain Position 1 to 9 +, 0 (blank), OR ­Lift-Master Position 1 to 9 +, 0 (blank), OR ­Sears Position 1 to 9 +, 0 (blank), OR ­Wayne Dalton Position 1 to 9 +, 0 (blank), OR ­Master Mechanic Position 1 to 9 +, 0 (blank), OR ­Genie (9 positions) Position 1 to 9 + OR ­Genie (12 positions) Position 1 to 12 + OR ­Overhead Position 1 to 9 +, 0 (blank), OR ­Martec/Teckey Position 1 to 10 + OR - 11,12 set to ‘+’
Pulsar/Allister/Allstar Position 1 to 9 +, 0 (blank), OR -

Code connector setting to match your opener/motor

FCC

The Universal Garage Door Remote
Control is approved by the FCC
and it complies with Part 15 of the
FCC Rules. Its operation is subject
to the following two conditions :

1. This device may not cause
harmful interference.

2. This device must accept any
interference that may cause
undesired operation.

WARNING:

Changes or modifications to this unit
not expressly approved by the party
responsible of compliance could void
the user’s authority to operate the
equipment.

NOTE

WARNING

BATTERYWARRANTY

If this transmitter triggers
other garage doors in
your neighborhood,
change all your trans­mitters and receiver to a
new code setting.

DO NOT let children use
the garage door trans­mitter without adult
supervision. Children
can injure themselves or
others by the garage
door.

If, within one year from date
of purchase, this product
should become defective
(except battery), due to
faulty workmanship or
materials, it will be repaired
or replaced, without charge.
Proof of purchase is
required.

12 volt alkaline battery (size 23A)
included.

If you r garage d oor opener is manufactured b y (Chamb erlain® ,Sears® , Lift-Master® ,
Wayne Dalton

®

, Pulsar® or Master Mechanic®) the switches will have 3 positions,
(“ + , 0, - ”). Set the connectors on the model 39 to match their corresponding posi­tions. If your opener is a Sears

®

, Chamberlain® or Lift-Master® and the existing trans­mitter has three buttons, (see diagram K), the first connector in the model #39 may
need to be changed to another position.
If your Chamberlain® ,Sears® , Lift-Master® has 9 DIP switches, match them to the
first 9 connectors on the model 39 and remove the last 3 connectors (connectors
10, 11, 12). If there are only 8 DIP switches on your Chamberlain® ,Sears® , Lift­Master®, match them to the 2-9 position on the model 39 and remove the last 3 con­nectors (connectors 10, 11, 12). Now you may have to change the positioning of
the #1 connector on the model 39.
If the large button of Diagram K is used to open the
garage door, set the #1 connector to “ - ” position. If the
middle button is used, set the #1 connector to the “ 0 ”
or “blank” position. If the smaller button on the left is
used, set the #1 connector to the “ + ” position.

Diagram K

OPERATION

To operate the model 39
with your GDO properly,
please press the button on
the model 39.

NOTE: Transmission range
may be reduced with use on
a metal garage door.

CUSTOMER SERVICE

2213 Dunwin Drive
Mississauga, Ontario,
L5L 1X1, CANADA
[phone]
[phone] FAX
Email:[e-mail]
(Reply within 24 hrs)
Customer Service : [phone]
From 9am to 5pm EST (Mon-Fri)
http://www.skylinkhome.com

P/N. 101A198 Rev. 0
Patent no. D377458, 5680134,
5841390, 6005508
Patents Pending
©2003 SKYLINK GROUP

Skylink will not be held
liable or responsible for
any misuse or application
of this product other than
for its intended use.

GARAGE DOOR/GATE

REMOTE CONTROL

USER'S INSTRUCTIONS

(Model 39)

® are registered trademarks of their respective corporations

®

If your Skylink Universal Remote Control does
not activate your Garage Door Opener, the
reason may be that your GDO age or manu­facturer is not listed on the compatibility chart.

The solution is the Skylink UR-100 Universal
Receiver.

If you would like to order Skylink’s product or
have difficulty getting your Skylink’s remote
control to work, please :

1. visit our website FAQ at
www.skylinkhome.com, or

2. email us at [e-mail]
(reply within 24 hrs)

3. call our toll free at 1-800-304-1187 from
Monday to Friday, 9 am to 5 pm EST.

4d. To move the connectors,

slide an opened paper clip
into the side of a connector
and lift. (see diagram H)
When repositioning con­nectors, place a connec­tor on the two chosen posts,
then push down on the
connector with your finger.

Paper

Clip

Diagram H
