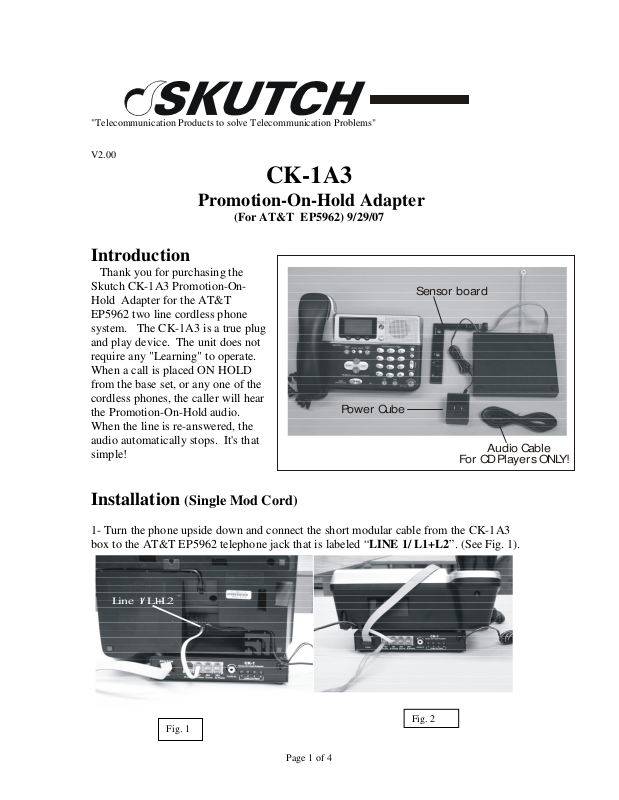

"Telecommunication Products to solve Telecommunication Problems"
Fig. 2
Line 1/ L1+L2
V2.00
CK-1A3
Promotion-On-Hold Adapter
(For AT&T EP5962) 9/29/07
Introduction
Thank you for purchasing the
Skutch CK-1A3 Promotion-OnHold Adapter for the AT&T
EP5962 two line cordless phone
system. The CK-1A3 is a true plug
and play device. The unit does not
require any "Learning" to operate.
When a call is placed ON HOLD
from the base set, or any one of the
cordless phones, the caller will hear
the Promotion-On-Hold audio.
When the line is re-answered, the
audio automatically stops. It's that
simple!
Power Cube
Sensor board
Audio Cable
For CD Players ONLY!
Installation
1- Turn the phone upside down and connect the short modular cable from the CK-1A3
box to the AT&T EP5962 telephone jack that is labeled “LINE 1/ L1+L2”. (See Fig. 1).
(Single Mod Cord)
Fig. 1
Page 1 of 4
Align White Lines
on Sensor Board t o
Fig. #4
2- Set the phone on the CK-1A3 box as shown in Figure #2.
3- Connect the audio cord from your audio source, to the AUDIO IN jack on the back of
the CK-1 box. For DIGITAL units use the cable that comes with the player, not ours.
4- Connect a MOD cord from Telephone Wall Jack 1&2 to [1&2 Line on CK-1A3].
5- Peel off the protector papers from the bottom of the sensor board, and carefully place it
OVER the LINE buttons on the phone set as shown in Fig. #4 & Fig. #5. Center the
WHITE LINES on the sensor board, over the 1 & 2 buttons on the phone. The SENSOR
BOARD MUST be attached to the phone for proper operation.
center of But t ons
Page 2 of 4
6- Connect the POWER CUBE from the CK-1 box to 115VAC power. That's it!
On Ck1
Installation
If your phone is installed with two telephone cords, one for line 1 and another for line 2, then you will have
to use the enclosed adapter to convert the two separate cords to a single double line cord. Once this is done
you can follow the Installation (Single Mod Cord) instructions.
Connec t to:
(Two Mod Cords)
Line 1 Jack
Connec t to:
Line 2 Jack
Connec t to:
1&2 t o LINE
Page 3 of 4
Testing the System:
1- Pickup line 1 on your telephone. The No."1" LED on the CK-1A3 Sensor Board
should light up. Hang up.
2- Repeat this test for line 2. If both lines light up when picked up, the CK-1A3 is
working properly. If either light does not light up, then
a) Make sure that the CK-1A3 and Telephone is connected to power.
b) Make sure that the SENSOR BOARD is aligned properly.
Lights on CK-1 Box.
When you place a line on HOLD, the corresponding LED on the rear of the CK-1A3 box
lights up to confirm the Promotion-On-Hold condition.
Using Other models of telephones
The CK-1A3 will ONLY provide Promotion-On-Hold audio when a call is placed ON
HOLD from the AT&T EP5962 base or any of it's cordless telephones. Other models of
telephones can be used with the AT&T EP5962, but the Promotion On Hold audio will
not be played to calls placed ON HOLD from these telephones.
Tech Support - 916-786-6186
If you have any problems getting the unit to work properly feel free to give us a call.
Technical Support is available between the hours of 7:30 AM and 4:30 PM Pacific Time,
Monday through Friday.
• ONE YEAR LIMITED WARRANTY
This SKUTCH PRODUCT is warranted against defects for a period of one (1) year from the date of the
original invoice. Within this period, we will repair it without charge for parts and labor. To obtain
warranty service the product must be returned, at the customer's expense, to SKUTCH Electronics along
with a copy of the original invoice. After the unit has been repaired, SKUTCH will ship the PRODUCT
back via UPS GROUND service at our expense. If any other form of return shipment is requested, the
customer will pay for 100% of the shipping cost.
This Warranty does not apply if in the sole opinion of SKUTCH Electronics, the PRODUCT has been
damaged by lightning or any other Acts of God, or by accident, misuse, neglect, or improper packing,
shipping, modification or servicing by other than an authorized SKUTCH Service Center.
EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT, THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OR MERCHANTABILITIES OR FITNESS FOR A PARTICULAR PURPOSE AND IN
NO EVENT SHALL SKUTCH ELECTRONICS BE LIABLE FOR LOSS OF PROFITS OR BENEFITS,
INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER SIMILAR DAMAGES ARISING OUT OF
ANY BREACH OF THIS WARRANTY OR OTHERWISE.
Page 4 of 4
