Audio Source
• Introduction
• Technical Support
Thank you for purchasing the Skutch CK-10 Telephone Handset Audio
Playback Adapter. The CK-10 was designed to play pre-recorded audio, from
a variety of audio sources, over the telephone line. You can use the CK-10 on
either single line or multi-line telephones. The CK-10 easily installs between
the handset and the base of the telephone. The Audio In on the CK-10 is
connected to the headphone output on your audio source. Use the volume
control on the audio source to control the volume.
CK-10 Installation
Diagram
Telephone Line Simulator
AS-4A
CK-10
Push to
Handset
Device
Audio Control
Ring
Down = Ext. Audio
UP = Talk
Telephone Handset Playback Adapter
Phone
Phon eRing
Base
Audio
Aud io In/Out
IN
(From Hea dphone Jack)
Audio Cord
Phone
Base
Line
Cord
Handset
If you have any problems getting the unit to work properly feel free to
give us a call. Technical Support is available between the hours of 7:30 AM
and 4:30 PM Pacific Time, Monday through Friday.
• Operation
For normal telephone operation, the Audio Control switch must be in
the UP position. Once you are ready to play audio over the telephone line,
simply depress the Audio Control switch to the DOWN position. Audio
from the audio source will now be playing over the line. The microphone on
the telephone is muted in this position. The touch tones from the telephone
key pad should still be . Adjust the audio level from the audio source to the
proper level.
• ONE YEAR LIMITED WARRANTY
Phone
Base
This SKUTCH PRODUCT is warranted against defects for a period of
one (1) year from the date of the original invoice. Within this period, we will
repair it without charge for parts and labor. To obtain warranty service the
product must be returned, at the customer's expense, to SKUTCH Electronics
along with a copy of the original invoice. After the unit has been repaired,
SKUTCH will ship the PRODUCT back via UPS GROUND service at our
expense. If any other form of return shipment is requested, the customer will
pay for 100% of the shipping cost.
This Warranty does not apply if in the sole opinion of SKUTCH
Electronics, the PRODUCT has been damaged by lightning or any other Acts
of God, or by accident, misuse, neglect, or improper packing, shipping,
modification or servicing by other than an authorized SKUTCH Service
Center.
EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT,
THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OR MERCHANTABILITIES OR FITNESS FOR A PARTICULAR
PURPOSE AND IN NO EVENT SHALL SKUTCH ELECTRONICS BE
LIABLE FOR LOSS OF PROFITS OR BENEFITS, INDIRECT, SPECIAL,
CONSEQUENTIAL OR OTHER SIMILAR DAMAGES ARISING OUT
OF ANY BREACH OF THIS WARRANTY OR OTHERWISE.
"Telecommunication Products to solve Telecommunication Problems"

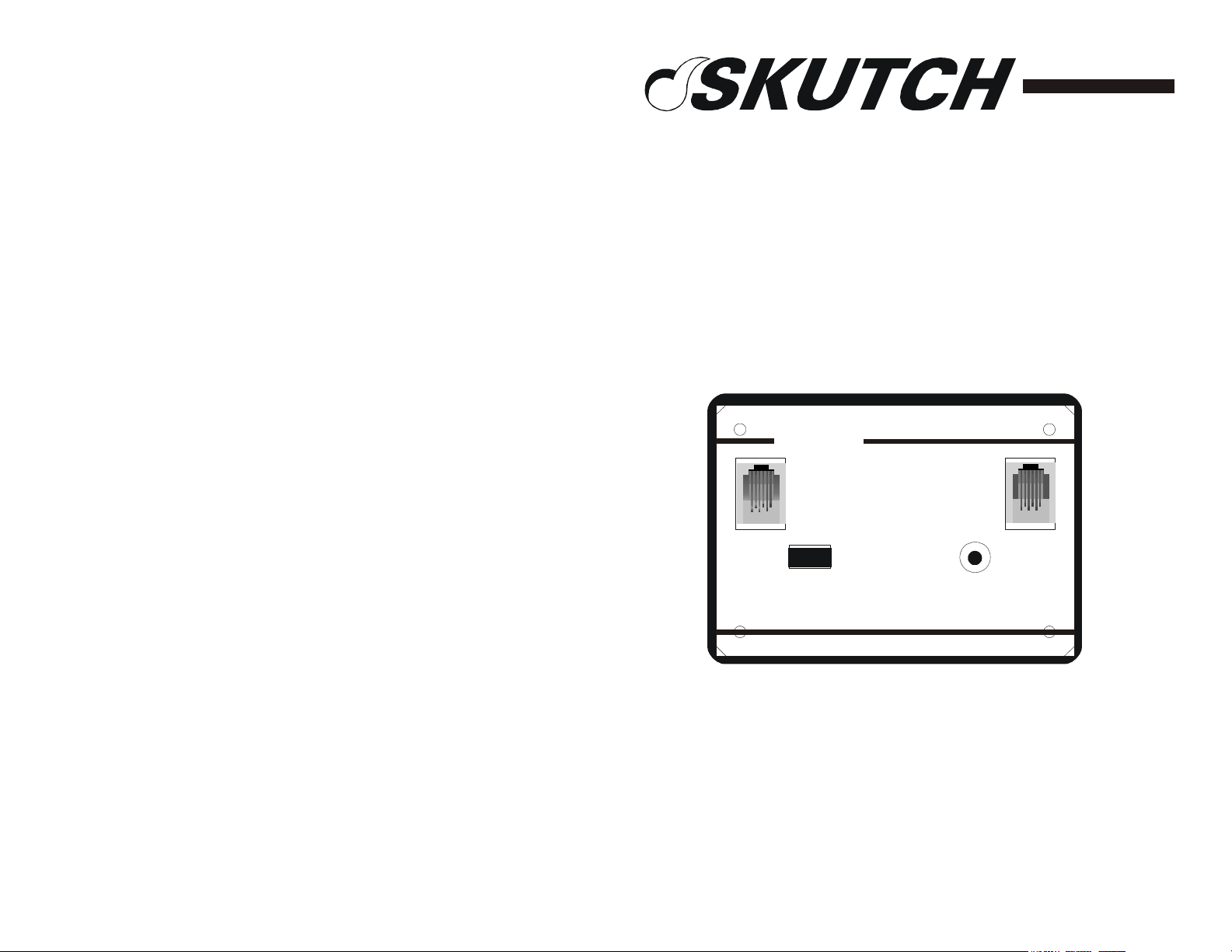

CK-10
Telephone Handset Playback
Adapter
AS-4A
Handset
Ring
Device
Audio Control
CK-10
Push to
Down = Ext. Audio
UP = Talk
Telephone Handset Playback Adapter
Telephone Line Simulator
Ring
Audio In/Out
(From Hea dphone Jack)
Version 1.0
Phone
Audio
IN
