• Introduction
.
• Front Panel Lights
Thank you for purchasing the BA-2 Promotion-On-Hold Adapter. This
unit can be used by itself, as a single station adapter, or it can be used on an
AS-702 non-compatible phone, to make it compatible. The BA-2 is simple to
use and is compatible with almost every make and model of telephone.
• Installation
To install the unit on either a two line or single line telephone, follow
the four steps below:
Plug cord from phone
1
into phone jack,
th e n to LINE input on
BA -2 .
3
Co n n e c t su p plied
2
modular cord from
p h o n e to P H O N E
inp ut on B A-2.
C onnect Audio cable to
BA- 2, then to Audio S ource
Steady On
•
Indicates that line is currently in use by the phone. The light does not
light when another phone is using the line.
Fast Flash
•
Indicates that the unit has detected that you have pressed the BA-2’s
HOLD
call. You can reset the unit by pressing the
•
•
button and is ready for you to hang up so that the BA-2 can hold the
HOLD
Slow Flash
Indicates that a call is ON HOLD.
Power Up
On initial power up, the light will alternately flash for 3 seconds.
button once again.

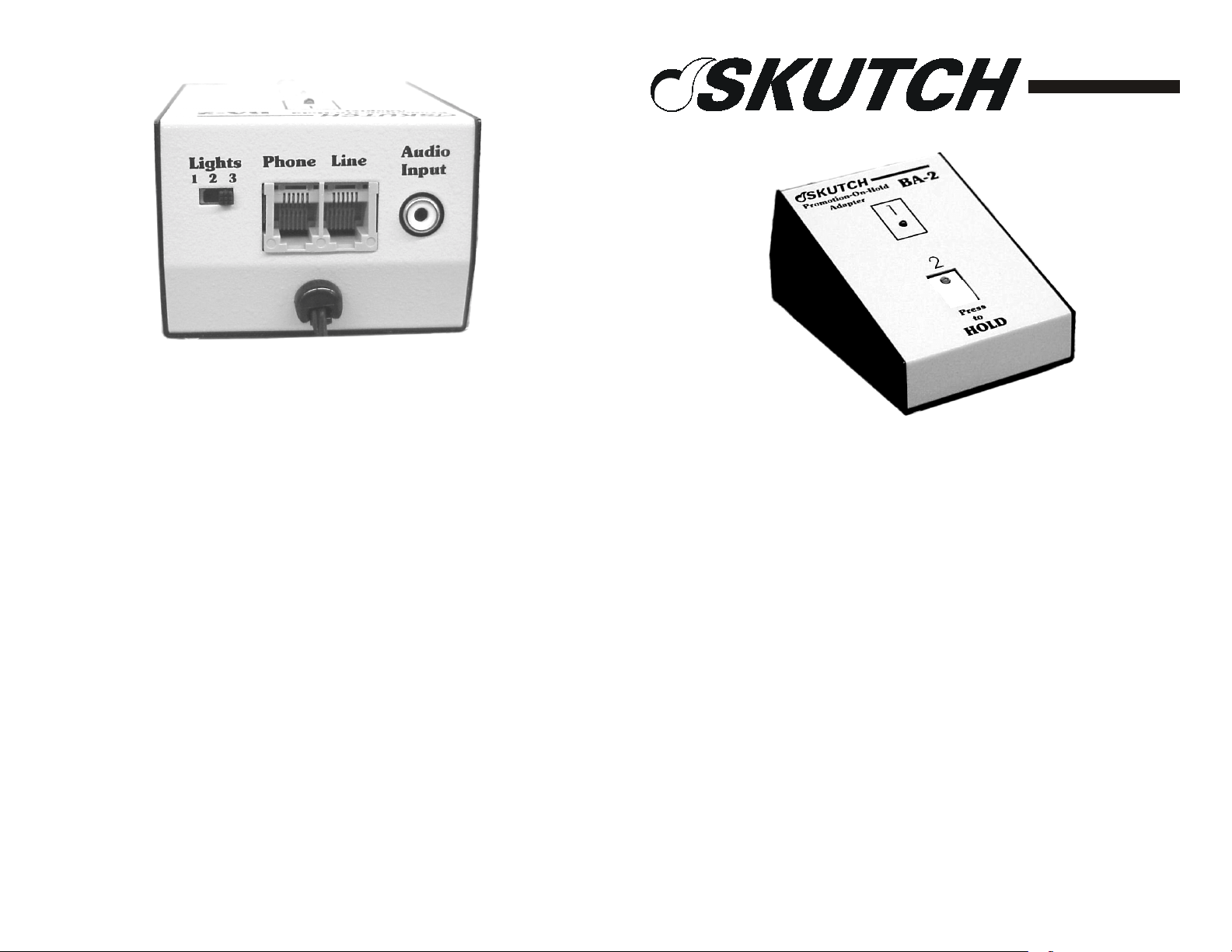

• Light Switch (back panel)
This switch is normally in position #3. Change the switch to a different
setting if other phone’s IN-USE lights do not light when the BA-2 is in the
hold condition.
Co n n e c t Po we r A d a p te r from BA-2
4
to power outlet.
• Operation
To place a call on hold
•
Simply press the
To release the hold condition
•
Pick up any phone that is connected to that line, and the adapter
will automatically reset.
HOLD
button on the BA-2, then hang up.
• Audio Input (back panel)
This input is connected to your audio source. Use the phones or
speaker output to drive this input. A pre-amp level output is not loud
enough.
• Tech Support - 916-786-6186
If you have any problems getting the unit to work properly feel free to
give us a call. Technical Support is available between the hours of 7:30 AM
and 4:30 PM Pacific Time, Monday through Friday.
• ONE YEAR LIMITED WARRANTY
This SKUTCH PRODUCT is warranted against defects for a period of
one (1) year from the date of the original invoice. Within this period, we will
repair it without charge for parts and labor. To obtain warranty service the
product must be returned, at the customer's expense, to SKUTCH Electronics
along with a copy of the original invoice. After the unit has been repaired,
SKUTCH will ship the PRODUCT back via UPS GROUND service at our
expense. If any other form of return shipment is requested, the customer will
pay for 100% of the shipping cost.
This Warranty does not apply if in the sole opinion of SKUTCH
Electronics, the PRODUCT has been damaged by lightning or any other Acts
of God, or by accident, misuse, neglect, or improper packing, shipping,
modification or servicing by other than an authorized SKUTCH Service
Center.
EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT,
THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OR MERCHANTABILITIES OR FITNESS FOR A PARTICULAR
PURPOSE AND IN NO EVENT SHALL SKUTCH ELECTRONICS BE
LIABLE FOR LOSS OF PROFITS OR BENEFITS, INDIRECT, SPECIAL,
CONSEQUENTIAL OR OTHER SIMILAR DAMAGES ARISING OUT
OF ANY BREACH OF THIS WARRANTY OR OTHERWISE.
"Telecommunication Products to solve Telecommunication Problems"
BA-2 Manual
Promotion On Hold
Adapter
Version 1.0
