BLUETOOTH LINK

OWNERS MANUAL

ENGLISH

INTRODUCTION

TuneUps with Bluetooth LINK

TuneUps™ offers incredible in-helmet stereo sound plus Bluetooth LINK™ technology from Skullcandy™ that allows you to hard-line to your music player while connecting to any Bluetooth enabled phone wirelessly. A simple touch answers incoming calls while one more disconnects you and gets your music back online.

Package Contents

• Bluetooth LINK module

• Drop-in Speakers

• Carry Pouch

• Helmet Audio Cable (3.5mm-to-3.5mm)

• MP3/CD Player Cable (2.5mm-to-3.5mm)

• 2.0 USB Cable

• Owner’s Manual

ENGLISH

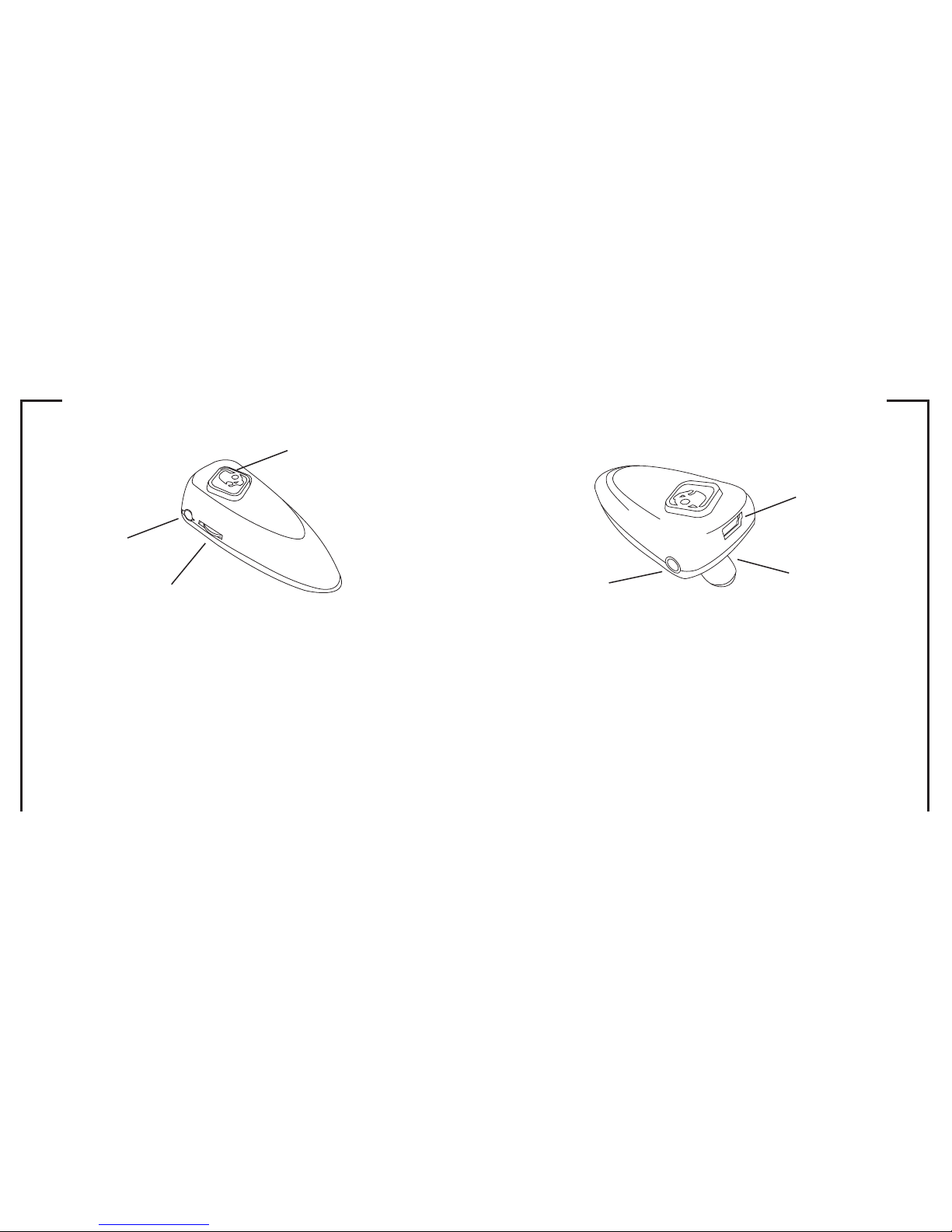

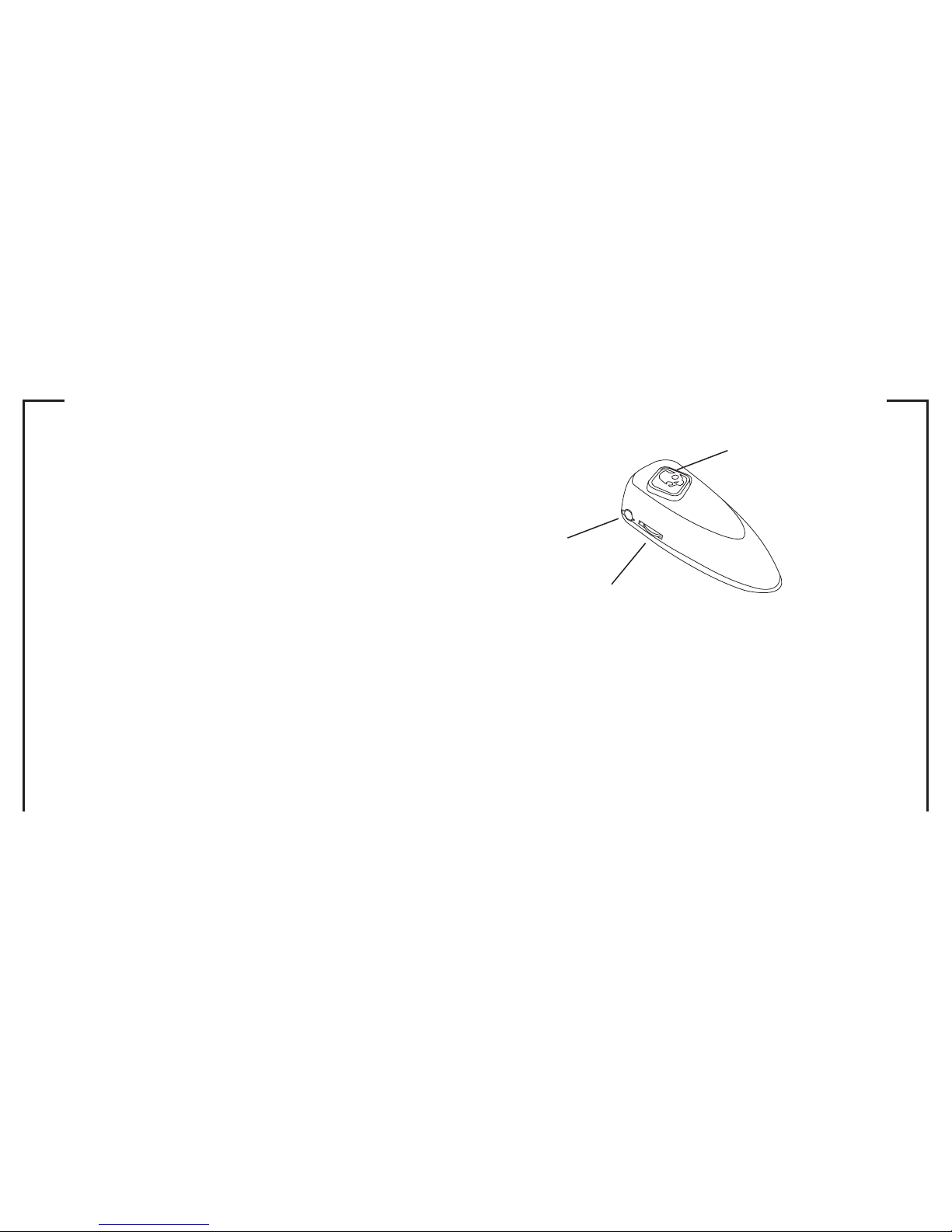

BT LINK CONTROLS

1. Multi-function Logo Button - Used to answer and end

calls. Also used to turn the BT LINK on and off.

2. Volume Control Dial - Allows you to increase or

decrease volume for music or calls.

3. 2.5mm Headset Jack - Allows you to connect to a

music source.

SAFETY INFORMATION

WARNING

For use with Giro snowsports helmets only. Use of these

or other headphones in snowsports may cause the rider/ skier to not hear approaching riders/skiers. This can lead to an accident and possible injury or death. Headphones will also restrict your ability to hear what your edge/

edges are doing on the snow, which may lead to less

control. Headphones may distract you from focusing on

riding or skiing safely.

Remember Your Responsibilities

Always stay in control. People ahead of you have the

right of way. Stop in a safe place for you and others. Whenever starting downhill or merging, look uphill and yield. Look before you leap. Use devices to help prevent runaway equipment. Observe signs and warnings. Keep off closed trails. Know how to use the lifts safely. Respect gets respect.

Controls (Left side)

ENGLISH

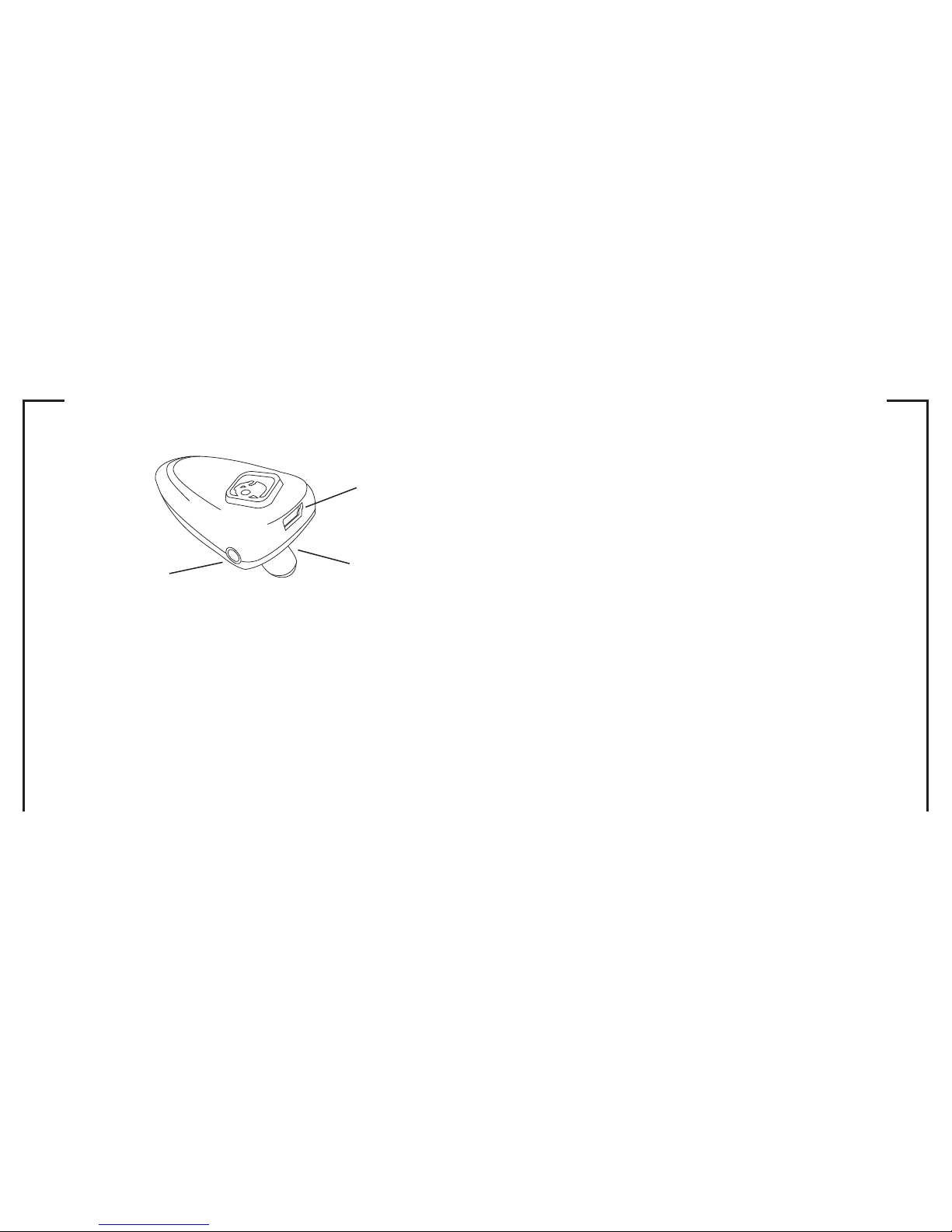

4. 3.5mm Headset Jack - Allows you to connect to your

helmet or your own personal headphones.

5. Microphone - Used when placing and receiving calls

6. Charging Port - When charging, one end of the USB

cable should be inserted into this port.

GETTING STARTED

Before you can use the BT LINK, you must do the following:

1. Charge the BT LINK’s internal battery

2. Pair the BT LINK with your Bluetooth phone.

3. Attach the BT LINK to your helmet or headphones.

4. Attach a music source to your BT LINK.

Charging the BT LINK’s Internal Battery

First-time Use – Before you can use your BT LINK, you need to charge its internal battery fully for at least two

hours. Perform these steps to charge your BT LINK:

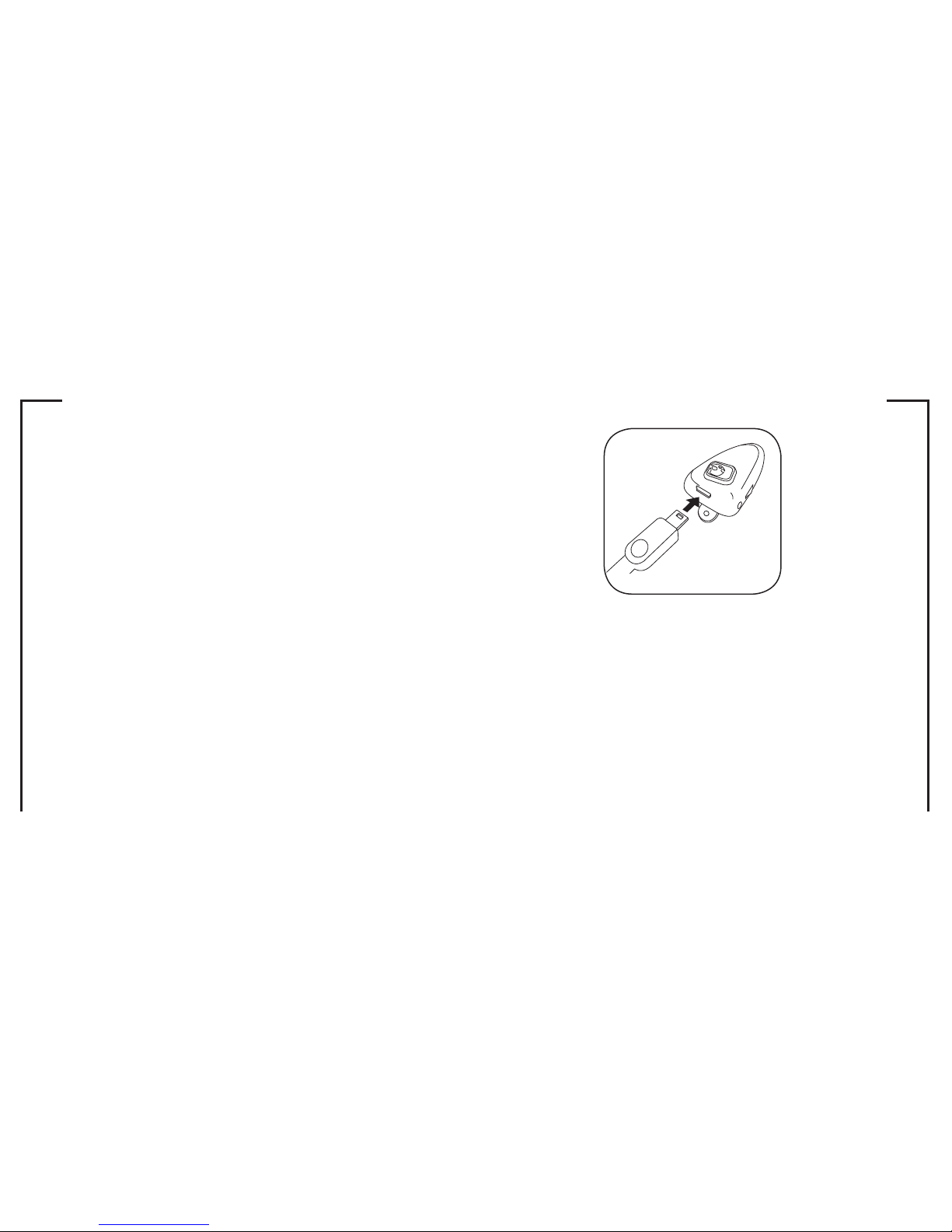

1. Plug the included 2.0 USB cable into a high-power

USB port on your computer

Note: The USB port on your keyboard doesn’t provide

enough power. You must connect BT LINK to a USB port on you computer.

Controls (Right side)

ENGLISH

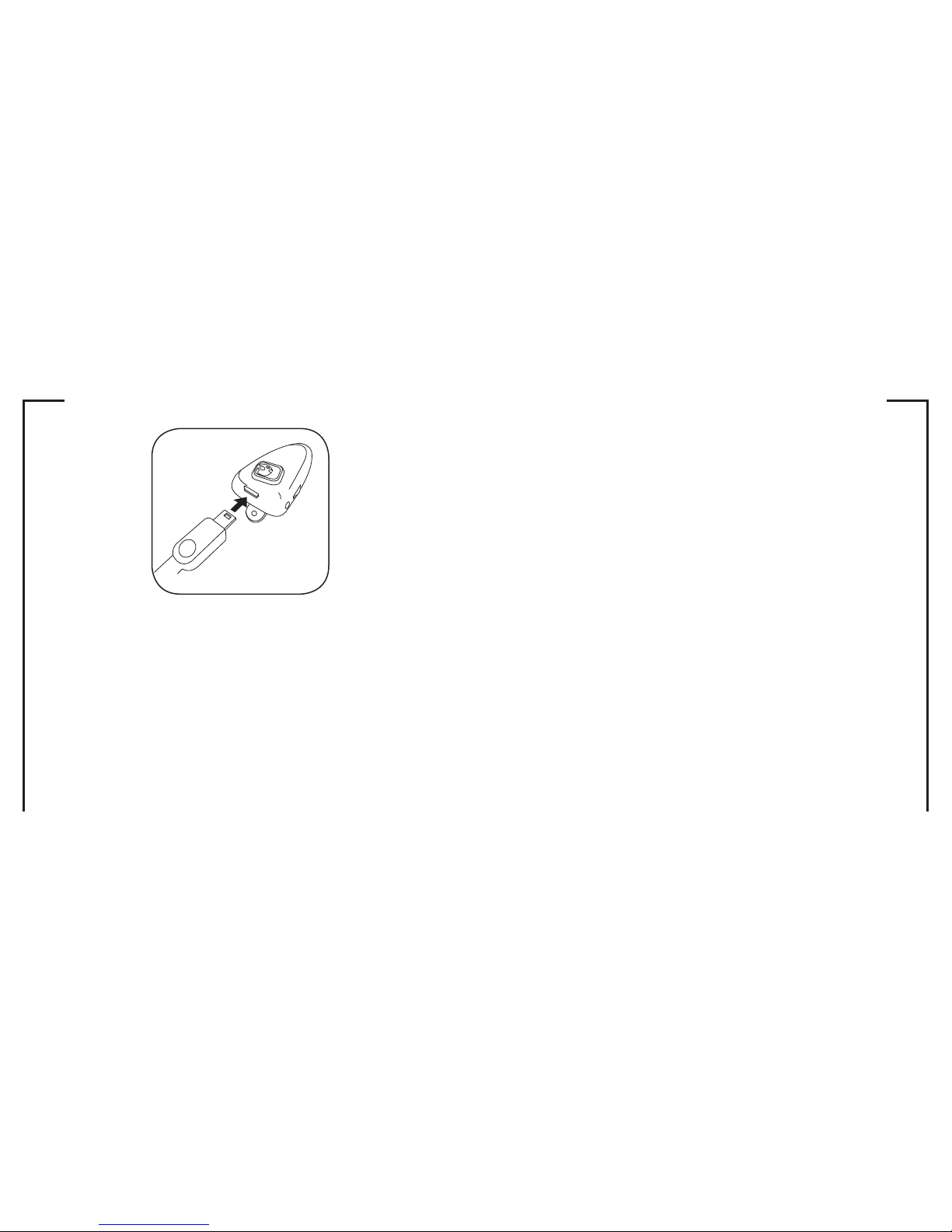

2. Connect the other end into your BT LINK While charging, the LED will ash red. When charge is

completed, the indicator will turn off.

3. When charging completes (indicators off), unplug the

cord from the computer, and your BT LINK.

Note:

• Low voltage indication: 2 tones from the headset every 30 seconds and LED will ash red. It is recommended

to charge the headset immediately after low voltage indication to prolong the durability of the battery and standby time. Under low voltage, if the battery is not

charged within approximately 30 seconds, the headset

will be powered off.

• Charging indication will be delayed for a few minutes

if the headset has not been used for a long time or the battery is drained.

ENGLISH

Pairing Your BT LINK and Bluetooth Phone

You must pair (link) your BT LINK and your Bluetooth-

enabled phone before you can make or receive calls.

“Pairing” links two Bluetooth equipped devices, and allows your phone to remember your BT LINK’s unique

ID. After your BT LINK and phone are paired, your BT LINK automatically connects to your phone when you

turn it on. Perform these steps to pair (link) your phone

and BT LINK:

1. Turn on the Bluetooth power on your phone. Bluetooth power option may be OFF by default. Bluetooth power

must be ON to search for devices. Refer to your phone’s

user guide.

2. Put your BT LINK into pairing mode. With your BT

LINK off, press and hold the Logo Button until the LED

alternately ashes blue and red (about 5 seconds).

3. Set your phone to look for your BT LINK, and select

“BTLink-SK/Giro” from the device list. Press OK and YES to pair (link) the device. Enter the passkey “0000” and press OK. Your BT LINK’s ID is now stored in your phone’s memory.

When your BT LINK is successfully paired with your

phone the LED will ash blue 5 times followed by a long

tone.

ENGLISH

Connecting the BT LINK to Your Helmet or Headphones

Connecting the BT LINK to your helmet

Perform these steps to connect your BT LINK to your helmet.

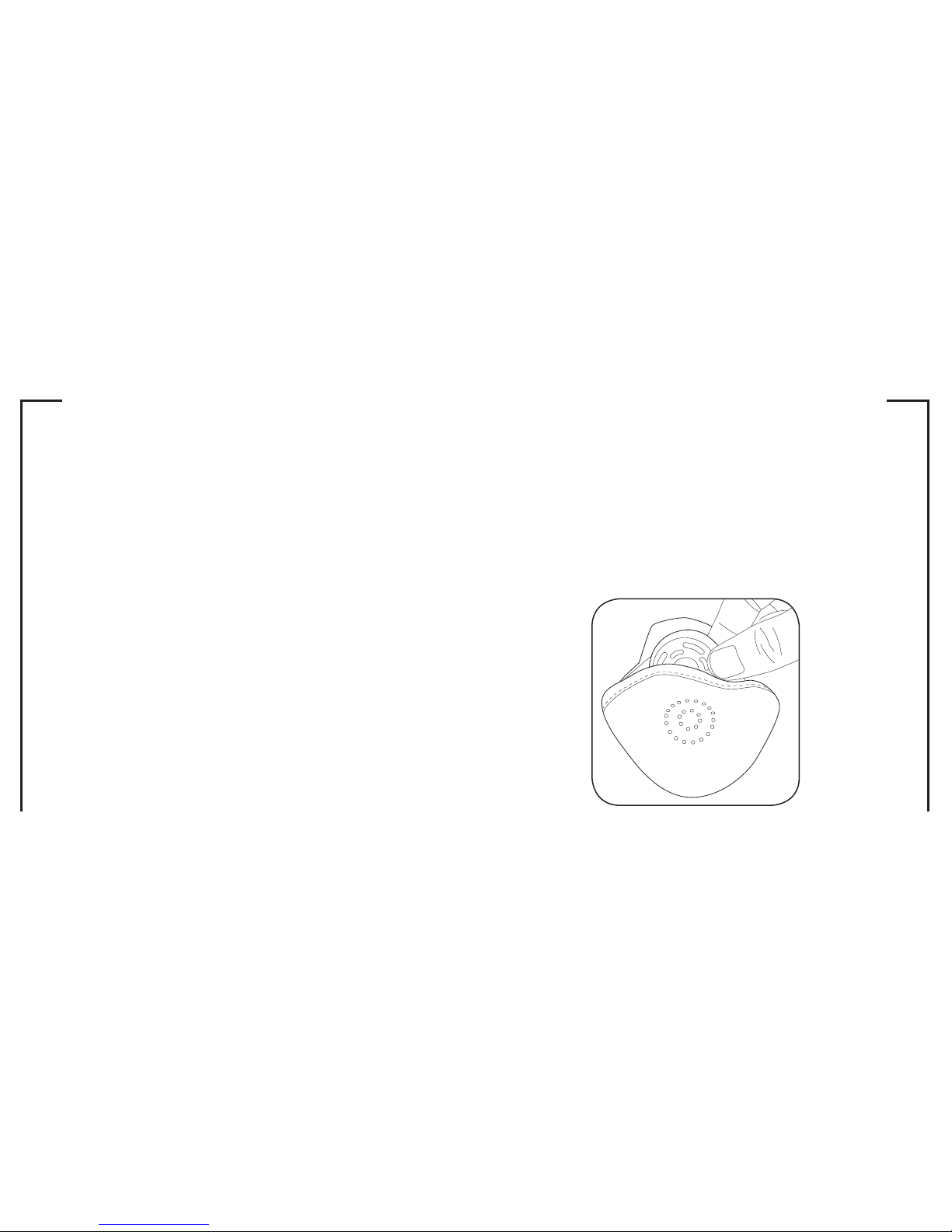

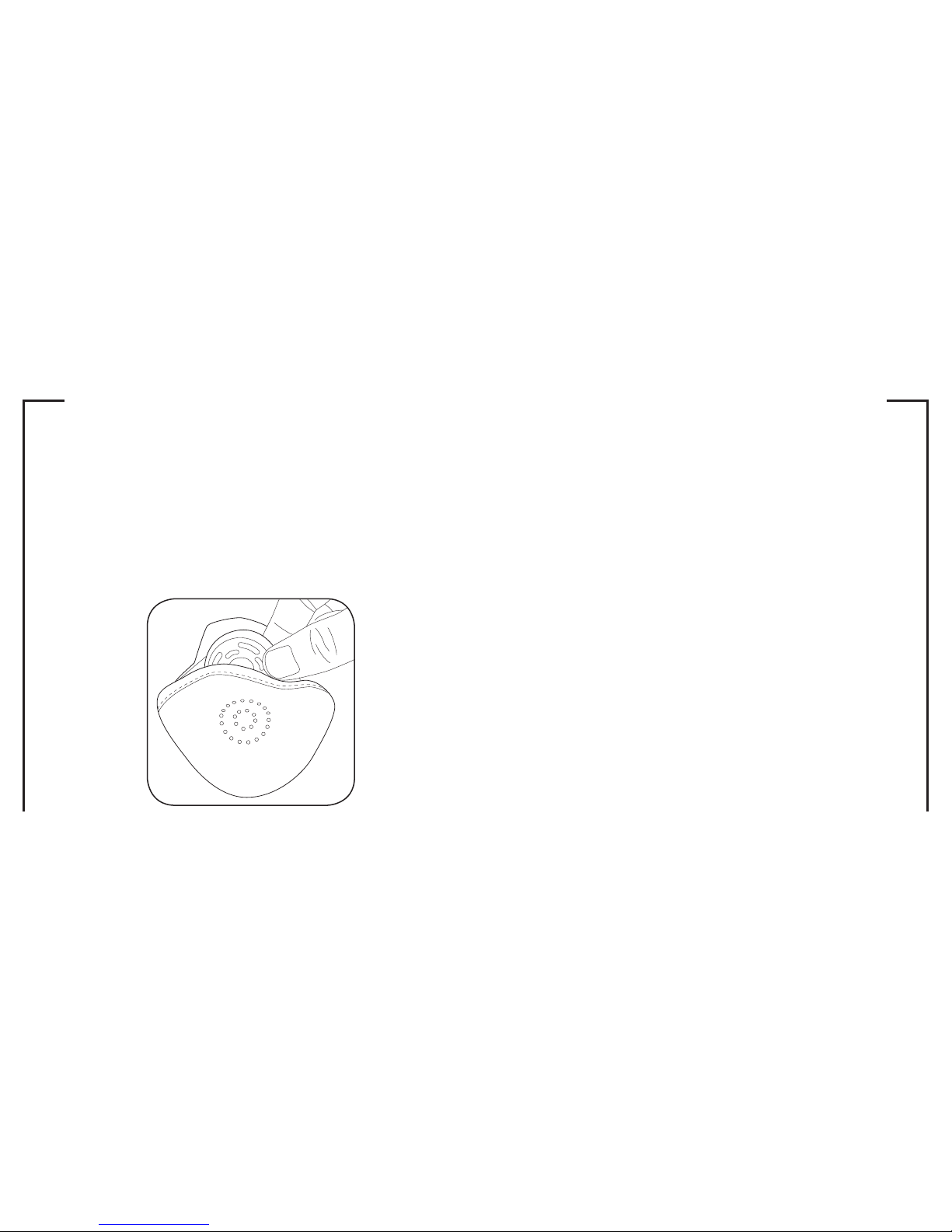

1. Open the audio pocket on each earpad, remove the round pieces of foam padding, and slip in our Audio Drops speakers.

2. Slip the short headset jack from the speakers through

the hole at the bottom of either earpad.

Note: If you purchased a Giro Audio Series Helmet

already equipped with Audio Drops speakers, please skip to Step 4.

3. Tuck the audio wire connecting both speakers either under the padding inside the back of the helmet or inside the neckroll pocket, depending on the helmet model.

4. Connect your BT LINK to the Audio Drops speakers

using the 3.5mm/3.5mm stereo audio cable. Tuck the

headset jack back up into the earpad, if desired.

ENGLISH

USING YOUR BT LINK

Turning Your BT LINK On and Off

To turn you BT LINK on, press and hold the Logo button

for approximately 3 seconds until the LED ashes on for

one second and you hear a short tone.

To turn you BT LINK off, press and hold the Logo button

for approximately 5 seconds until the LED ashes on for

one second and you hear a long tone.

Connecting the BT LINK to your personal headphones

You can simply connect your headphones to the 3.5mm

headset jack on the BT LINK

Connecting Your BT LINK to a Music Source

To listen to music, connect your music source to

the headset jack using the 2.5mm-to-3.5mm stereo

audio cable included with your BT LINK. Connect the

music source to the BT LINK module using the 2.5mm

connector.

ENGLISH

You can activate call functions for the Handsfree Prole

according to the following:

1. Make a Call (Voice Dial): With the phone on in idle,

press the Logo button once, wait for a short tone, speak name, and the phone dials the call.

2. Make a Call (Hand Dial): With the phone on, enter the

phone number on the phone, press the Send key on the phone, and the phone dials the call.

3. Redial Last Number: With the phone in idle, press the Logo button twice within 1 second, it will recall the last number.

4. End a Call: With the phone on and in-call, press the Logo button once.

5. Receive (Answer) a Call: With the phone on and

ringing, press the Logo button once.

6. Reject a Call: With the phone on and ringing, press and hold the Logo button 3 seconds.

Making Calls with your BT LINK

Your BT LINK supports both Handsfree and Headset Proles. Accessing call functions depends on which prole your phone supports.

Note:

• Some phones do not support all features listed. See your phone’s user guide.

• Music playing from the music source is muted when

placing or receiving calls, and unmated when the call

is nished.

• You can control the volume while in a call using the

volume dial on the BT module.

ENGLISH

Listening to Music with your BT LINK

The following functions are supported while playing music from a music source.

1. Adjust Music Volume: Turn Volume Control Dial up (to increase volume) or down (to decrease volume)

2. Mute/Unmute Music: Press the Logo button once.

BT LINK Indicator Lights and Audio Tones

The indicator lights and audio tones on your BT LINK provide status information.

Light Audio Tone Status

Blue LED ash on 1

second

Two Tones Power ON

Red LED ash on 1

second

Two Tones Power OFF

LED alternately

ashes blue and red

No audio indications

Pairing in Progress

Blue ash once per

2.5 seconds

Two Tones Pairing Completed

Blue ash twice per

2.5 seconds

No audio indications

Standby mode unpaired

Blue ash once per

2.5 seconds

No audio indications

Standby mode paired

Blue ash thrice per

2.5 seconds

No audio indications

Conversation in

Progress

Red LED ash Two Tones per

30 seconds

Low Battery

ENGLISH

CARE AND HANDLING

• Consider turning your BT LINK off before placing

it in your pocket or bag. If the Button is accidentally depressed, your mobile handset may place an unintended call.

• Do not attempt to clean or disinfect your helmet with

TuneUps earpads installed.

• Do not expose the BT LINK to liquid, moisture or

humidity, as it is not waterproof.

• Do not use abrasive cleaning solvents to clean the BT LINK.

• Do not place the BT LINK in high temperature, as it will result in an explosion.

• Do not expose the BT LINK to contact with sharp

objects as this will cause scratching and damage.

• Do not stick anything inside the BT LINK as this may

damage internal components.

• Do not attempt to disassemble the BT LINK, as it does

not contain serviceable components.

• If you do not use the BT LINK for long periods, be sure

to store it in a dry place, free from extreme temperature, humidity and dust.

• Only use the manufacturer supplied USB cable when

charging the BT LINK.

• Only charge the BT LINK’s built-in battery in

accordance with the instructions of this user guide.

• Avoid charging the BT LINK in extremely high or low temperatures.

ENGLISH

TECHNICAL DETAILS AND SPECIFICATIONS

Features:

• Dual color LED multifunction Button

• Power ON/OFF, Pairing, Answer/End/Reject Call, Voice

dialing, Last No. Redial, Call Waiting, 3-way Conf. Call

• Audio Player Volume Control

• When the BT LINK is turned on, it will automatically

search for cell phones and connection.

• Auto Power off when fully charged

• Standby time/ playing music: 150 hours

• Talk time/ continuously talking: 8 hours

BT LINK Module:

• Bluetooth Frequency: 2.402…2.480 GHz

• Bluetooth Frequency Hopping: 1600 hops/sec

• Bluetooth Operating Range: 10meters

• Operating temperature: -20C to 75C

• Storage temperature: -20C to 75C

• Audio Duplex: Full duplex -60 dBV

• Audio Output Level: 5 dBm

• Battery: Li-Polymer 3.7V 120 mA/H

• Charging Time: 2hrs

Speakers:

• Dimensions: 40mm

• Specications: 32ohm NdFeB speaker, plus grill cover

• Frequency response (in Hz): 20-20 KHz

• Sensitivity: 115 +/-3dB at 1 KHz
